Fractal Design Meshify 3 Black TG Light Tint - ATX Mid Tower PC Case (FD-C-MES3A-02)
Fractal Design Meshify 3 Black TG Light Tint mid-tower case supports ATX/E-ATX/Micro-ATX/Mini-ITX motherboards. Features 3x 140mm Momentum fans, 349mm GPU clearance, 180mm PSU support, and radiator compatibility up to 360mm front.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 331–360 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

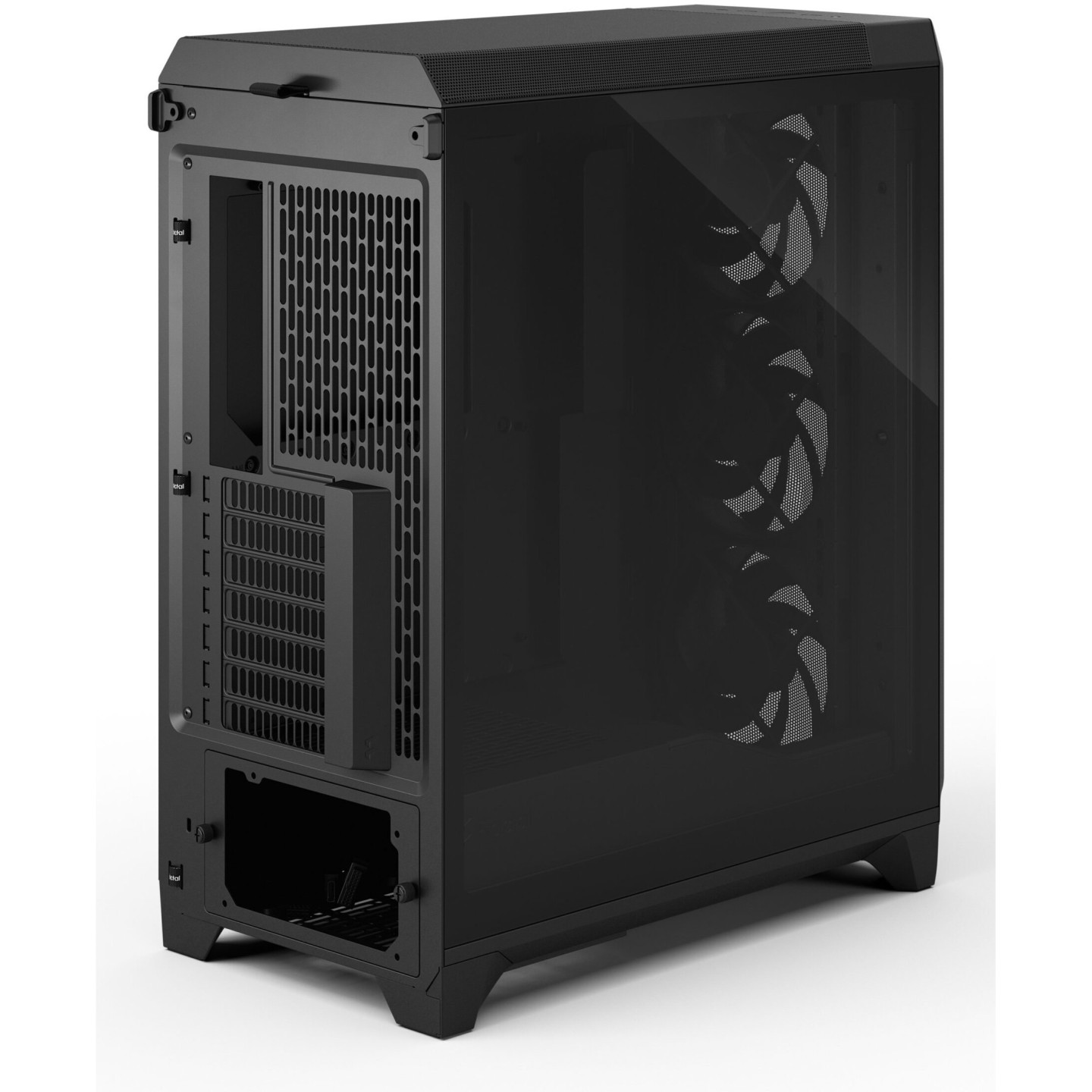

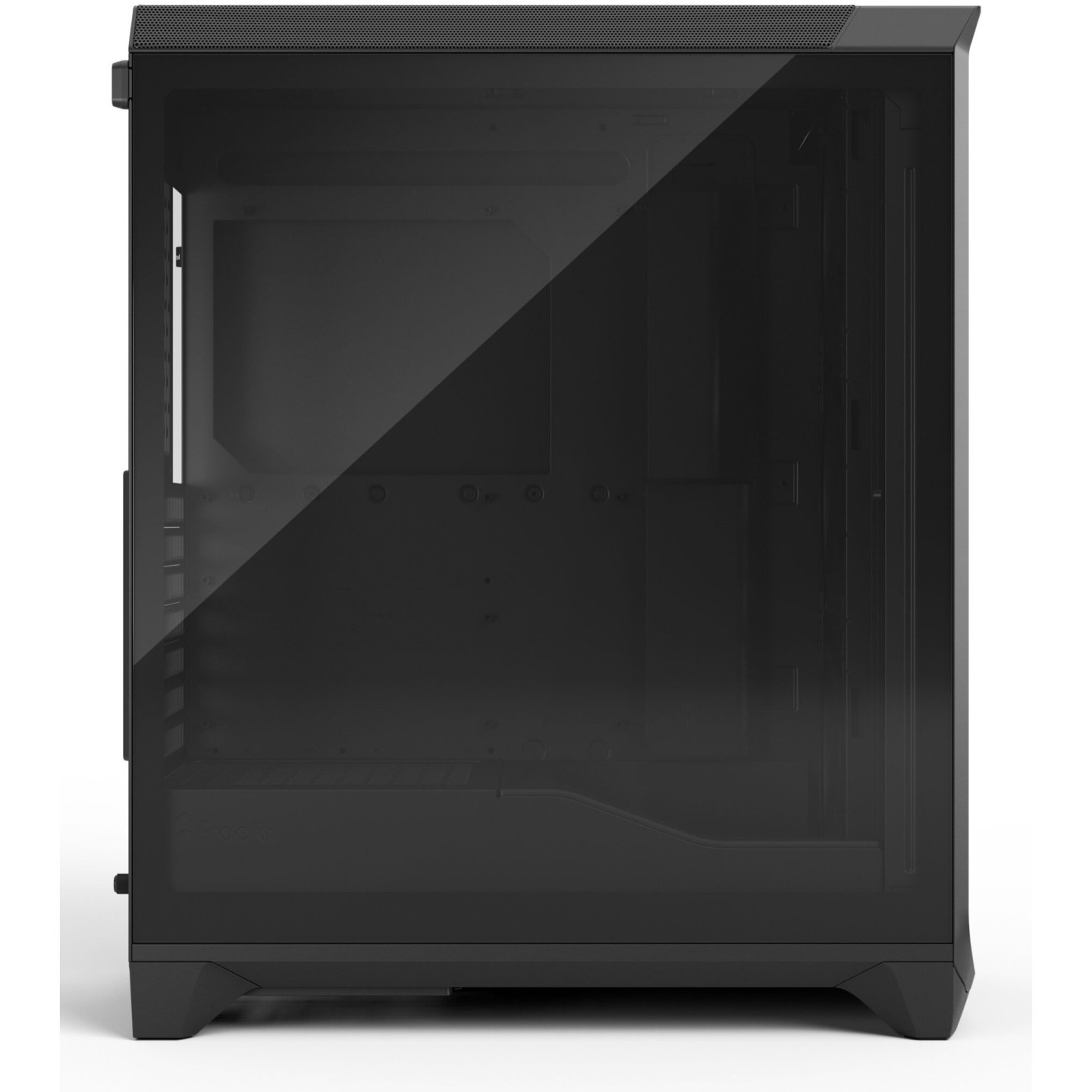

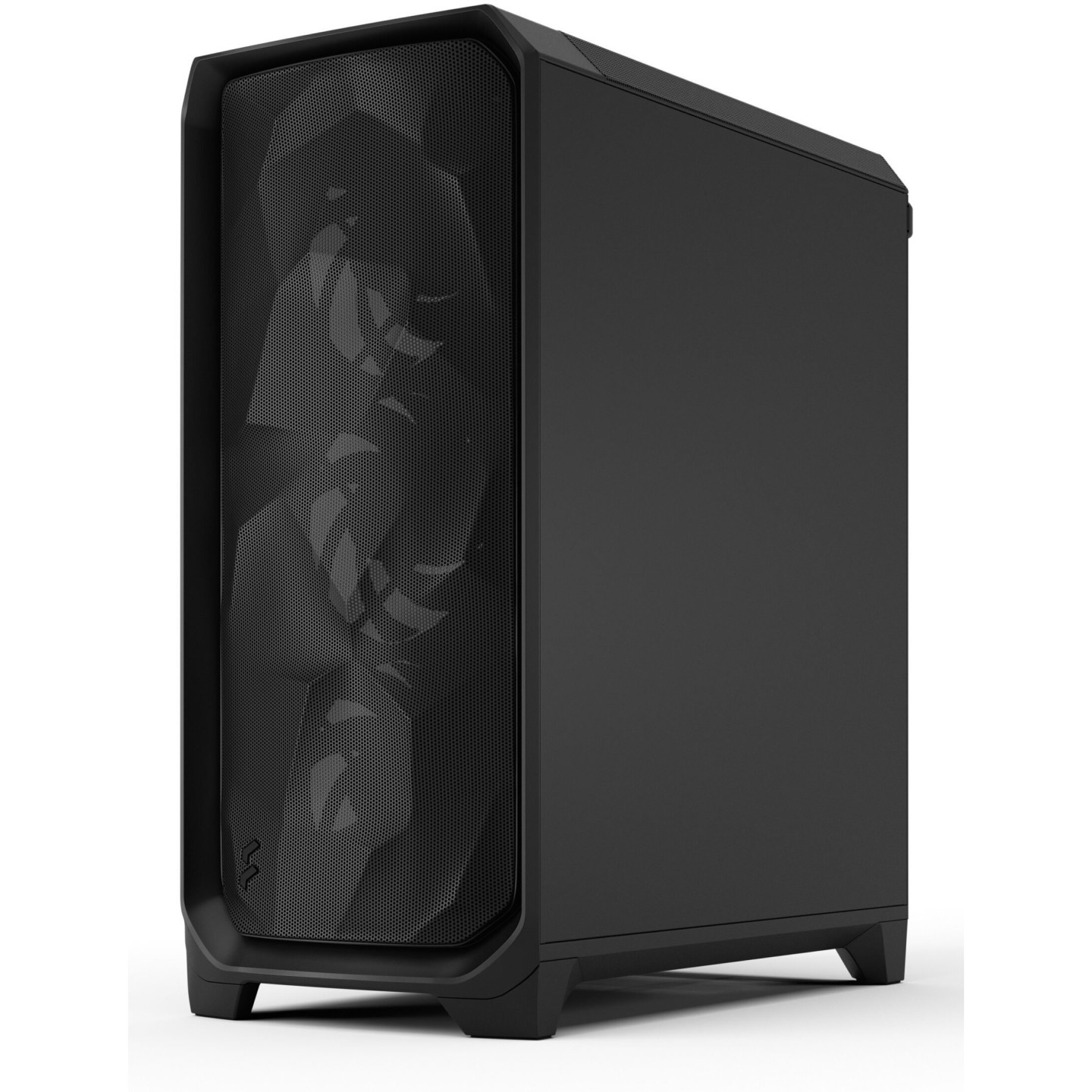

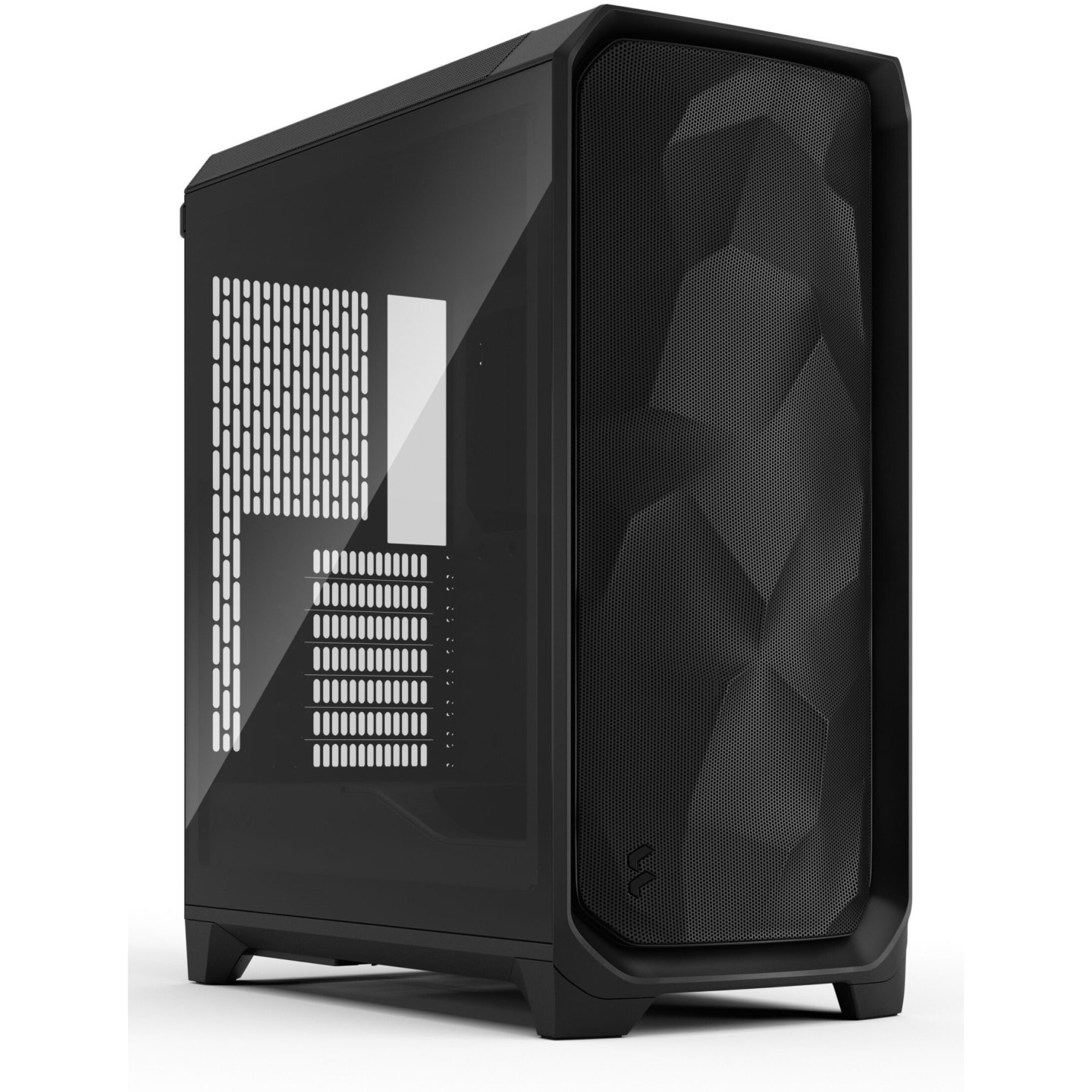

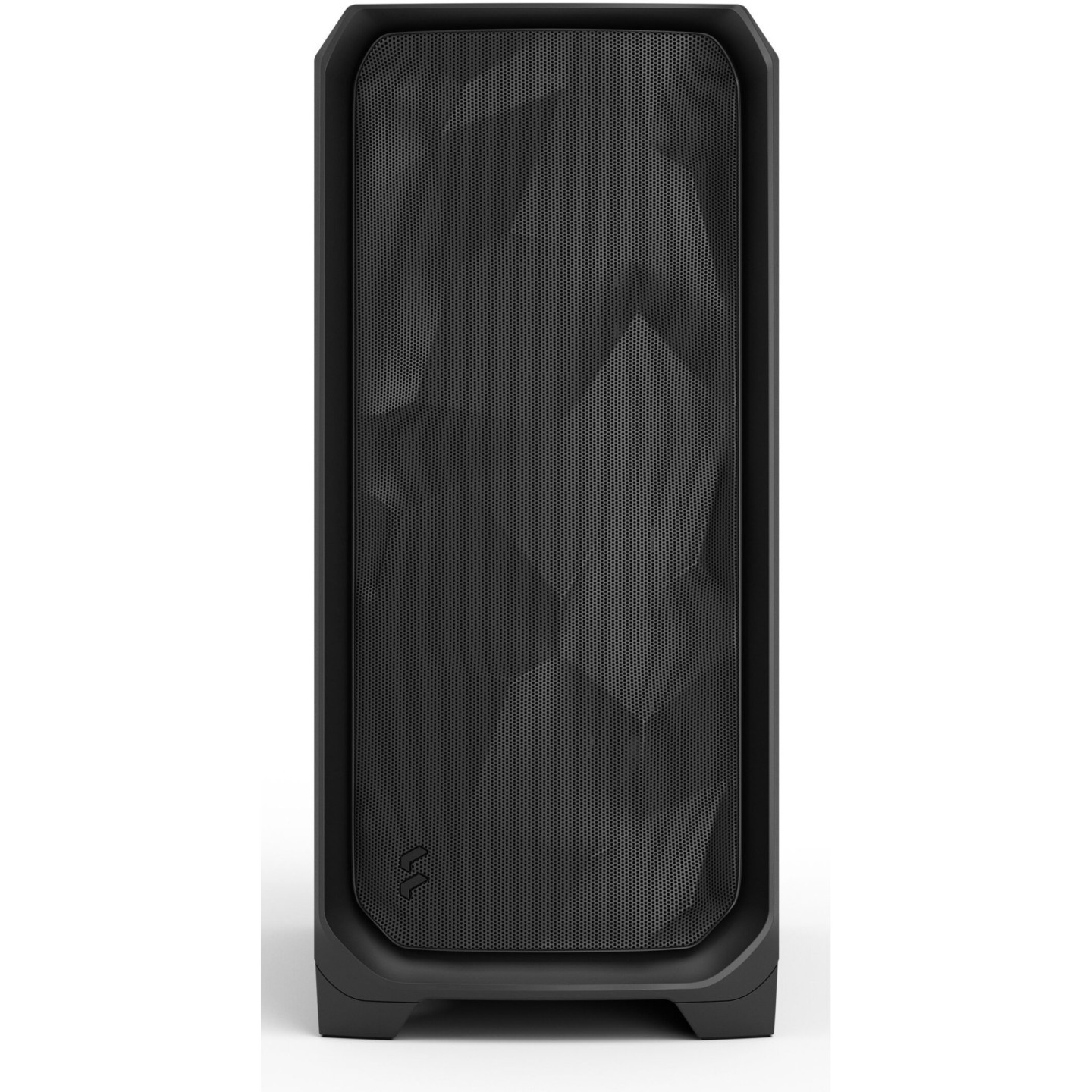

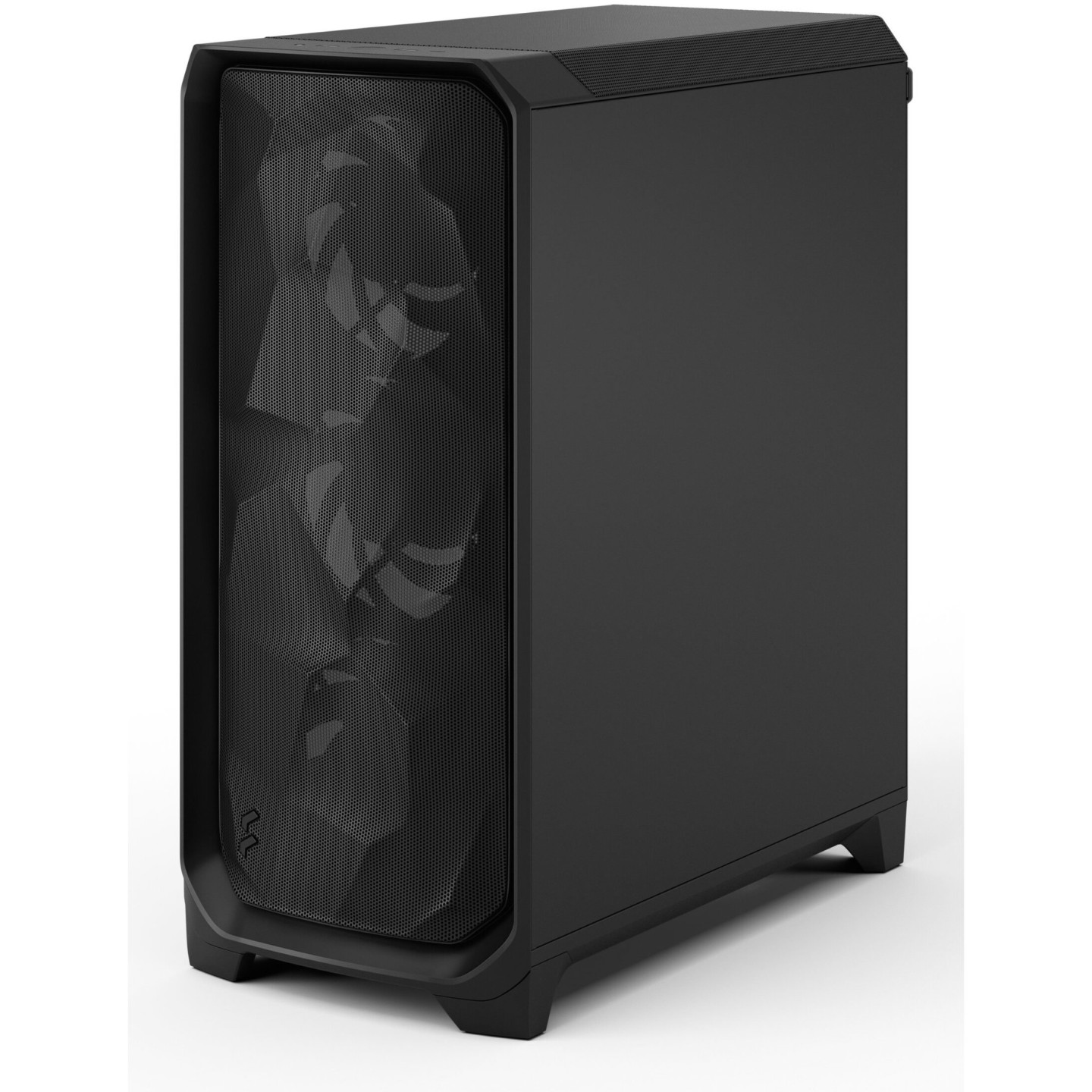

The Fractal Design Meshify 3 Black TG Light Tint is a high-performance ATX mid-tower PC case designed for enthusiasts seeking excellent cooling and clean aesthetics. This case combines a sleek, rockface-inspired mesh front panel with a light-tinted tempered glass side panel, offering both visual appeal and superior airflow. The case supports a wide range of motherboard form factors including ATX, E-ATX, Micro ATX, and Mini ITX, making it versatile for various build configurations.

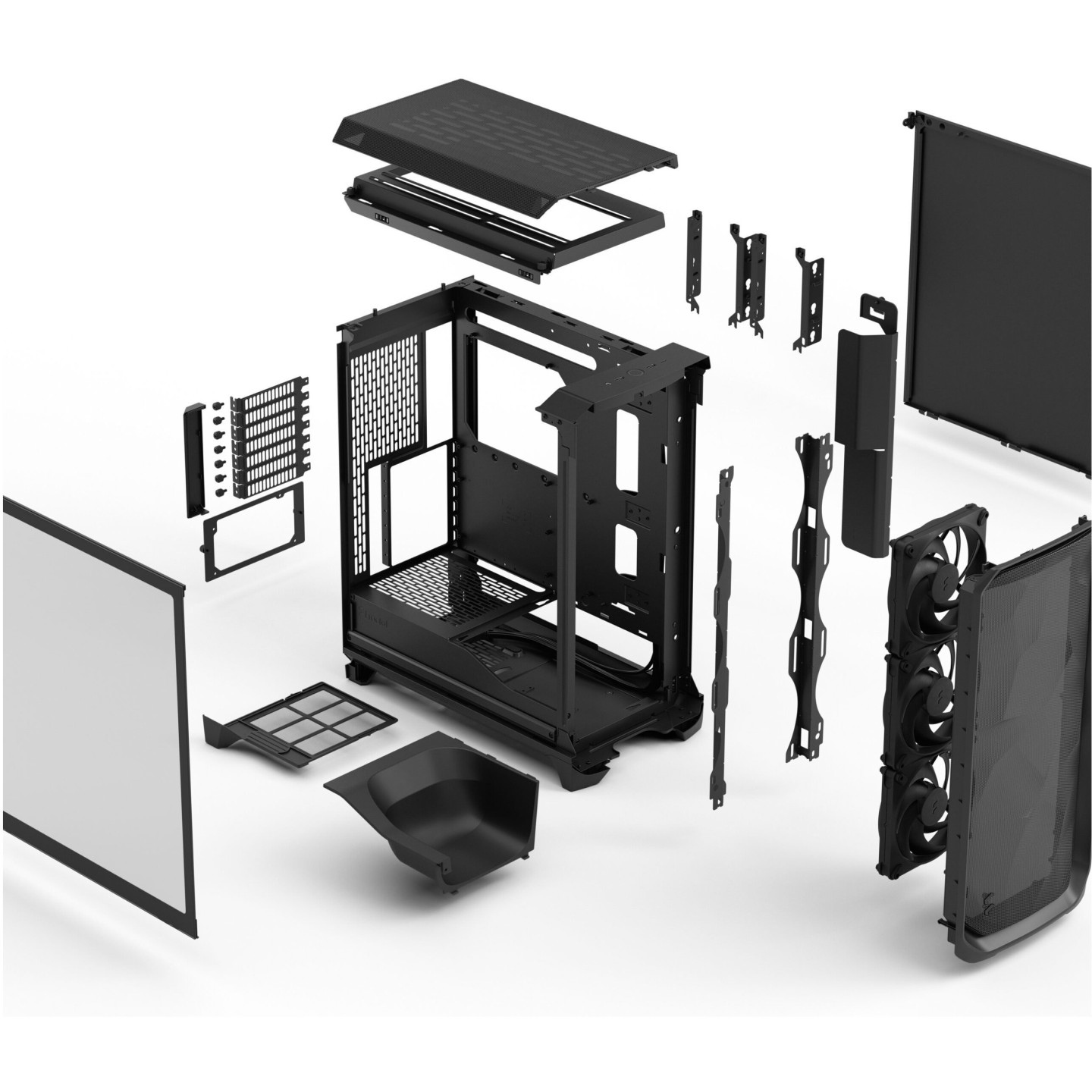

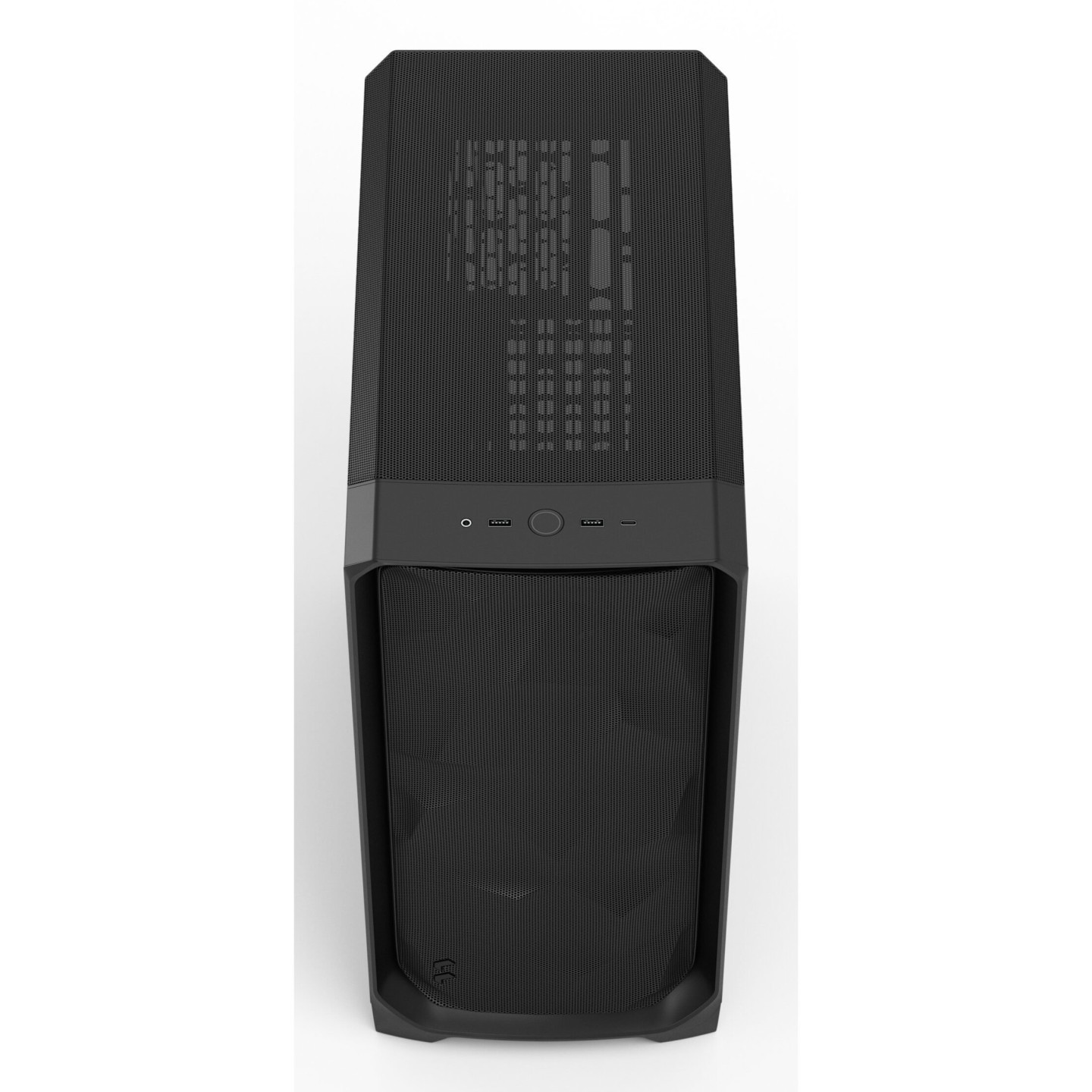

Built with performance engineering at its core, the Meshify 3 features three powerful pre-installed 140mm Momentum fans with LCP blades and true FDB bearings for optimal cooling performance. The case accommodates graphics cards up to 349mm in length and power supplies up to 180mm, with flexible radiator support including up to 360mm front, 280mm top, and 120mm rear options. The front I/O panel includes a modern 20 Gbps USB-C port, two USB-A ports, and a combined audio jack for convenient connectivity. Tool-less removable brackets and panels ensure a smooth, hassle-free building experience.
Key specifications and features:
- Case dimensions: 433 x 229 x 507 mm (LxWxH)
- Maximum GPU length: 349 mm
- Maximum CPU cooler height: 173 mm
- Maximum PSU length: 180 mm
- Motherboard compatibility: ATX, E-ATX, Micro ATX, Mini ITX
- Pre-installed fans: 3x 140mm Momentum
- Radiator support: Front 280/360mm, Top 240/280mm, Rear 120mm
- Storage: 2x 3.5" HDD, 4x 2.5" SSD bays
- Front I/O: 1x USB-C 20 Gbps, 2x USB-A, 1x Audio jack
- Material: Steel chassis with tempered glass side panel
- 2-year manufacturer warranty
| Type | PC Case |
| Form Factor | ATX Mid Tower |
| Color | Black |
| Material | Steel, Tempered Glass |
| Motherboard Support | ATX, E-ATX, Micro ATX, Mini ITX |
| Case Dimensions (L x W x H) | 433 x 229 x 507 mm |
| Case Dimensions without Feet (L x W x H) | 423 x 229 x 483 mm |
| Package Dimensions (L x W x H) | 596 x 345 x 550 mm |
| Net Weight | 8.8 kg |
| Gross Weight (Boxed) | 10.6 kg |
| Maximum GPU Length | 349 mm |
| Maximum GPU Height | 176 mm (slot 7, including cables) |
| Maximum CPU Cooler Height | 173 mm |
| Maximum PSU Length | 180 mm |
| Power Supply Location | Bottom |
| Supported Power Supply Form Factors | ATX |
| Pre-installed Fans | 3x 140mm Momentum |
| Front Fan Support | Up to 3x 120/140mm |
| Rear Fan Support | 1x 120mm |
| Top Fan Support | 2x 120/140mm |
| Front Radiator Support | 280mm, 360mm |
| Top Radiator Support | 240mm, 280mm |
| Rear Radiator Support | 120mm |
| 3.5 | 2 |
| 2.5 | 4 |
| Expansion Slots | 7 |

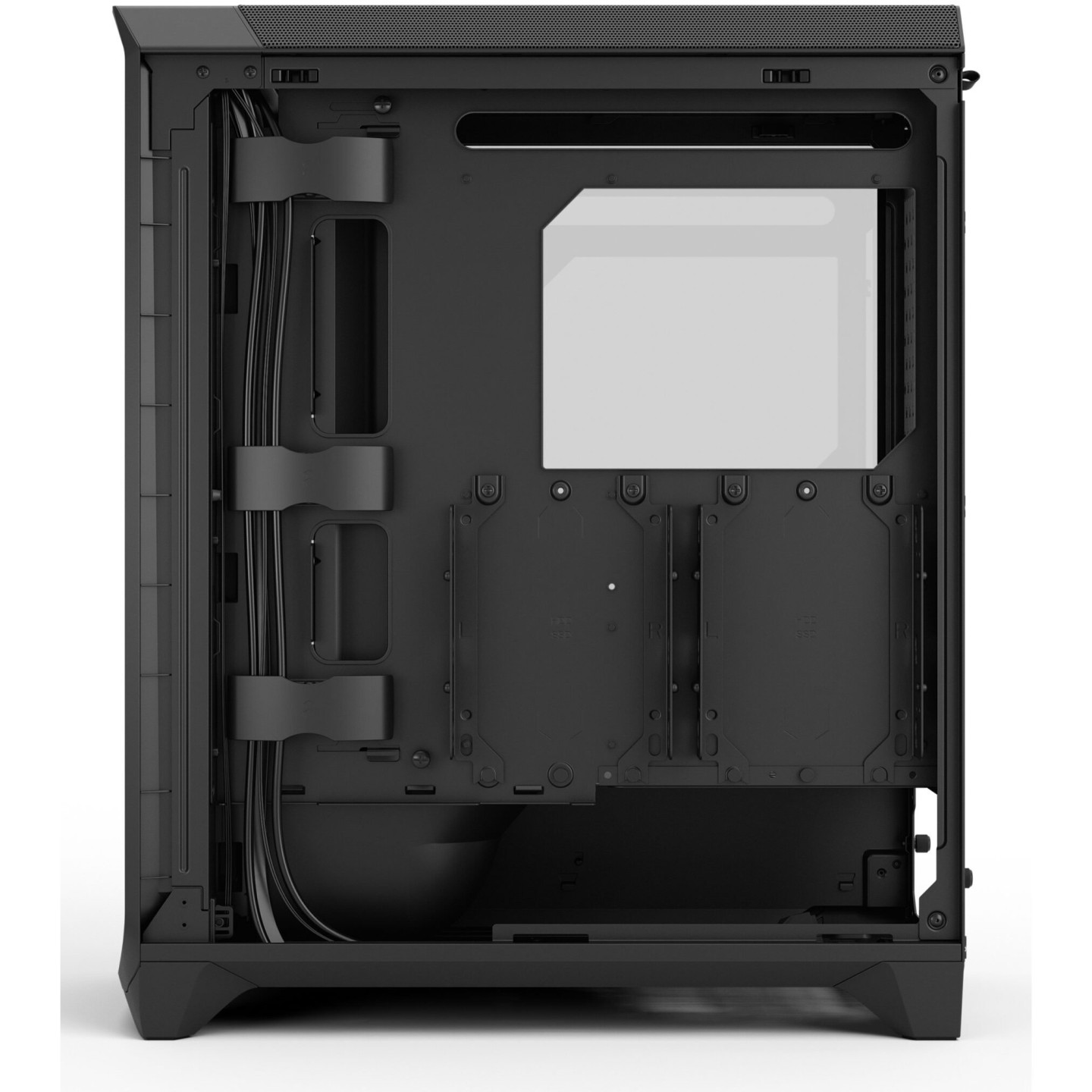

| Cable Routing Space | 34.5 mm |
| Front I/O - USB Type-C | 1x USB 3.2 Gen 2x2 (20 Gbps) |
| Front I/O - USB Type-A | 2x USB 3.2 Gen 1 (5 Gbps) |
| Front I/O - Audio | 1x Combined Audio Jack |
| Tempered Glass | Light Tint Side Panel |
| Warranty | 2 Years |
| Manufacturer Part Number | FD-C-MES3A-02 |
| EAN | 7340172707172 |
| UPC | 843276107178 |
