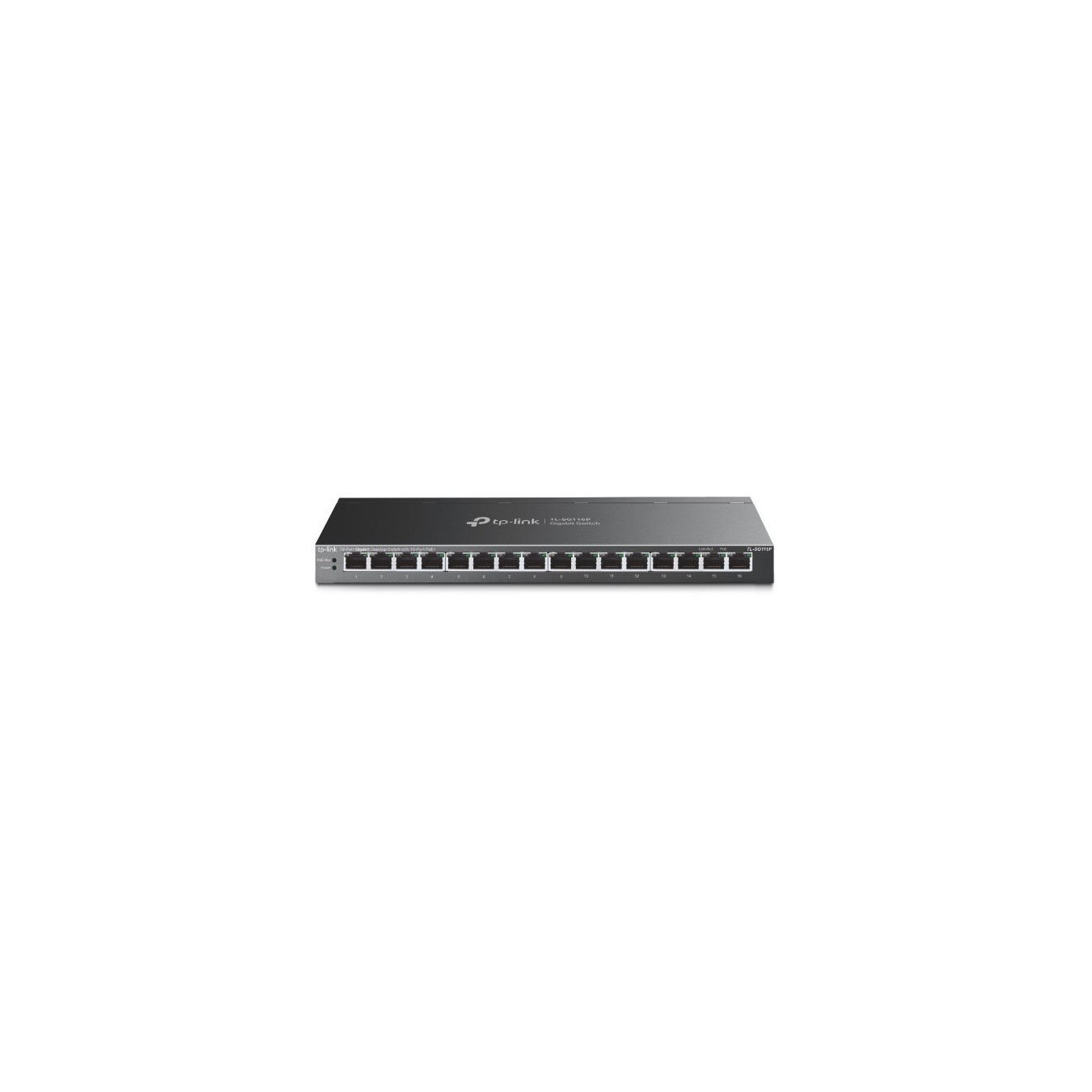

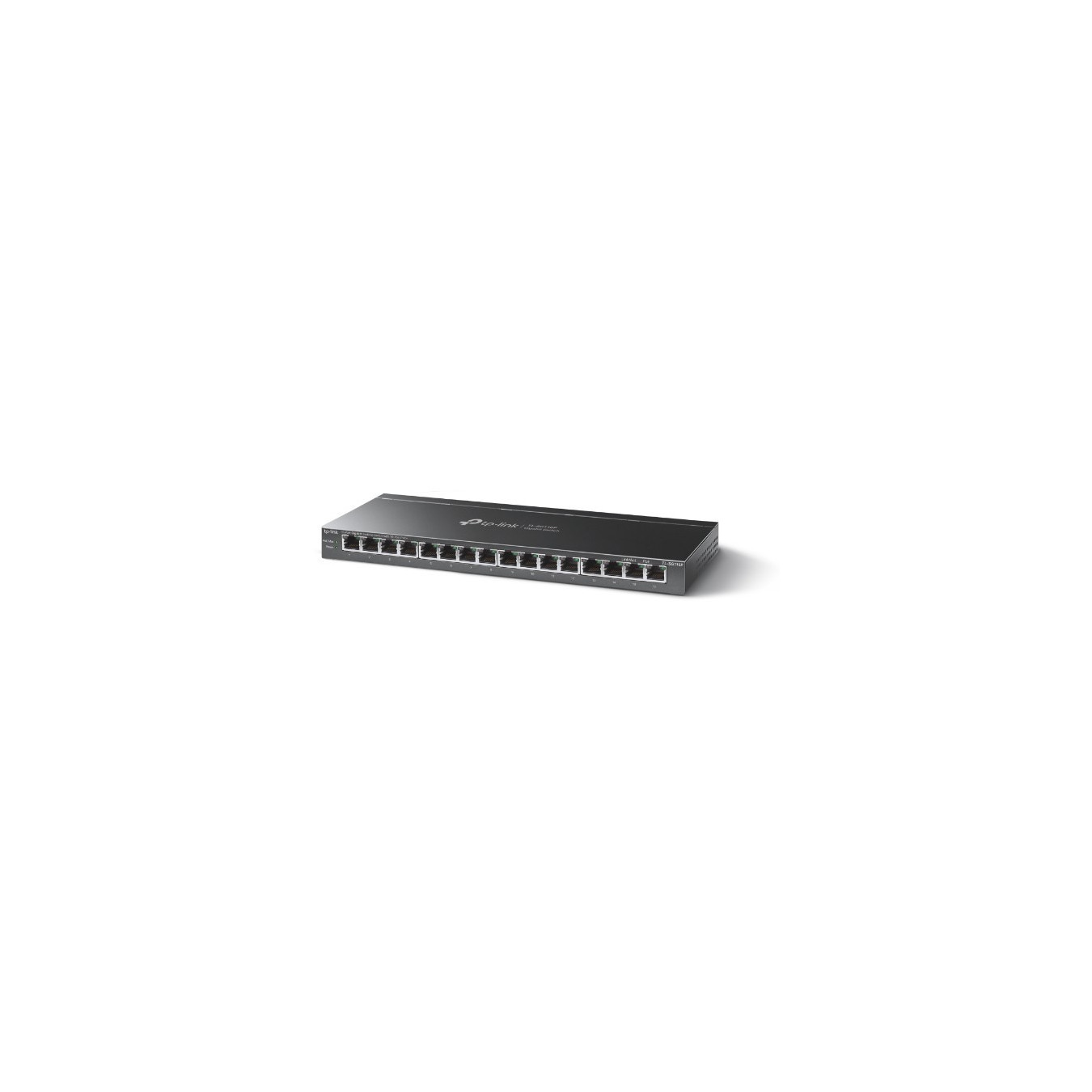

TP-Link TL-SG116P - 16-Port Gigabit PoE+ Unmanaged Switch - Black
16x Gigabit PoE+ unmanaged switch with 130W budget, fanless, wall-mountable, 16 Gigabit ports, IEEE 802.1Q/1p/3ab/3u compatibility.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable
| Switch type | Unmanaged |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Virtual LAN features | Protocol-based VLAN. Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Product colour | Black |
| Housing material | Metal |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (typical) | 11.72 W |
| Power consumption (max) | 144.28 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 490.55 BTU/h |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Package width | 227 mm |
| Package depth | 434 mm |
| Package height | 70 mm |
| Package weight | 2 kg |
