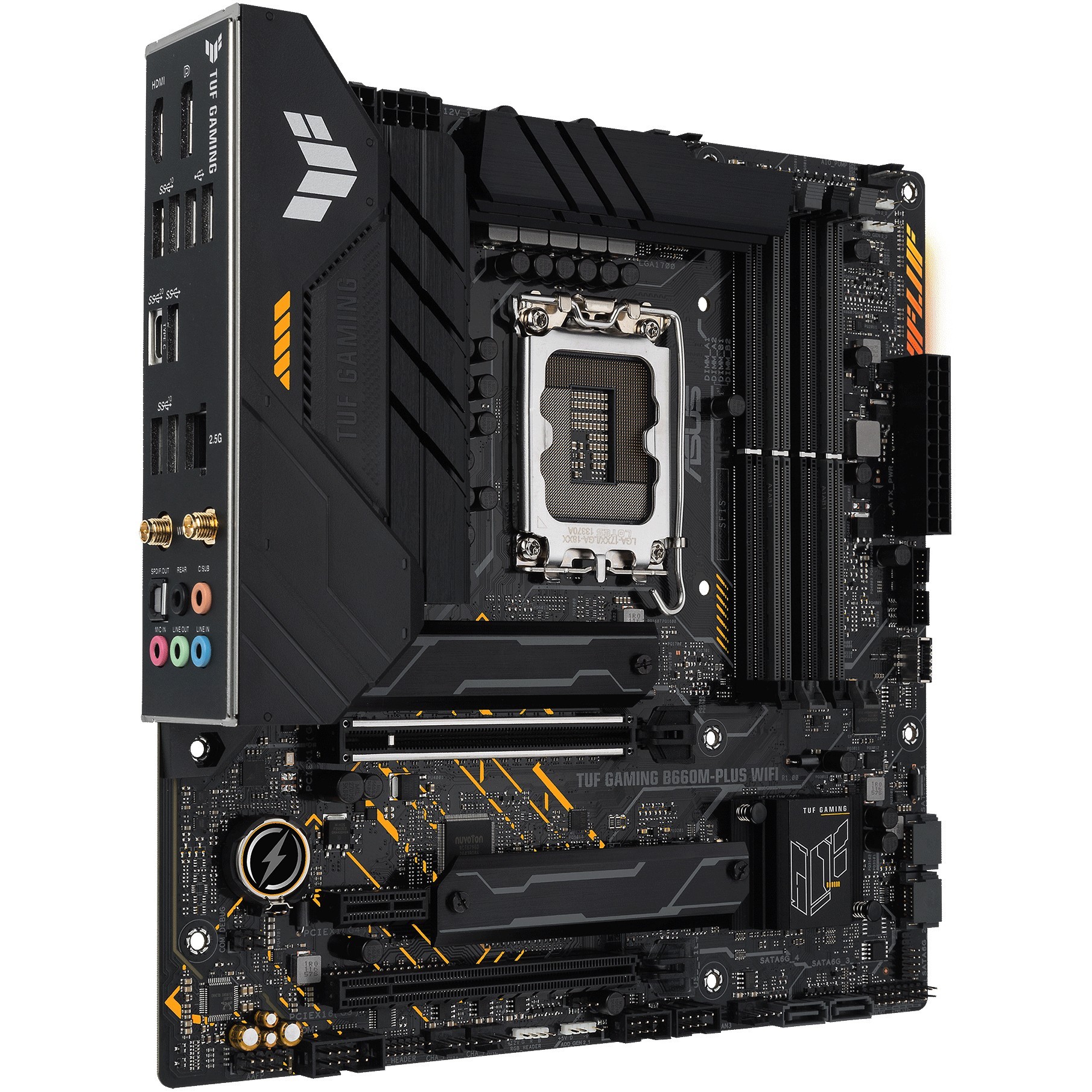

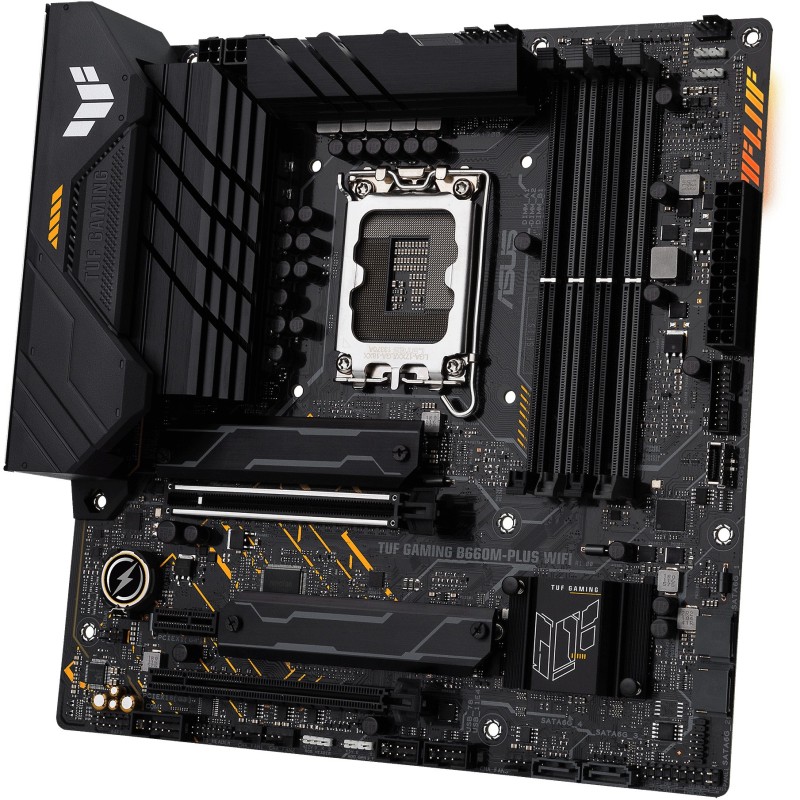

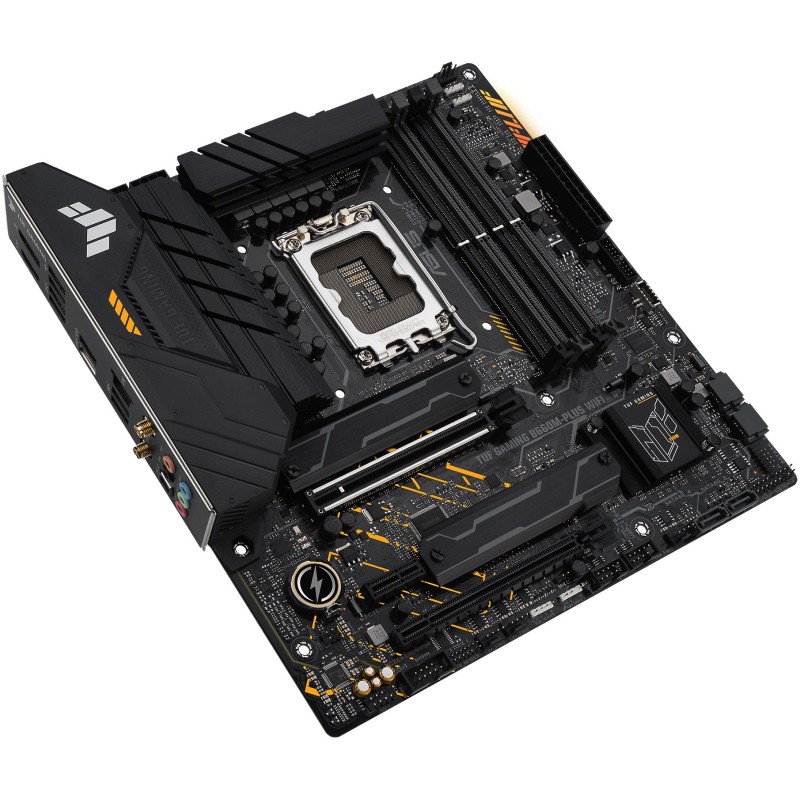

ASUS TUF GAMING B660M-PLUS WIFI - B660M-PLUS WIFI - microATX DDR5, 2x M.2, LGA1700, Wi-Fi 6
Micro-ATX LGA1700 motherboard with Intel B660, DDR5 up to 128GB, 2x M.2, 4 SATA, HDMI 2.1, Wi-Fi 6, Bluetooth 5.2, and 2.5Gb Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B660 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 3.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
ASUS TUF GAMING B660M-PLUS WIFI. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9..... Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. PCI Express 4.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Ethernet interface type: 2.5 Gigabit Ethernet. Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000 MHz |
| Maximum internal memory | 128 GB |
| Feature | Clear CMOS jumper |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. PCI Express 4.0. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |

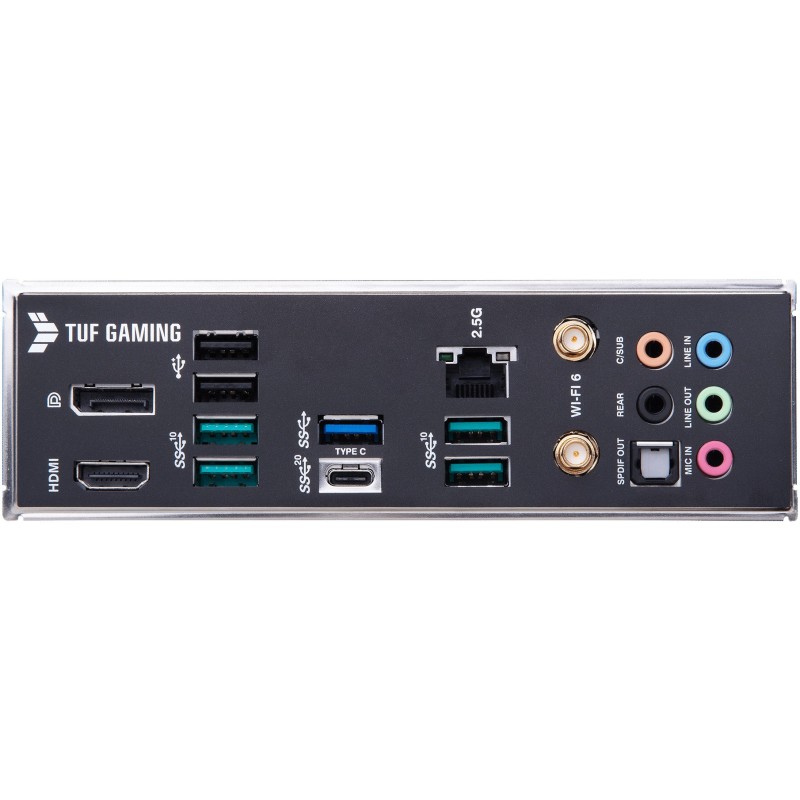

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 5 |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Motherboard chipset | Intel B660 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 68 mm |

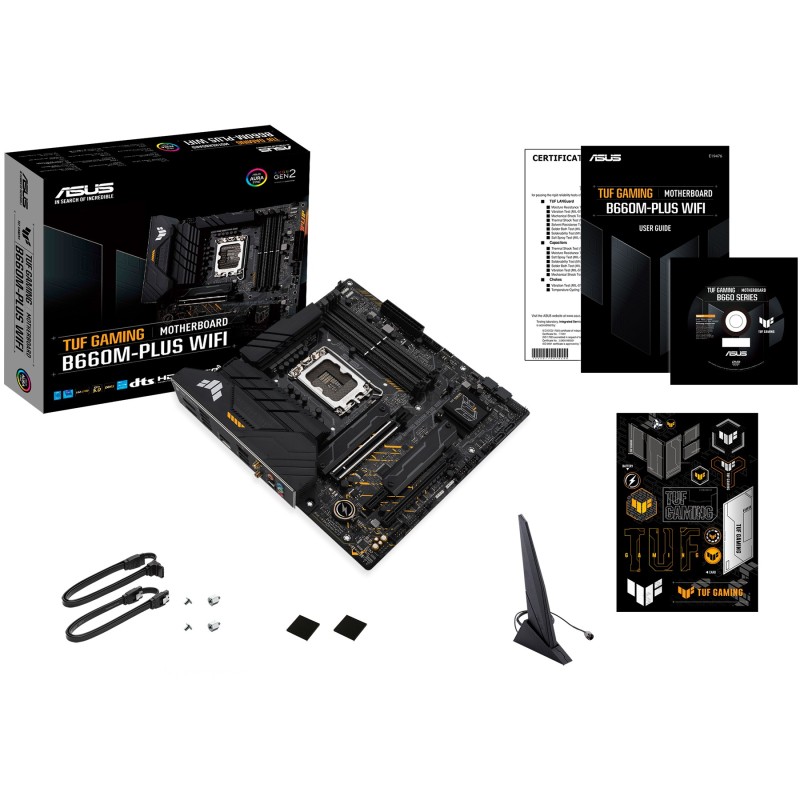

| Cables included | SATA |
| Weight | 1.35 kg |
