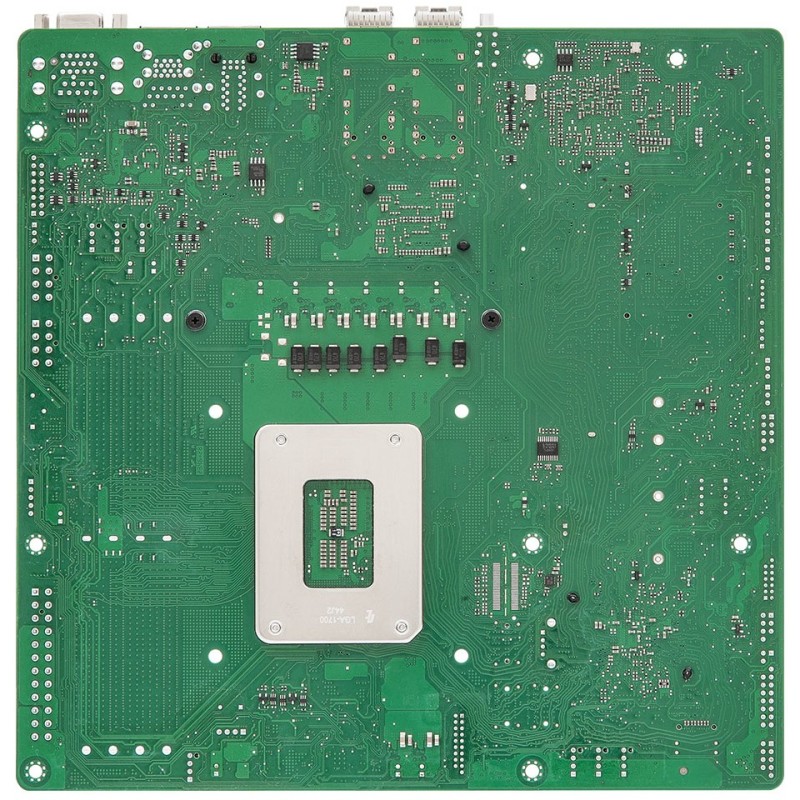

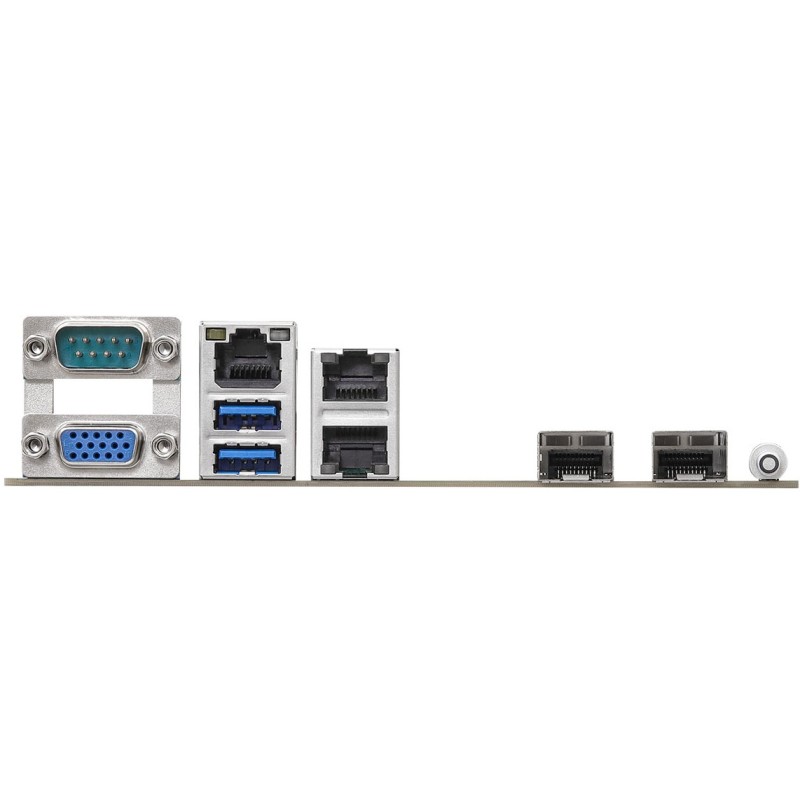

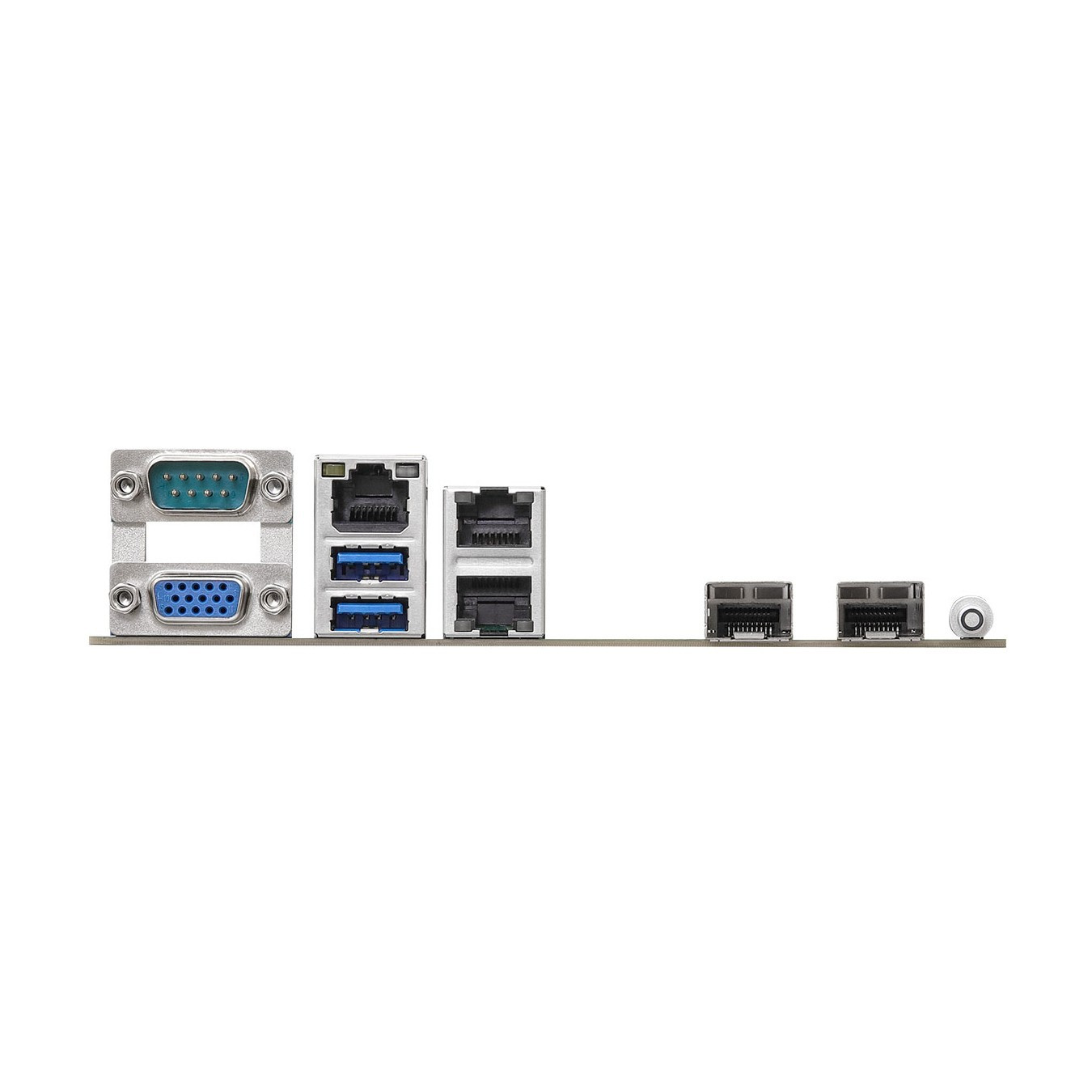

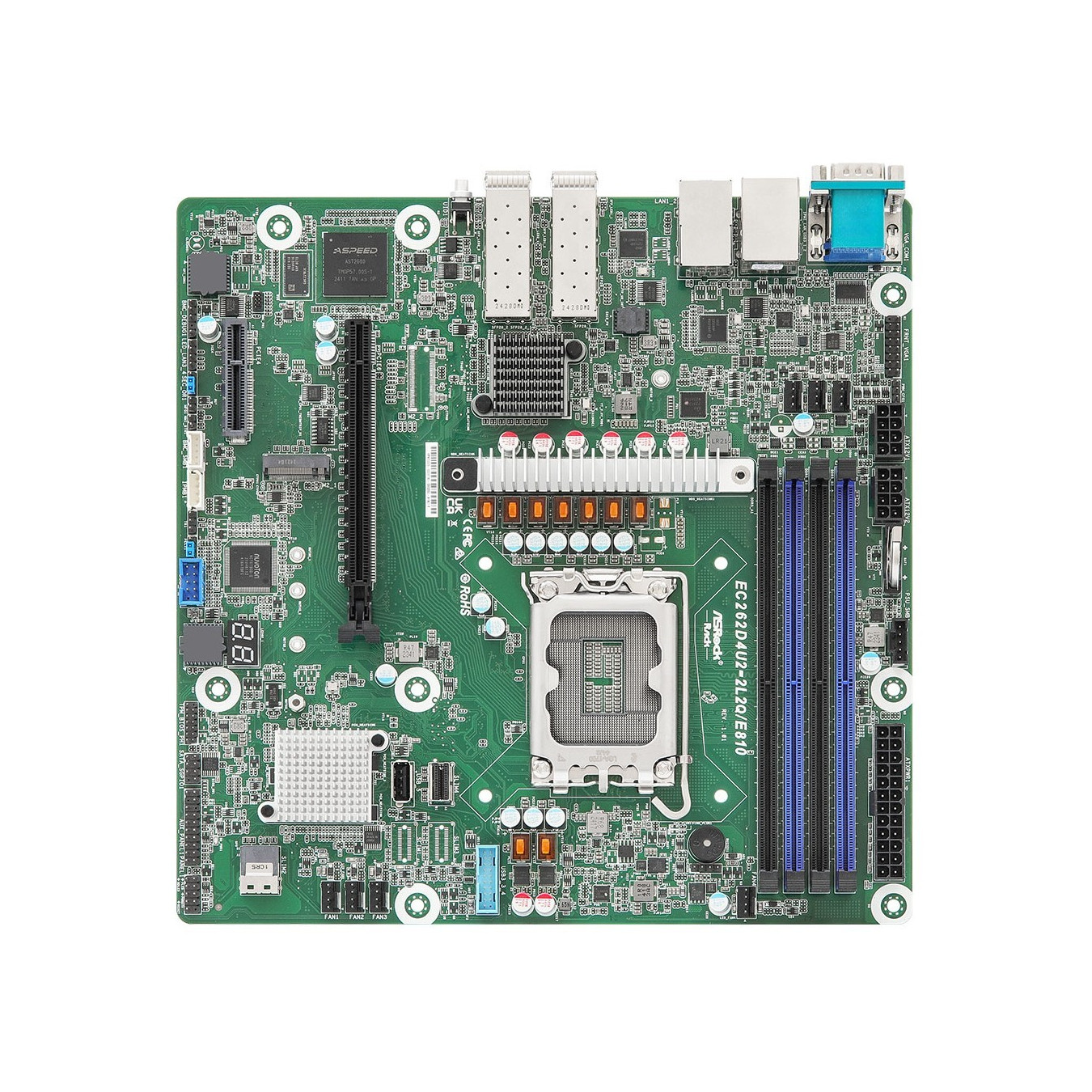

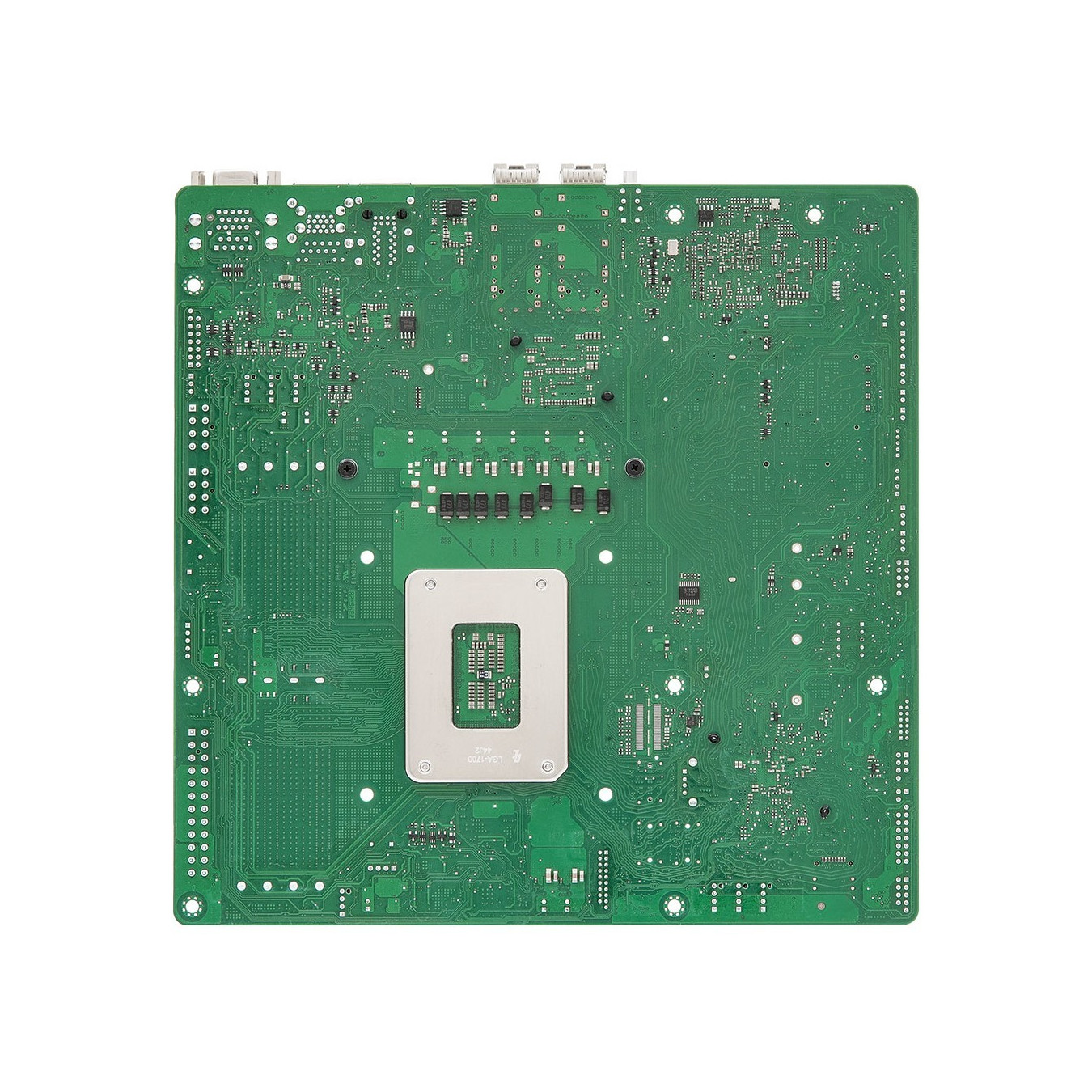

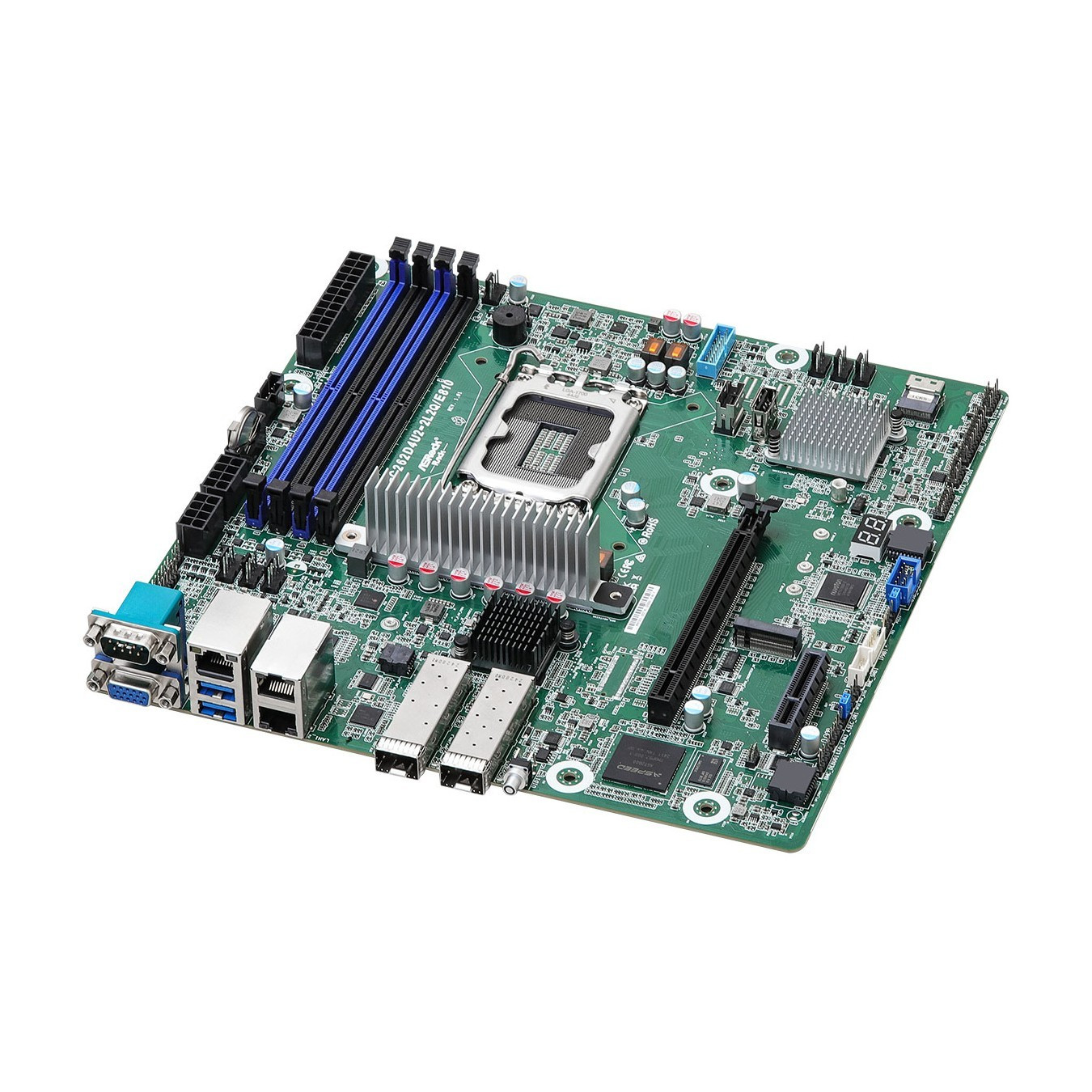

ASRock Mainboard - EC262D4U2-2L2Q - LGA1700 DDR5 Micro-ATX
DDR5 micro-ATX motherboard with LGA1700 socket, 4 DIMM slots, Xeon compatibility, 2 LAN, 5 SATA, PCIe Gen5 x16.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
Asrock EC262D4U2-2L2Q/E810. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. Memory voltage: 1.1 V. Supported storage drive interfaces: M.2. SlimSAS. RAID levels: 0. 1. 5. 10. Motherboard form factor: micro ATX. Motherboard chipset family: Intel. Motherboard chipset: Intel C262. BIOS type: AMI. BIOS memory size: 256 Mbit
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| ECC сompatibility | ECC |
| Supported storage drive interfaces | M.2. SlimSAS |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Motherboard chipset | Intel C262 |
| PC health monitoring | CPU. Fan |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 244 mm |
| Depth | 244 mm |
