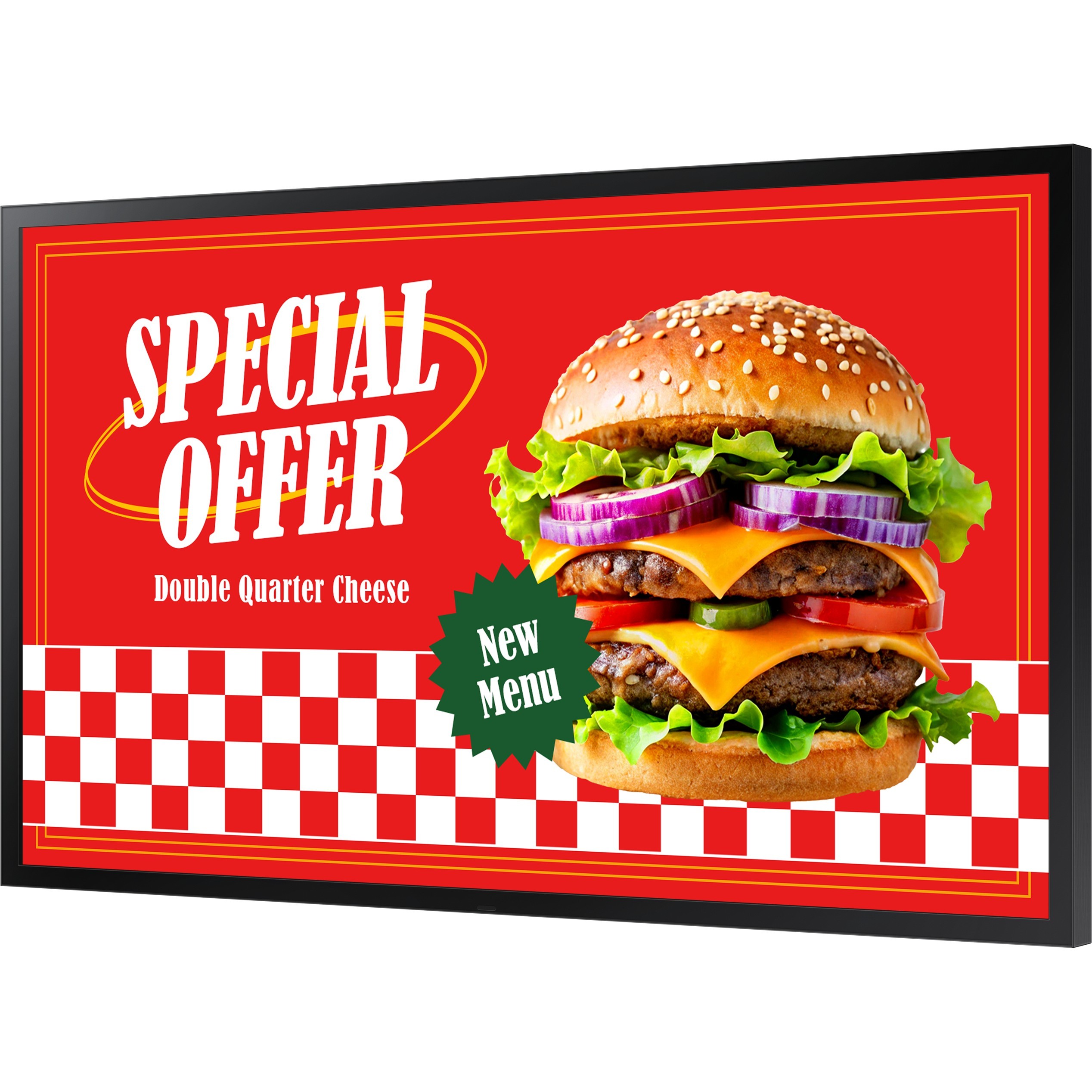

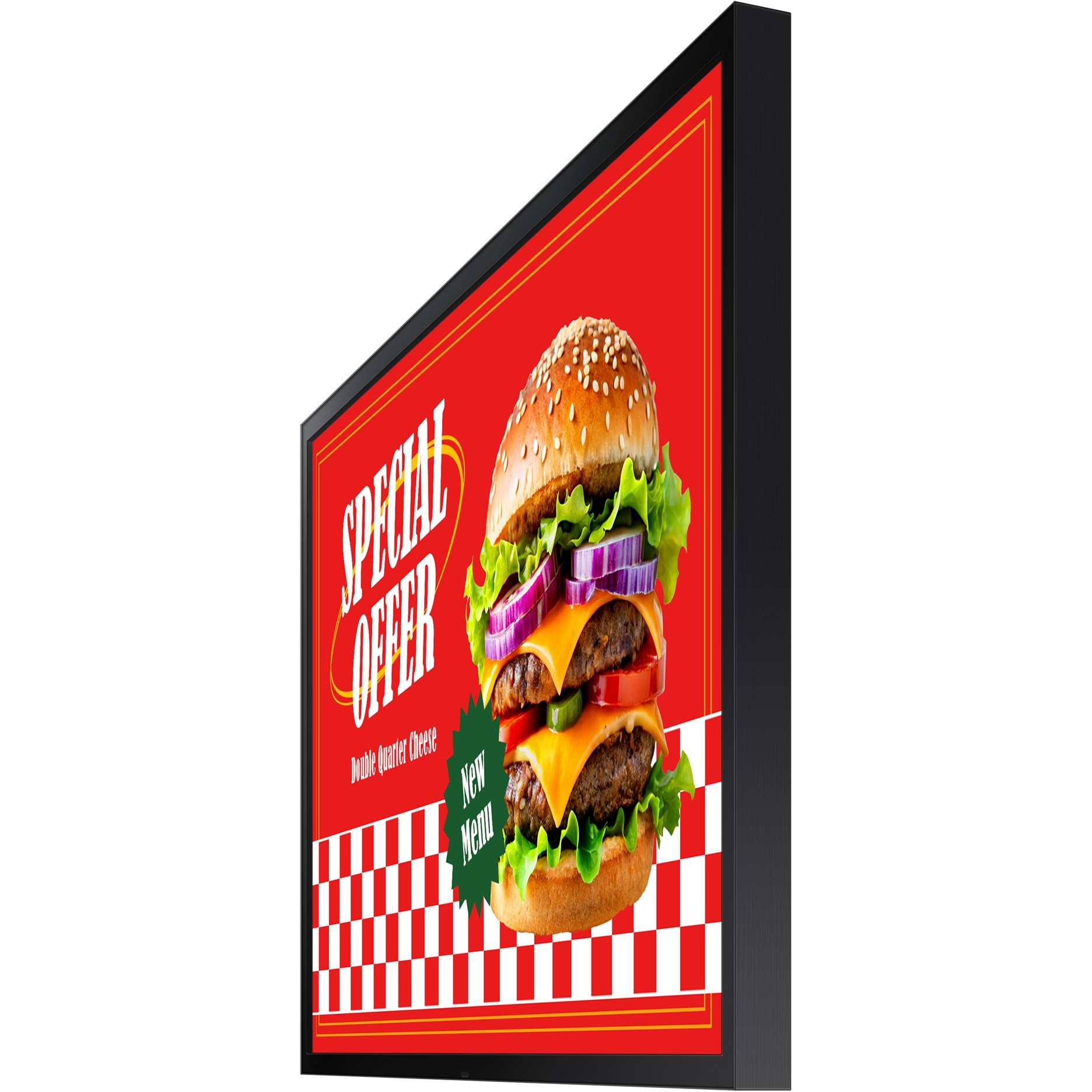

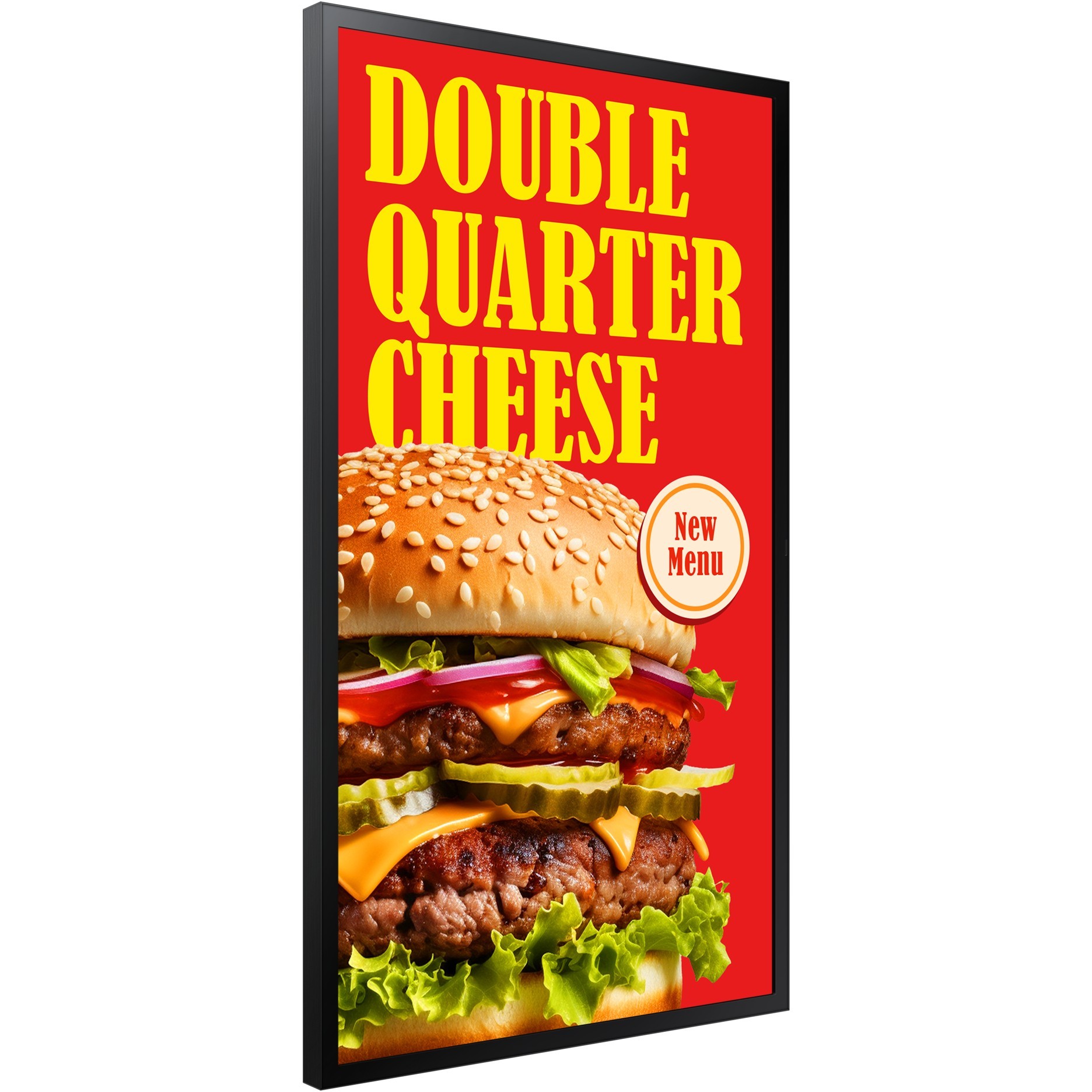

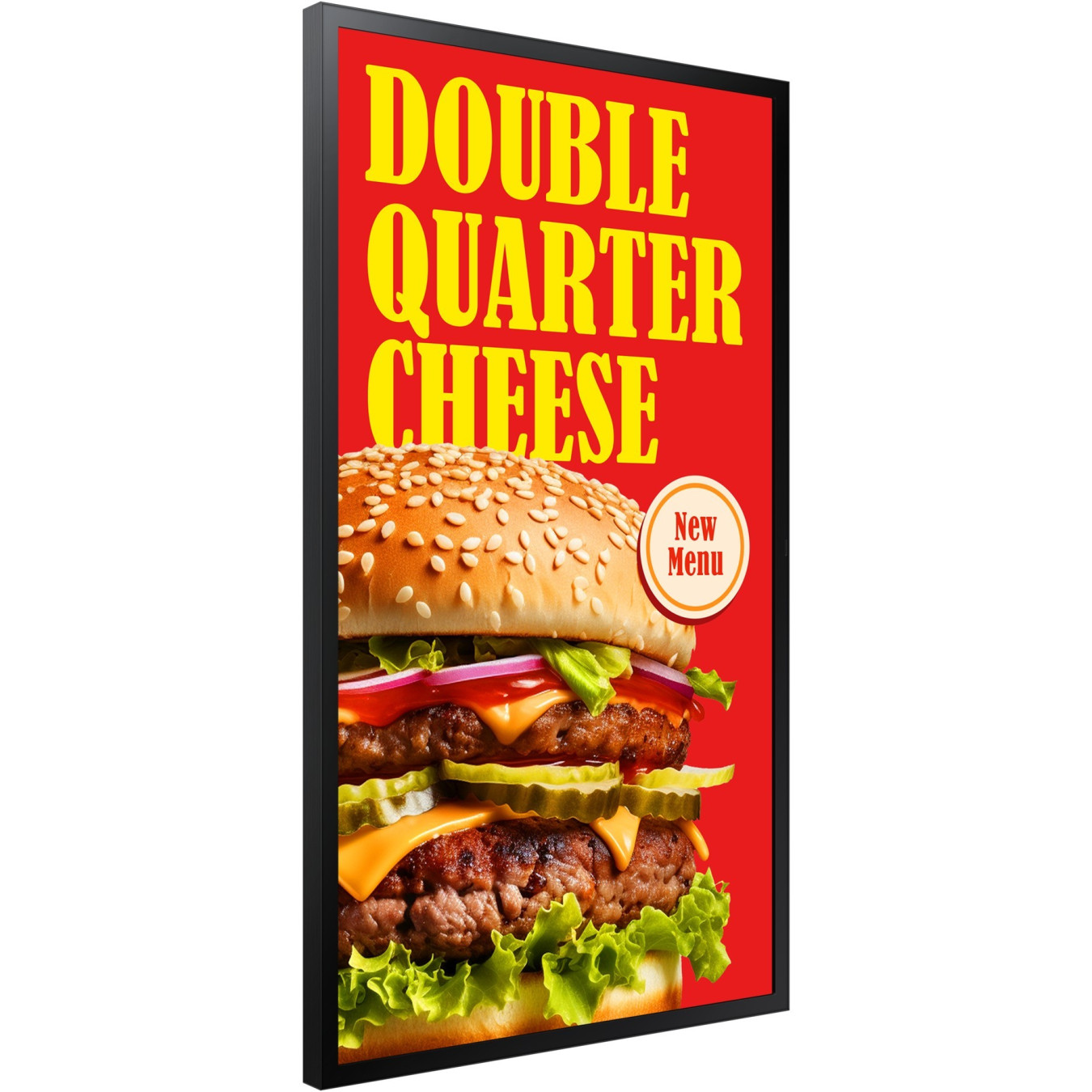

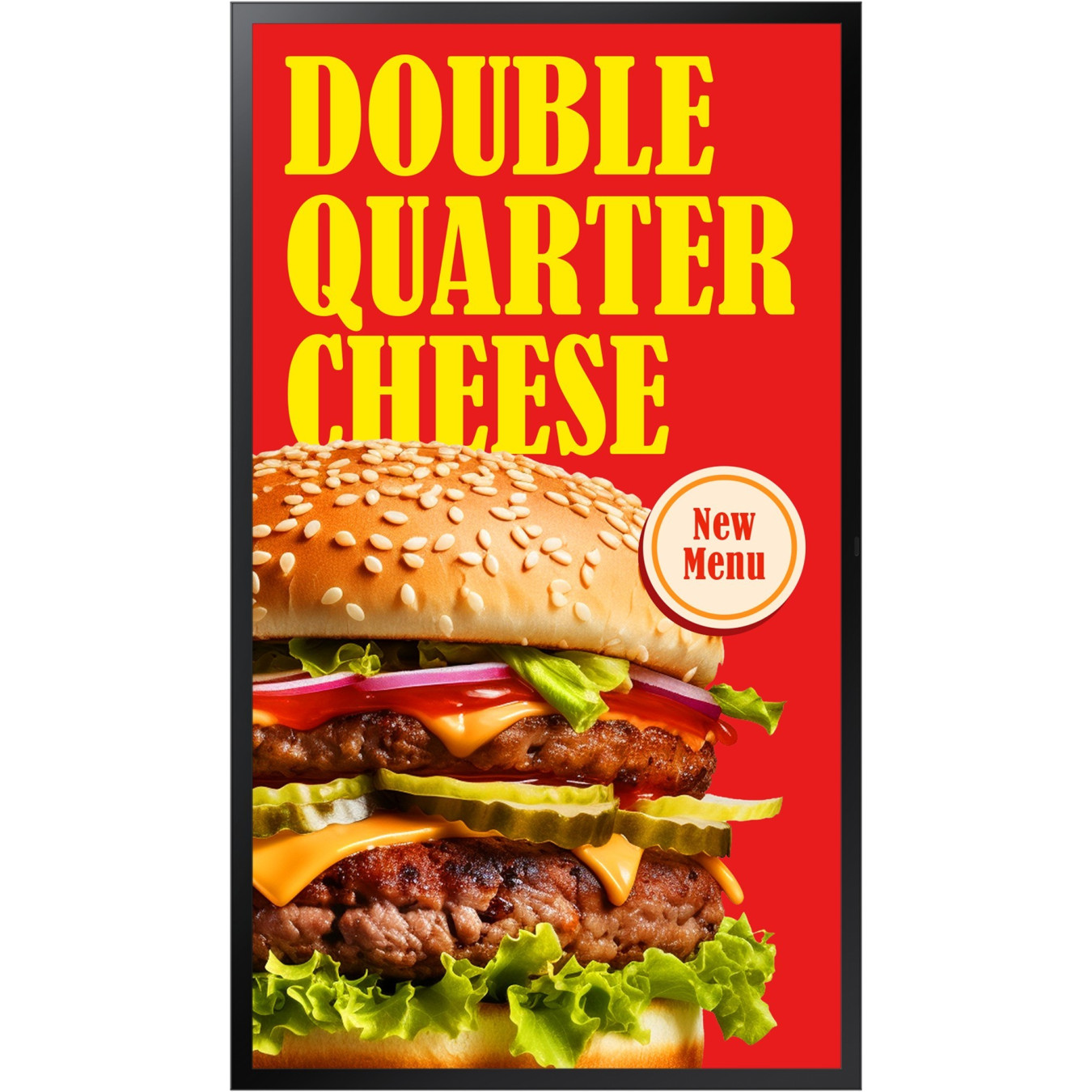

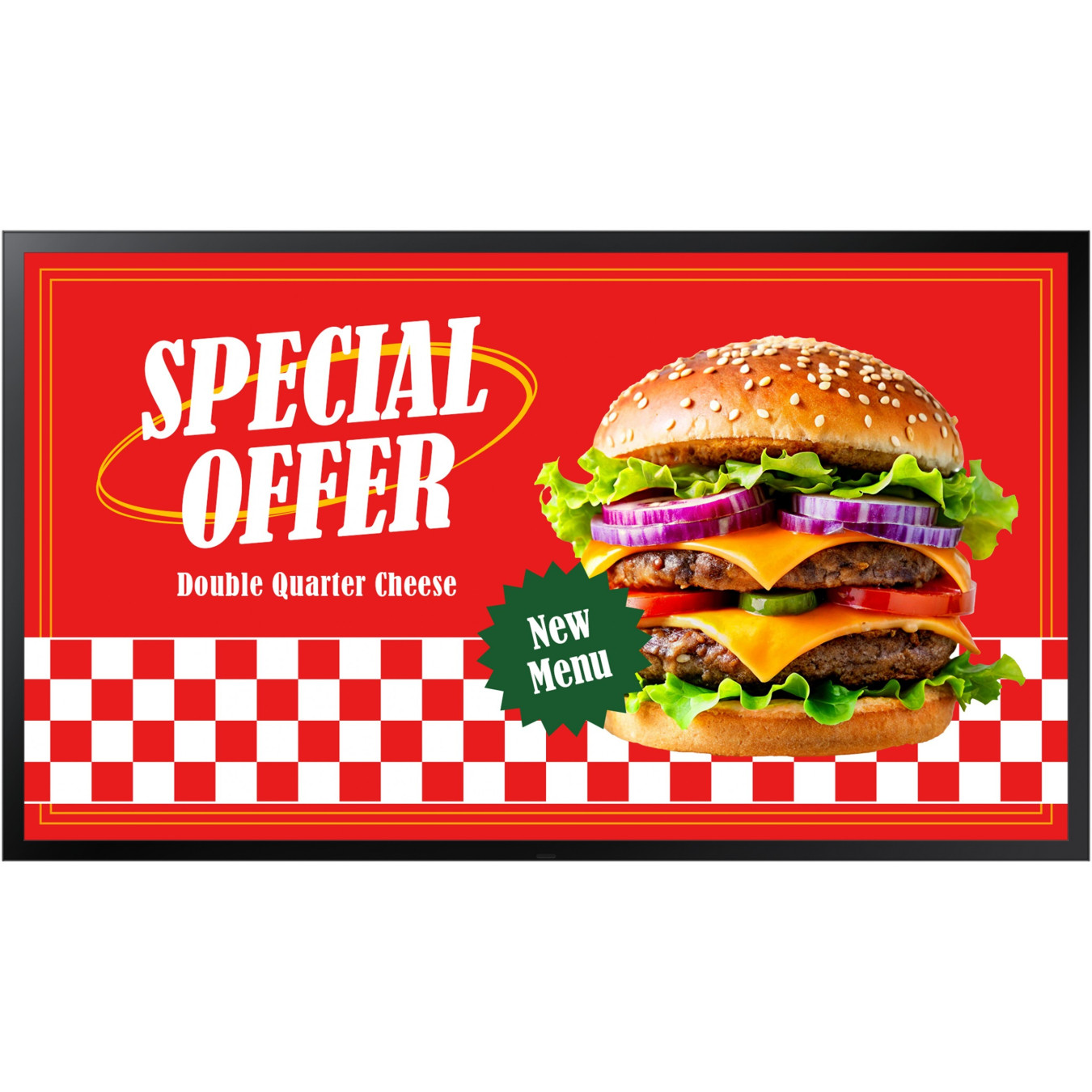

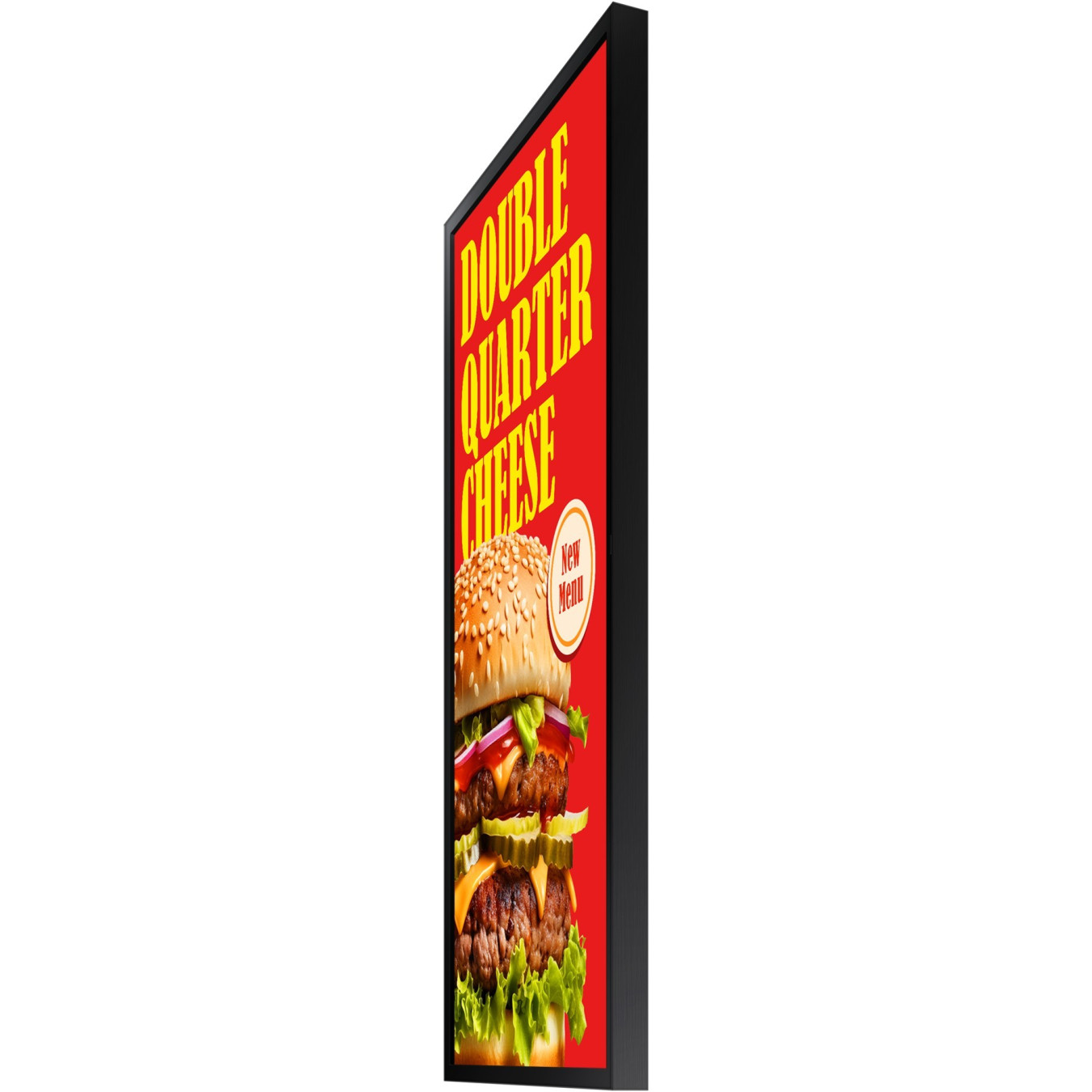

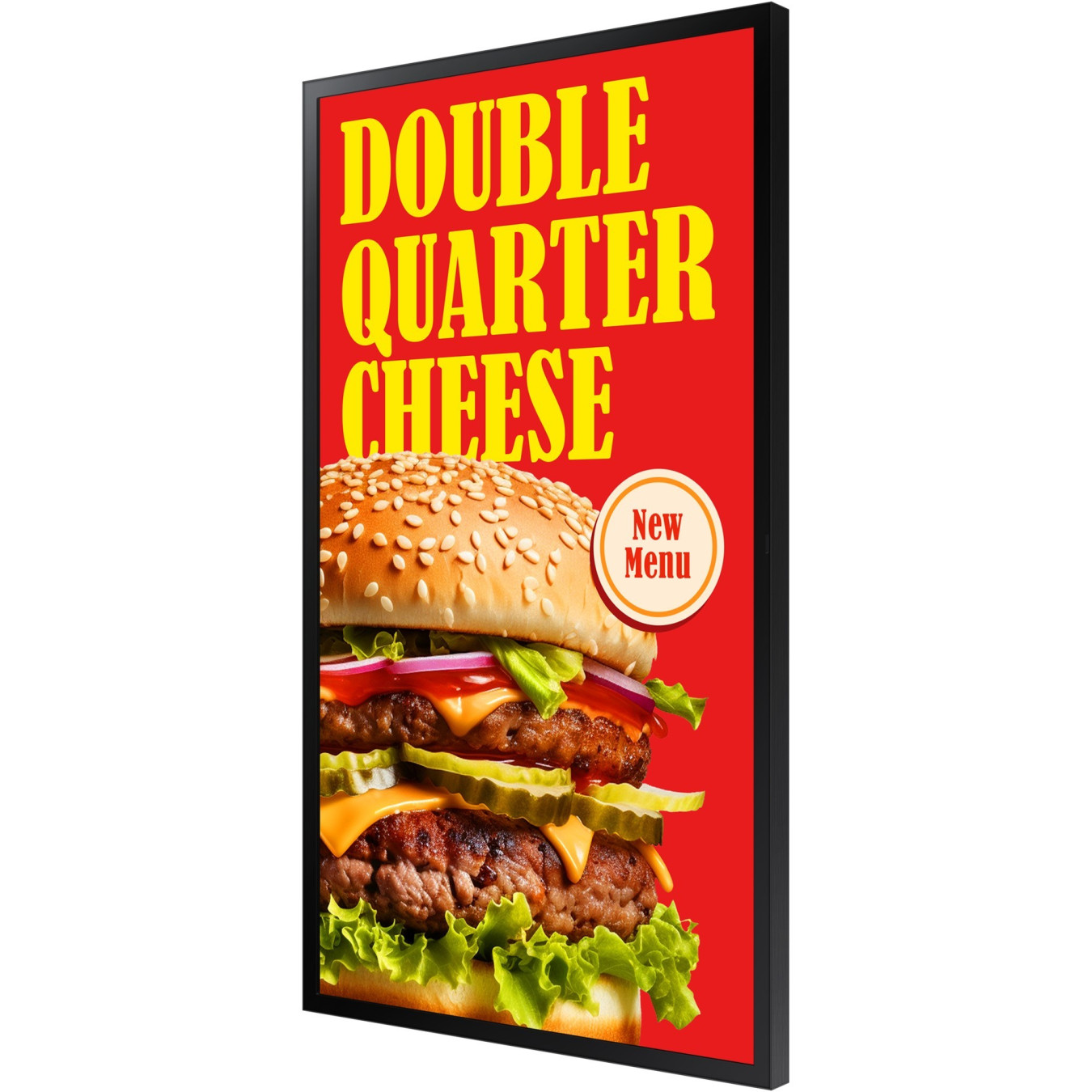

Samsung Smart Signage - OH55DX - 55in Black VA LCD, Outdoor IP56, 24/7, Tizen OS, BT, 2x HDMI 2.0
55in Samsung OH55DX digital signage with VA LCD, FHD 1920x1080, 3500 cd/m² brightness, outdoor IP56, 24/7 operation, BT, Tizen OS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | VA |
|---|---|
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
Samsung OH55DX. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"). Display technology: LCD. Display resolution: 1920 x 1080 pixels. Display brightness: 3500 cd/m². HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black
| Panel type | VA |
| Display diagonal | 139.7 cm (55") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 3500 cd/m² |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Response time | 6 ms |
| Contrast ratio (typical) | 6000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Pixel pitch | 0.63 x 0.63 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Haze rate | 0% |
| Pixel frequency (max) | 594 MHz |
| Glass thickness | 3 mm |
| Glass film | AG/AR Film |
| Colour gamut | 72% |

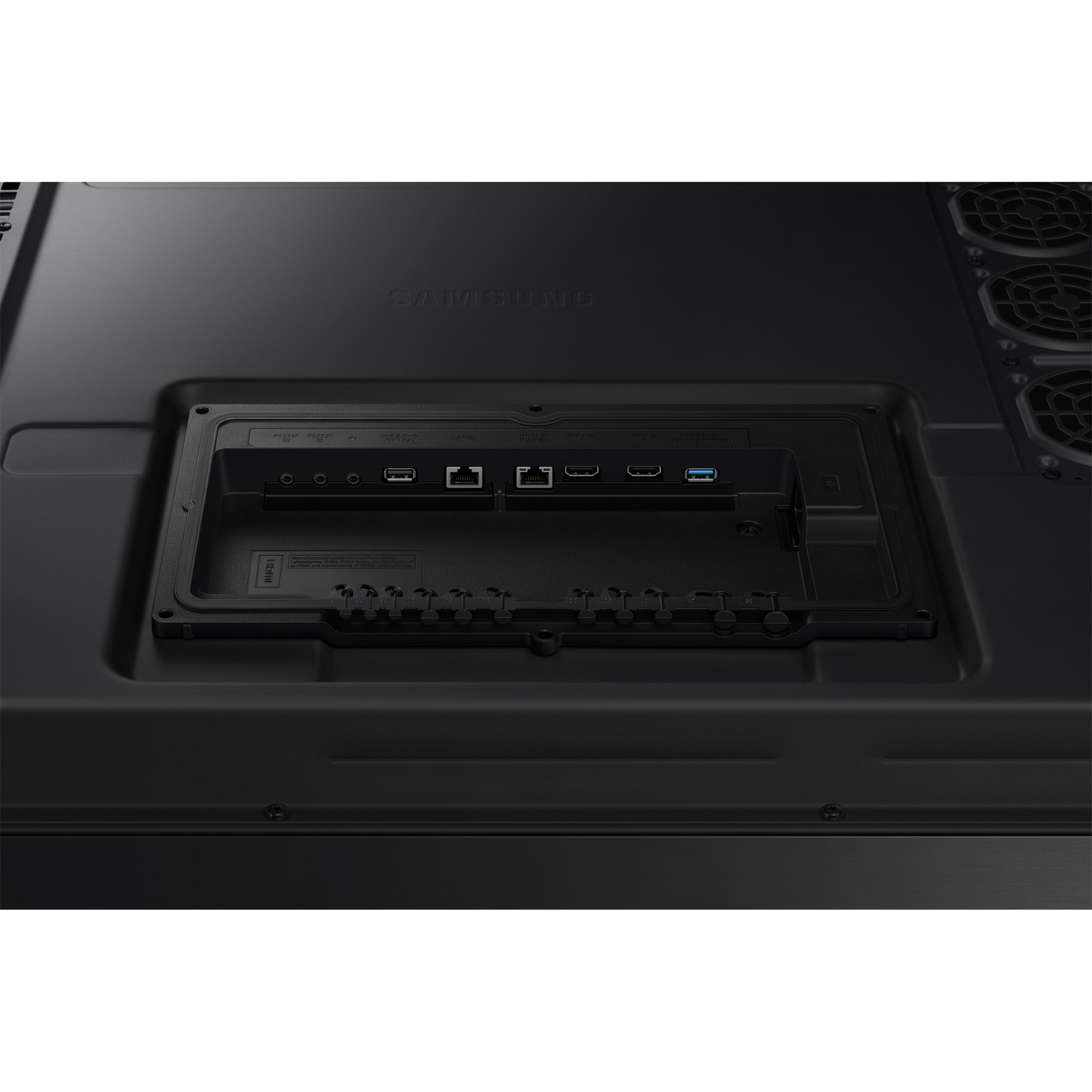

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Feature | Bluetooth |
| USB ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDBaseT input ports | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Outdoor |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 1186 x 560 mm |
| Bezel width (bottom) | 2.49 cm |
| Bezel width (side) | 2.49 cm |
| Bezel width (top) | 2.49 cm |
| Purpose | Retail |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP56 |
| HDCP version | 2.2 |
| Power consumption (typical) | 580 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating system installed | Tizen |
| Operating system version | 8.0 |
| Display width | 1260.6 mm |
| Display depth | 69 mm |
| Display height | 731.4 mm |
| Display weight | 36.7 kg |
| Package width | 1398 mm |
| Package depth | 191 mm |
| Package height | 844 mm |
| Package weight | 47.1 kg |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Audio out (mini jack) | 1 |
| Compliance certificates | Electromagnetic Compatibility (EMC) |
| Display brightness (peak) | 4000 cd/m² |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
