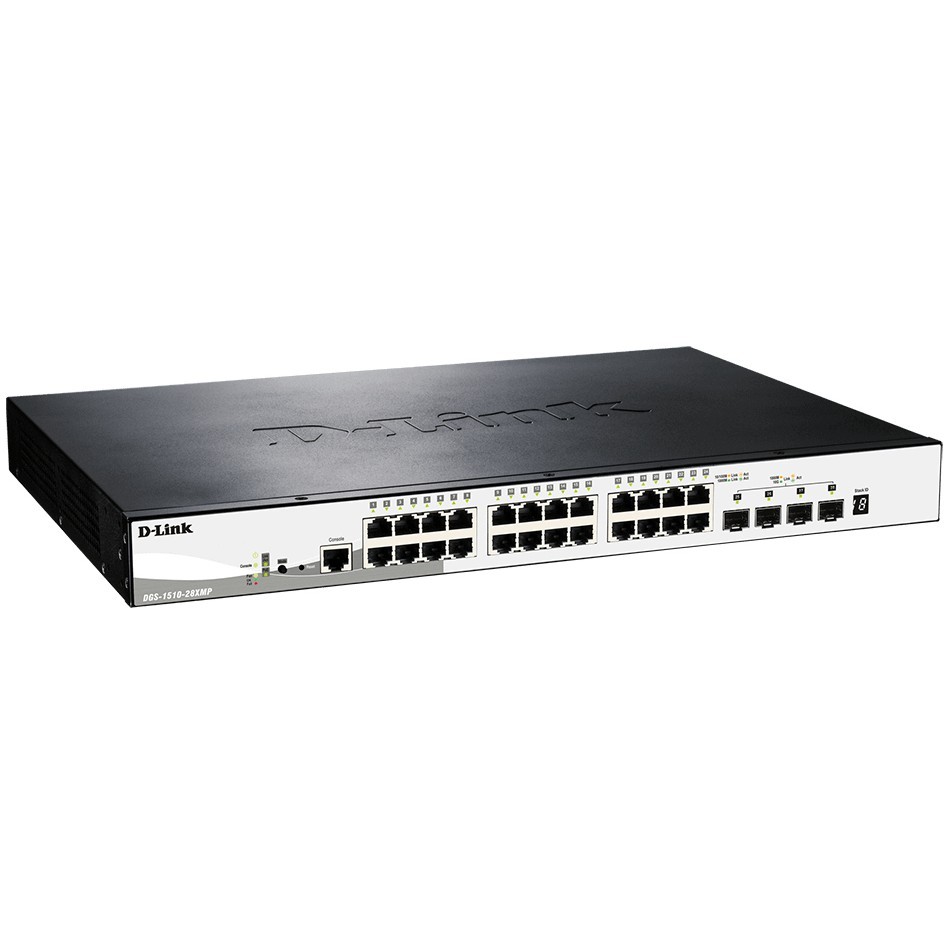

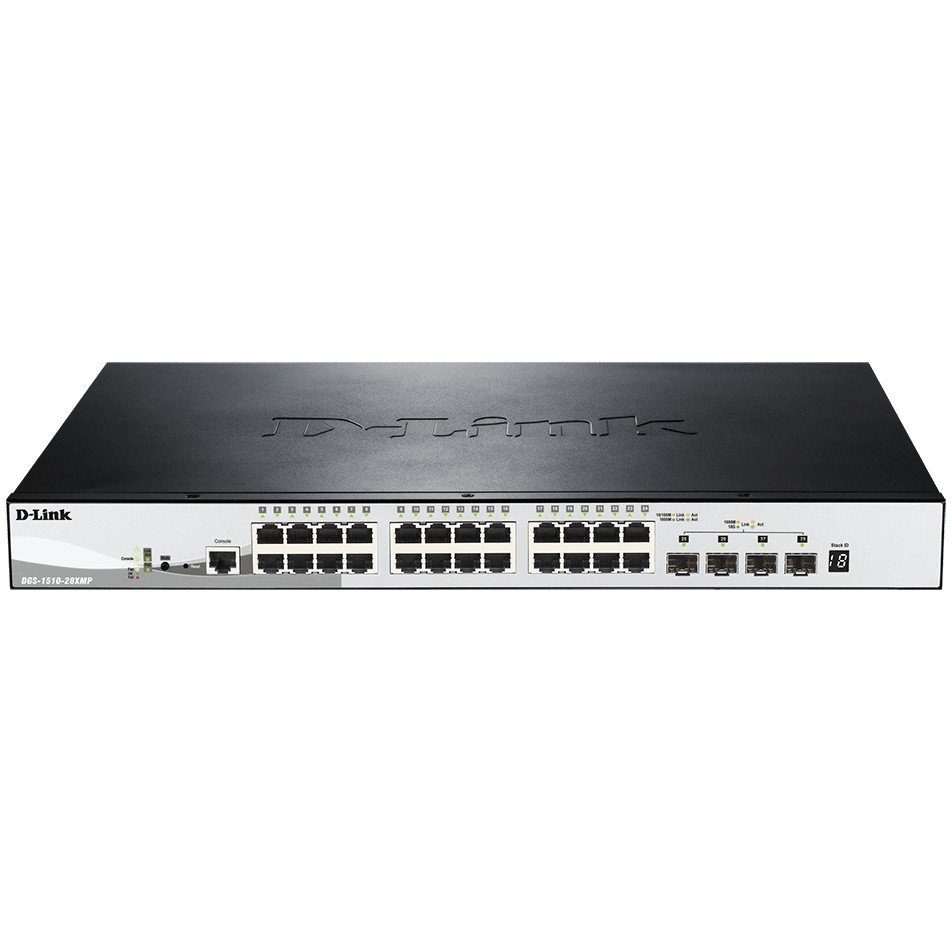

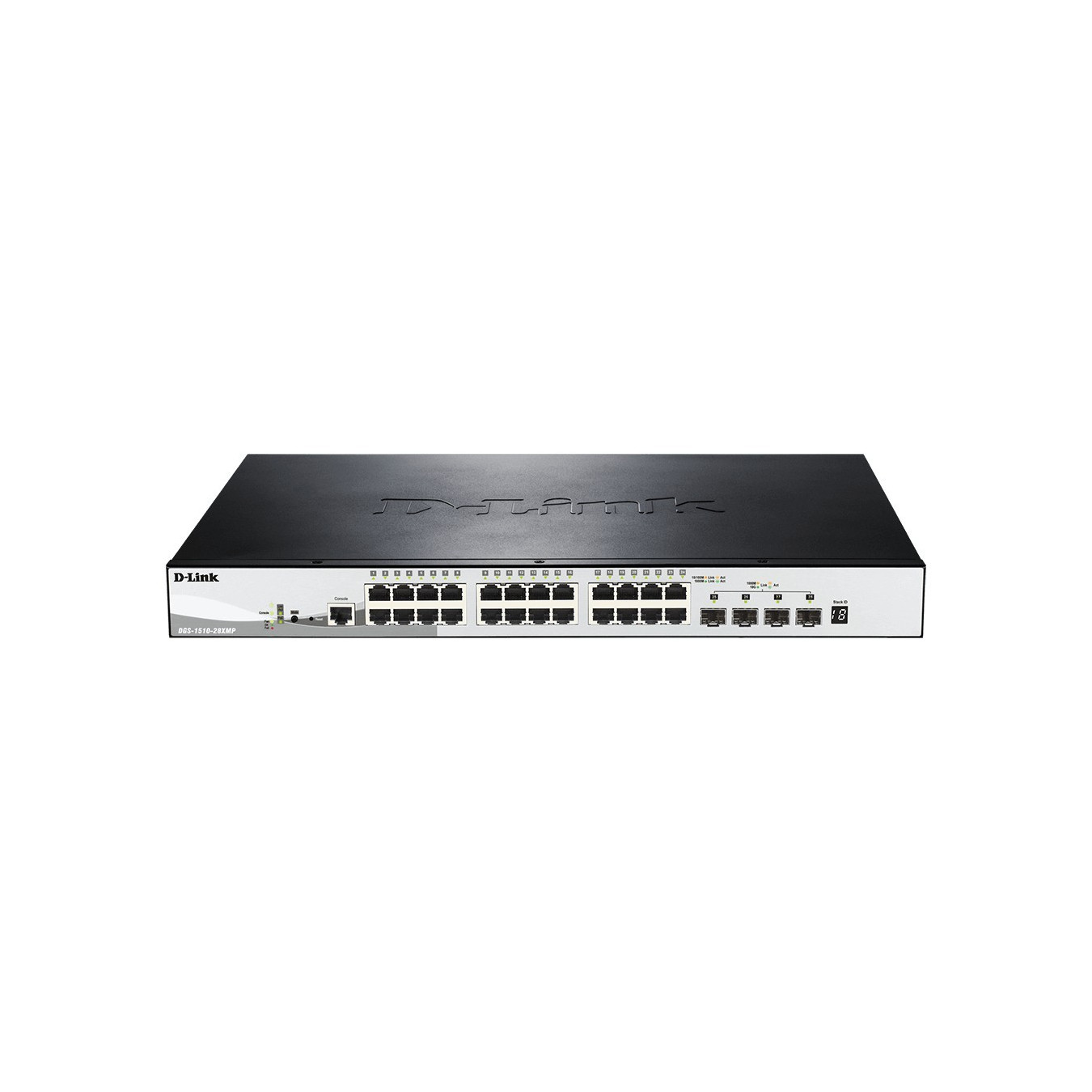

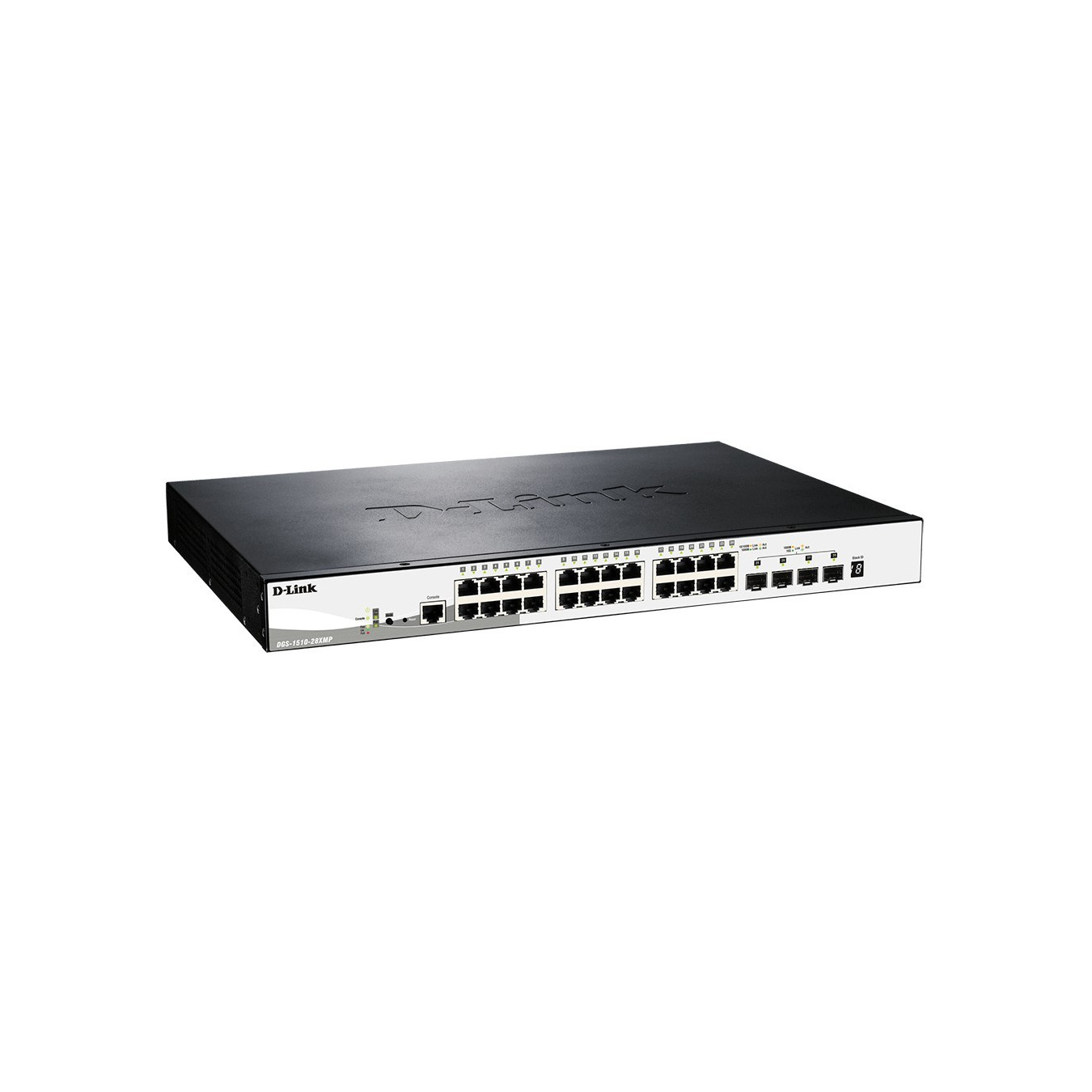

28-Port PoE+ Gigabit Smart Managed Switch - DGS-1510-28XMP - Black/Gray, 24x RJ-45, 4x SFP+, Rackmount
Managed L2/L3 PoE+ Gigabit switch with 24 PoE RJ-45 ports and 4 SFP+ uplinks; 370 W PoE budget; rack-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
D-Link DGS-1510-28XMP. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16384 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat5. Cat5e |
| Virtual LAN features | Tagged VLAN. Protocol-based VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.24 Mpps |
| MAC address table | 16384 entries |
| Number of queues | 8 |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP server. DHCP client |
| Access Control List (ACL) rules | 768 |
| Security algorithms | 802.1x RADIUS. EAP. SNMP. SSH. SSH-2. SSL/TLS |
| Authentication | MAC-based authentication. Port-based authentication |
| Product colour | Black. Grey |
| LED indicators | Activity. Link. PoE. Power. Speed |
| Number of fans | 2 fan(s) |
| Safety | cUL. CB |
| Processor frequency | 400 MHz |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 274796 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 436.3 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1487.78 BTU/h |
| Width | 440 mm |
| Depth | 308.5 mm |
| Height | 44 mm |
| Weight | 4.25 kg |
| Package width | 450 mm |
| Package depth | 510 mm |
| Package height | 121 mm |
| Package weight | 7.06 kg |
| Shipping (inner) case height | 48.5 cm |
| Shipping (inner) case width | 38.5 cm |
| Shipping (inner) case length | 53 cm |
| Shipping (inner) case net weight | 14.3 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 561.6 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.08 m |
| Pallet gross weight (sea) | 561.6 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.08 m |
| Shipping (inner) case gross weight | 22.6 kg |
| Harmonized System (HS) code | 85176990 |
