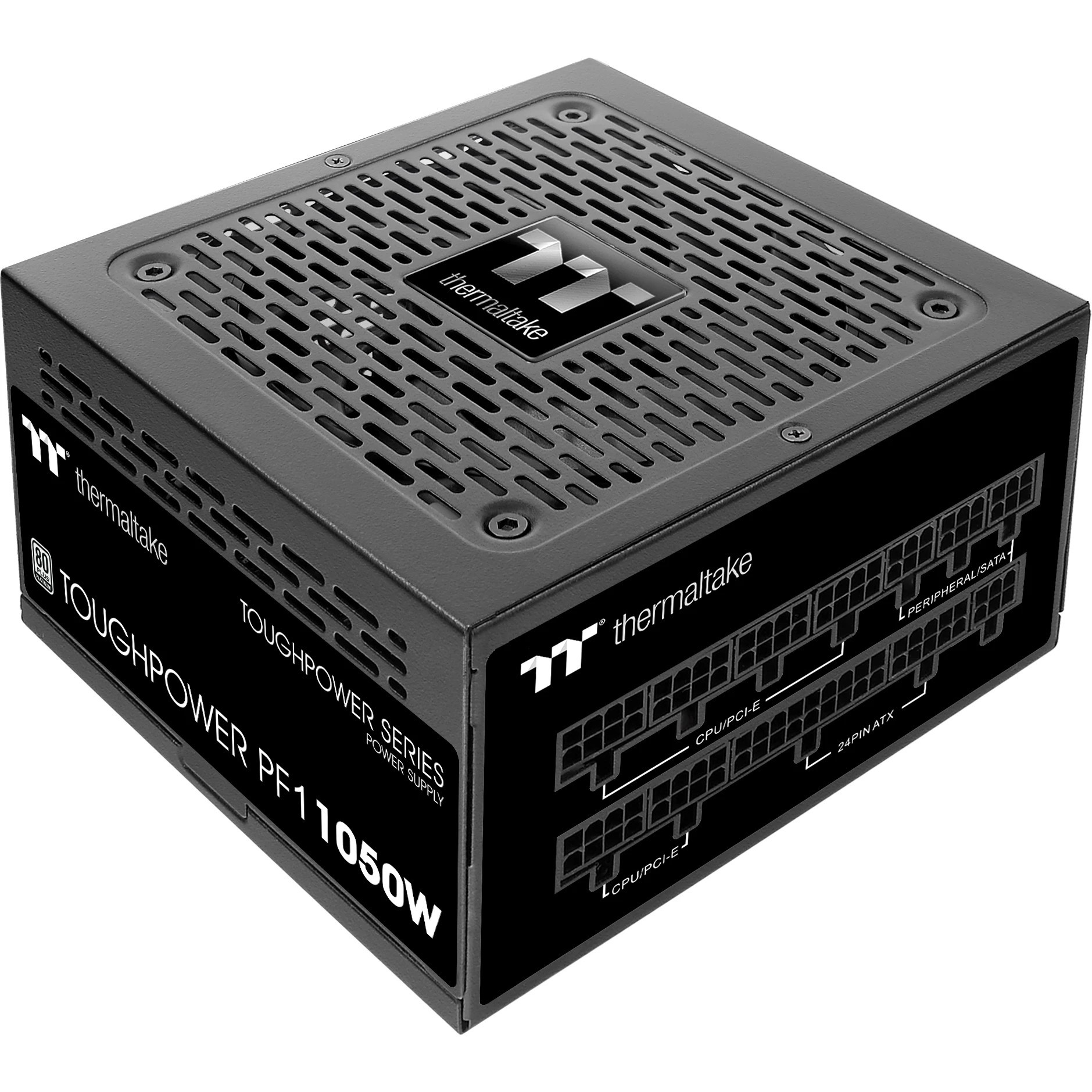

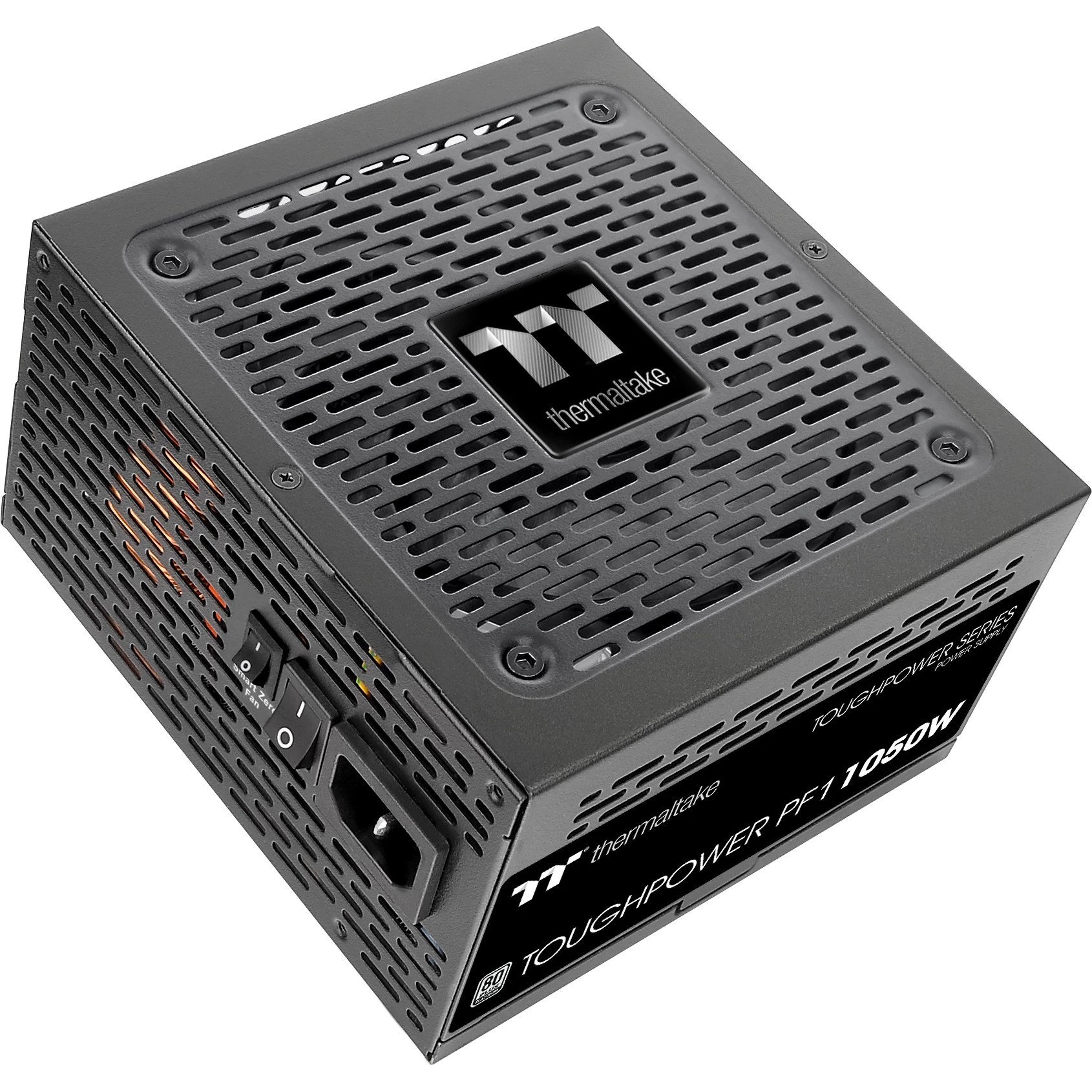

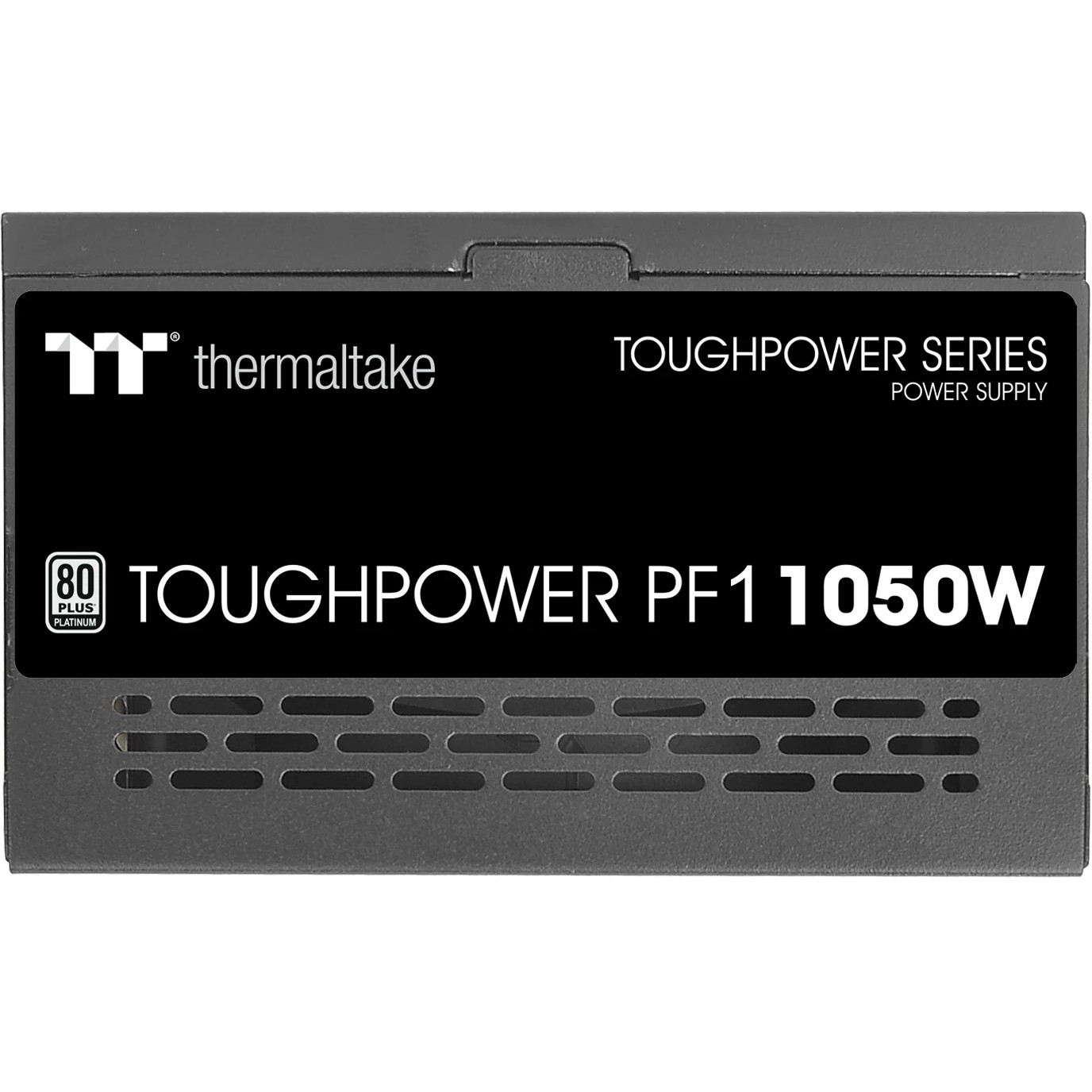

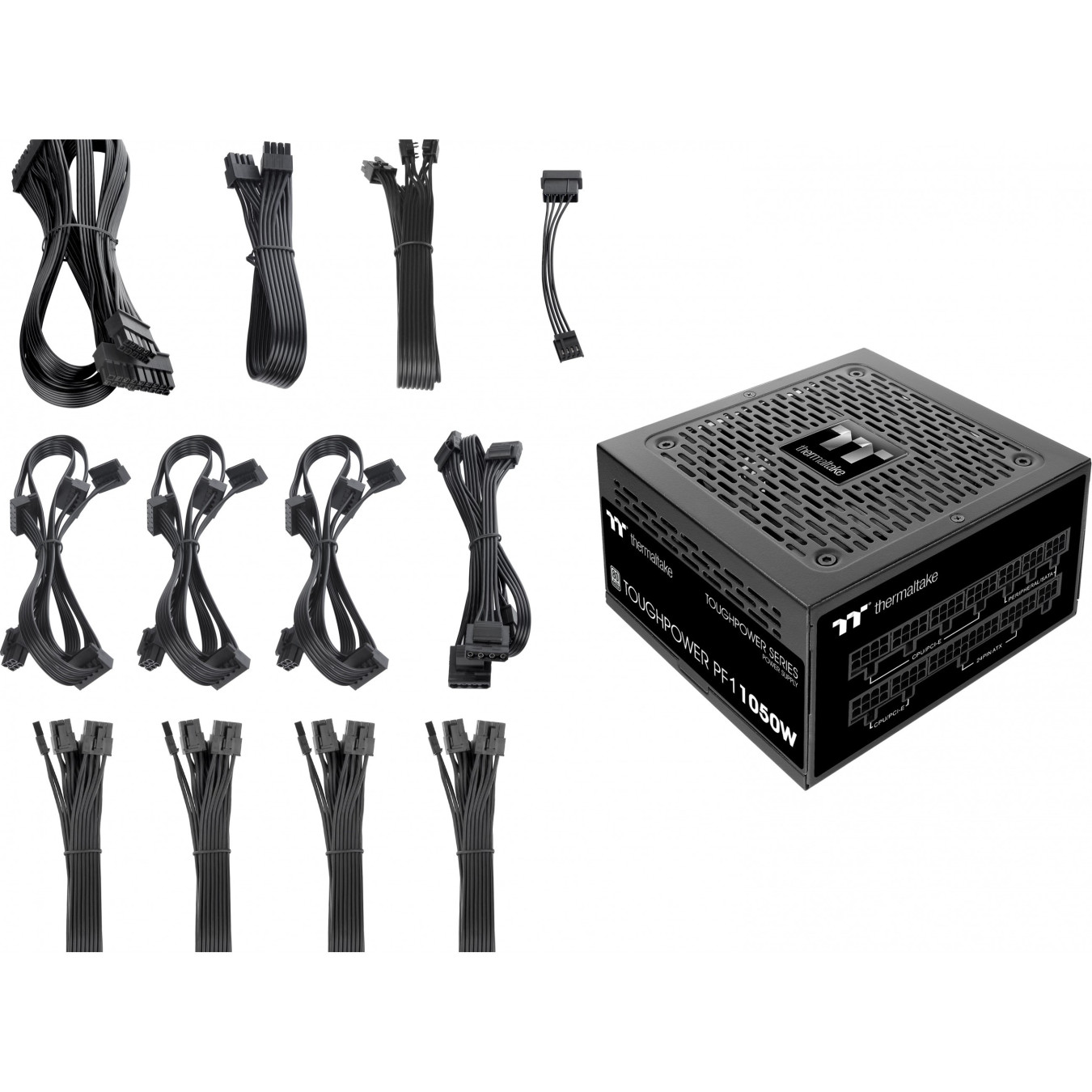

Thermaltake Toughpower PF1 1050W PSU - PF1 - Black, 80+ Platinum, Fully Modular
1050W PF1 PSU with 80+ Platinum efficiency, fully modular cables, black color, 24-pin ATX, 120mm fan, MTBF 120,000 h.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
|---|---|
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Thermaltake Toughpower PF1. Total power: 1050 W. AC input voltage: 100 - 240 V. Peak power: 1260 W. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 500.650.800.950 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Black. Fan diameter: 12 cm. Number of fans: 1 fan(s). Certification: CE/UL/TÜV/FCC/CB
| Total power | 1050 W |
| Peak power | 1260 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 - 16 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500.650.800.950 mm |
| Feature | Cable tie(s) included |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 65 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 15 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/UL/TÜV/FCC/CB |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
