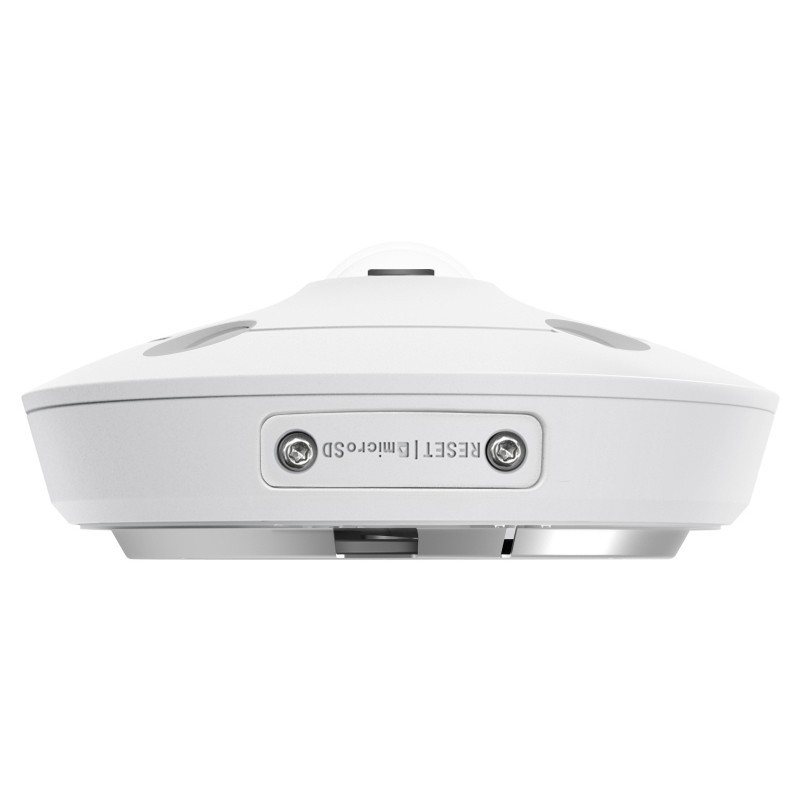

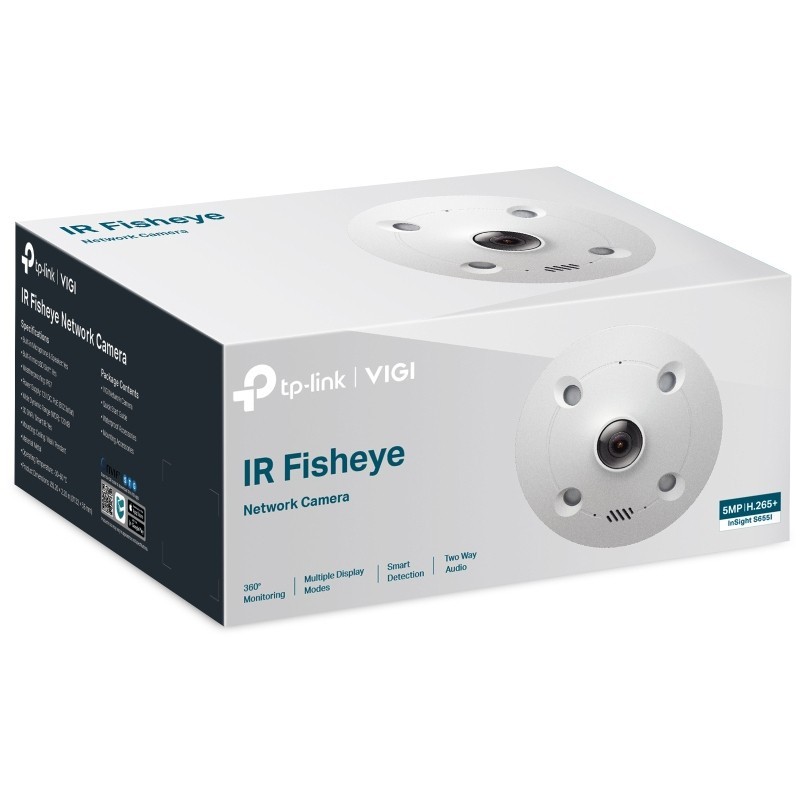

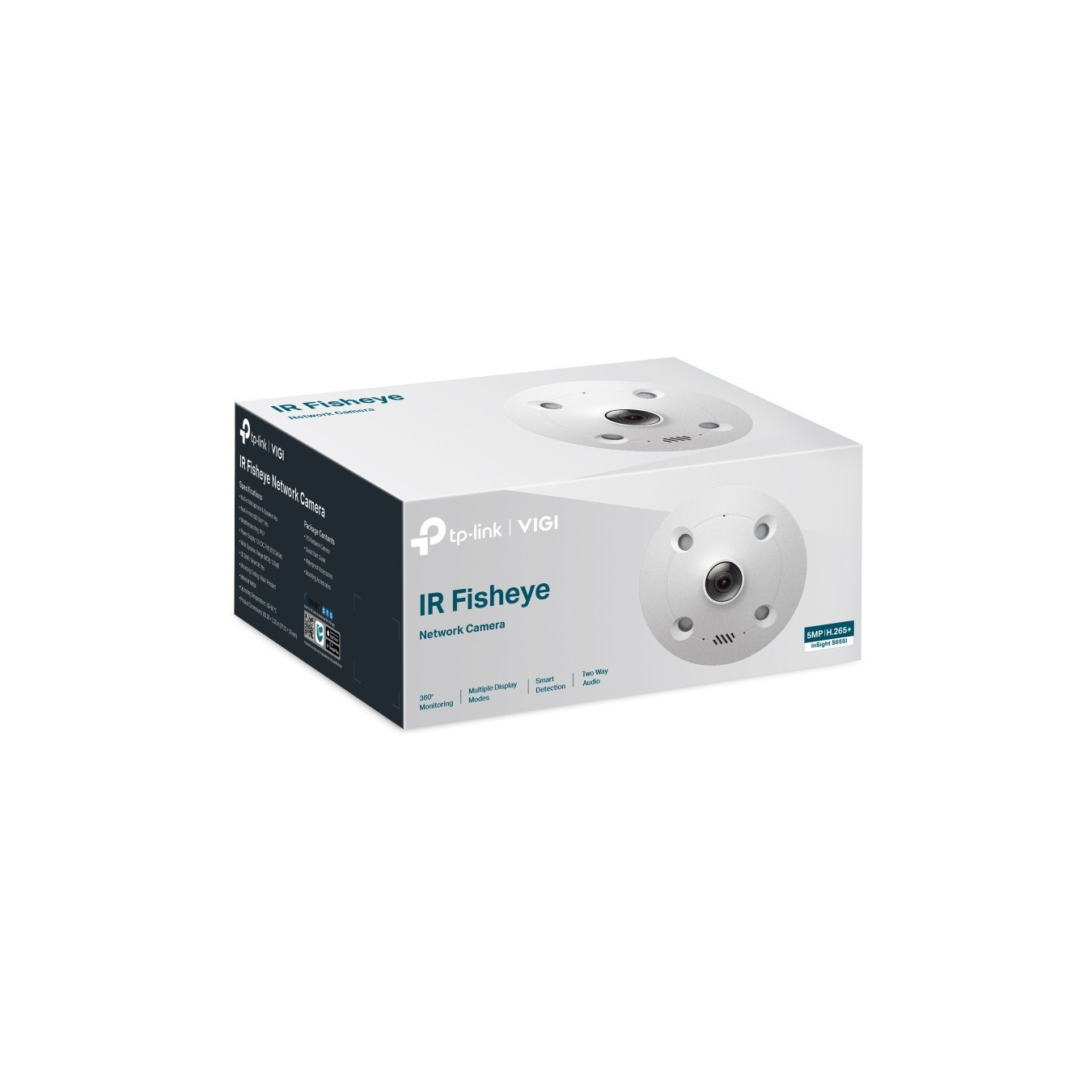

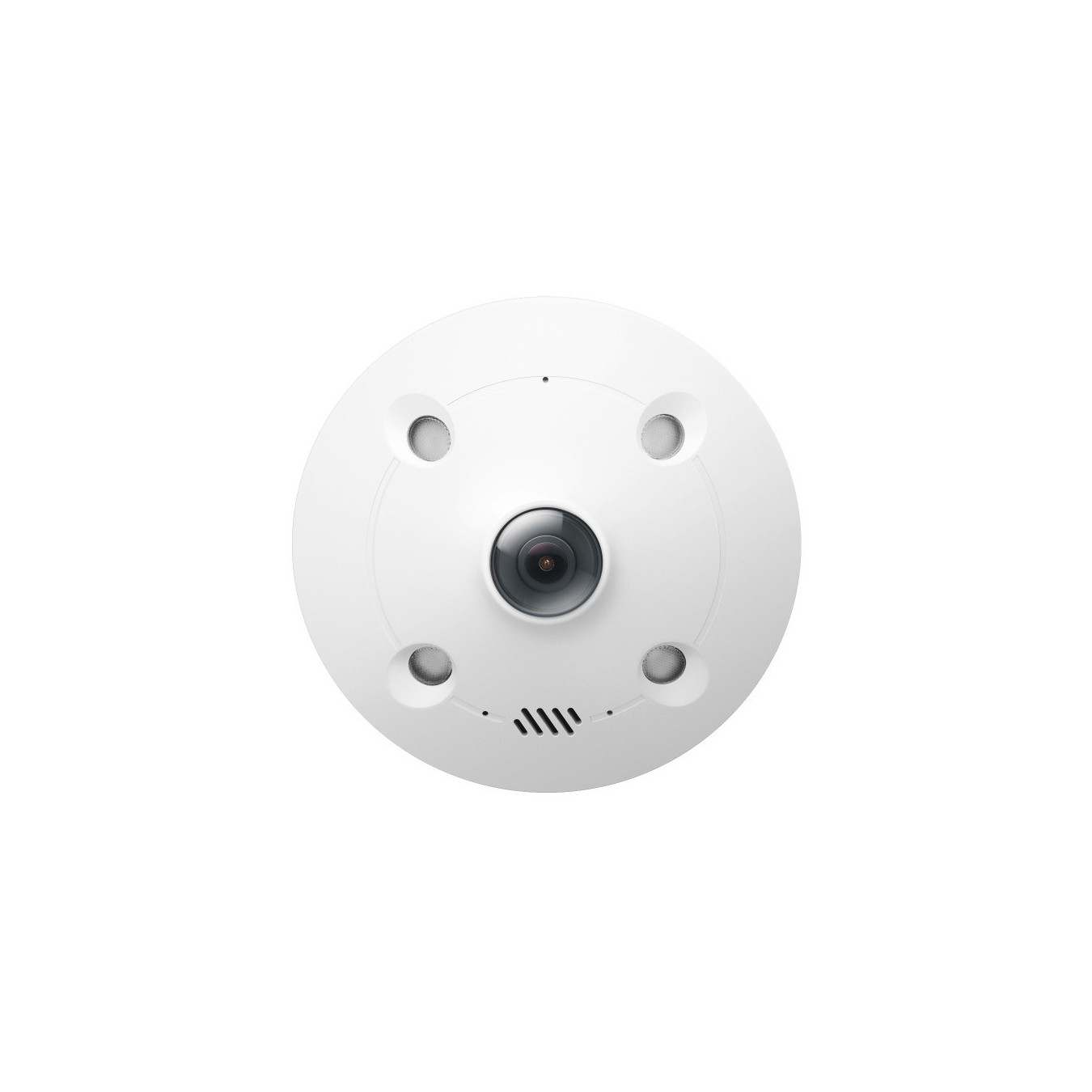

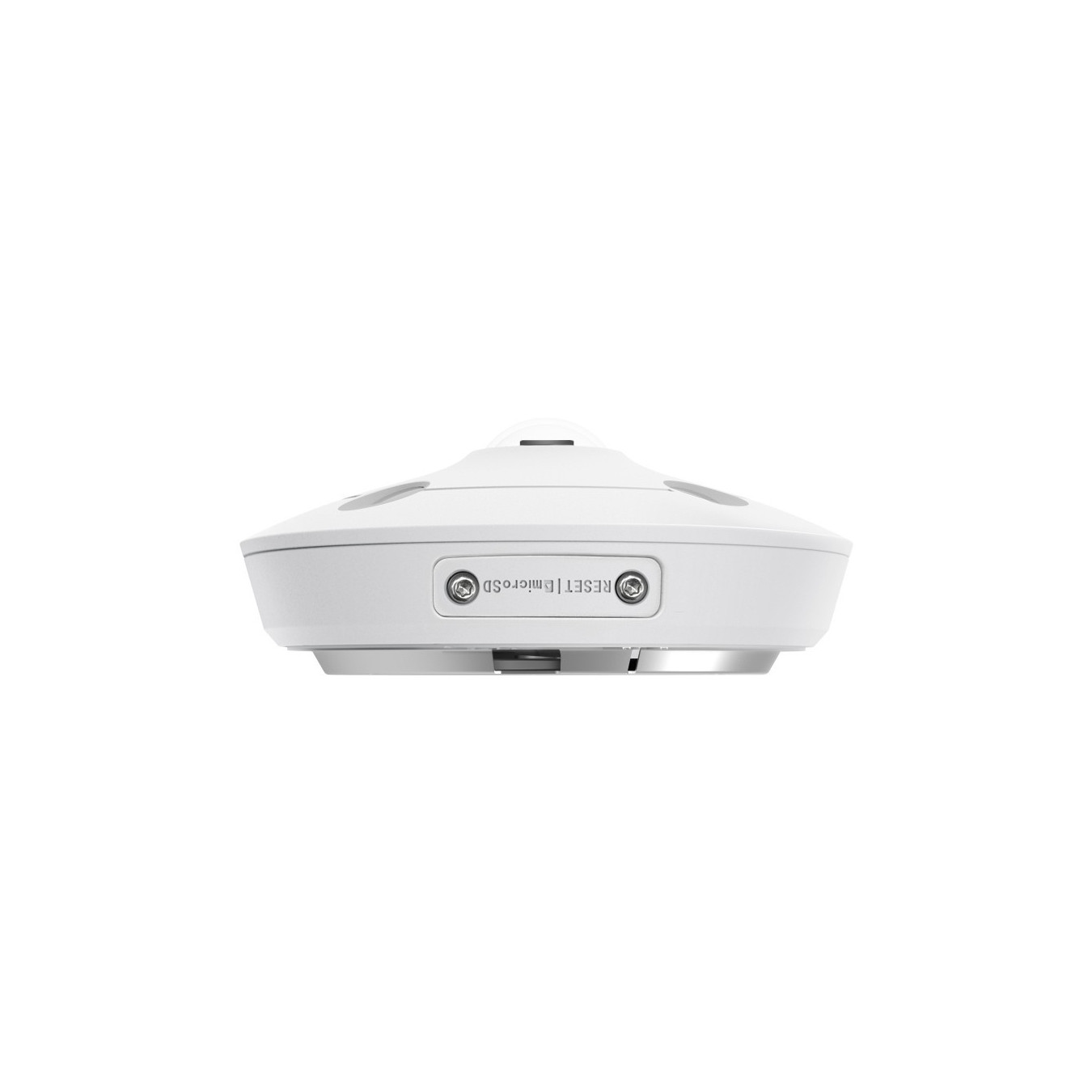

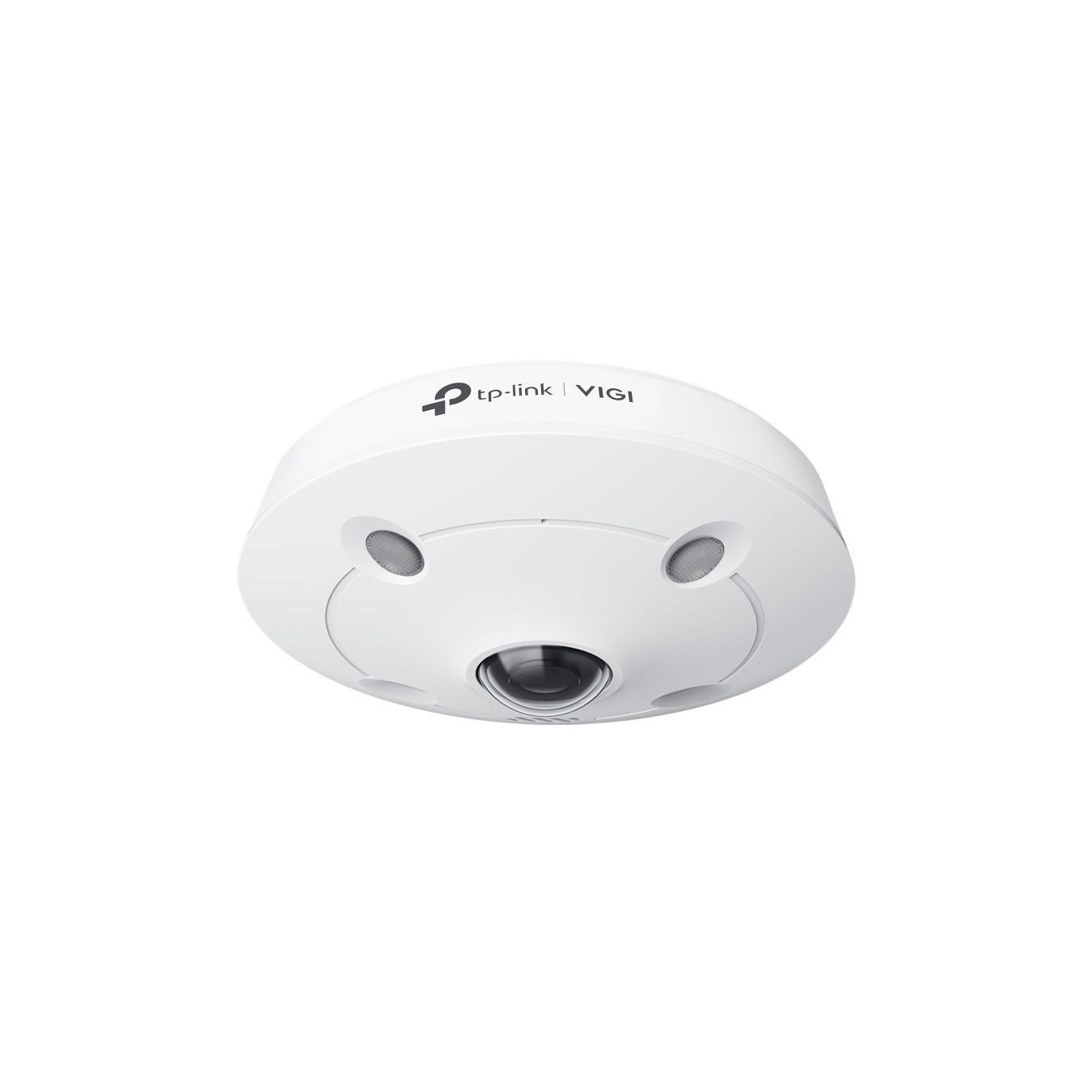

TP-Link Omada IPCam InSight S655I VIGI 5MP IR Fisheye Network - S655I - White, Indoor, PoE, IP67
Indoor PoE 5MP fisheye IP camera with 180° view, 2-way audio, IP67 weather rating, microSD storage, ONVIF.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Resolution | 5 MP |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
| IP Cameras - Weather Rating | IP67 |
TP-Link InSight S655I. Type: IP security camera. Placement supported: Indoor. Connectivity technology: Wired. Mounting type: Ceiling/wall. Product colour: White. Housing material: Metal. Lens viewing angle. horizontal: 180°. Lens viewing angle. vertical: 180°. Lens viewing angle. diagonal: 180°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS. Signal-to-Noise Ratio (SNR) (panoramic camera): 52 dB
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Feature | Reset button |
| Dynamic range | 120 dB |
| Certification | CE| NTRA| KC| FCC| VCCI| BSMI| ONVIF |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Weatherproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Minimum illumination | 0 lx |
| Lens viewing angle. horizontal | 180° |
| Lens viewing angle. vertical | 180° |
| Lens viewing angle. diagonal | 180° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| Detect distance | 28.8 m |
| Observe distance | 12 m |
| Recognize distance | 5.7 m |
| Maximum aperture number | 2 |
| Identify distance | 2.8 m |
| Fixed focal length | 1.44 mm |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2560 x 1920 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 320 x 240. 640 x 480 (VGA). 1280 x 960. 2048 x 1536 (QXGA). 2560 x 1920 |
| Frame rate | 30 fps |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness. Contrast. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 64 Kbps to 6 Mbps |
| Audio system | 2-way |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Client interoperability | Utility. VIGI App. Web UI. VIGI VMS. VIGI Cloud VMS |
| Number of simultaneous live view channels | 6 channels |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | E-mail. Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 11.76 W |
| Power consumption (Power over Ethernet (PoE)) | 12.14 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Height | 56 mm |
| Diameter | 13.2 cm |
| Weight | 440 g |
| Number of cameras | 1 |
| Lens mount interface | M12 |
