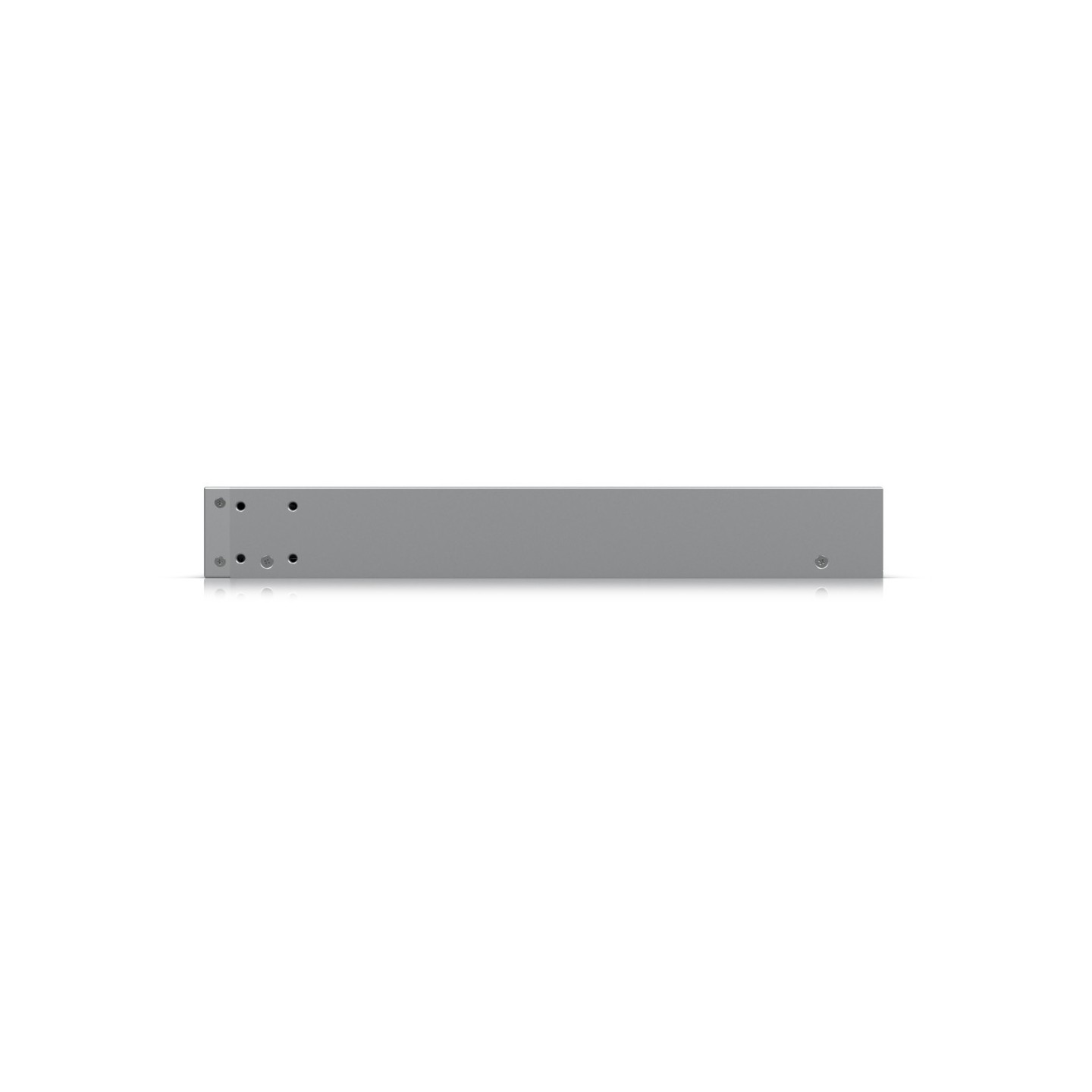

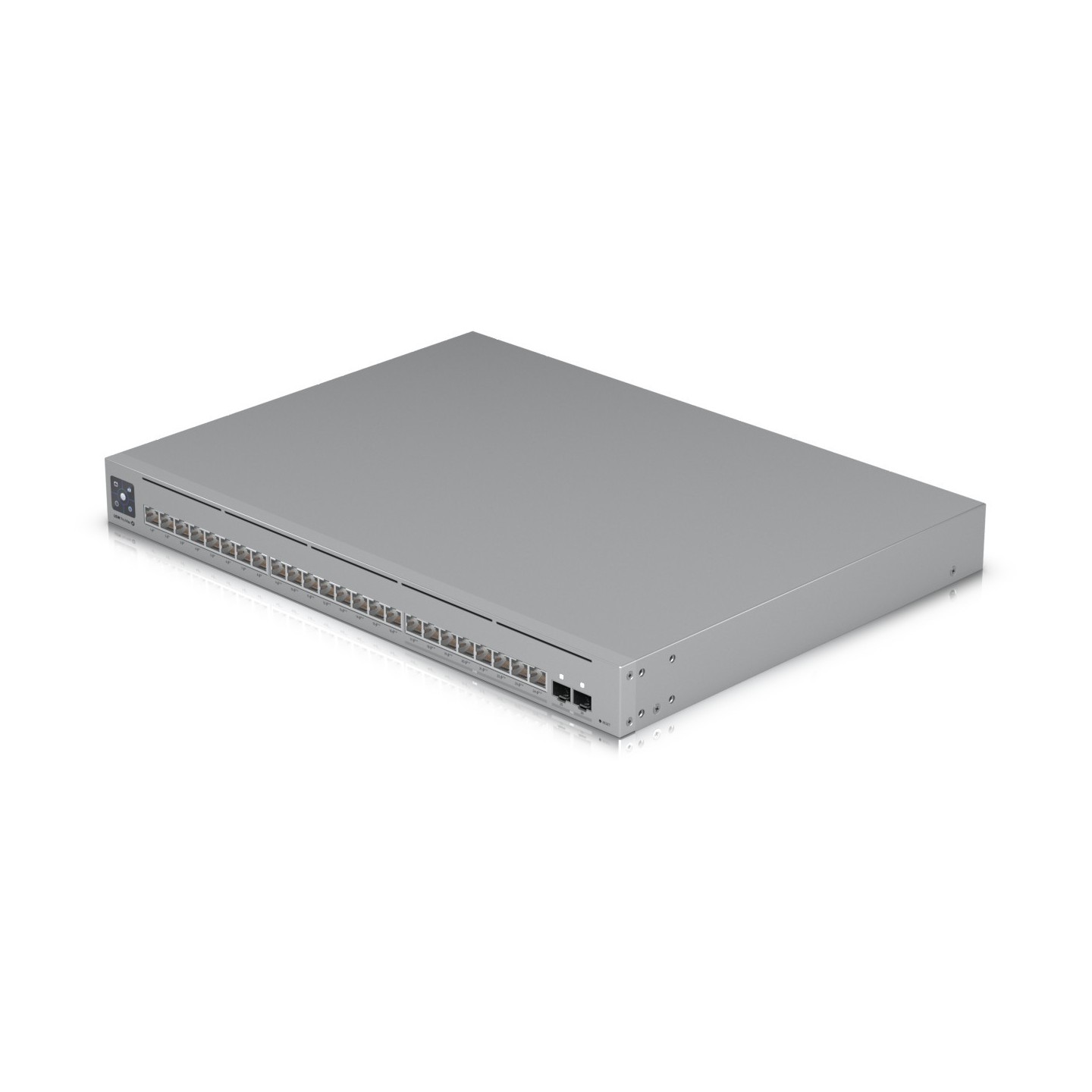

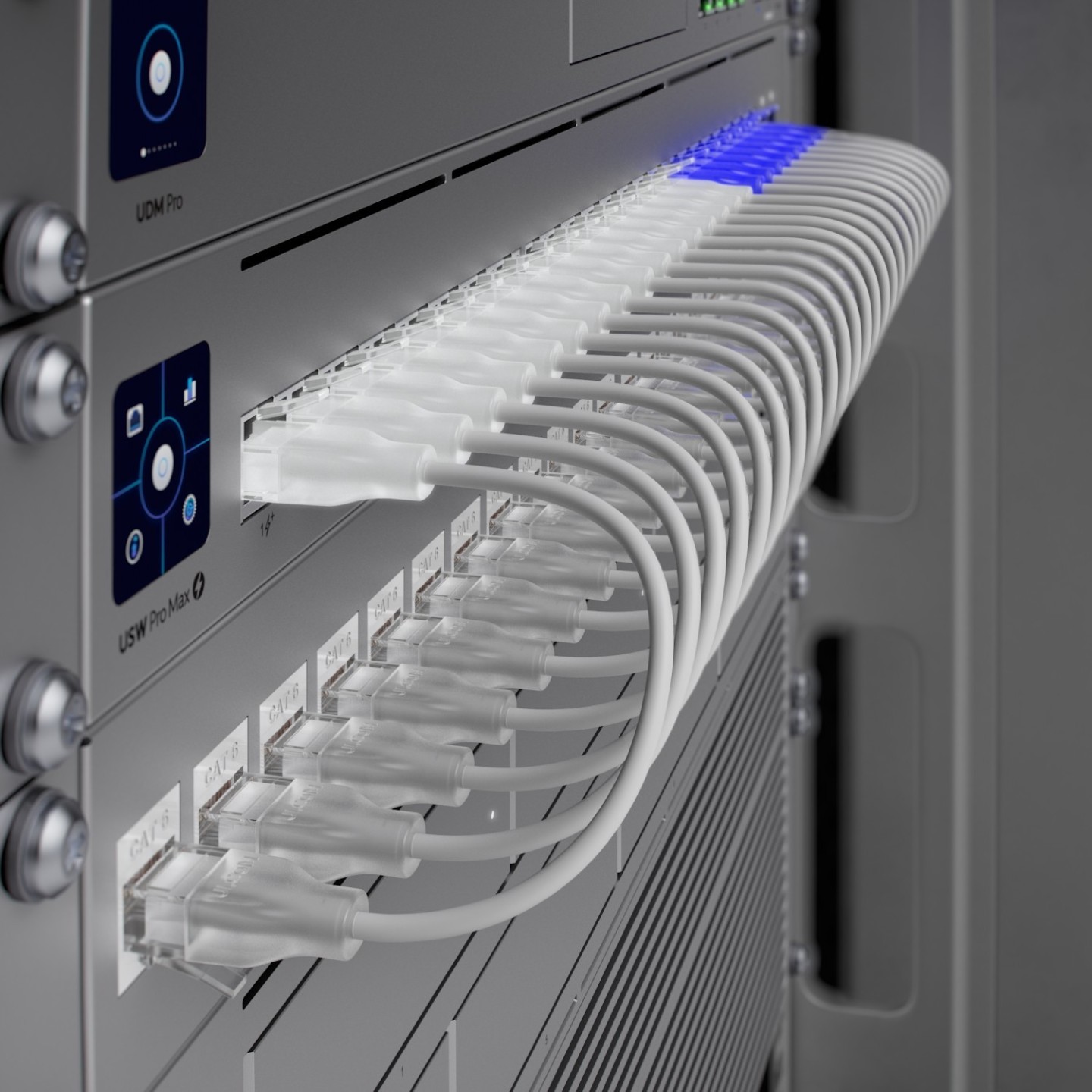

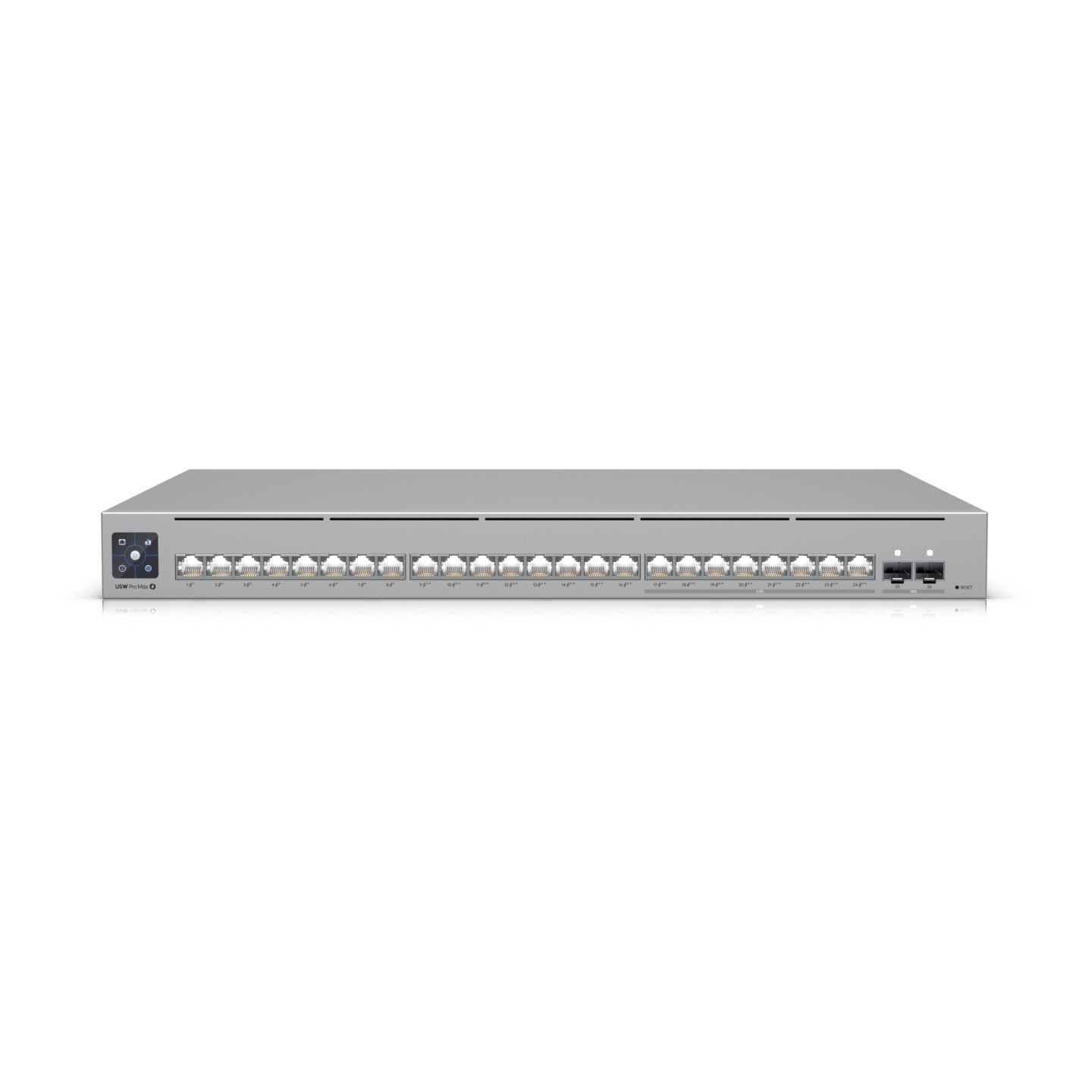

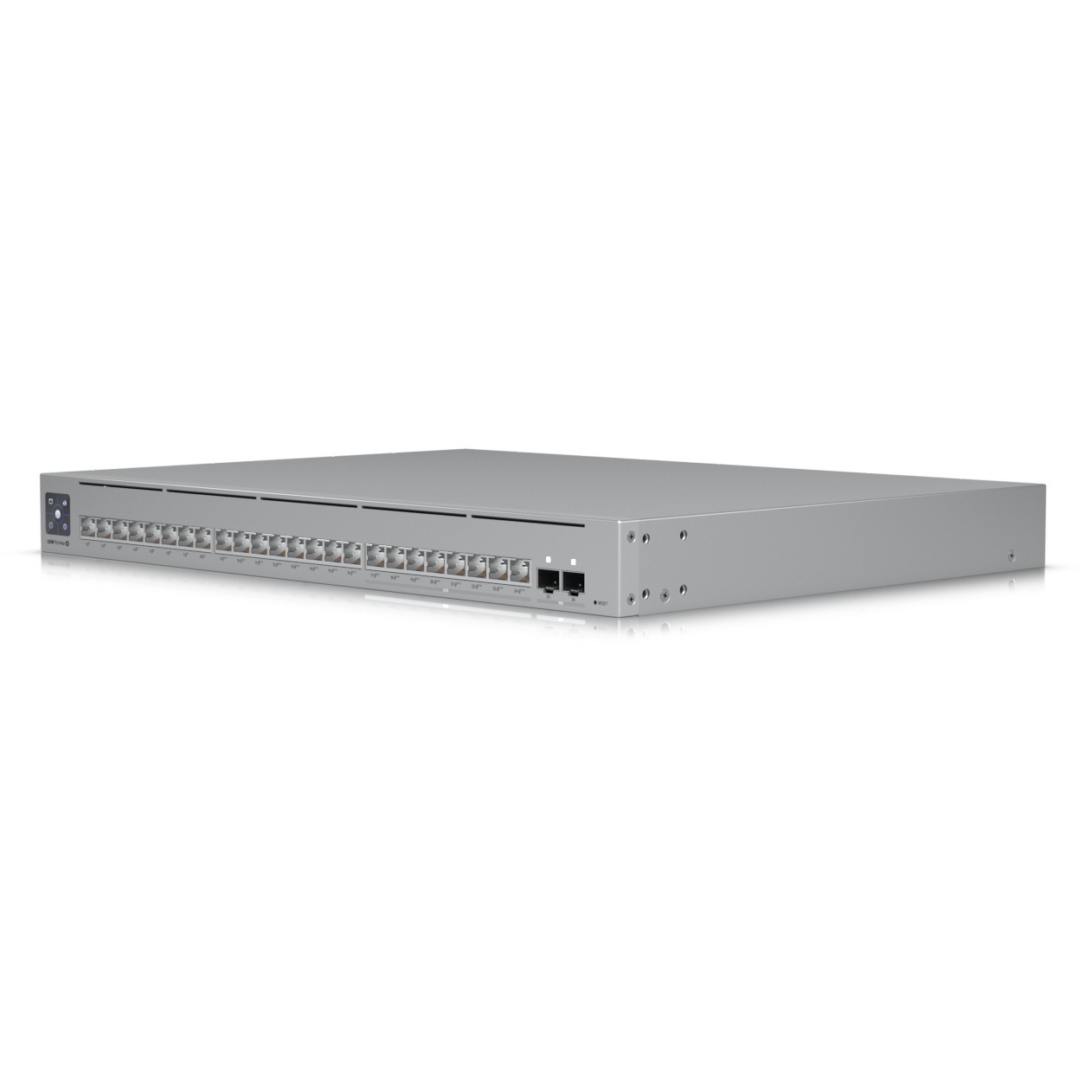

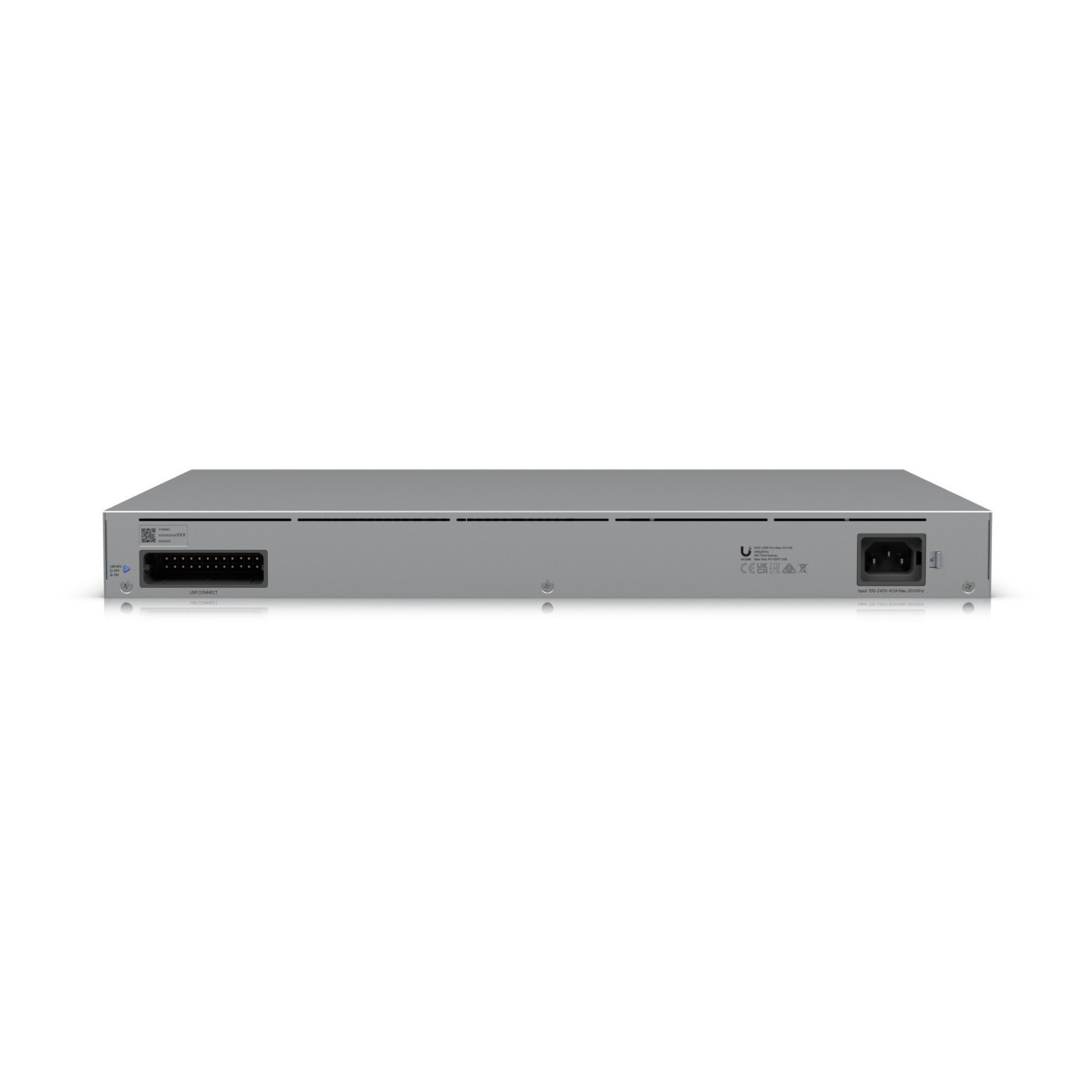

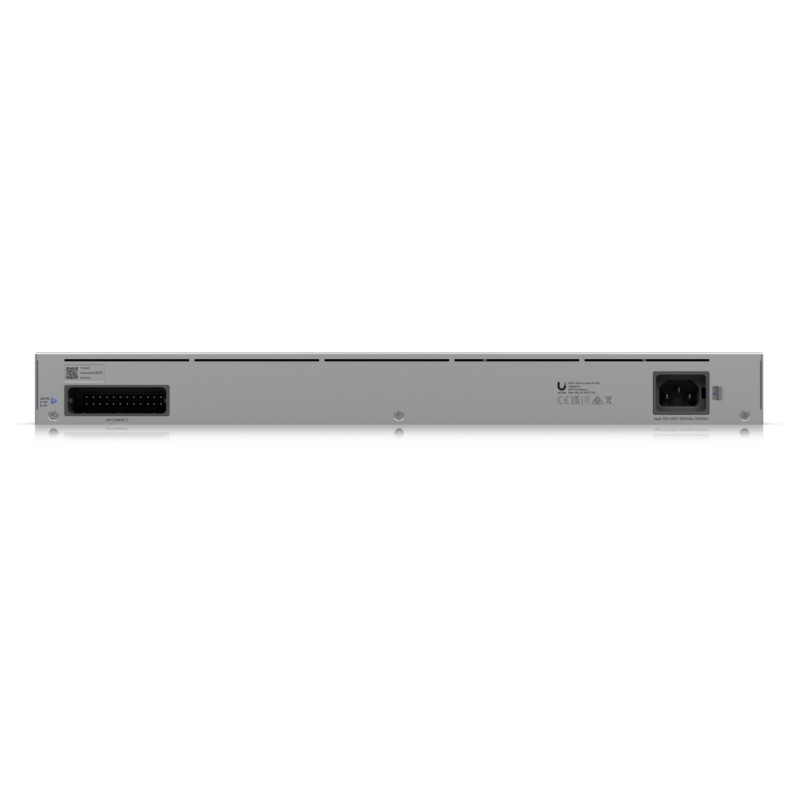

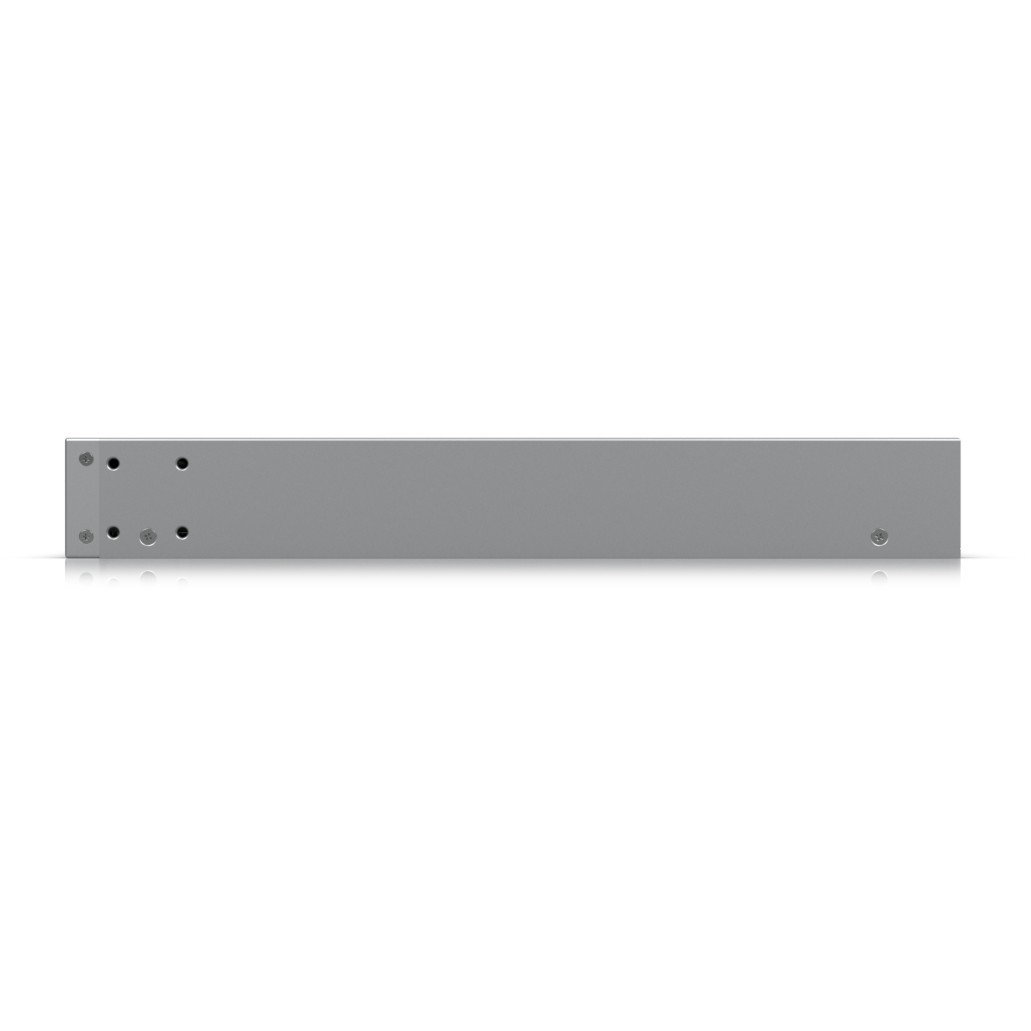

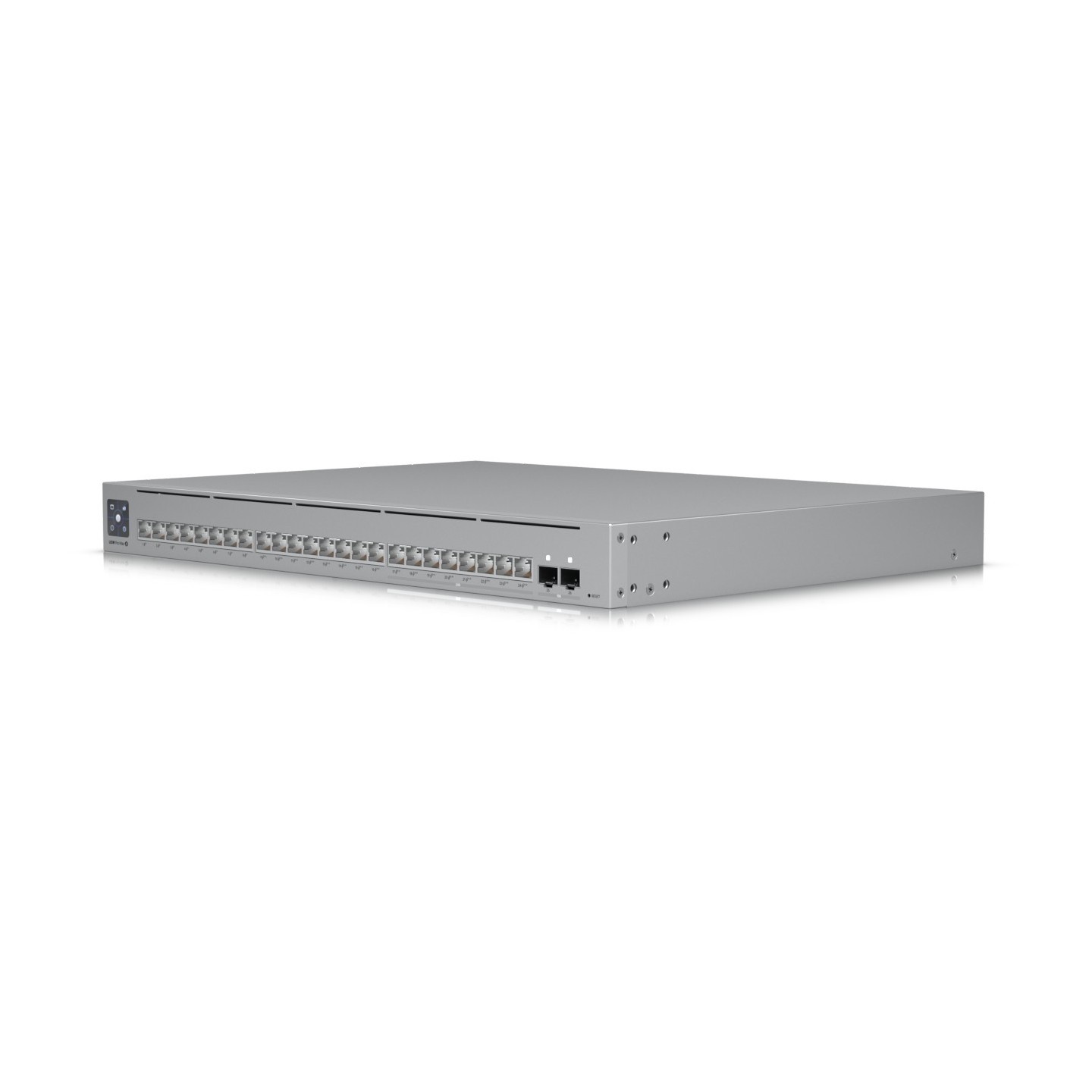

Ubiquiti UniFi USW-Pro-Max-24-PoE - Grey - L3 Managed, 24x 2.5G/1G + 2x 10G SFP+, 400W PoE, Rackmount
L3-managed UniFi switch with 24 ports (2.5G/1G/10G), 400W PoE budget, 2x SFP+ modules, rackmount, 100-240V AC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
Ubiquiti USW-Pro-Max-24-PoE. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 24. Installed SFP+ modules quantity: 2. Switching capacity: 112 Gbit/s. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Power connector | AC/DC |
| Feature | Sustainability compliance |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Product colour | Grey |
| Housing material | SGCC |
| LED indicators | Link. Network. Speed. Status |
| Display type | LCM |
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 50 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.1 kg |

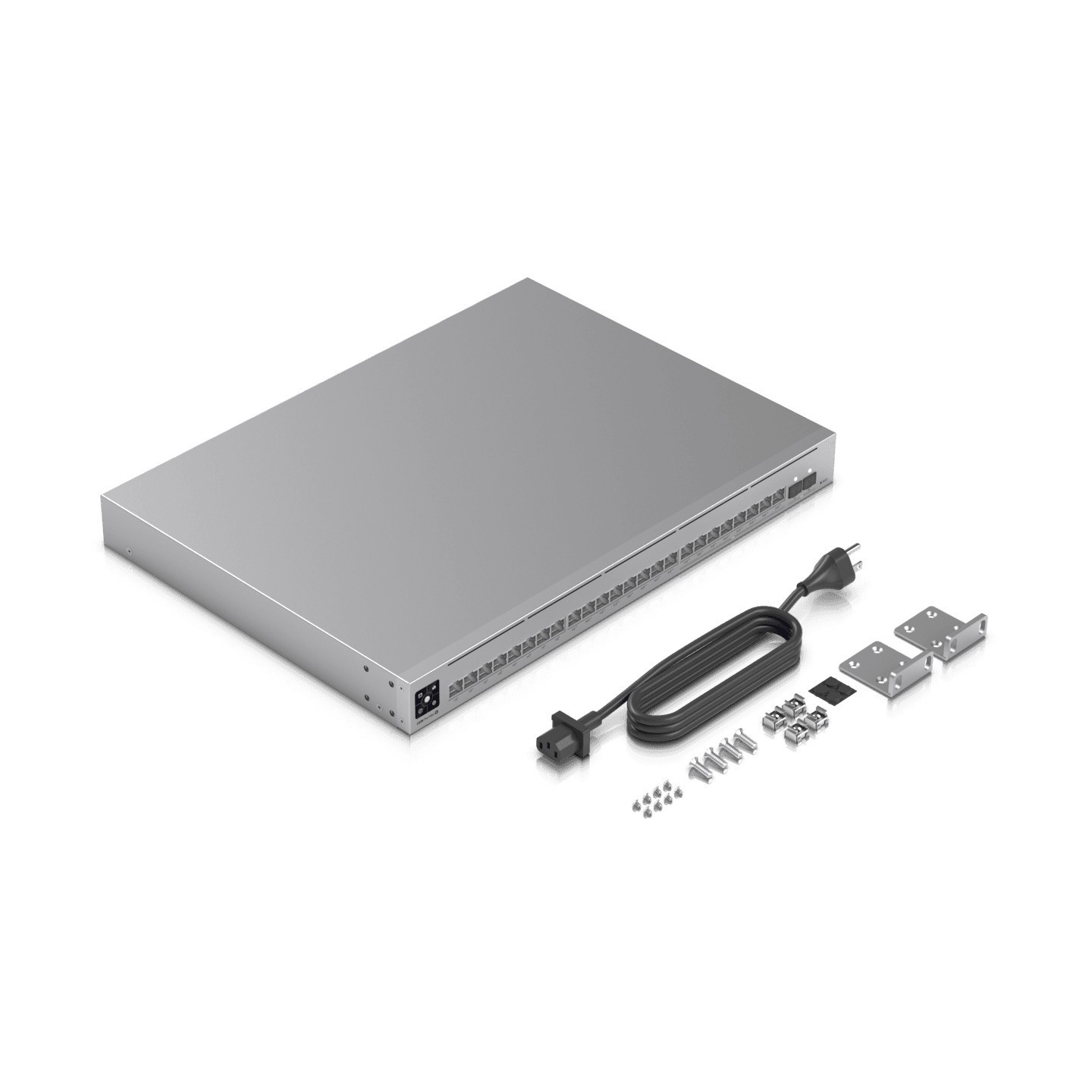

| Cables included | Power |
| Compliance certificates | CE. Federal Communications Commission (FCC) |
