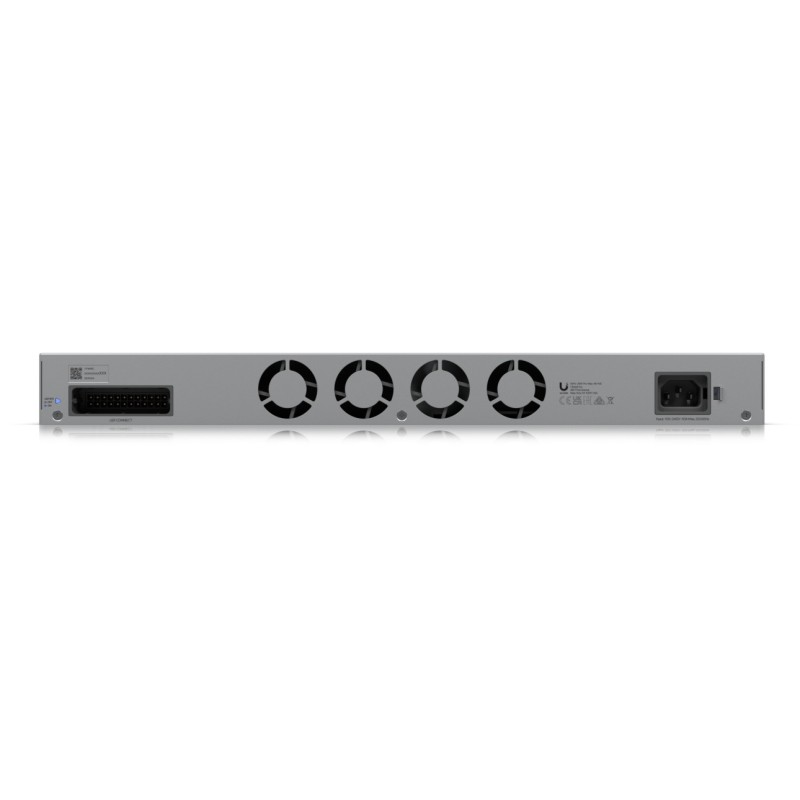

Ubiquiti UniFi Switch - USW-PRO-Max-48-PoE - Grey 1U Rackmount, PoE++ 720W, 48-Port L3 Managed
48-port PoE++ L3 managed UniFi switch with 720W budget: 32x 1G PoE+, 16x 2.5G, 4 SFP+ slots, 1U rackmount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| 2.5G Ethernet (copper) ports quantity | 16 |
| SFP+ module slots quantity | 4 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1x |
| IPv4 routes | 12000 |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Switching capacity | 224 Gbit/s |
| Throughput | 112 Gbit/s |
| Forwarding rate | 167 Mpps |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP guarding. DHCP relay. DHCP server. DHCPv6 snooping |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| LED indicators | System |
| Display type | LCM |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 820 W |
| Power over Ethernet (PoE) type supported | PoE+. PoE++ (4PPoE) |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |

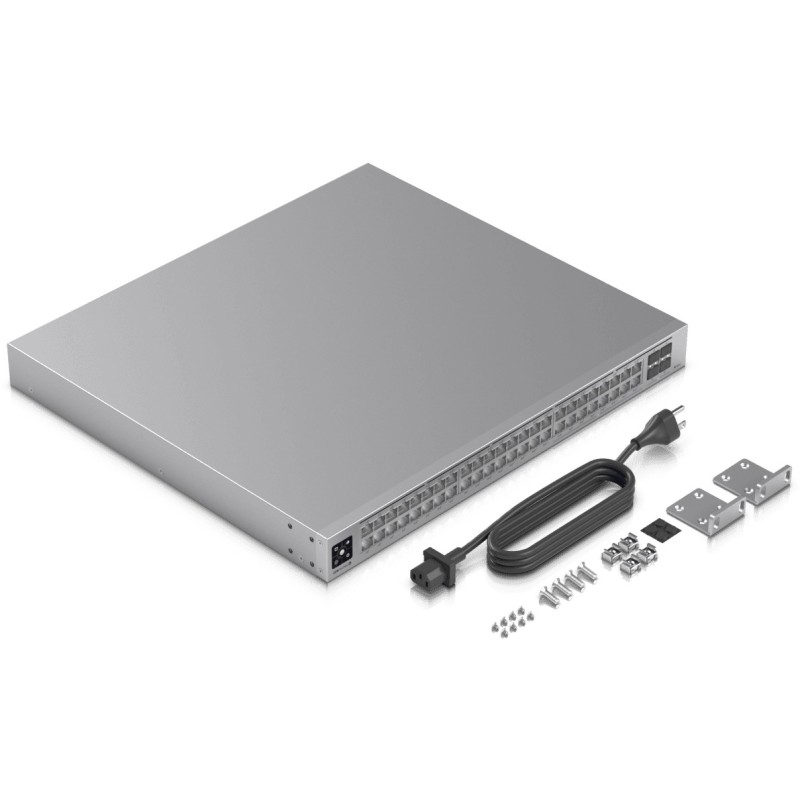

| Cables included | Power |
| Compliance certificates | CE. Federal Communications Commission (FCC). Industry Canada (IC). National Defense Authorization Act (NDAA) |
