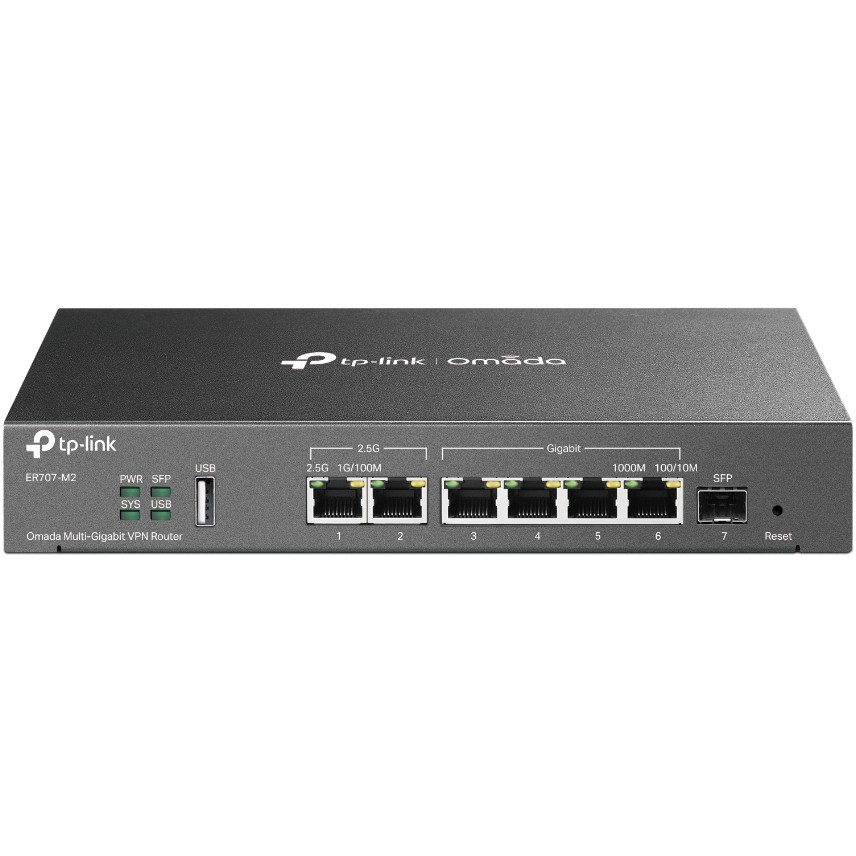

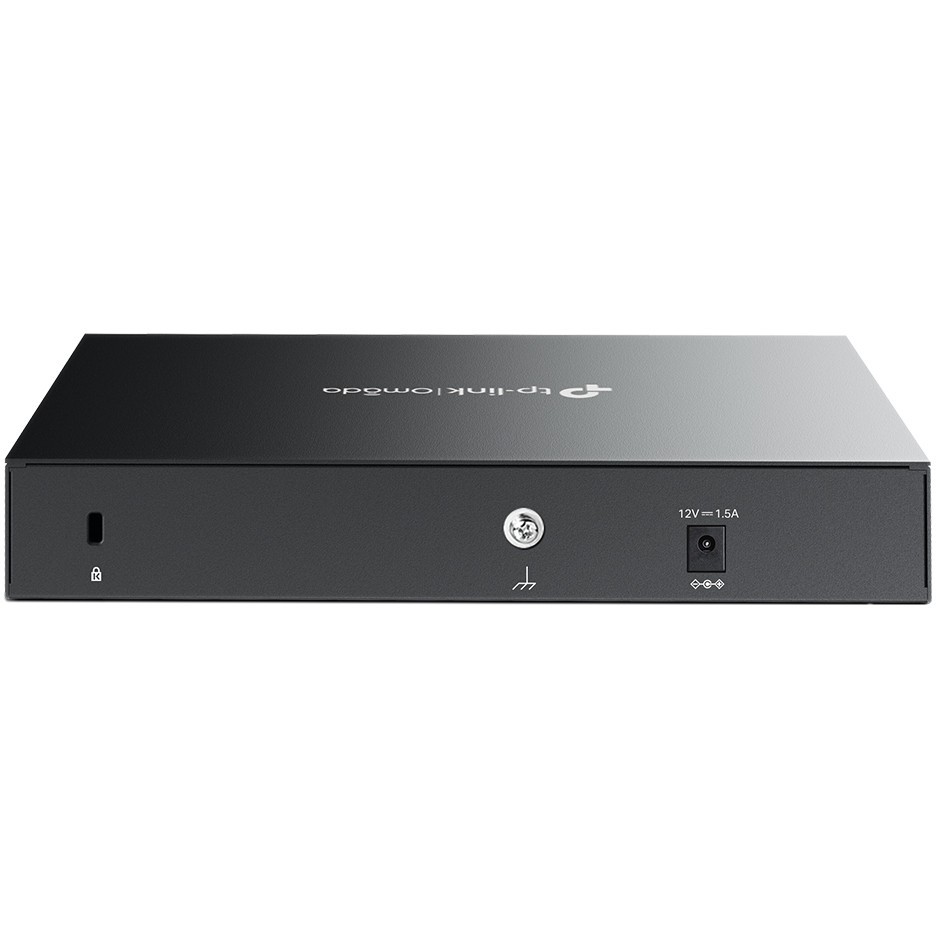

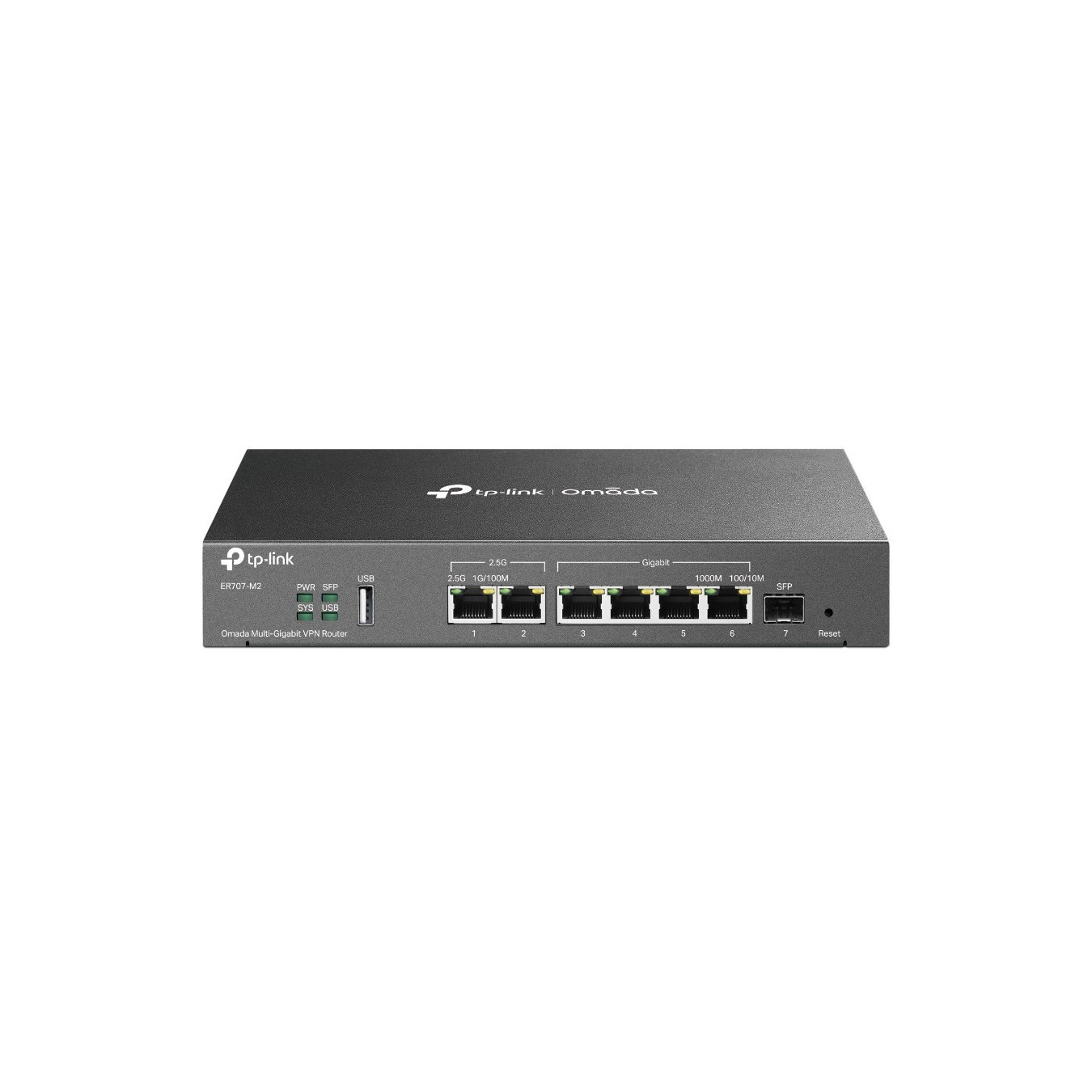

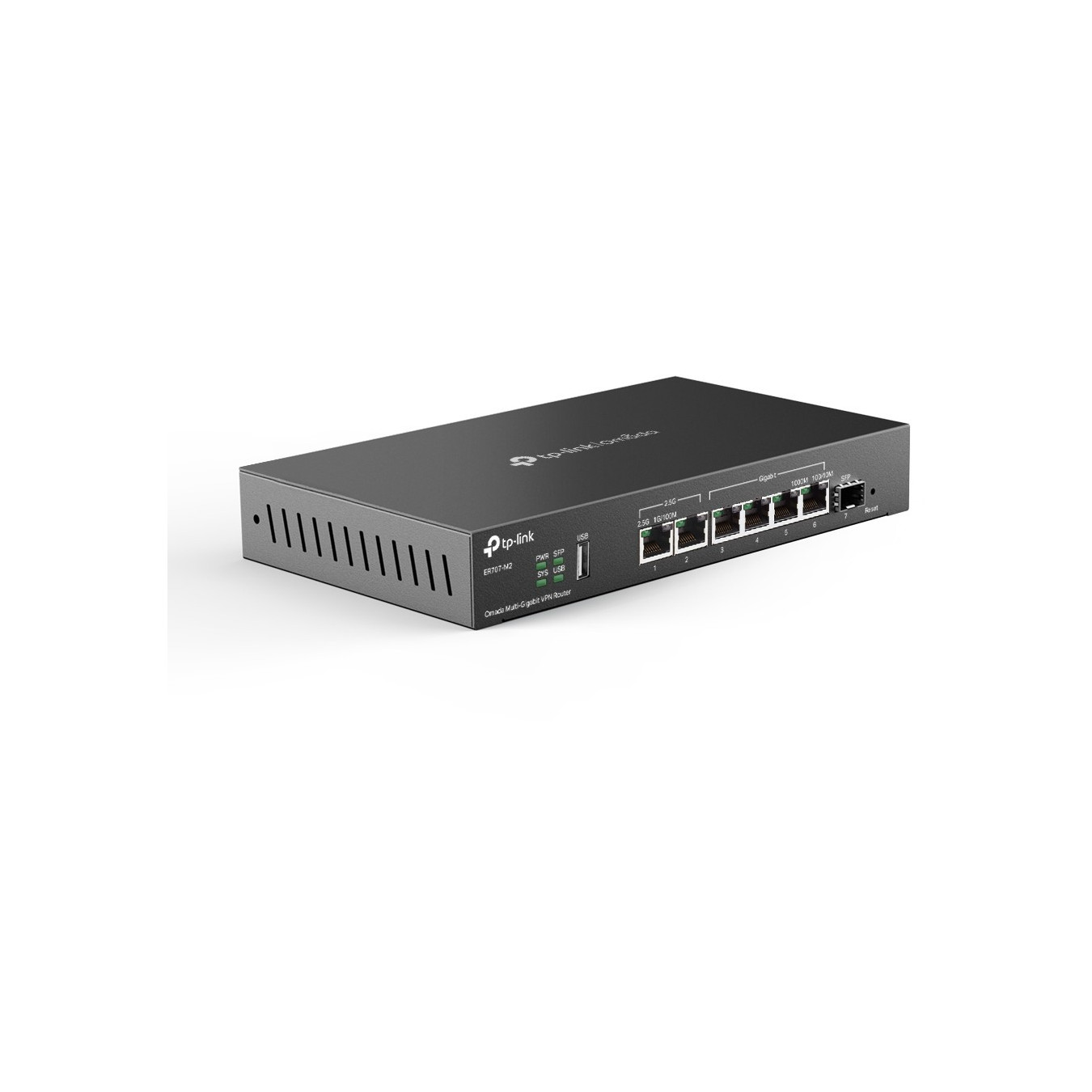

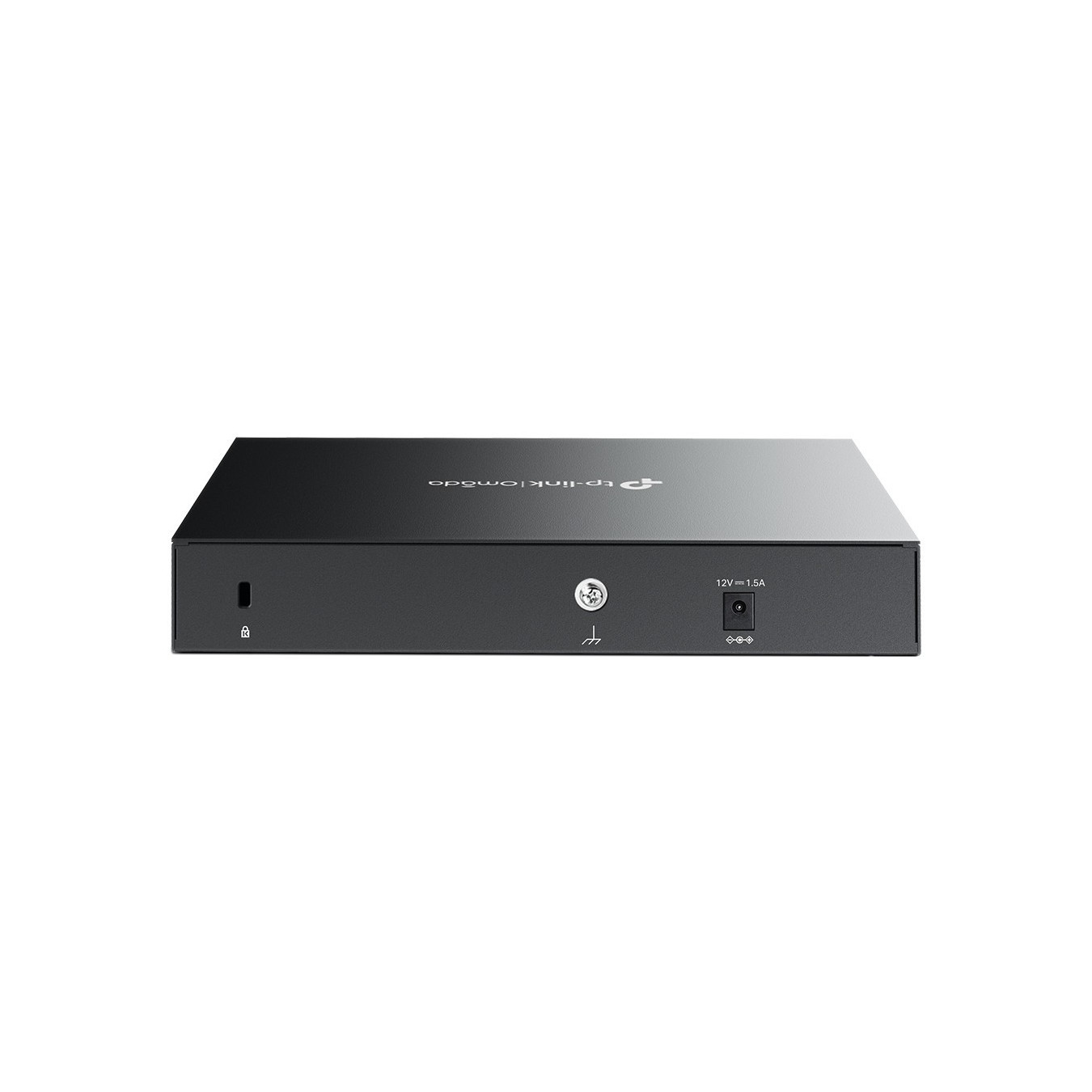

TP-Link Omada WL-Router ER707-M2 - ER707-M2 - Black, 2.5G WAN/LAN, 6x RJ-45 LAN, USB 2.0, SFP, Wall-mountable
Multi-Gig VPN router with 2.5GbE WAN/LAN, 6 Gigabit LAN ports, USB 2.0, SFP module, wall-mountable, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Mesh Support | None |
|---|---|
| Routers - VPN | Client + Server |
| Routers - USB Ports | USB 2.0 |
| Routers - Antennas | Internal |
| Routers - 3G/4G/5G Failover | No |
TP-Link Omada Multi-Gigabit VPN Router. Networking standards: IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3q. IEEE 802.3u. IEEE 802.3x. Ethernet interface type: 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000.2500 Mbit/s. Supported network protocols: TCP/IP. DHCP. ICMP. NAT. PPPoE. NTP. HTTP. HTTPS. DNS. IPSec. PPTP. L2TP. OpenVPN. SNMP. Security algorithms: 3DES. 128-bit AES. 192-bit AES. 256-bit AES. DES. MD5. SHA-1. SNMP. SNMPv2. SNMPv3. Compliance certificates: CE. Federal Communications Commission (FCC). RoHS. Flash memory: 128 MB. Internal memory: 1000 MB. Internal memory type: DDR4
| Feature | Wall mountable |
| Networking standards | IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3q. IEEE 802.3u. IEEE 802.3x |
| Ethernet interface type | 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000.2500 Mbit/s |
| Throughput | 1.44 Gbit/s |
| Ethernet LAN (RJ-45) ports | 6 |
| WAN/Ethernet LAN ports quantity | 6 |
| WAN ports quantity | 1 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Supported network protocols | TCP/IP. DHCP. ICMP. NAT. PPPoE. NTP. HTTP. HTTPS. DNS. IPSec. PPTP. L2TP. OpenVPN. SNMP |
| Security algorithms | 3DES. 128-bit AES. 192-bit AES. 256-bit AES. DES. MD5. SHA-1. SNMP. SNMPv2. SNMPv3 |
| VPN tunnels quantity | 66 |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10. Windows 2000. Windows 7. Windows 8. Windows 8.1. Windows 98SE. Windows NT. Windows Vista. Windows XP |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | LAN. Link. Power. Speed. System. USB. WAN |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
| Package width | 242 mm |
| Package depth | 323 mm |
| Package height | 73 mm |
| Package weight | 1.1 kg |
