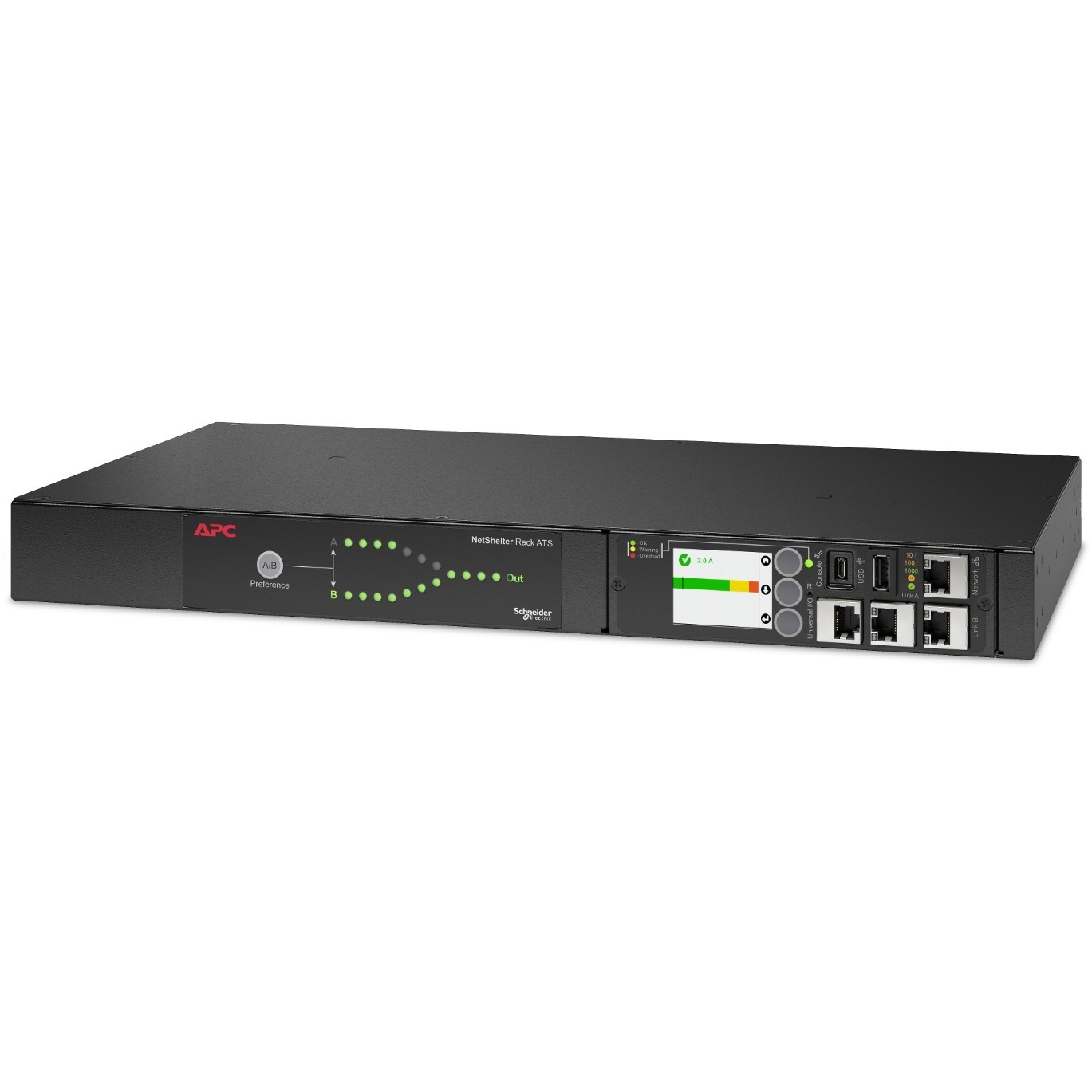

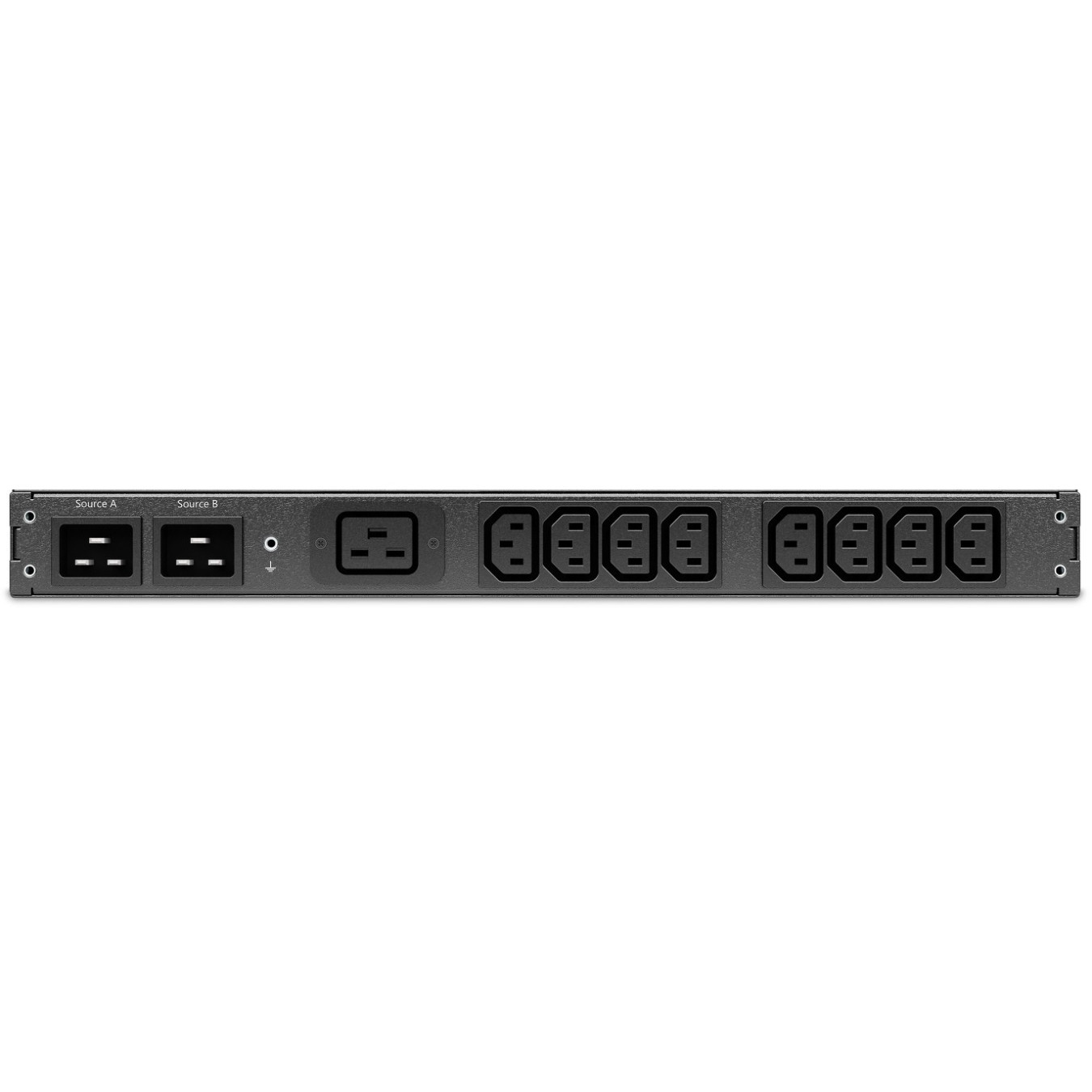

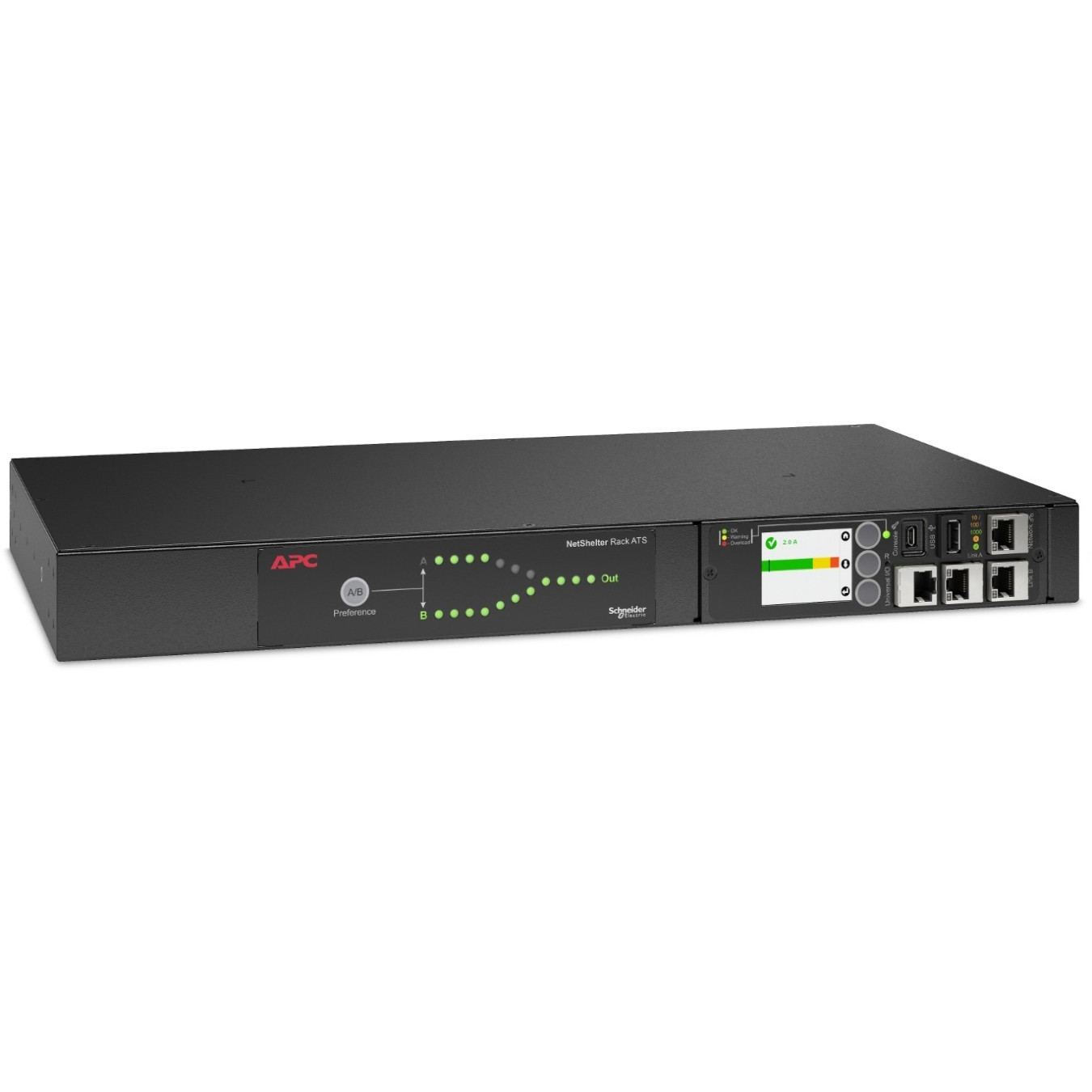

APC NetShelter Automatic Transfer Switch AP4423A - 1U, Black - 9 Outlets (8x C13, 1x C19)
APC NetShelter ATS AP4423A: 9 outlets (8x C13, 1x C19), 3680W, rack-mountable 1U, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack PDUs & Power - Form Factor | Horizontal 1U |
|---|
APC Automatic Transfer Switch AP4423A - (8x) C13 + (1x) C19. 3680W. Rack mountable. 1U. Input operation voltage (min): 207 V. Input operation voltage (max): 253 V. AC input frequency: 50 - 60 Hz. Form factor: Rackmount. Rack capacity: 1U. Product colour: Black. AC outlets quantity: 9 AC outlet(s). AC outlet types: C13 coupler. C19 coupler. Width: 432 mm. Depth: 236 mm. Height: 44 mm. Package width: 600 mm. Package depth: 356 mm. Package height: 114 mm
| Input operation voltage (min) | 207 V |
| Input operation voltage (max) | 253 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 A |
| Output current | 16 A |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE. cUL listed. EN 55022 class A. FCC part 15 class A. UL listed |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler. C19 coupler |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Total carbon footprint (kg of CO2e) | 432.5 |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 3.74 kg |
| Package width | 600 mm |
| Package depth | 356 mm |
| Package height | 114 mm |
| Package weight | 5.51 kg |
