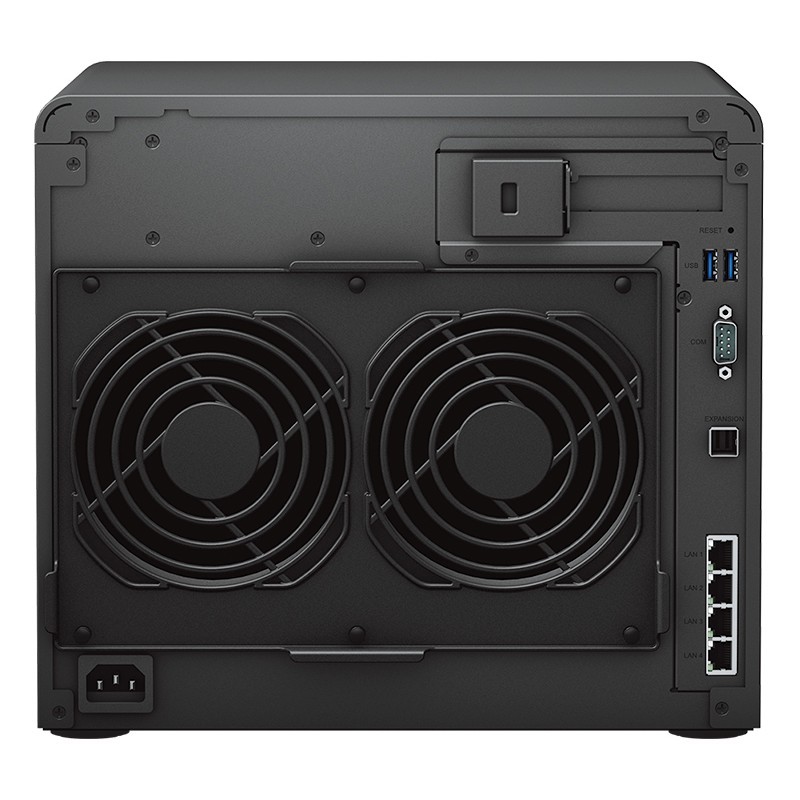

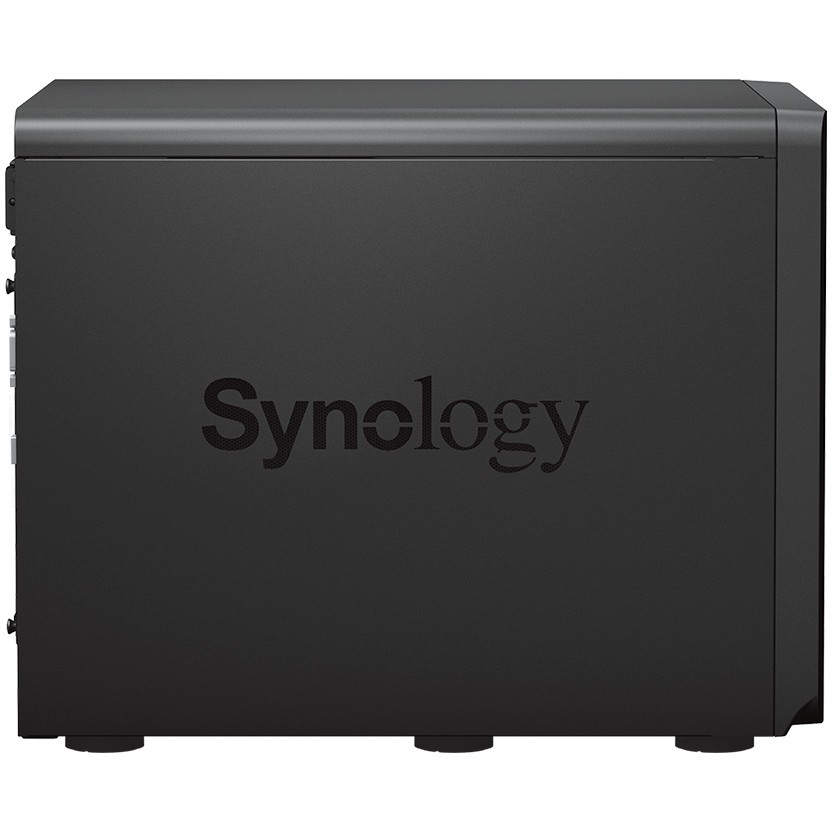

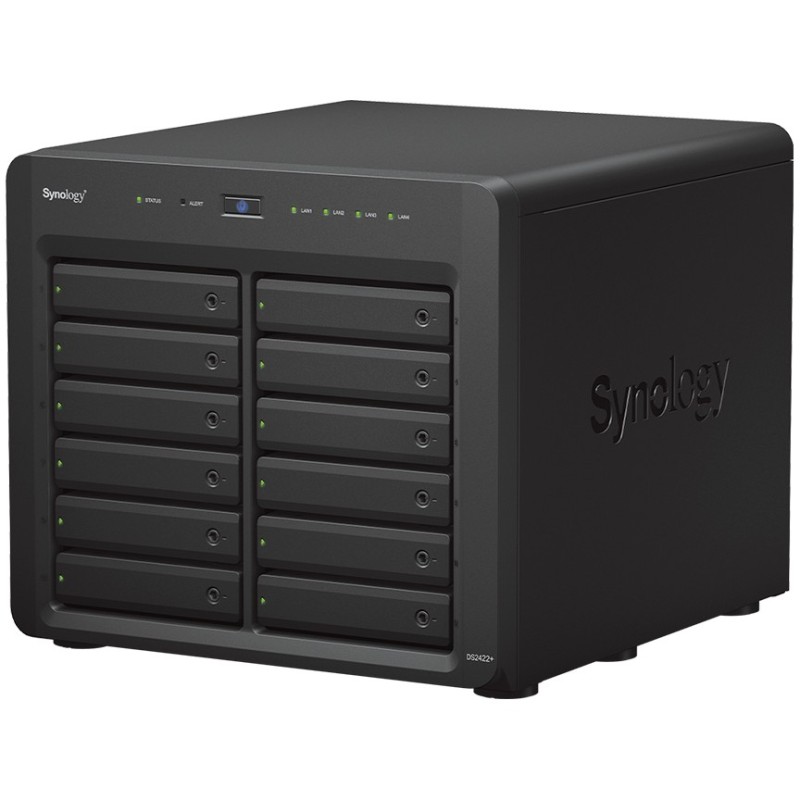

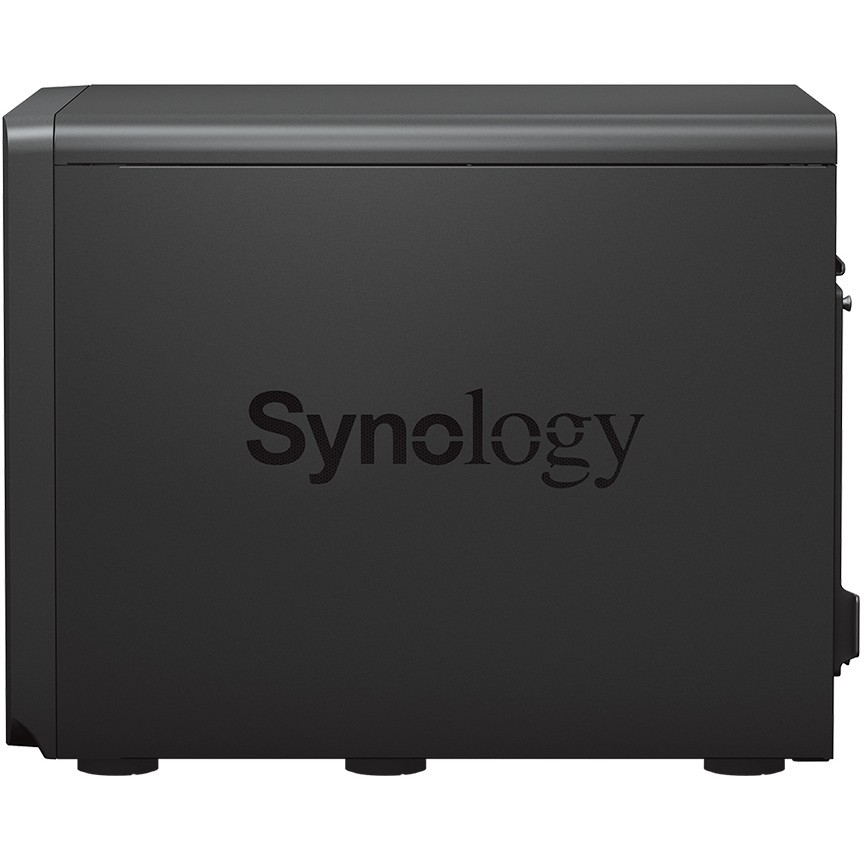

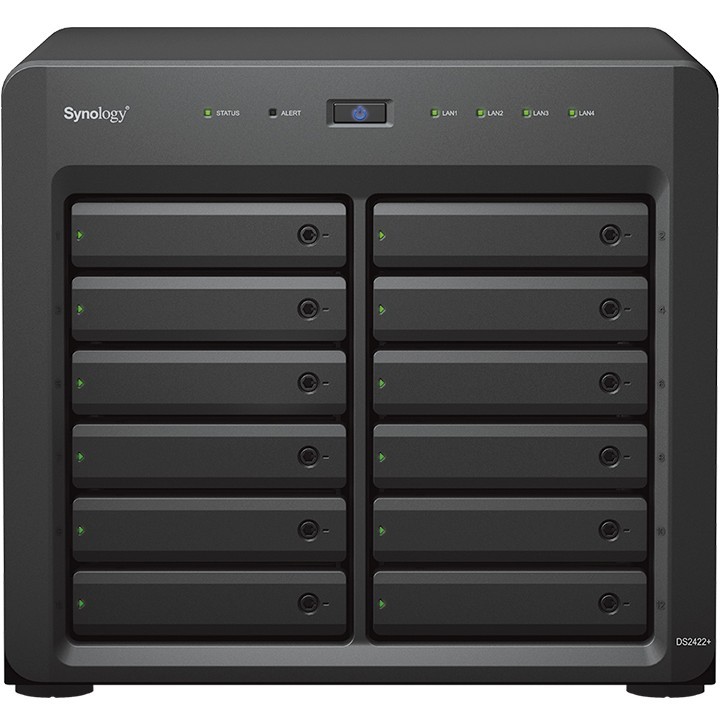

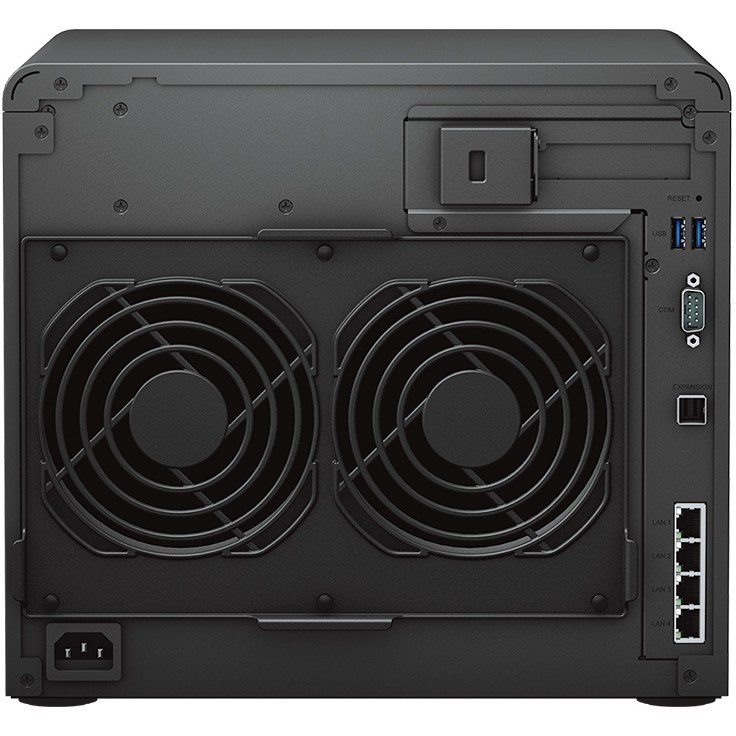

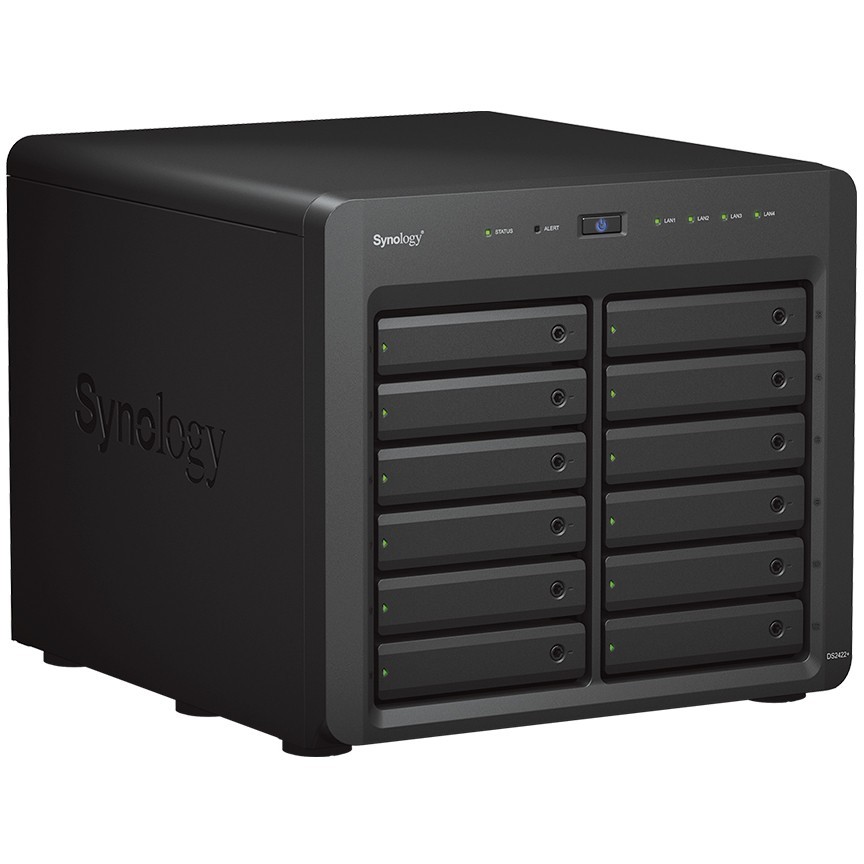

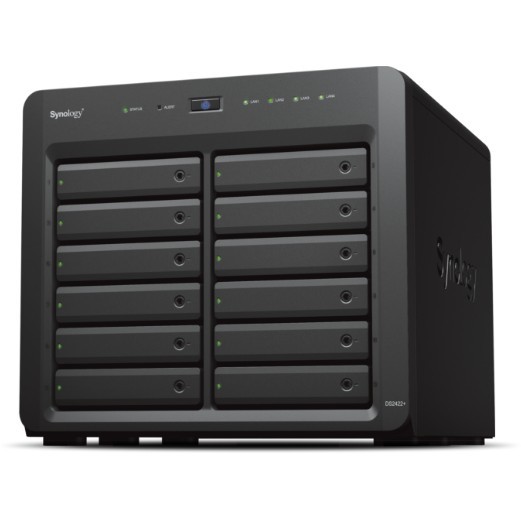

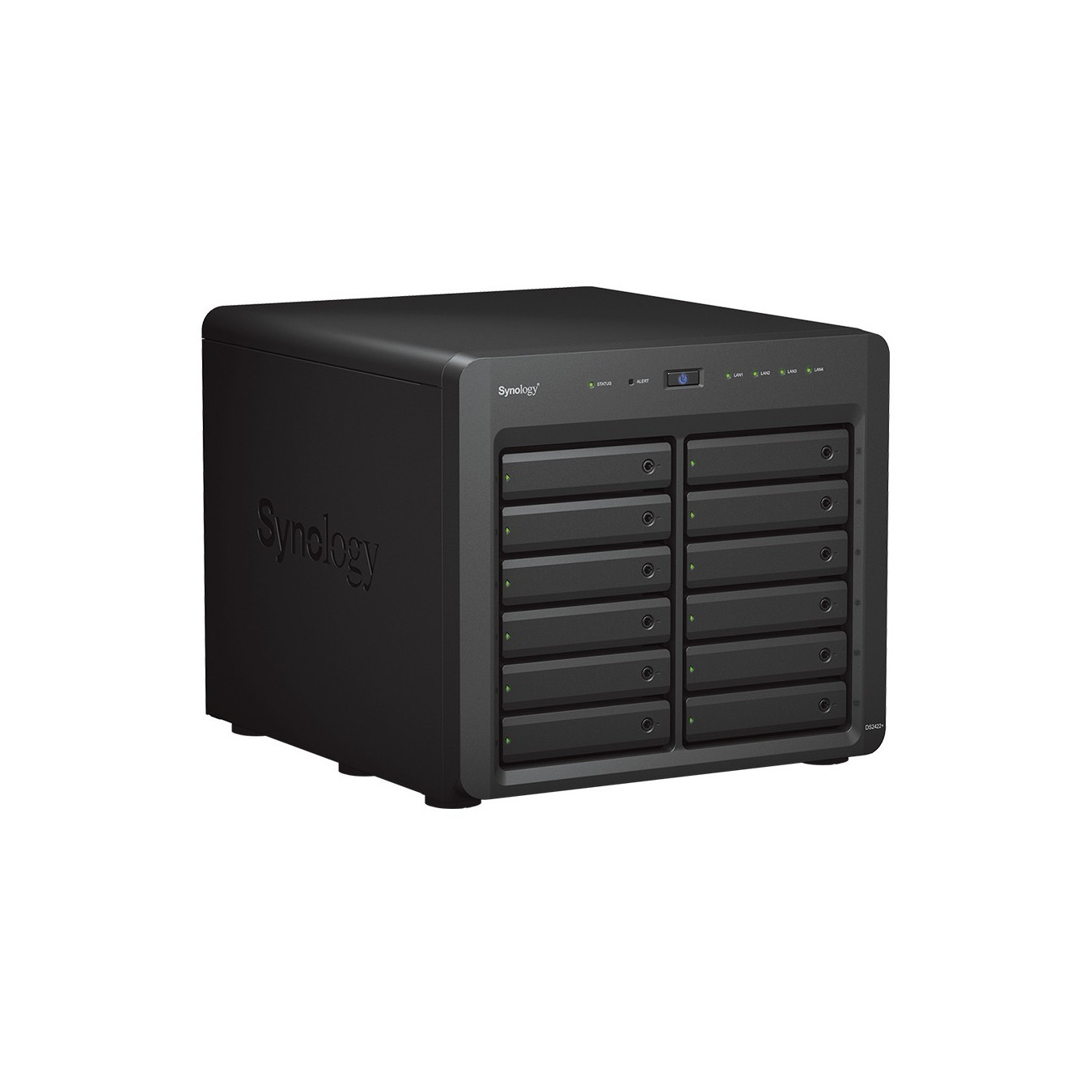

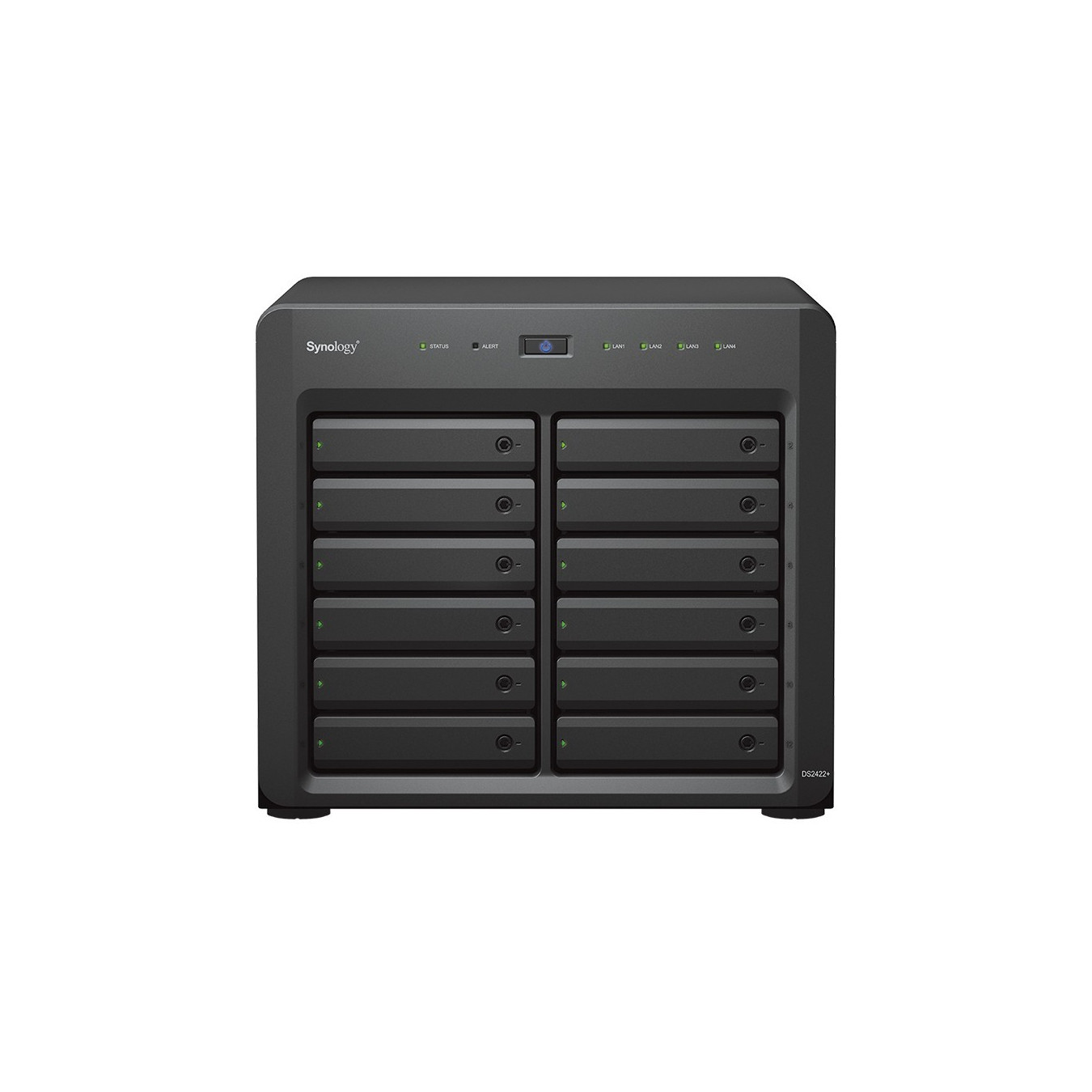

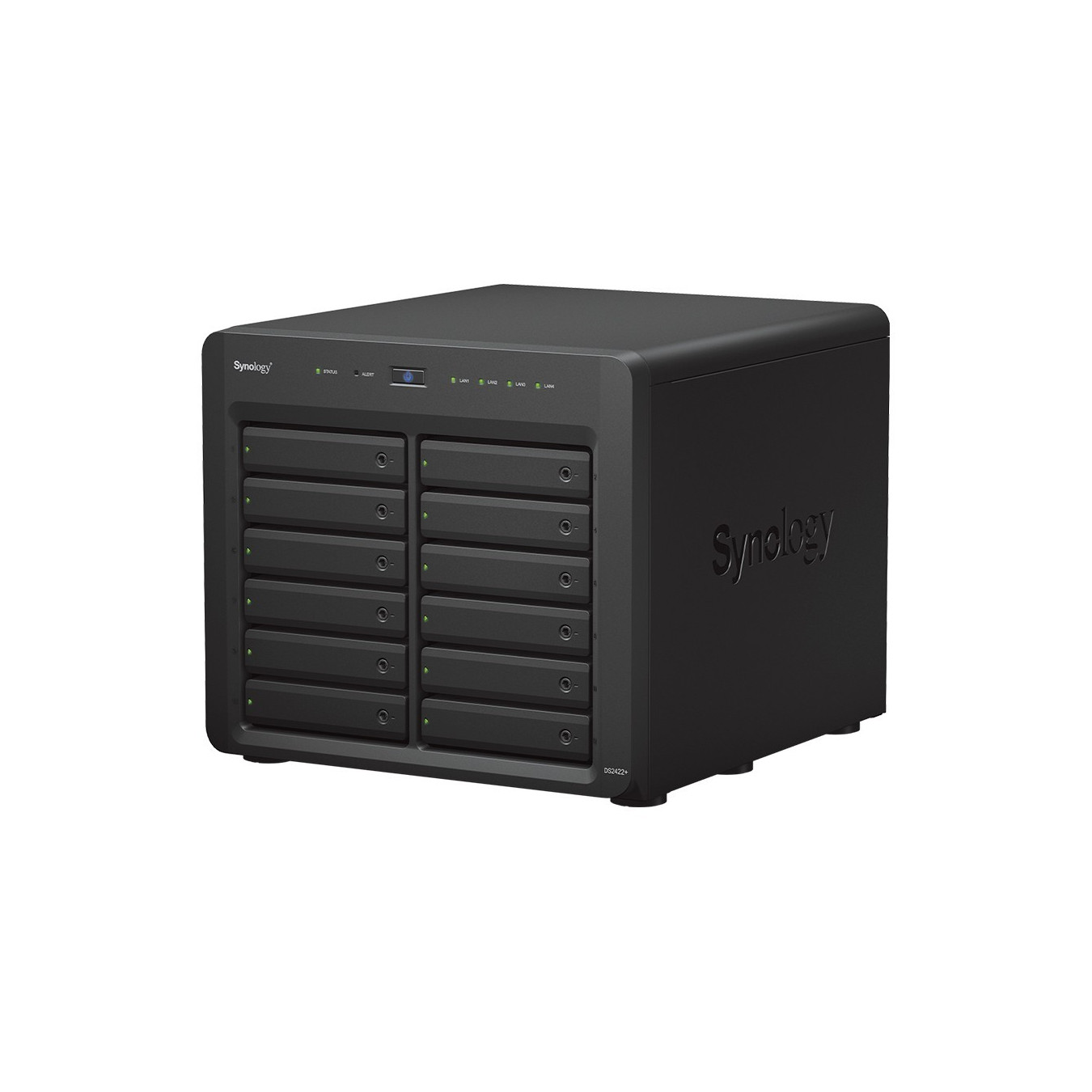

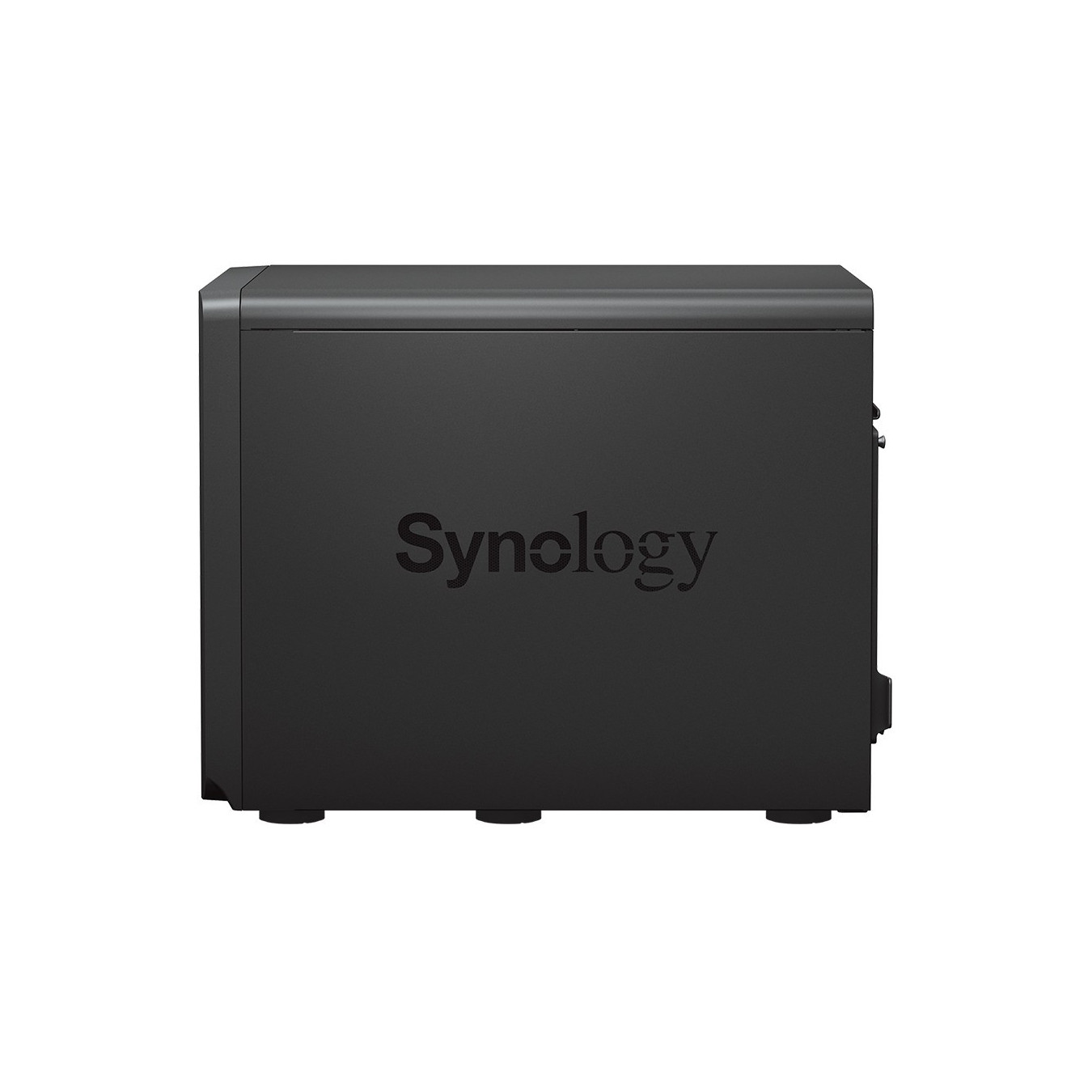

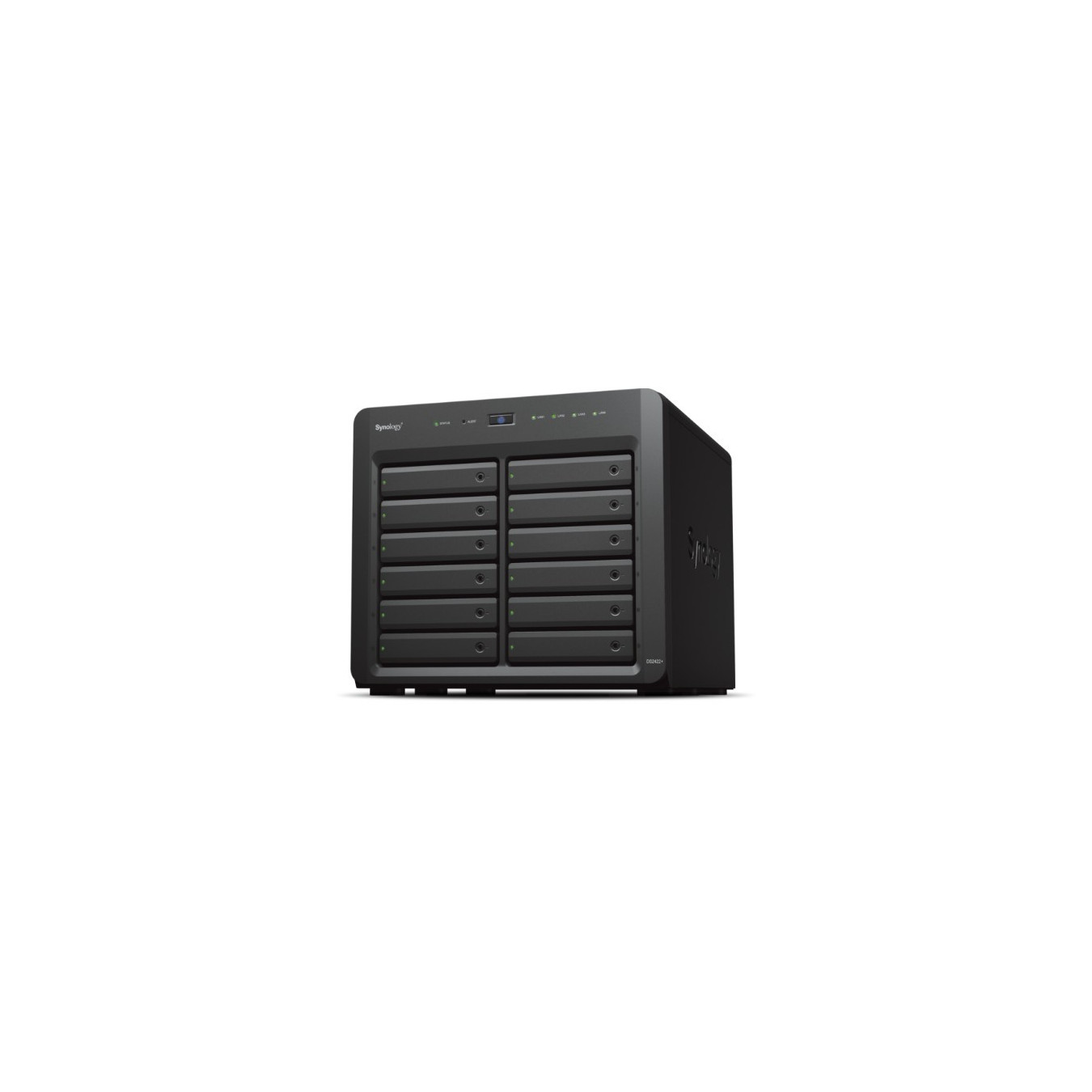

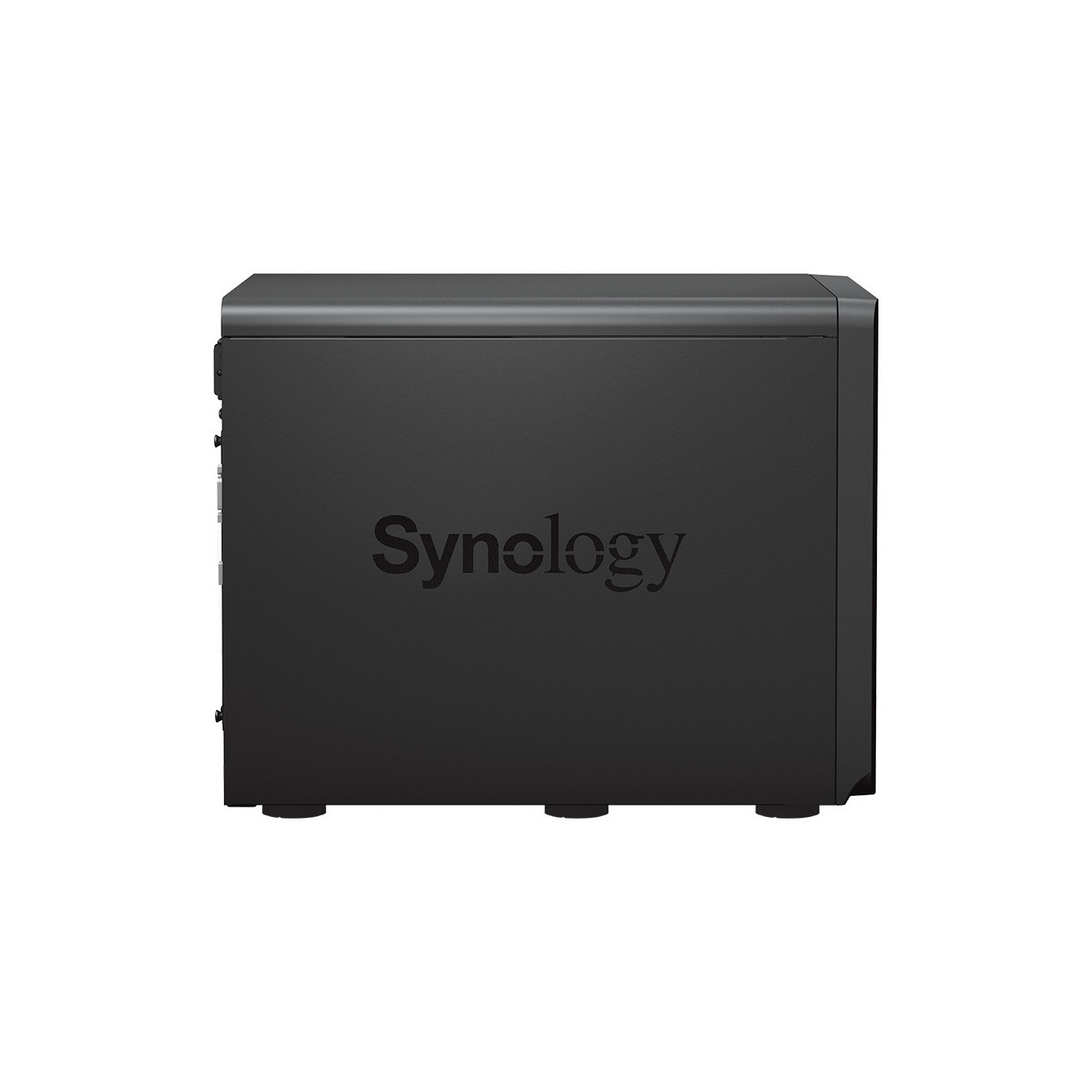

Synology Disk Station DS2422+ NAS - 12-Bay Tower, Ryzen Embedded V1500B, 4 GB DDR4, 2.2 GHz
12-bay NAS with AMD Ryzen Embedded V1500B, 4 GB DDR4, 4x1 GbE, hot-swappable bays, supports RAID 0/5/6/10 and JBOD for scalable storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 2.5inch HDD/SSD |
| NAS (Network Attached Storage) - Memory (Installed) | 4 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
| NAS (Network Attached Storage) - LAN | 1x1GbE |
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology DiskStation DS2422+. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded. Processor model: V1500B. Processor frequency: 2.2 GHz. Internal memory: 4 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA. Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5" |
| Maximum supported storage capacity | 108 TB |
| Feature | Access Control List (ACL) |
| RAID levels | 0. 5. 6. 10. JBOD |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Number of processors supported | 1 |
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Ethernet LAN data rates | 1000 Mbit/s |
| Supported network protocols | SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS. iSCSI. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV |

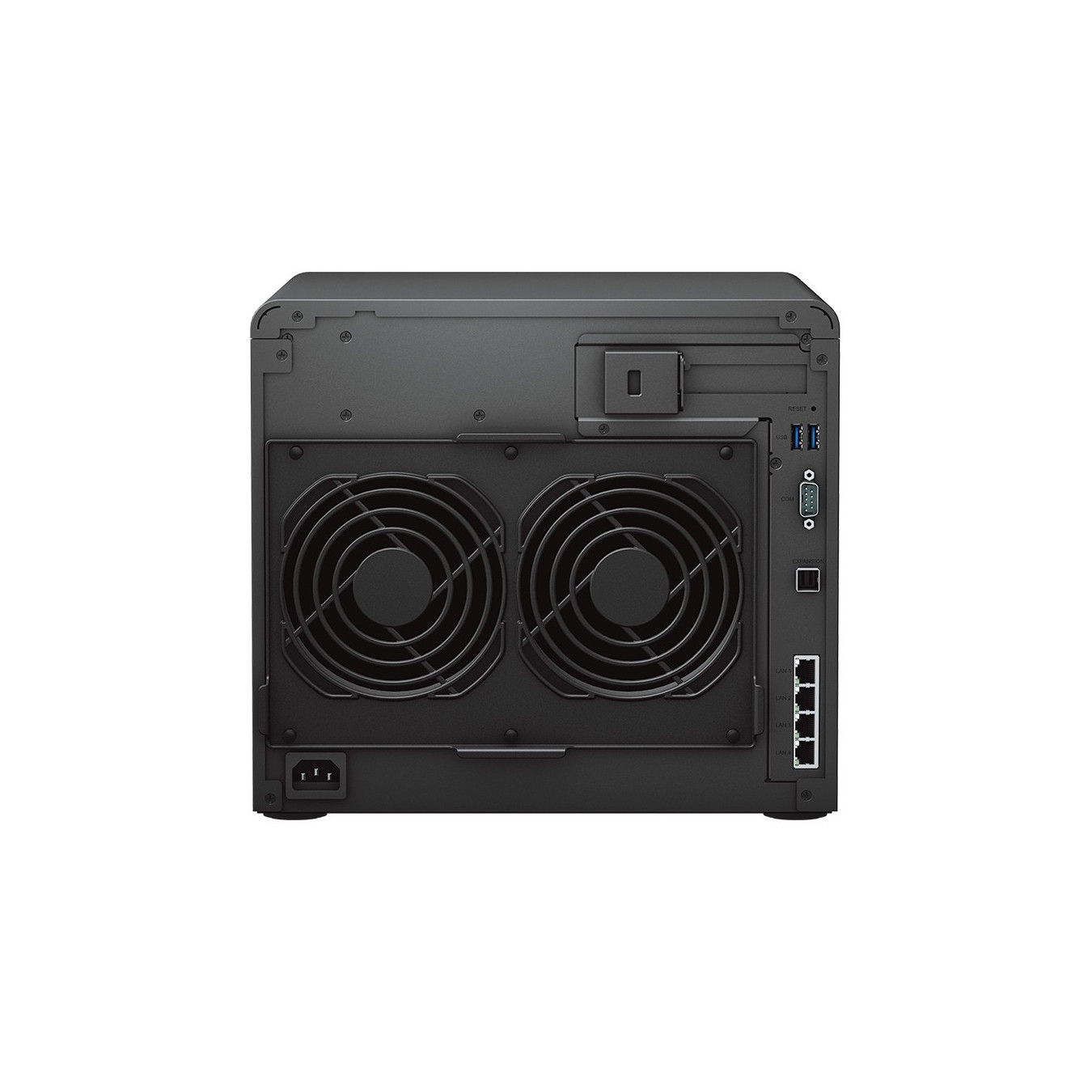

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Fan diameter 2 | 12 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Noise level | 25 dB |
| Browser supported | Chrome. Firefox. Edge. Internet Explorer. Safari |
| Operating system installed | DiskStation Manager |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 73.11 W |
| Power consumption (HDD standby) | 32.12 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 300 mm |
| Depth | 340 mm |
| Height | 270 mm |
| Weight | 9.5 kg |
| Cables included | AC. LAN (RJ-45) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Certification | FCCCEBSMIVCCIRCMUKCAEACCCCKCUL |
