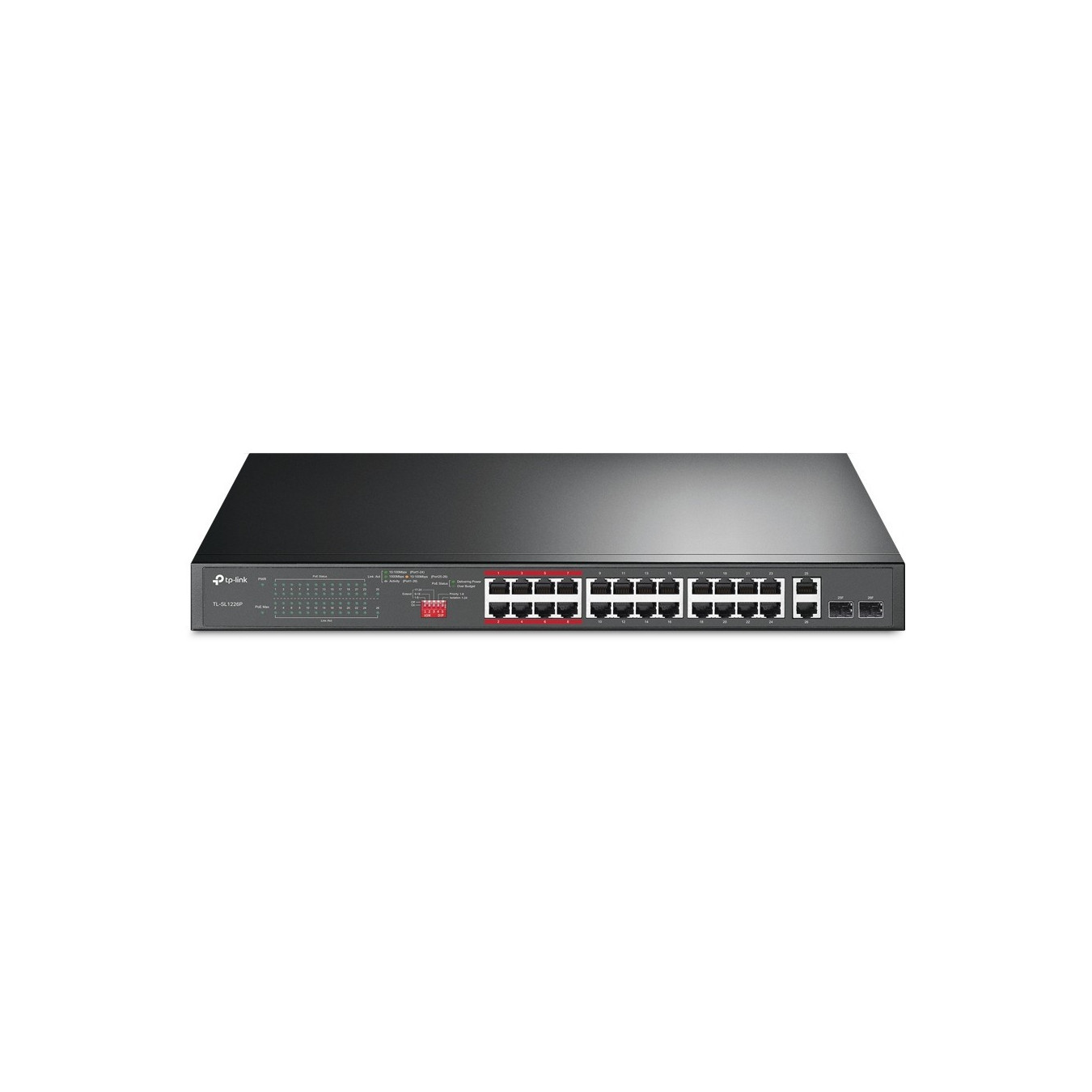

TP-Link TL-SL1226P - 26-Port Gigabit PoE Unmanaged Switch, 1U Rackmount, Grey
Unmanaged 26-port PoE+ switch with 24 PoE+ and 2 Gigabit ports, 250W PoE budget, 1U rack-mount, IEEE 802.3af/at, 8.8 Gbps switching
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries. Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3af. IEEE 802.3at. IEEE 802.3x. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Unmanaged |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.3af. IEEE 802.3at. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 6.54 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Form factor | 1U |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 281 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1002.54 BTU/h |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 3.02 kg |
| Certification | CE. FCC. RoHS |
| Harmonized System (HS) code | 85176990 |
