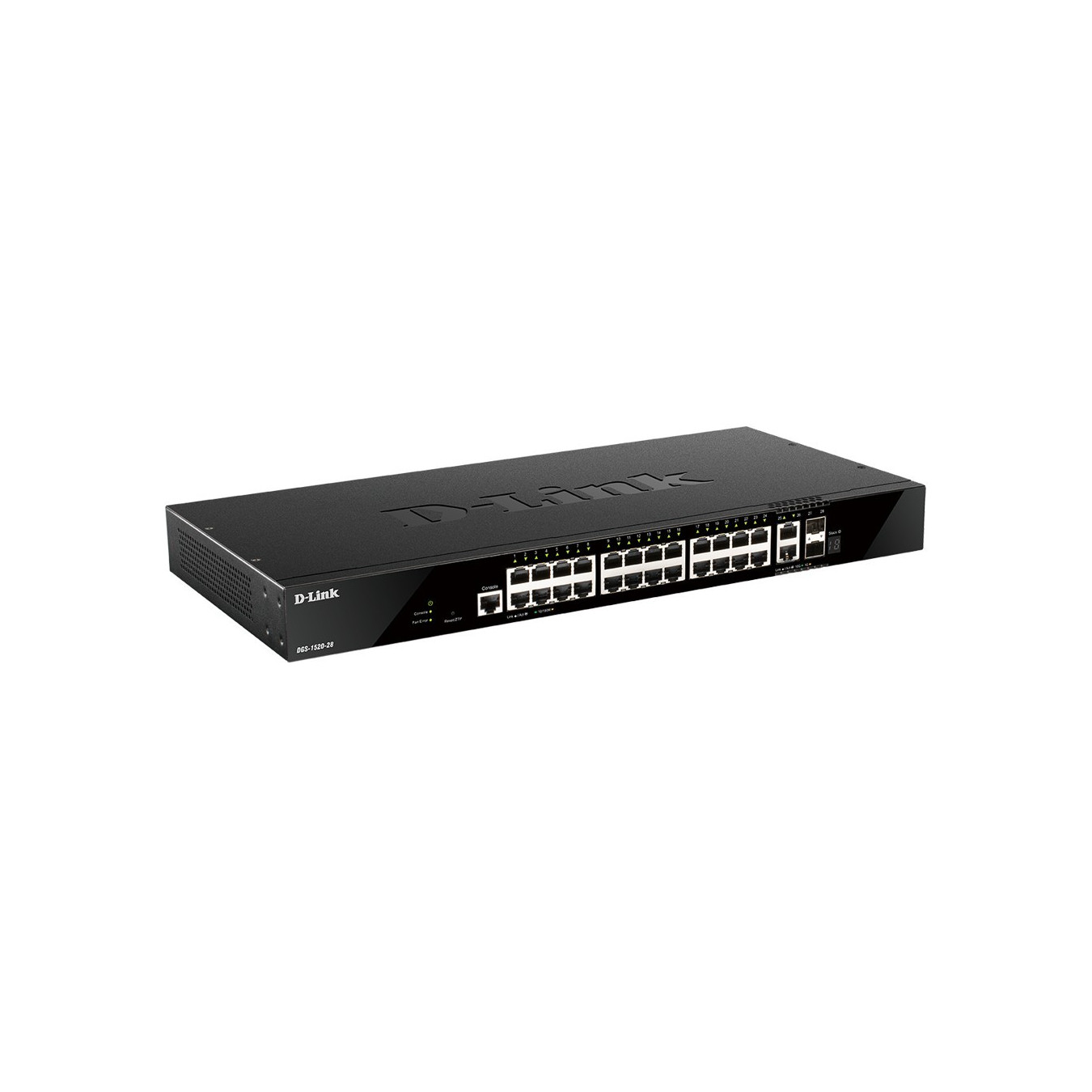

D-Link DGS-1520-28 E - 28-Port Gigabit Smart Managed Switch, L3, Black, 1U Rack-mount, 2x 10G Copper, SFP+ Slots
Layer-3 managed 28-port switch with 24x Gb copper, 2x 10G copper, 2x SFP+ slots; 1U rack-mount, RPS support, black chassis.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
D-Link DGS-1520-28/E. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 16384 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bz..... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Redundant power supply (RPS) support |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-FX. 100BASE-TX. 1000BASE-T |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.24 Mpps |
| MAC address table | 16384 entries |
| Jumbo frames | 12288 |
| DHCP features | DHCP snooping |
| MAC address entries | Static MAC address entries |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Routing protocols | OSPF. RIP. RIPng. VRRP |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity. Link. Power. Speed |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level | 51.8 dB |
| Mean time between failures (MTBF) | 468252 h |
| Power consumption (max) | 30.4 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 103.7 BTU/h |
| Width | 207.4 mm |
| Depth | 441 mm |
| Height | 44 mm |
| Weight | 2.33 kg |
| Certification | CE Class A. FCC Class A. IC Class A. RCM Class A. VCCI Class A. BSMI Class A |
| Harmonized System (HS) code | 85176990 |
