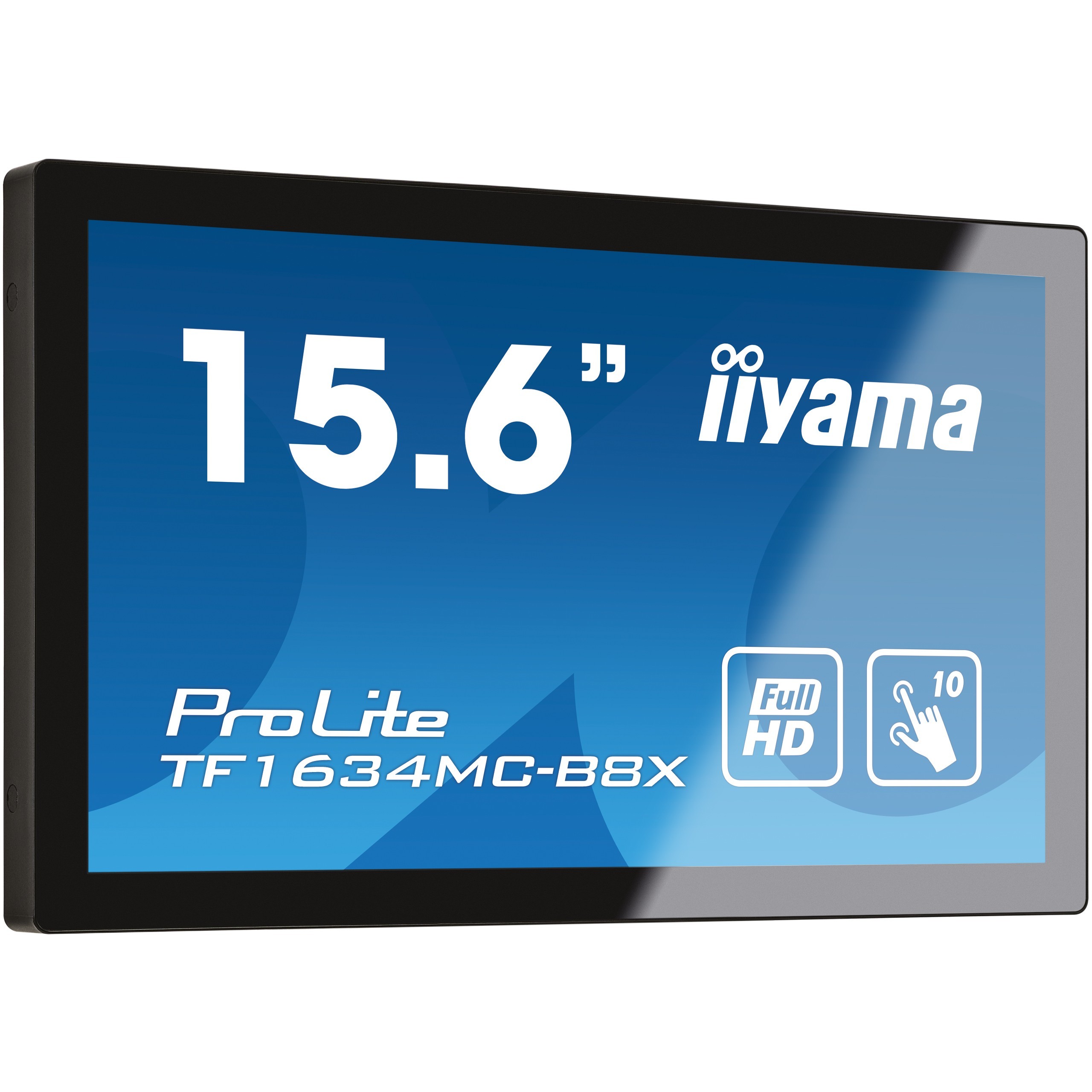

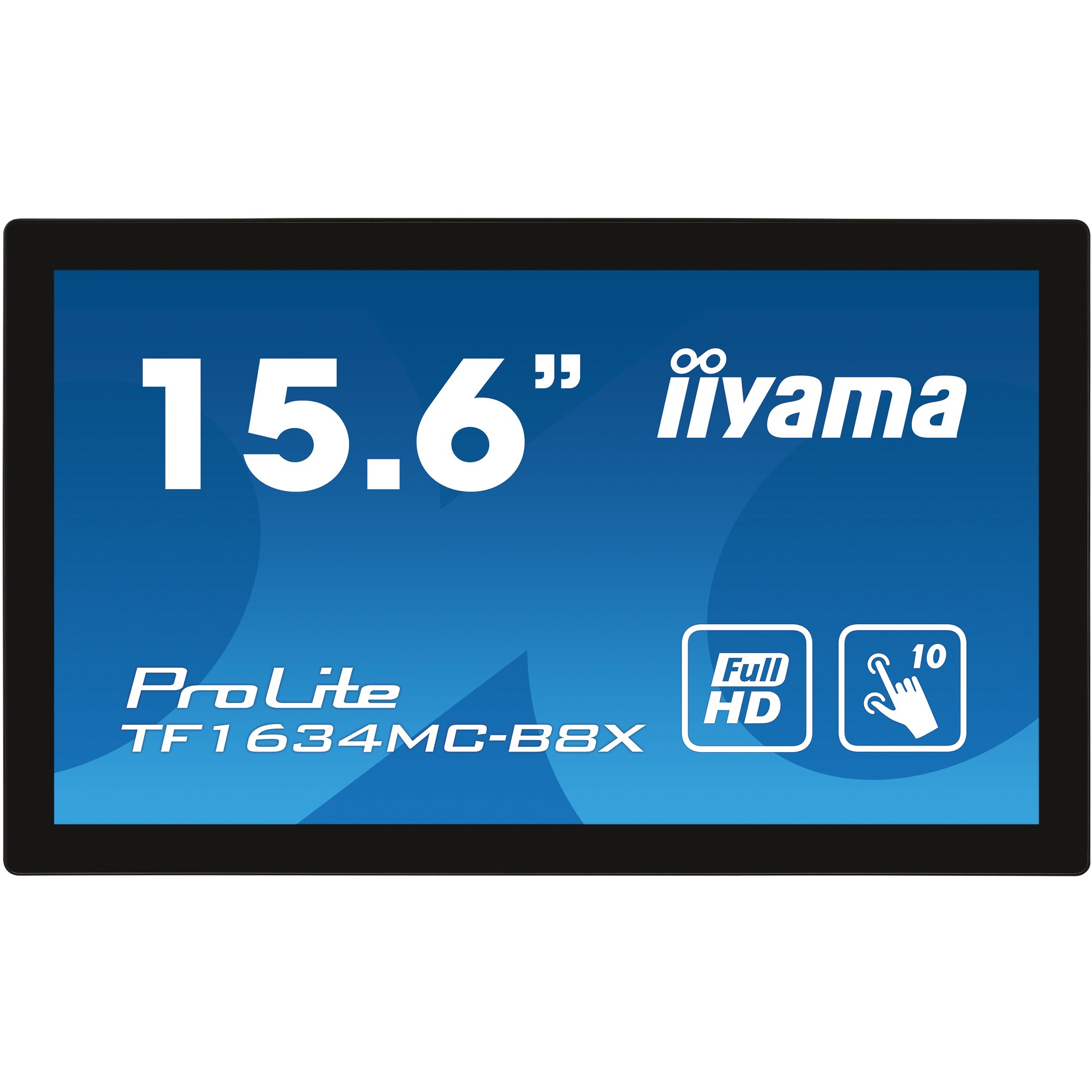

IIYAMA 15.6" Open-Frame Touch Monitor - TF1634MC-B8X - IPS, 1920x1080, HDMI+DP, Black
iiyama ProLite 15.6-inch open-frame PCAP touchscreen with IPS panel, 1920x1080 Full HD, LED backlight, 10-point touch, Black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|

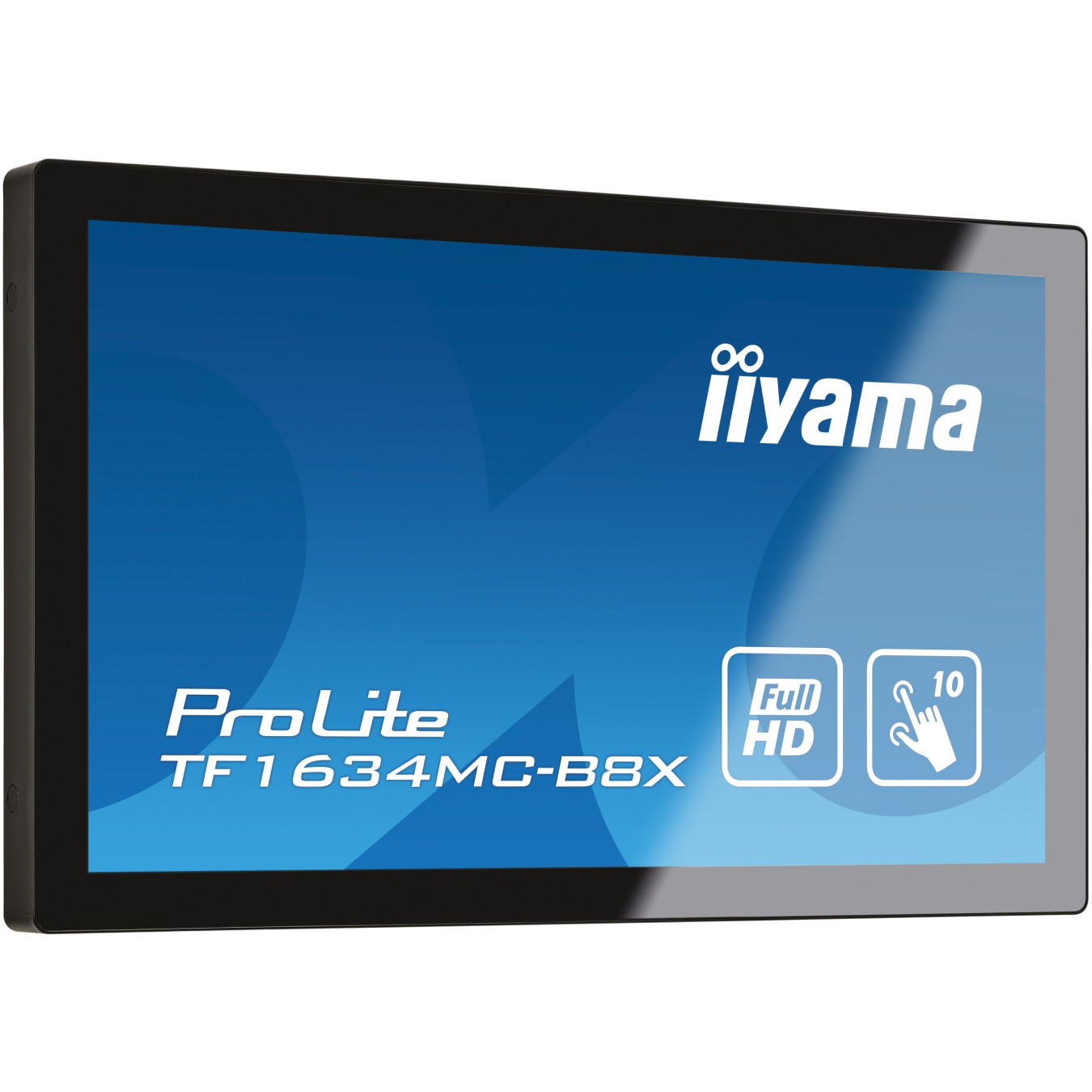

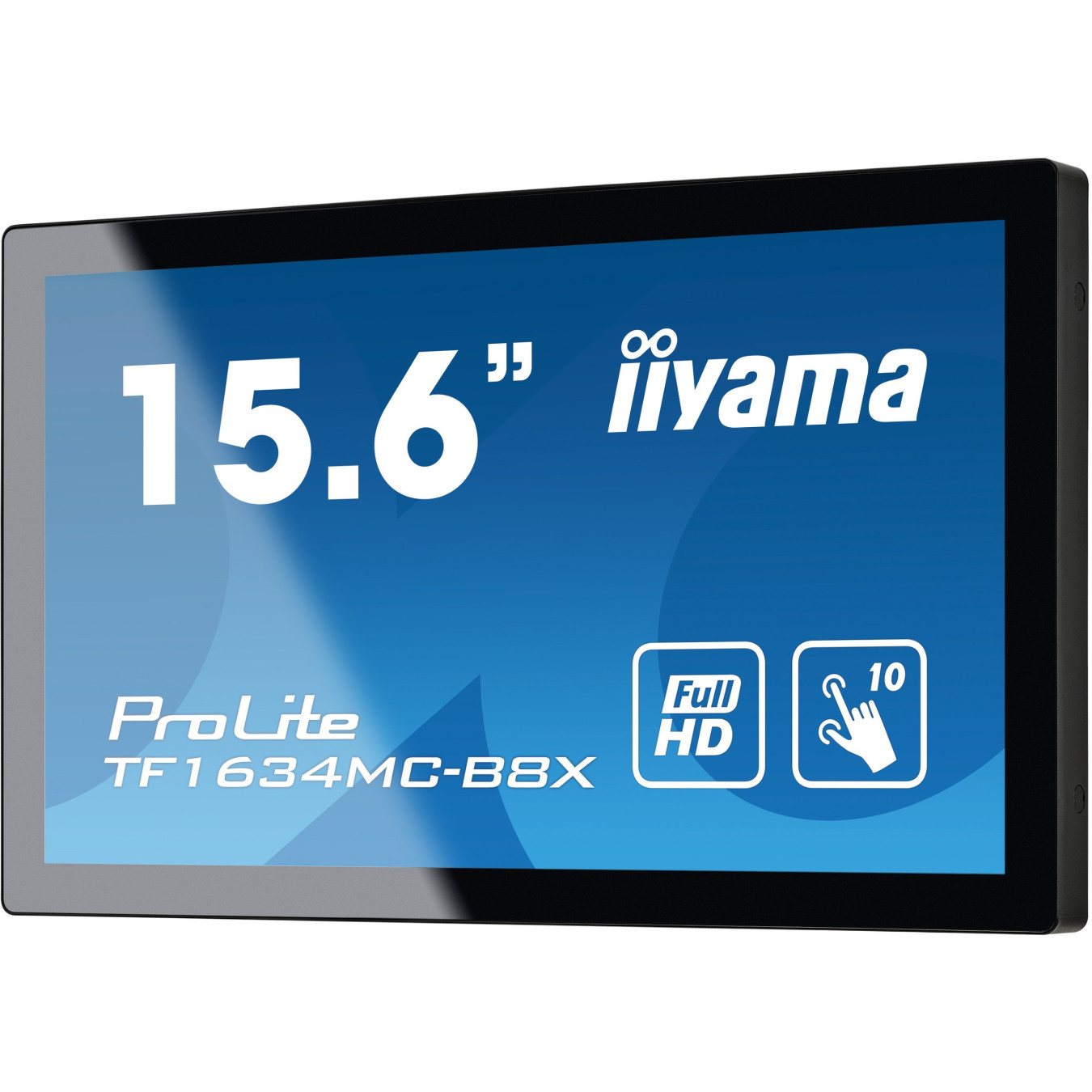

iiyama ProLite 15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function. Display diagonal: 39.6 cm (15.6"). Display resolution: 1920 x 1080 pixels. HD type: Full HD. Display technology: LED. Response time: 25 ms. Native aspect ratio: 16:9. VESA mounting. Product colour: Black
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Feature | On Screen Display (OSD) |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 450 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Product colour | Black |
| Glass thickness | 2.4 mm |

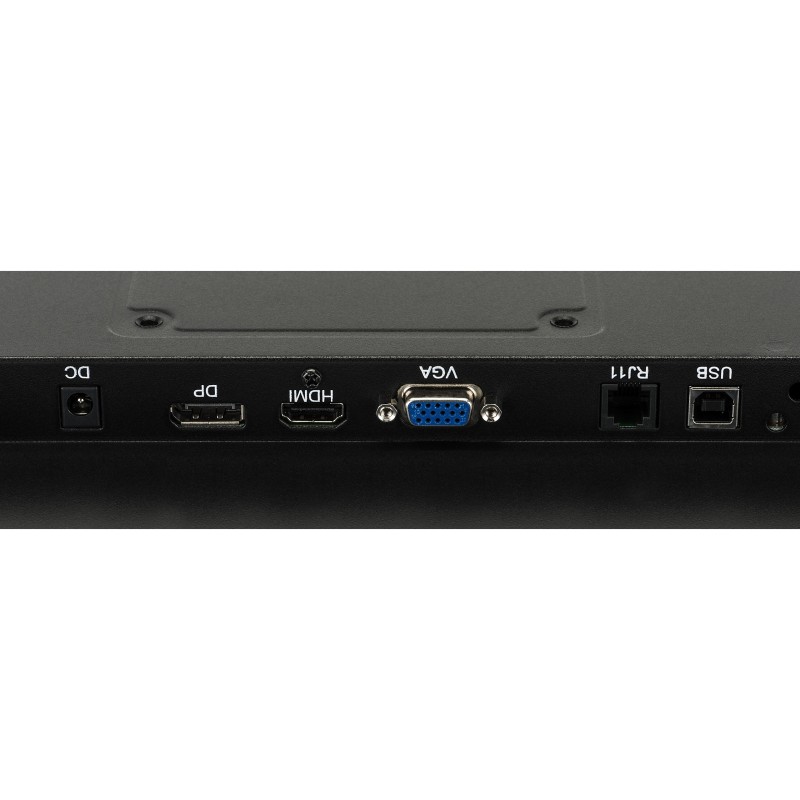

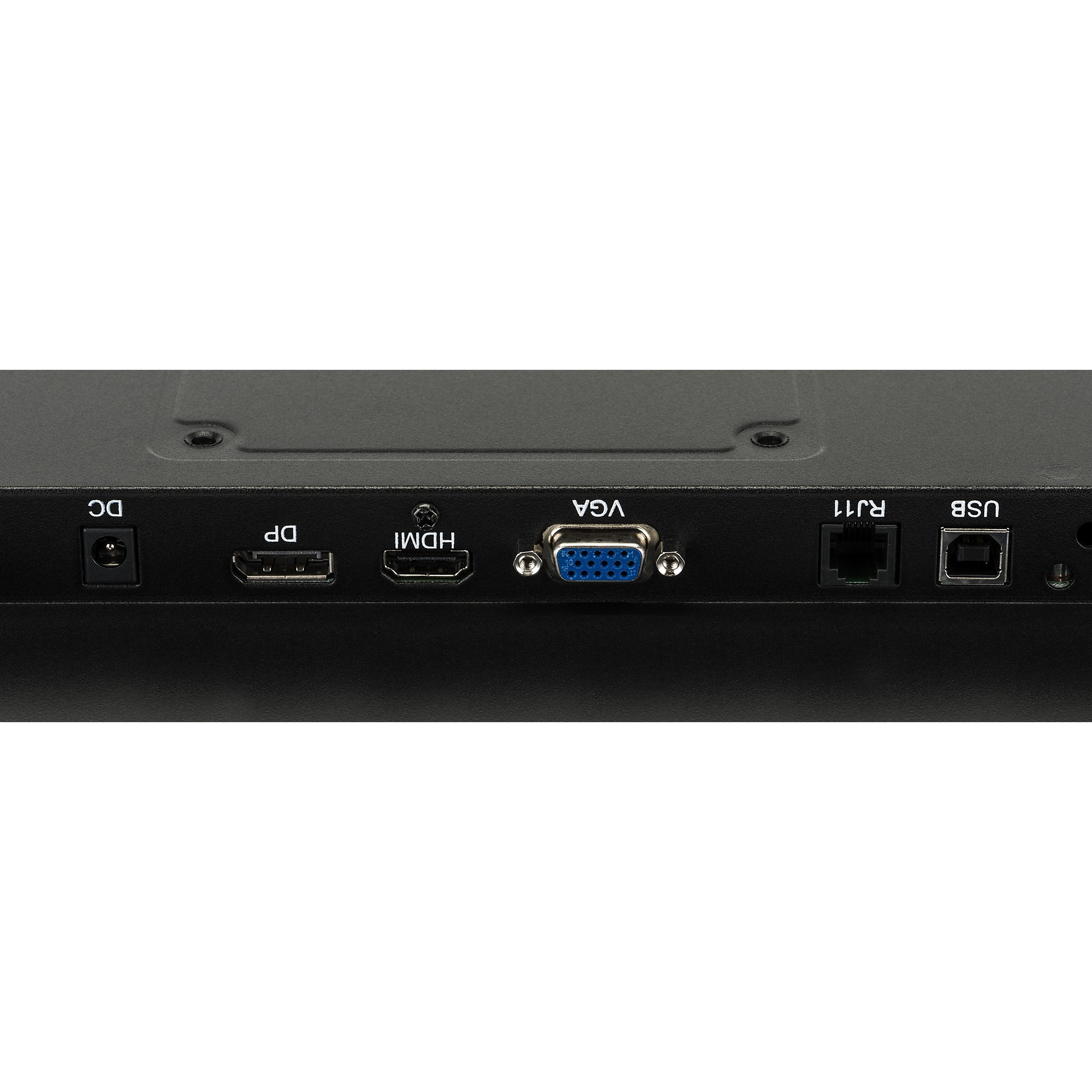

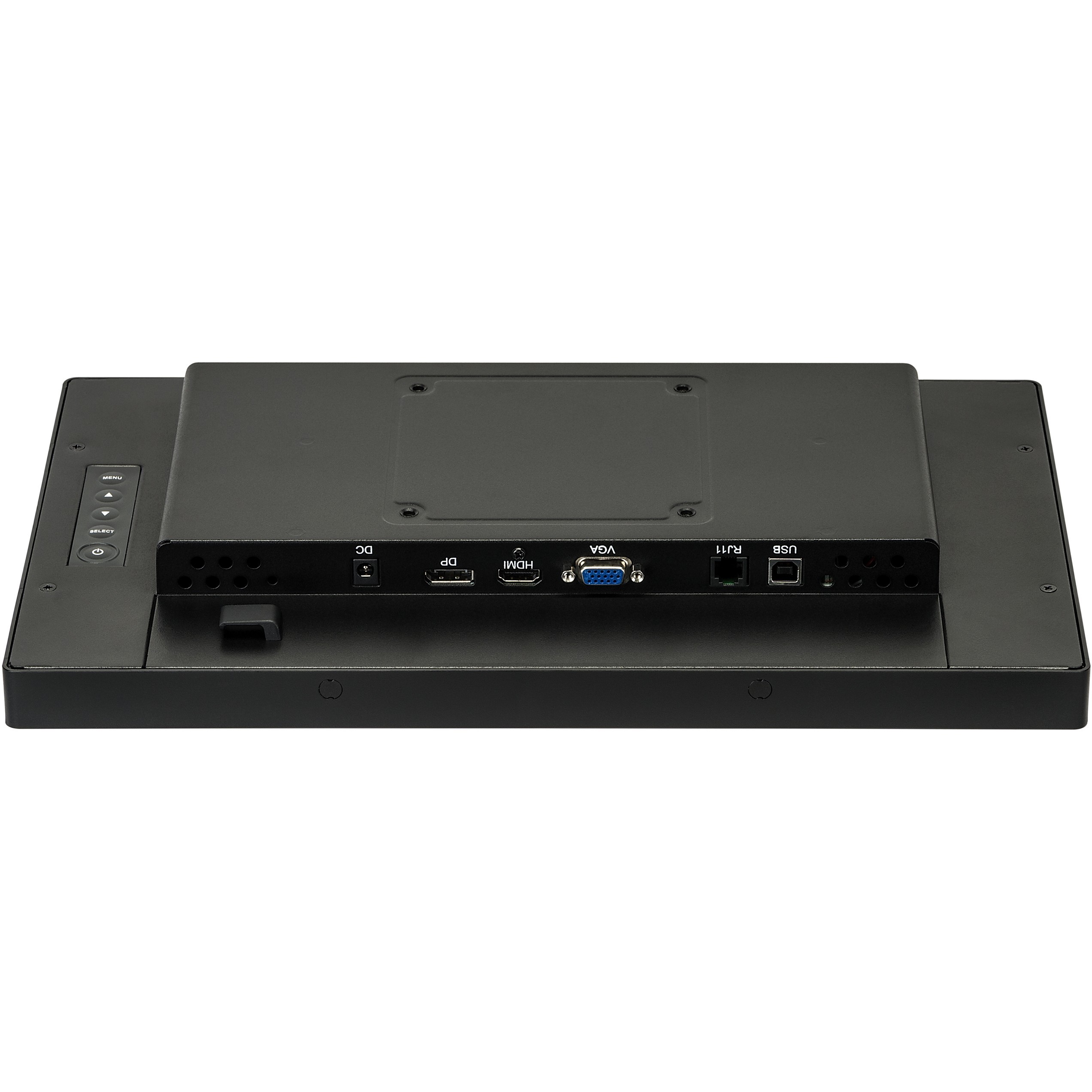

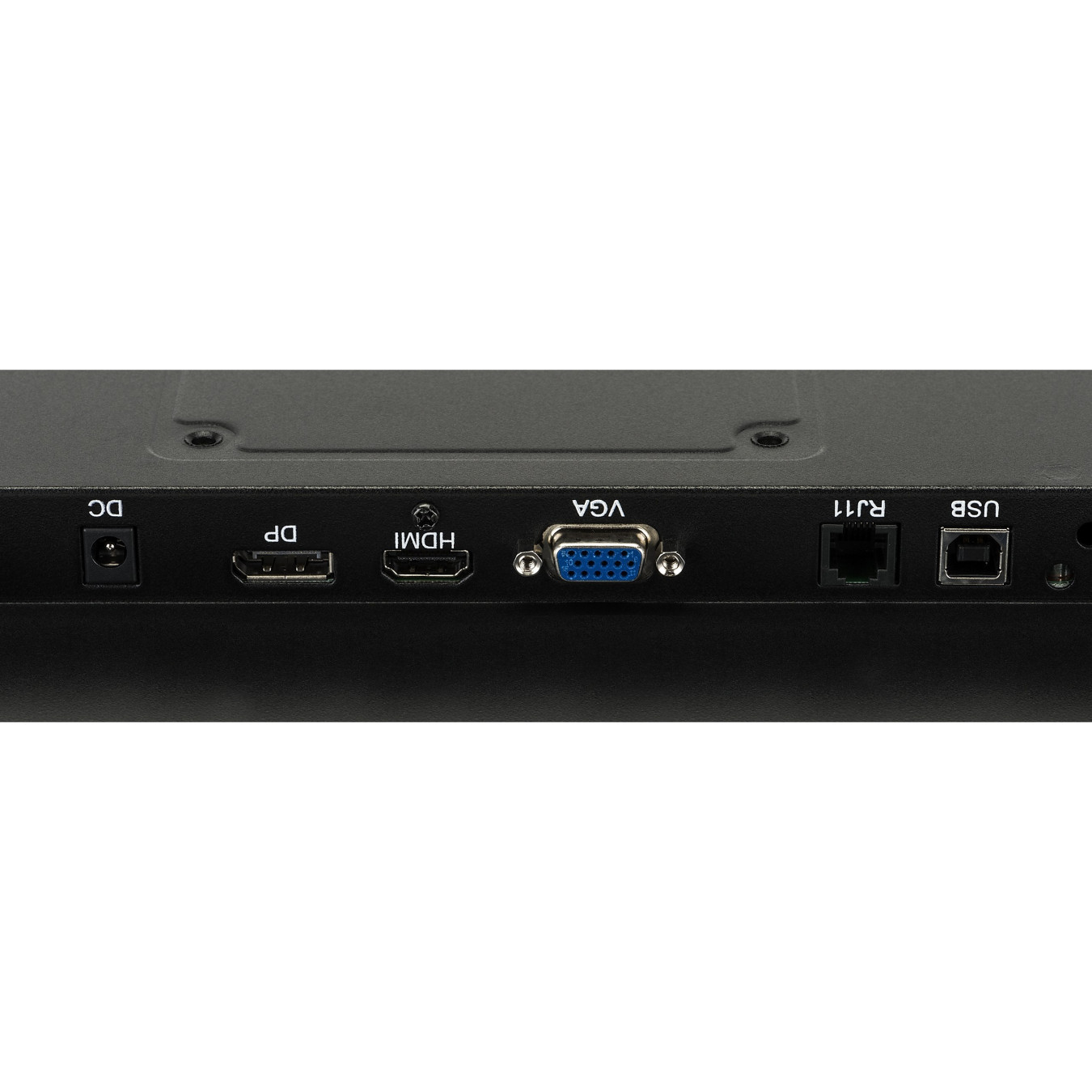

| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |

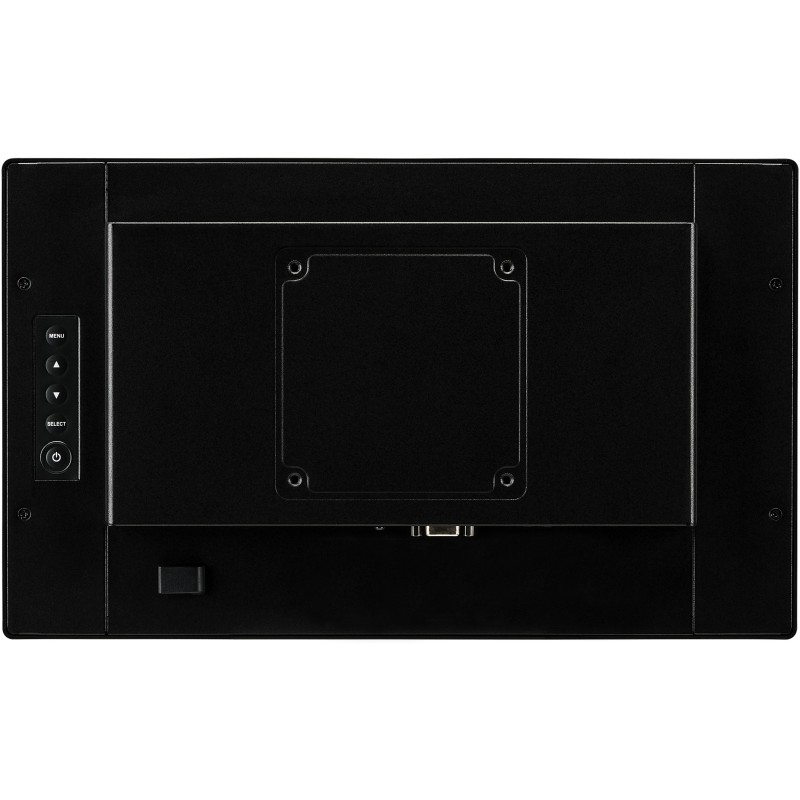

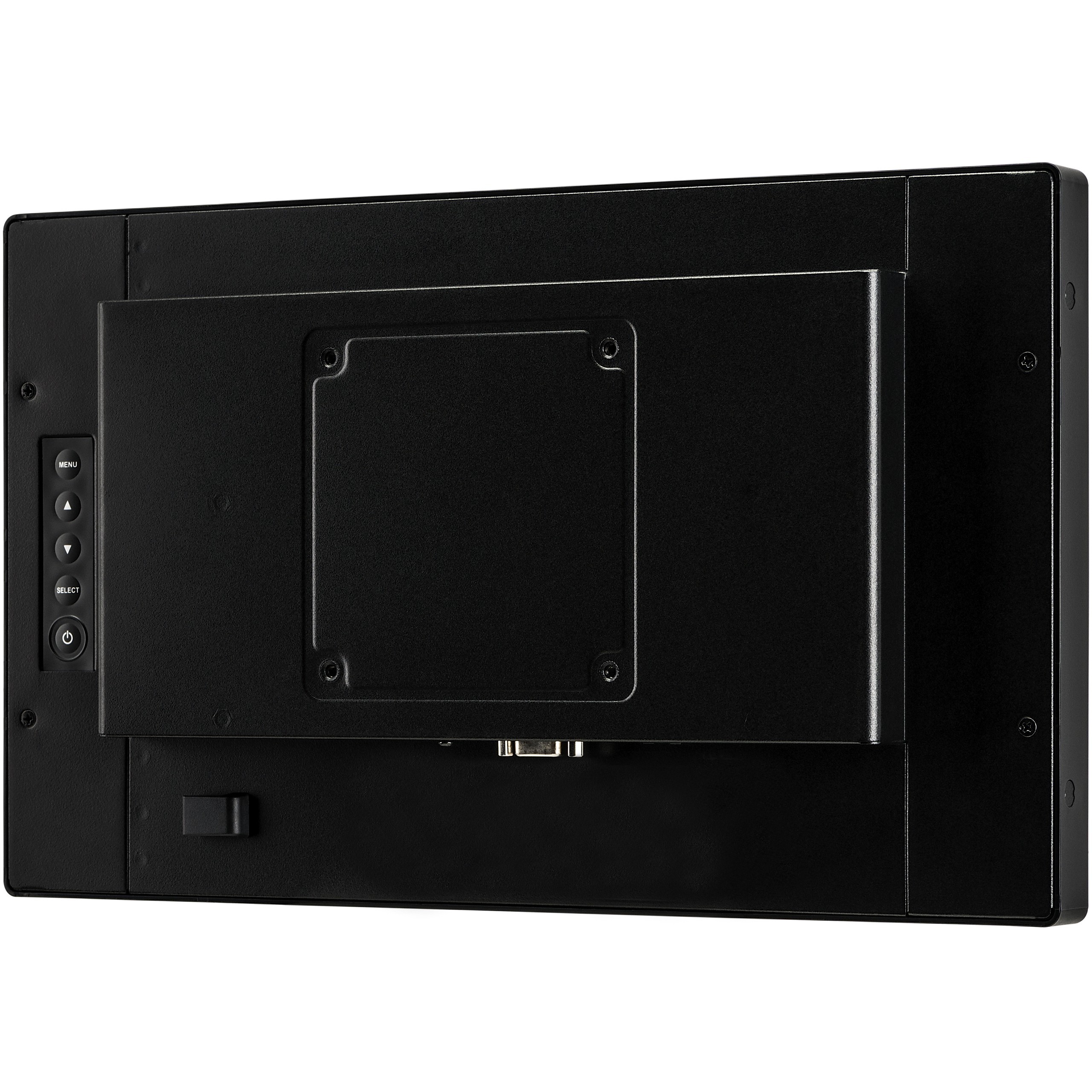

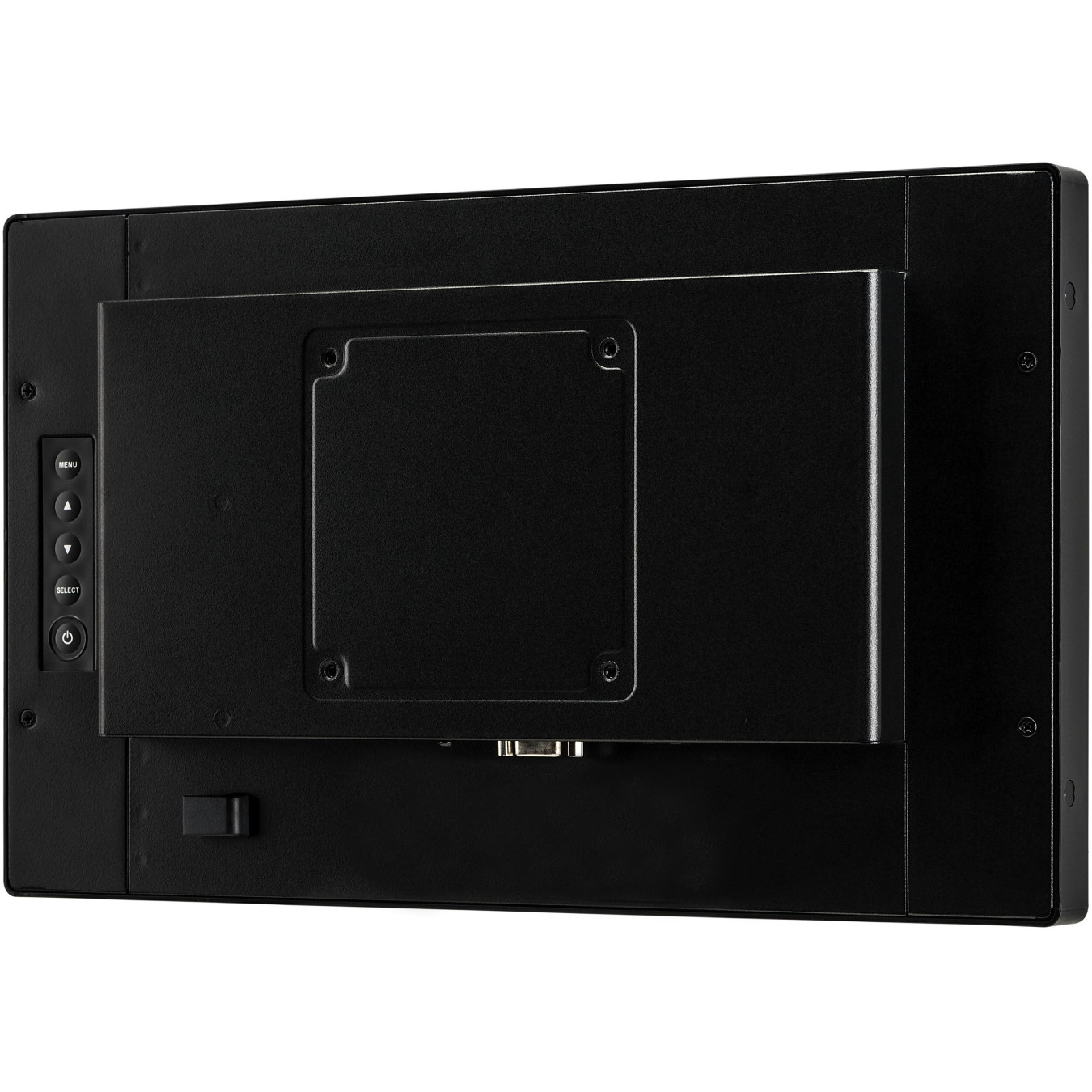

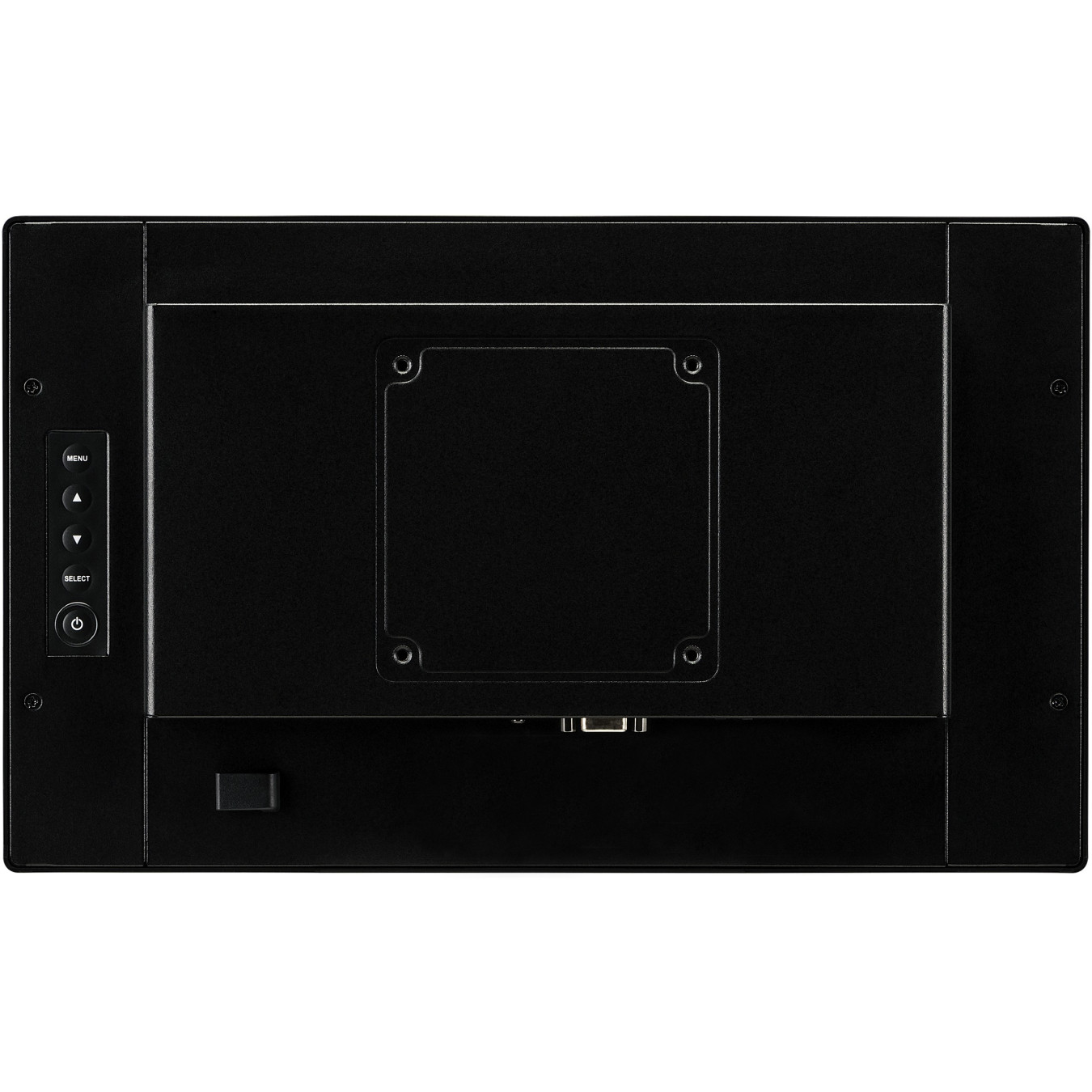

| Panel mounting interface | 100 x 100 mm |
| Number of OSD languages | 7 |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| European Product Registry for Energy Labelling (EPREL) code | 391713 |
| Width (without stand) | 381 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 230.5 mm |
| Weight (without stand) | 2 kg |
| Package width | 455 mm |
| Package depth | 290 mm |
| Package height | 365 mm |
| Package weight | 6.6 kg |

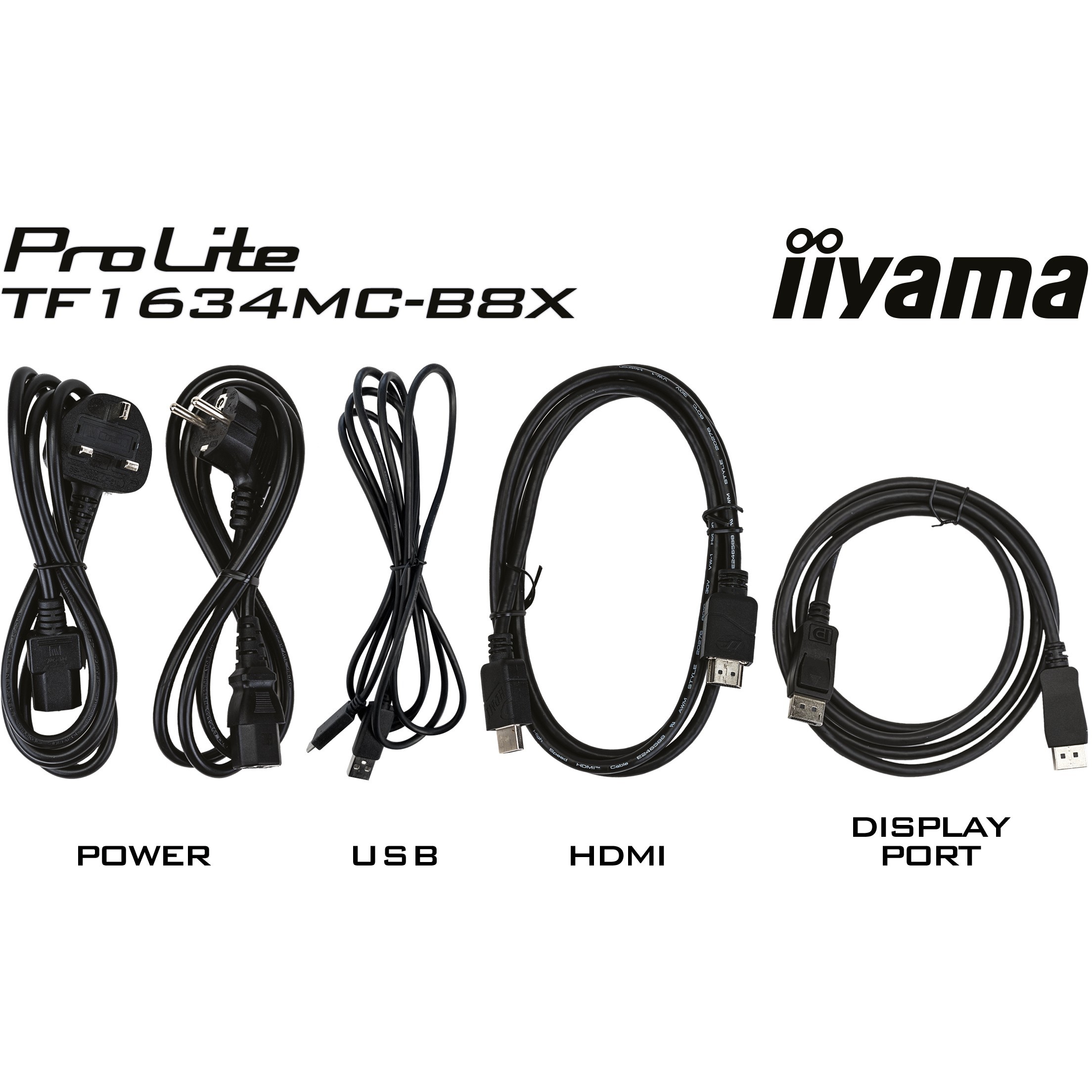

| Cables included | AC. DisplayPort. HDMI. USB |
| Sustainability certificates | ErP |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Placement supported | Horizontal/Vertical |
| Compliance certificates | CE. REACH. RoHS. WEEE |
| Harmonized System (HS) code | 85285210 |
