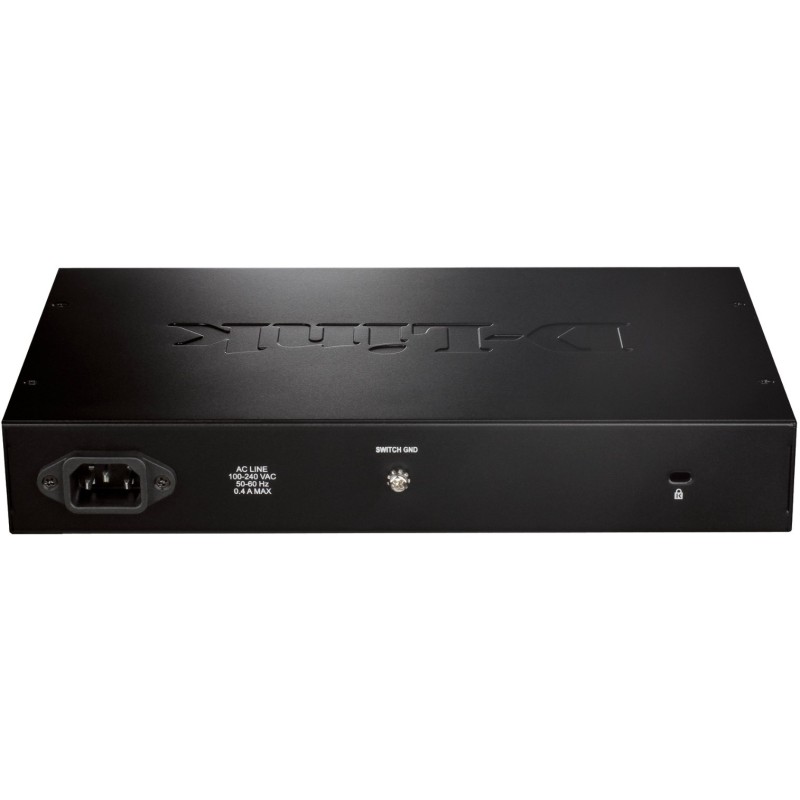

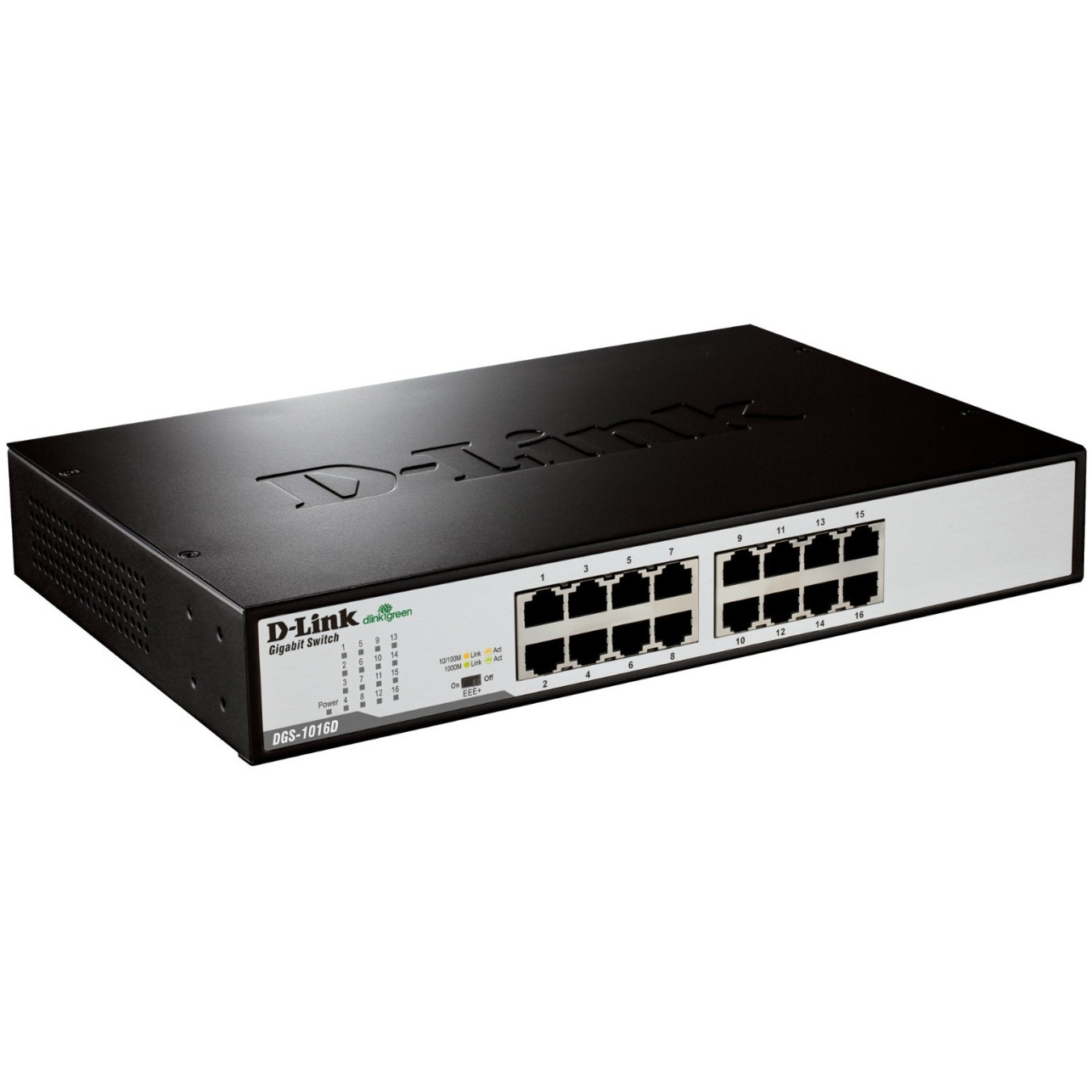

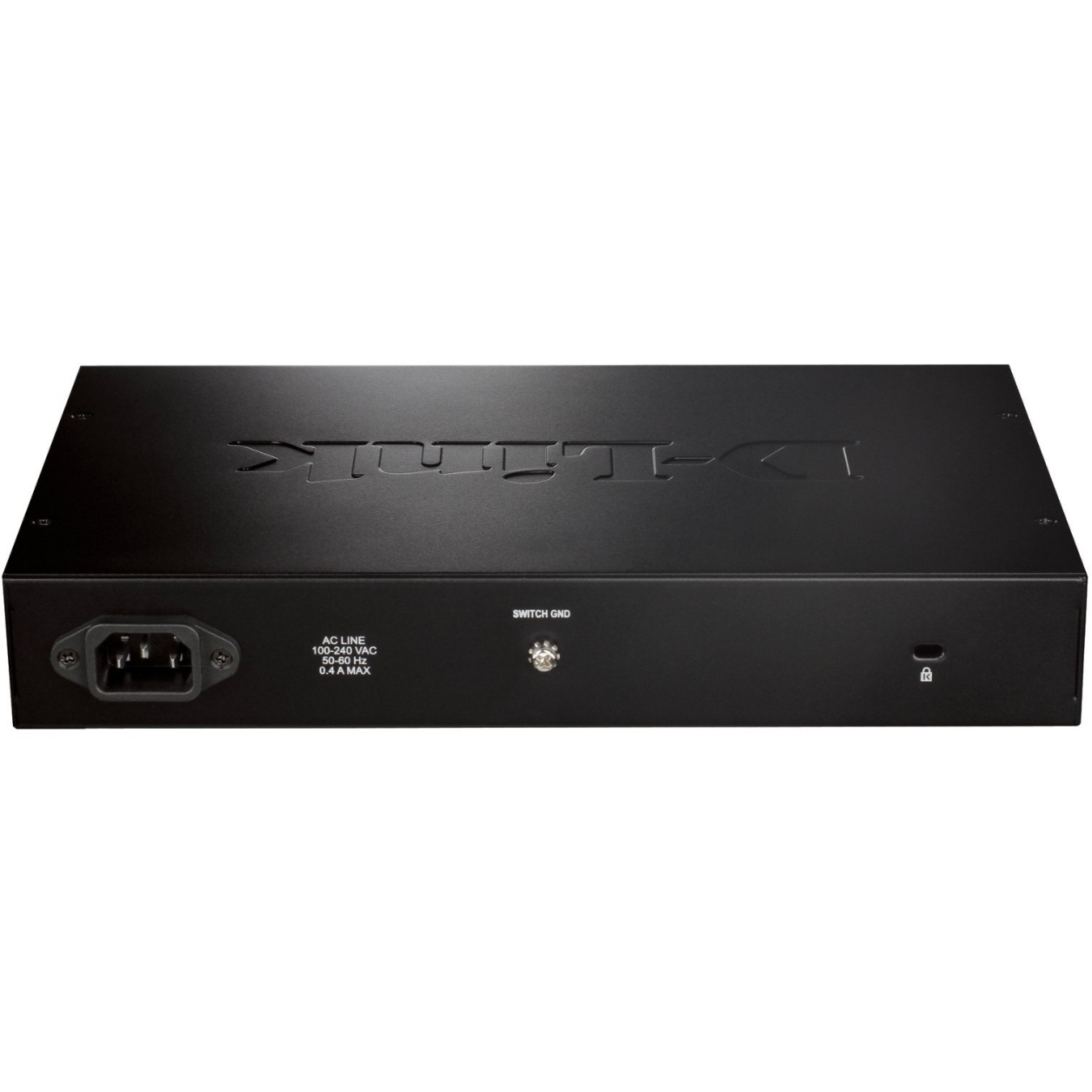

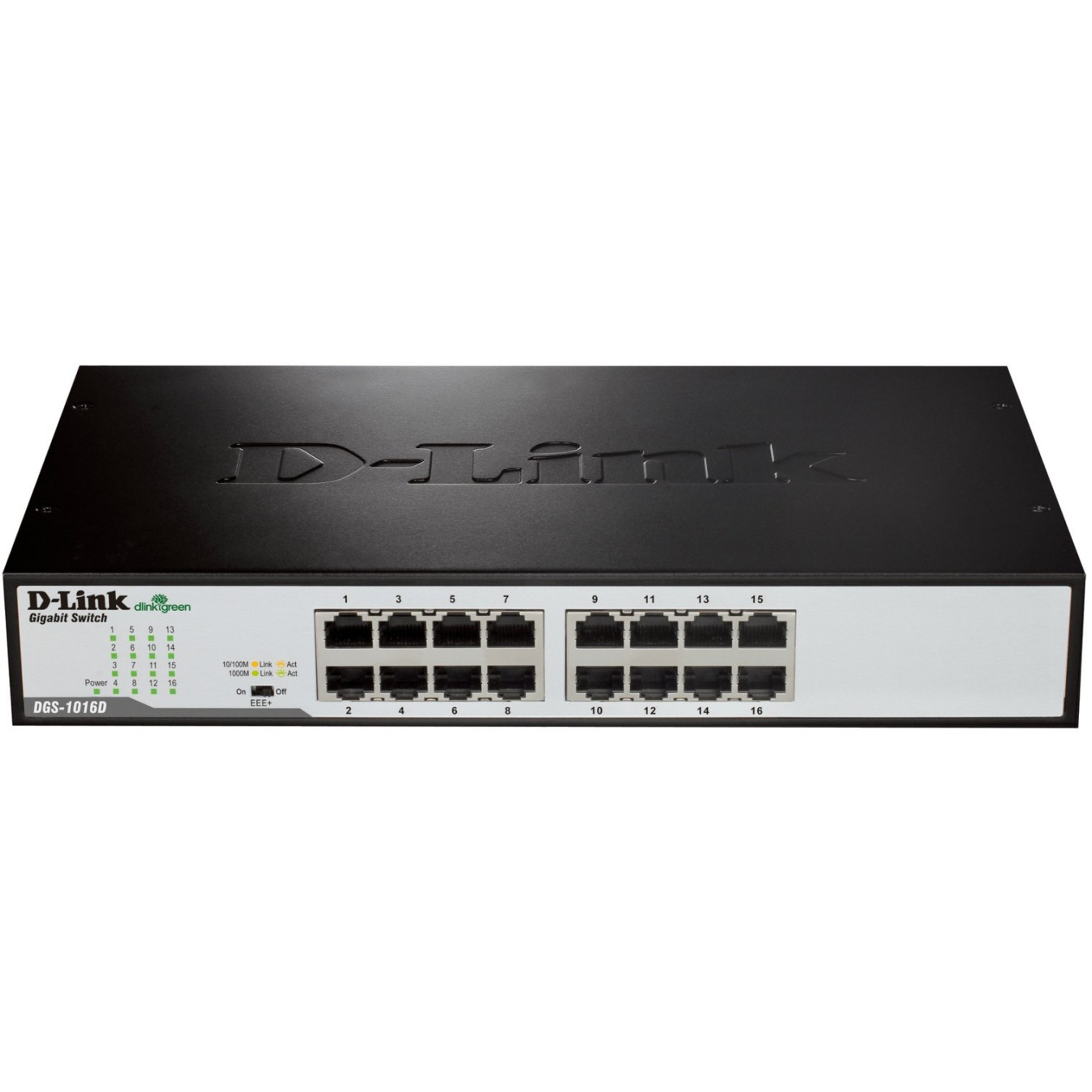

D-Link DGS-1016D/E - 16-Port Gigabit Unmanaged Switch - Rackmount, Black, 32 Gbps Switching Capacity
Unmanaged 16-port Gigabit switch (DGS-1016D/E) with 32 Gbps switching capacity, LED indicators, rack-mountable, 11.7 W typical power, 100–240V AC, 0–40°C operating range.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
D-Link DGS-1016D/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. Rack mounting
| Switch type | Unmanaged |
| Feature | LED indicators |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T. 100BASE-T. 10BASE-T |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.340 MB |
| Product colour | Black. Metallic |
| Mean time between failures (MTBF) | 828109 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 11.7 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 281.9 mm |
| Depth | 180.3 mm |
| Height | 44.5 mm |
| Weight | 1.35 kg |
| Package width | 180 mm |
| Package depth | 328 mm |
| Package height | 108 mm |
| Package weight | 1.71 kg |
| Shipping (inner) case height | 35.9 cm |
| Shipping (inner) case width | 19.7 cm |
| Shipping (inner) case length | 57.2 cm |
| Shipping (inner) case net weight | 8.54 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 295.7 kg |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Products per pallet (air) | 150 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 121.2 cm |
| Pallet gross weight (sea) | 480.3 kg |
| Master (outer) cases per pallet (sea) | 50 pc(s) |
| Products per pallet (sea) | 250 pc(s) |
| Pallet height (sea) | 193 cm |
| Shipping (inner) case gross weight | 9.21 kg |
| Certification | FCC Class A. CE. ICES-003. VCCI. C-Tick. RoHS |
| Harmonized System (HS) code | 85176990 |
