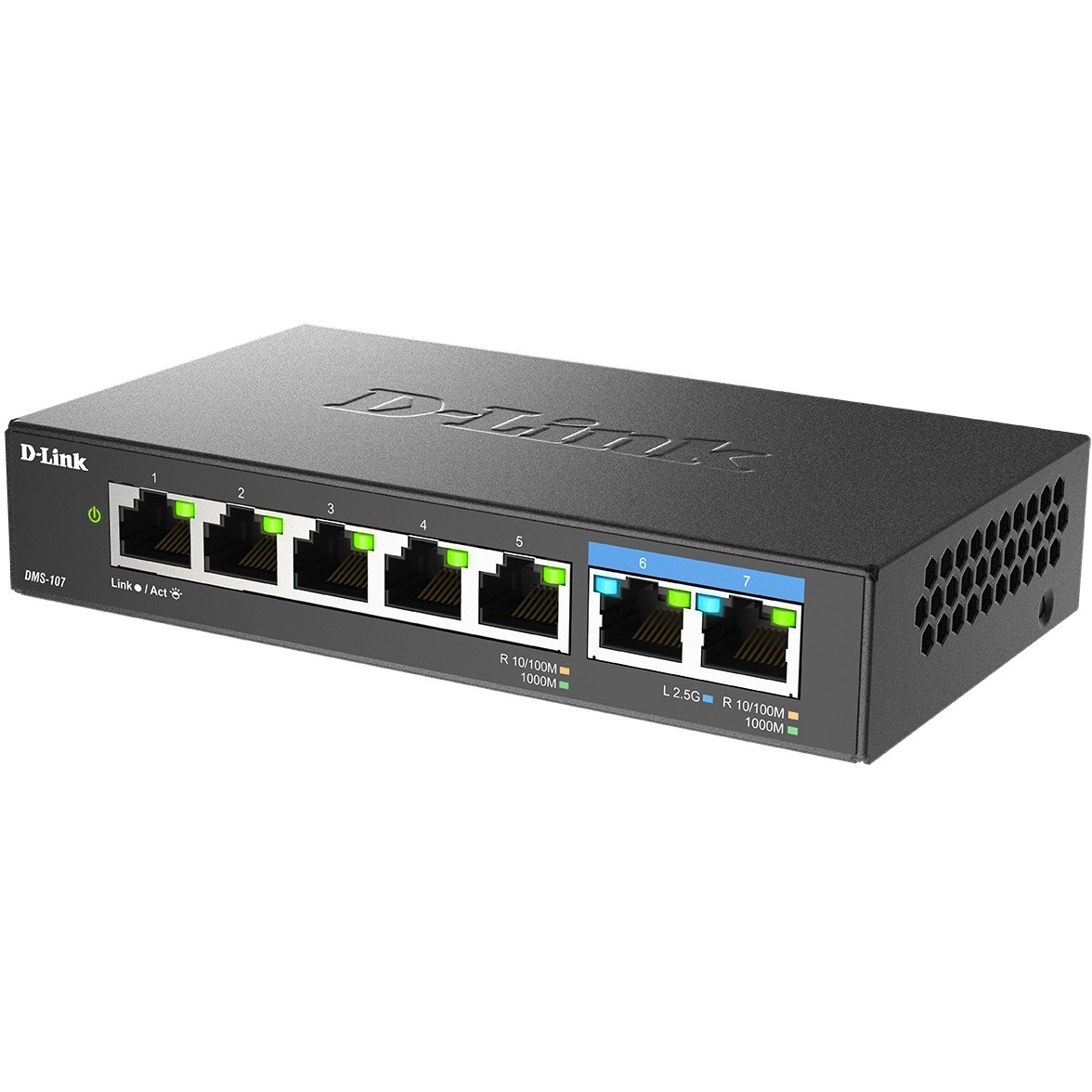

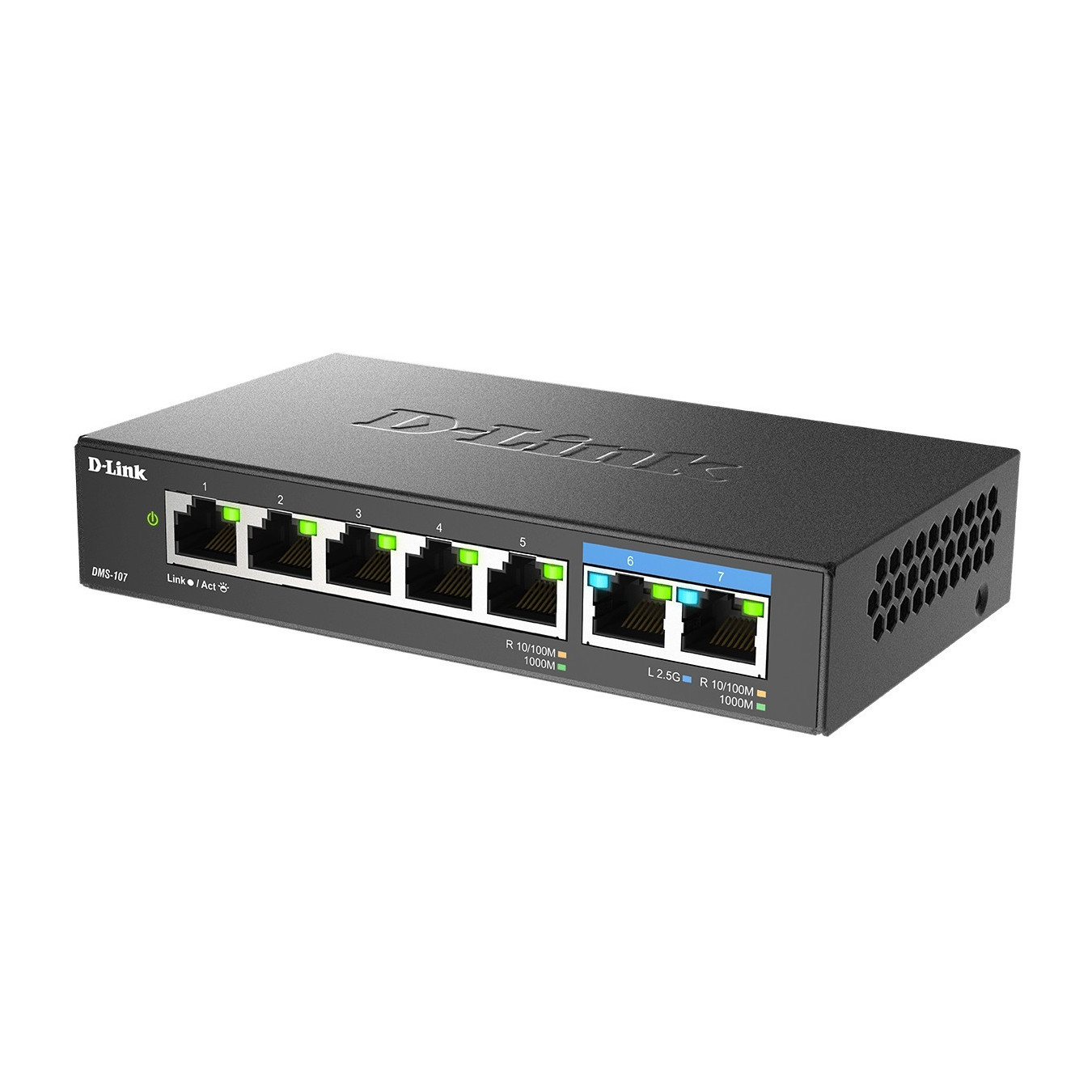

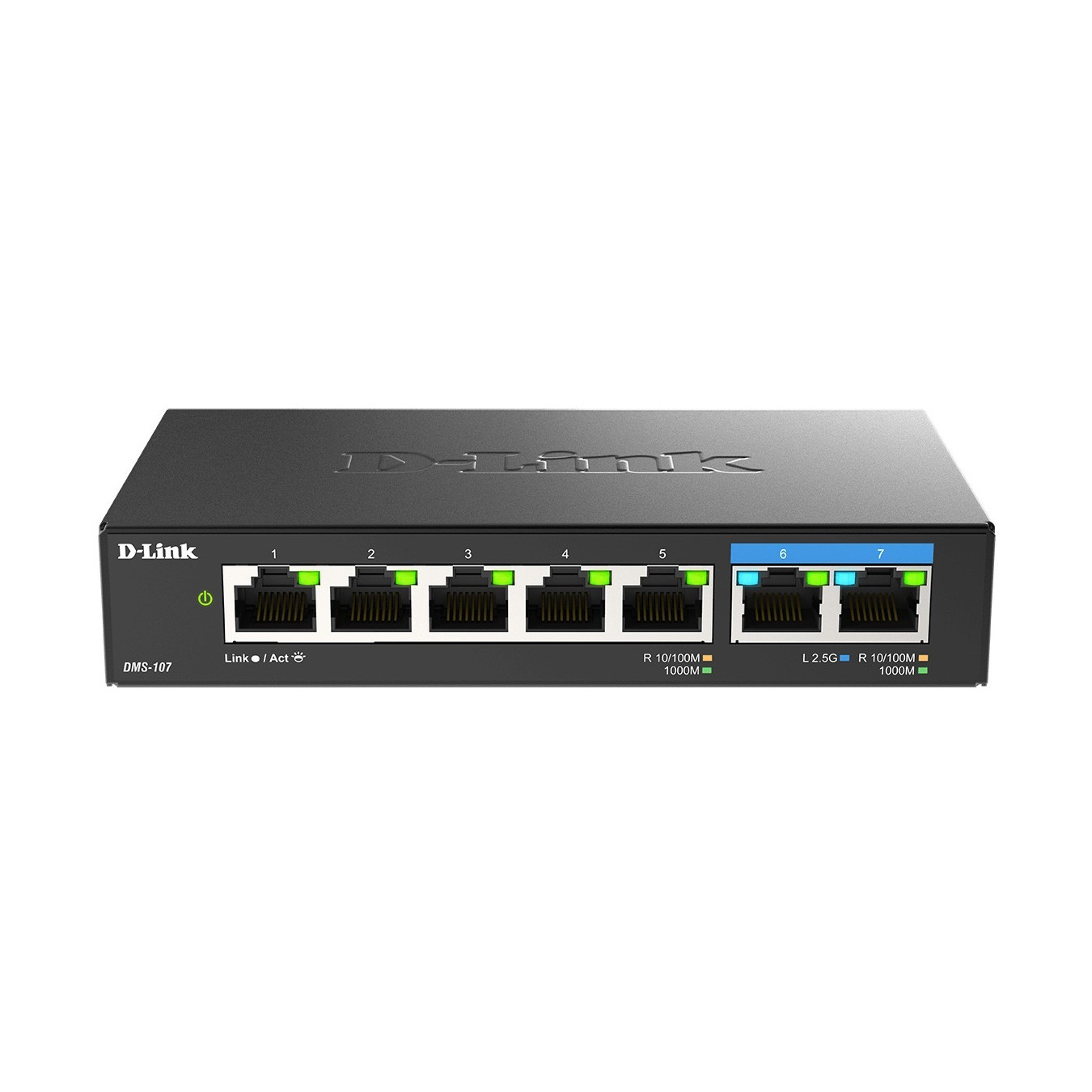

D-Link DMS-107 - 7-Port Multi-Gigabit Unmanaged Switch (Black, Metal Housing)
Compact 7‑port unmanaged switch with 5x Gigabit (10/100/1000) and 2x 2.5G ports, 20 Gbps switching capacity, DC 12V power, metal housing — ideal for SOHO/home networks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
D-Link 7-Port Multi-Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x. DC input voltage: 12 V
| Switch type | Unmanaged |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |

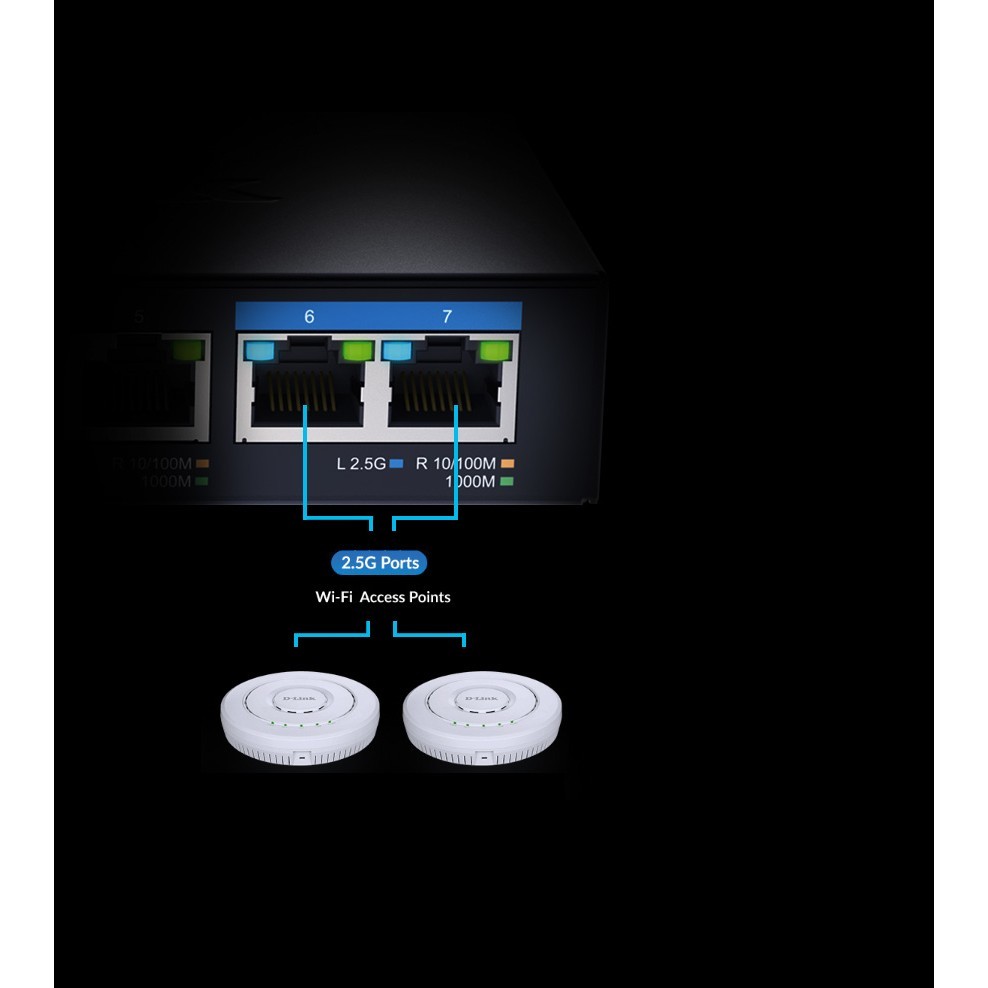

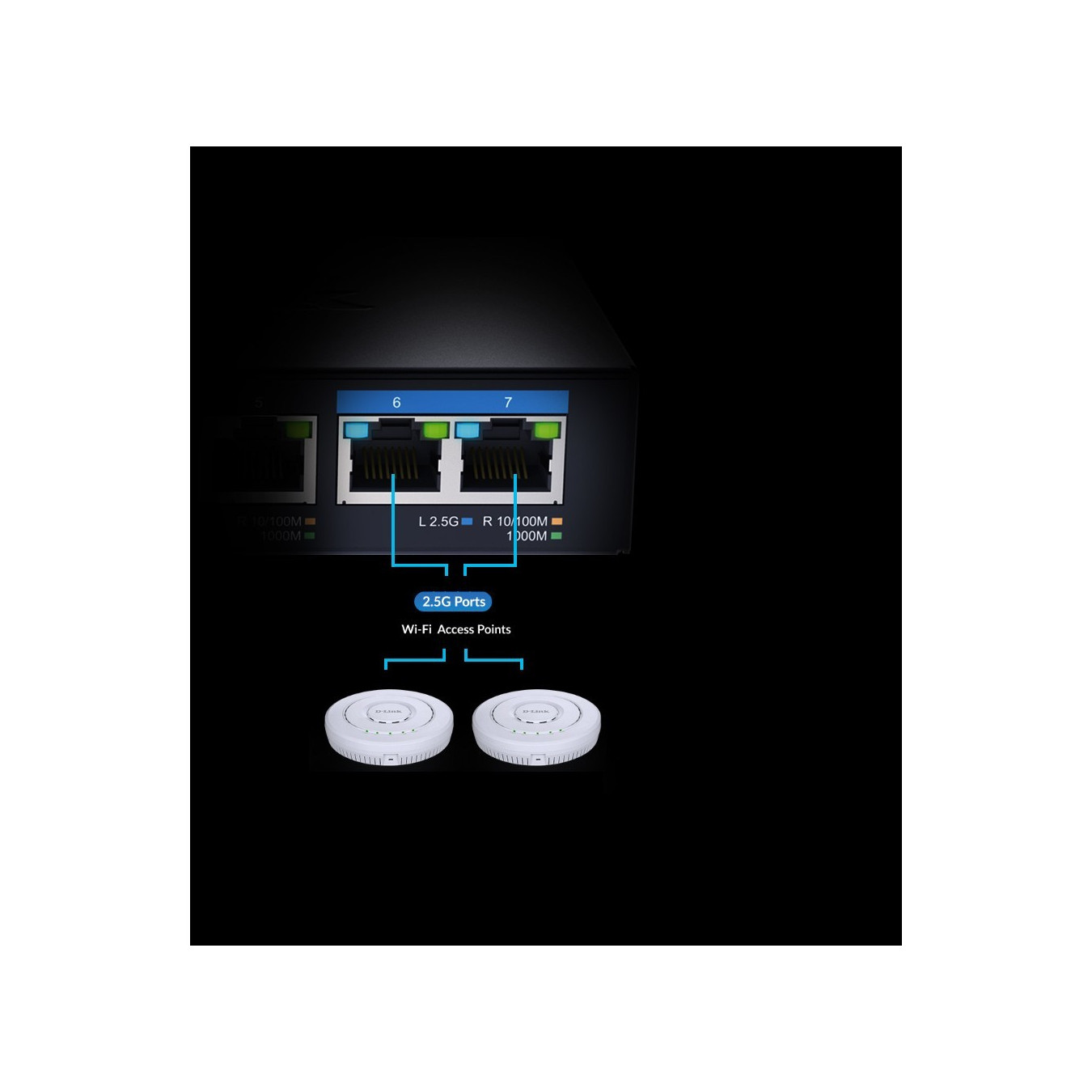

| 2.5G Ethernet (copper) ports quantity | 2 |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-T. 1000BASE-T. 2500BASE-T |
| Ethernet LAN data rates | 10.100.1000.2500 Mbit/s |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 2000 entries |
| Number of queues | 8 |
| Packet buffer memory | 2 MB |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. Power |
| Mean time between failures (MTBF) | 944277.78 h |

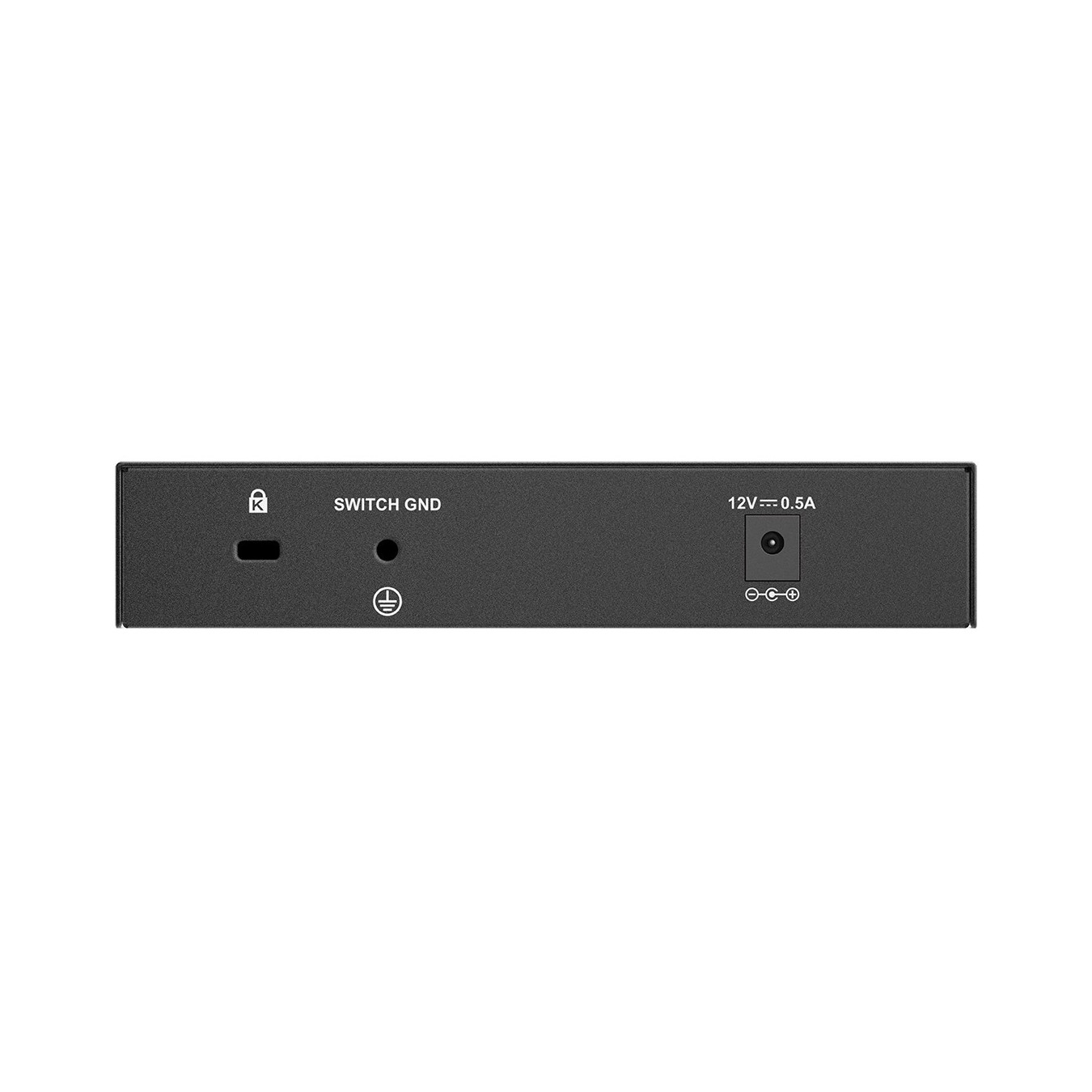

| Power source | DC |

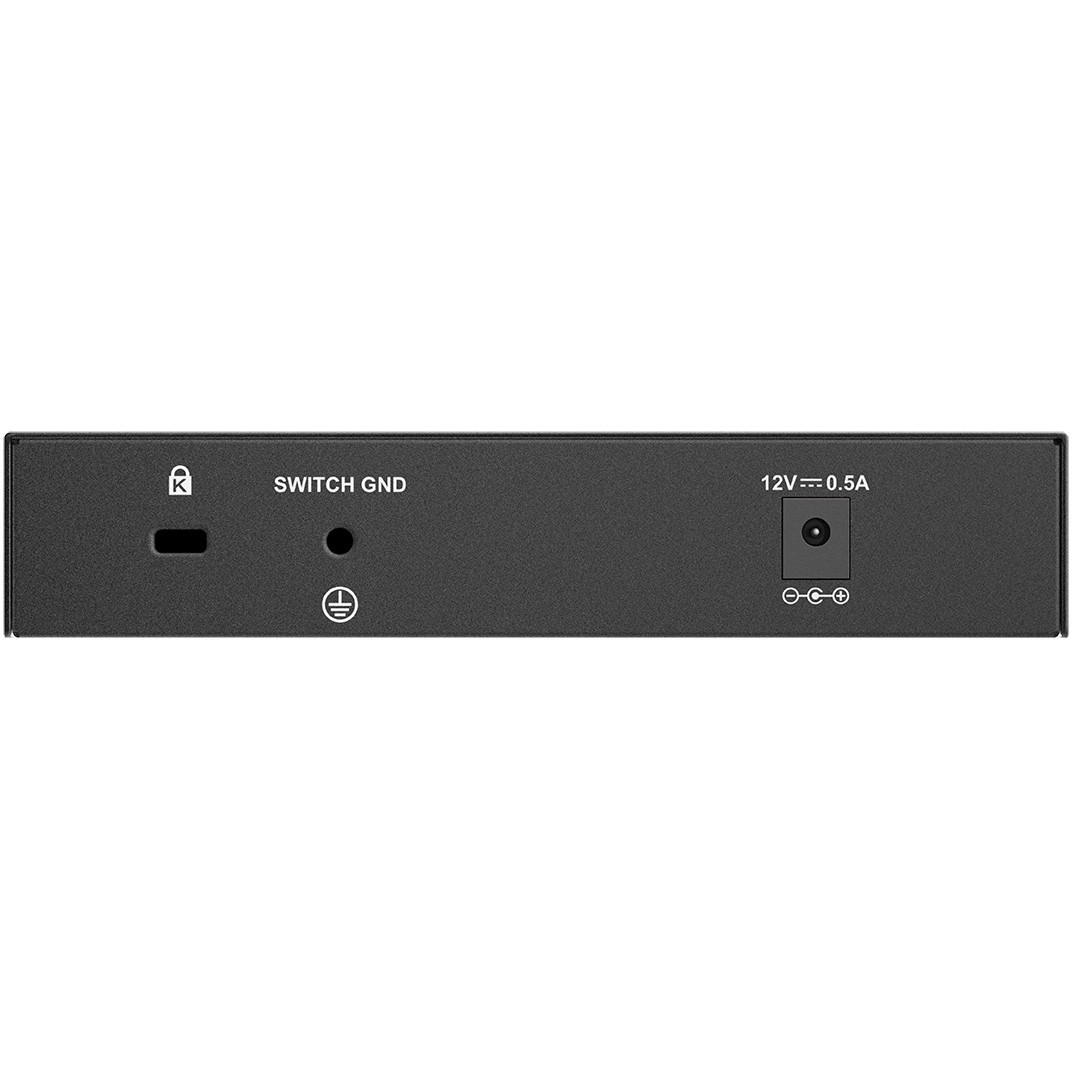

| DC input voltage | 12 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.37 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 14.28 BTU/h |
| Width | 145 mm |
| Depth | 28 mm |
| Height | 82 mm |
| Weight | 295.2 g |
| Compliance certificates | BSMI. CE. Low Voltage Directive (LVD). RoHS |
