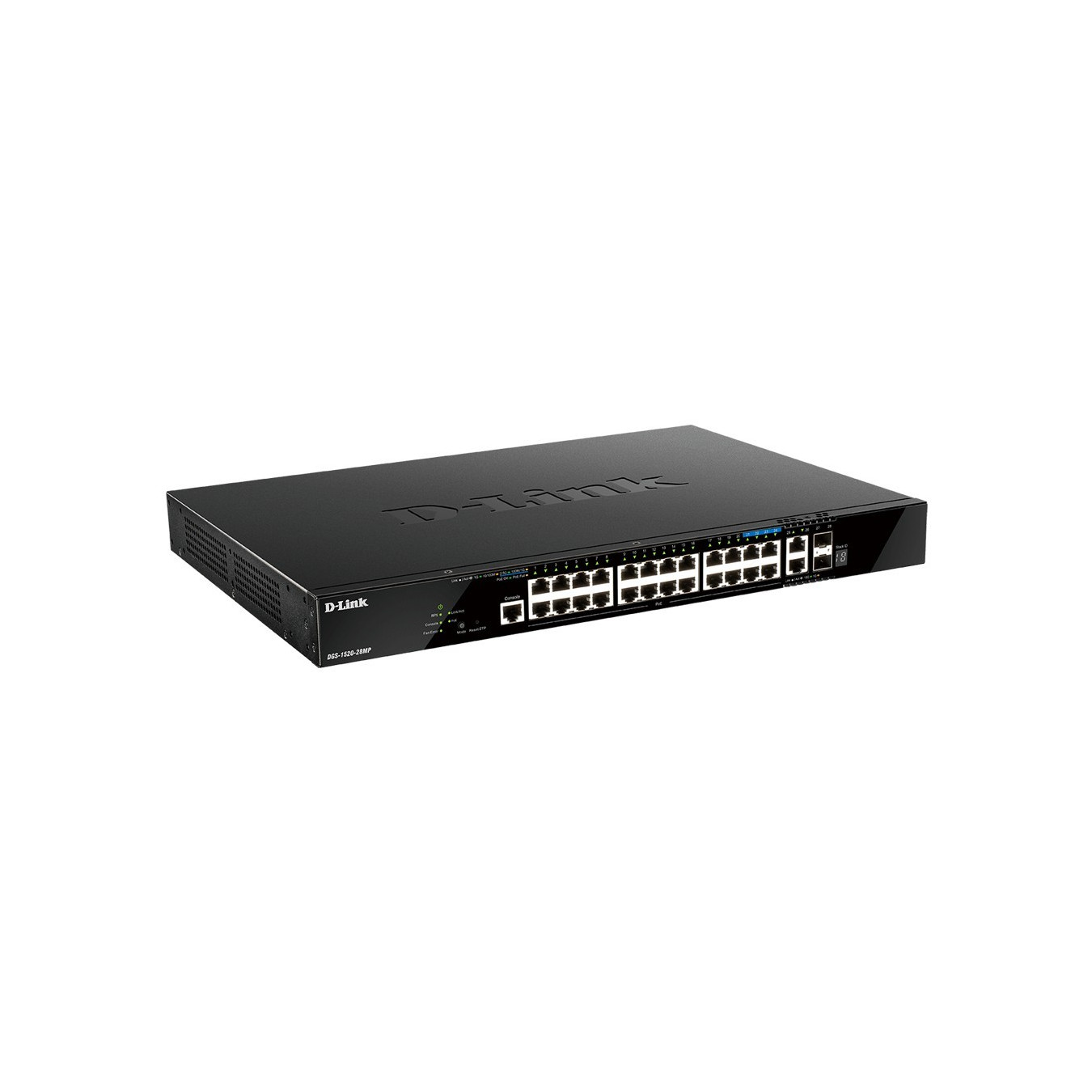

D-Link DGS-1520-28MP/E - 28-Port L3 Smart Managed PoE+ Switch, 370W Budget, Black, 1U Rackmount
DGS-1520-28MP/E 28-port L3 smart managed PoE+ switch — 20 PoE+ ports, 370W total budget, 4x2.5G, 2x10G SFP+, 1U rackmount, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
D-Link DGS-1520-28MP/E. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 16384 entries. Switching capacity: 140 Gbit/s. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Switching capacity | 140 Gbit/s |
| Forwarding rate | 104.16 Mpps |
| MAC address table | 16384 entries |
| Jumbo frames | 12288 |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Routing protocols | OSPF. RIP. RIPng. VRRP |
| Form factor | 1U |
| Product colour | Black |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level | 57.1 dB |
| Mean time between failures (MTBF) | 333946 h |
| Power consumption (max) | 453.3 W |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Heat dissipation | 1545.8 BTU/h |
| Weight | 4.29 kg |
| Harmonized System (HS) code | 85176990 |
