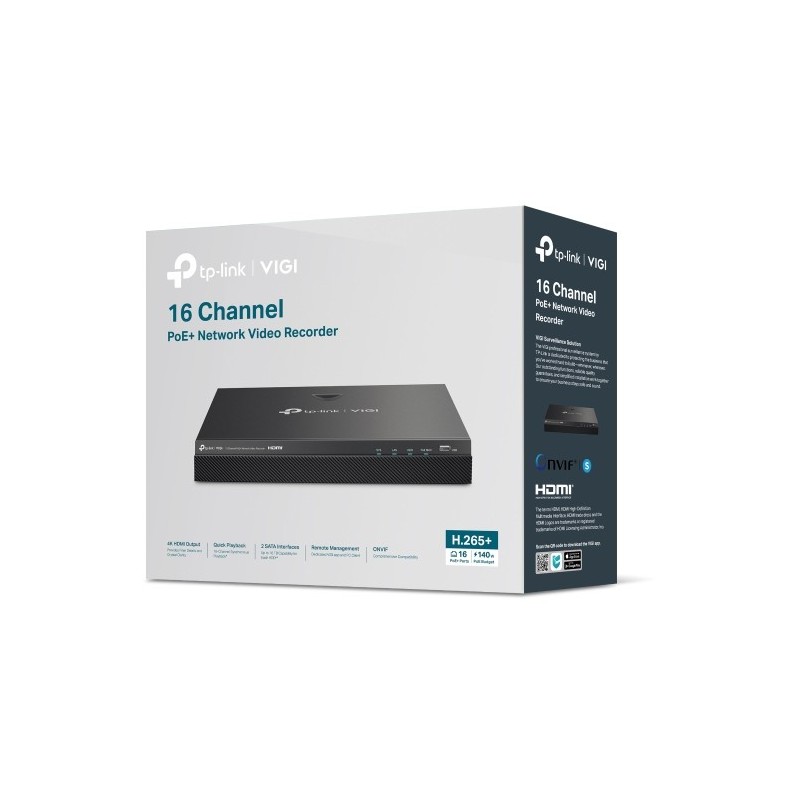

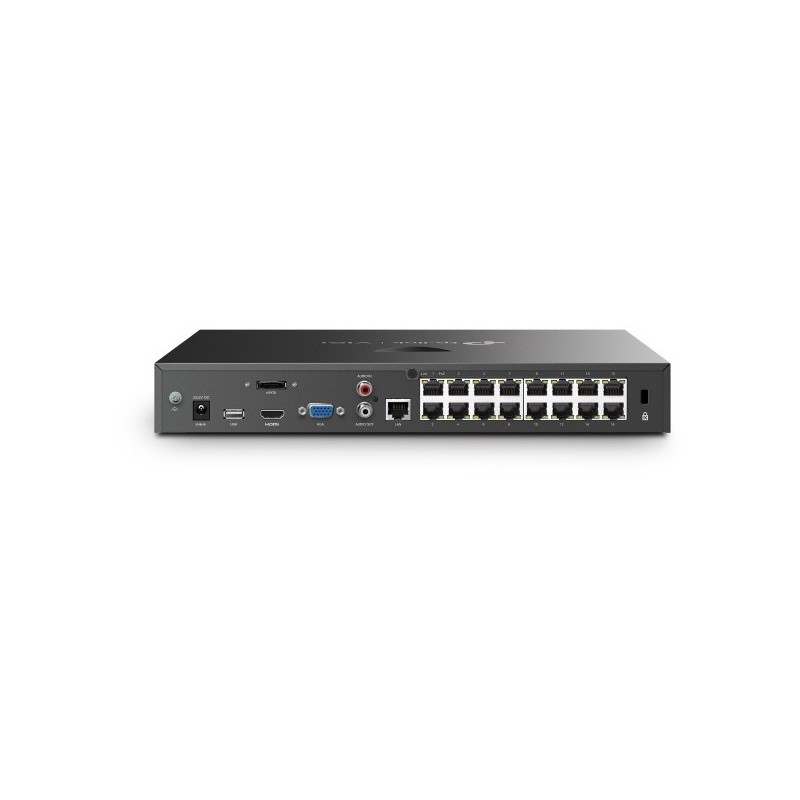

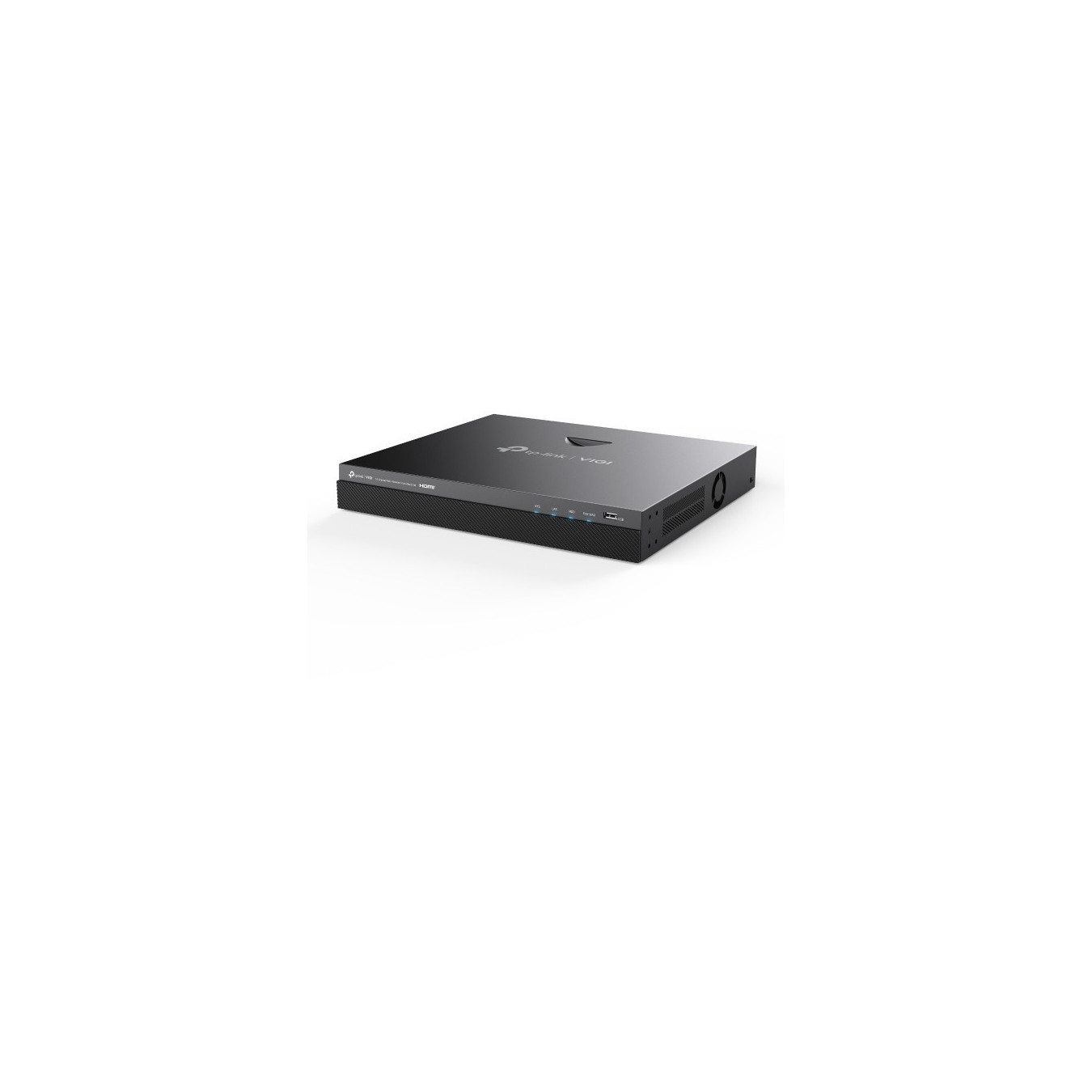

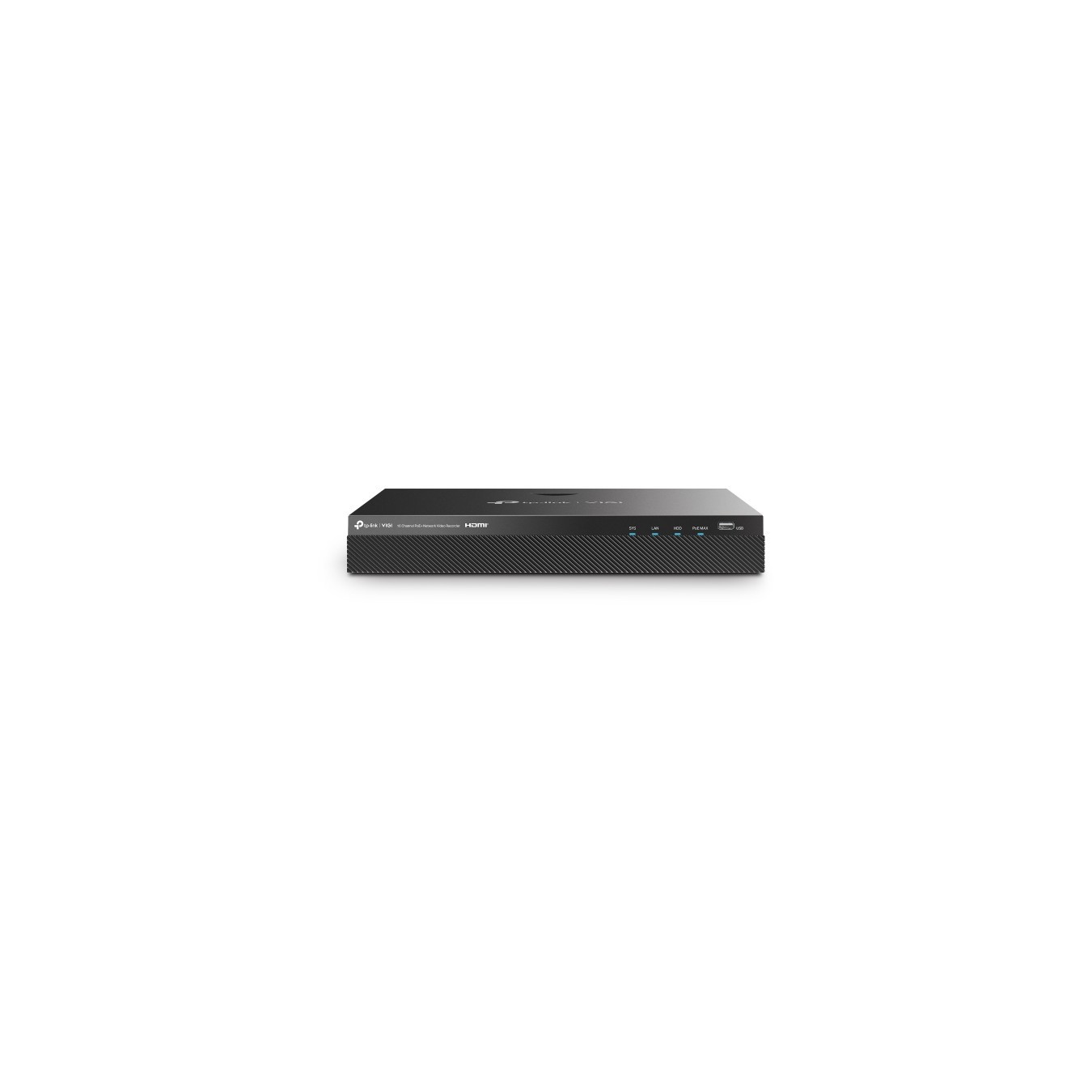

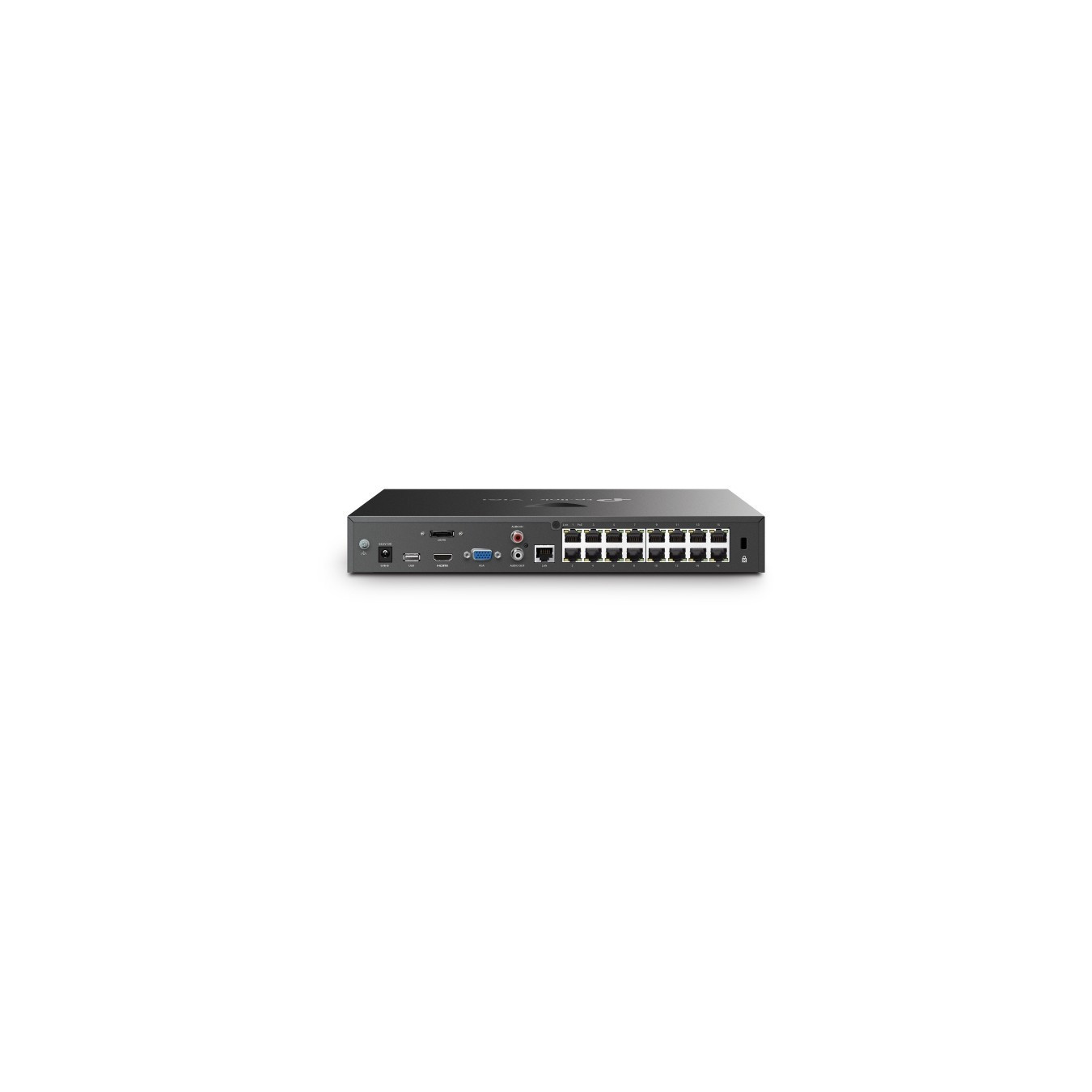

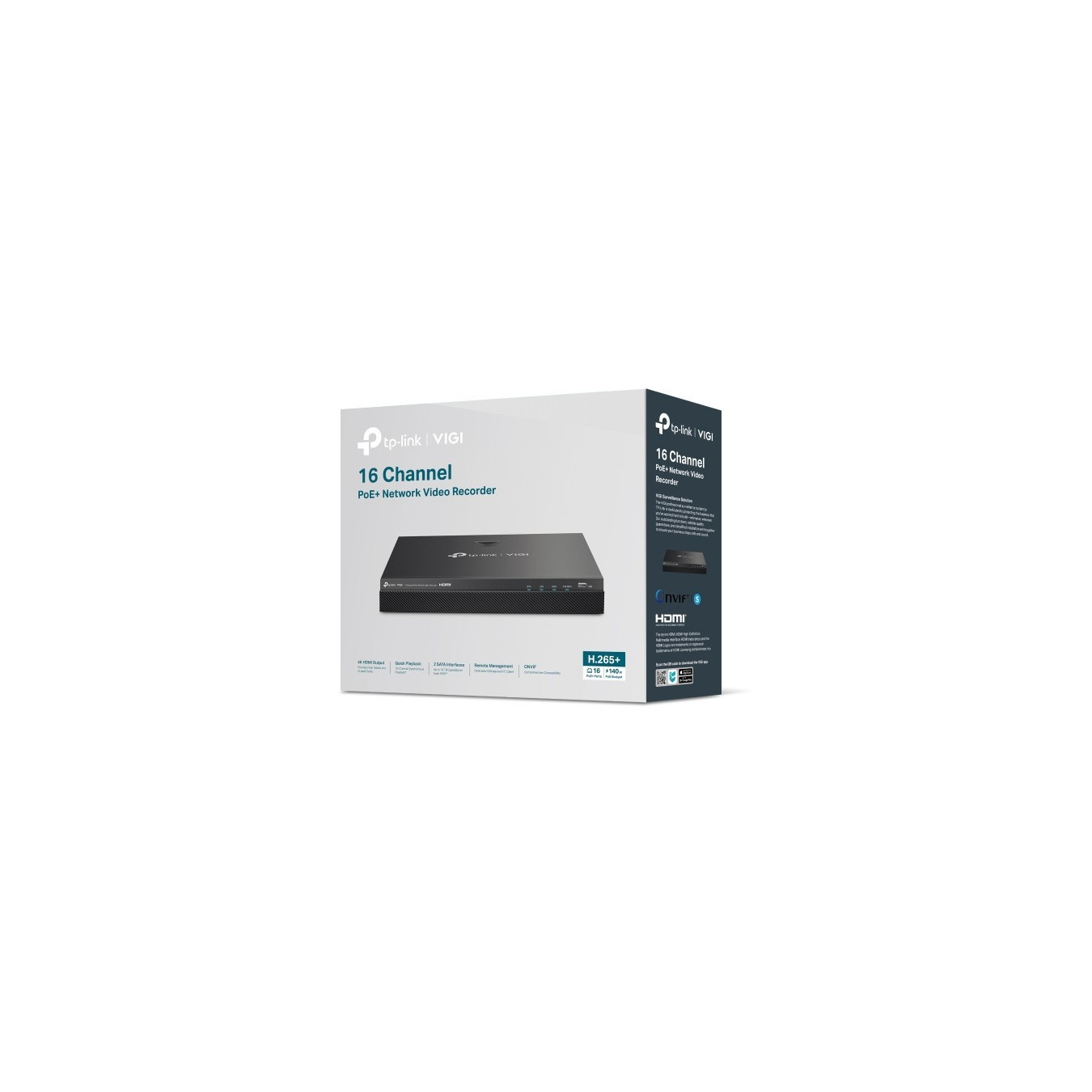

TP-Link Omada VIGI NVR2016H-16MP - 16-Channel PoE+ NVR, 4K (3840x2160) Support, HDMI+VGA Output, 140W PoE Budget, Black
16-channel PoE+ NVR with 16×PoE ports, 4K recording (3840×2160), H.265/H.264 support, HDMI+VGA outputs, 2×SATA up to 10TB, 140W PoE budget, 30 fps.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NVRs - PoE Ports | 16xPoE |
|---|---|
| NVRs - Video Outputs | HDMI + VGA |
TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels. Maximum resolution: 3840 x 2160 pixels. Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB. HDD interface: SATA. Ethernet LAN data rates: 10.100.1000 Mbit/s. Networking standards: IEEE 802.3af. IEEE 802.3at. Supported network protocols: UPnP (Plug and Play). NTP (Network Timing). Product colour: Black. Certification: CE. EAC. UKCA. RCM. Triman. BSMI. VCCI. FCC. IC. HDMI. Power consumption (max): 40 W. Output current: 2.43 A. Output voltage: 53.5 V
| Video input channels | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p. 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Feature | Quick installation guide |
| Audio formats supported | G.711 A-law. G.711 μ-law. G.726 |
| Video formats supported | H.264. H.264+. H.265. H.265+ |
| Playback modes | Digital zoom. Fast play. Forward. Full screen. Pause. Play. Stop |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes | Manual. Schedule |
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Audio output | 1 |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | UPnP (Plug and Play). NTP (Network Timing) |
| Product colour | Black |
| Certification | CE. EAC. UKCA. RCM. Triman. BSMI. VCCI. FCC. IC. HDMI |
| Power consumption (max) | 40 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Cables included | AC |
