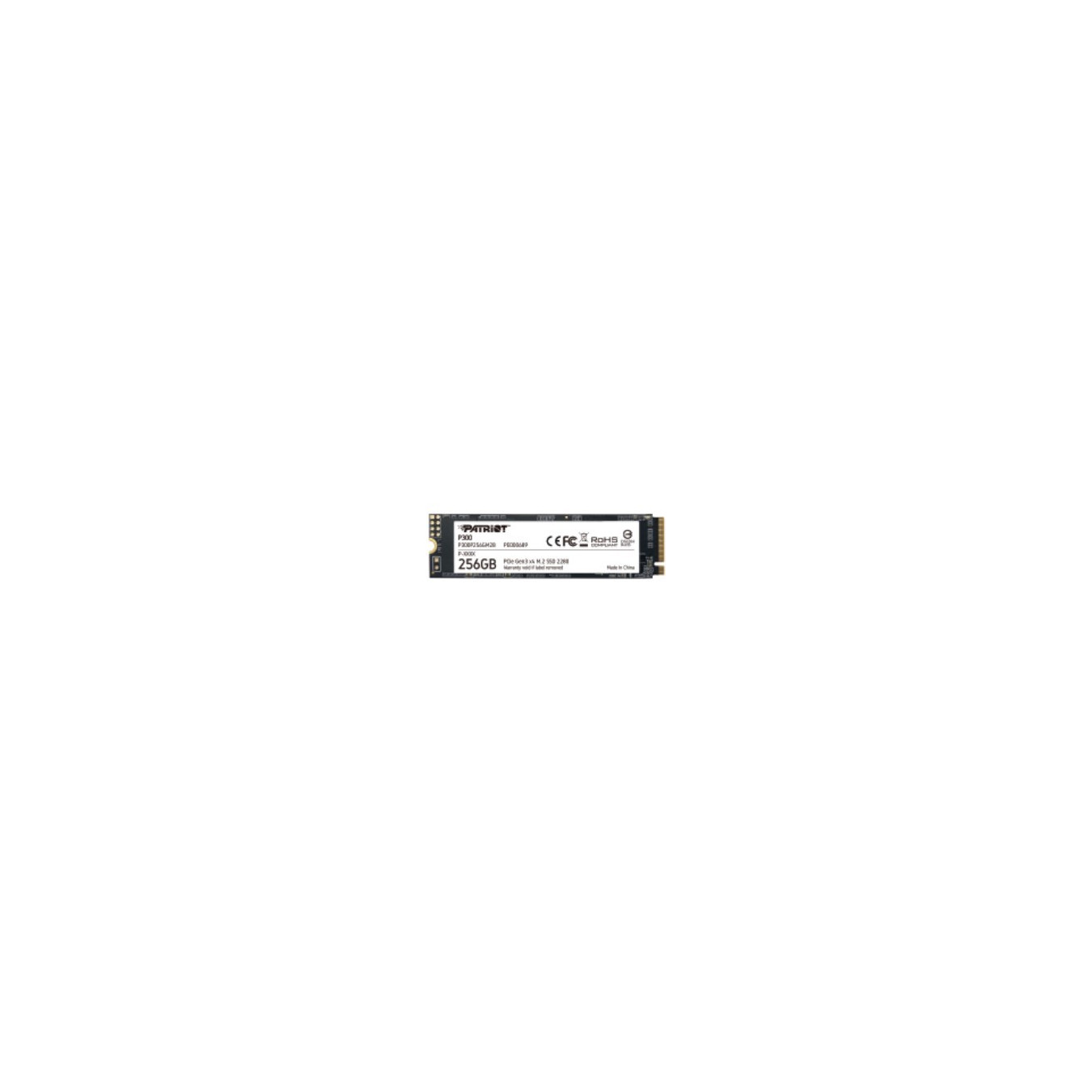

Patriot P300 M.2 NVMe SSD - P300P256GM28 - 256GB, PCIe 3.0 x4 (NVMe 1.3), M.2 2280
Patriot P300 256GB M.2 2280 NVMe SSD (P300P256GM28) — PCIe 3.0 x4, NVMe 1.3, up to 1700 MB/s read & 1100 MB/s write, SMI2263XT controller, TBW 80
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen3 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen3 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NVMe Version (SSD) | 1.3 |
Patriot Memory P300P256GM28. SSD capacity: 256 GB. SSD form factor: M.2. Component for: PC/Laptop
| NVMe version | 1.3 |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express |
| Feature | NVMe |
| Component for | PC/Laptop |
| Random read (4KB) | 290 IOPS |
| Random write (4KB) | 260 IOPS |
| Sequential read speed (ATTO) | 1700 MB/s |
| Sequential write speed (ATTO) | 1100 MB/s |
| Sequential read speed (CDM) | 1700 MB/s |
| Sequential write speed (CDM) | 1100 MB/s |
| Controller type | SMI2263XT |
| PCI Express interface data lanes | x4 |
| TBW rating | 80 |
| Certification | CE/FCC |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.8 mm |
| Weight | 9 g |
| Package width | 130 mm |
| Package depth | 66 mm |
| Package height | 99.6 mm |
| Package weight | 20 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84717070 |
