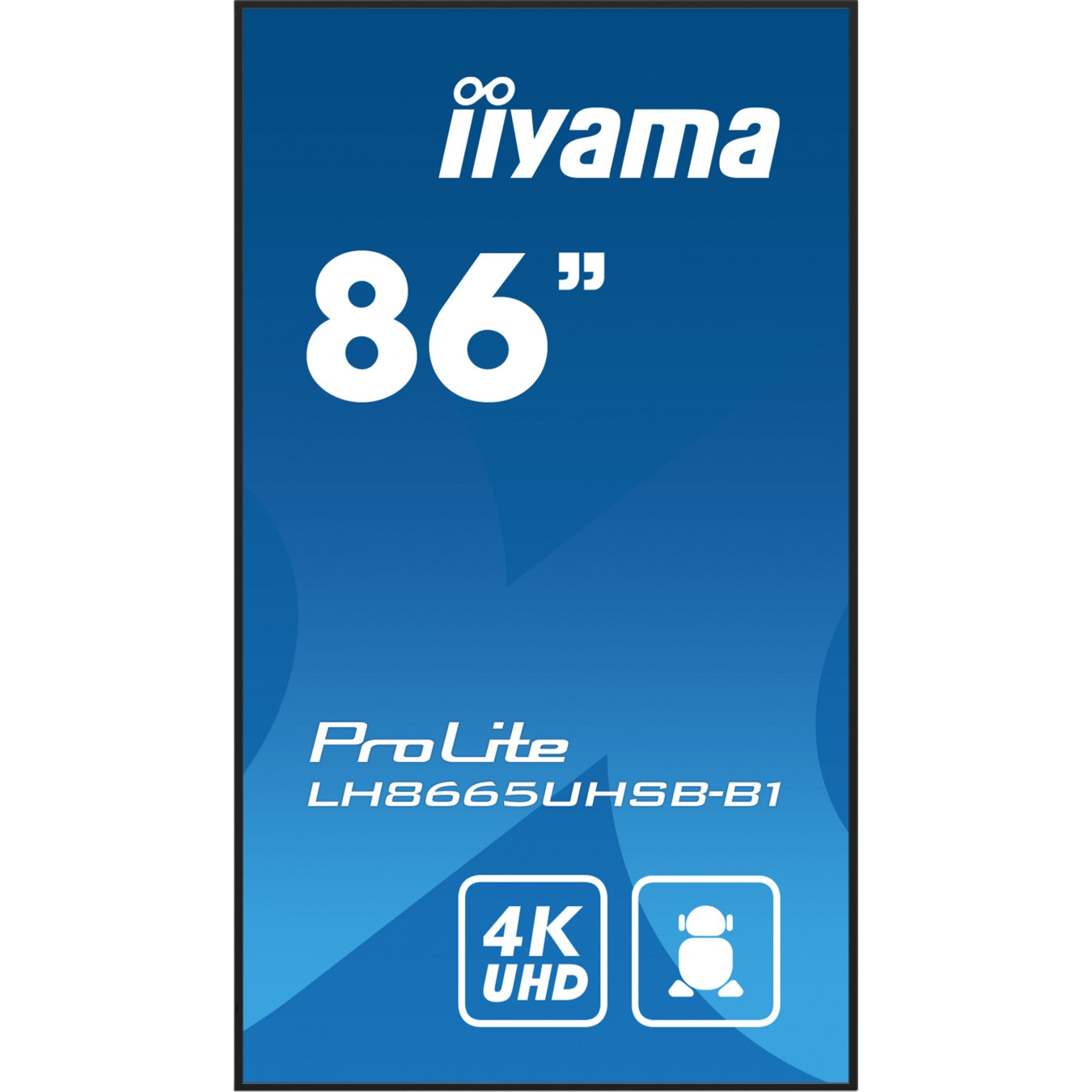

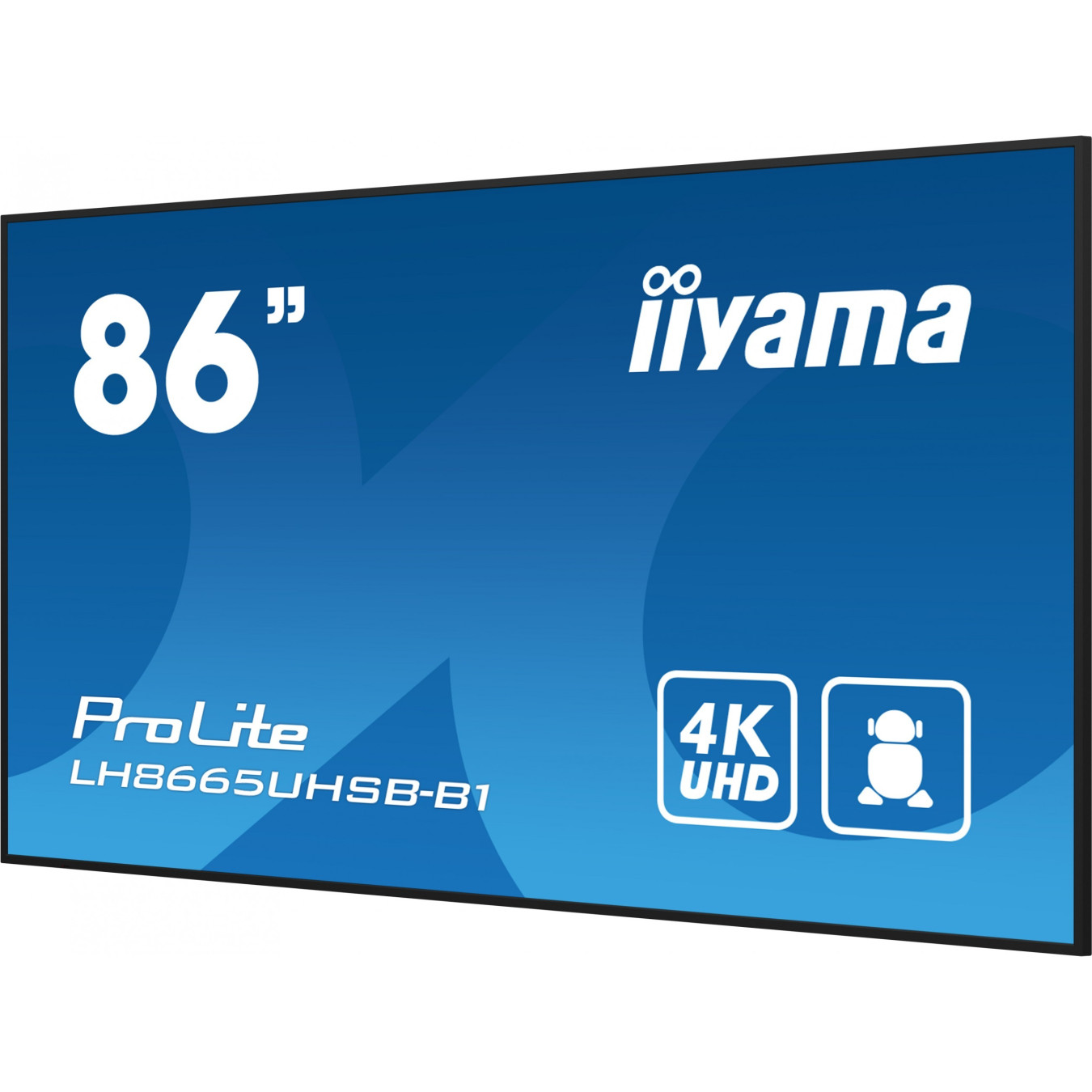

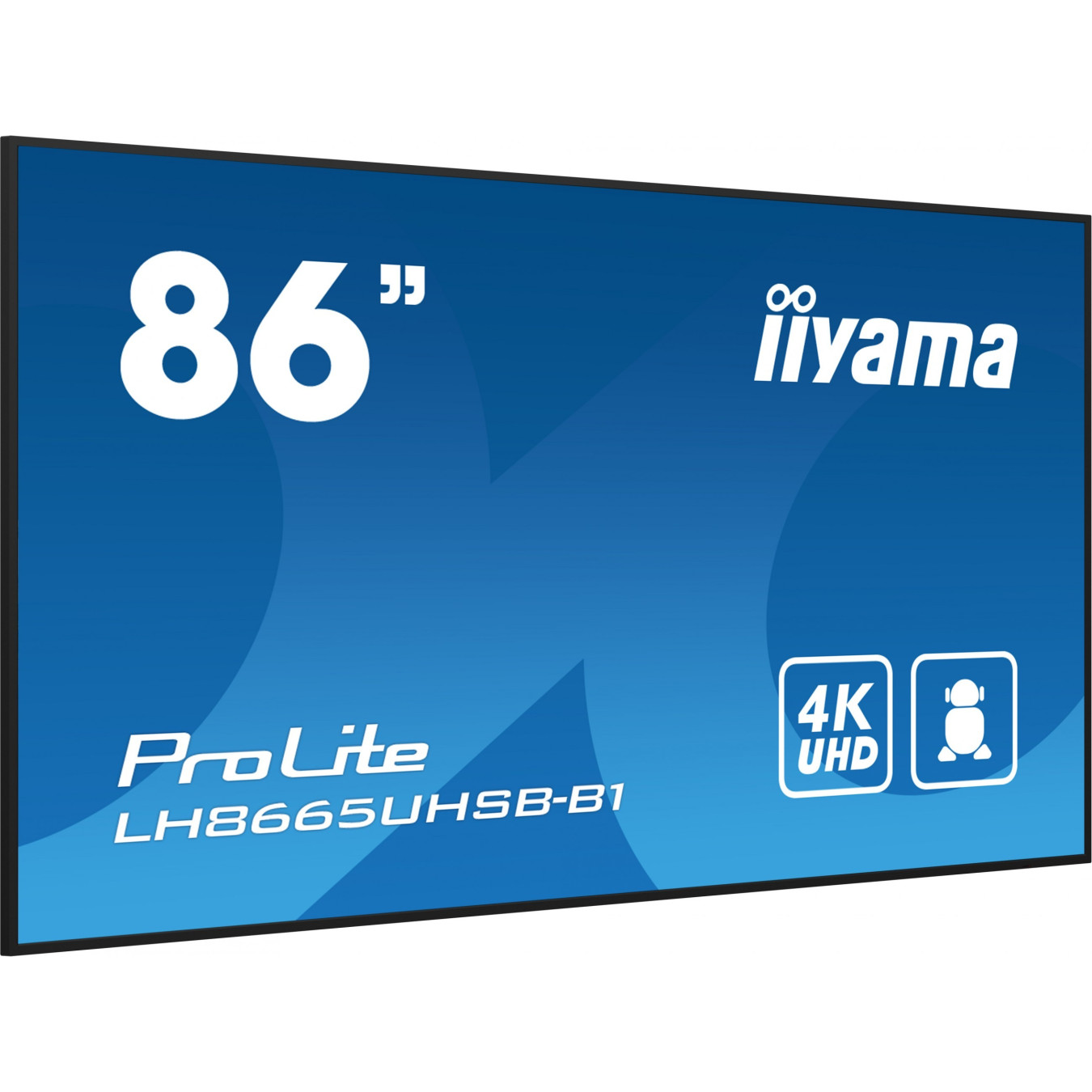

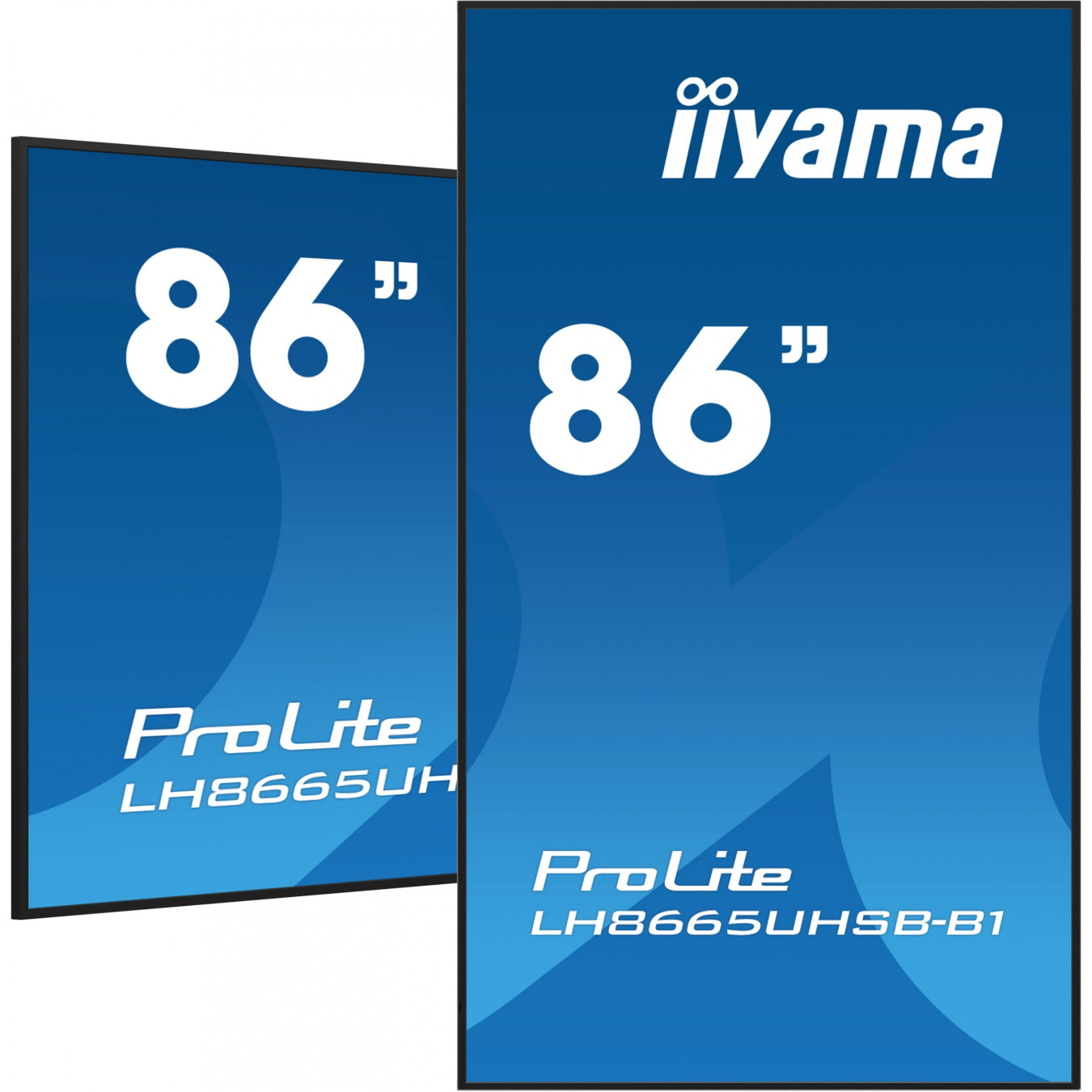

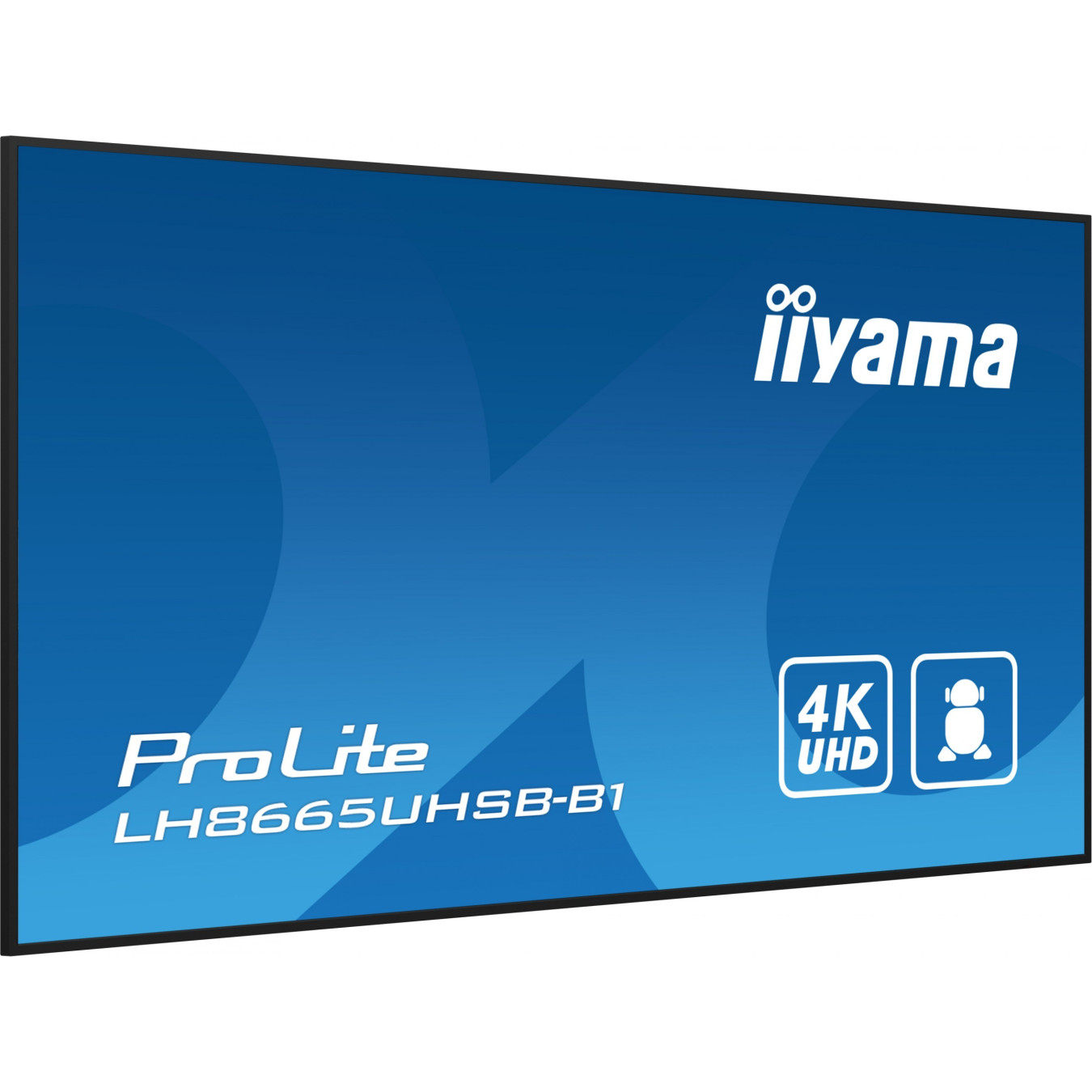

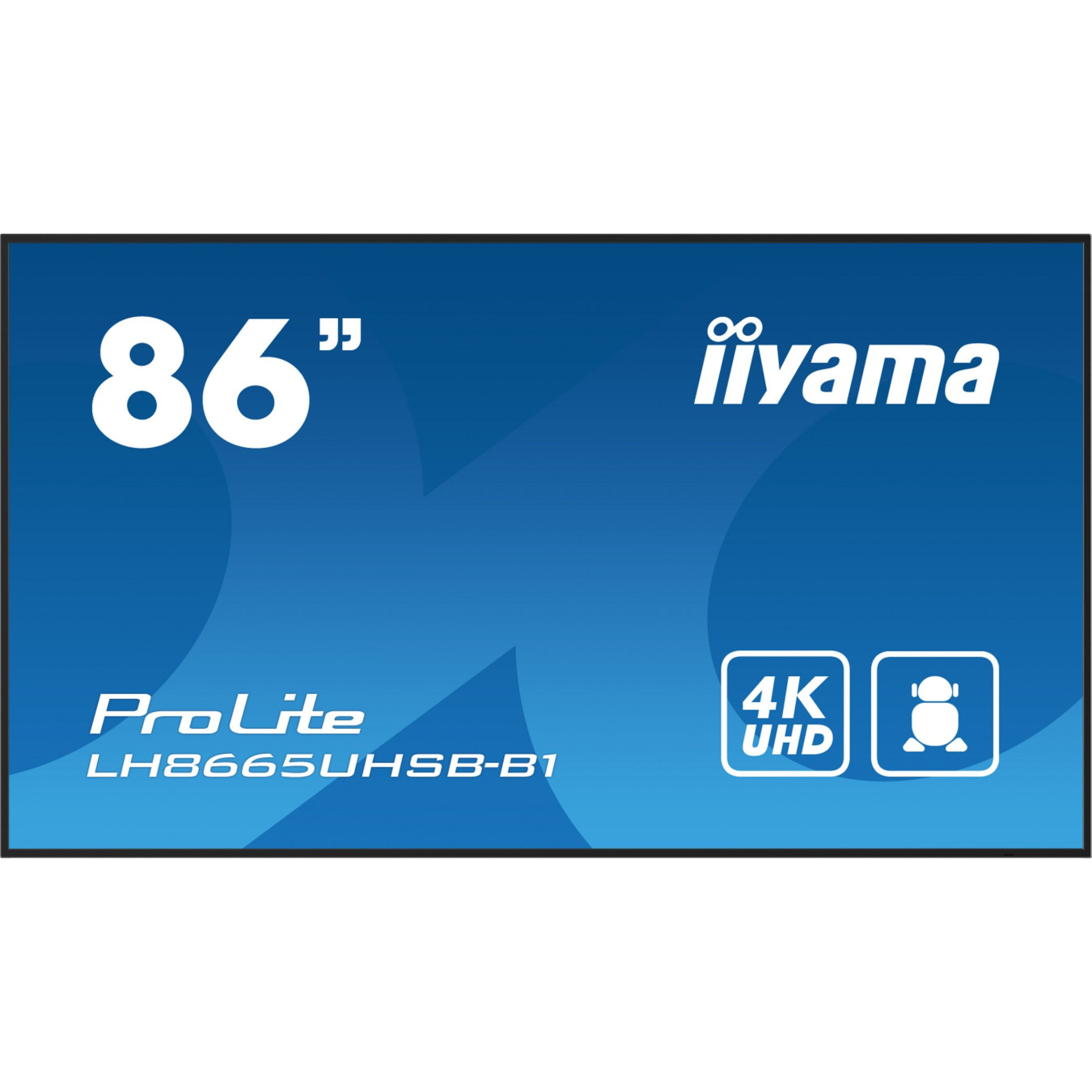

iiyama LH8665UHSB-B1 - 86-inch 4K IPS Kiosk Display, 800 cd/m2, Android 11, 32GB, 4GB RAM, Black
86-inch 4K (3840x2160) IPS commercial kiosk display, 800 cd/m2, 60Hz, 24/7, Android 11 with 32GB/4GB, Wi‑Fi, 2x HDMI 2.0, DP1.2, 2x USB-A, 20W audio
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|---|
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
iiyama 86" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication. Product design: Kiosk design. Display diagonal: 2.18 m (86"). Display technology: LED. Display resolution: 3840 x 2160 pixels. Display brightness: 800 cd/m². HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
| Panel type | IPS |
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 217 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 1% |
| RGB colour space | NTSC |

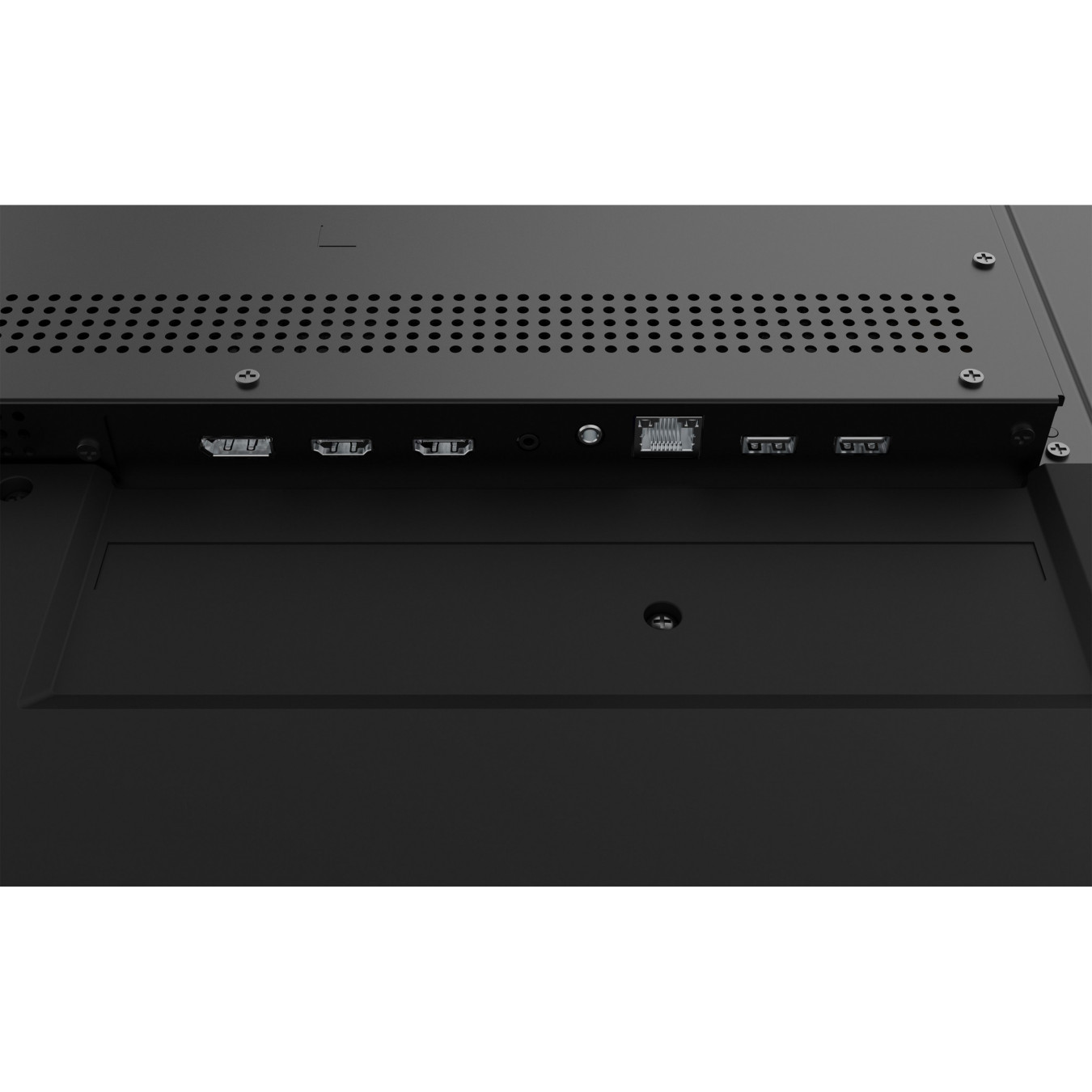

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Feature | Remote control included |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Audio (L/R) in | 1 |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Kiosk design |

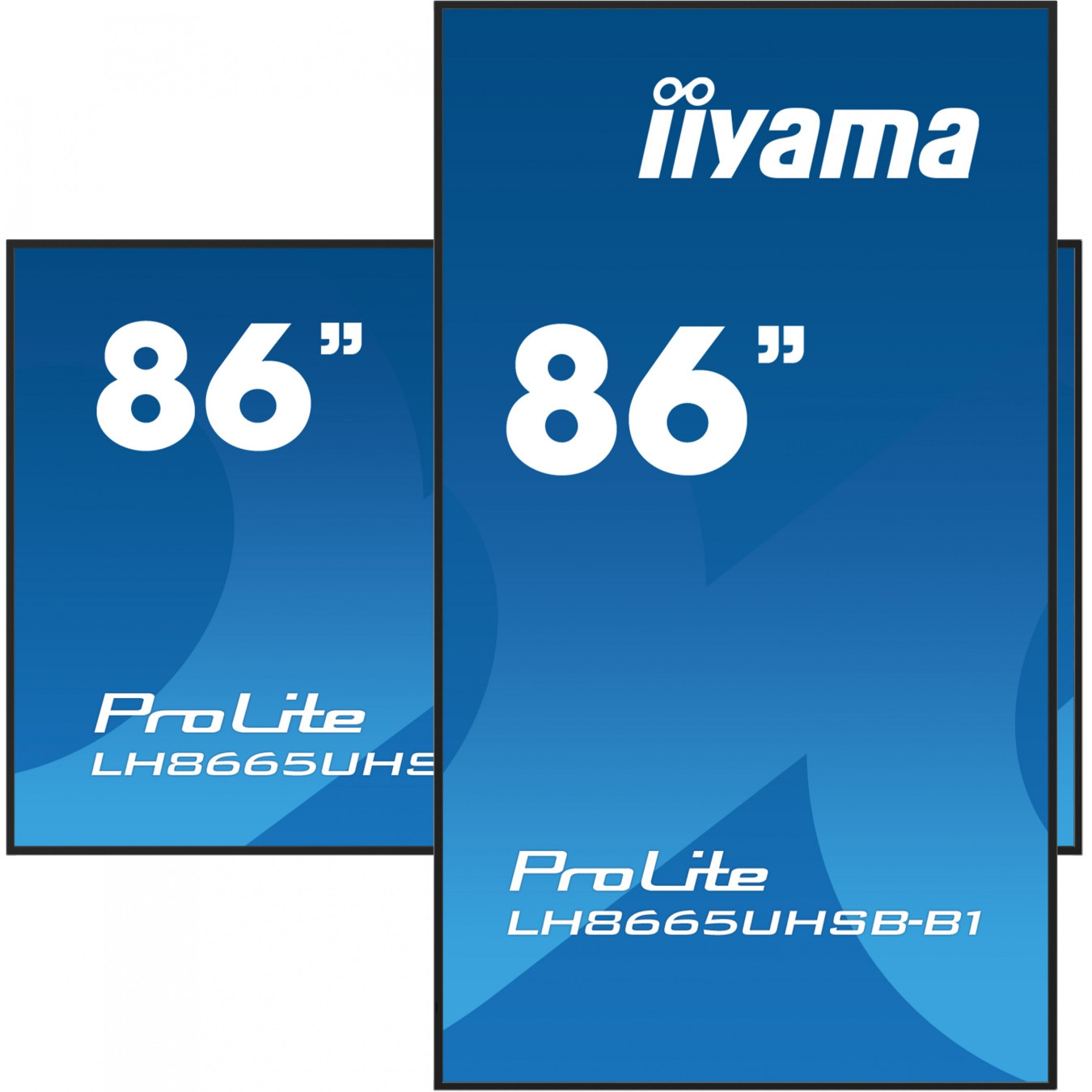

| Orientation | Horizontal/Vertical |
| Product colour | Black |

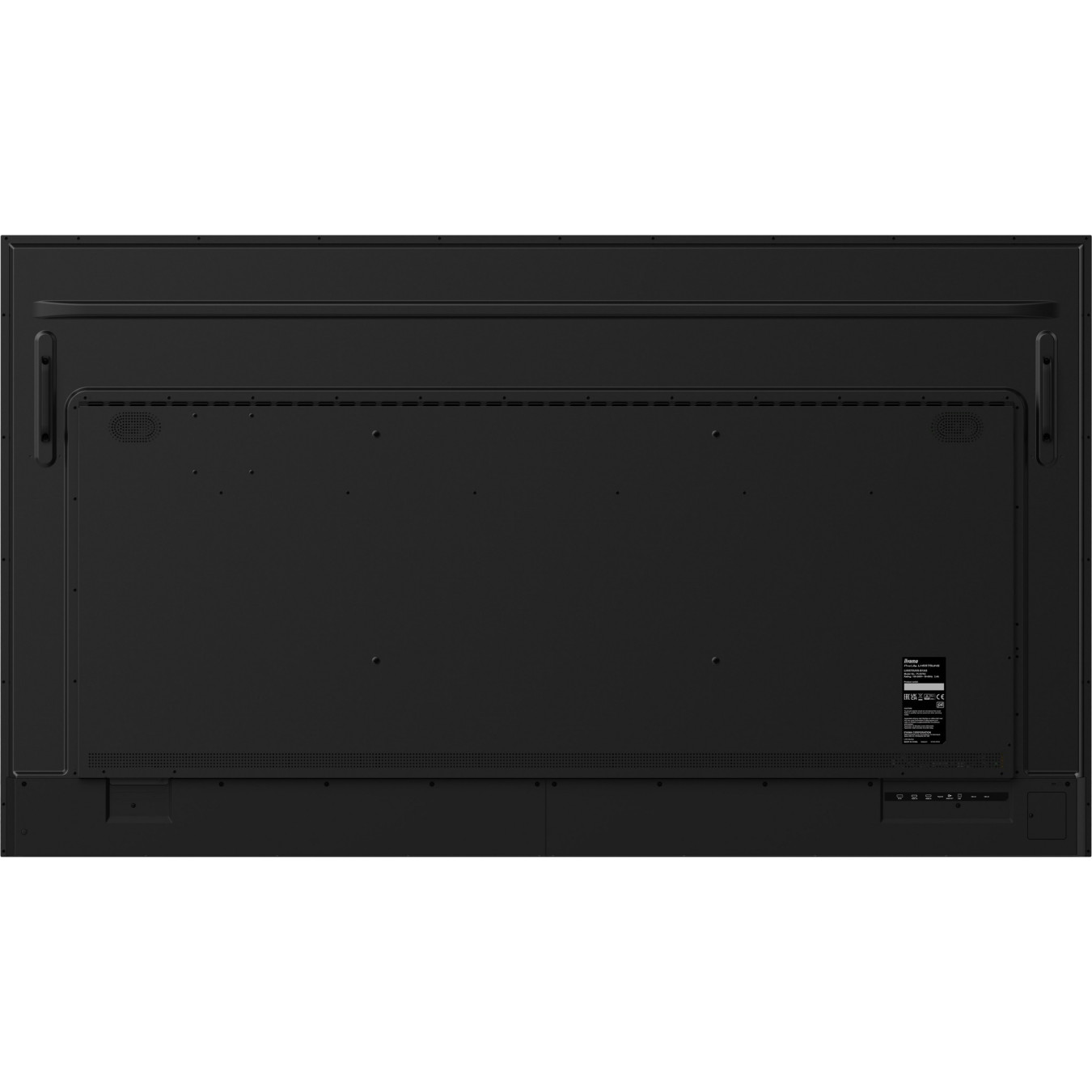

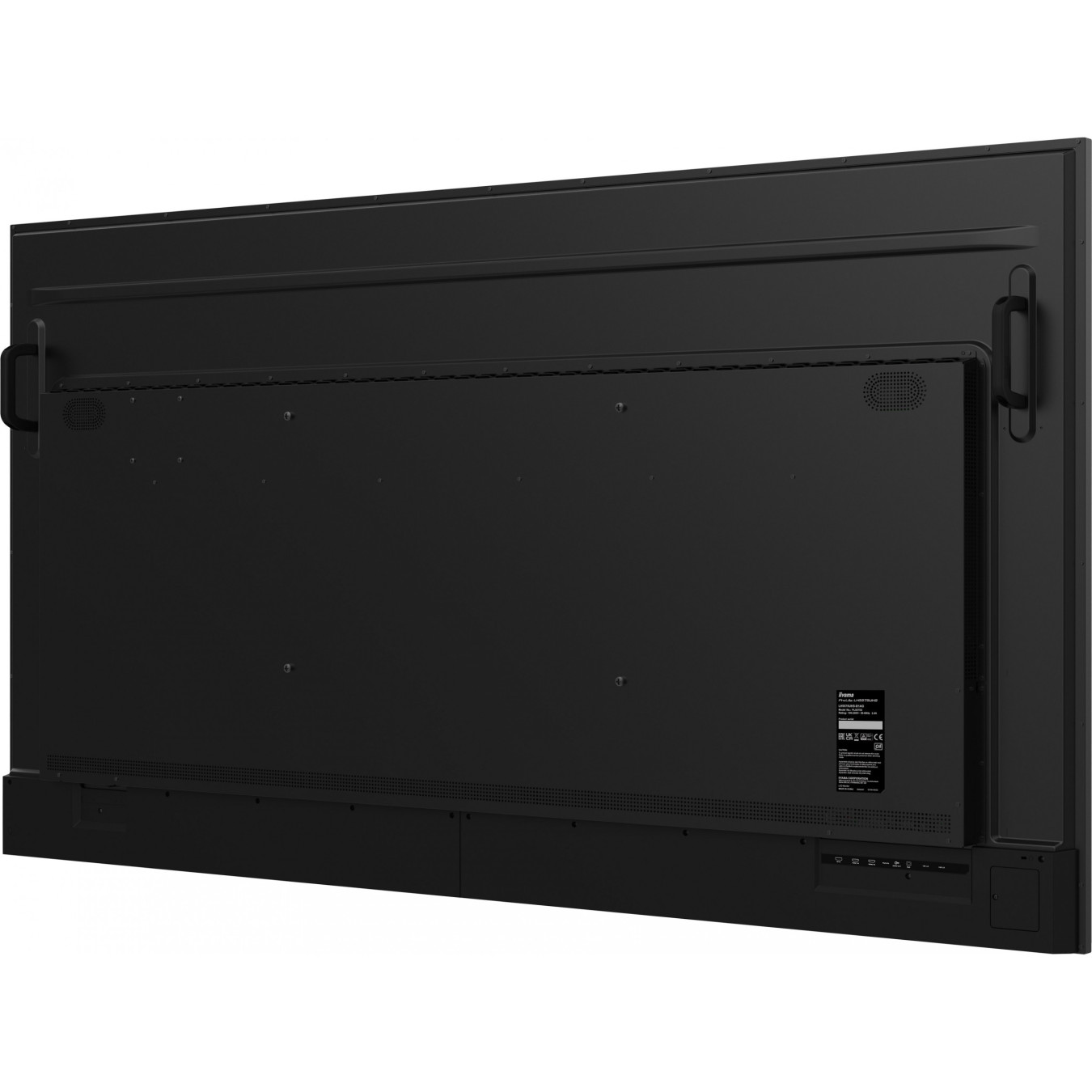

| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.62 cm |
| Bezel width (side) | 1.6 cm |
| Bezel width (top) | 1.62 cm |
| Bezel colour | black |
| Purpose | Commercial |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Simplified Chinese. Czech. German. English. Spanish. French. Italian. Japanese. Polish. Russian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 159 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 159 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 1927 mm |

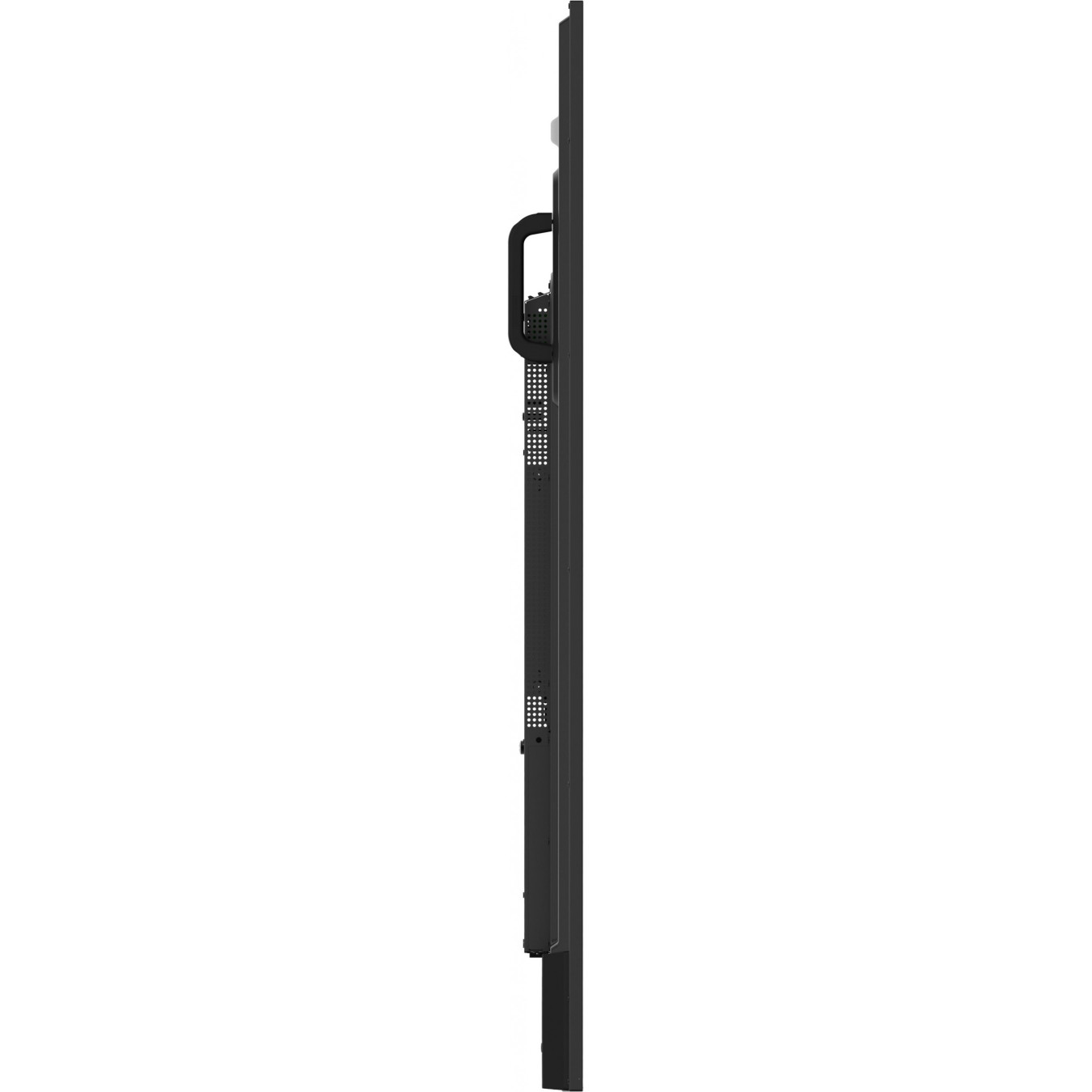

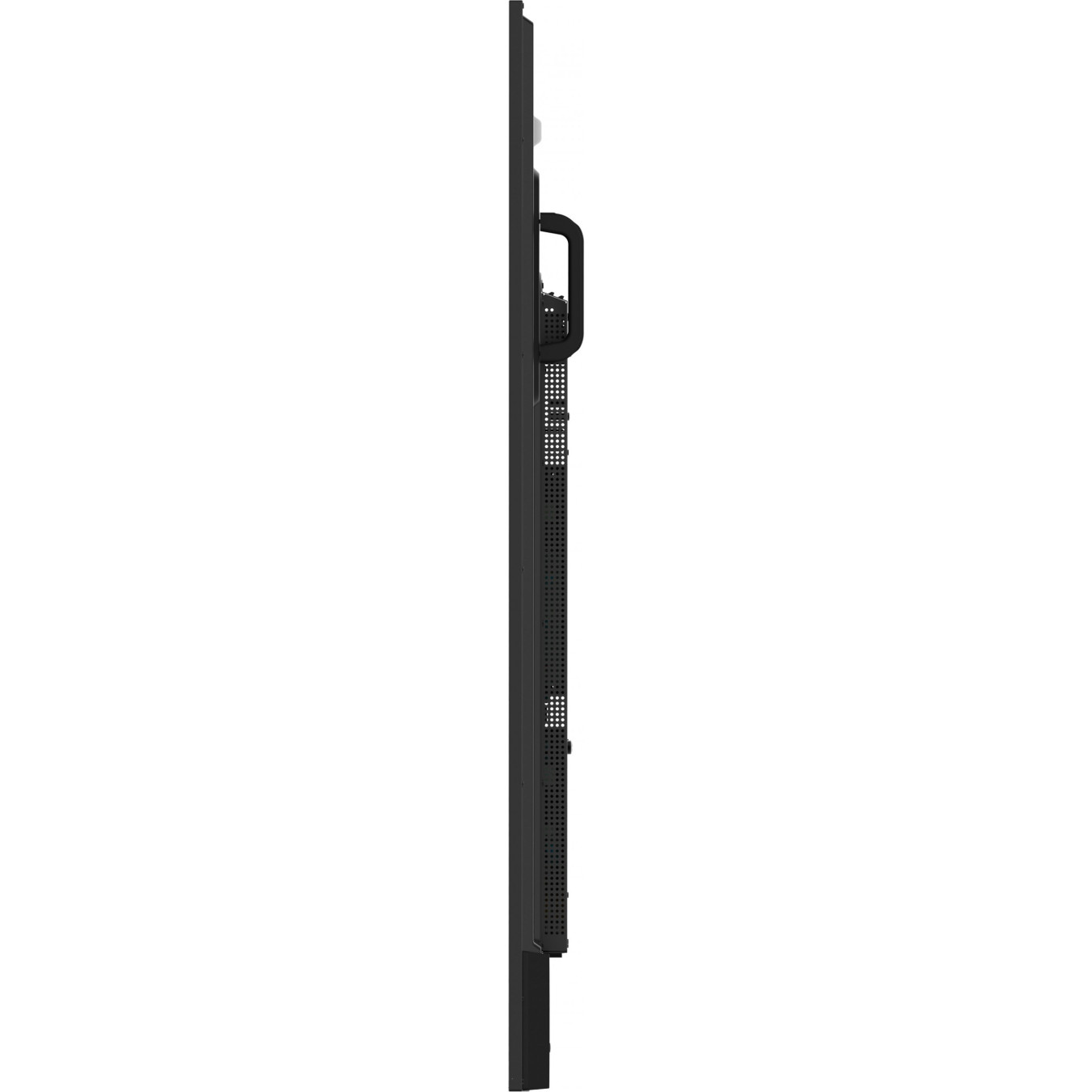

| Display depth | 57 mm |
| Display height | 1098.5 mm |
| Display weight | 49 kg |
| Package width | 2123 mm |
| Package depth | 225 mm |
| Package height | 1247 mm |
| Package weight | 64 kg |

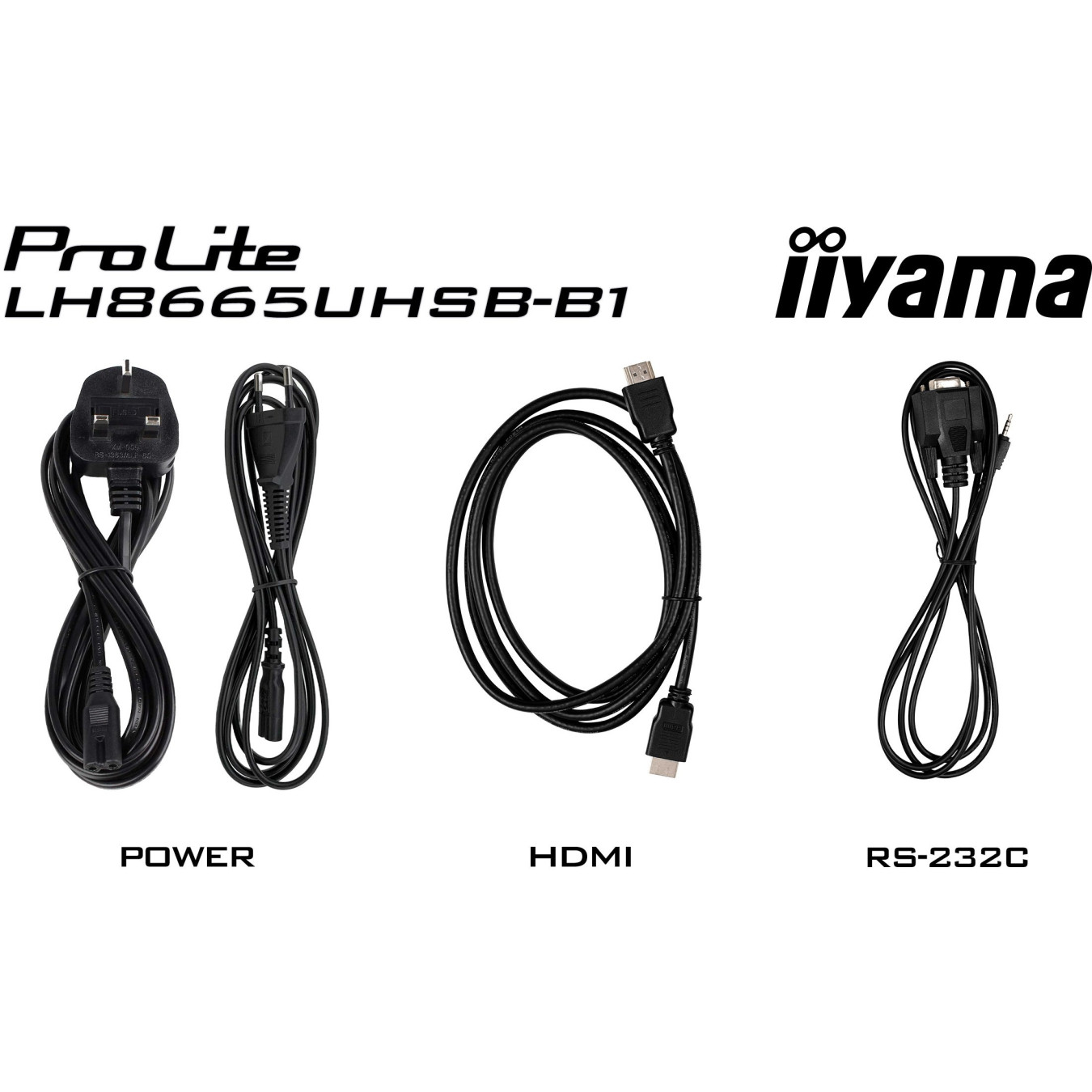

| Cables included | HDMI. Power. RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
