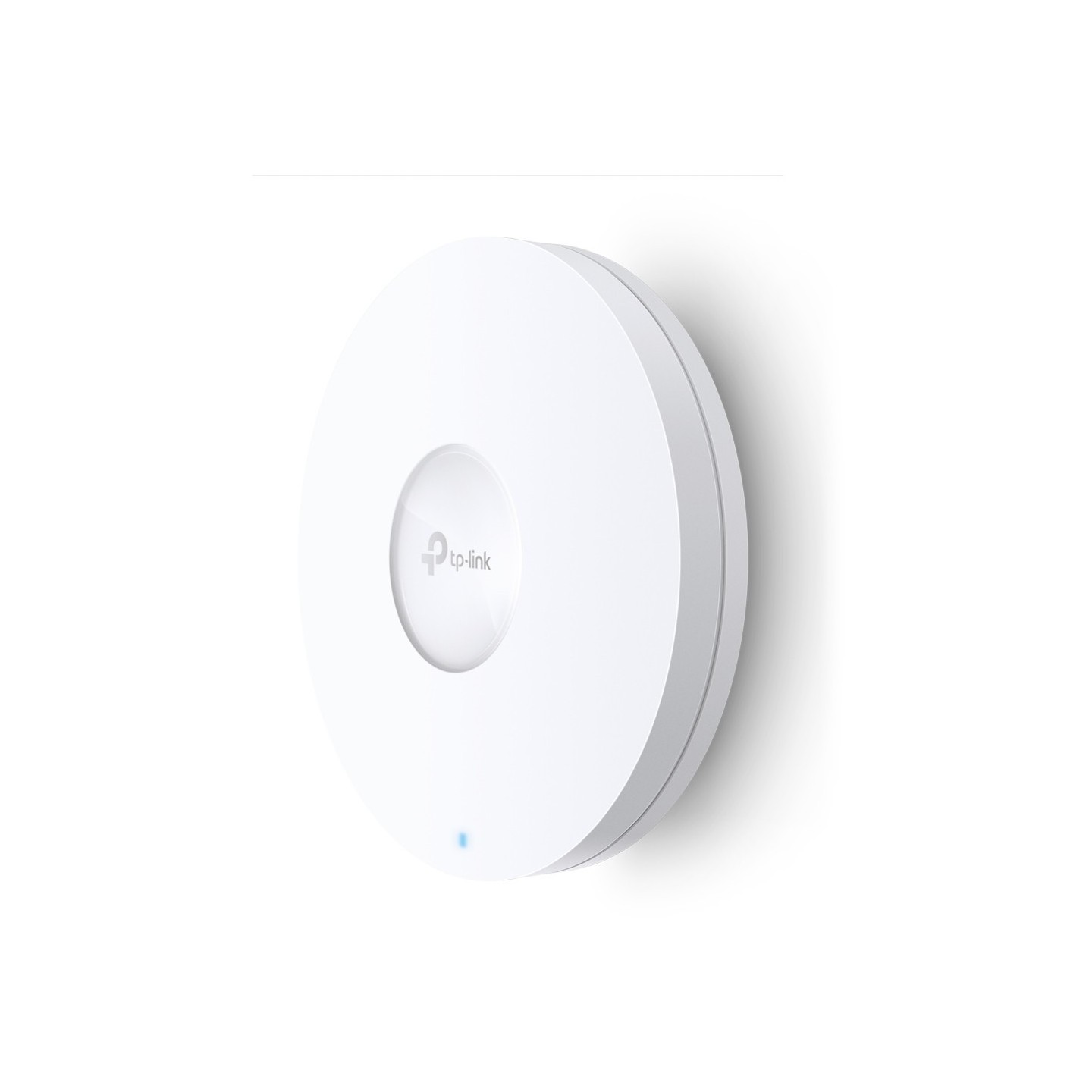

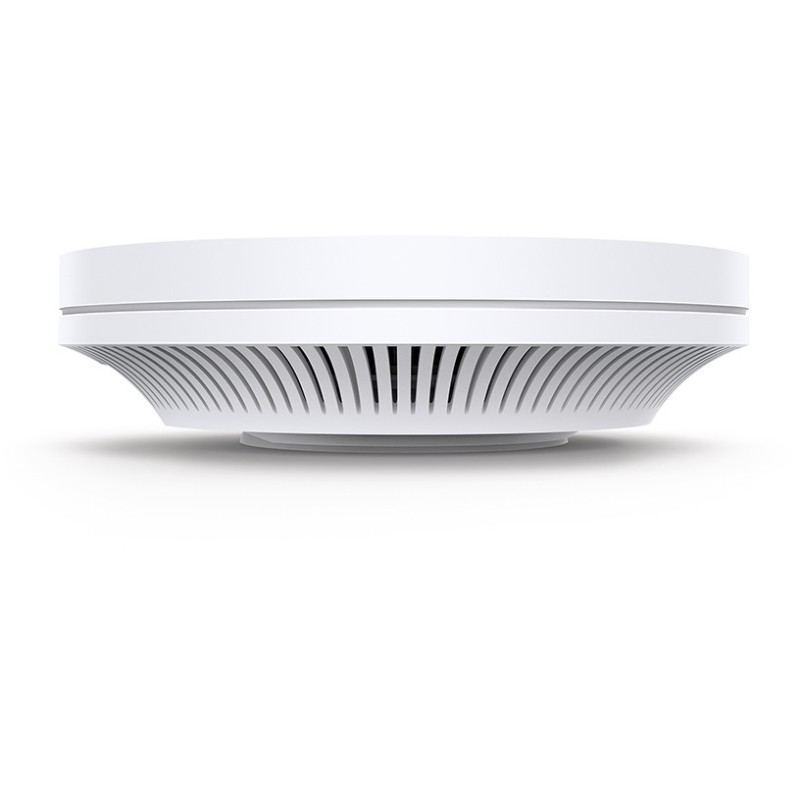

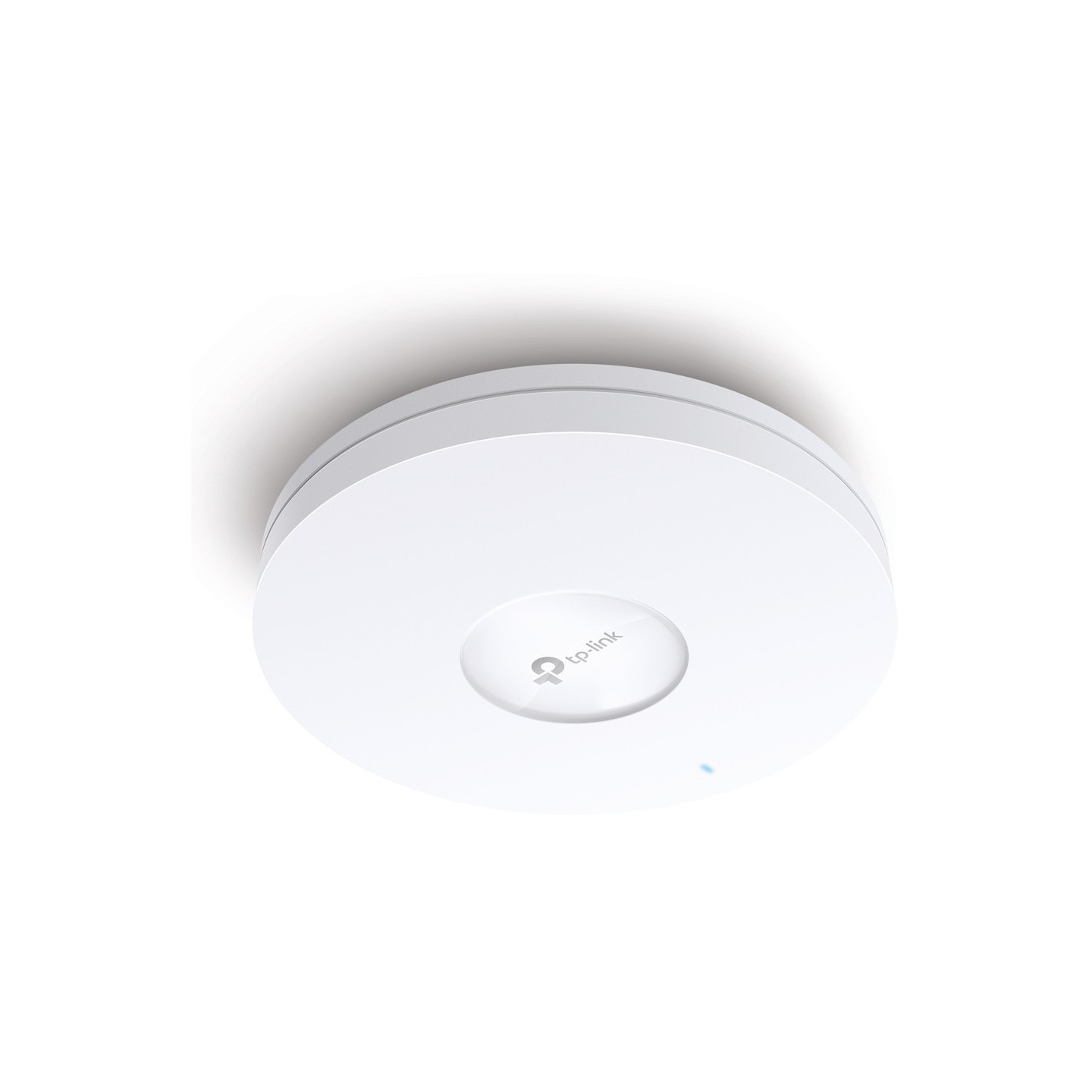

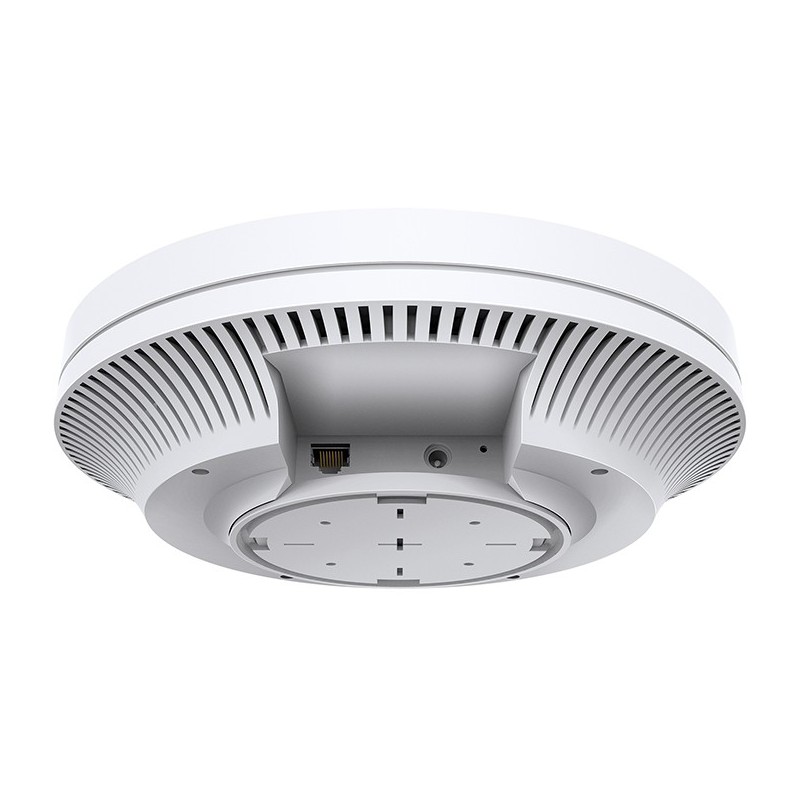

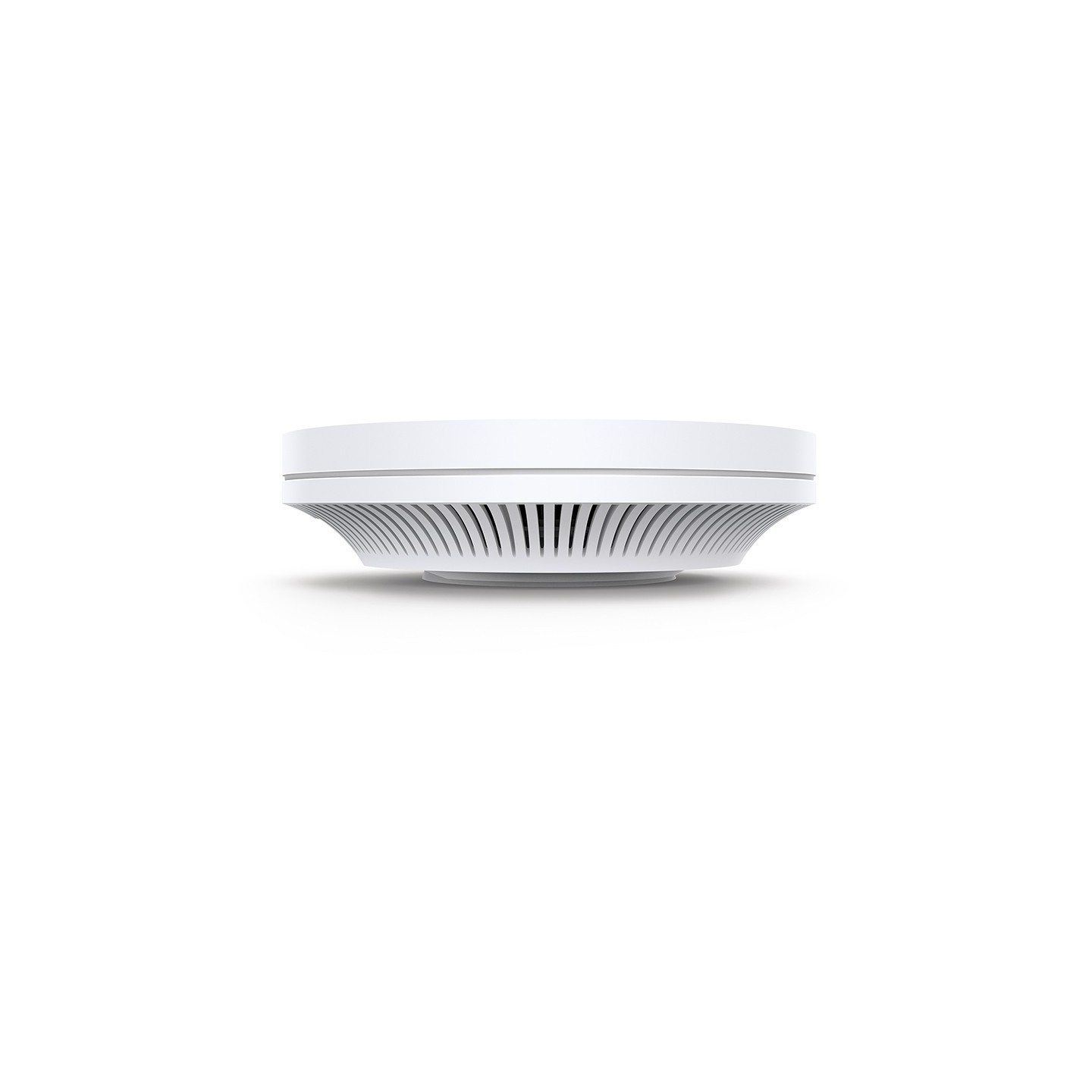

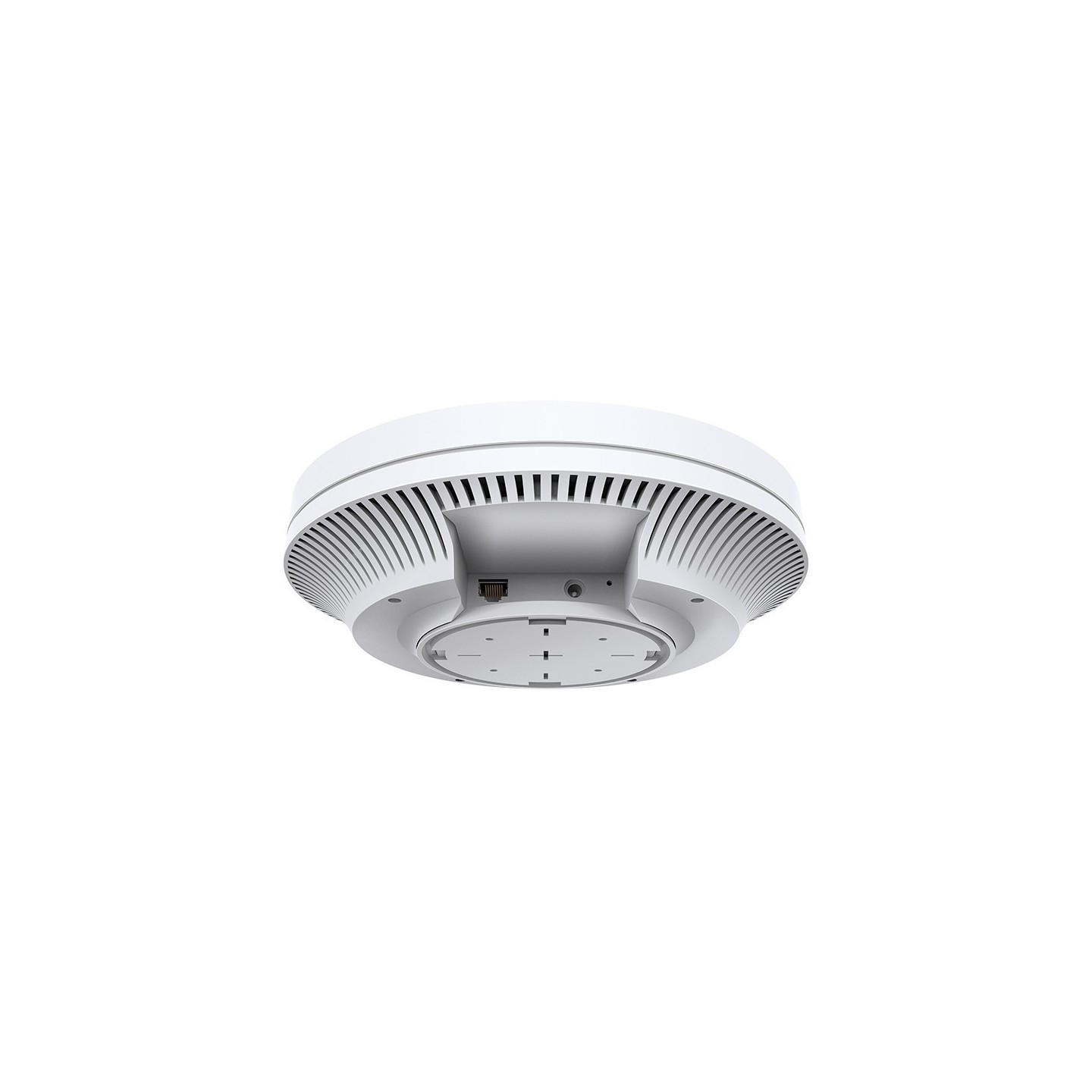

TP-Link Omada EAP660HD - AX3600 Wi-Fi 6 Dual-Band Ceiling AP, 4x4, 2.5GbE, White
AX3600 dual-band Wi‑Fi 6 ceiling access point (1148 Mbps @2.4GHz, 2402 Mbps @5GHz), 4x4 MU-MIMO, 2.5GbE port, Omada cloud-managed, WPA3 security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x2.5GbE |
| Access Points - Management | Cloud-managed |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 2402 Mbit/s. Security algorithms: WPA-Enterprise. WPA-PSK. WPA2-Enterprise. WPA2-PSK. WPA3-Enterprise. WPA3-PSK. Ethernet LAN data rates: 25000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Mounting kit |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 25000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| MIMO type | Multi User MIMO |
| Security algorithms | WPA-Enterprise. WPA-PSK. WPA2-Enterprise. WPA2-PSK. WPA3-Enterprise. WPA3-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ethernet LAN (RJ-45) ports | 1 |
| Output voltage | 12 V |
| Output current | 2 A |
| Placement | Ceiling |
| Product colour | White |
| Antenna type | Internal |
| Width | 243 mm |
| Depth | 243 mm |
| Height | 64 mm |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Harmonized System (HS) code | 85176990 |
