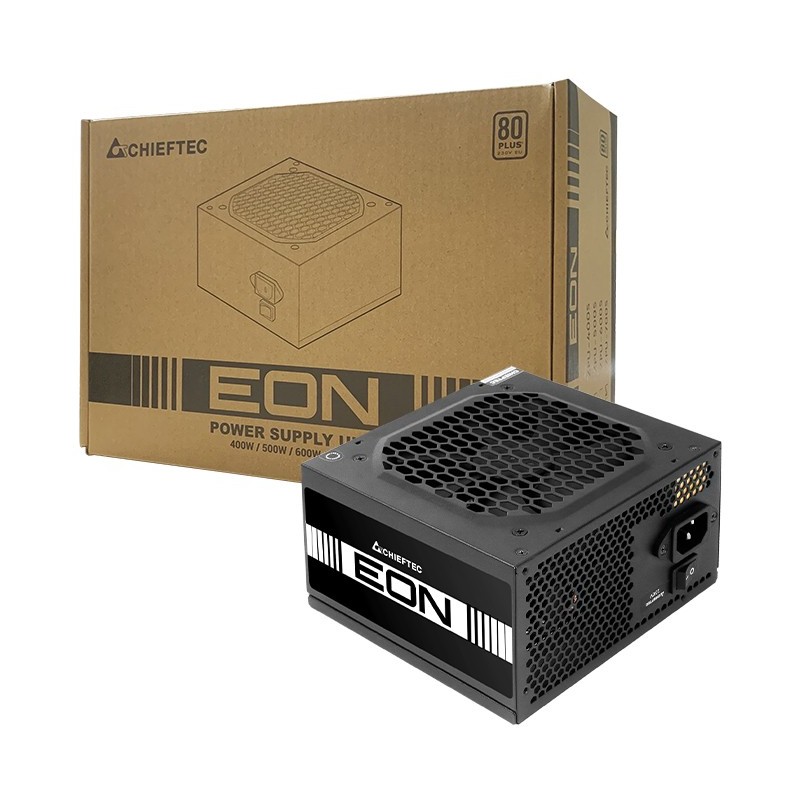

Chieftec EON 700W - ATX 2.3, 80 PLUS, Non-Modular, Black
700W ATX PSU, 80 PLUS certified, Active PFC, 120mm fan, 2x (6+2) PCIe, 4x SATA, 20+4 ATX connector, non-modular cabling, 200–240V 50Hz, 2-year warranty
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Chieftec EON . Total power: 700 W. AC input voltage: 200 - 240 V. AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 450.600.750 mm. Purpose: PC/Server. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS. Product colour: Black. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 86 mm
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5.5 A |
| Maximum input current (@220V) | 5.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 53 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Surge and inrush. Surge protection. Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450.600.750 mm |
| Peripheral (Molex) power cable length | 450.600.750 mm |
| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |

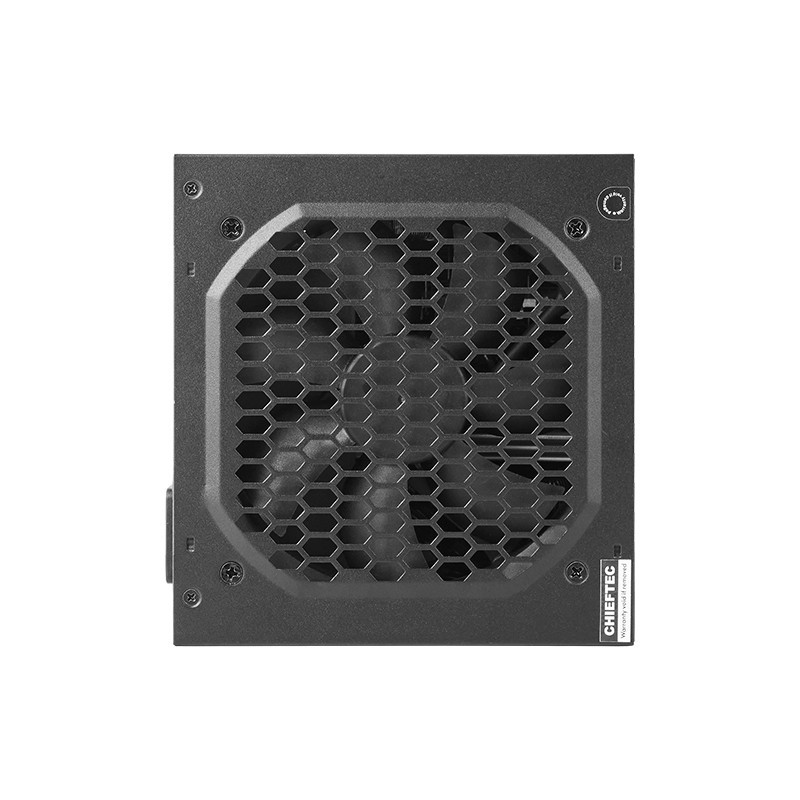

| Fan diameter | 12 cm |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.4 kg |
| Warranty period | 2 year(s) |
