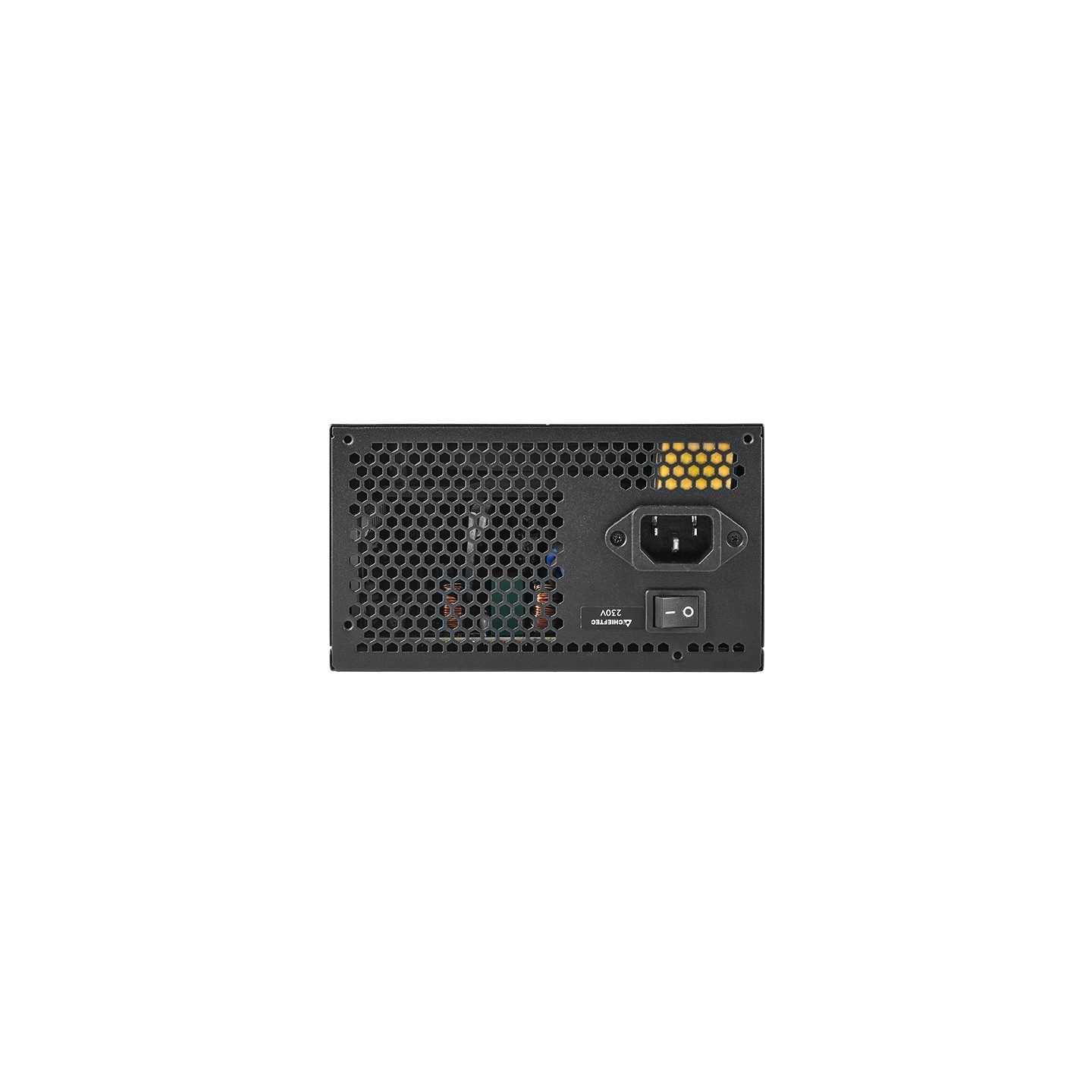

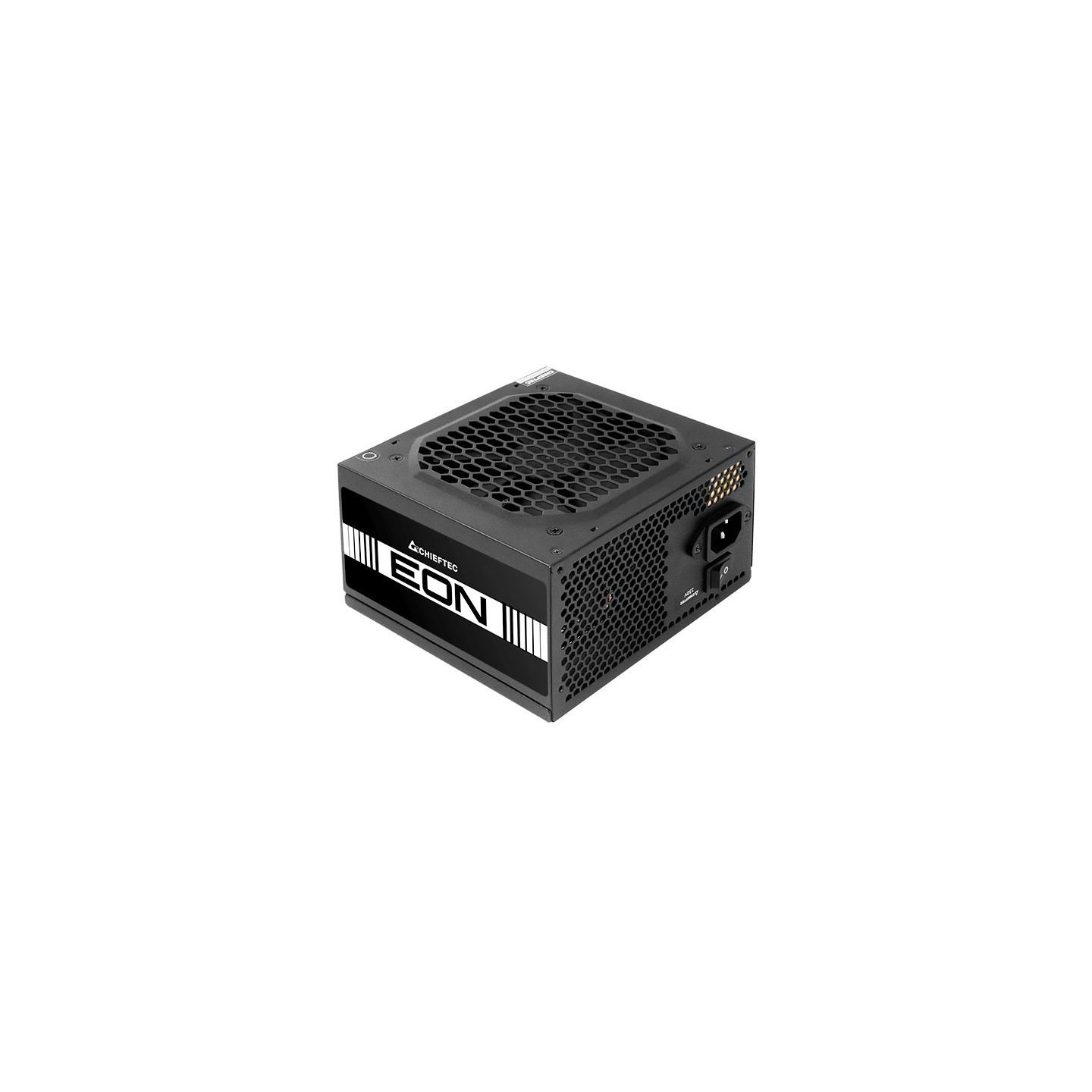

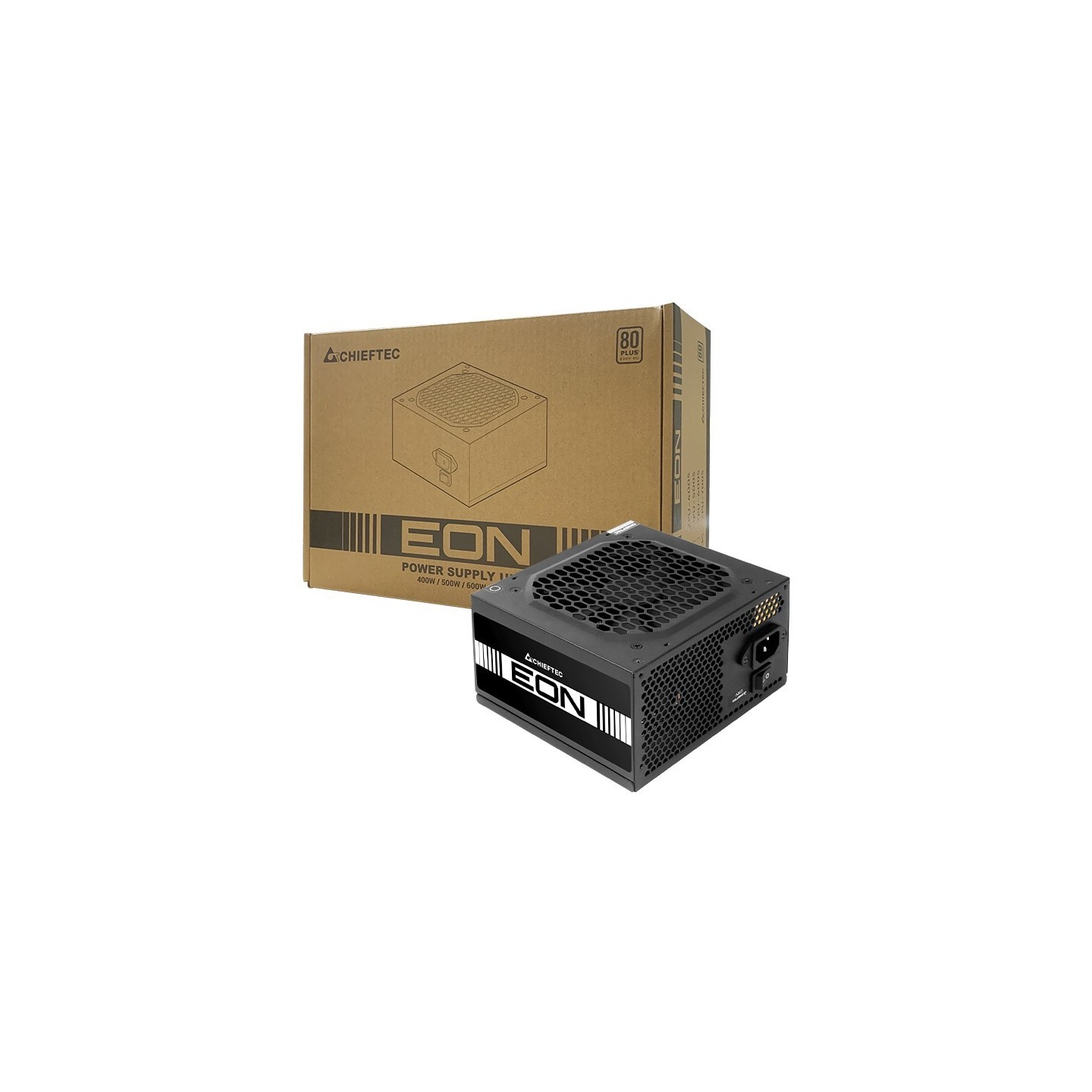

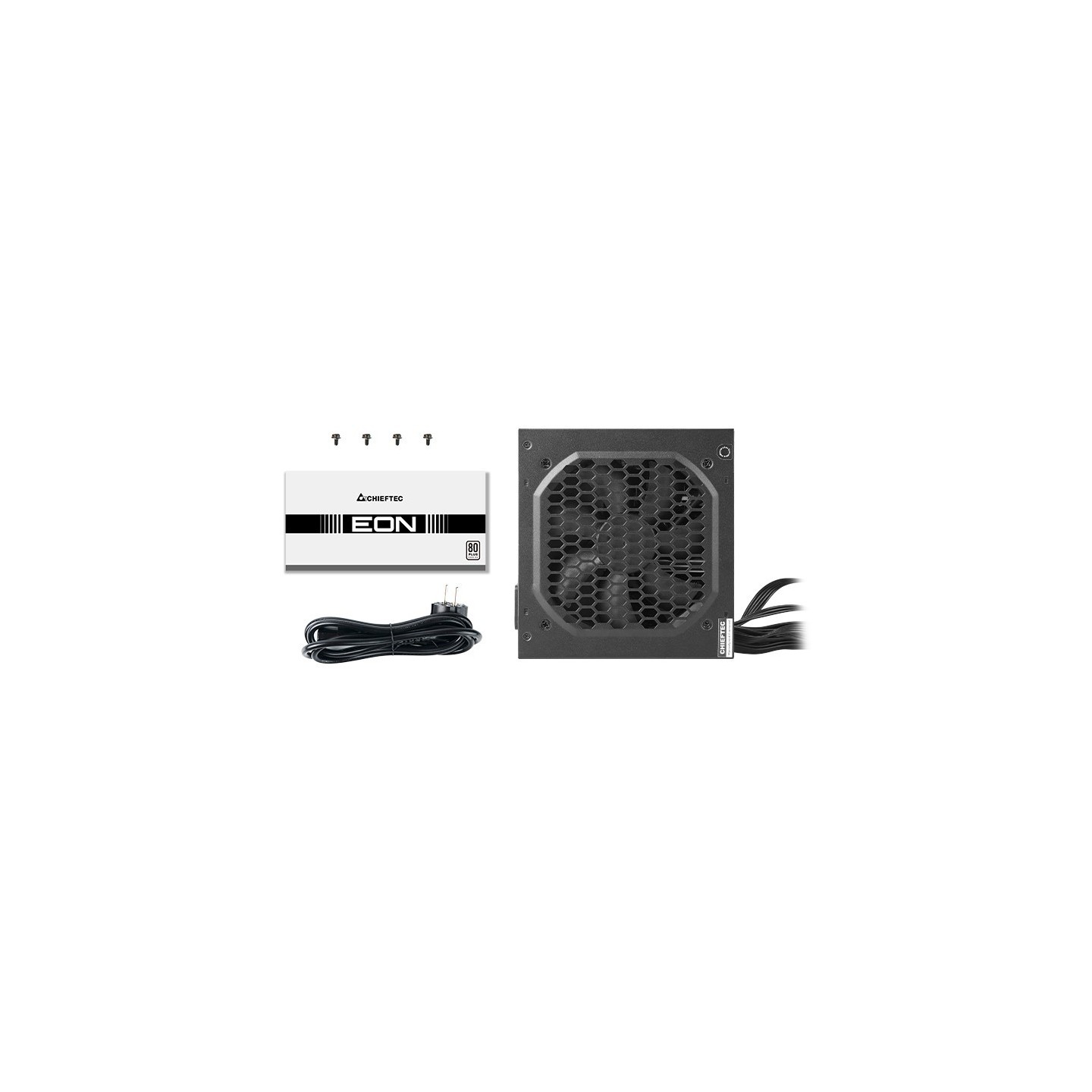

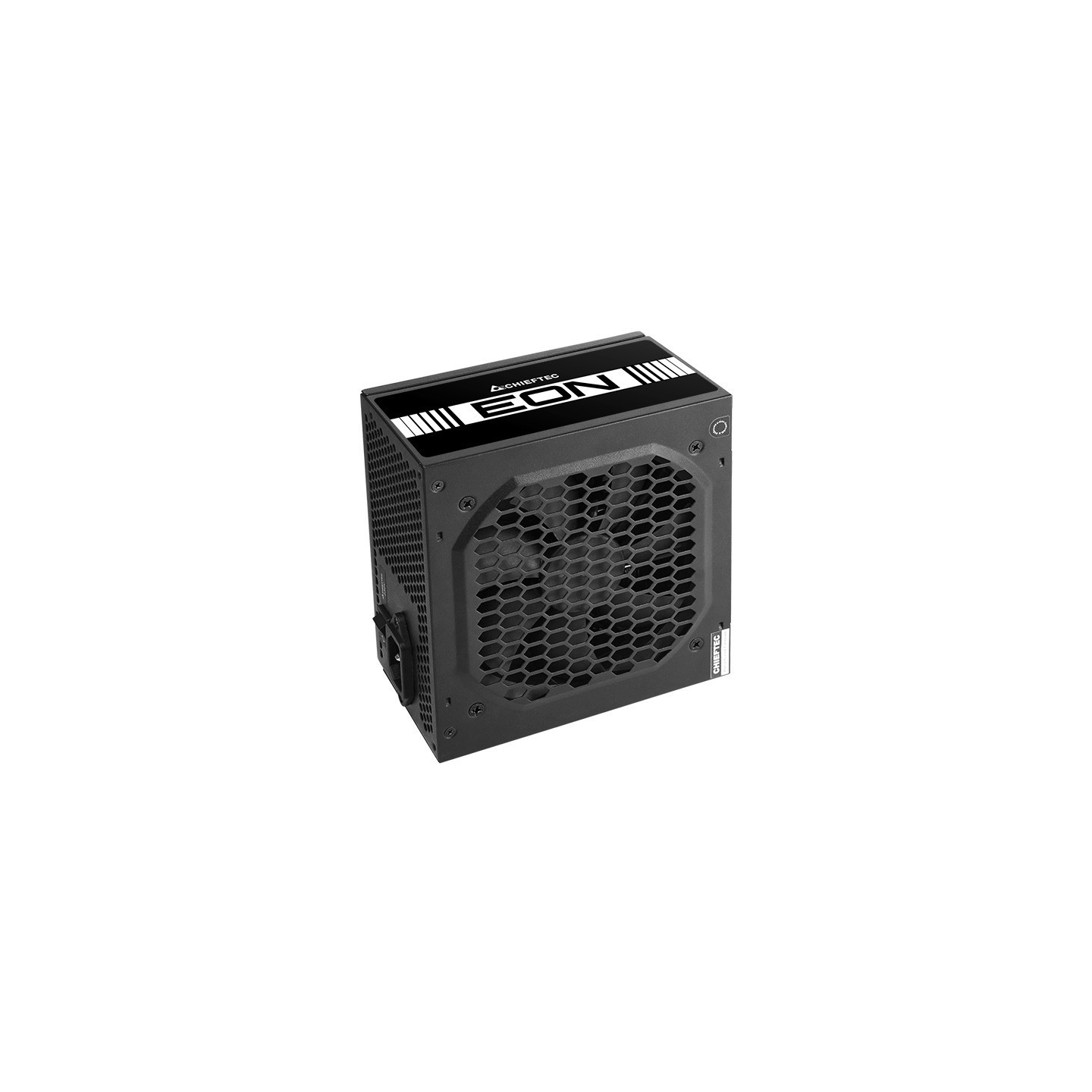

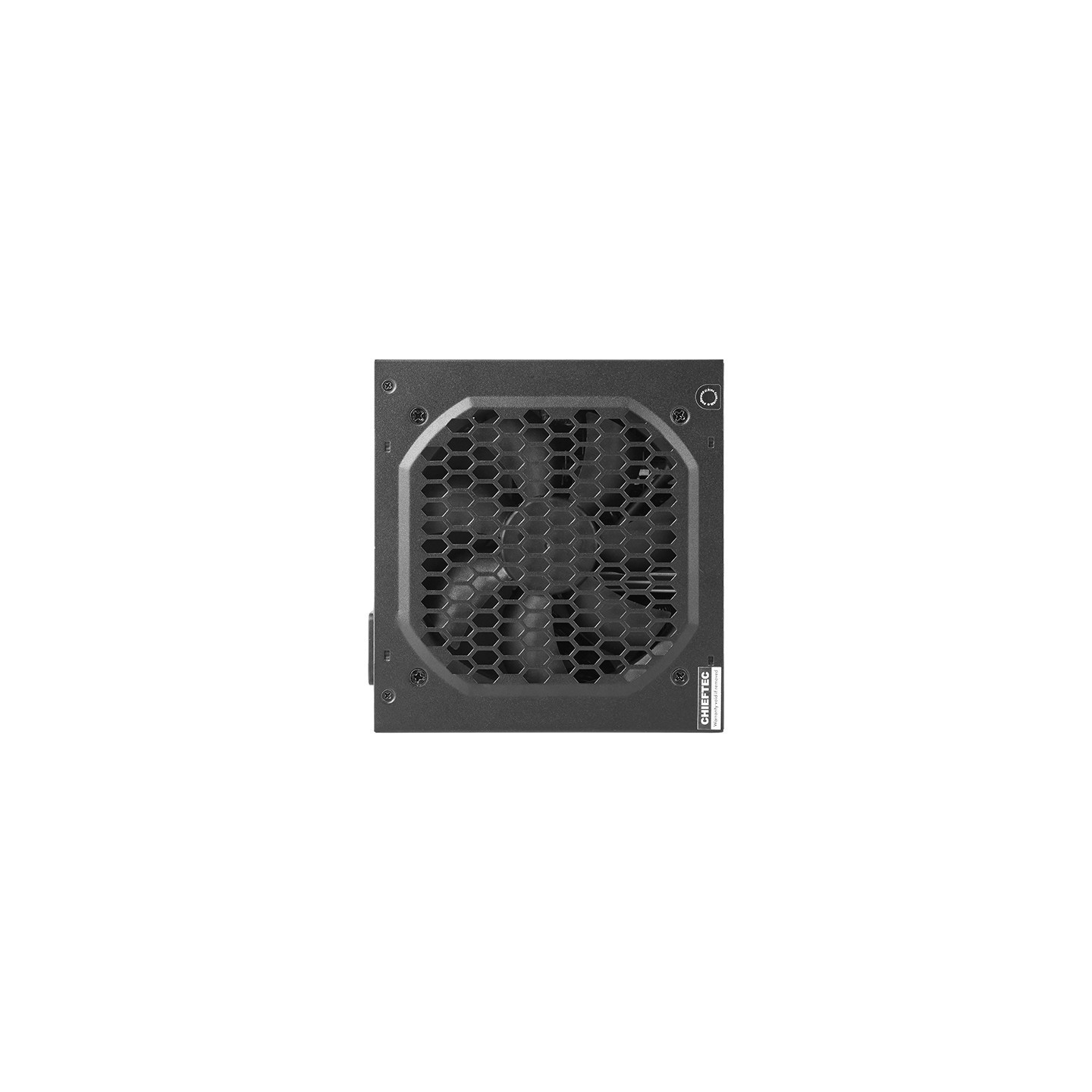

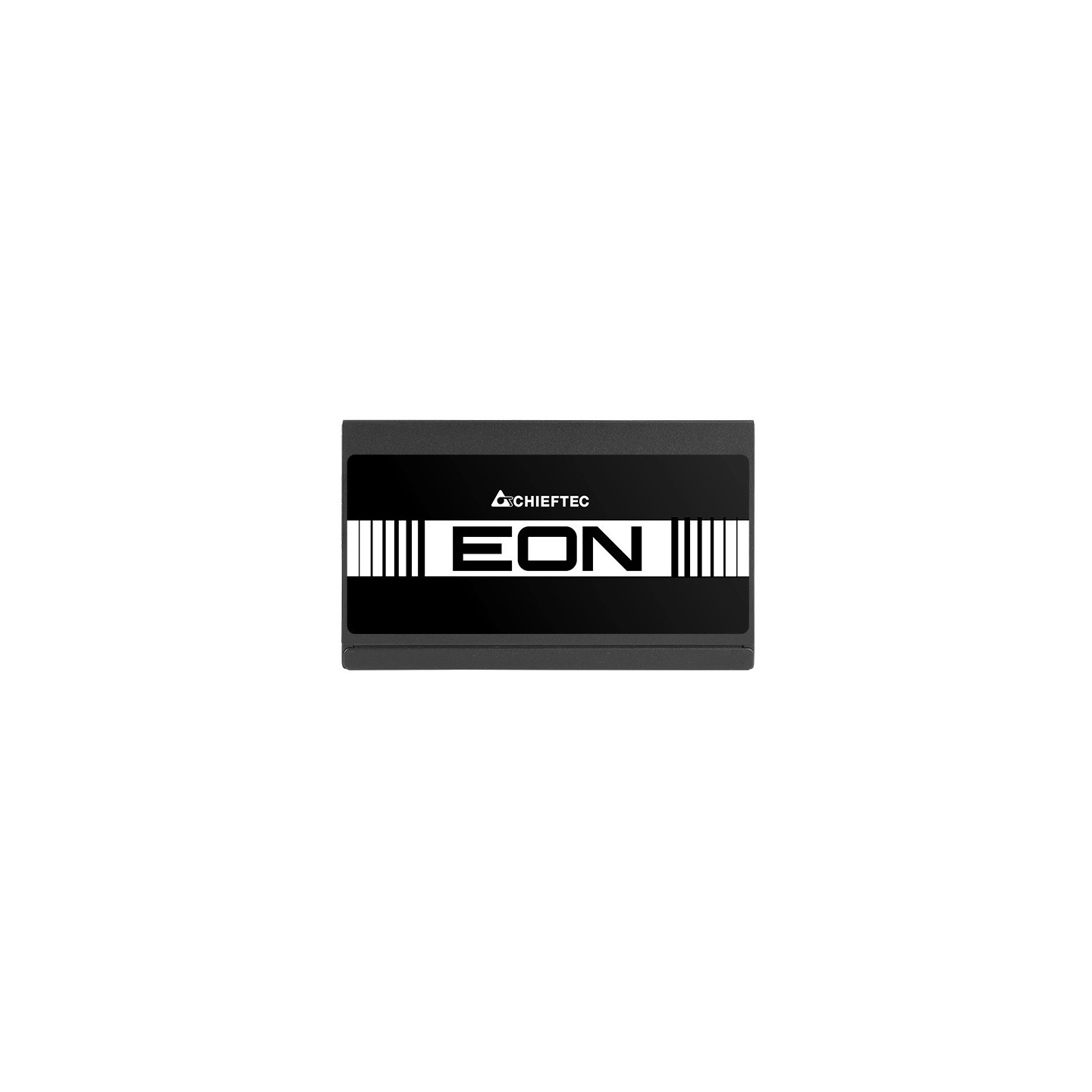

Chieftec EON ZPU-700S 700W 80 PLUS White ATX PSU (Boxed)
Chieftec EON 700W ATX PSU with 80 PLUS White efficiency, non-modular cabling, 120mm silent fan, Active PFC, and comprehensive protection features. Ideal for mid-range PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus White |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Chieftec EON ZPU-700S is a reliable 700W ATX power supply designed for mid-range PC builds and system builders seeking dependable performance at competitive pricing. Featuring 80 PLUS White 230V EU certification, this PSU delivers at least 80% efficiency under typical loads, reducing energy waste and operating costs. The unit is built from high-quality steel with an elegant black finish and equipped with a silent 120mm fan featuring automatic speed control (AFC) for whisper-quiet operation even under load.
With non-modular cabling, the ZPU-700S provides a straightforward installation experience with extra-long native cables (motherboard: 65cm, SATA/Molex: 450-750mm). The power supply includes Active Power Factor Correction (PFC) for improved efficiency and stability, along with comprehensive protection features including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Surge & Inrush Protection (SIP), and Under Voltage Protection (UVP). It supports modern ATX 2.3 motherboards and includes 2x 4+4 pin EPS connectors for dual-CPU systems and 2x 6+2 pin PCIe connectors for graphics cards.
Specifications and features:
- Total Power Output: 700W with 636W combined +12V rail capacity
- Efficiency: 80 PLUS White (230V EU) certification
- Input: 200-240V AC, 50Hz, 5.5A maximum
- Cooling: 120mm silent fan with automatic speed control
- Connectors: 1x 20+4 pin ATX, 2x 4+4 pin EPS, 2x 6+2 pin PCIe, 4x SATA, Molex
- Protection: OPP, OVP, SCP, SIP, UVP
- Dimensions: 150mm (W) x 140mm (D) x 86mm (H)
- Weight: 1.4kg (unit only)
- Warranty: 24 months (2 years)
| Model | ZPU-700S |
| Total Power | 700 W |
| Efficiency Certification | 80 PLUS White (230V EU) |
| Form Factor | ATX |
| ATX Version | 2.3 |
| Cabling Type | Non-Modular |
| AC Input Voltage | 200 - 240 V |
| AC Input Frequency | 50 Hz |
| Input Current | 5.5 A |
| Power Factor | 0.9 |
| Power Factor Correction | Active PFC |
| +12V1 Rail Maximum Output | 53 A |
| +12V Combined Maximum Output | 636 W |
| +5V Maximum Output | 20 A |
| +3.3V Maximum Output | 20 A |
| +5V & +3.3V Combined | 100 W |
| -12V Maximum Output | 0.4 A / 4.8 W |
| +5VSB Maximum Output | 2.5 A / 12.5 W |
| Motherboard Power Connector | 1x 20+4 pin ATX |
| Motherboard Power Cable Length | 65 cm |
| EPS CPU Connectors | 2x 4+4 pin EPS/ATX12V |
| PCIe Power Connectors | 2x 6+2 pin (8/6 pin) |
| SATA Power Connectors | 4x SATA |
| SATA Power Cable Length | 450, 600, 750 mm |
| Molex Power Connectors | Peripheral (Molex) |
| Molex Cable Length | 450, 600, 750 mm |
| Fan Size | 120 mm |
| Fan Type | Silent with Automatic Speed Control (AFC) |
| Protection Features | OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), SIP (Surge & Inrush Protection), UVP (Under Voltage Protection) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight (Unit Only) | 1.4 kg |
| Weight (With Packaging) | 1.68 kg |
| Color | Black |
| Warranty | 24 months (2 years) |
| EAN Code | 0753263078445 |
