Kingston ValueRAM 16GB DDR4-3200 SO-DIMM CL22 1Rx8 1.2V (Retail)
Kingston ValueRAM 16GB DDR4-3200 SO-DIMM laptop memory module. CL22 latency, 260-pin, 1.2V, non-ECC unbuffered, single-rank configuration with gold-plated contacts and RoHS compliance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Laptop Memory - Memory Type | DDR4 |
|---|---|
| Laptop Memory - Kit Size | 1 |
| Laptop Memory - Total Capacity | 16 GB |
| Laptop Memory - Speed (MT/s) | 3200 MT s |
| Laptop Memory - Special Features | Low Voltage Non-ECC Single Rank Unbuffered |

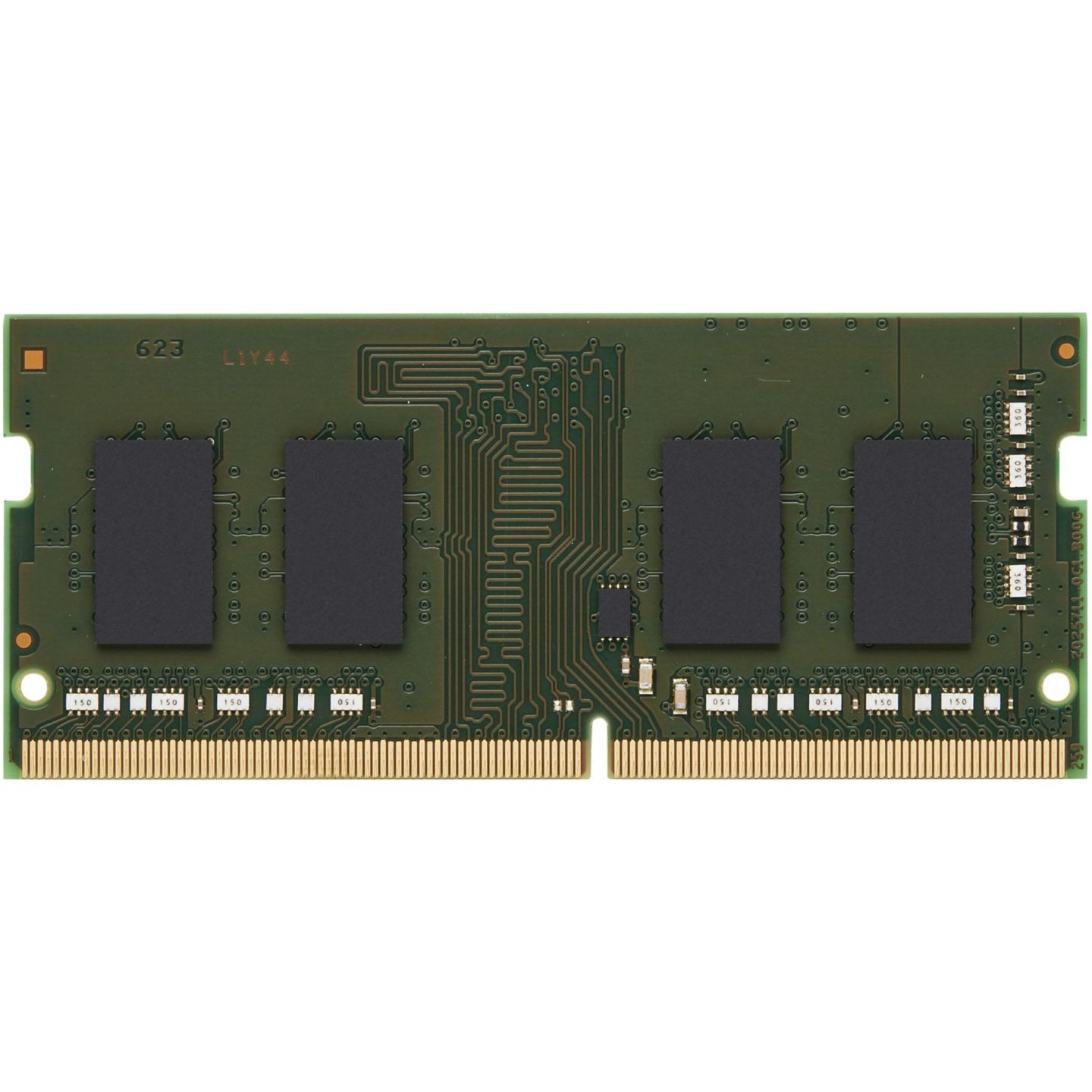

The Kingston ValueRAM KVR32S22S8/16 is a 16GB DDR4-3200 SO-DIMM memory module designed for laptop and small form factor systems. This single-rank (1Rx8) module operates at 3200 MT/s with a CAS latency of 22 cycles, requiring only 1.2V for stable operation. The 260-pin SO-DIMM form factor makes it compatible with most modern laptops and compact computers.
Built on sixteen 1G x 8-bit FBGA components, this non-ECC unbuffered module features gold-plated contact fingers for reliable connectivity and includes on-board SPD (Serial Presence Detect) EEPROM for automatic configuration. The module supports 16 internal banks organized in 4 groups of 4 banks each, with selectable burst chop (BC4) or burst length (BL8) on-the-fly operation. It is fully RoHS compliant and halogen-free, meeting modern environmental standards.
Key specifications include a row cycle time of 45.75ns minimum, refresh row cycle time of 350ns minimum, and row active time of 32ns minimum. The module operates reliably across a wide temperature range and includes dynamic on-die termination for optimal signal integrity.
- Capacity: 16GB (2G x 64-bit)
- Speed: DDR4-3200 MT/s
- CAS Latency: CL22
- Form Factor: 260-pin SO-DIMM
- Configuration: Single-rank (1Rx8)
- Voltage: 1.2V nominal
- Non-ECC, unbuffered operation
- Gold-plated contacts
- RoHS compliant and halogen-free
| Capacity | 16GB |
| Memory Type | DDR4 |
| Speed | 3200 MT/s |
| CAS Latency | CL22 |
| Form Factor | 260-pin SO-DIMM |
| Configuration | 1Rx8 (Single-rank) |
| Voltage | 1.2V nominal |
| ECC | Non-ECC |
| Buffered | Unbuffered |
| Row Cycle Time (tRCmin) | 45.75ns |
| Refresh Row Cycle Time (tRFCmin) | 350ns |
| Row Active Time (tRASmin) | 32ns |
| Contact Plating | Gold |
| Compliance | RoHS compliant, halogen-free |
| Internal Banks | 16 banks (4 groups of 4) |
| Burst Chop (BC) | BC4 / BL8 selectable on-the-fly |
| On-Die Termination | Yes |
| SPD | On-board I2C serial presence-detect EEPROM |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Part Number | KVR32S22S8/16 |
