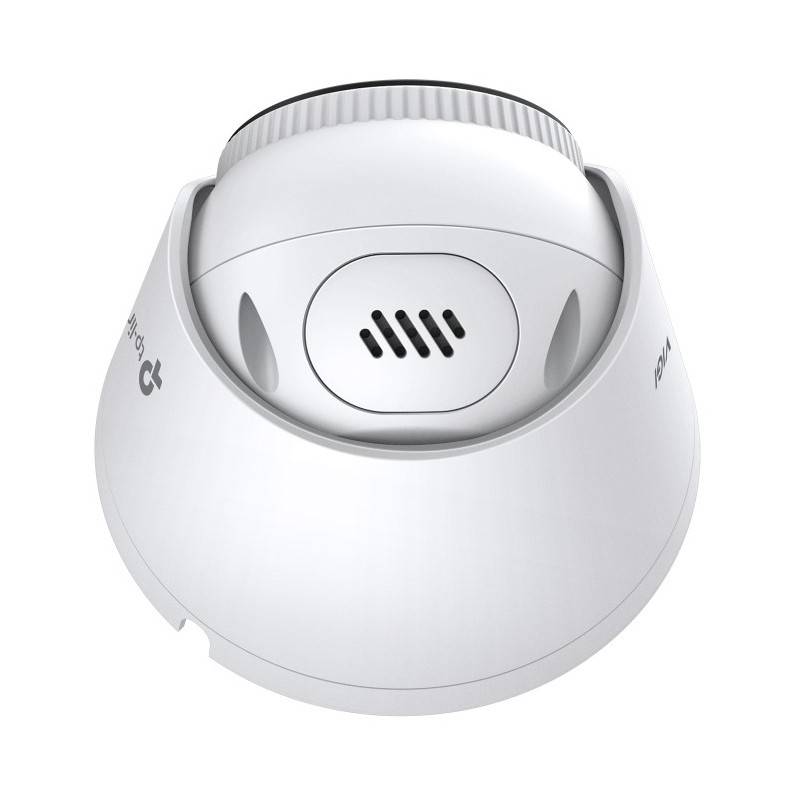

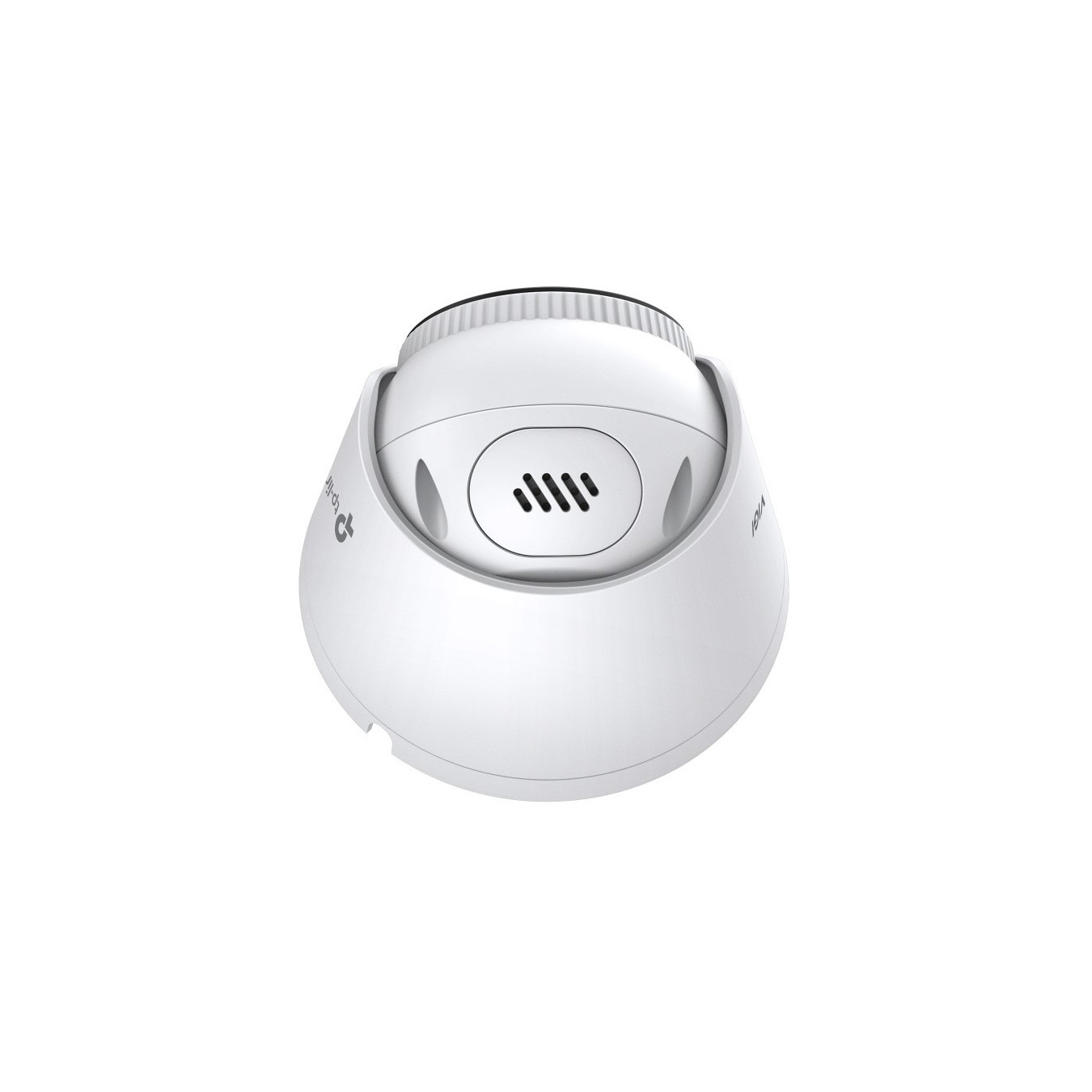

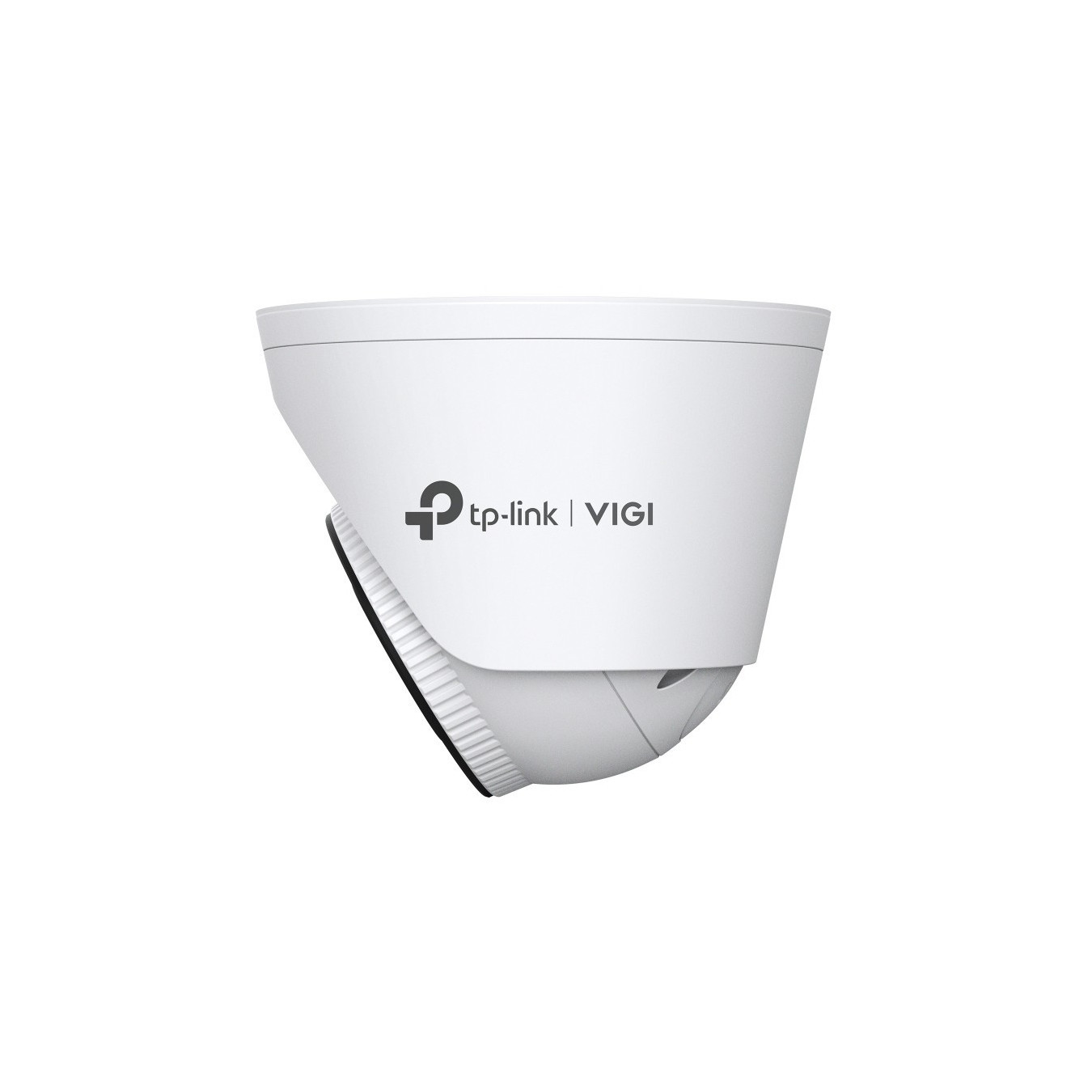

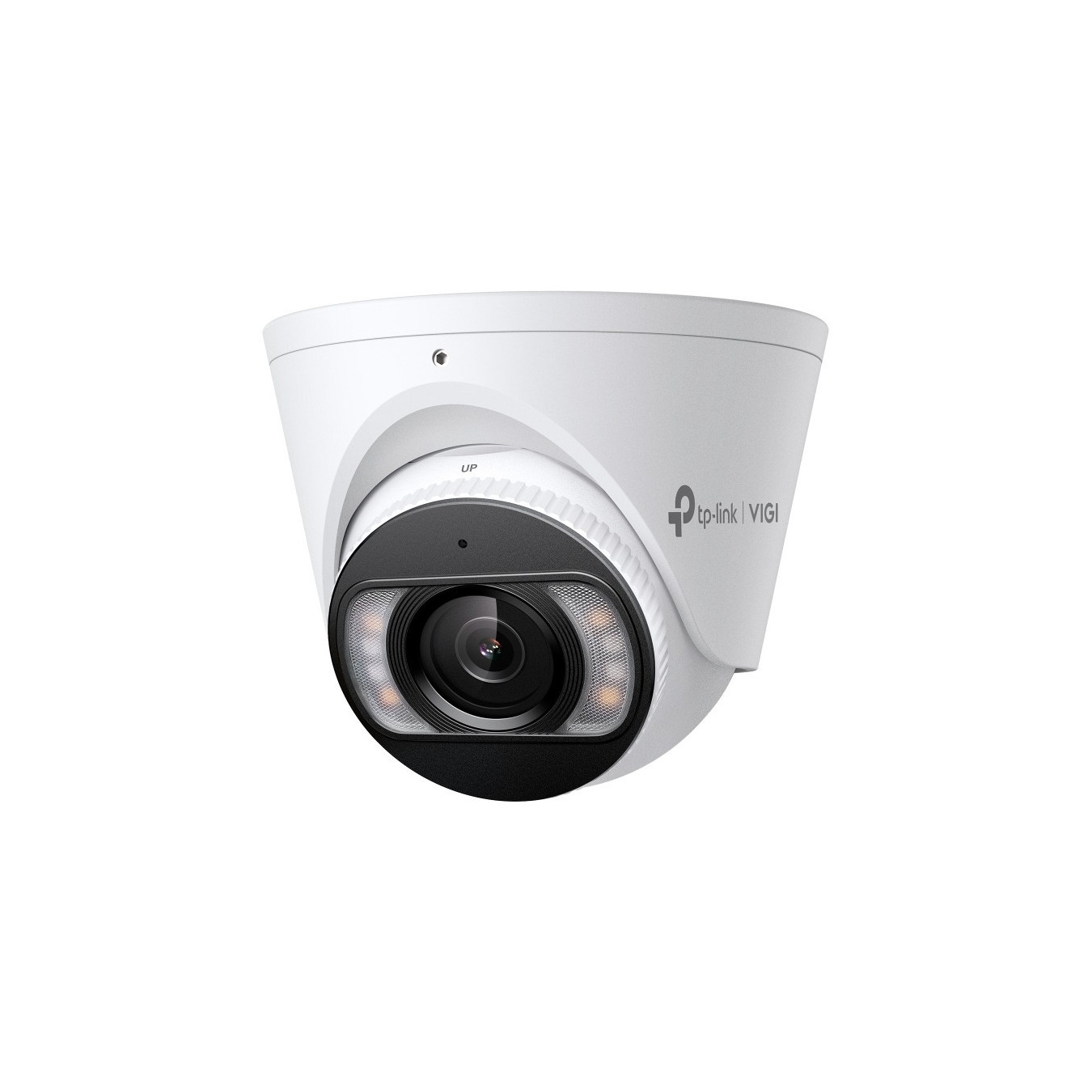

TP-Link Omada InSight S485 - 8MP (4mm) Full-Color Turret Camera - PoE, IP67, White
8MP 4K full-color outdoor turret camera with 4mm lens, PoE/DC power, IP67 waterproof, 2-way audio, up to 3840×2160 resolution, detection range up to 107 m.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Turret |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
| IP Cameras - Weather Rating | IP67 |
TP-Link INSIGHT S485. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling. Product colour: White. Form factor: Turret. Lens viewing angle. horizontal: 91.5°. Lens viewing angle. vertical: 46.1°. Lens viewing angle. diagonal: 109.6°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 107 m. Observe distance: 44 m. Recognize distance: 21 m
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 107 m |
| Feature | Manual |
| Dynamic range | 120 dB |
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Lens viewing angle. horizontal | 91.5° |
| Lens viewing angle. vertical | 46.1° |
| Lens viewing angle. diagonal | 109.6° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Detect distance | 107 m |
| Observe distance | 44 m |
| Recognize distance | 21 m |
| Maximum aperture number | 1.6 |
| Identify distance | 11 m |
| Fixed focal length | 4 mm |
| LED type | IR/White |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 3840 x 2160 |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps. Sub-Stream: 64 Kbps to 512 Kbps |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 11.5 W |
| Power consumption (Power over Ethernet (PoE)) | 12.5 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 111 mm |
| Height | 83.7 mm |
| Length | 111 mm |
| Weight | 480 g |
| Package type | Box |
| Number of cameras | 1 |
