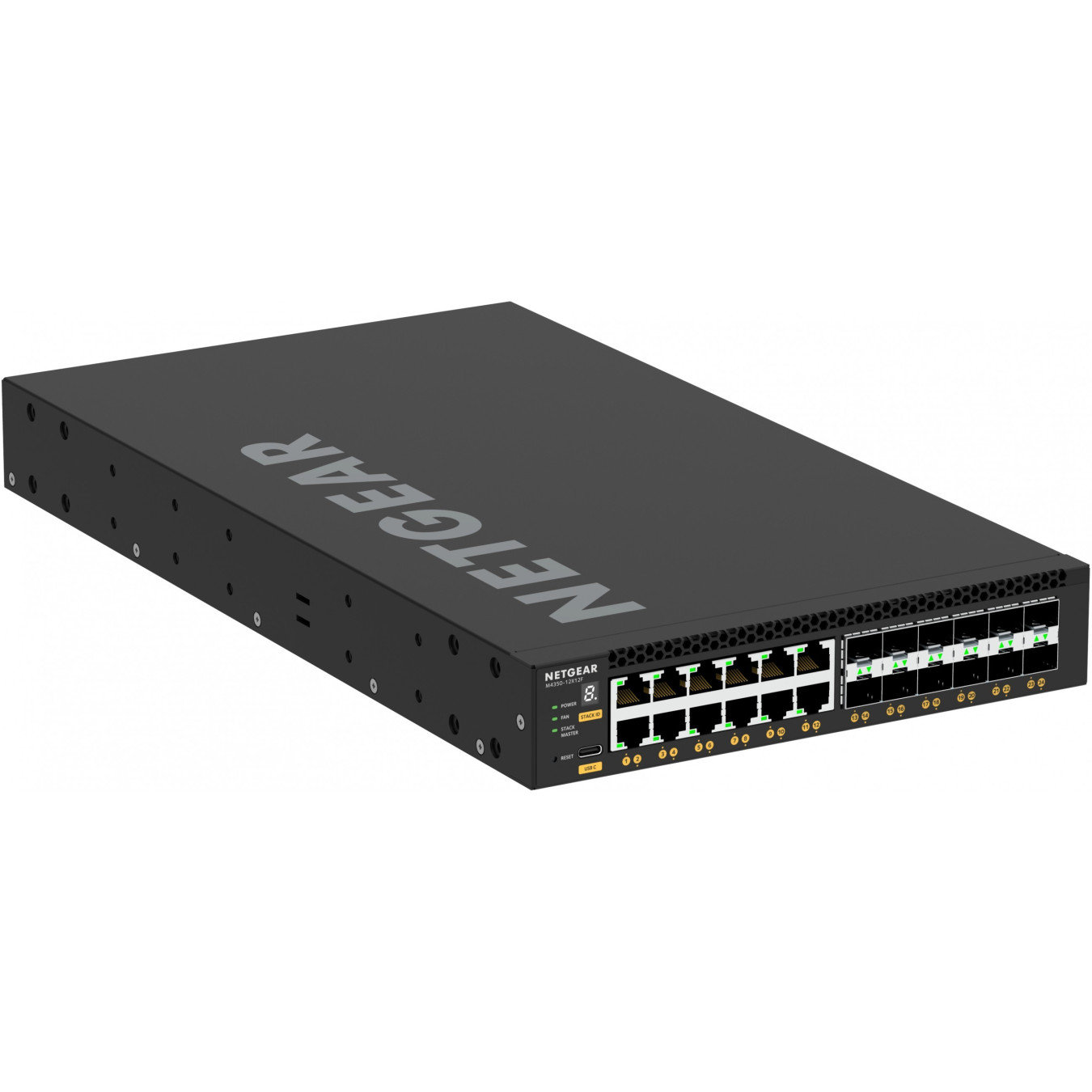

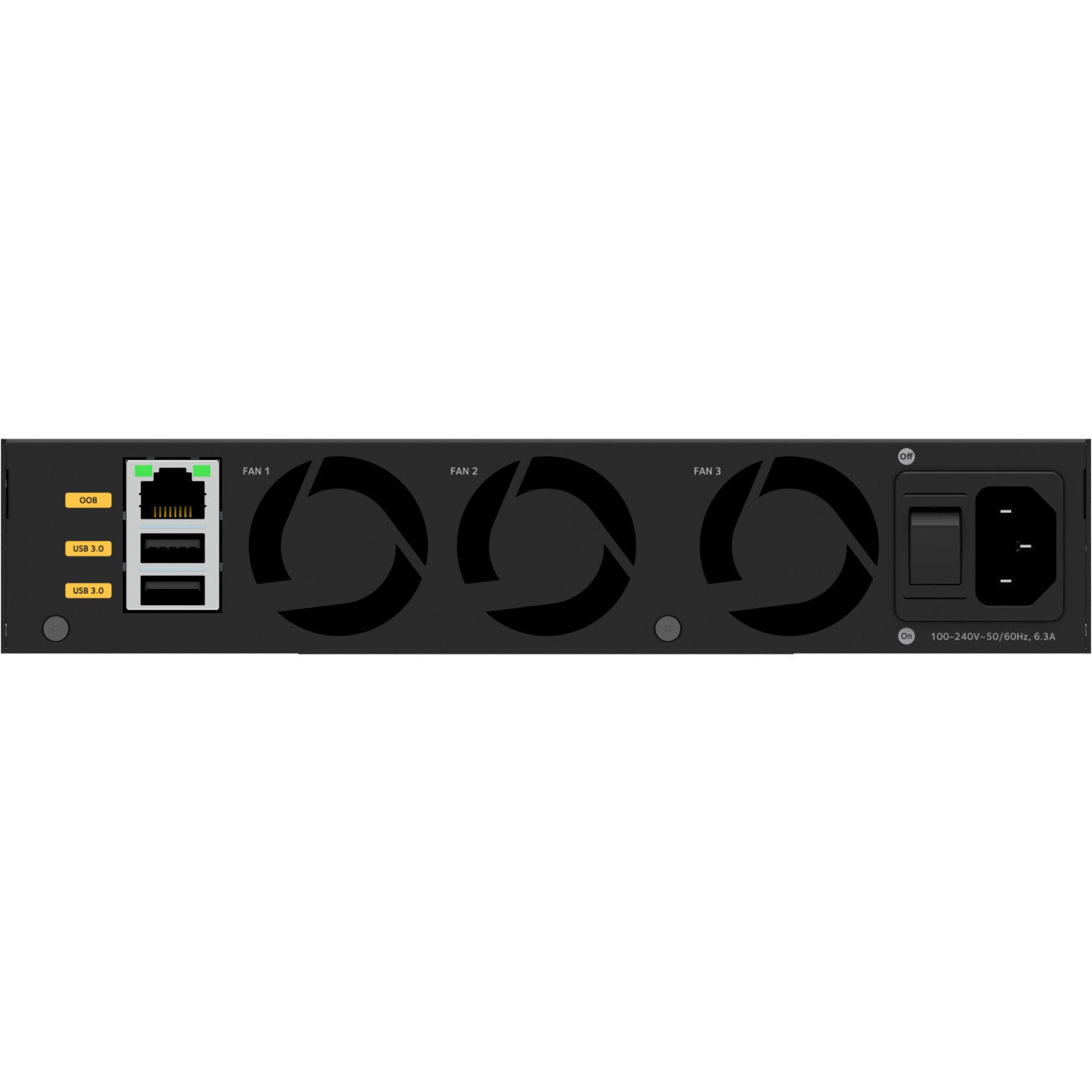

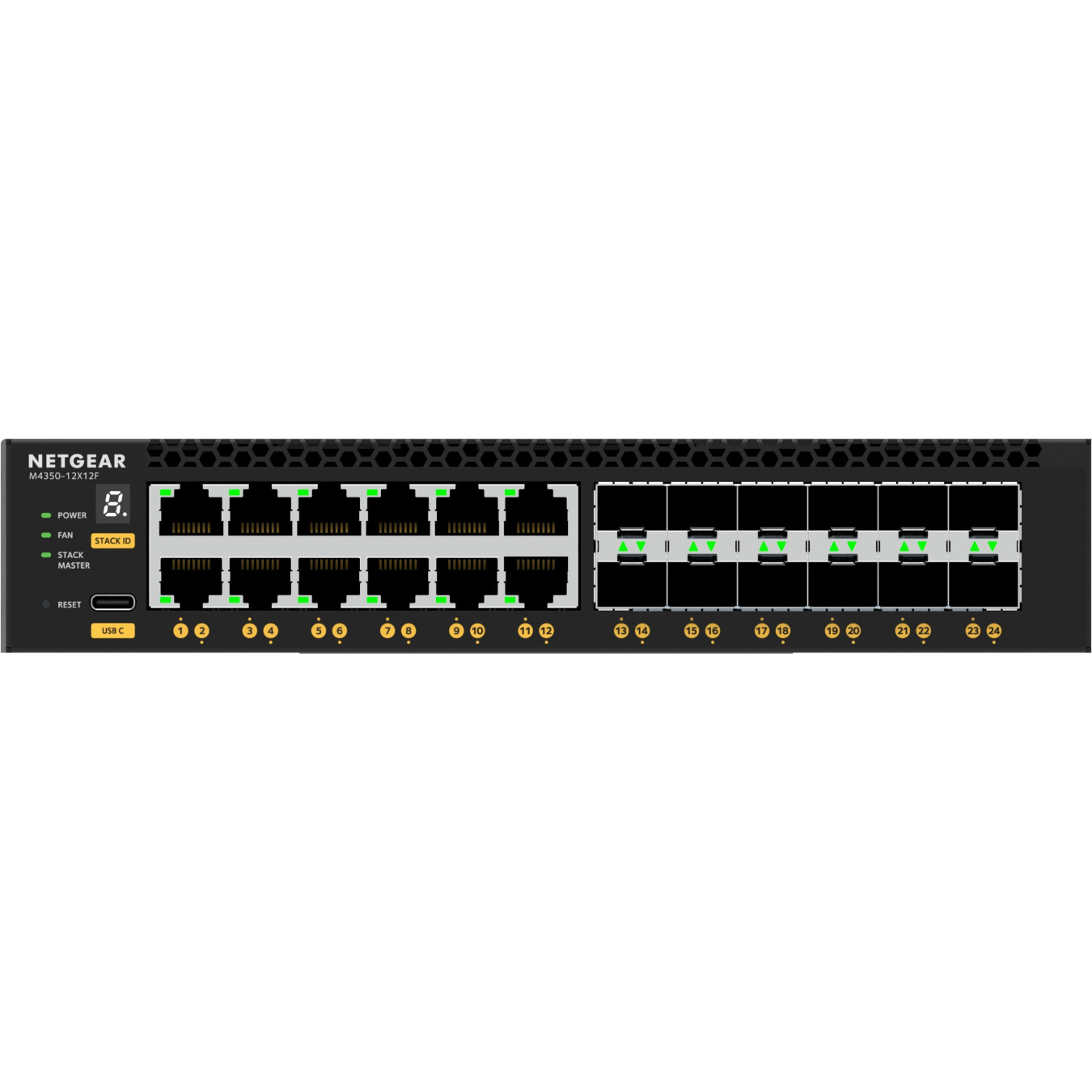

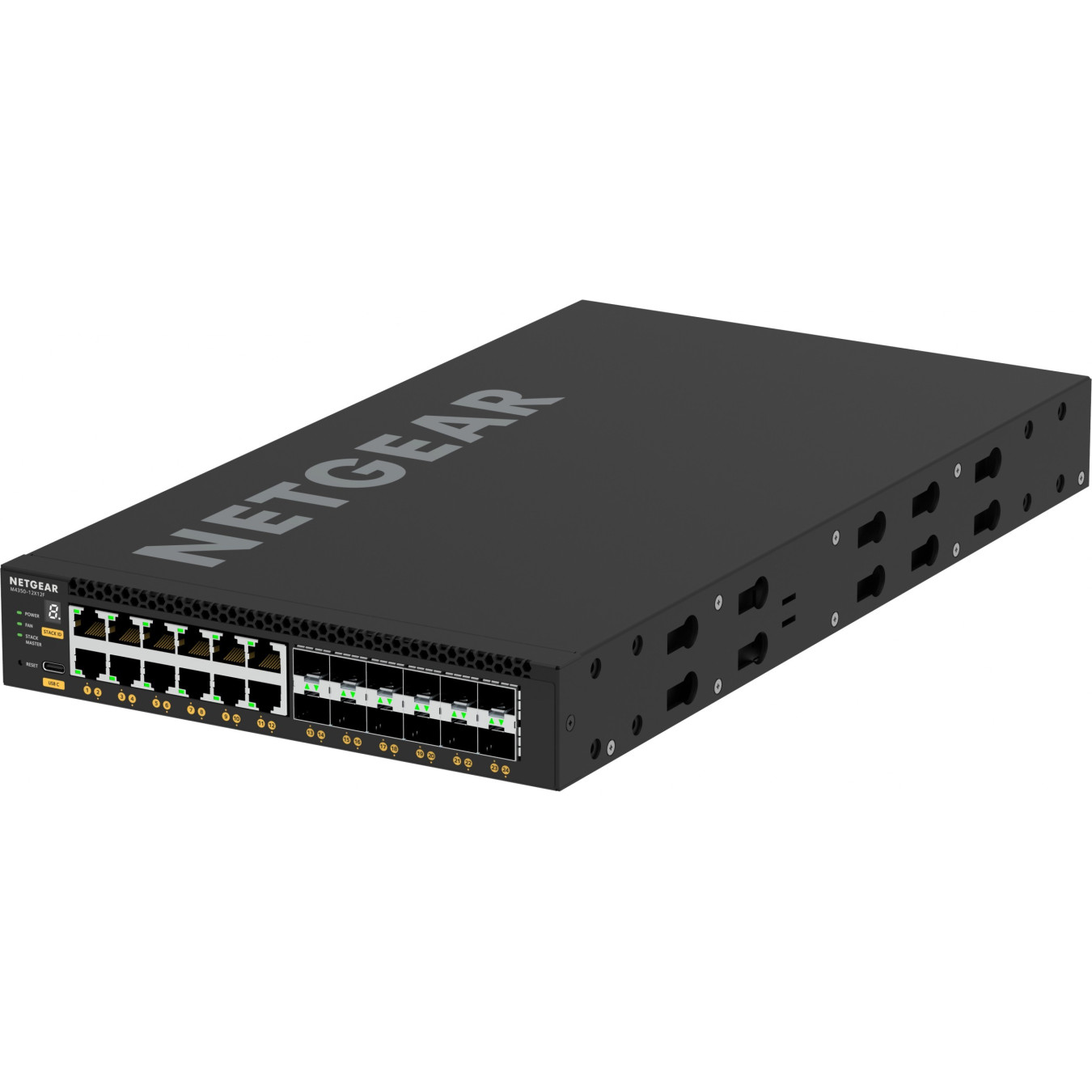

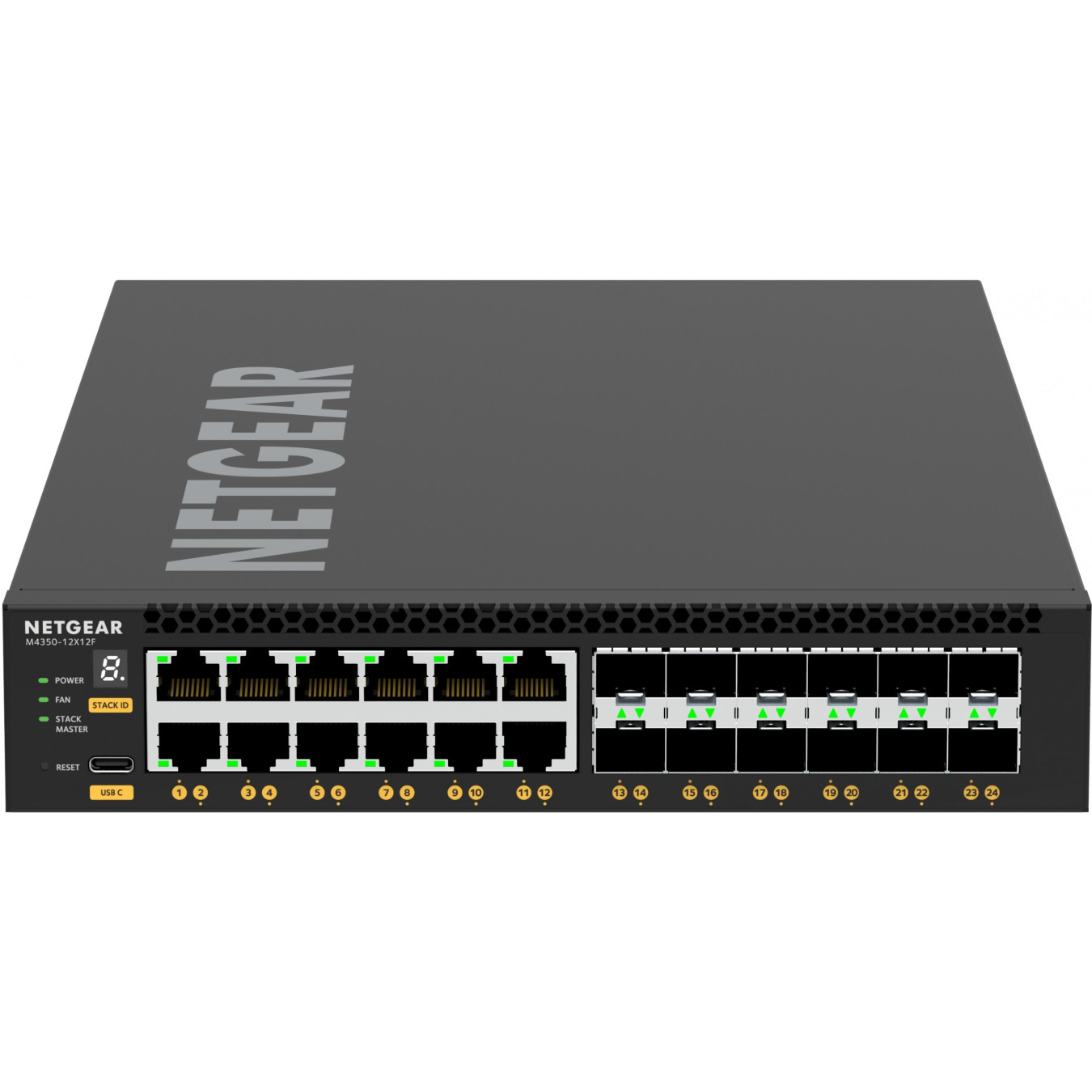

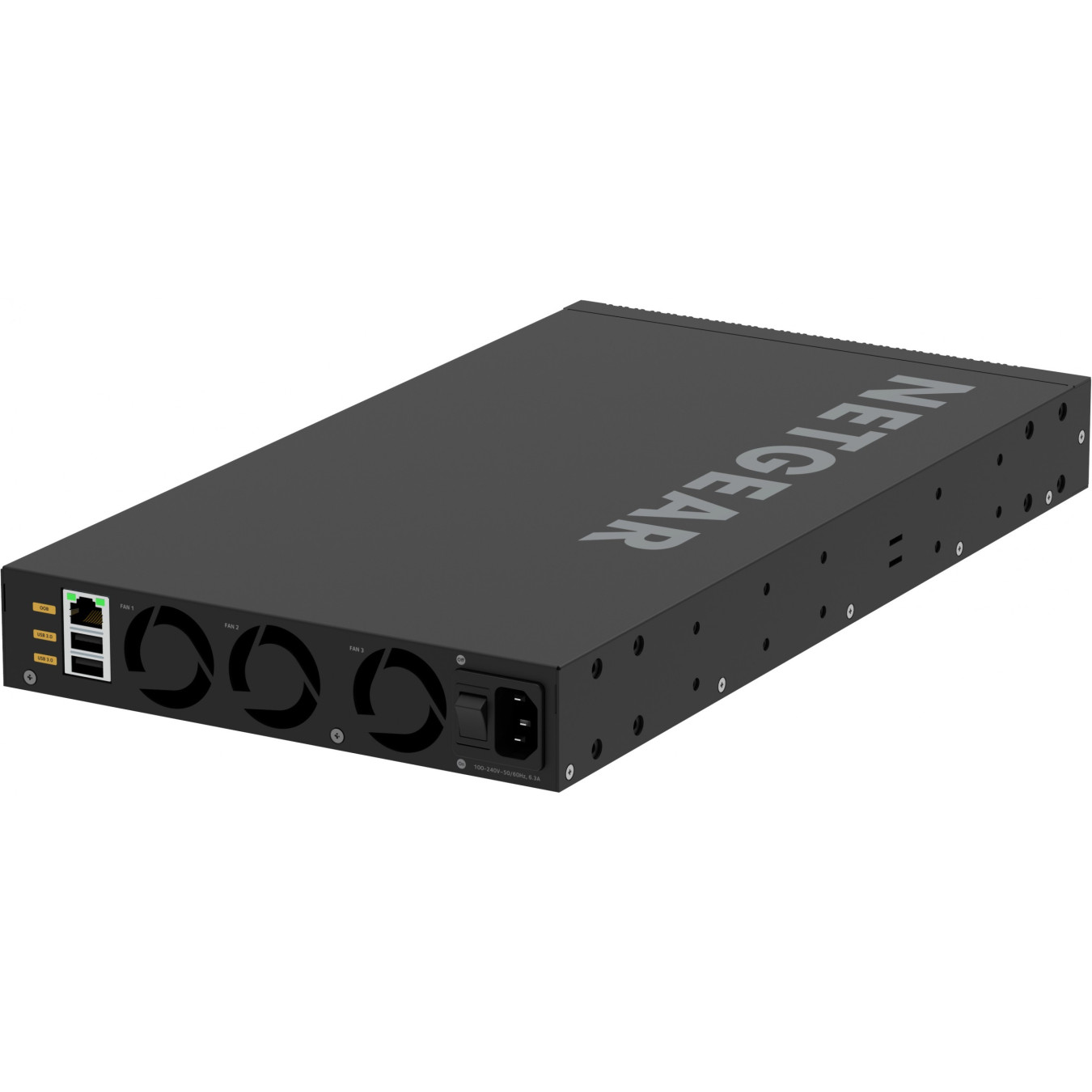

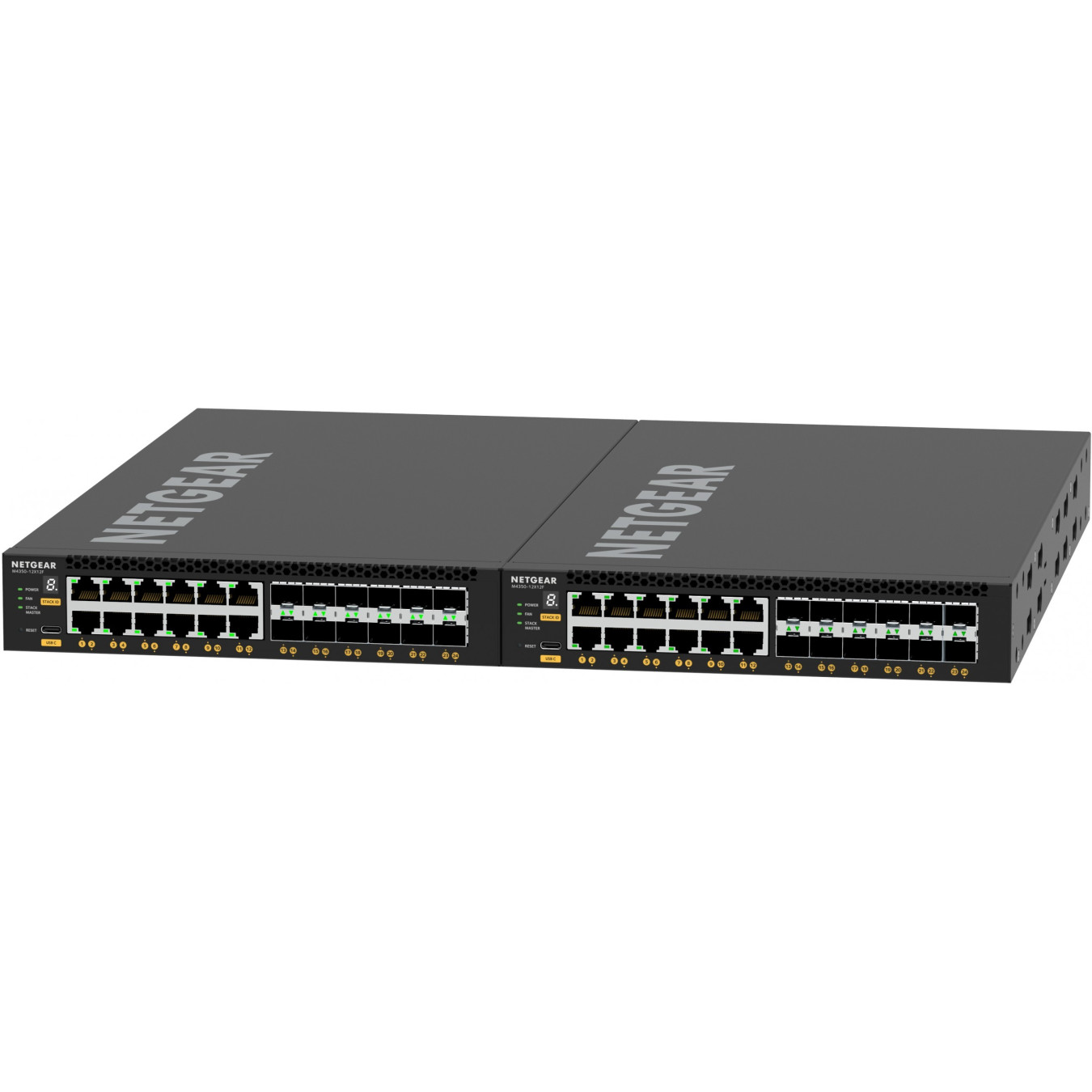

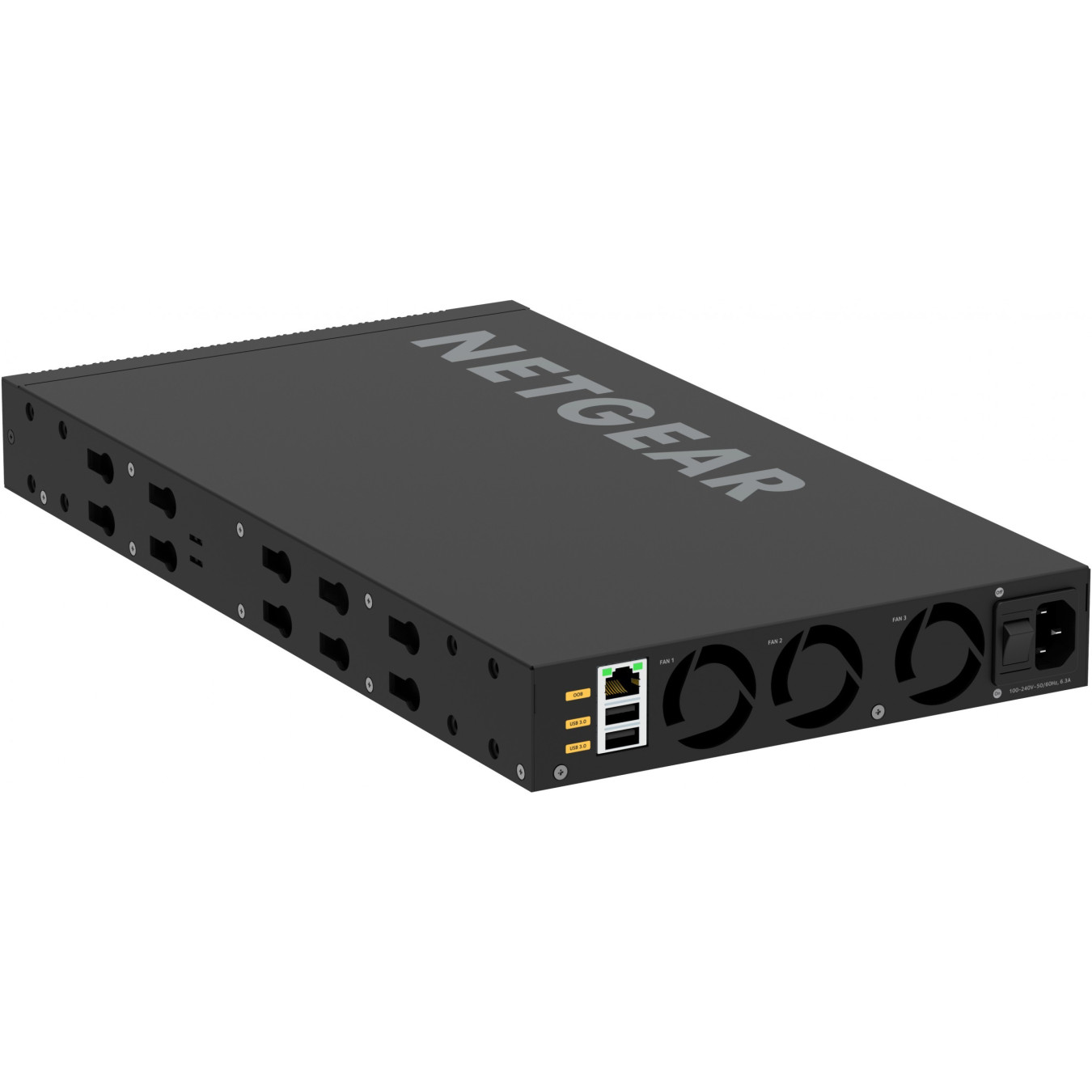

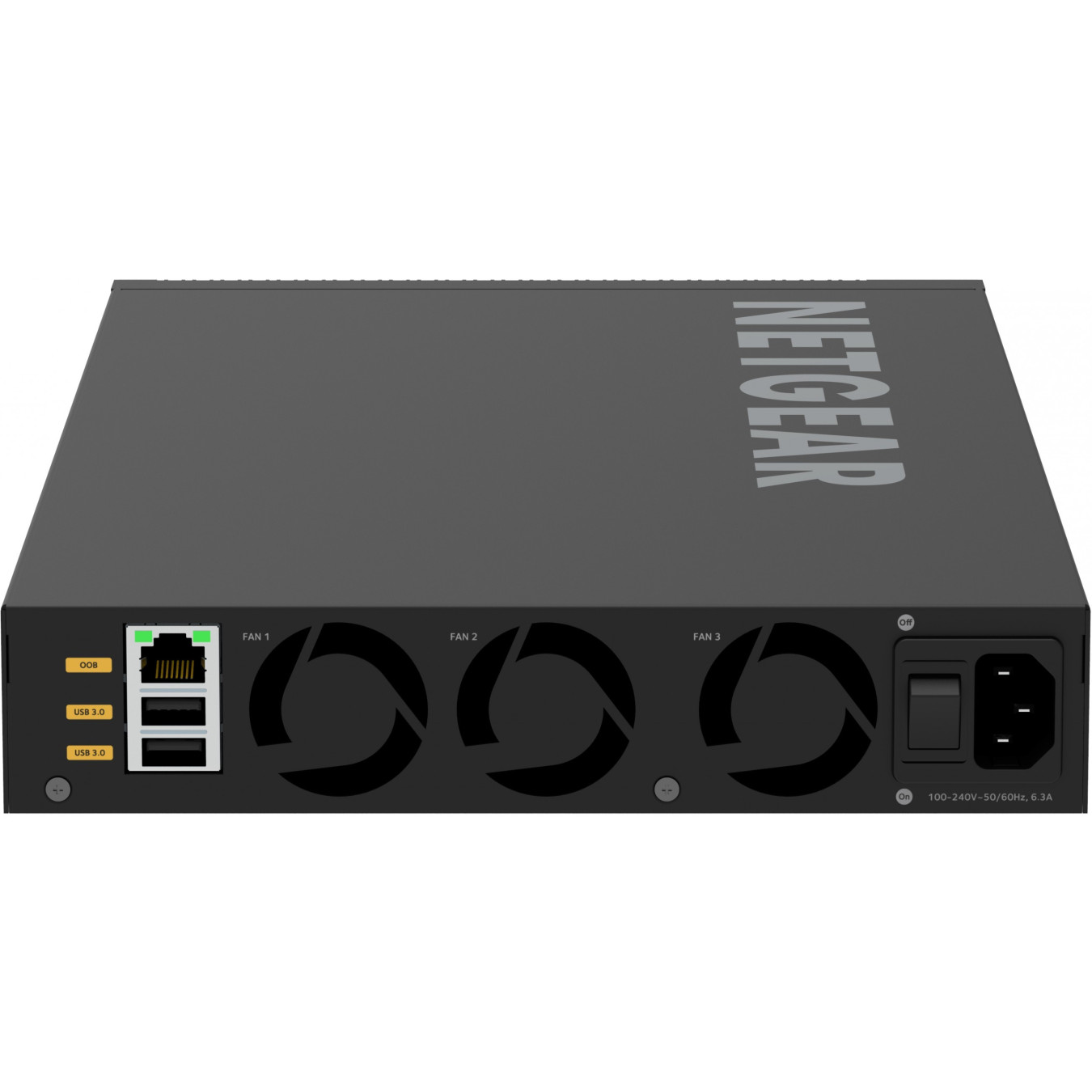

NETGEAR M4350-12X12F - 24-Port 10G (12x RJ45 + 12x SFP+) L3 Managed Switch - Black, 2GB RAM, 1.8GHz, 1U
NETGEAR M4350-12X12F L3 managed 24-port 10G switch (12x 10G RJ45 + 12x SFP+), 2GB DDR4, ARM Cortex-A57 1.8GHz, 1U rackmount, front-to-back airflow, 240W PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
NETGEAR M4350-12X12F. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries. Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qav. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power connector: AC-in jack. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 12 |
| SFP+ module slots quantity | 12 |
| Power connector | AC-in jack |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Virtual LAN features | MAC address-based VLAN. Private VLAN. Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 480 Gbit/s |
| Throughput | 357.12 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 2.14 µs |
| Latency (10 Gbps) | 2.29 µs |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 MB |
| DHCP features | DHCP Option 150. DHCP Option 66. DHCP Option 67. DHCP relay. DHCP server. DHCP snooping |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| Authentication | Guest VLAN. MAC-based authentication |
| Authentication type | RADIUS. TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ). Weighted random early detection (WRED) |
| Management protocols | SNMP V1. V2. V3 |
| Routing protocols | OSPF. OSPFv2. OSPFv3. RIP. RIP-1. RIP-2 |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Power source | AC |
| Power consumption (typical) | 95.8 W |
| Power supply | 240 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Width | 220 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 4.3 kg |
| Cables included | AC. USB Type-C |
| Included power plug types | EU. UK. NA |
| Compliance certificates | BSMI. CCC. CE. Federal Communications Commission (FCC). Low Voltage Directive (LVD) |
