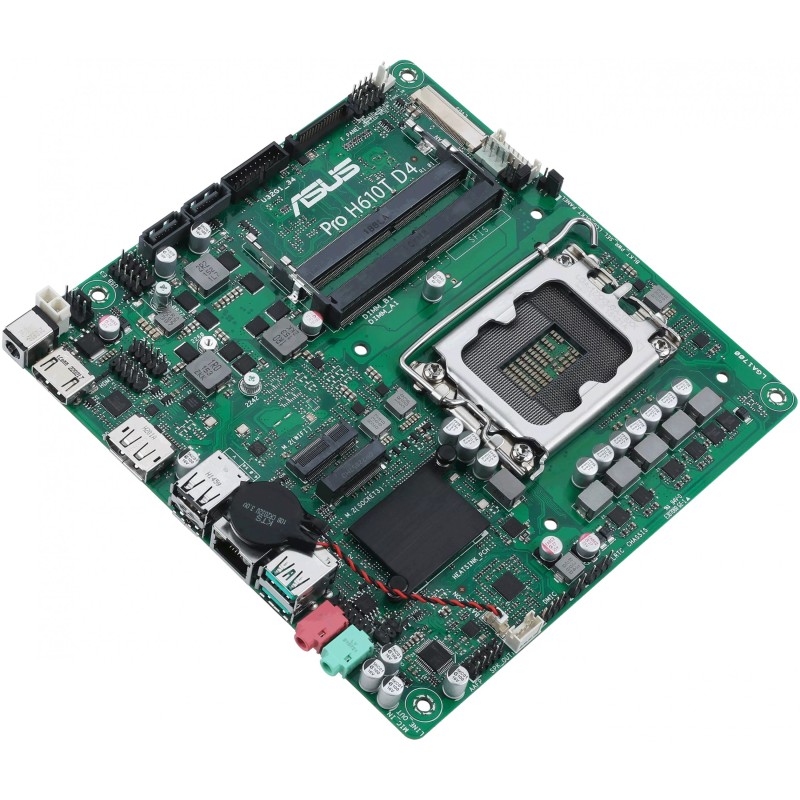

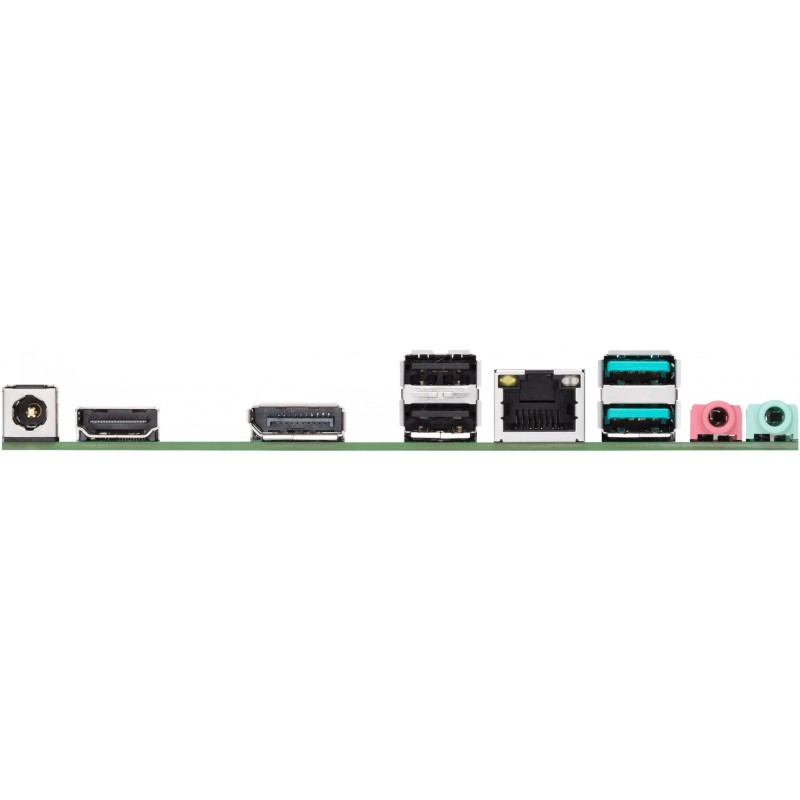

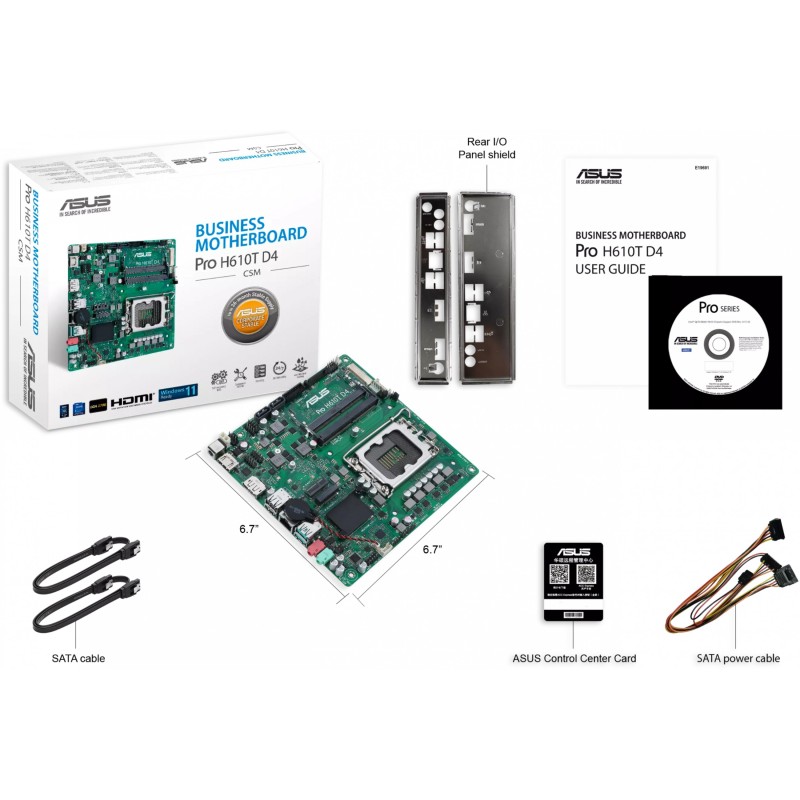

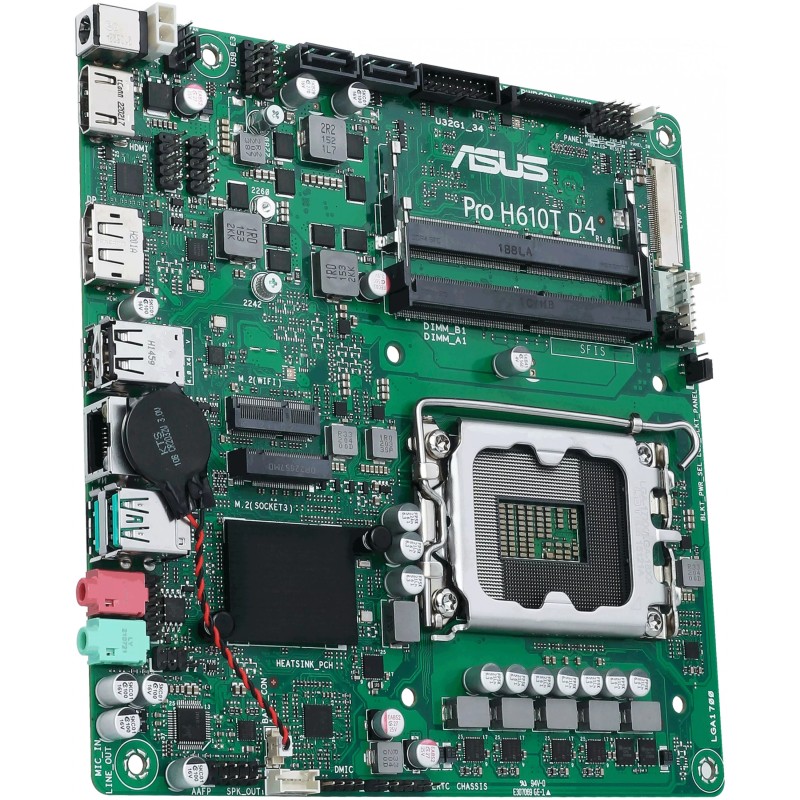

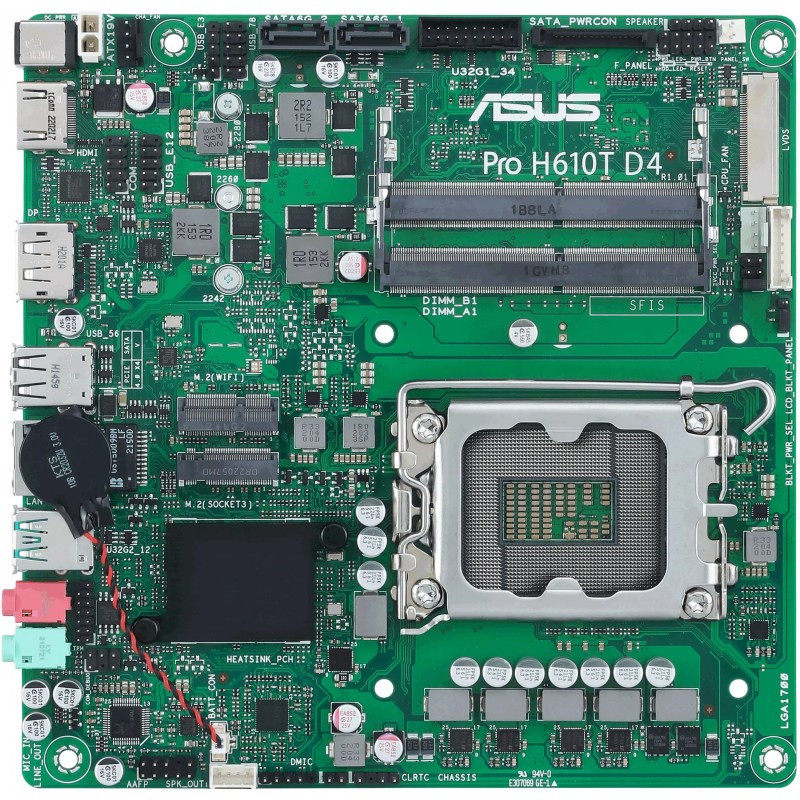

ASUS Pro H610T D4-CSM Mini-ITX Motherboard - LGA1700 H610, DDR4 SO-DIMM up to 64GB, HDMI 2.1, DP1.4
Mini-ITX LGA1700 motherboard (ASUS Pro H610T D4-CSM) with Intel H610 chipset, DDR4 SO-DIMM up to 64GB, 1x M.2, 2x SATA III, HDMI 2.1, DisplayPort 1.4, Gigabit LAN
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel H610 |
| Motherboards - Form Factor | Mini-ITX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 2 |
ASUS Pro H610T D4-CSM. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium®. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: SO-DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC. Motherboard form factor: mini ITX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3200 MHz |
| Maximum internal memory | 64 GB |
| Feature | Drivers included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 221 mm |
| Cables included | SATA |
| Weight | 382 g |
