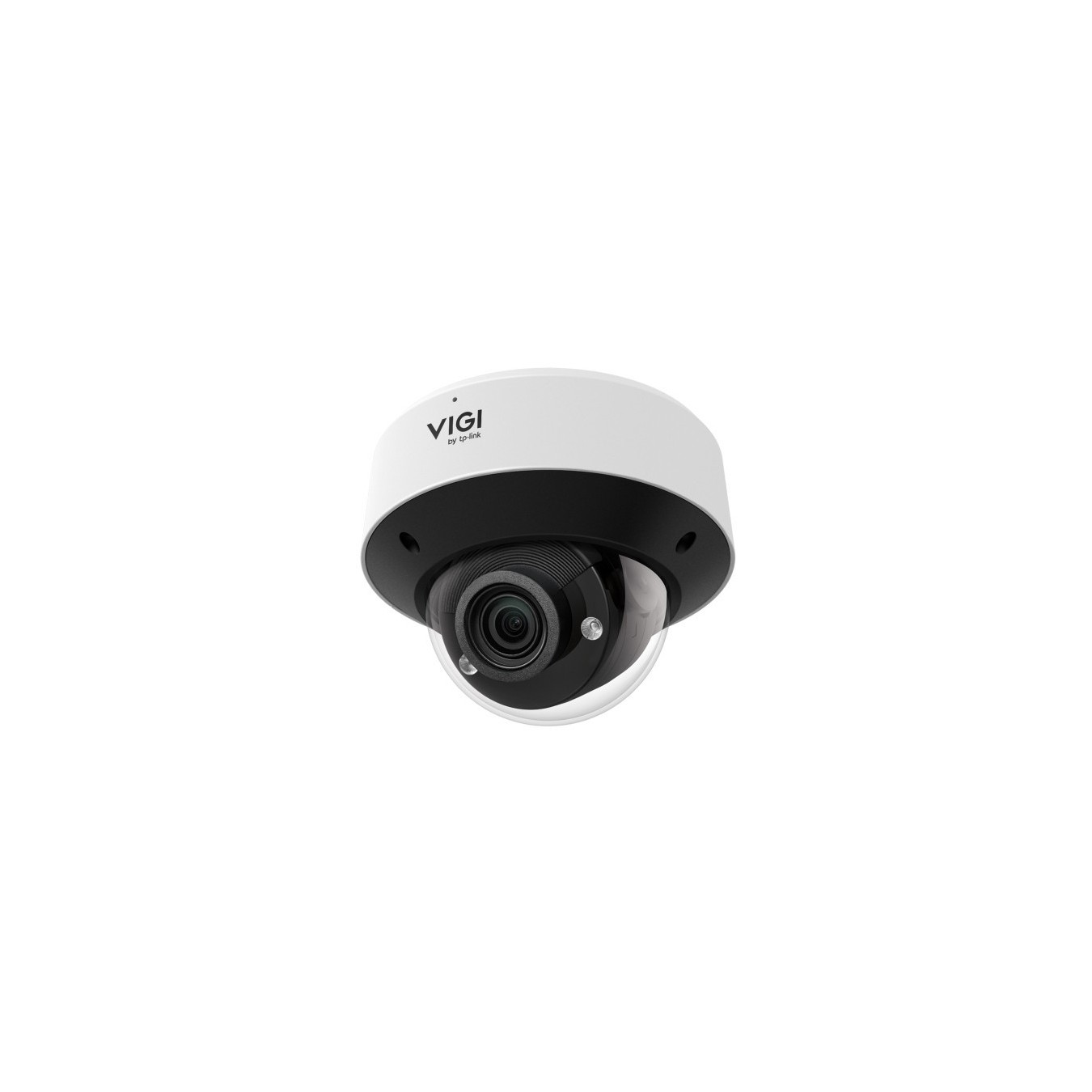

TP-Link Omada VIGI InSight S245ZI(UN) - 4MP IR Motorized Varifocal Dome Camera - White, PoE, IP67
4MP outdoor PoE/DC dome camera (S245ZI) with 5x motorized varifocal lens, IR/white LEDs, 2688x1520 resolution, two-way audio, IP67/IK10, up to 200 m detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
| IP Cameras - Weather Rating | IP67 |
TP-Link VIGI InSight S245ZI. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling. Product colour: White. Form factor: Dome. Lens viewing angle. horizontal: 29.6 - 102°. Lens viewing angle. vertical: 16.8 - 53.8°. Lens viewing angle. diagonal: 34.1 - 122.8°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 5x. Detect distance: 200 m. Observe distance: 84 m
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 200 m |
| Feature | Manual |
| Dynamic range | 120 dB |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Minimum illumination | 0 lx |
| Lens viewing angle. horizontal | 29.6 - 102° |
| Lens viewing angle. vertical | 16.8 - 53.8° |
| Lens viewing angle. diagonal | 34.1 - 122.8° |
| Tilt angle range | 0 - 75° |
| Camera shutter speed | 1/3 to 1/10000 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Optical zoom | 5x |
| Detect distance | 200 m |
| Observe distance | 84 m |
| Recognize distance | 40 m |
| Focus | Motorized |
| Maximum aperture number | 1.6 |
| Identify distance | 21 m |
| LED type | IR/White |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520 |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: H.265+/H.265/H.264+/H.264. Sub-Stream: H.265/H.264 |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Detection distance | 200 m |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 129.9 mm |
| Depth | 129.9 mm |
| Height | 102.5 mm |
| Weight | 775 g |
| Package type | Box |
| Number of cameras | 1 |
