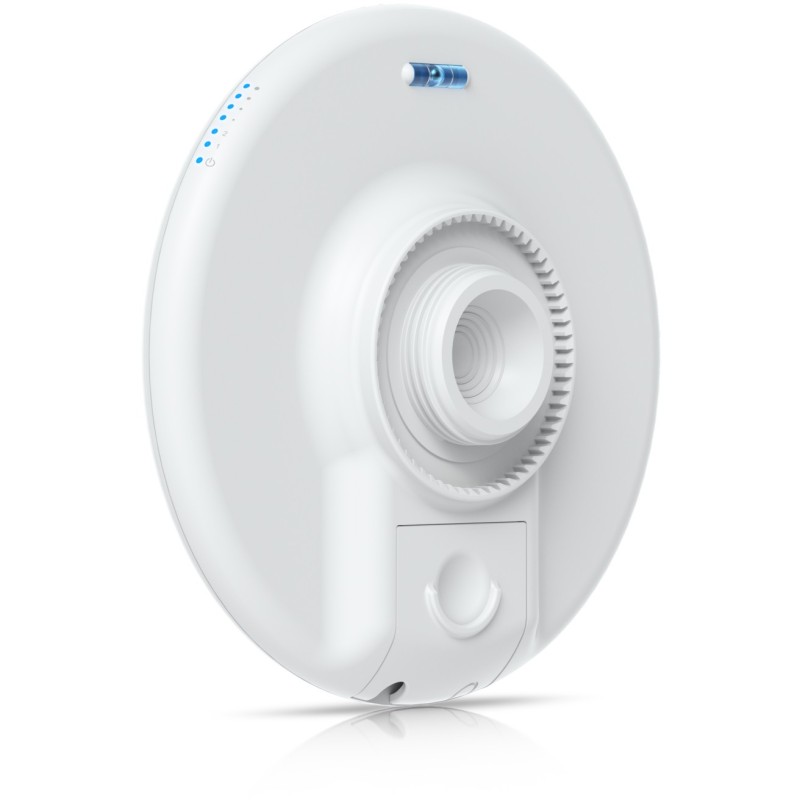

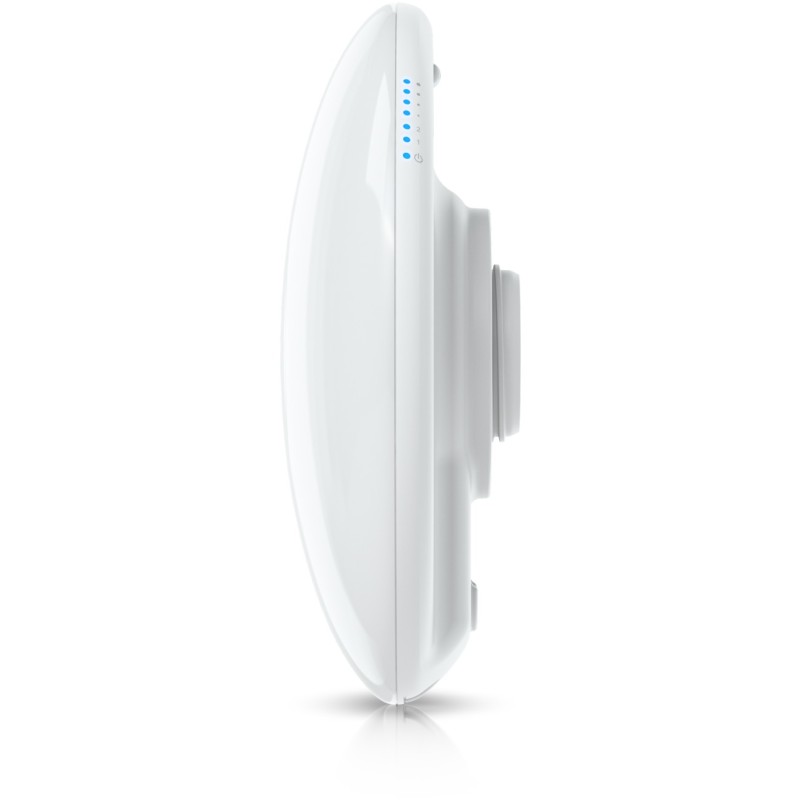

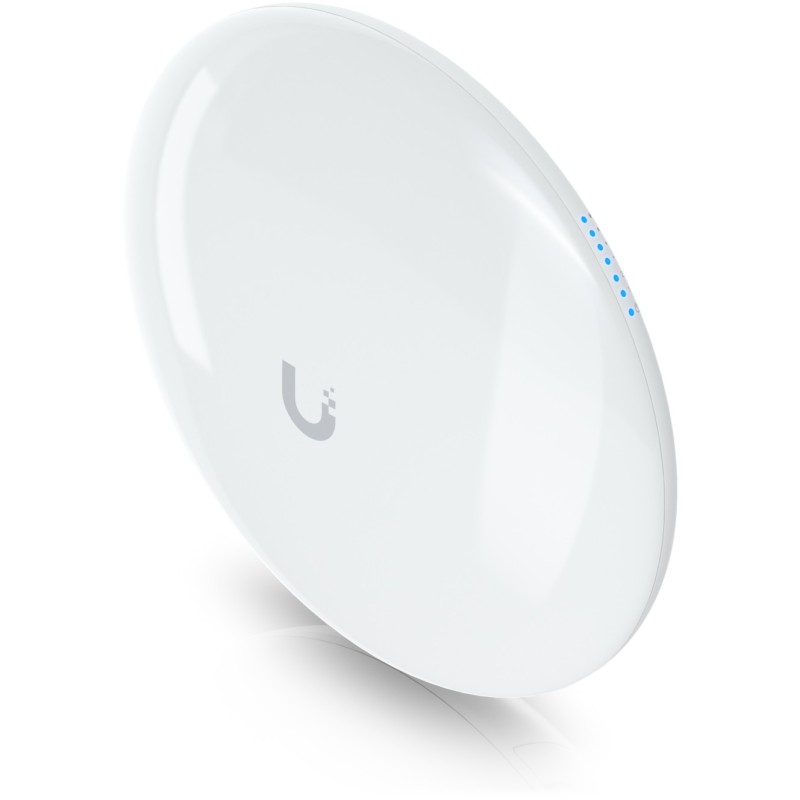

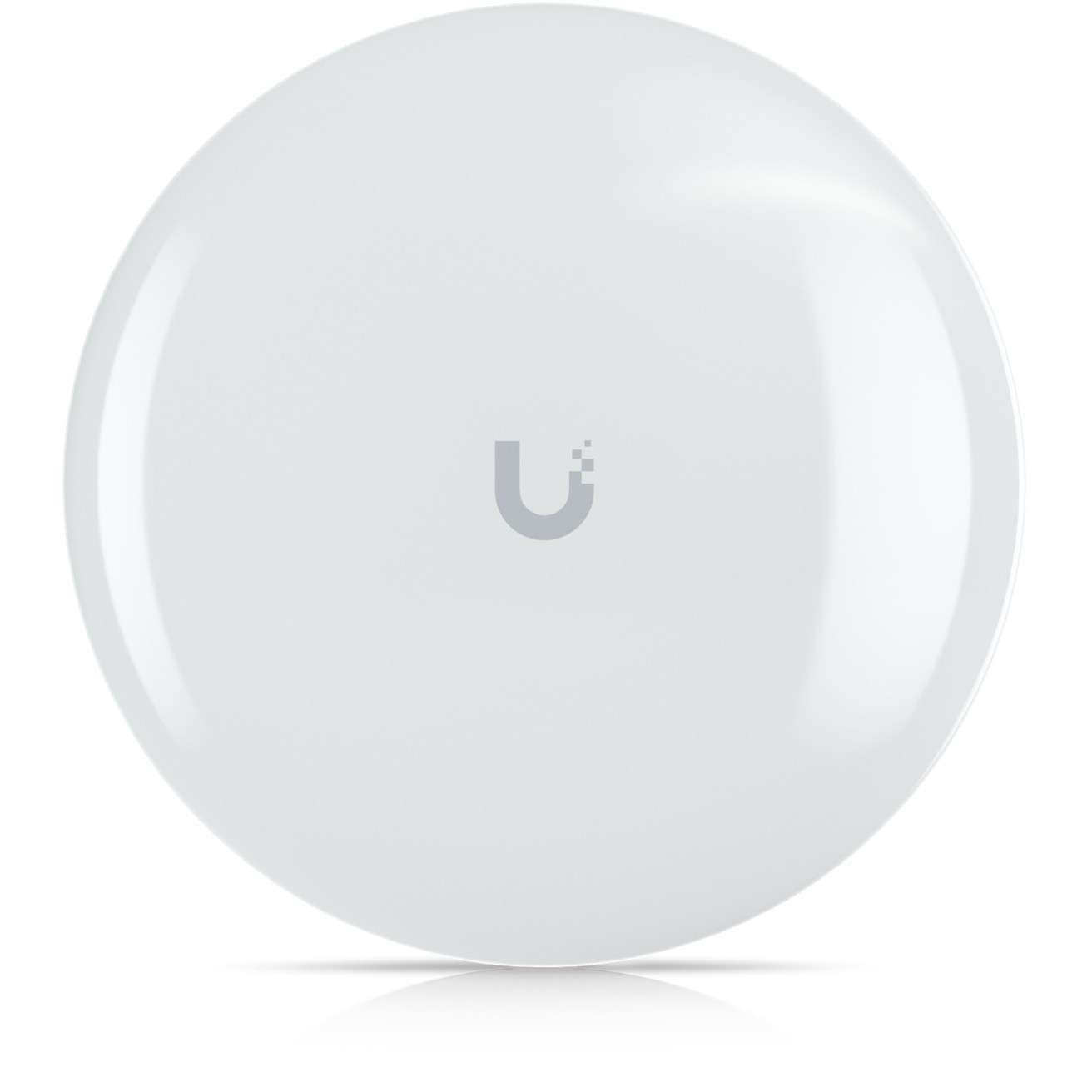

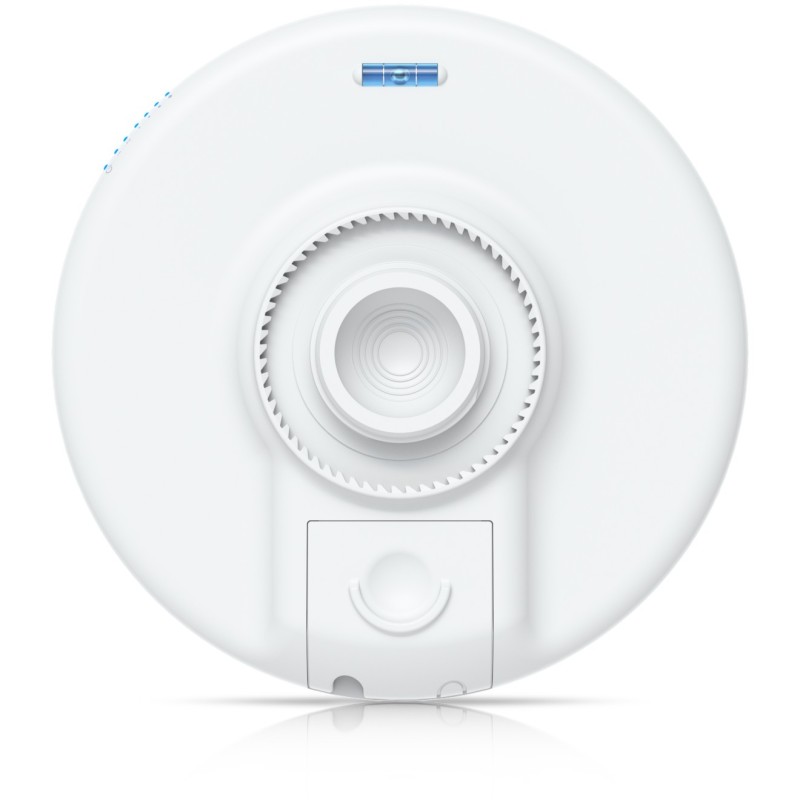

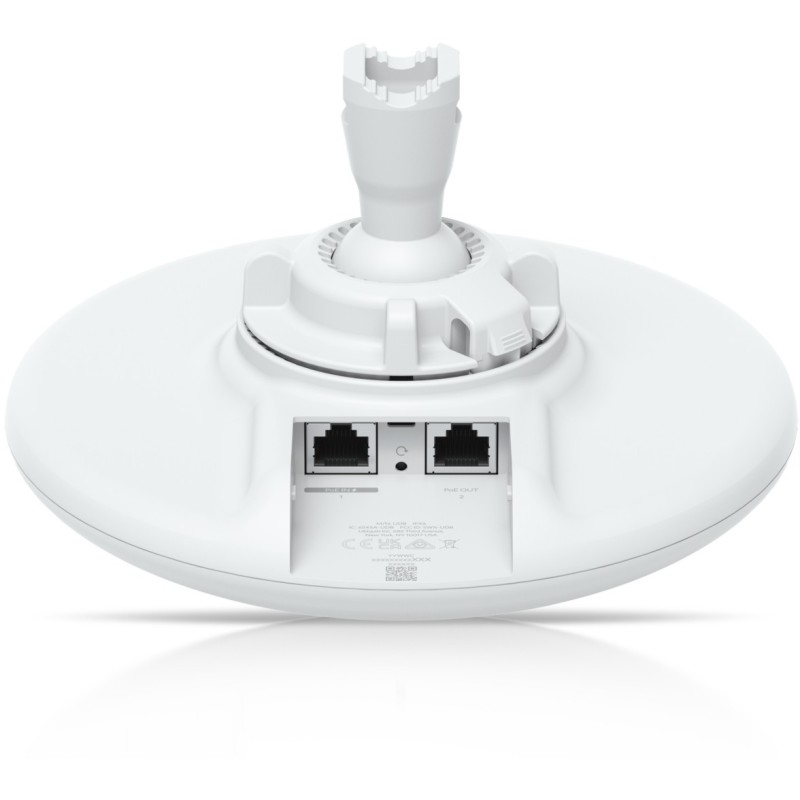

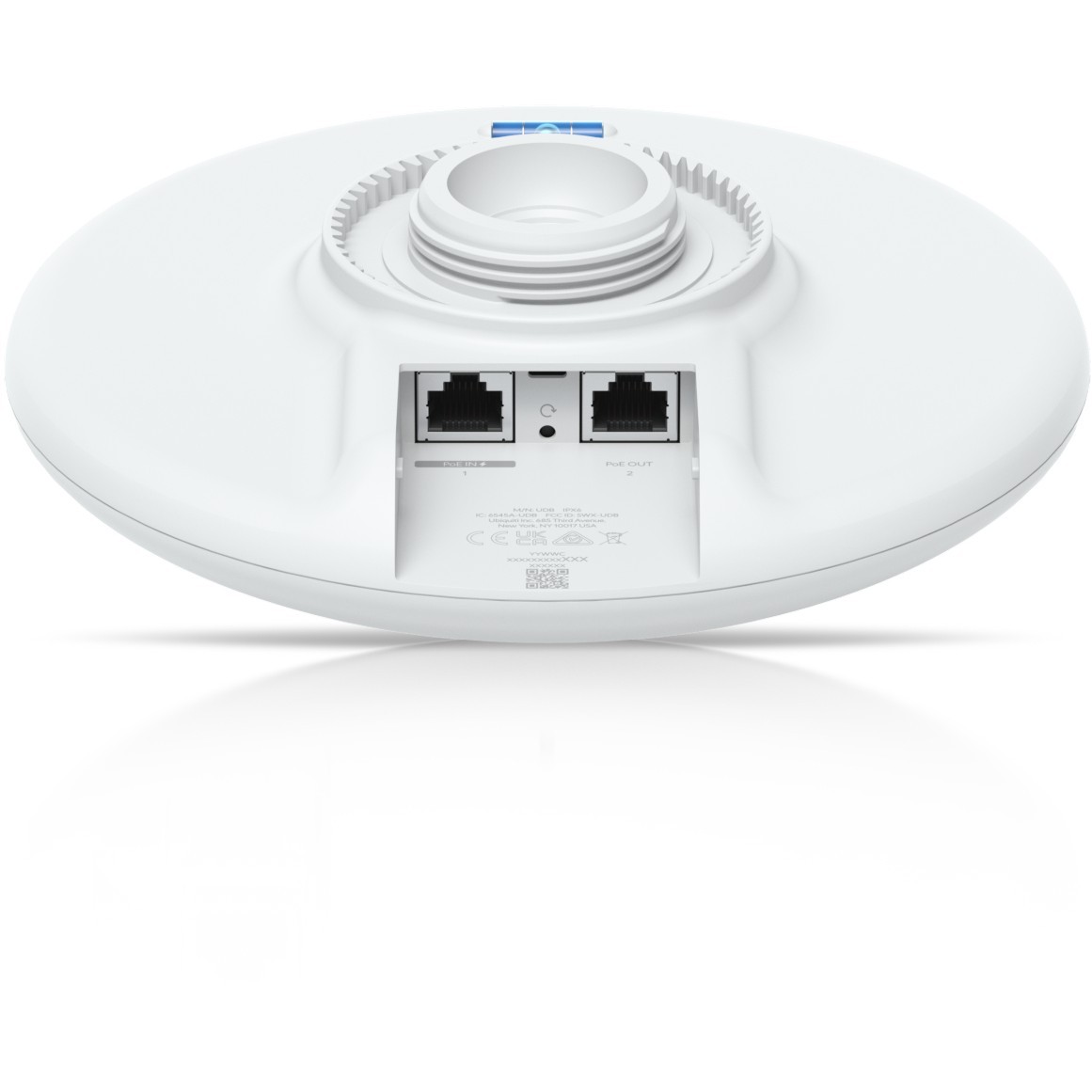

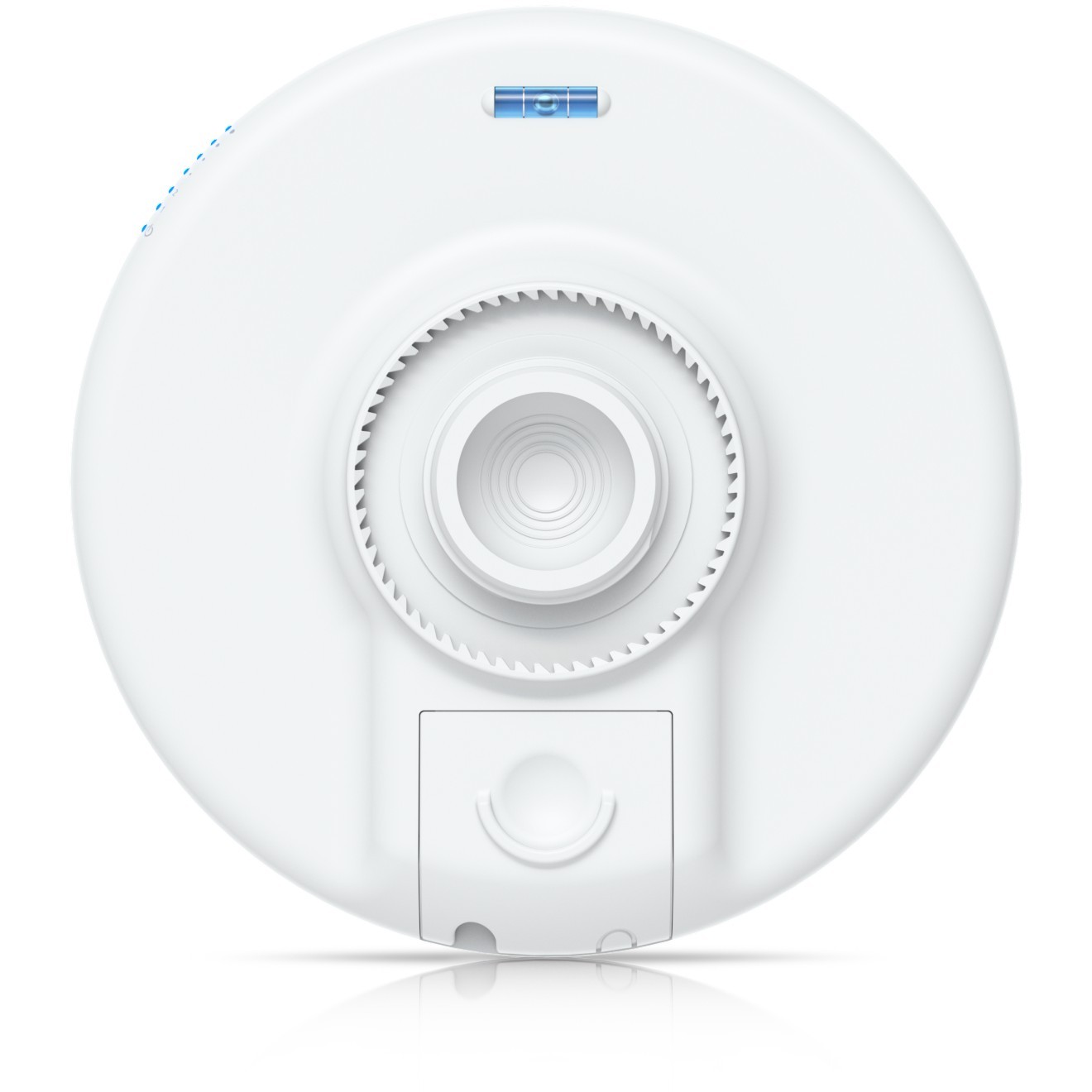

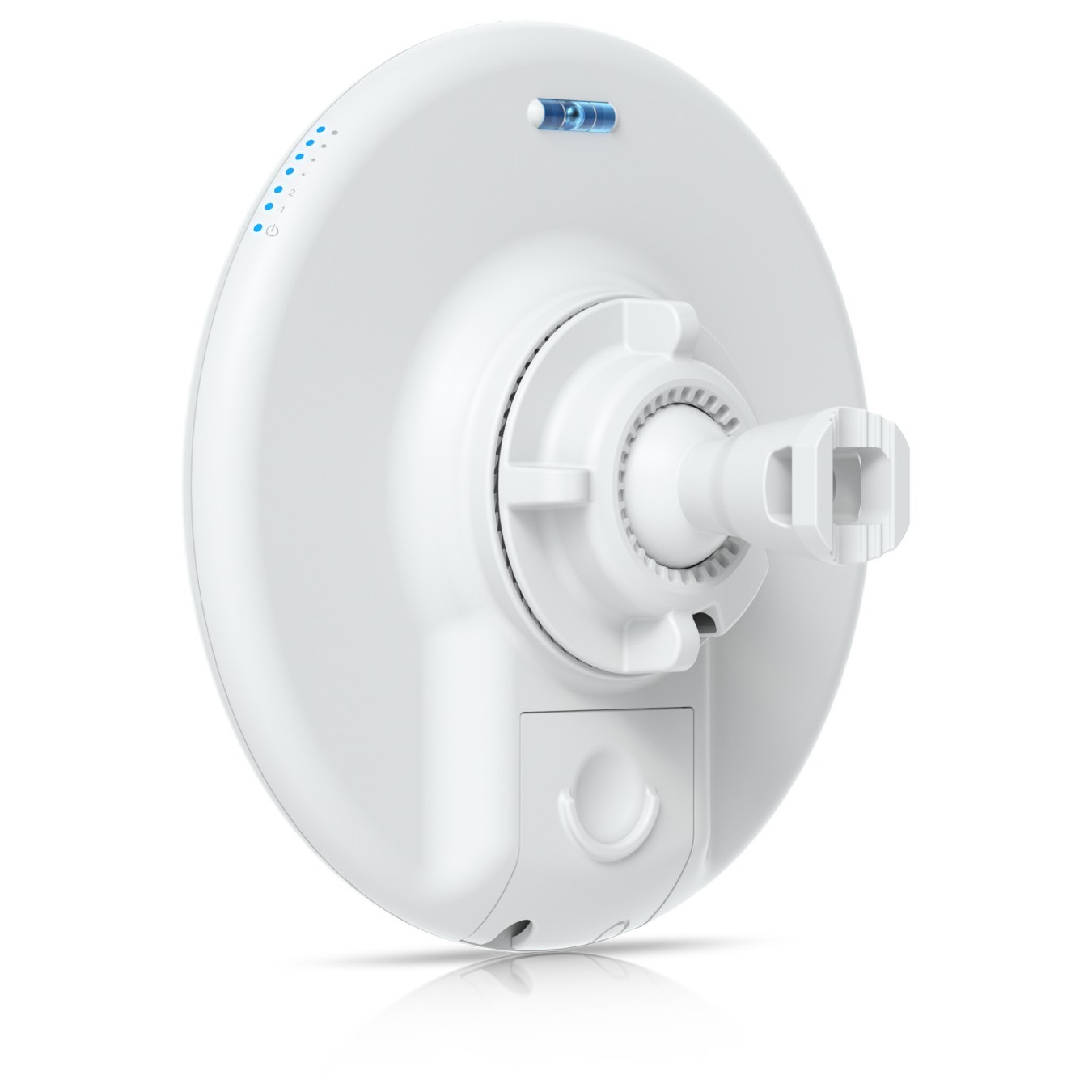

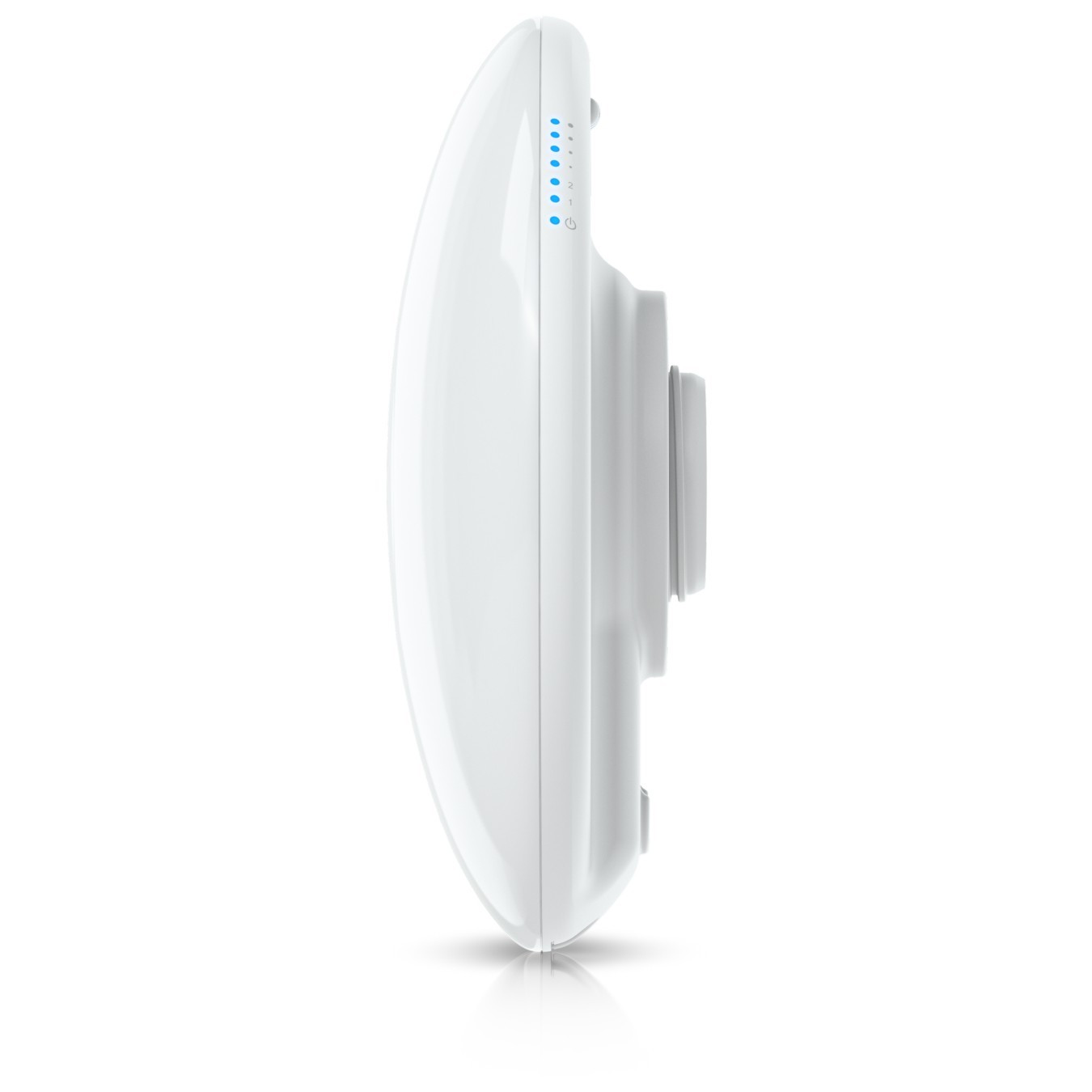

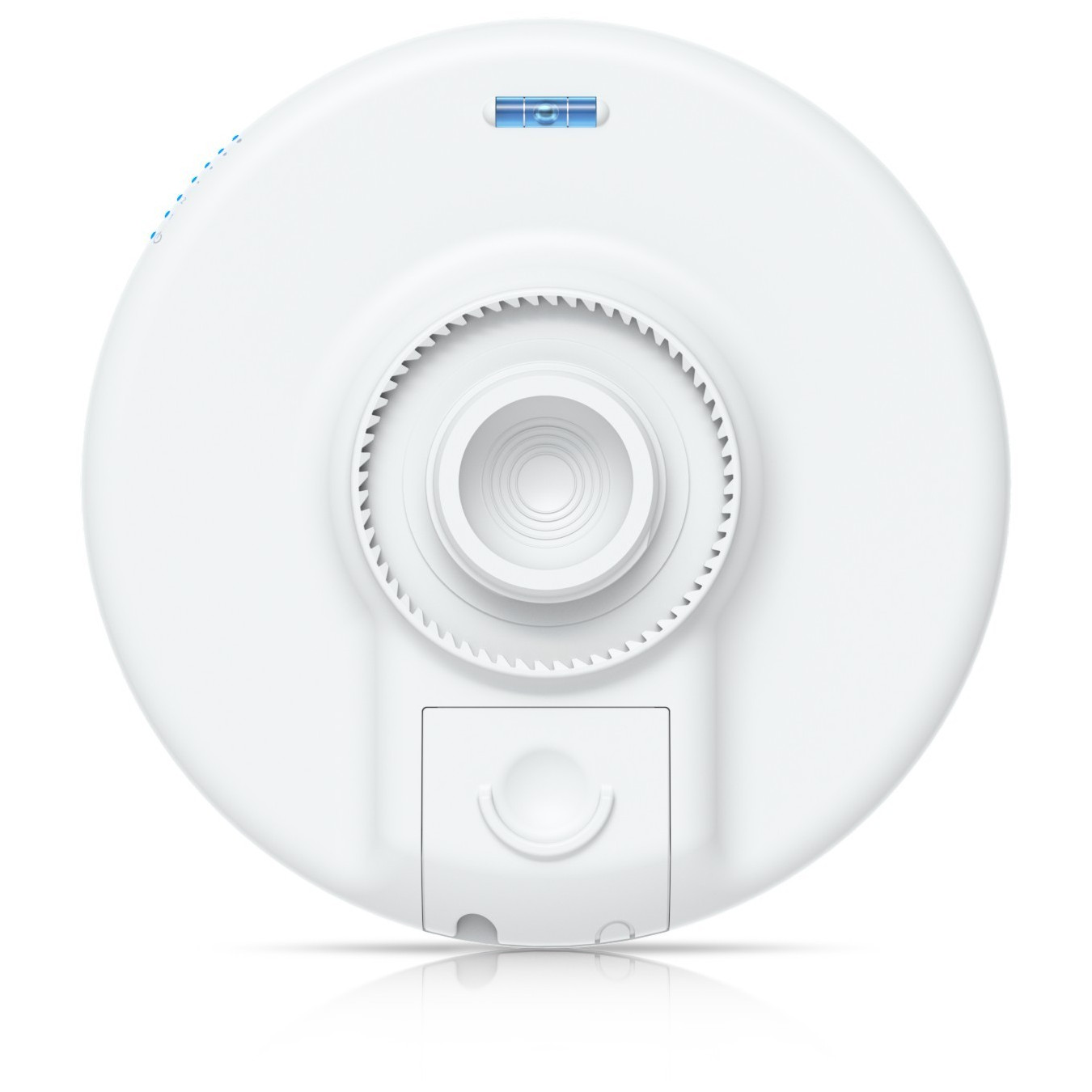

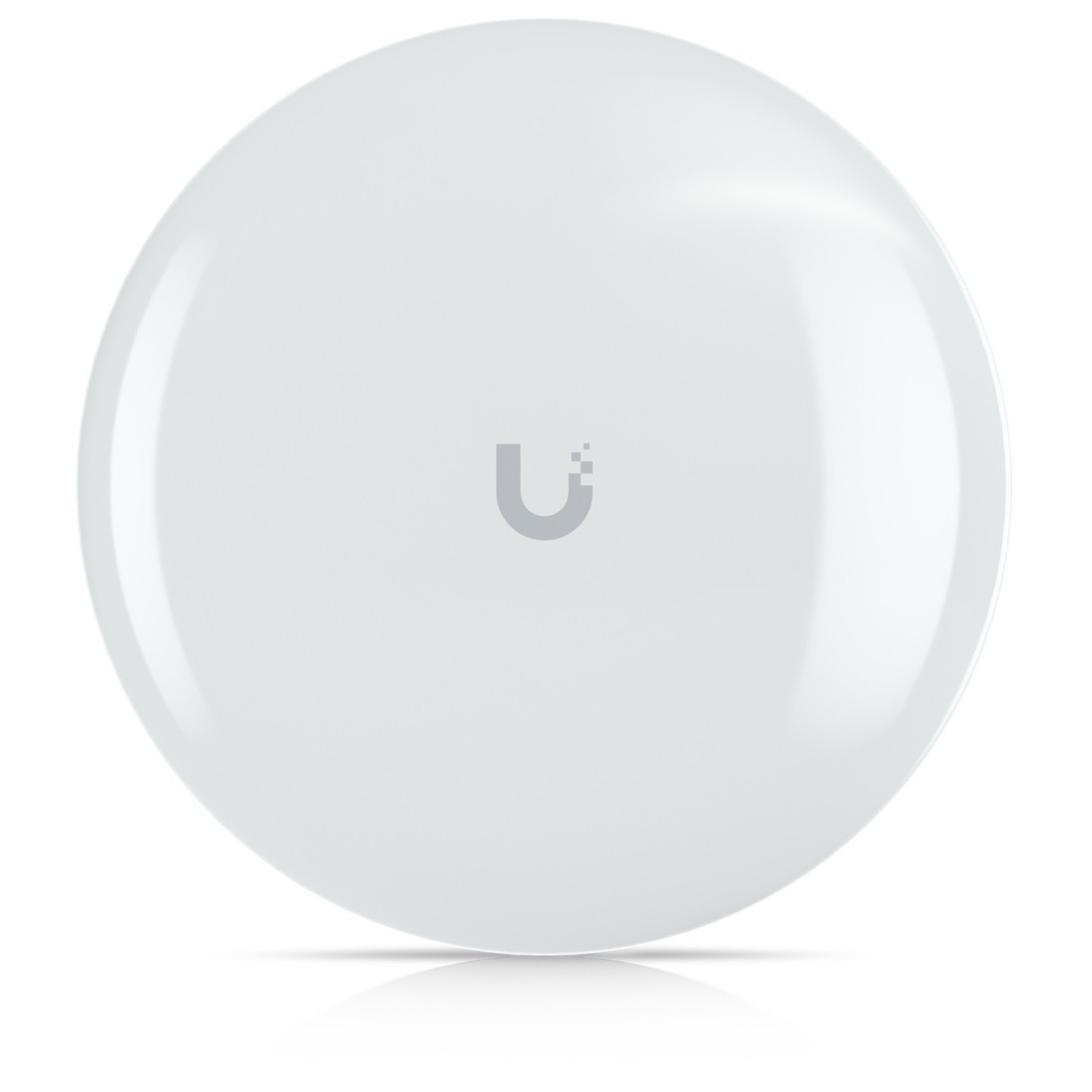

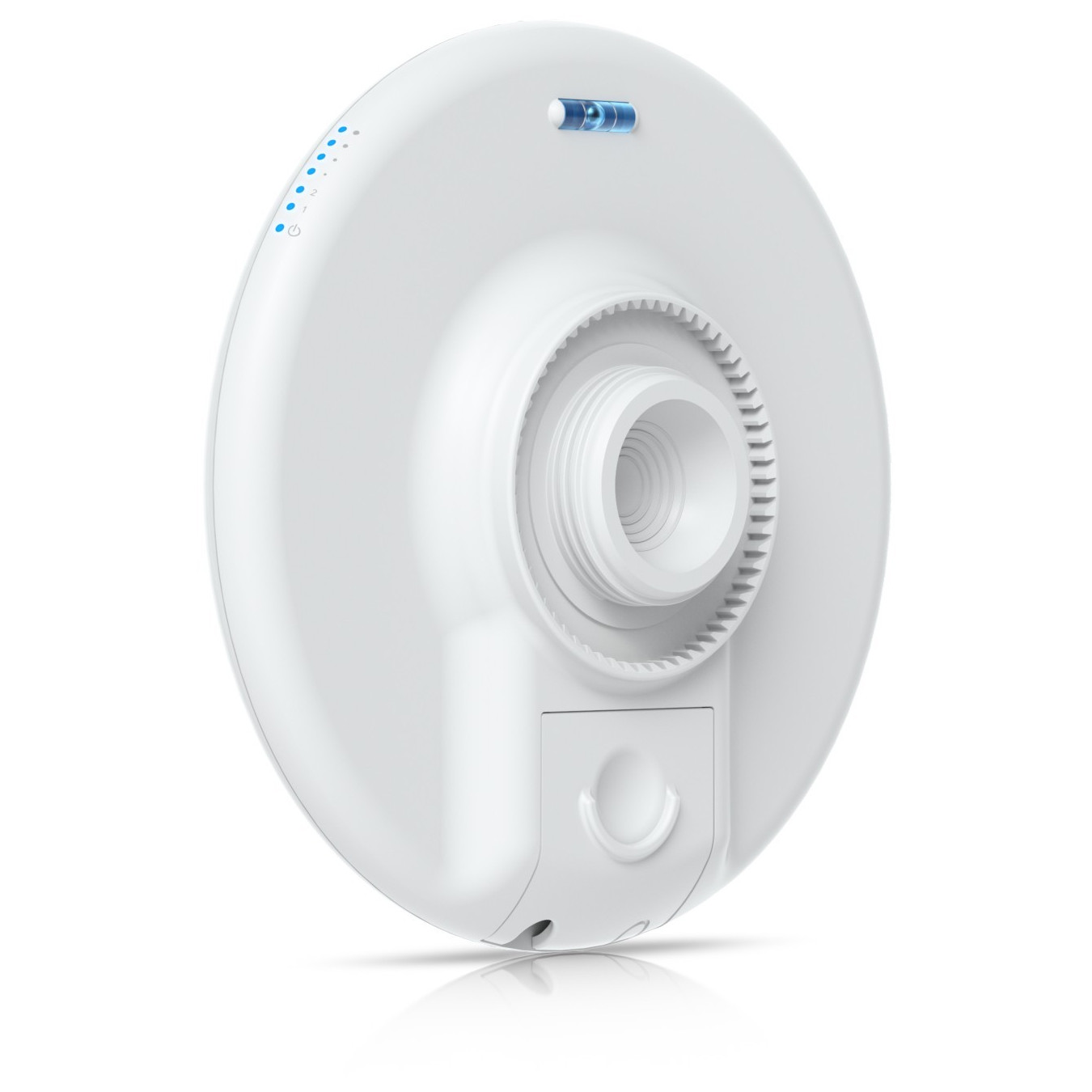

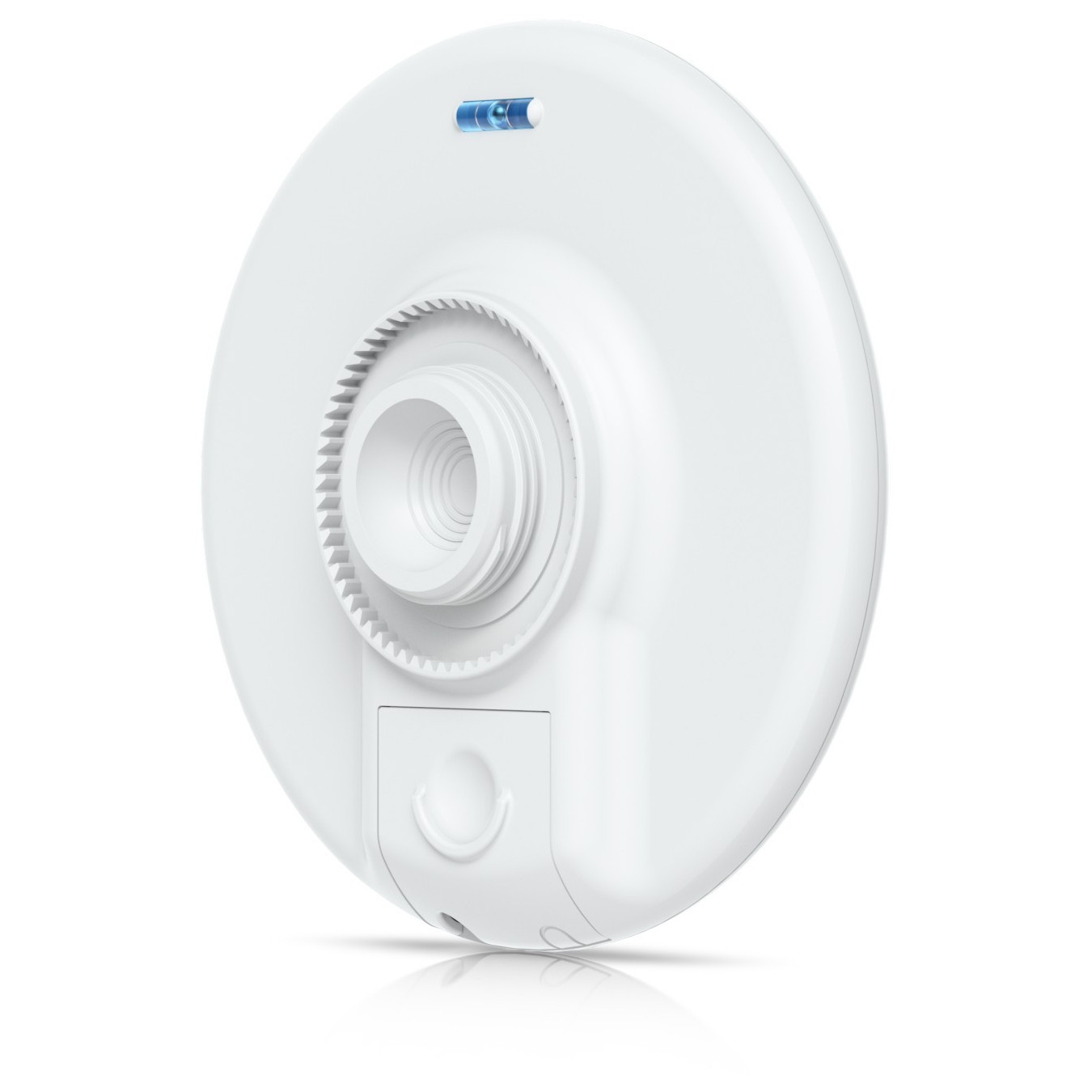

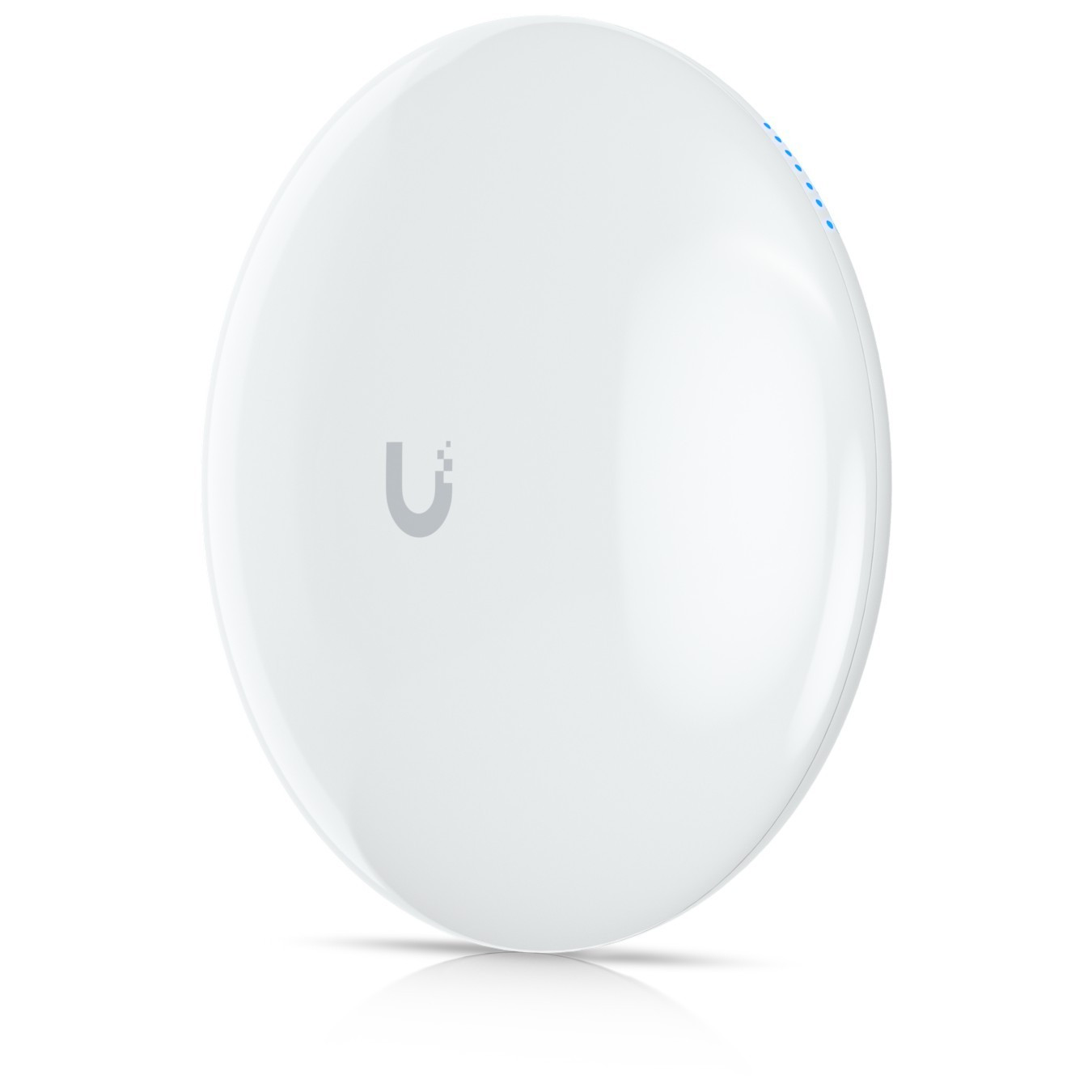

Ubiquiti UDB-Pro - Wireless Bridge 5 GHz (Wi-Fi 5, 866.7 Mbps, 2x2, 19 dBi) - White
Outdoor 5 GHz wireless bridge (Wi‑Fi 5/802.11ac) delivering up to 866.7 Mbps, internal 2x2 19 dBi antennas, Gigabit Ethernet, PoE+ (48V), IPX6, white.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Wireless Bridges - Frequency | 5 GHz |
|---|---|
| Wireless Bridges - Mounting | Pole |
| Wireless Bridges - PoE | 802.3at |
Ubiquiti UDB-Pro. Maximum data transfer rate: 866.7 Mbit/s. Antenna design: Internal. Antenna type: 2x2. Antenna gain level (max): 19 dBi. Wi-Fi band: Single-band (5 GHz). Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000 Mbit/s. Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11n. Connectivity technology: Wired & Wireless
| Maximum data transfer rate | 866.7 Mbit/s |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Antenna gain level (max) | 19 dBi |
| Feature | Power supply included |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 5 GHz |
| Signal strength | 25 dBm |
| Modulation | 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK |
| Outdoor range | 5+ km |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11n |
| Connectivity technology | Wired & Wireless |

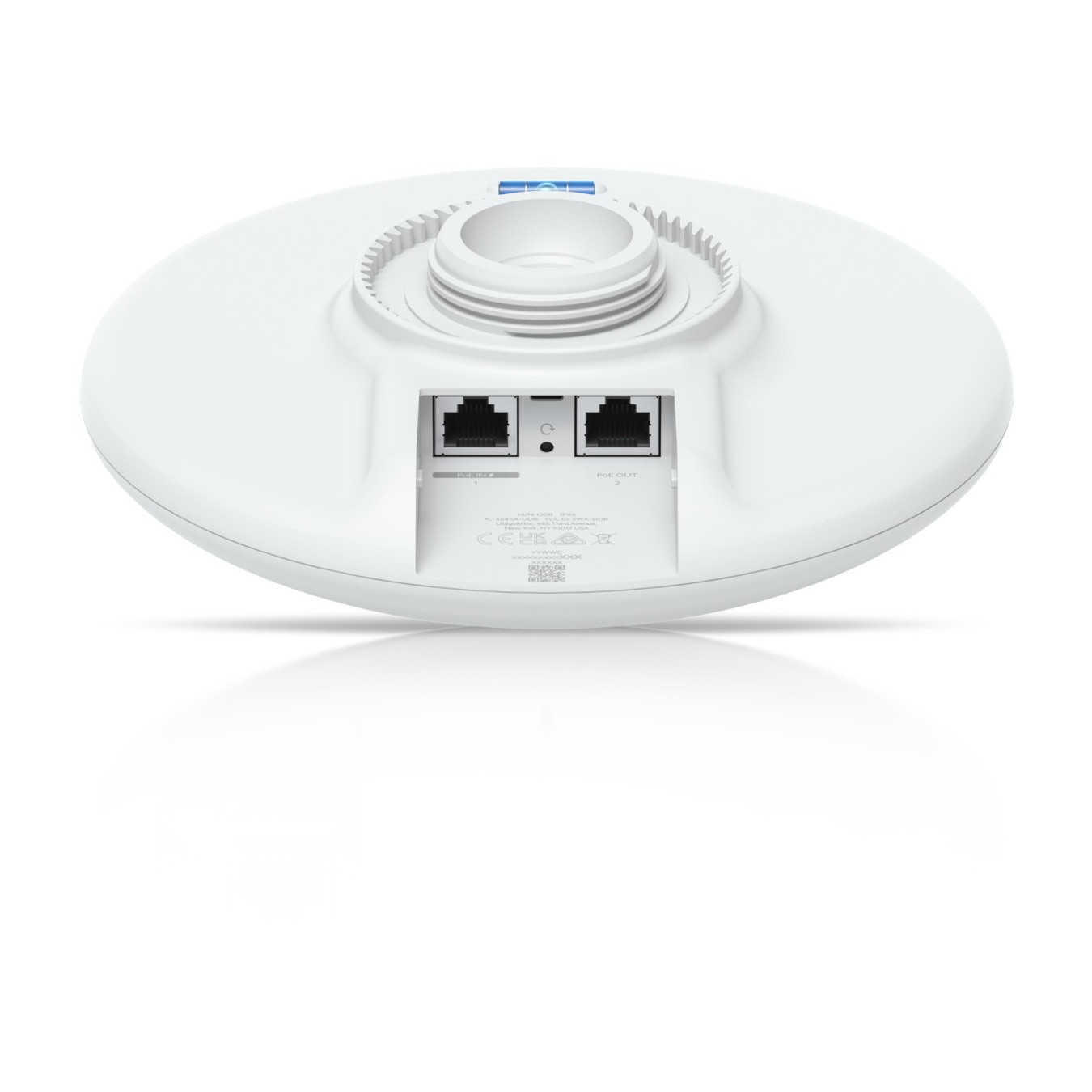

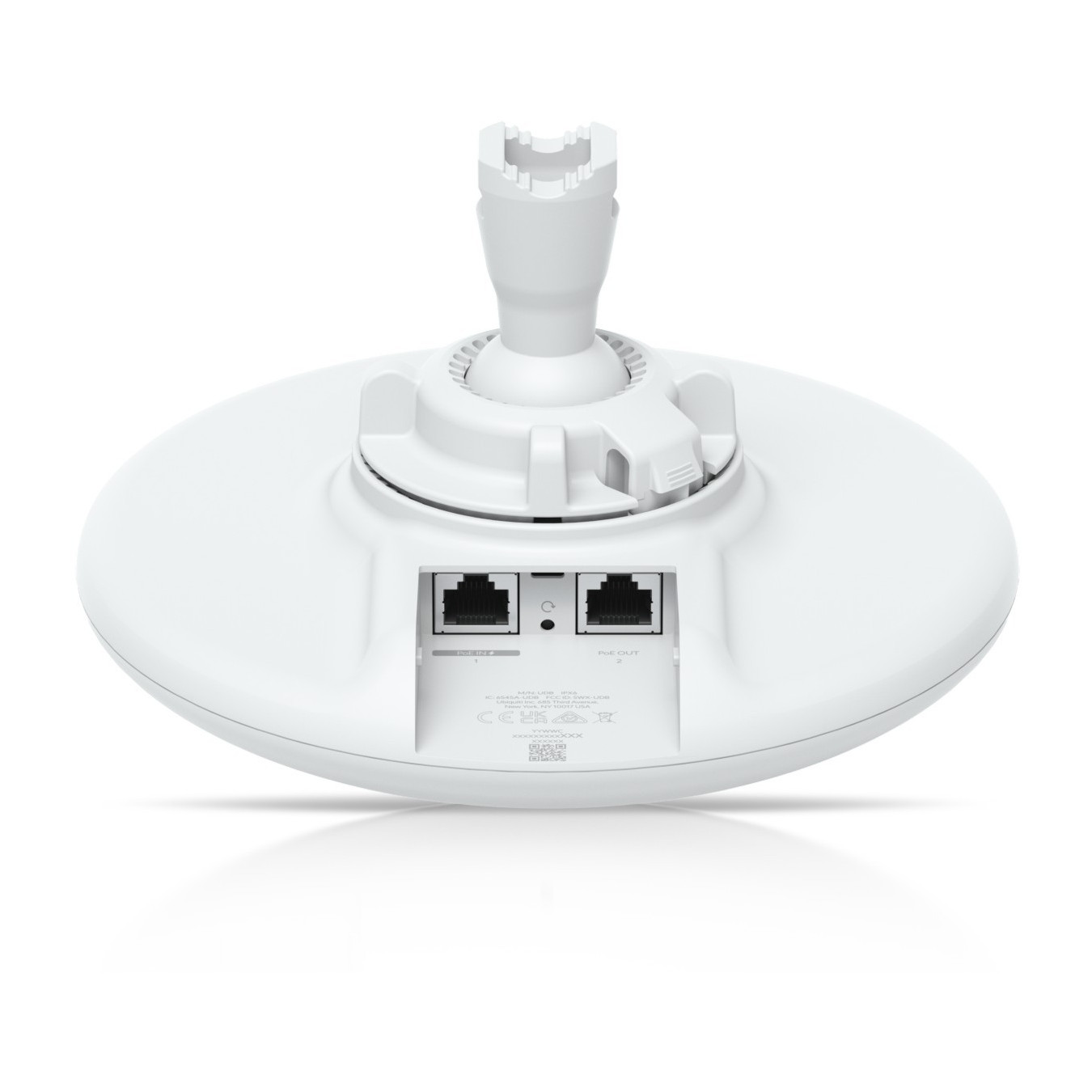

| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Security algorithms | WPA2-AES |
| Product type | Network bridge |
| Material | Polycarbonate (PC). Stainless steel |

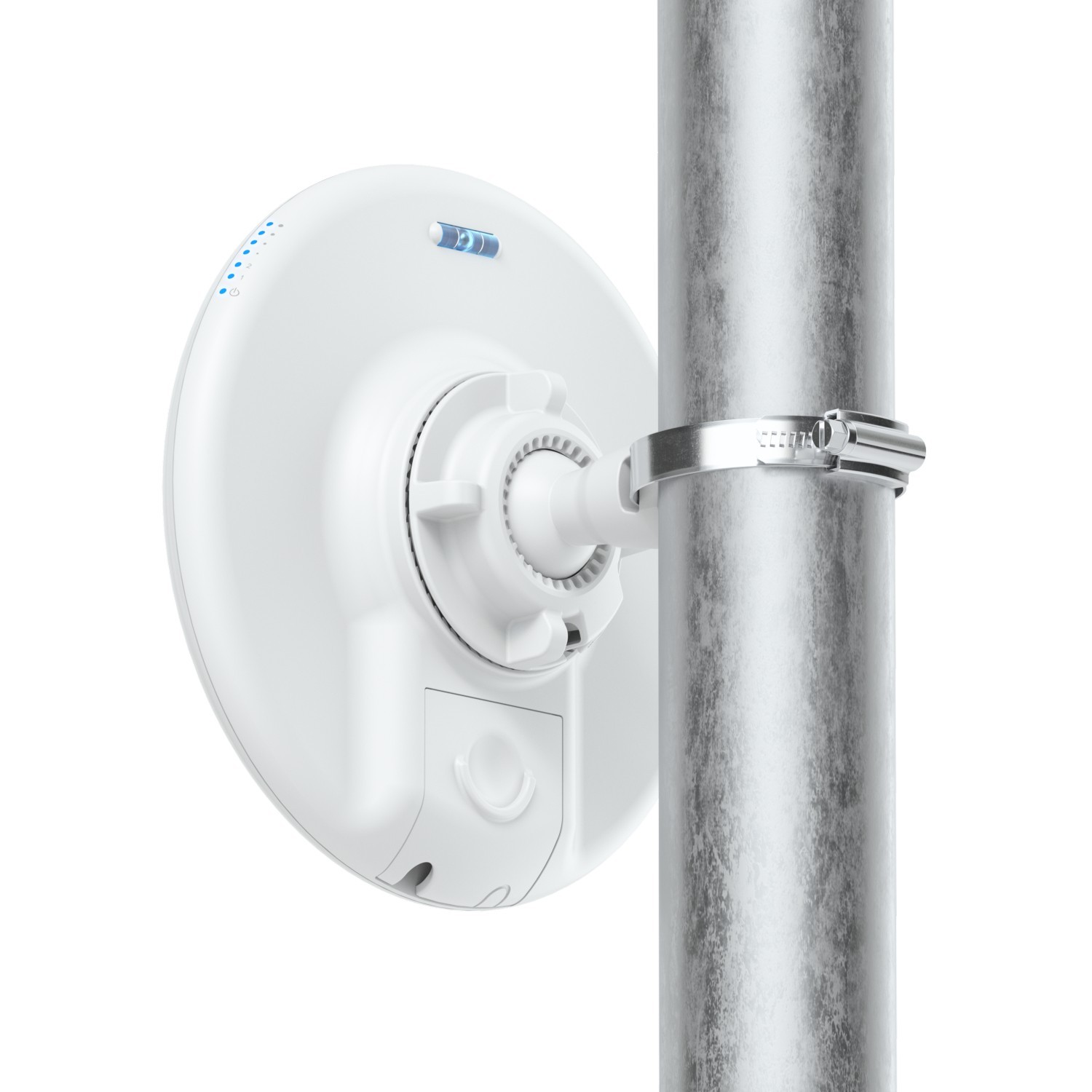

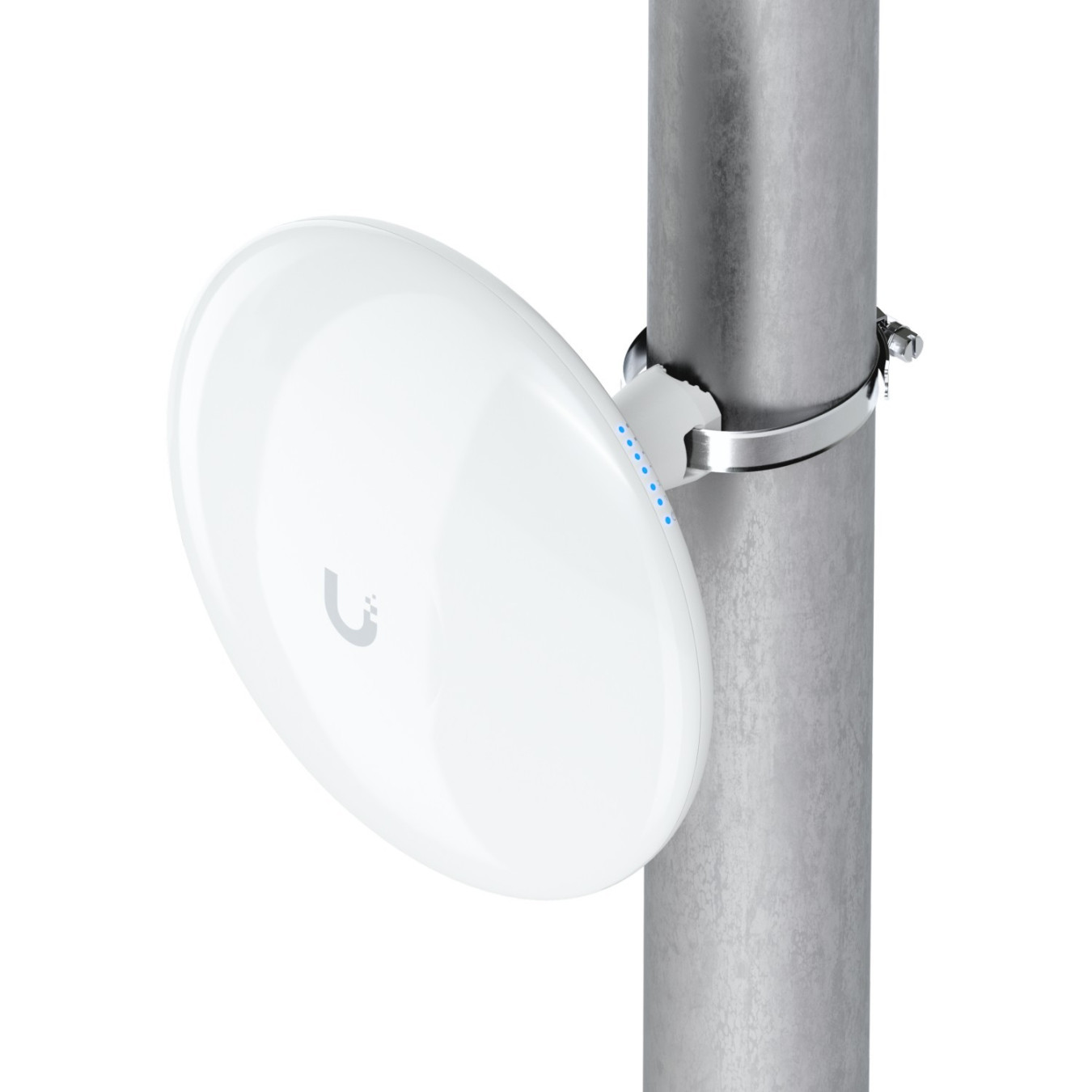

| Mounting type | Pole |
| Product colour | White |

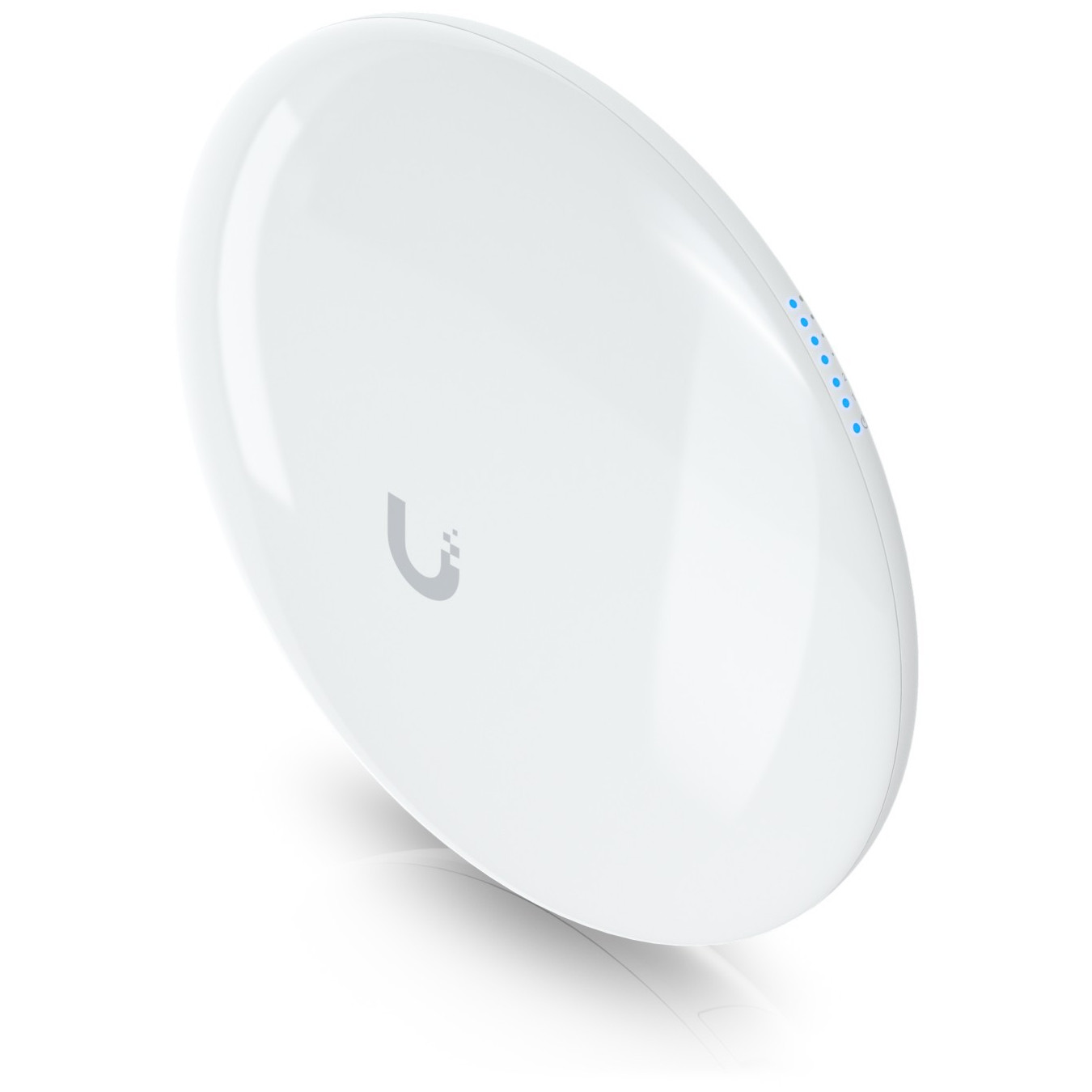

| LED indicators | LAN. Power. Signal strength |
| International Protection (IP) code | IPX6 |
| Power source type | DC. PoE |
| DC input voltage | 42.5 - 57 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. Federal Communications Commission (FCC). Industry Canada (IC) |
| Width | 189.5 mm |
| Depth | 64.3 mm |
| Height | 189.5 mm |
| Weight | 515 g |

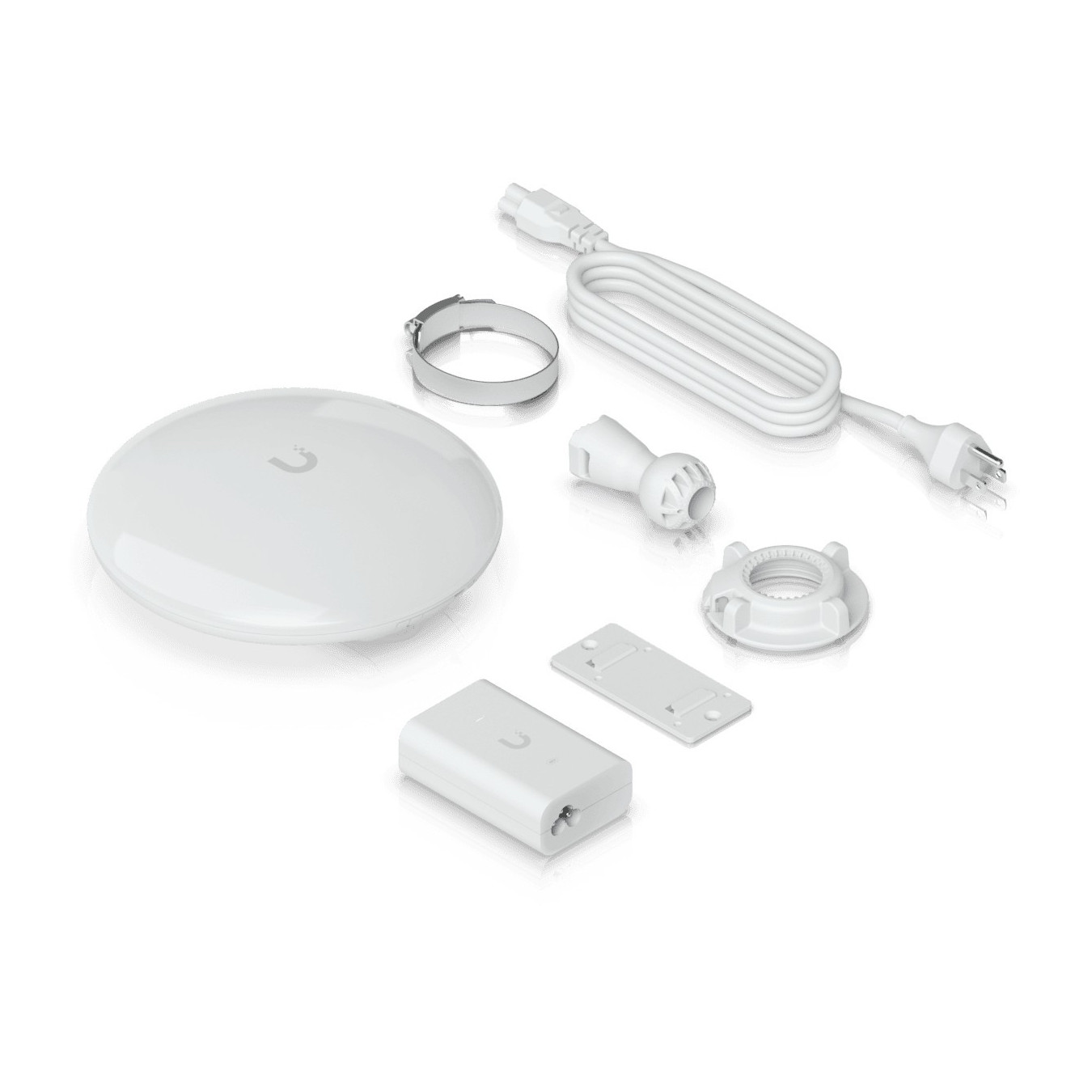

| Cables included | AC |
| Quantity per pack | 1 pc(s) |
