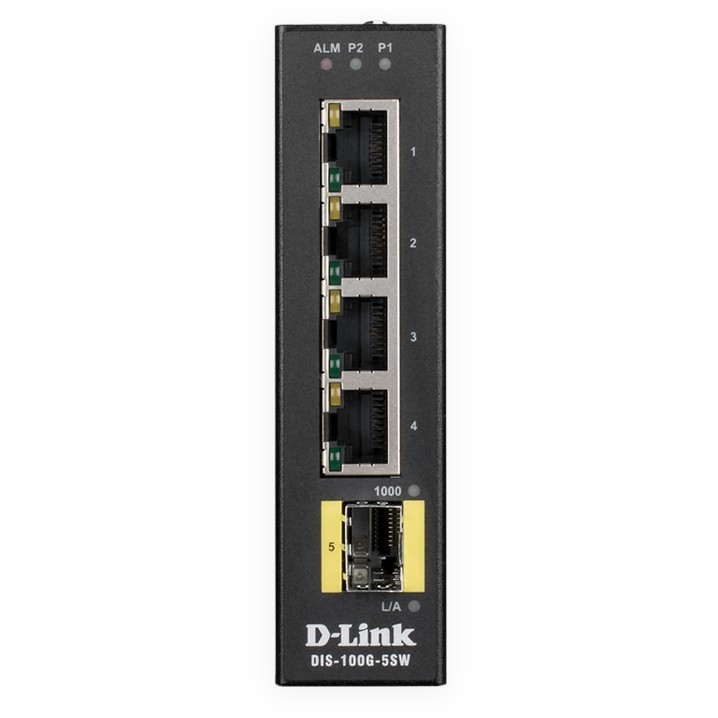

D-Link DIS-100G-5SW - 5-Port Gigabit Industrial Switch, 4x RJ45 + 1x SFP, Black, Unmanaged, DIN-rail
Unmanaged 5-port industrial Gigabit switch (DIS-100G-5SW) with 4x 10/100/1000 RJ45 and 1x 100/1000 SFP. DIN-rail/wall mountable, -40–75°C, 12–58V DC input.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. DC input voltage: 12 - 58 V. Wall mountable
| Switch type | Unmanaged |
| Switch layer | L2 |

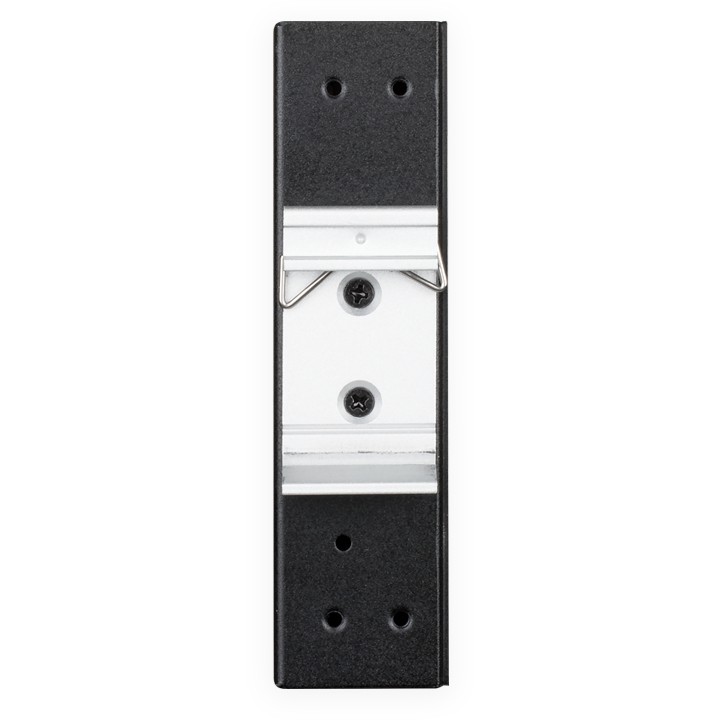

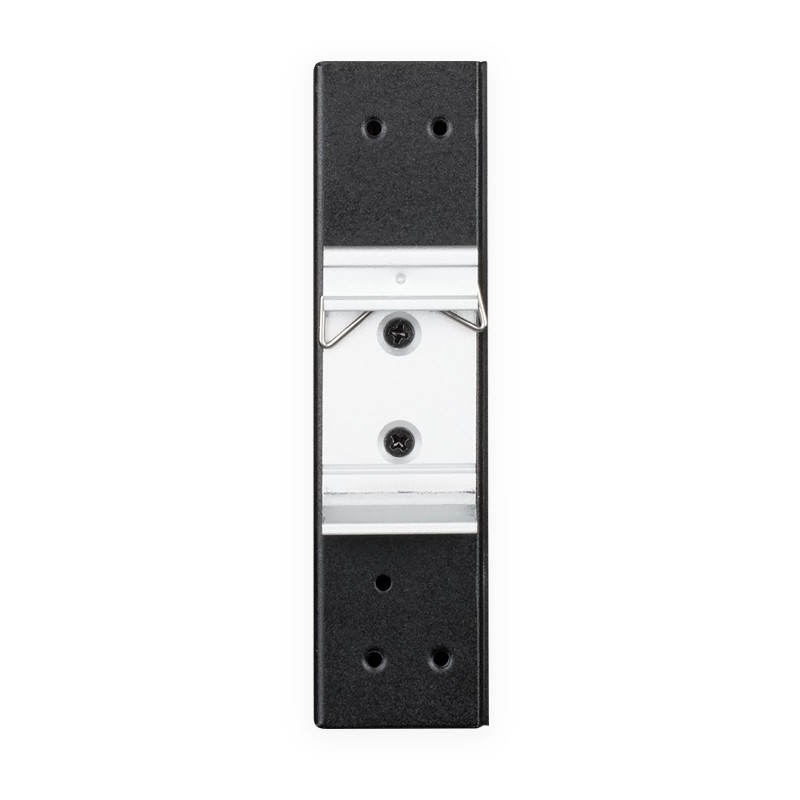

| Feature | DIN rail mounting |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 9000 |
| Product colour | Black |
| LED indicators | LAN. Power |
| Electromagnetic compatibility | FCC 15. EN 61000-6-2. EN 61000-6-4. EN 61000-4-2. -3. -4. -5. -6 (3) |
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 2.74 W |
| Power consumption (max) | 3.57 W |
| Power protection features | Over current. Reverse polarity |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 12.18 BTU/h |
| Width | 112.2 mm |
| Depth | 29.1 mm |
| Height | 89.4 mm |
| Weight | 295 g |
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 500 g |
| Shipping (inner) case height | 20.5 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case net weight | 5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 220 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 136.5 cm |
| Pallet gross weight (sea) | 321.6 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 198 cm |
| Shipping (inner) case gross weight | 5.64 kg |
| Certification | IEC60068-2-6| IEC60068-2-27| IEC60068-2-32| UL 60950-1. CE. FCC. RoHS. WEEE |
| Harmonized System (HS) code | 85176990 |
