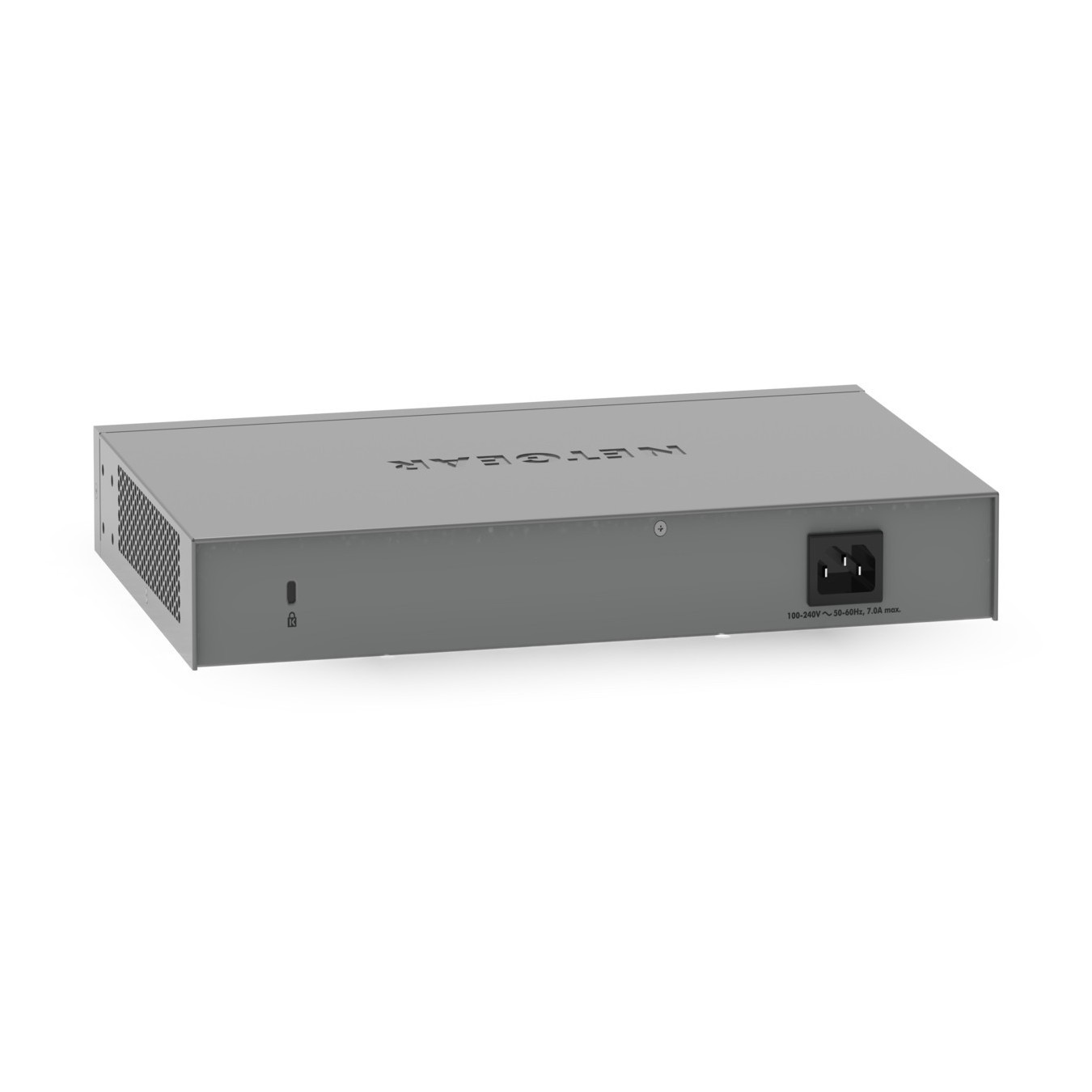

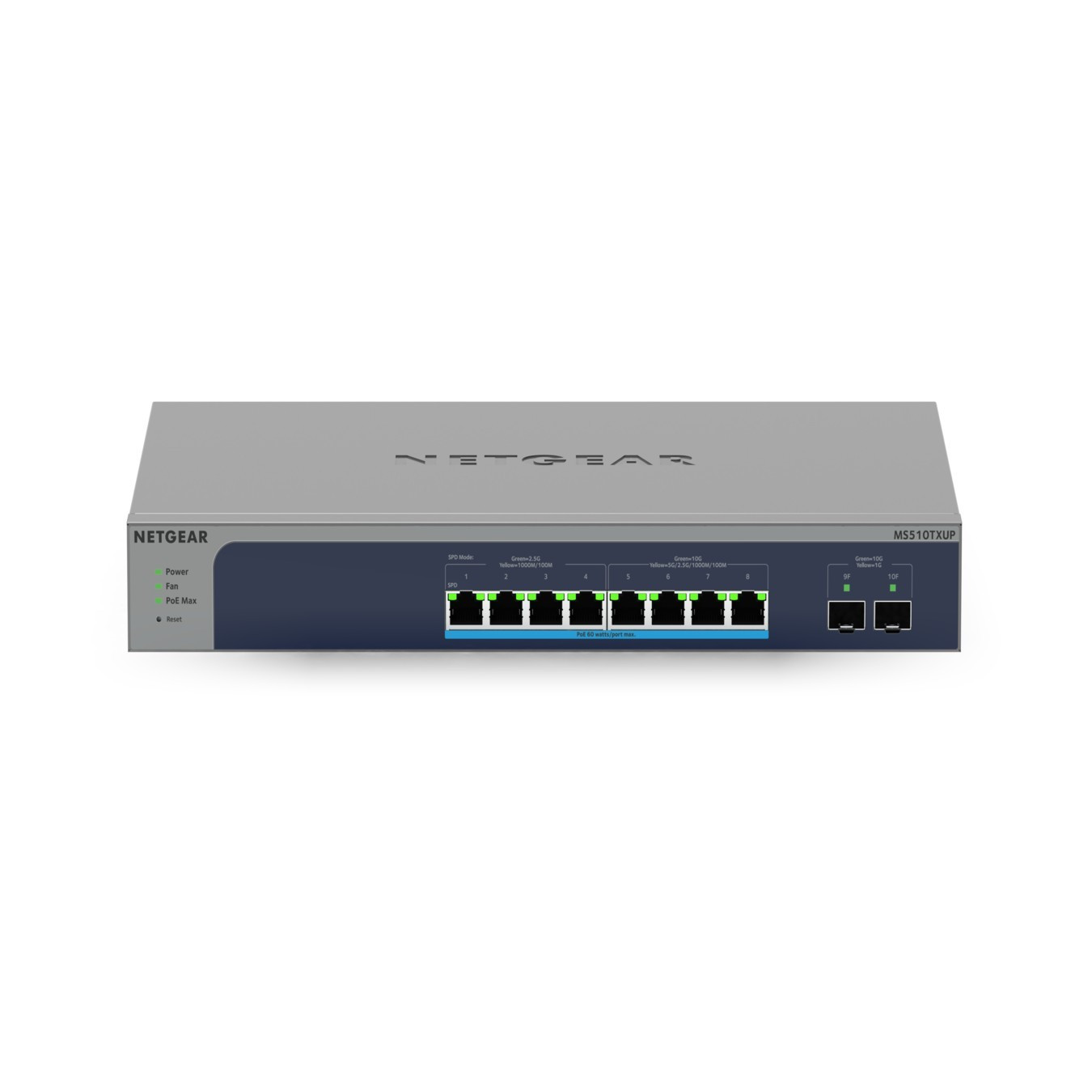

NETGEAR MS510TXUP - 8-Port PoE++ (60W/port) + 2x SFP+, 10G RJ45, 1GHz CPU, 256MB RAM, Grey, Rackmount
Managed L2/L3/L4 10G switch with 8x 10G PoE++ ports (up to 60W/port), 2x SFP+, 140 Gbps switching, 256MB memory, SNMPv3, HTTPS, rackmountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
NETGEAR MS510TXUP. Switch type: Managed. Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 32000 entries. Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ad. IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Networking standards | IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ad. IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN data rates | 100.1000.2500.5000.10000 Mbit/s |
| Number of VLANs | 256 |
| Switching capacity | 140 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames | 10000 |
| DHCP features | DHCP client. DHCP server |
| Access Control List (ACL) ingress | 100 |
| Security algorithms | HTTPS. SSL/TLS |
| Management protocols | SNMP v1/v2c.SNMP v3 |
| Product colour | Grey. Blue |
| LED indicators | Activity. Power. Speed |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 60 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Width | 330 mm |
| Depth | 206 mm |
| Height | 43 mm |
| Harmonized System (HS) code | 85176990 |
