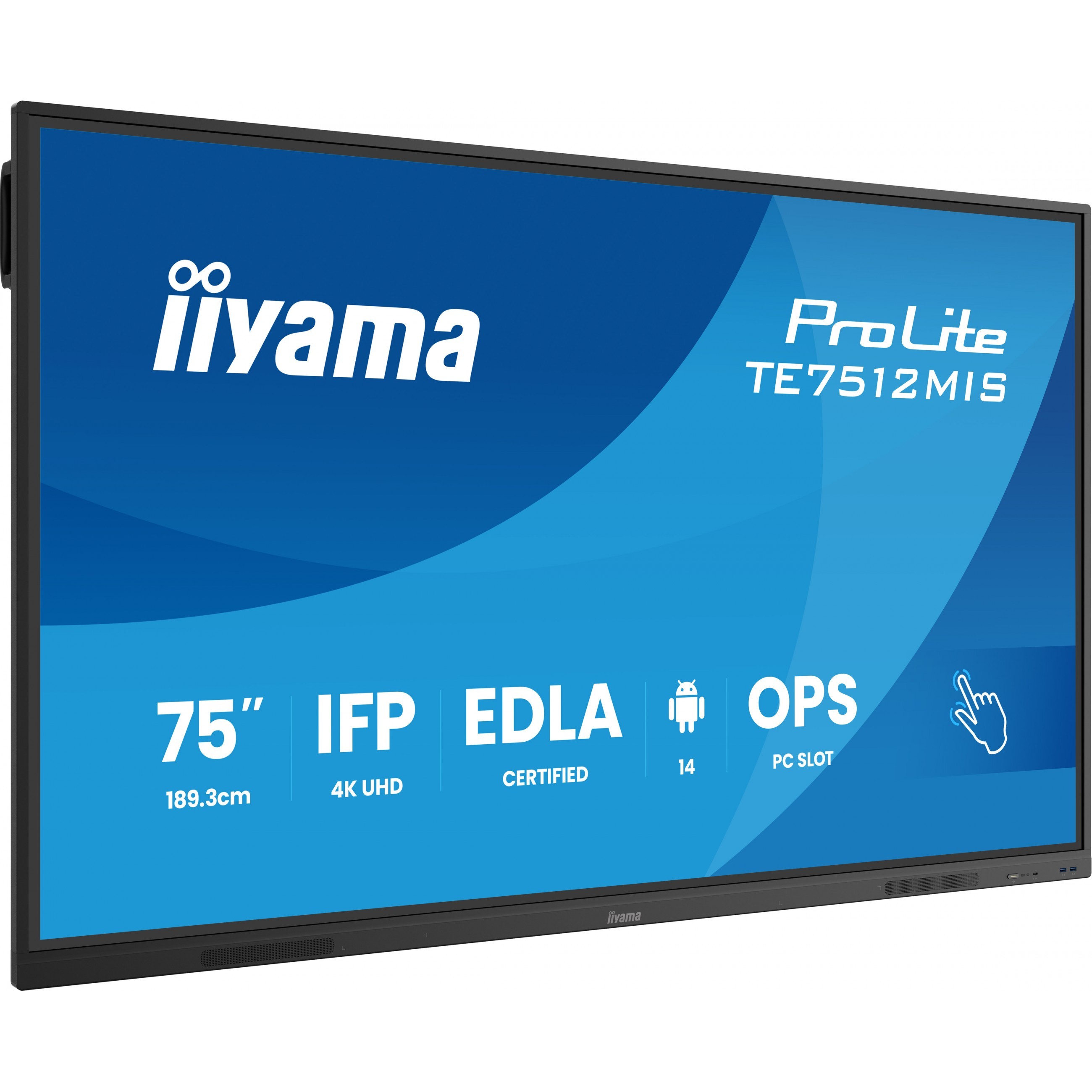

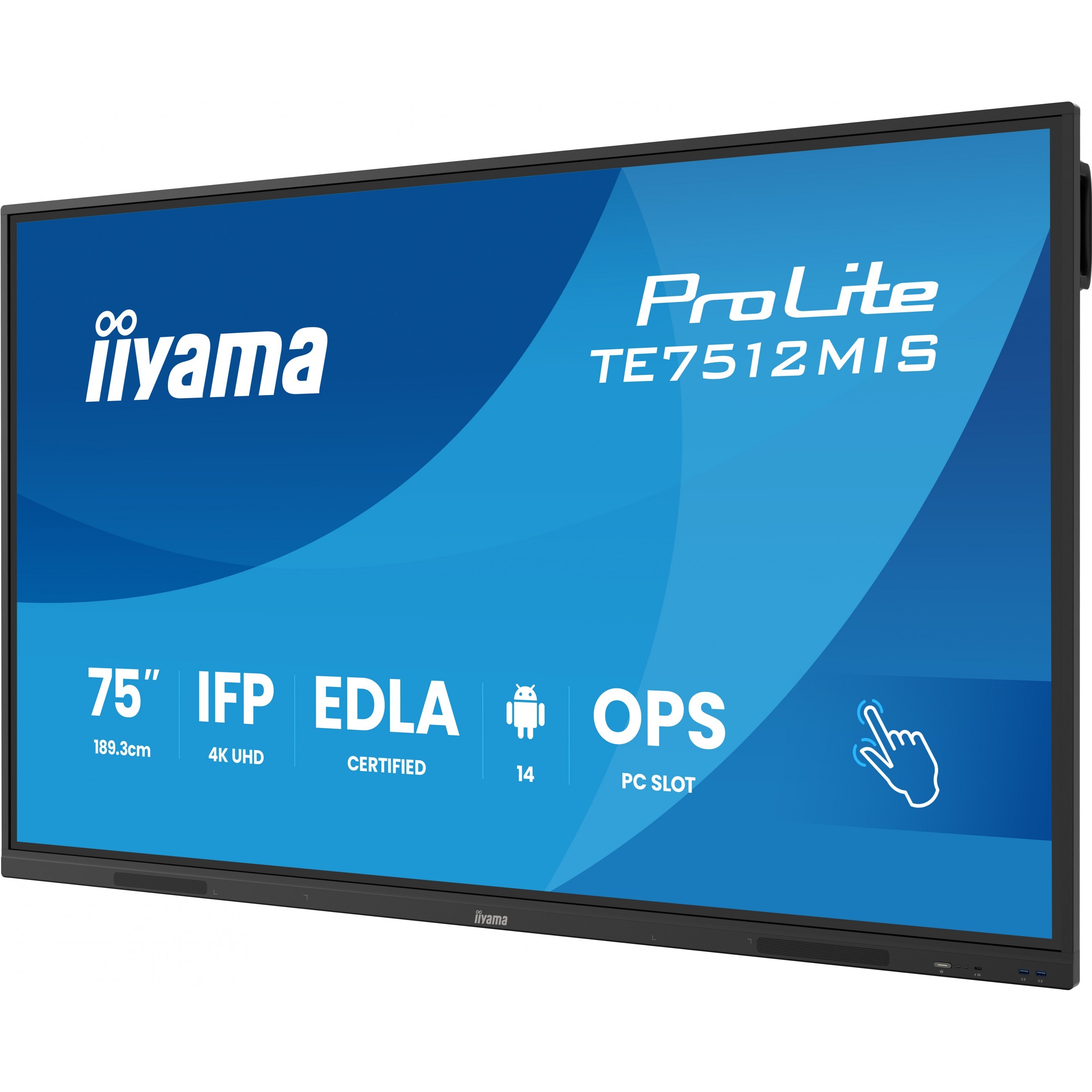

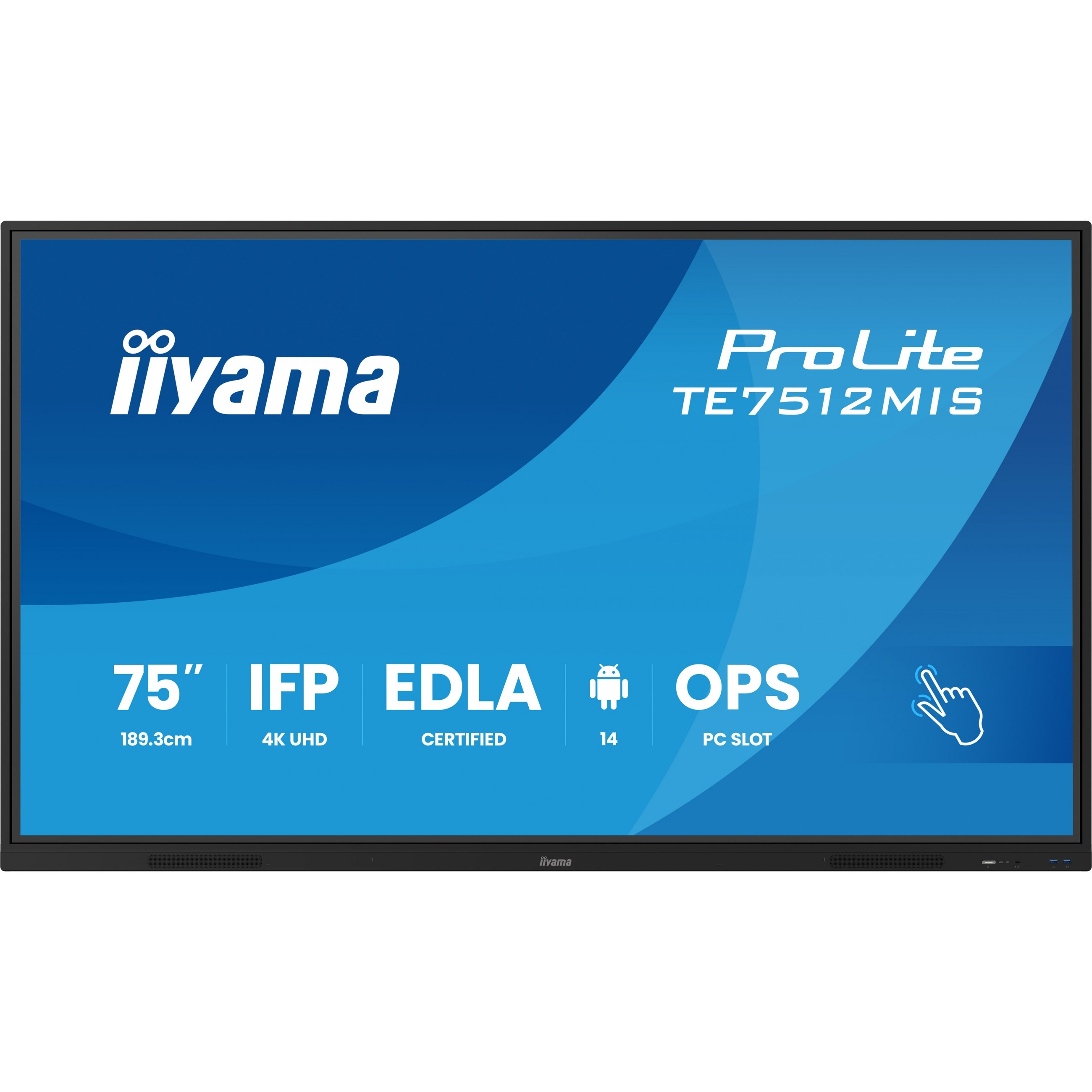

iiyama DS-TE7512MIS - 75" 4K UHD Interactive Touch VA Display - Android 11, 8GB RAM, 128GB, Black
75" iiyama DS-TE7512MIS 4K UHD (3840x2160) infrared interactive touchscreen — 40 touchpoints, VA panel, 400 cd/m², HDMI/DP/VGA/USB-C, Android 11, 24/7 operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Panel Type | VA |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
| Monitors - USB Hub | USB-A + USB-C |
iiyama 75" Interactive 4K UHD Touchscreen elevating interactive collaboration. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"). Display technology: LCD. Display resolution: 3840 x 2160 pixels. Display brightness: 400 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
| Panel type | VA |
| Feature | Plug and Play |
| LED backlighting type | Direct-LED |
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 8000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 30 - 135 kHz |

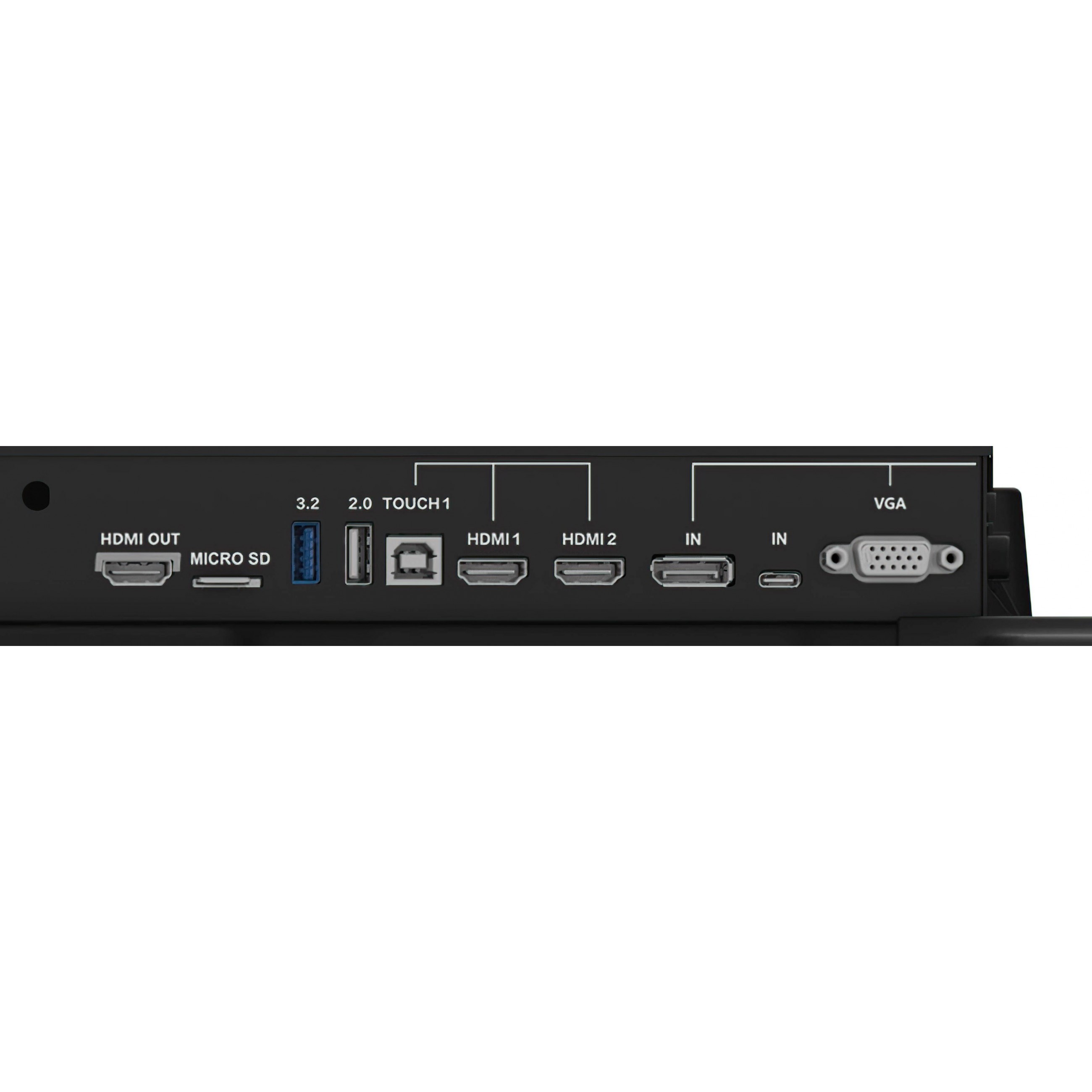

| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A. USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Remote (IR) input | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

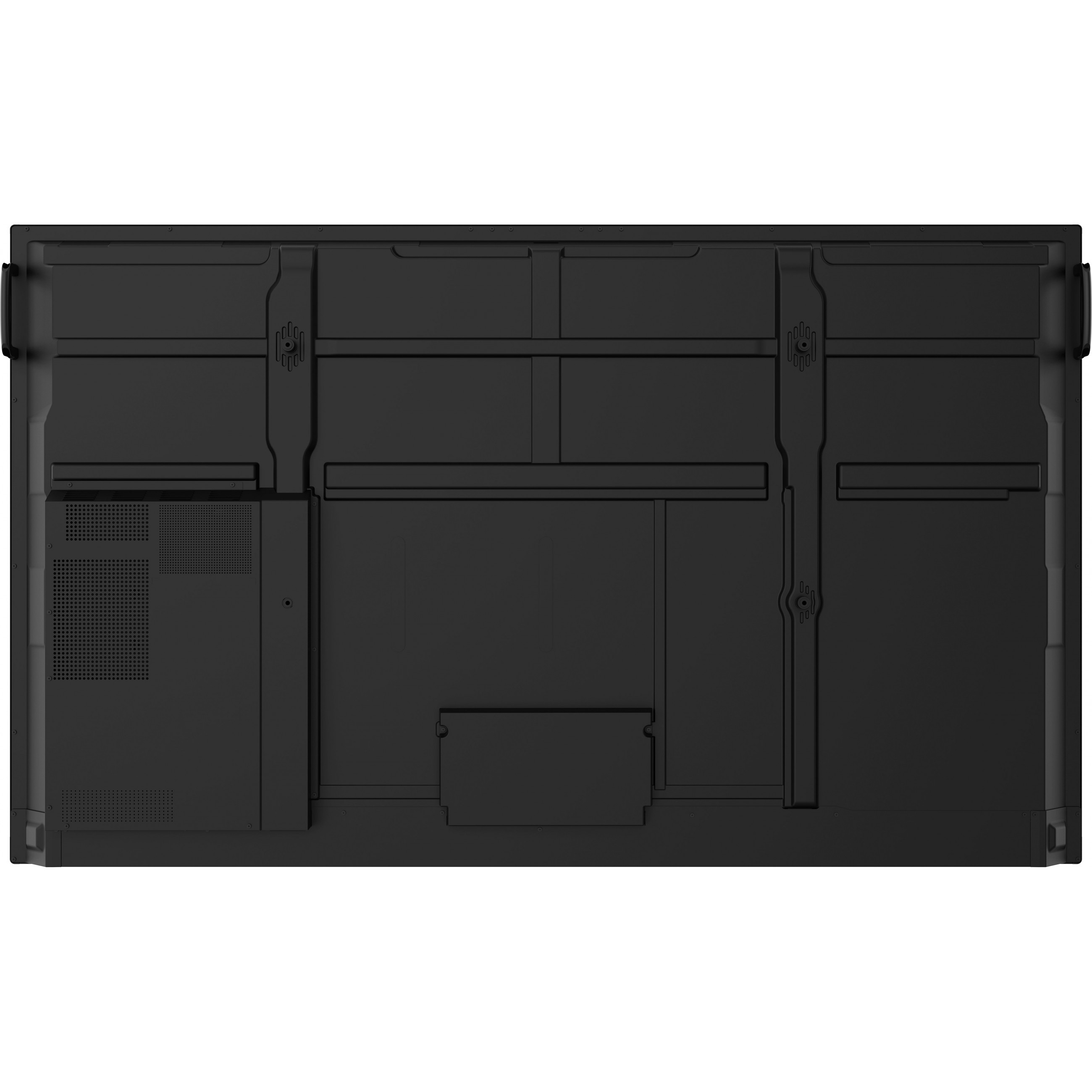

| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 4.5 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Bezel colour | Black |
| Mounting type | Wall |
| Purpose | Universal |
| Number of OSD languages | 14 |
| On Screen Display (OSD) languages | Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 174 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 174 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android 11 |
| Display width | 1957 mm |

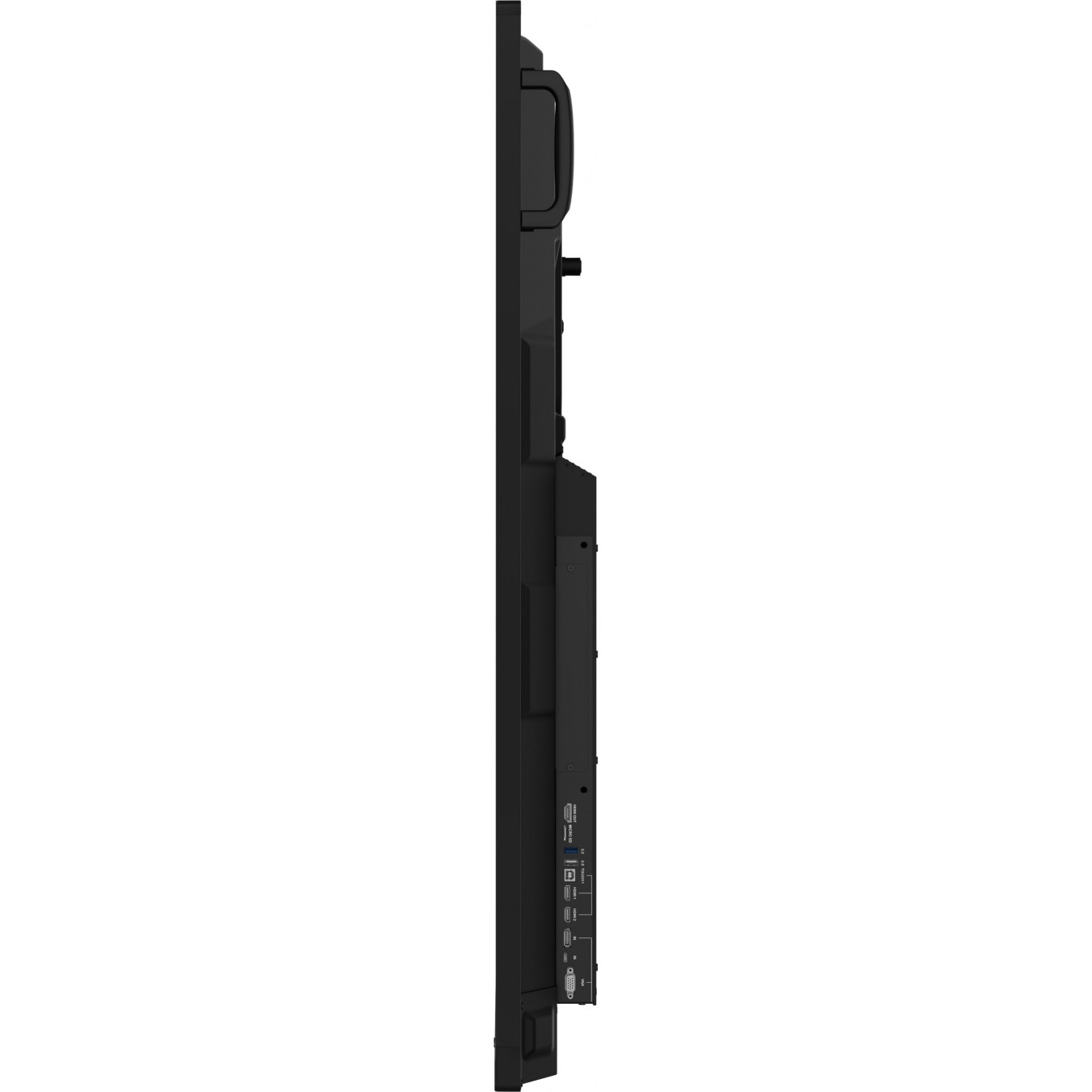

| Display depth | 98 mm |
| Display height | 1098 mm |
| Display weight | 48.5 kg |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1291 mm |
| Package weight | 37 kg |

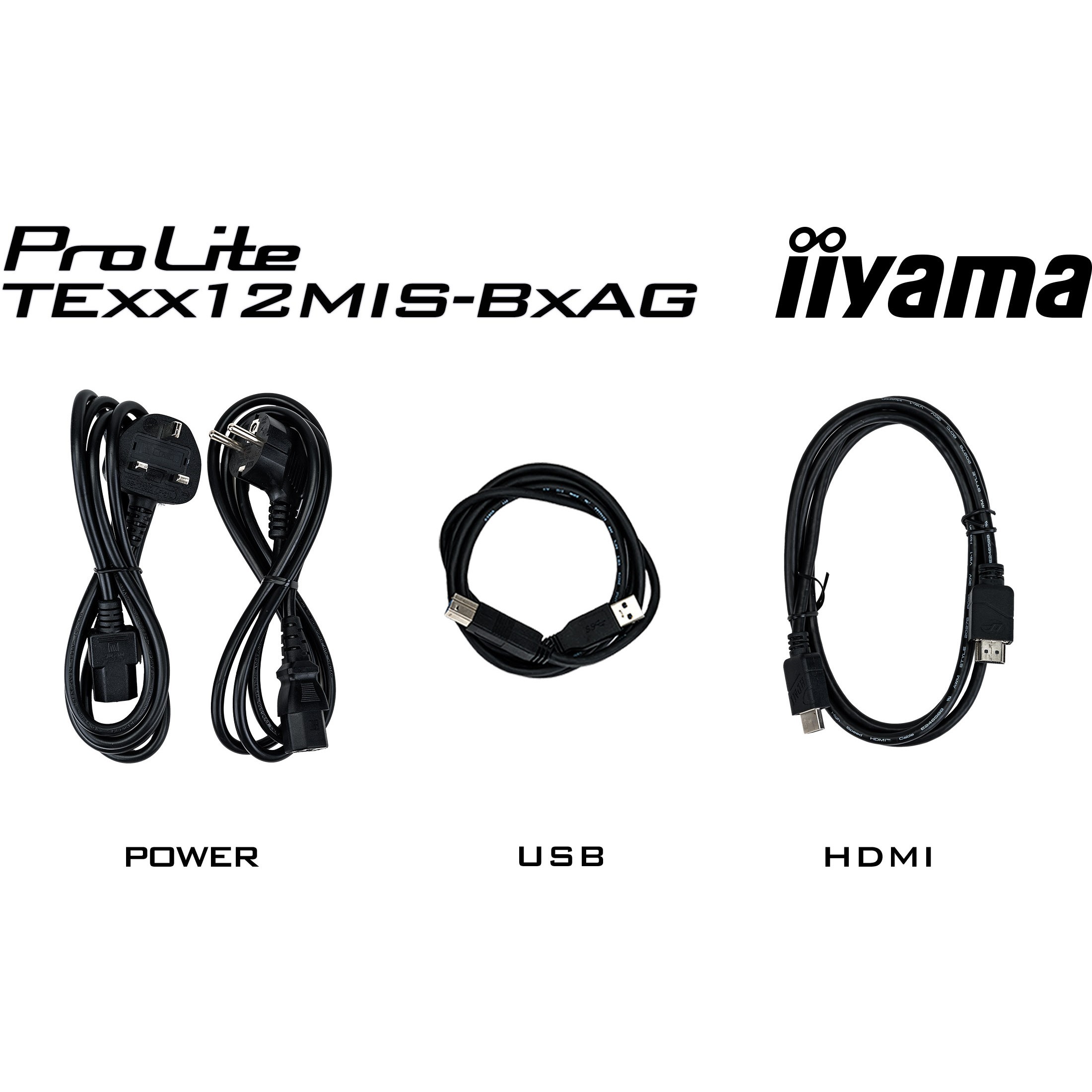

| Cables included | AC. HDMI. RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. ErP. WEEE. REACH |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Audio output | 3.5mm |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Housing material | Metal |
