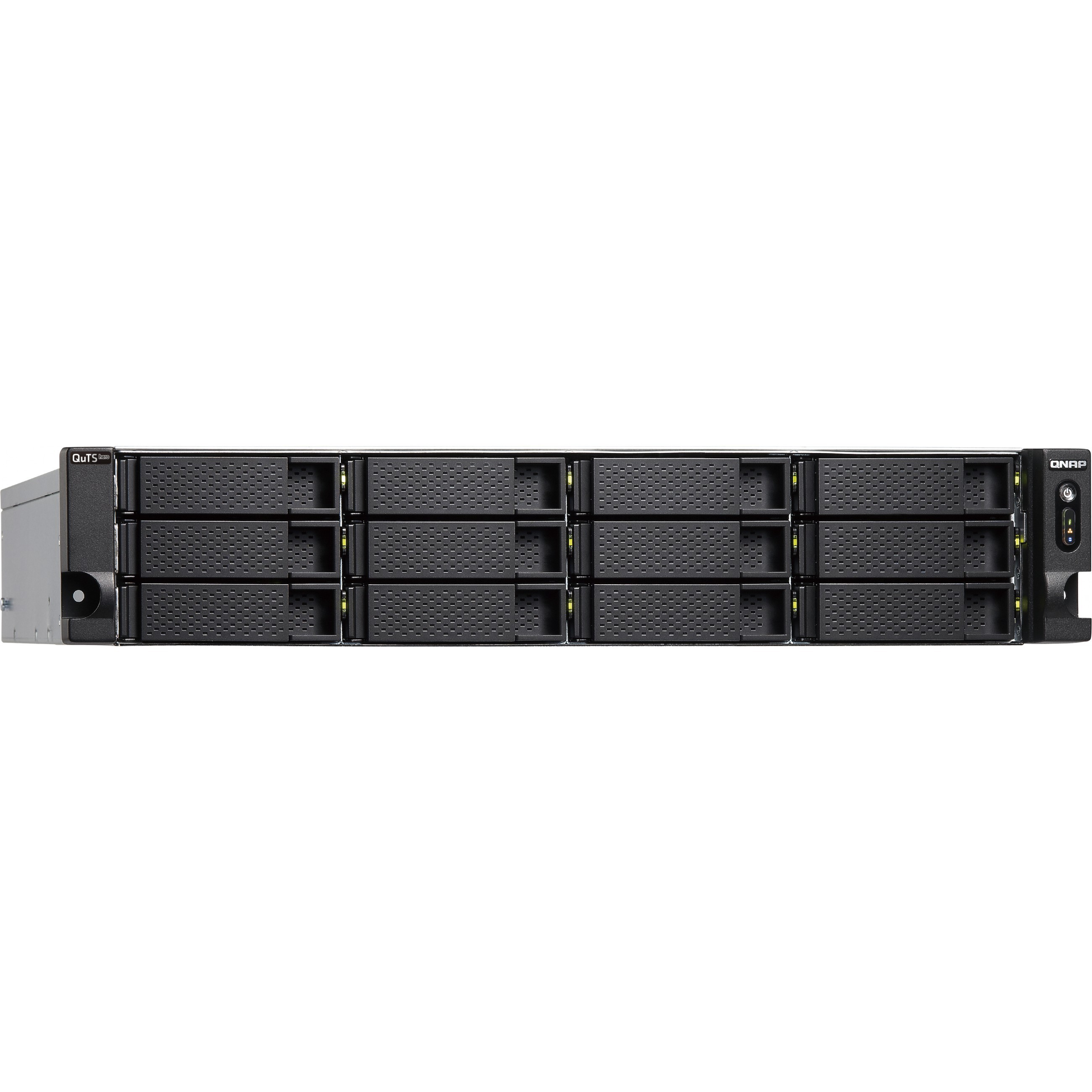

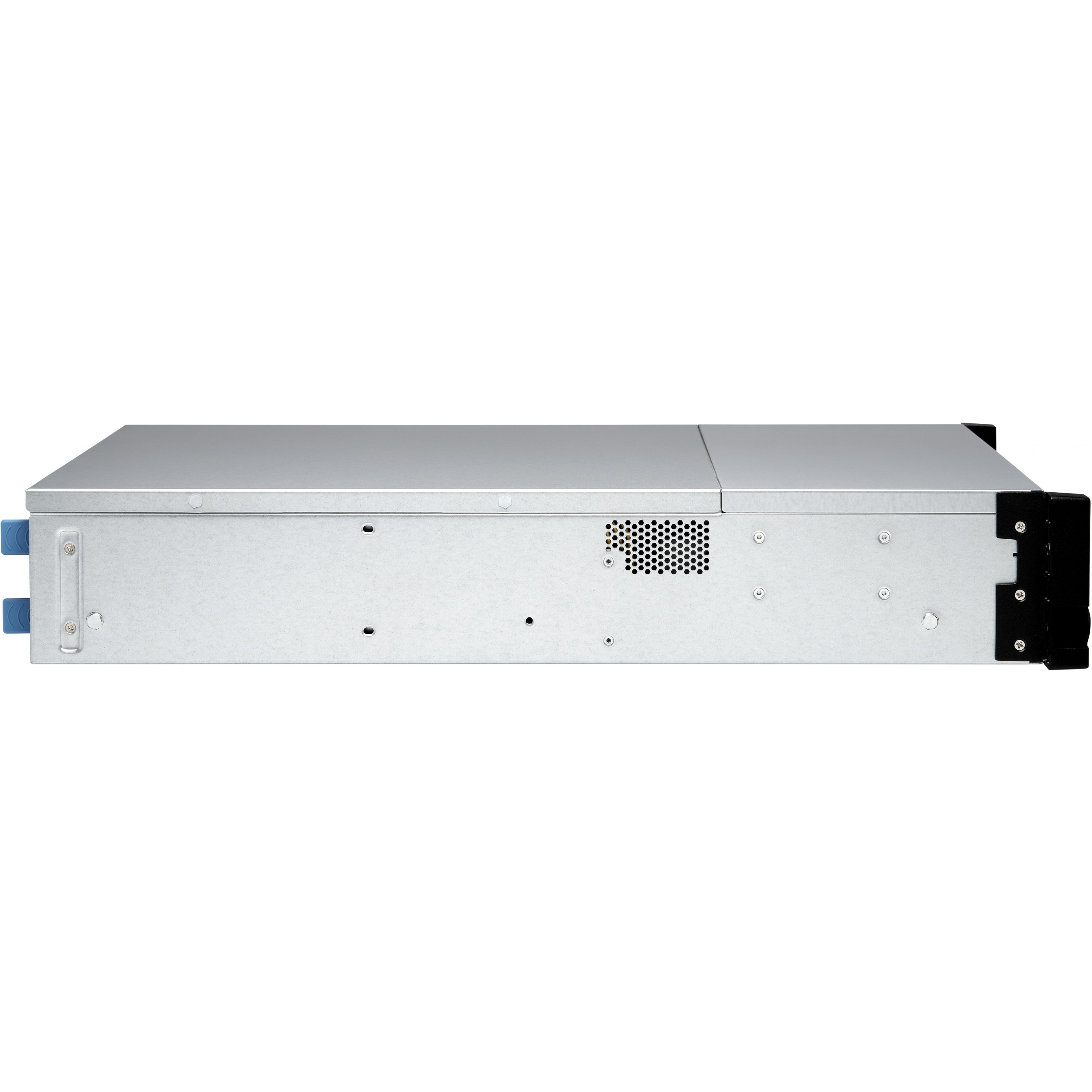

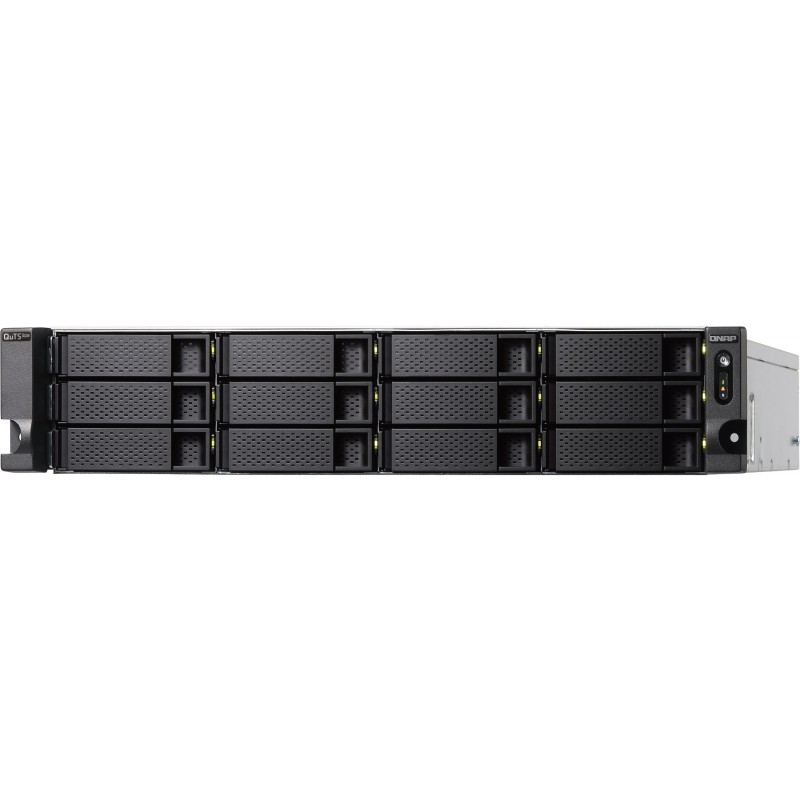

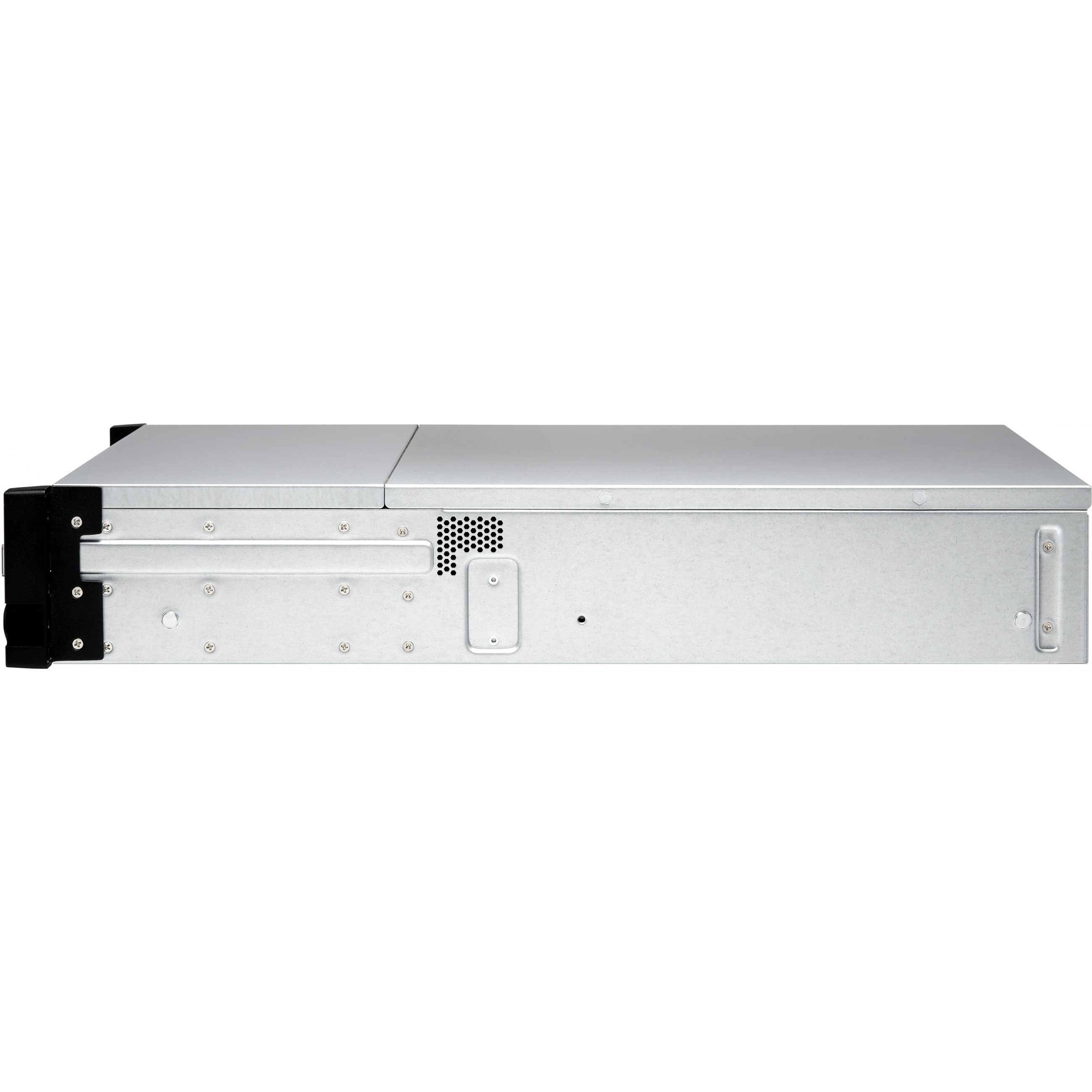

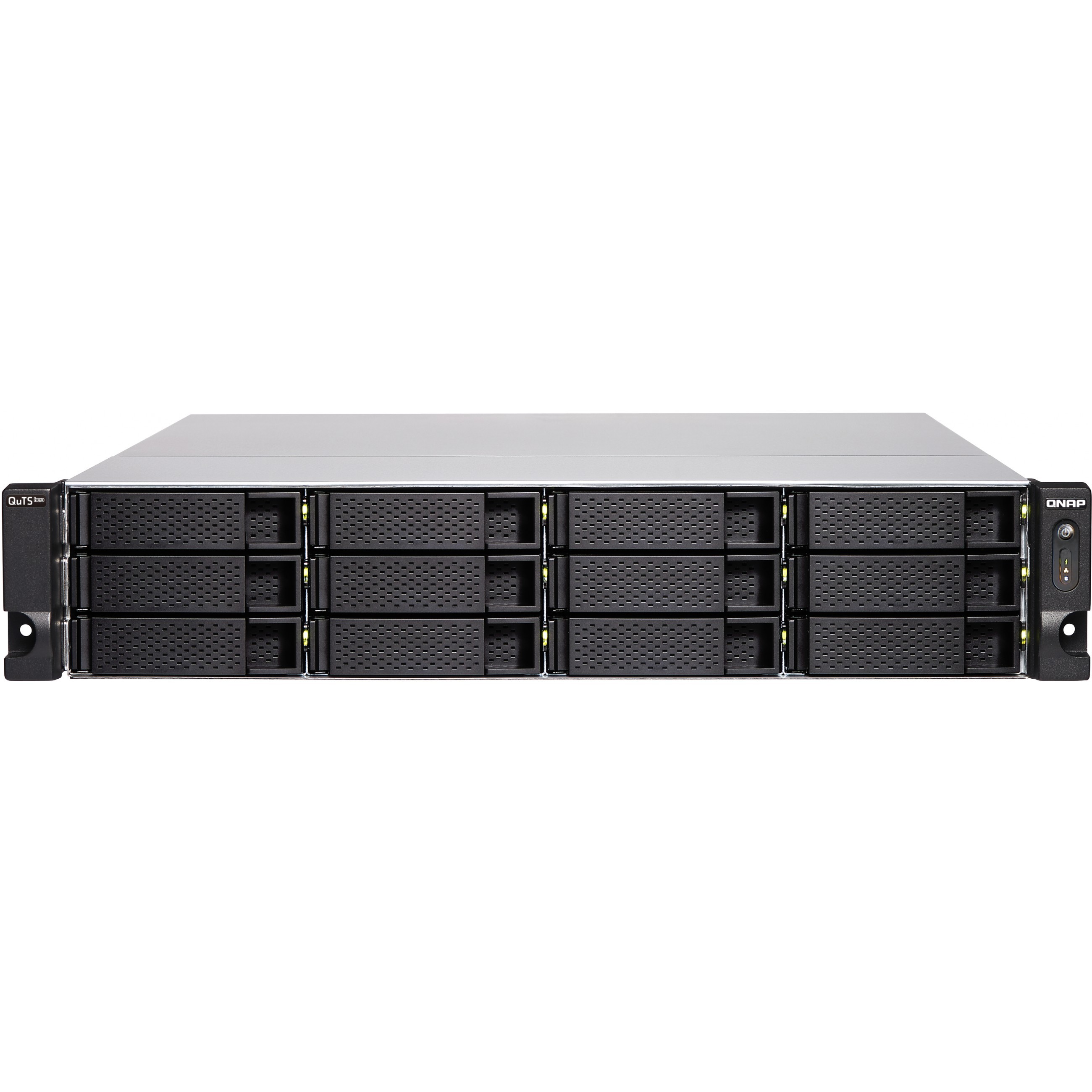

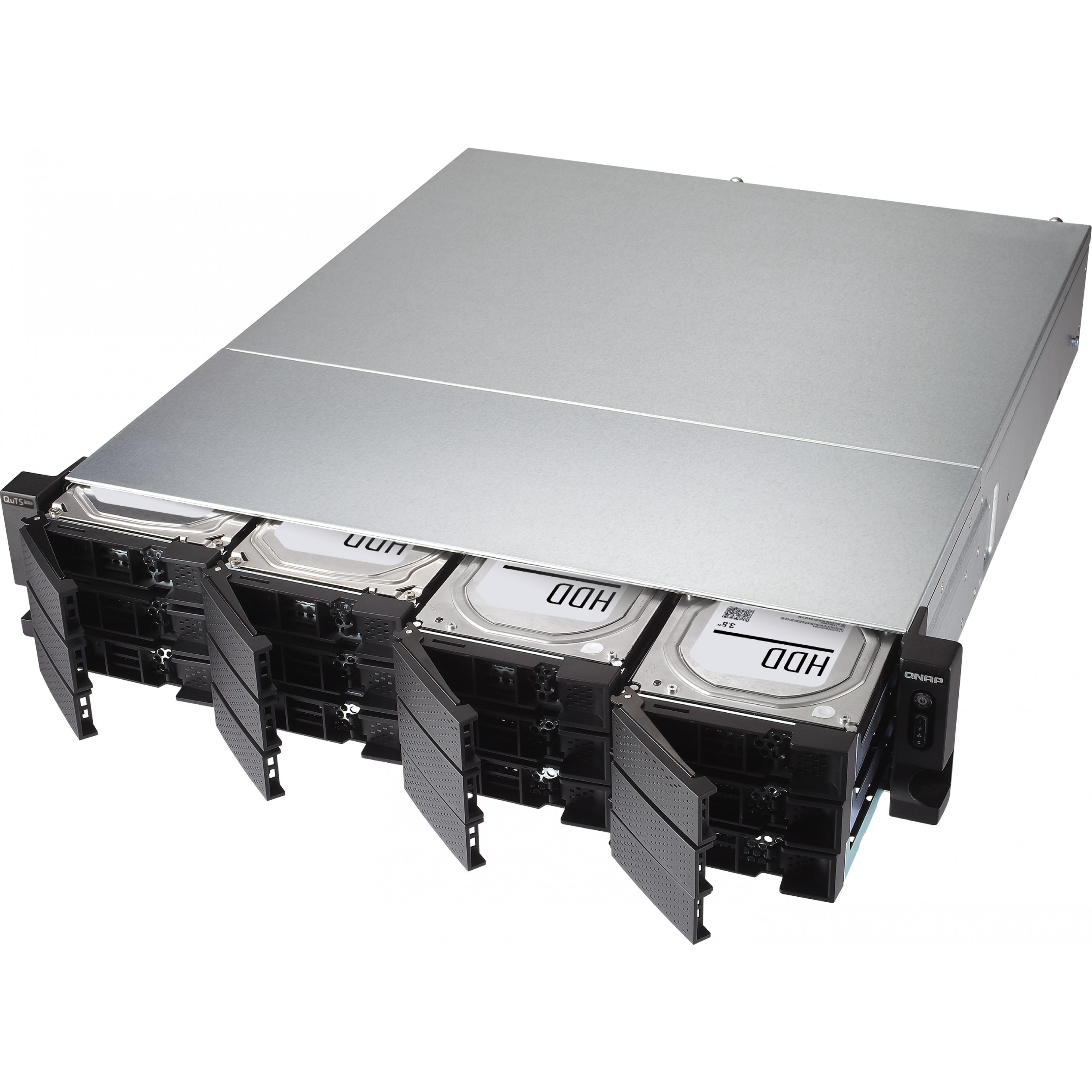

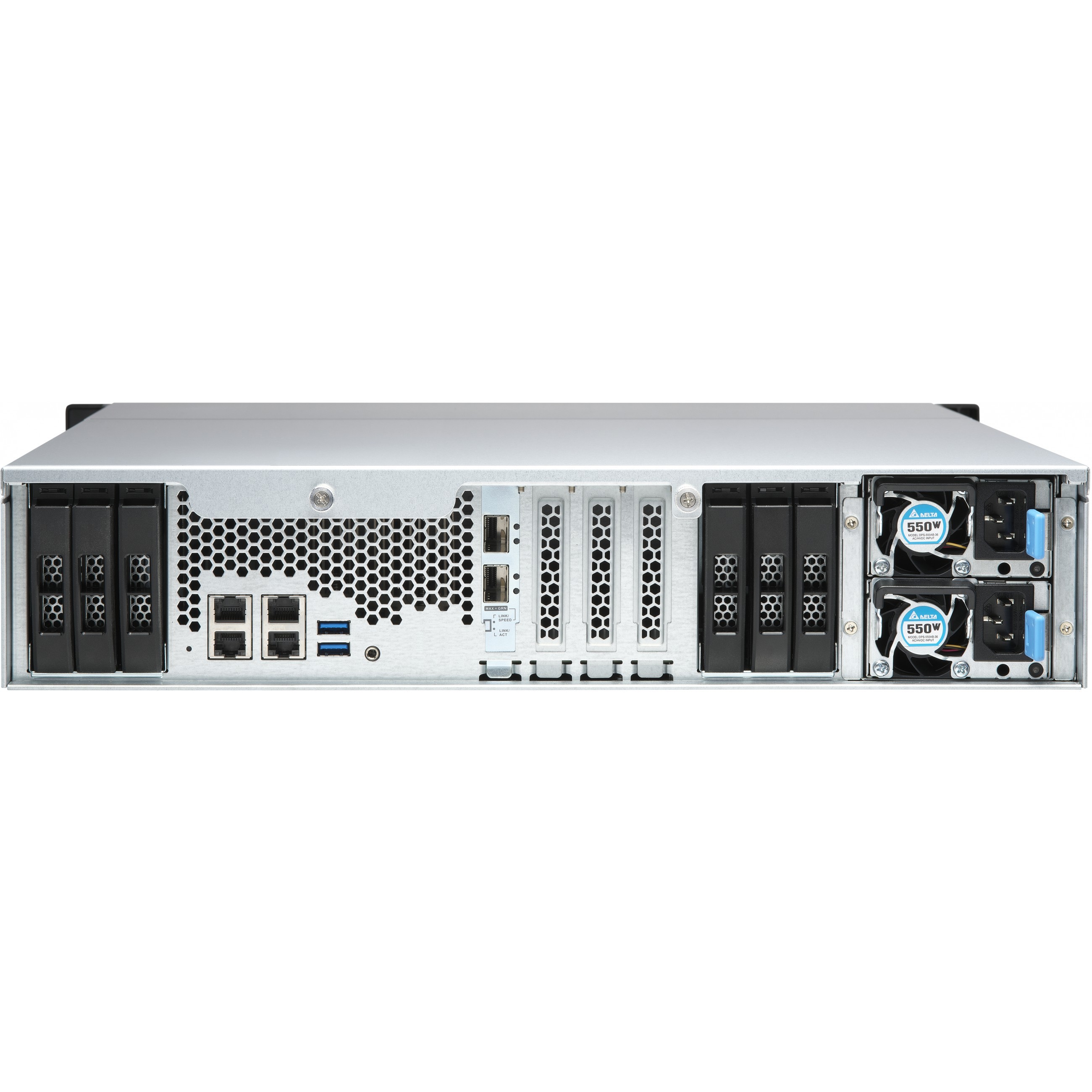

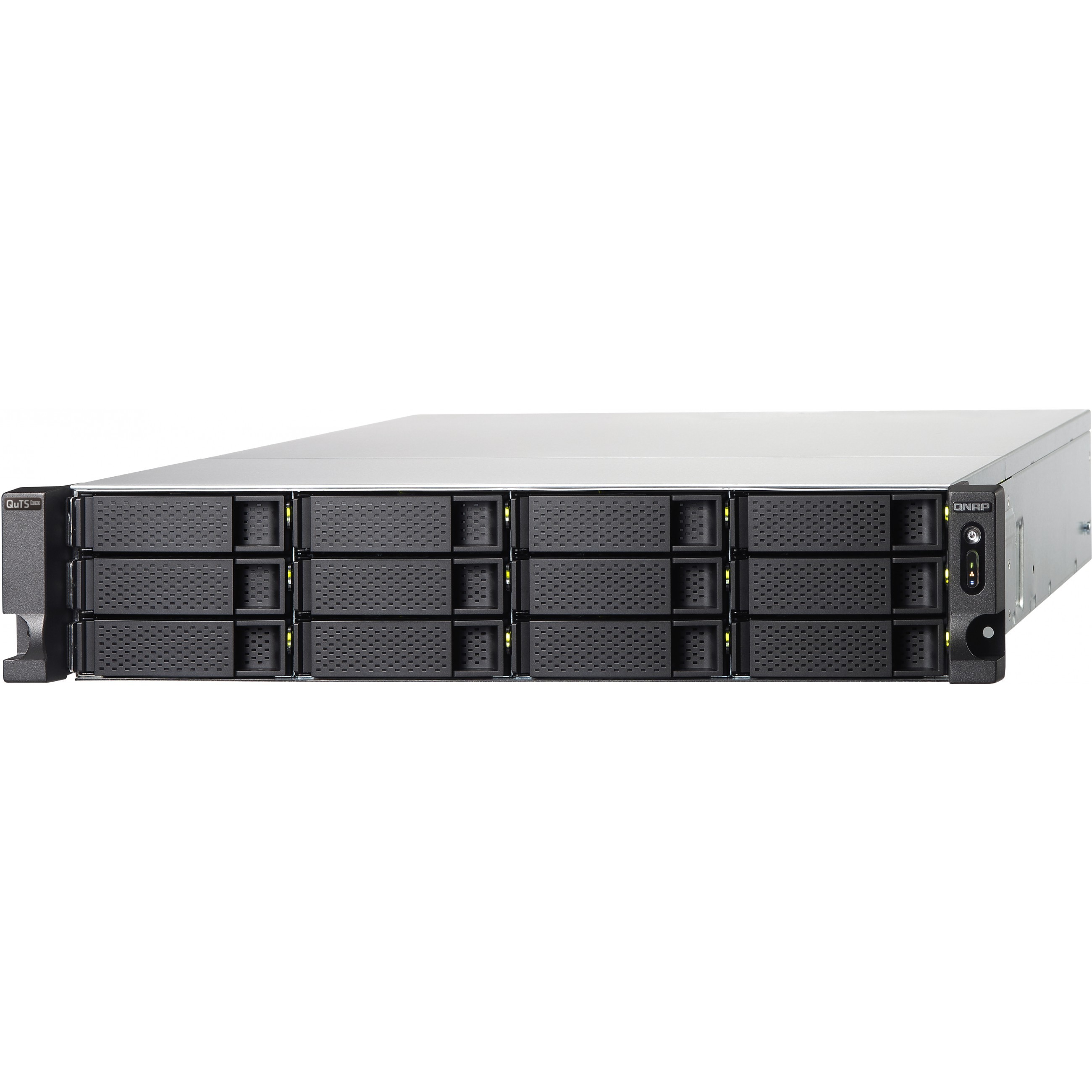

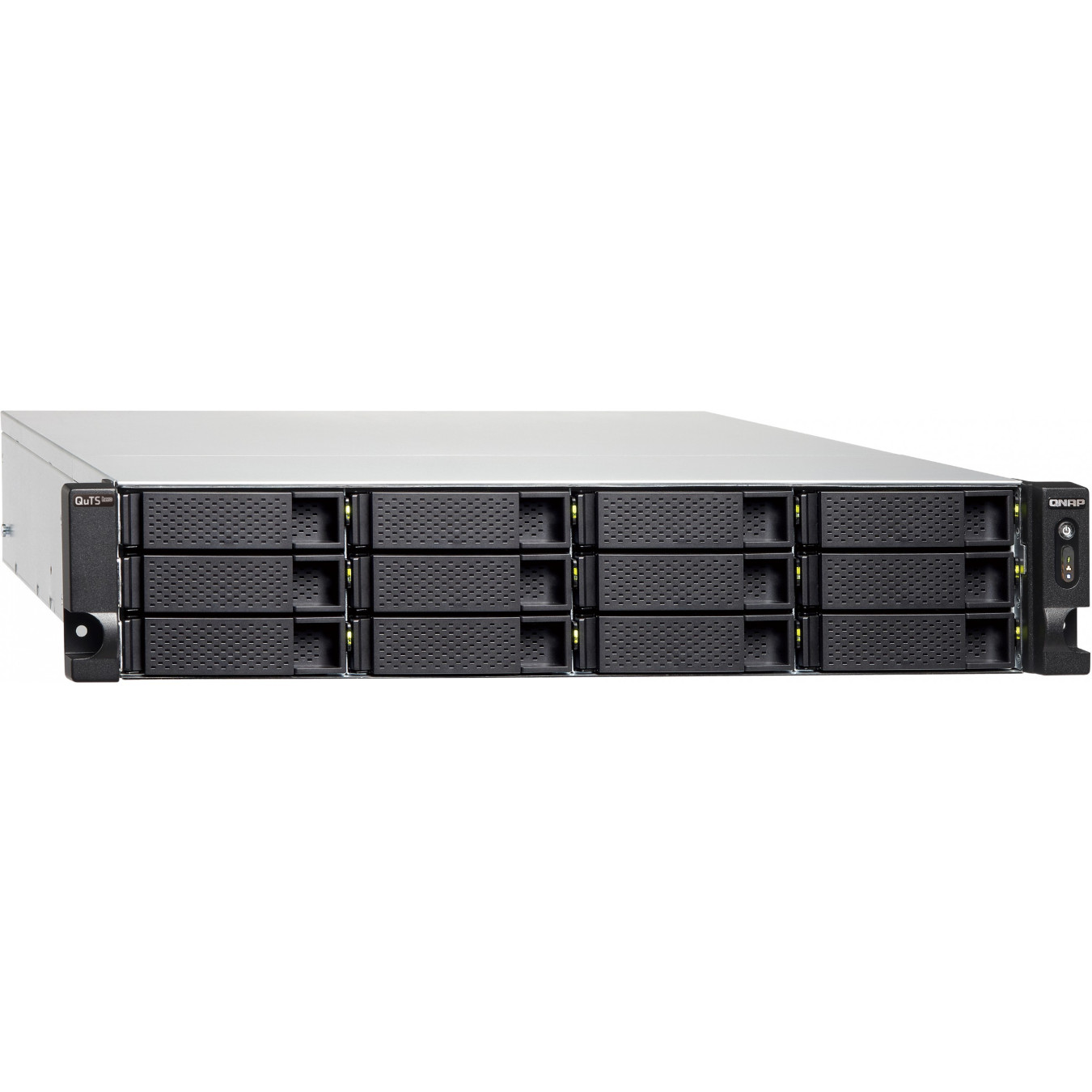

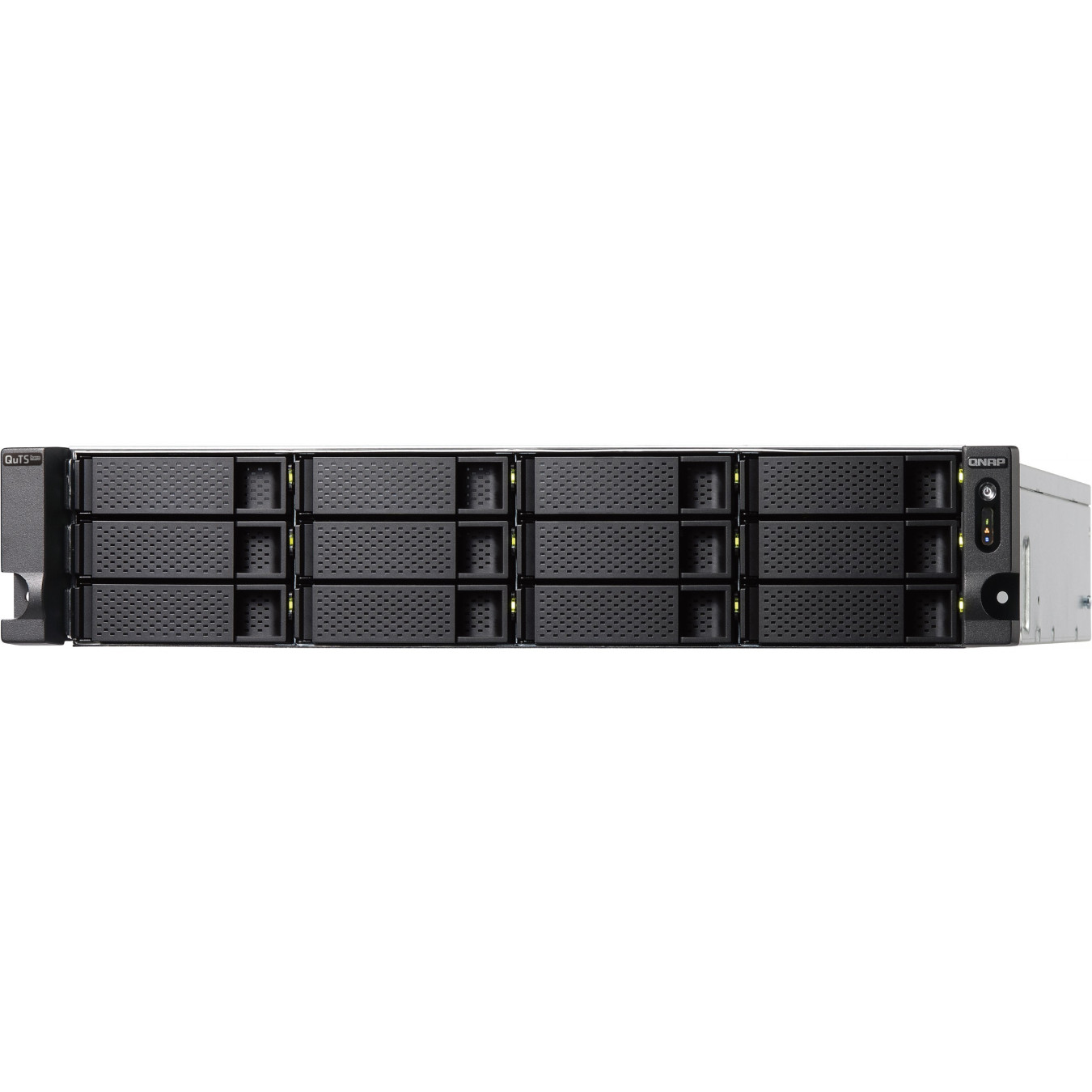

QNAP TS-h1886XU-RP-R2 - 12+6 Bay 2U Rack NAS - Intel Xeon D-1622 (up to 3.2GHz), 32GB ECC DDR4, Black/Grey
Enterprise 18-bay (12+6) 2U rack NAS QNAP TS-h1886XU-RP-R2 with Intel Xeon D-1622 (3.2GHz turbo), 32GB ECC DDR4, dual 10GbE SFP+, QuTS hero OS, RAID support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - Memory (Installed) | 32 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 6 |
| NAS (Network Attached Storage) - LAN | 2x10GbE |
| NAS (Network Attached Storage) - USB | USB 3.0 |
QNAP TS-H1886XU-RP-R2. Type: NAS. Chassis type: Rack (3U). Device class: Large Enterprise Business. Processor family: Intel® Xeon® D. Processor model: D-1622. Processor frequency: 2.6 GHz. Internal memory: 32 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QuTS hero
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Intel VT-x with Extended Page Tables (EPT) |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Supported file systems | FAT32. HFS+. NTFS. ZFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 18 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1622 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Supported network protocols | IPv4. IPv6. SSH. Telnet. HTTP(S). FTP. CIFS/SMB. AFP |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 4 |
| Concurrent connections | 10000 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black. Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD. LAN. SSD. Status |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup features | Cloud. iSCSI LUN |
| Management protocols | SNMP |
| Security algorithms | 256-bit AES. FIPS 140-2. SNMPv2. SNMPv3 |
| Browser supported | Mozilla Firefox. Microsoft Edge. Google Chrome. Apple Safari |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Server operating systems supported | Windows Server 2003. Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1. IBM AIX 7.2. Solaris 10. Solaris 11 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 117.92 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Width | 482 mm |
| Depth | 549.7 mm |
| Height | 88.3 mm |
| Weight | 12.7 kg |
| Package weight | 18.7 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 112 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
