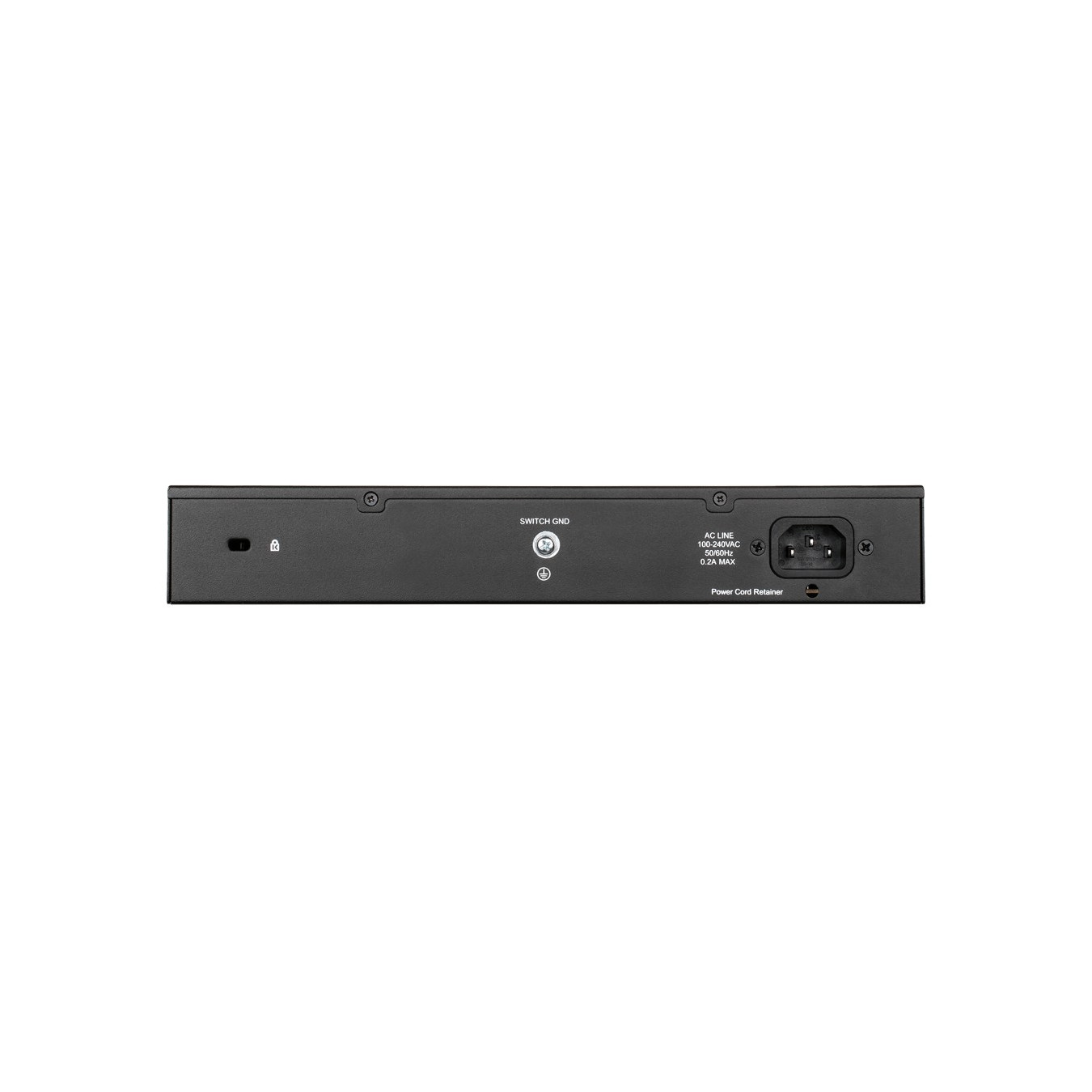

D-Link DGS-1100-24PV2 - 24-Port Gigabit L2 Managed PoE+ Switch (Black, 12x PoE+, 125 MHz CPU, 16 MB Flash)
Managed L2 24-port Gigabit switch with 12 PoE+ ports (30W/port), 100W total PoE budget, fanless, rackmountable, 125 MHz CPU and 16 MB flash.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | Yes |
D-Link DGS-1100-24PV2. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T. 10BASE-TX. 1000BASE-T |
| Virtual LAN features | Port-based VLAN. Voice VLAN |
| Number of VLANs | 128 |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP client |
| Security algorithms | SNMP. SSL/TLS |
| Queue scheduling algorithms | SPQ. Weighted Round Robin (WRR) |
| Product colour | Black |
| Processor frequency | 125 MHz |
| Memory type | DRAM |
| Flash memory | 16 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 255003 h |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 19.5 W |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 100 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 107.5 BTU/h |
| Width | 280 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
| Certification | EMI FCC A. CE A. VCCI A. C-Tick. BSMI. CCCcUL. CE LVD. CB. BSMI. CCC |
