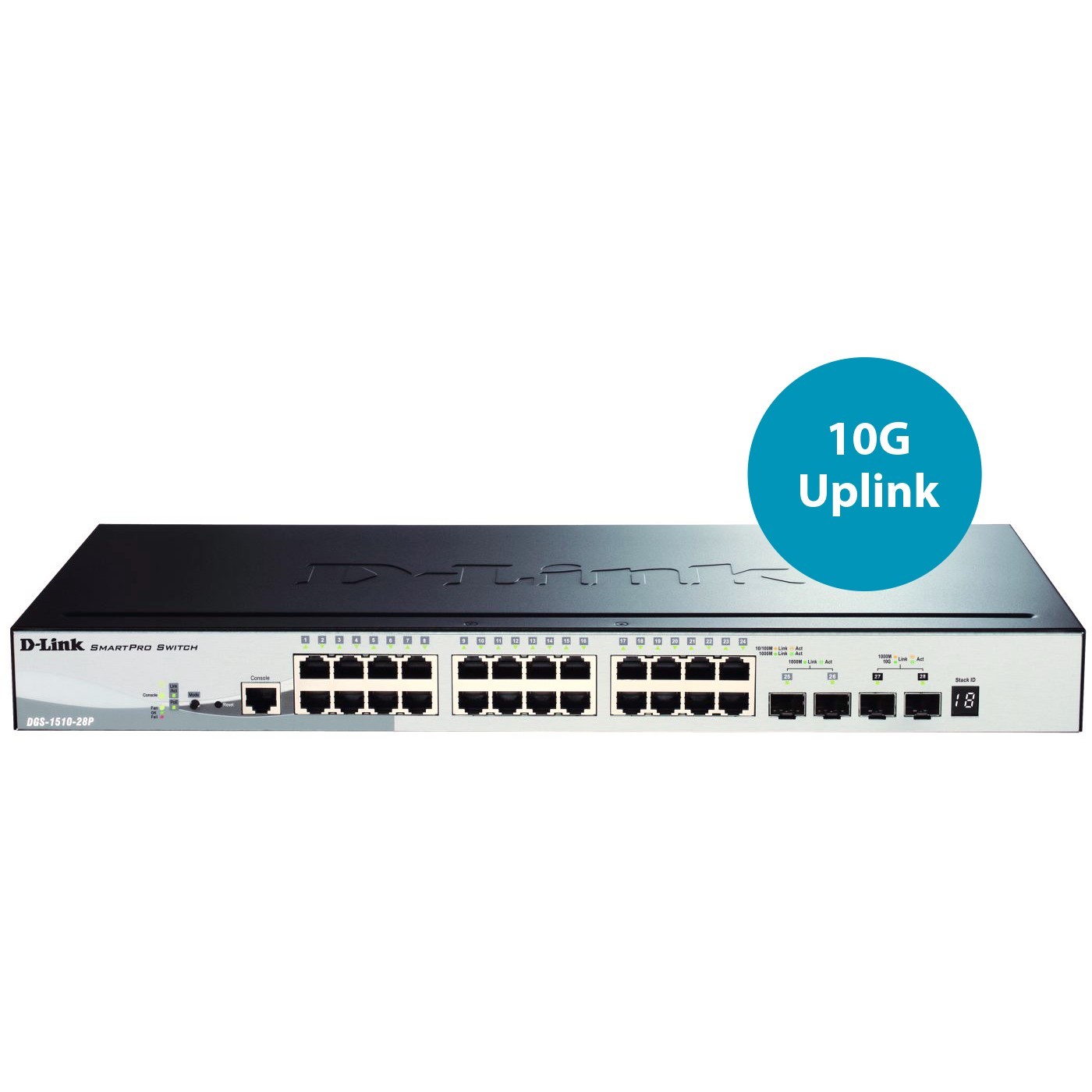

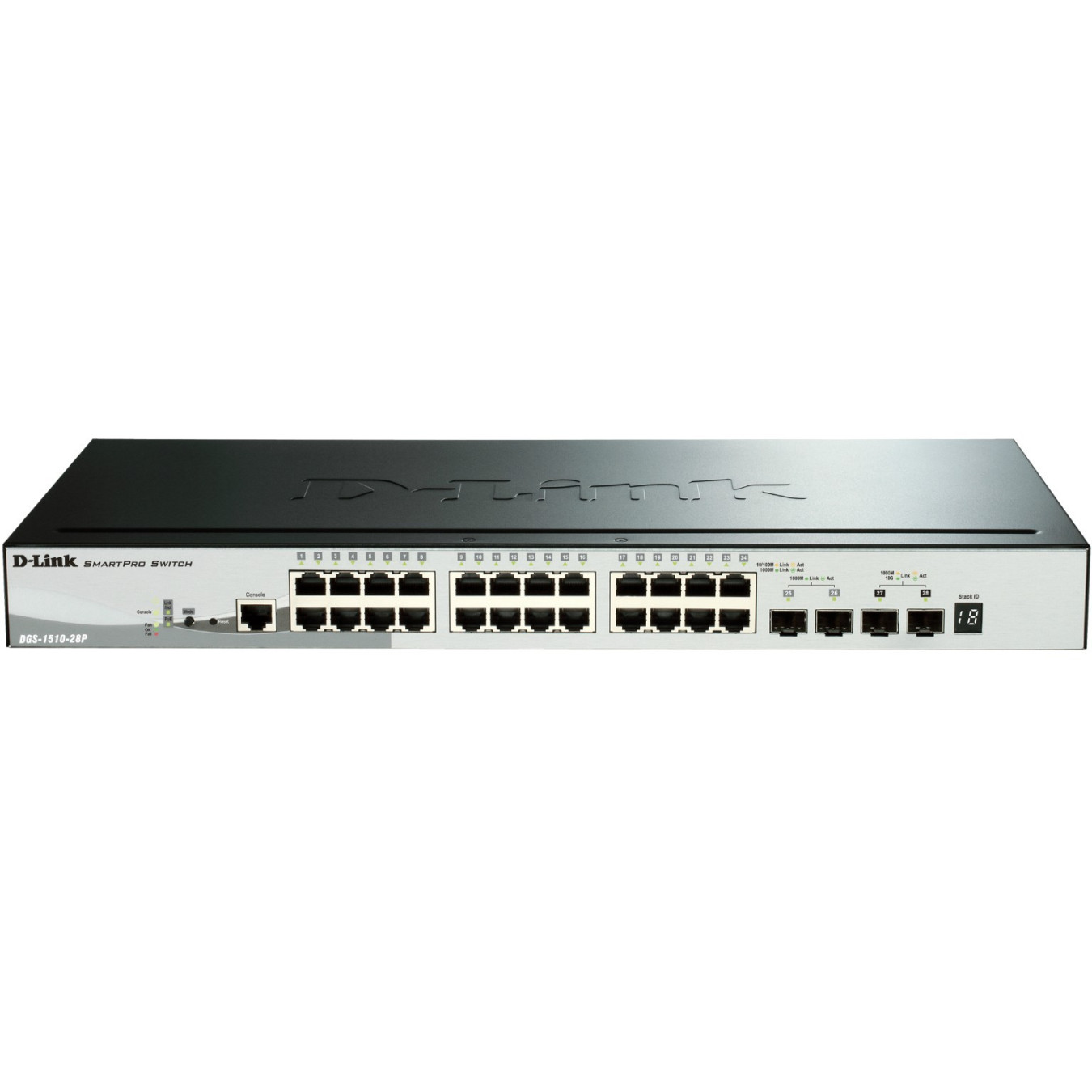

D-Link DGS-1510-28P - 28-Port L3 Smart Managed PoE Switch, 24 PoE Ports, 193W Budget, 2x10G SFP+ & 2xSFP, Rackmount, Black
DGS-1510-28P 28-port L3 smart managed stackable PoE switch with 24 PoE ports (193W budget), 2x10G SFP+ & 2xSFP uplinks, 92 Gbps switching, rackmountable, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
D-Link 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 x 10G SFP+ & 2 x SFP. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1D. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3u. IEEE 802.3x |
| Cable types supported | Cat5. Cat5e |
| Switching capacity | 92 Gbit/s |
| Forwarding rate | 68.45 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 512 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP server. DHCP client |
| Product colour | Black |
| LED indicators | Activity. Link. PoE. Power |
| Number of fans | 2 fan(s) |
| Safety | cUL. CB |
| Physical stacking (units) | 6 |
| Virtual stacking (units) | 32 |
| Noise level | 46.4 dB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 238.7 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 813.967 BTU/h |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 2.54 kg |
| Package width | 348 mm |
| Package depth | 511 mm |
| Package height | 91 mm |
| Package weight | 4 kg |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 52.9 cm |
| Shipping (inner) case net weight | 9.27 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 533.9 kg |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.05 m |
| Pallet gross weight (sea) | 533.9 kg |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 12.9 kg |
| Certification | CE. FCC. C-Tick. VCCI. BSMI. CCC |
| Harmonized System (HS) code | 85176990 |
