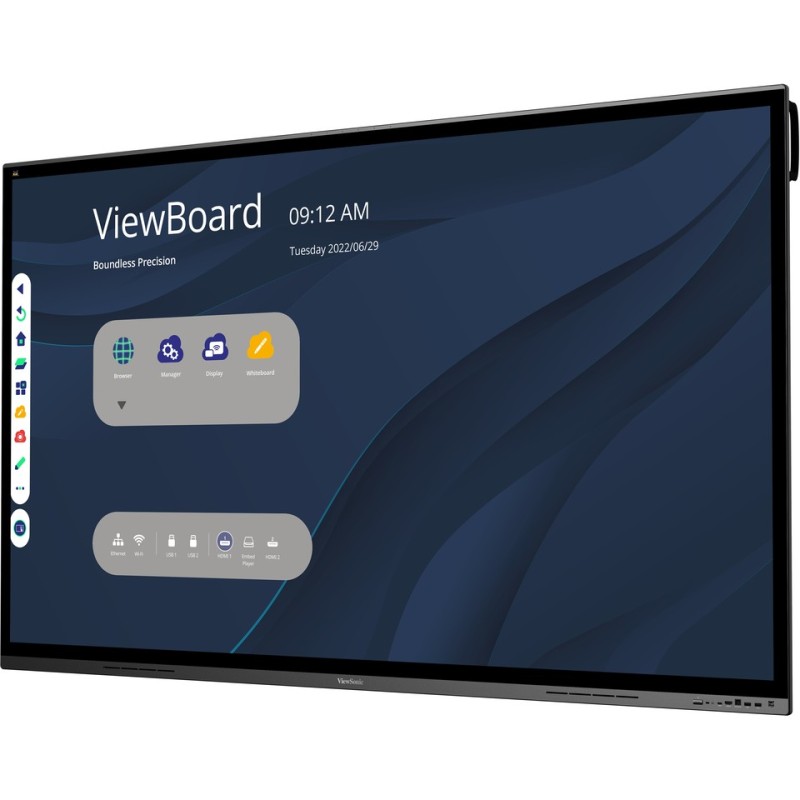

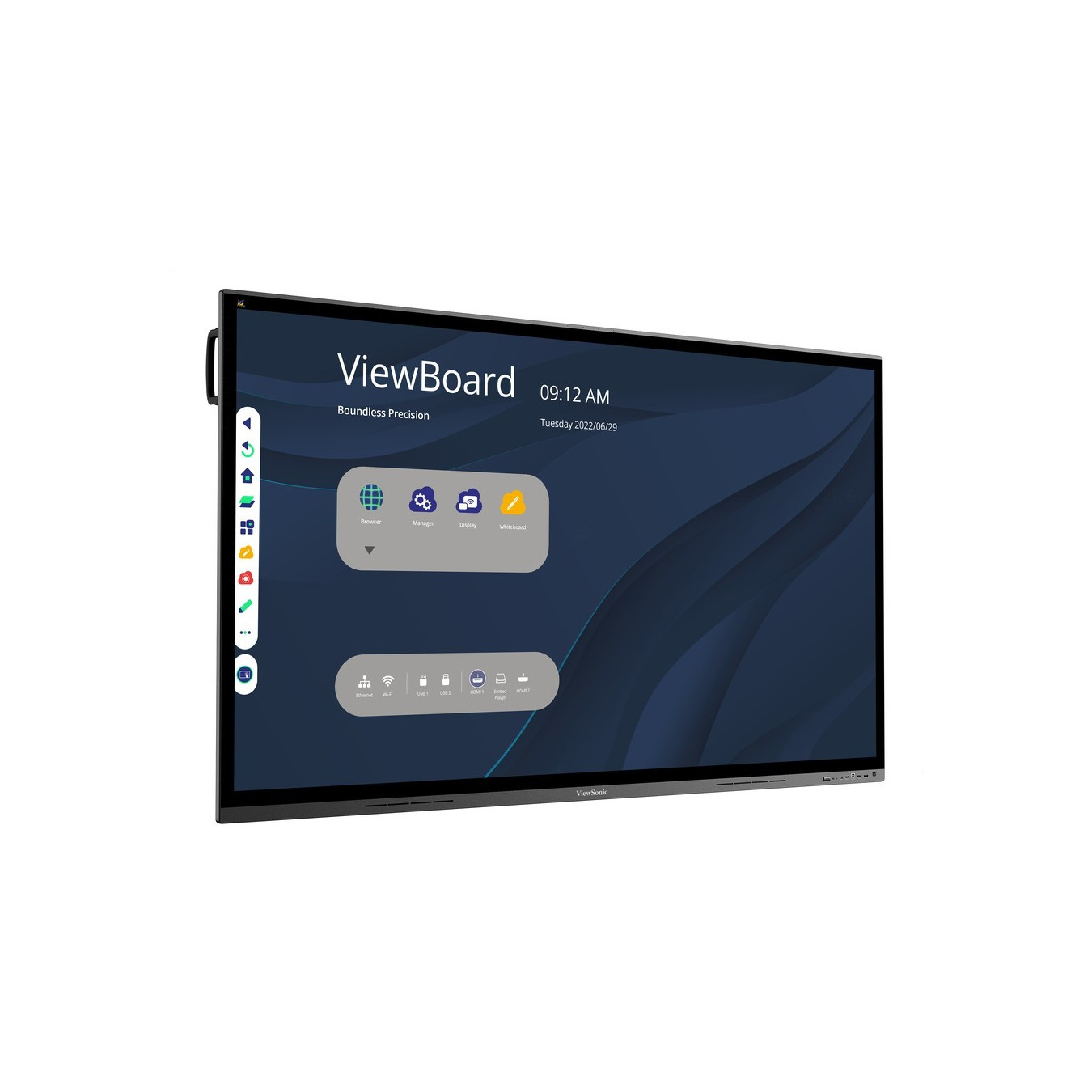

ViewSonic IFP8662 - 86in 4K Interactive Flat Panel - 3840x2160, Android 8.0, USB-C PD 65W, 24W Audio, Black
86in ViewSonic IFP8662 4K (3840x2160) interactive flat panel with 20-point Ultra Fine Touch, Android 8.0 SoC (ARM Cortex-A73 1.2GHz), 3GB/32GB, USB-C PD 65W, Wi‑Fi, 24W audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
| Monitors - USB Hub | USB-A + USB-C |
Viewsonic IFP8662. Product design: Interactive flat panel. Display diagonal: 2.18 m (86"). Display technology: LED. Display resolution: 3840 x 2160 pixels. Display brightness: 350 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating system installed: Android 8.0. Product colour: Black
| Panel type | TFT-LCD |
| Feature | Built-in subwoofer |
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Ultra Fine Touch (UFT) |
| Number of simultaneous touchpoints | 20 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Active display area (W x H) | 1895.04 x 1065.96 mm |
| Surface hardness | 9H |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 9 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A. USB Type-B. USB Type-C |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Digital audio optical out | 1 |
| Number of built-in speakers | 2 |
| RMS rated power | 24 W |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Bezel width (bottom) | 6.39 cm |
| Bezel width (side) | 3.15 cm |
| Bezel width (top) | 3.88 cm |
| Purpose | Universal |
| HDCP version | 2.2 |
| Power consumption (typical) | 160 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 580 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 200 kWh |
| AC input voltage | 100 - 240 V |
| Energy efficiency scale | A to G |
| Computer system type | System on Chip (SoC) |
| Processor architecture | ARM Cortex-A73 |
| Processor frequency | 1.2 GHz |
| Processor cores | 4 |
| Internal memory | 3 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 8.0 |
| Display width | 1960 mm |
| Display depth | 80 mm |
| Display height | 1171 mm |
| Display weight | 63.7 kg |
| Package width | 2113 mm |
| Package depth | 270 mm |
| Package height | 1290 mm |
| Package weight | 84.2 kg |
| Number of stylus pens | 2 |
| Cables included | HDMI. Power. RS-232. USB Type-C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| OPS slot | 1 |
| Mobile operating systems supported | Android |
| Subwoofer RMS power | 15 W |
| USB 2.0 ports quantity | 1 |
