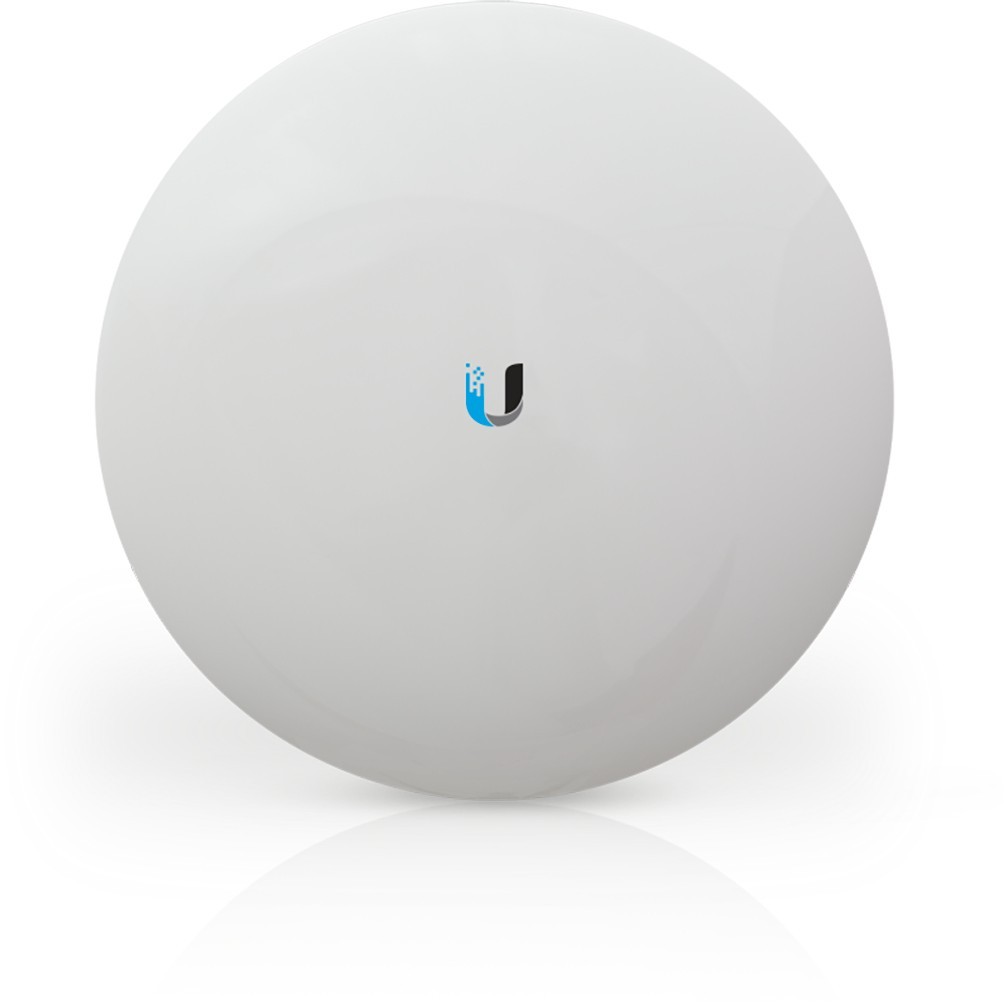

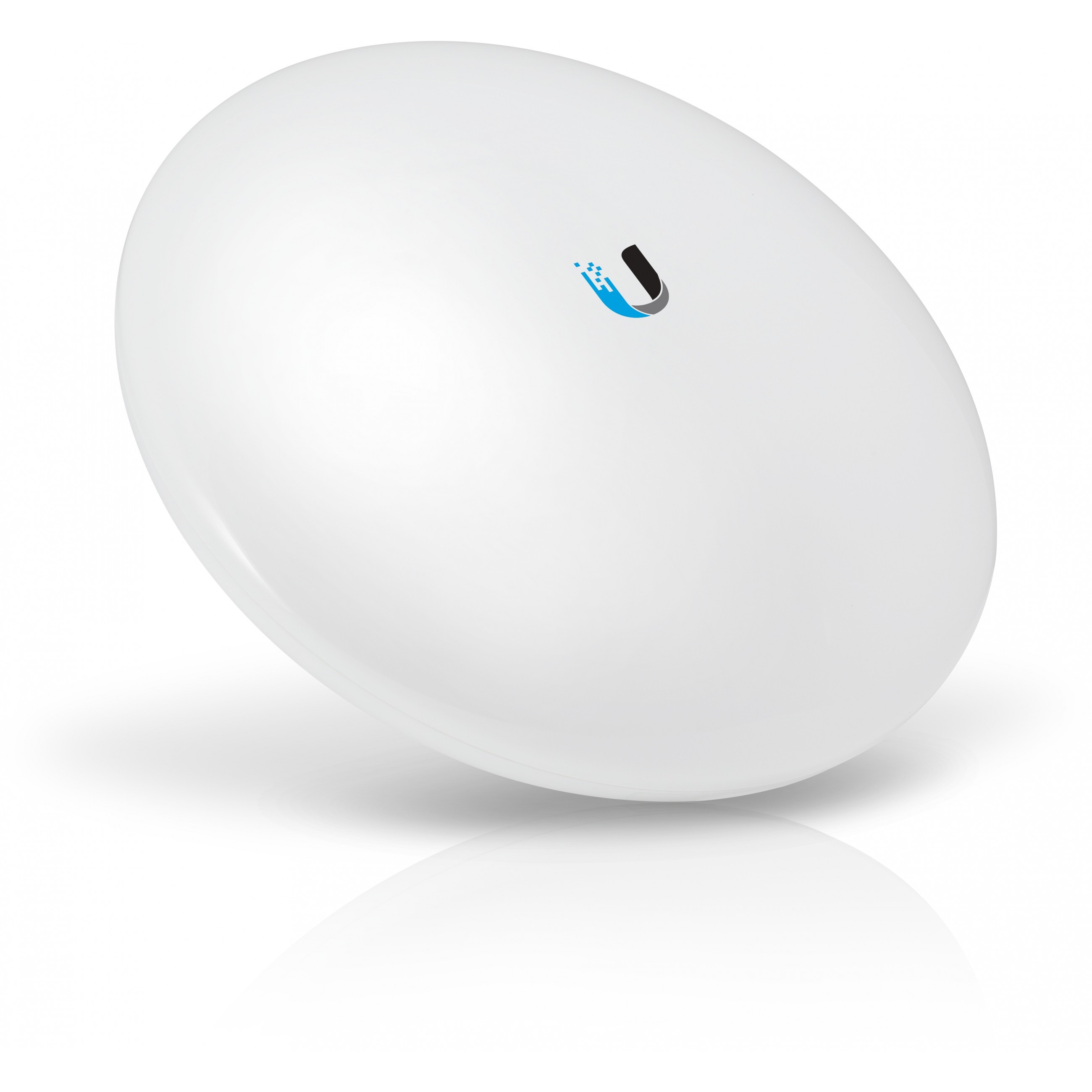

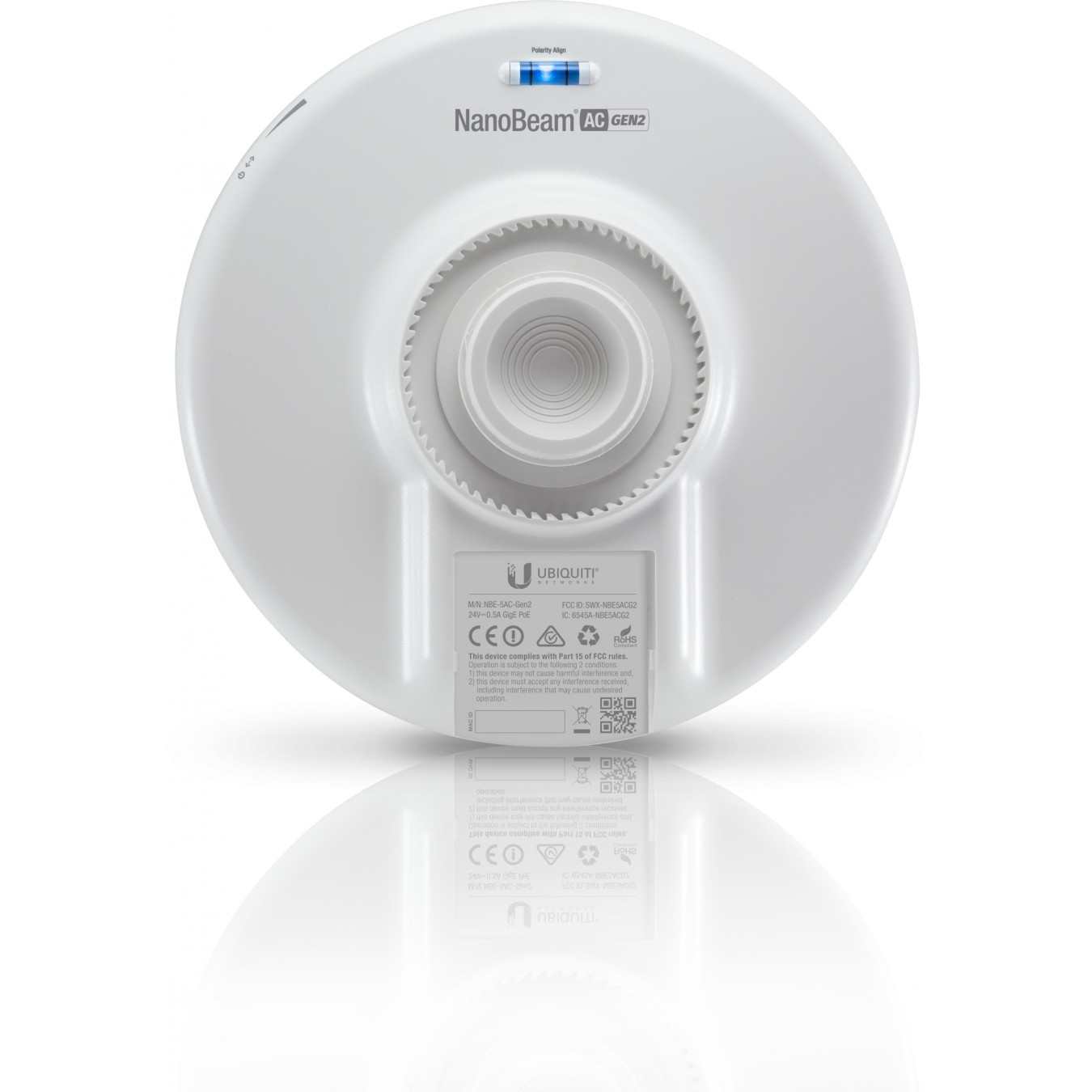

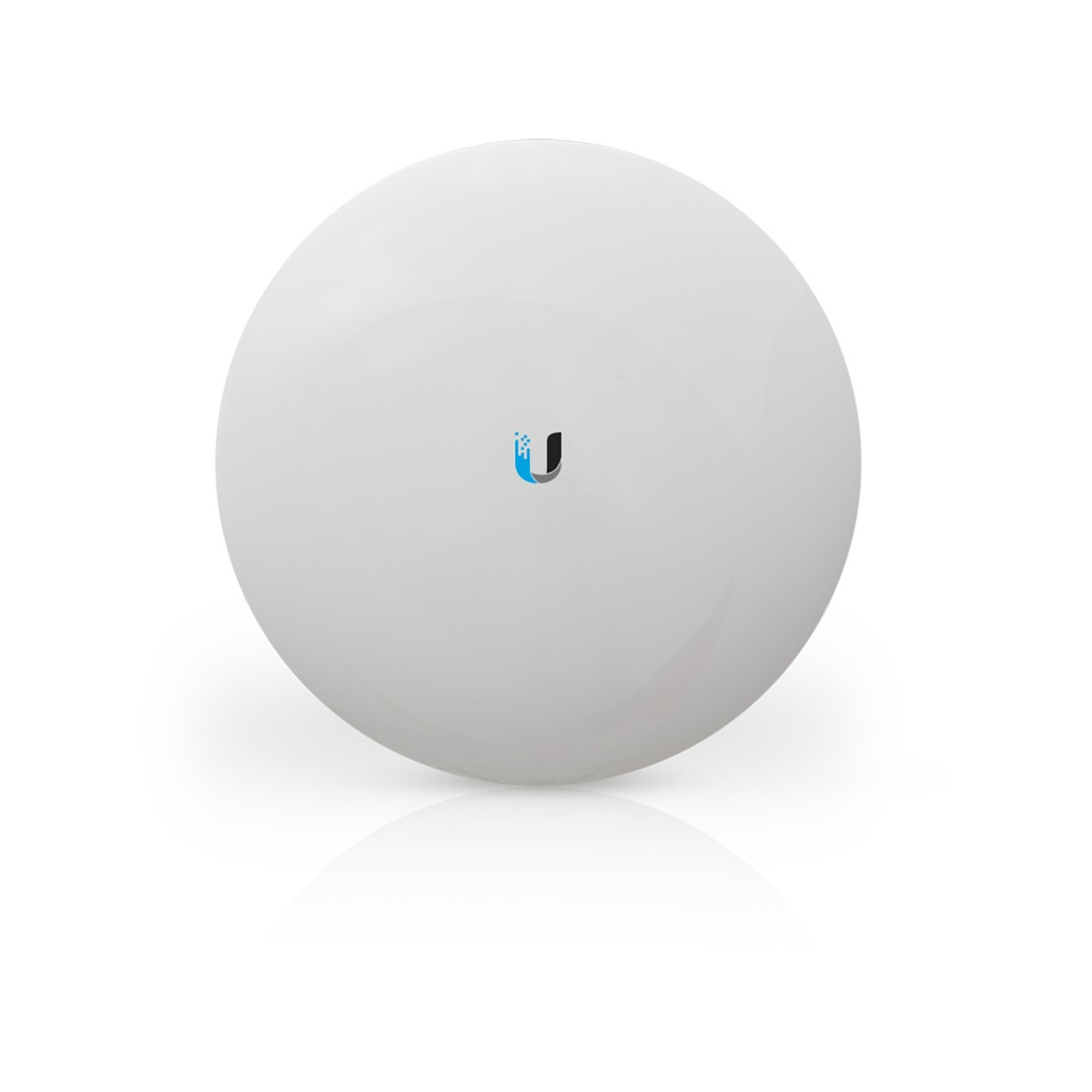

Ubiquiti NanoBeam 5AC Gen2 - 5 GHz Bridge - White, 128MB RAM, 720MHz MIPS
Compact 5 GHz NanoBeam bridge — up to 450 Mbps, 19 dBi antenna gain, 15 km range, Gigabit Ethernet (2x), 24V Passive PoE, wall/pole mount, weather-resistant design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Wireless Bridges - Frequency | 5 GHz |
|---|---|
| Wireless Bridges - PoE | 24V Passive |
| Wireless Bridges - Range | 5-15 km |
Ubiquiti NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s. Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 - 5.875| 5.15 - 5.25| 5.25 - 5.35| 5.47 - 5.725| 5.725 - 5.85 GHz. Modulation: 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK. Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000 Mbit/s. Security algorithms: WPA2
| Maximum data transfer rate | 450 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna gain level (max) | 19 dBi |
| Feature | Mounting bracket(s) included |
| Frequency band | 5.15 - 5.875| 5.15 - 5.25| 5.25 - 5.35| 5.47 - 5.725| 5.725 - 5.85 GHz |
| Modulation | 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |

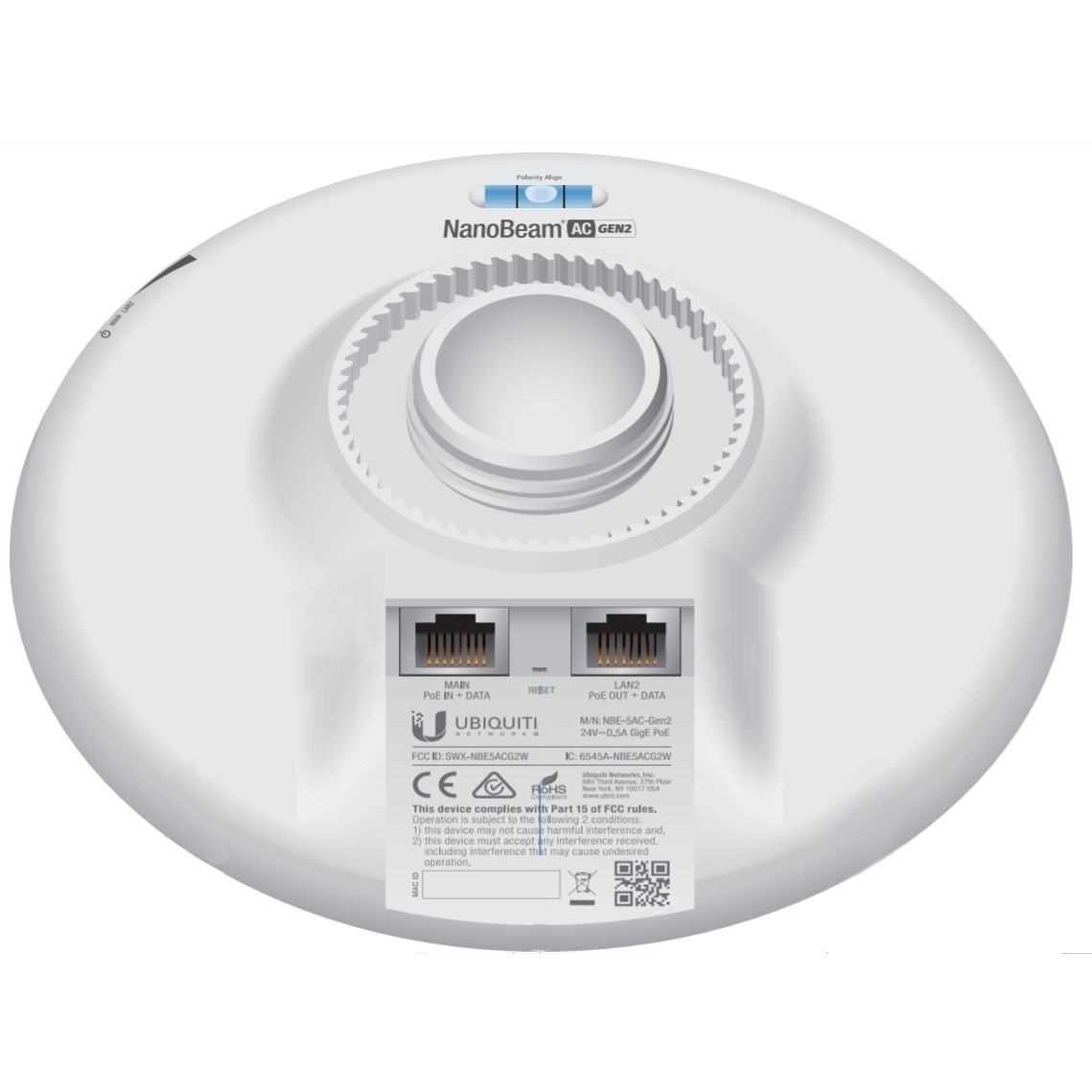

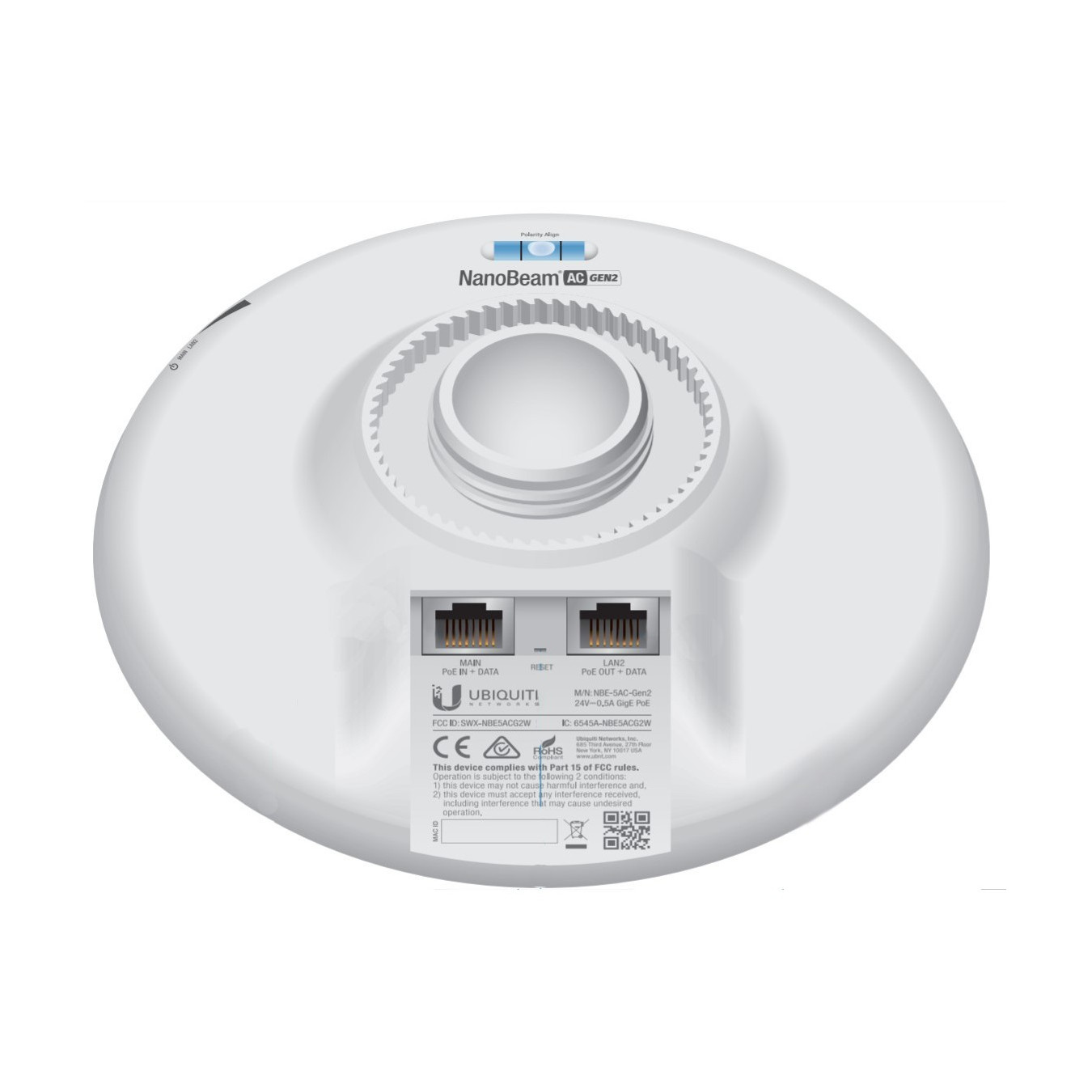

| Ethernet LAN (RJ-45) ports | 2 |
| Security algorithms | WPA2 |
| Product type | Network bridge |
| Material | Plastic |

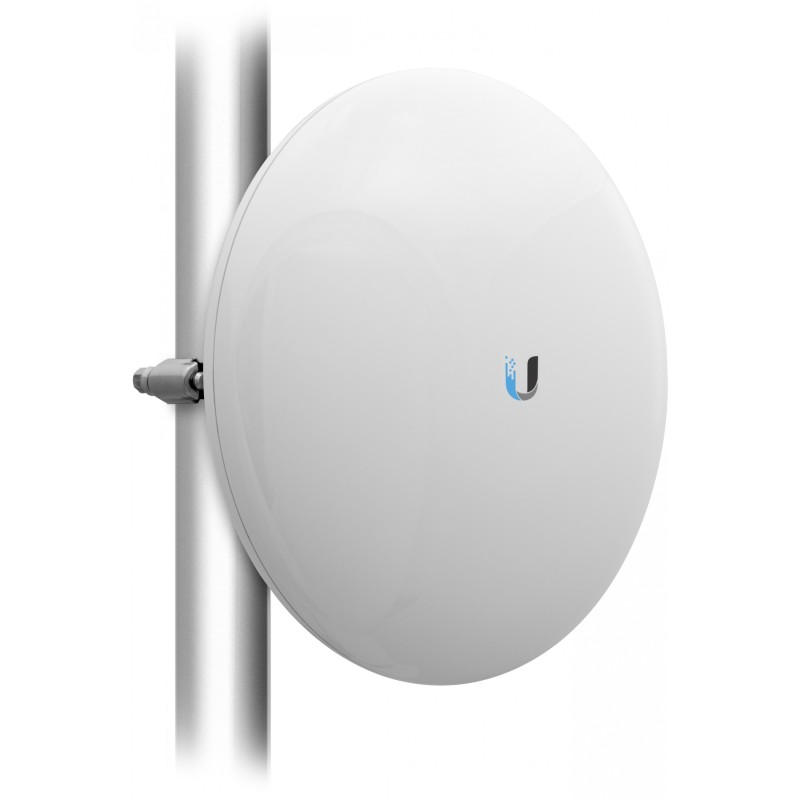

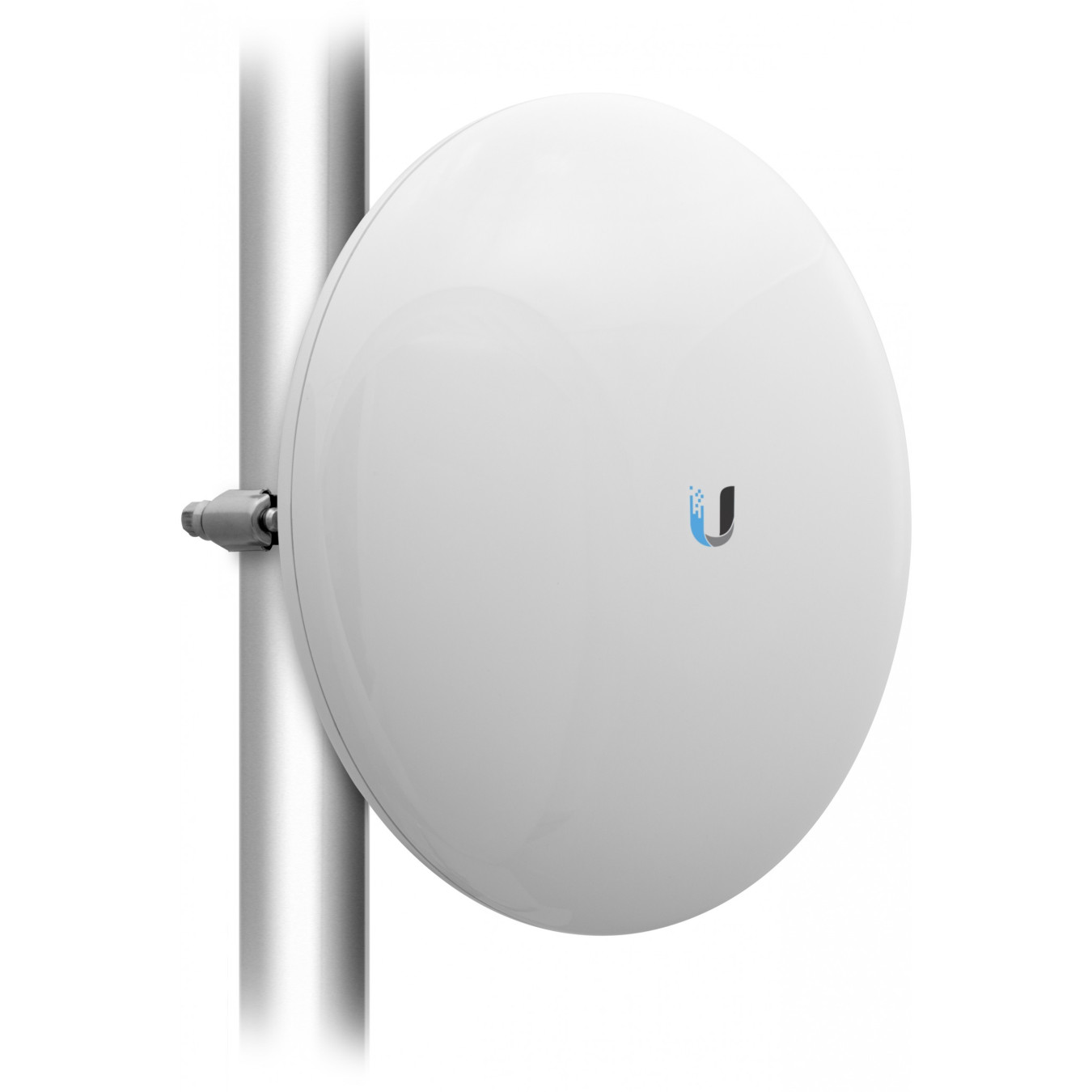

| Mounting type | Wall/Pole |
| Product colour | White |

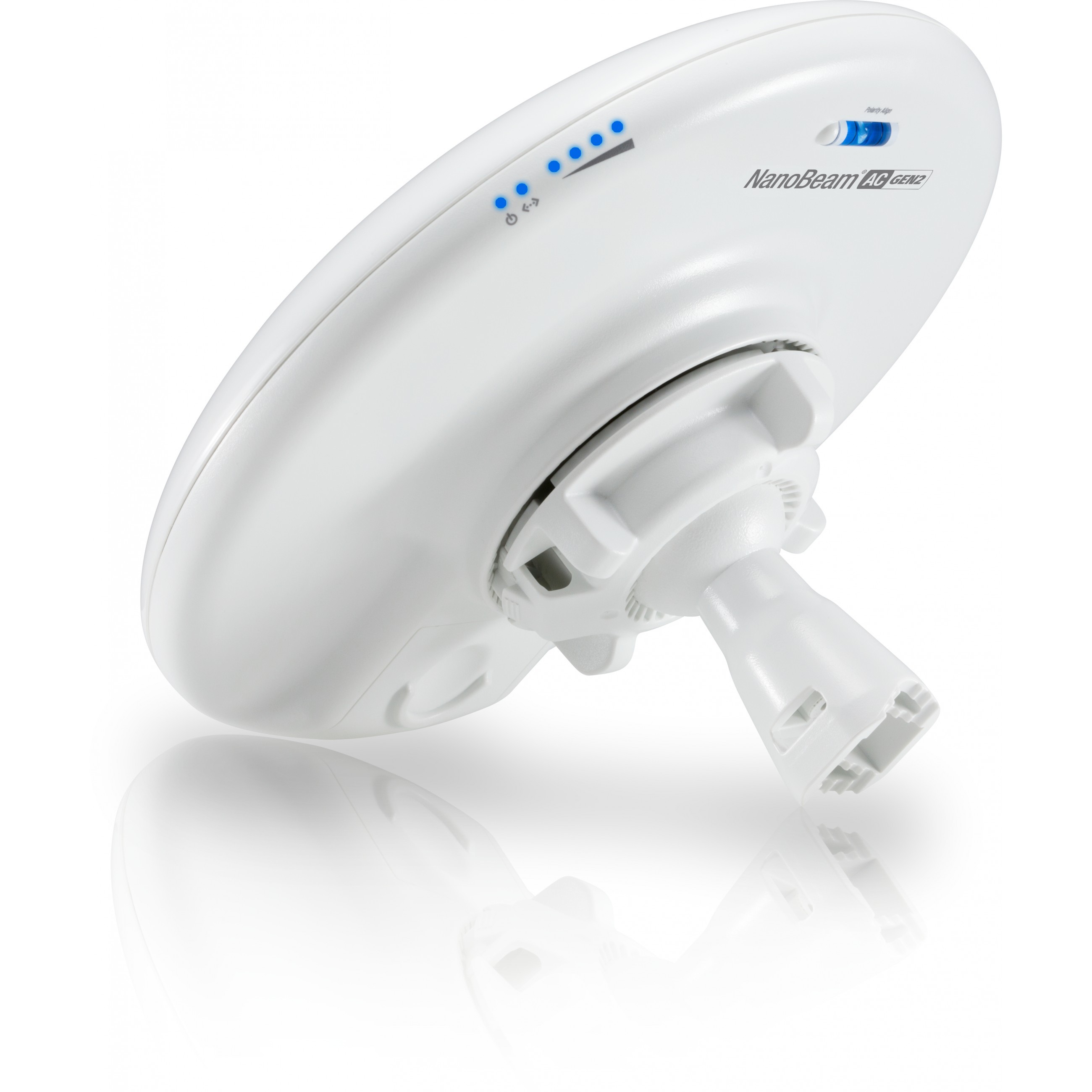

| LED indicators | LAN. Power. Signal strength |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 720 MHz |
| Internal memory | 128 MB |
| RAM type | DDR2 |
| Power source type | PoE |
| Power consumption (max) | 8.5 W |
| DC output voltage | 24 V |
| DC output current | 0.5 A |
| Operating temperature (T-T) | -40 - 176 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. RoHS |
| Certification | CE. FCC. IC. RoHS |
| Width | 189 mm |
| Depth | 189 mm |
| Height | 125 mm |
| Weight | 530 g |
| Cables included | AC |
| Flash memory | 8 MB |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
