Fractal Design Define R5 Mid Tower PC Case Black ATX/mATX/Mini-ITX 440mm GPU (Boxed)
Mid-tower silent PC case in black. Supports ATX/microATX/Mini-ITX mobos, 440mm GPUs, 180mm CPU coolers. 8x3.5" + 2x2.5" + 2x5.25" bays. Includes 2x140mm fans, fan controller. Superior noise dampening, extensive radiator support up to 420mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 2 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

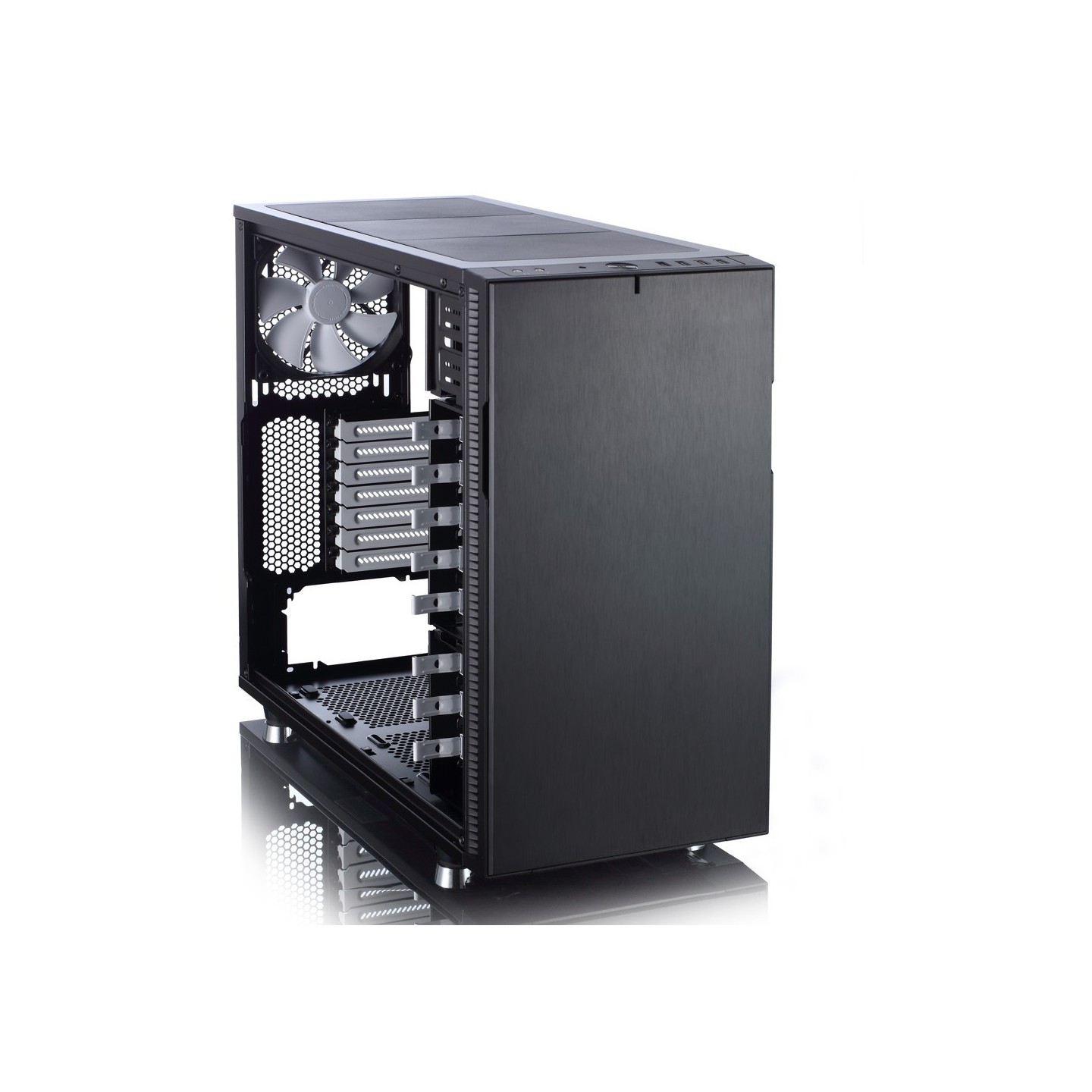

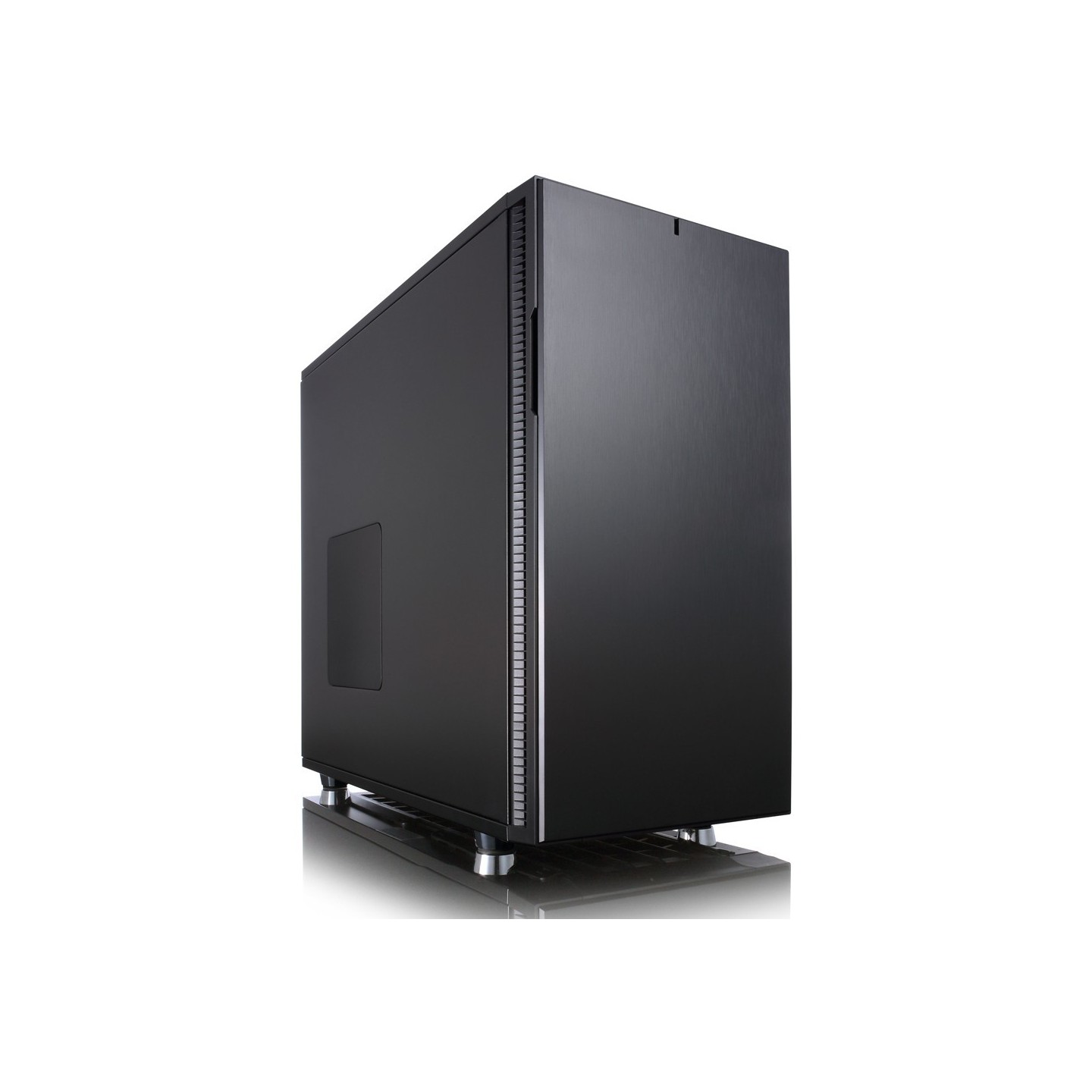

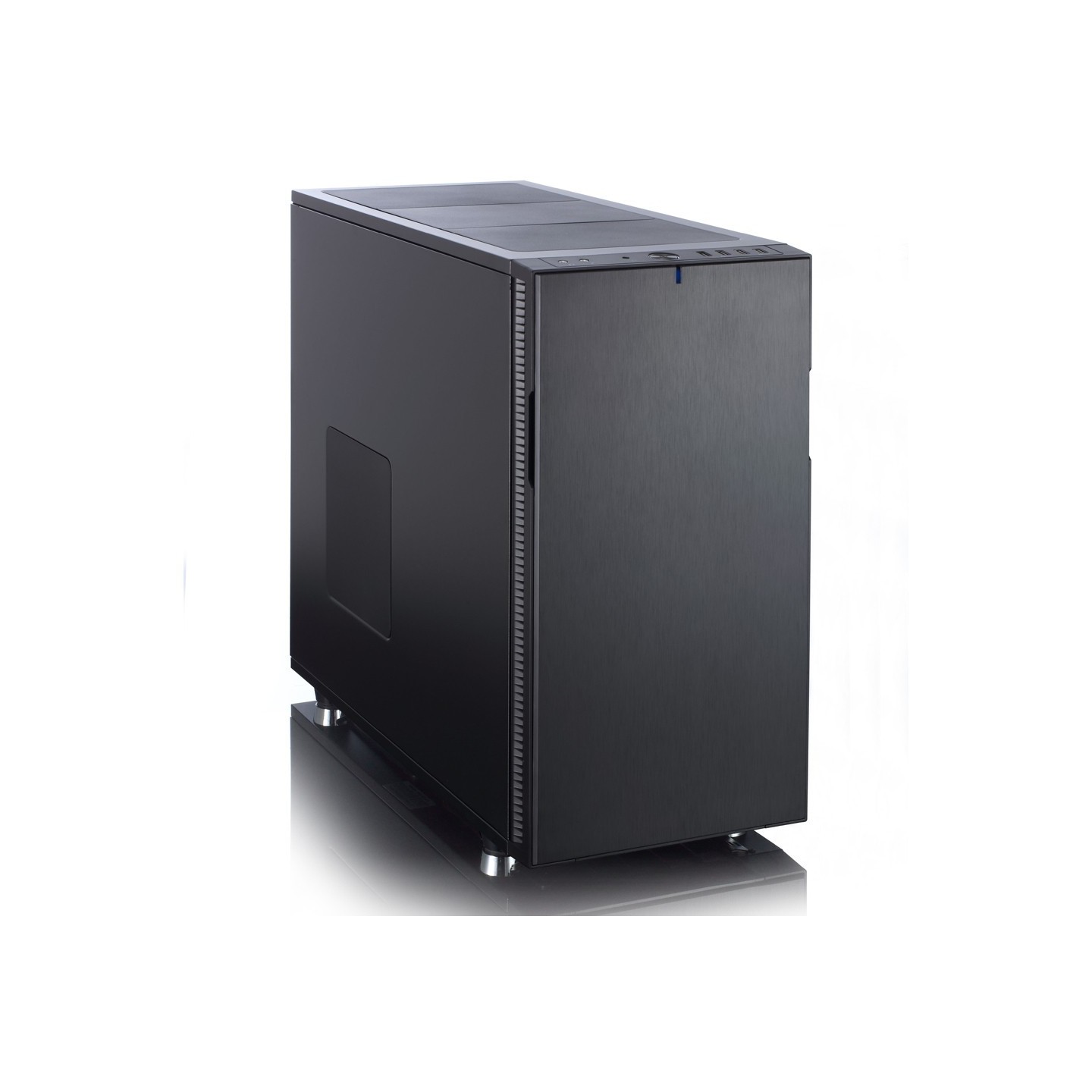

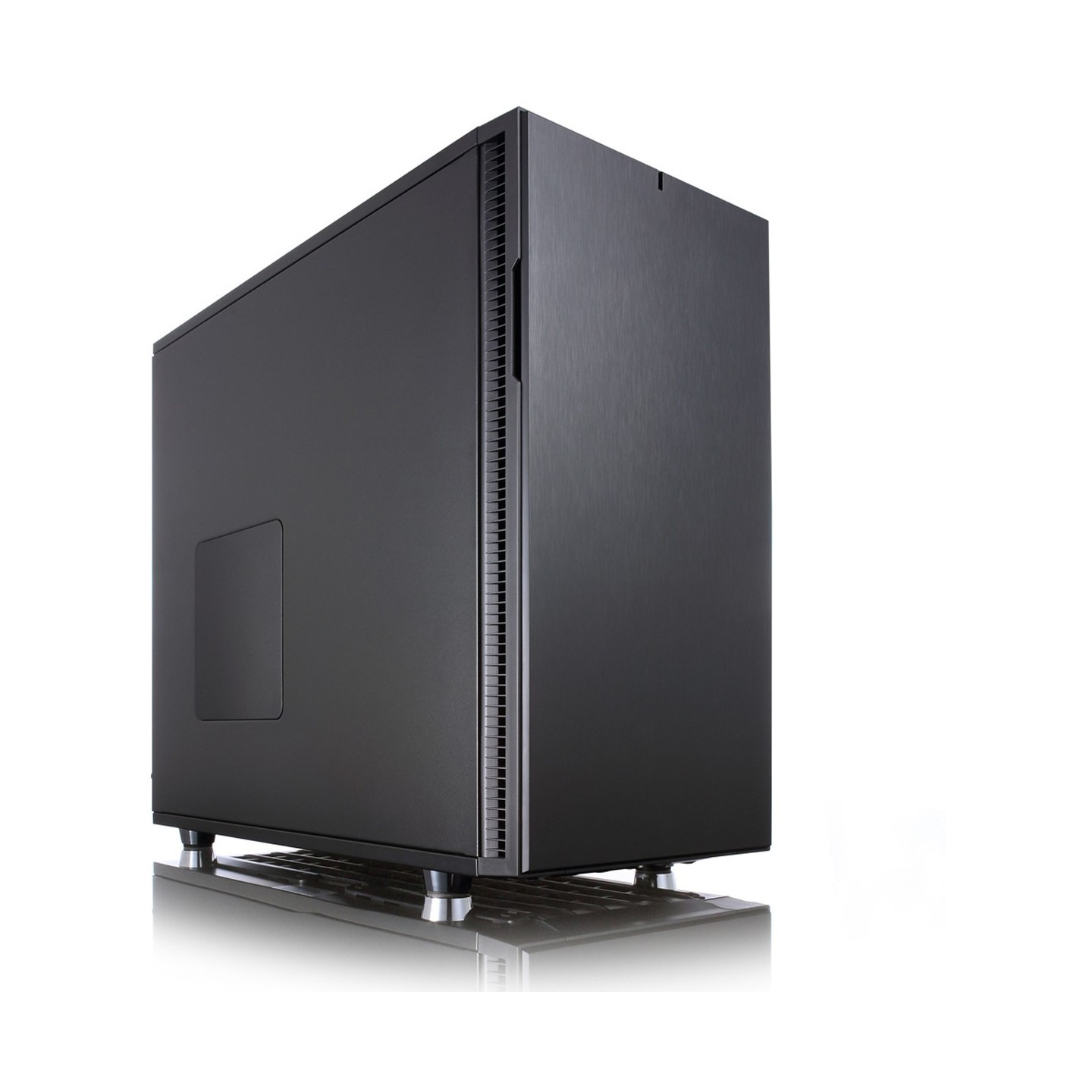

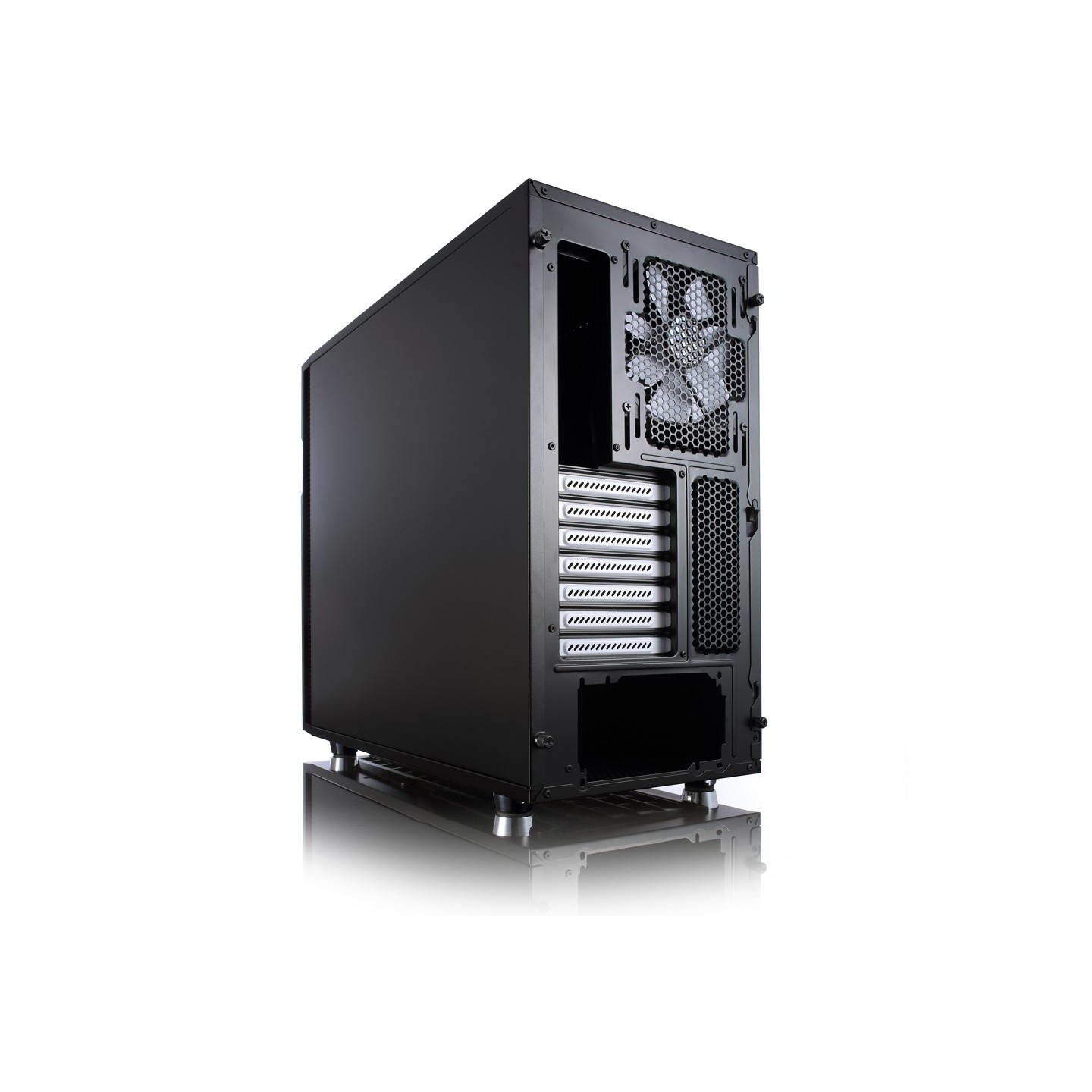

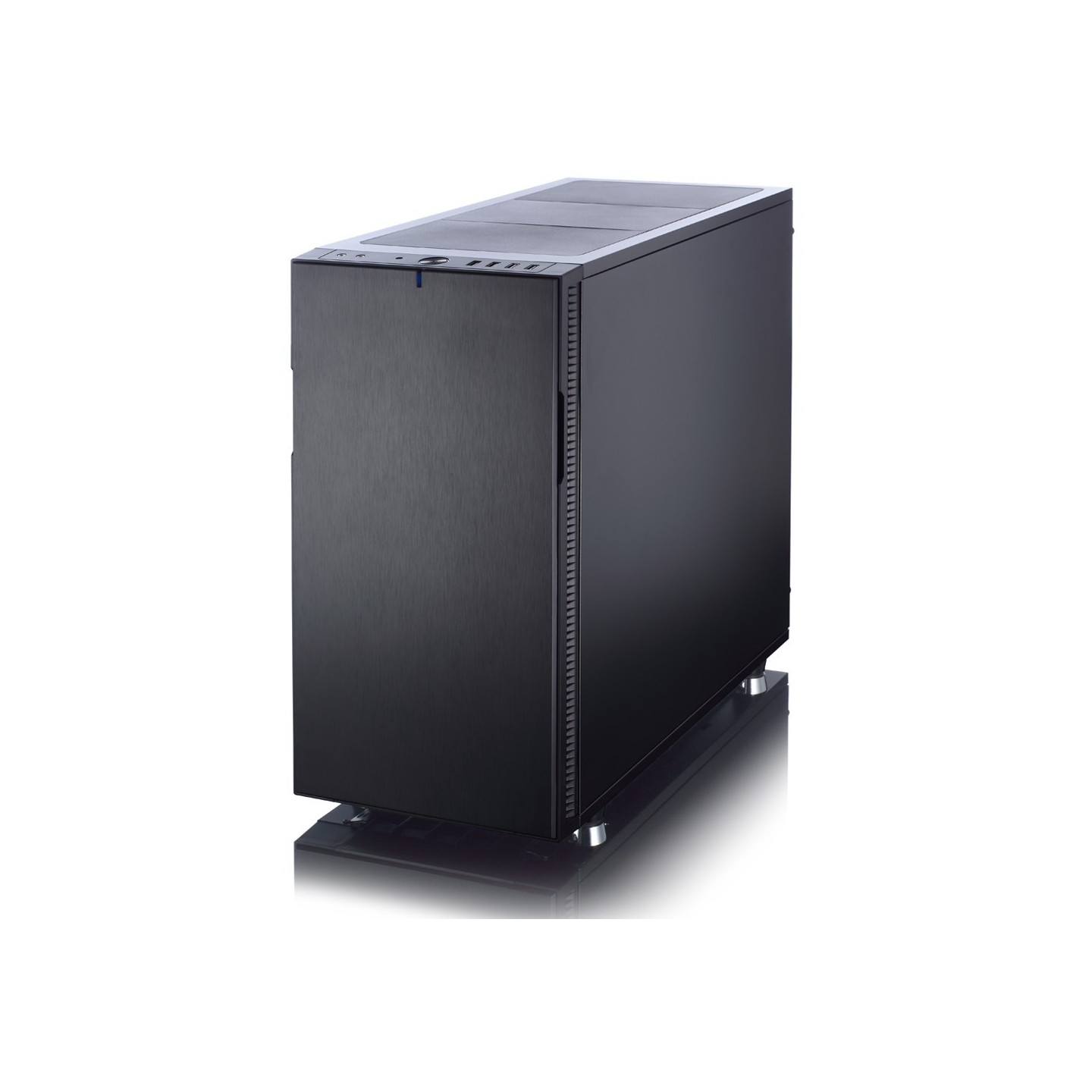

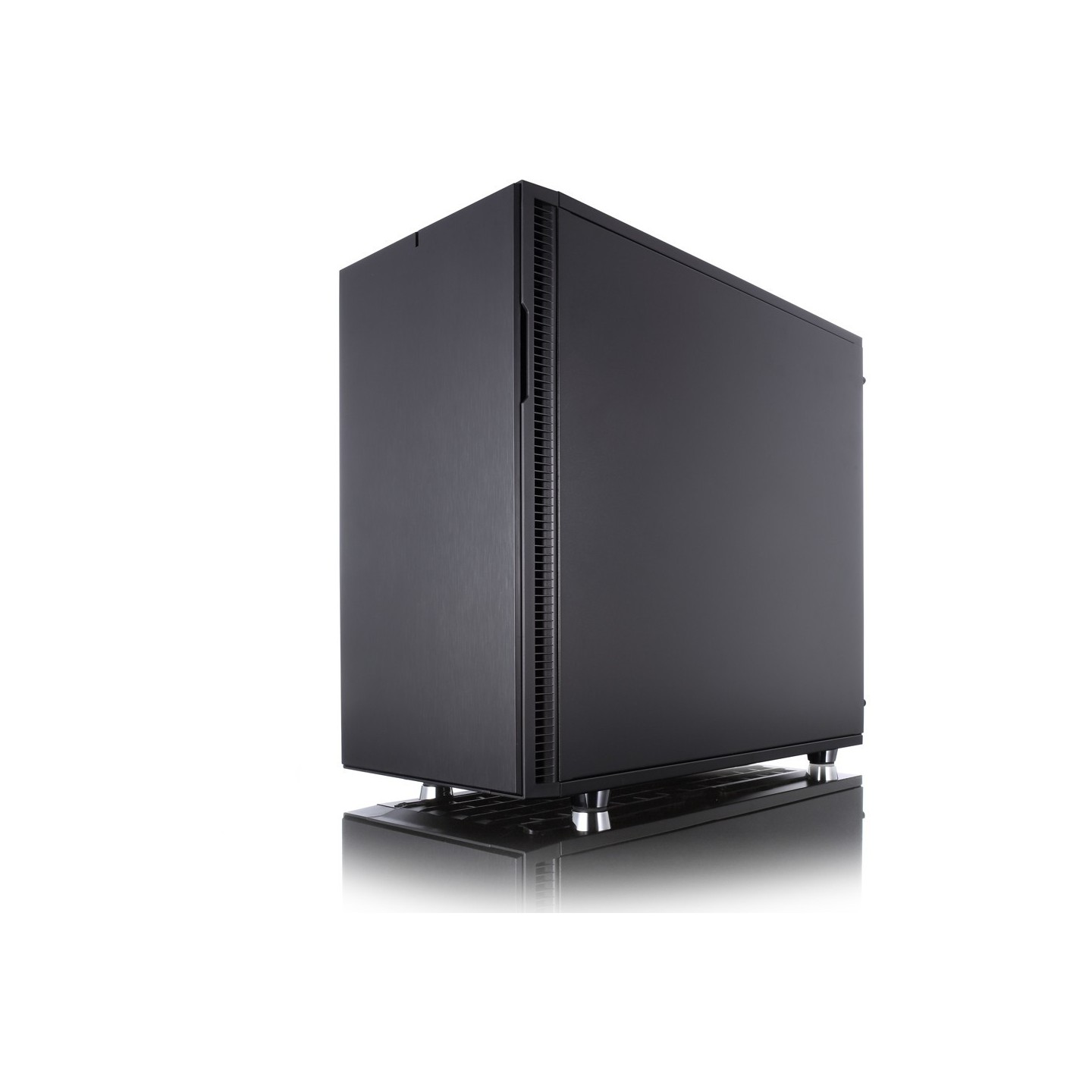

The Fractal Design Define R5 is a premium mid-tower PC case optimized for silent computing, featuring high-density sound-dampening material on all panels for exceptional noise reduction without sacrificing airflow.

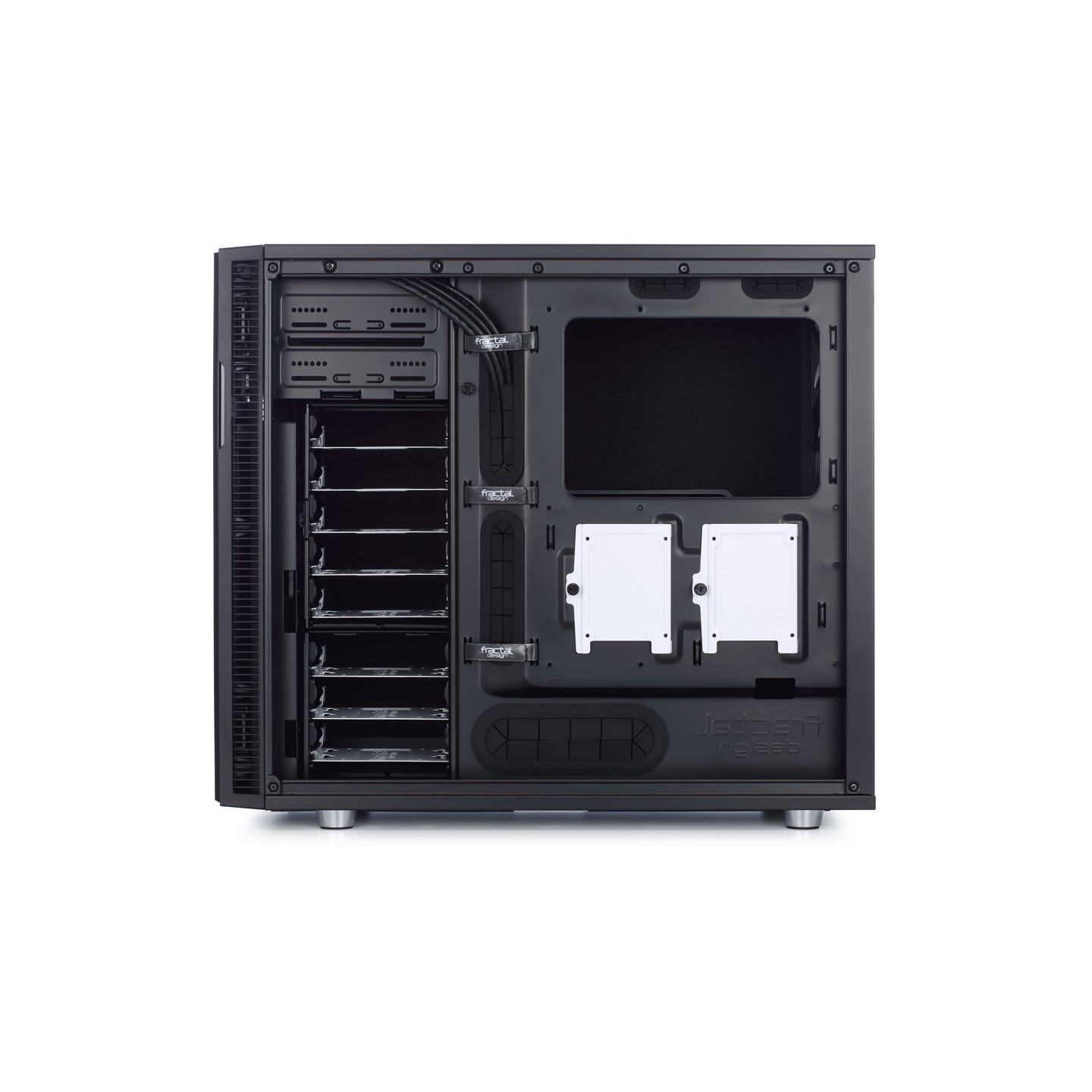

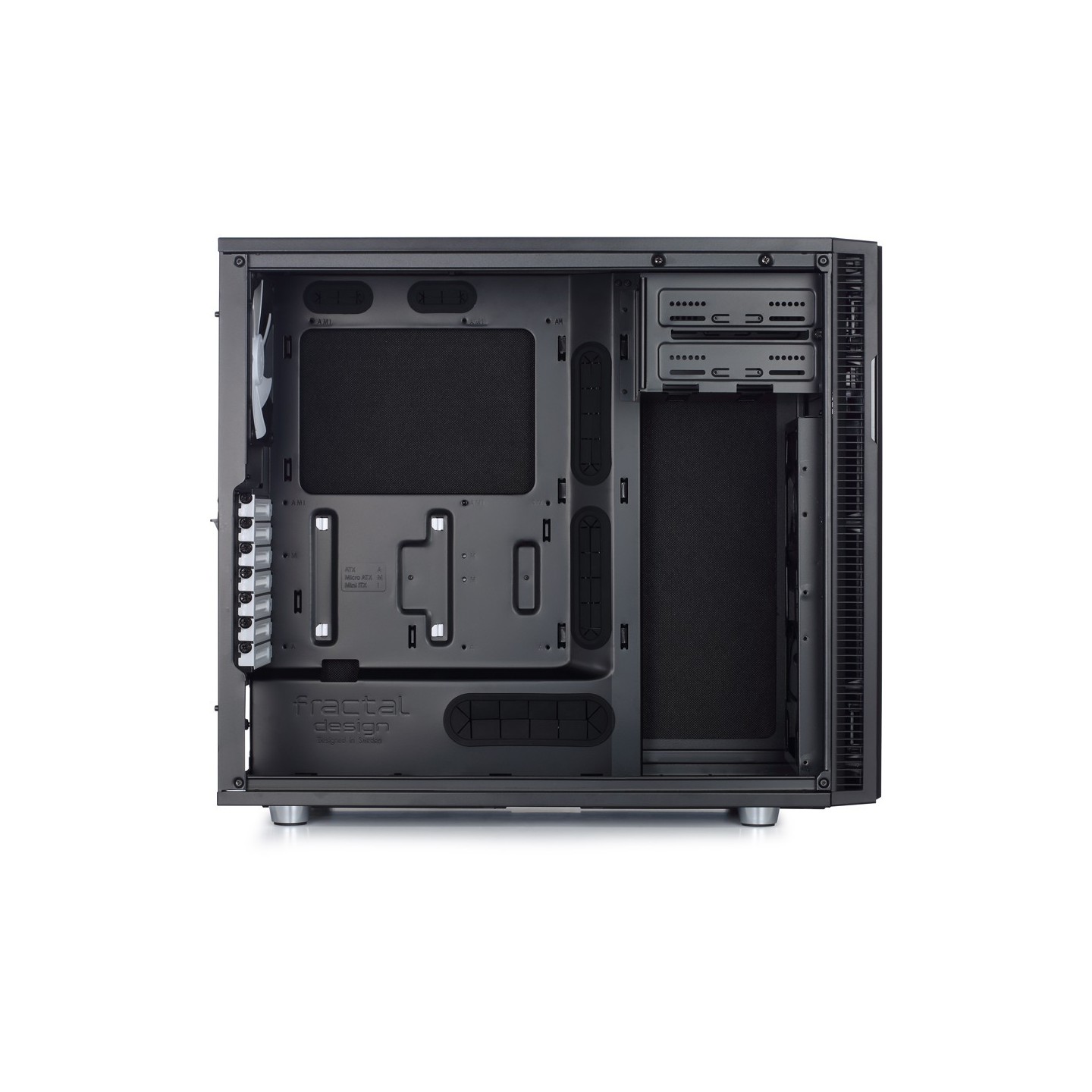

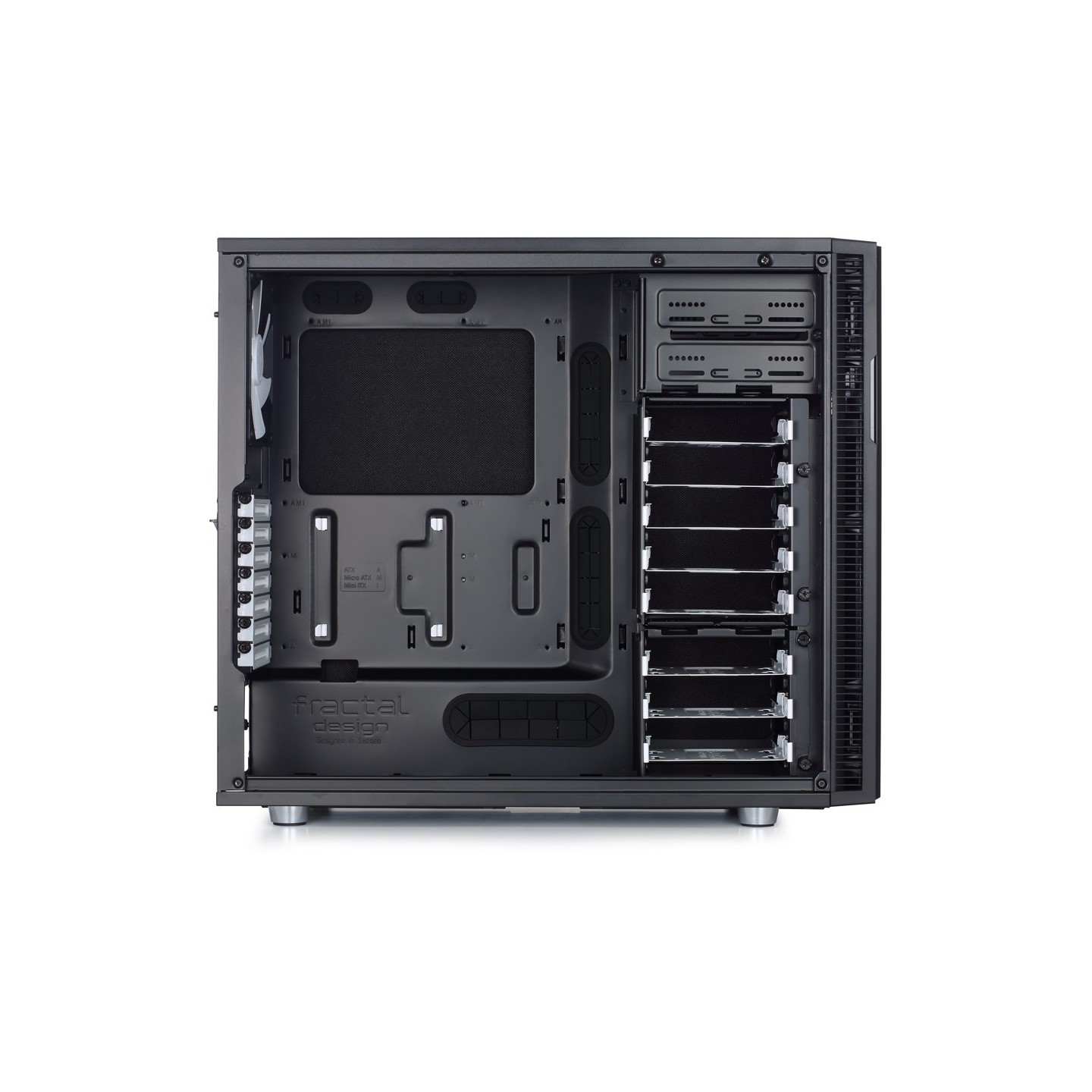

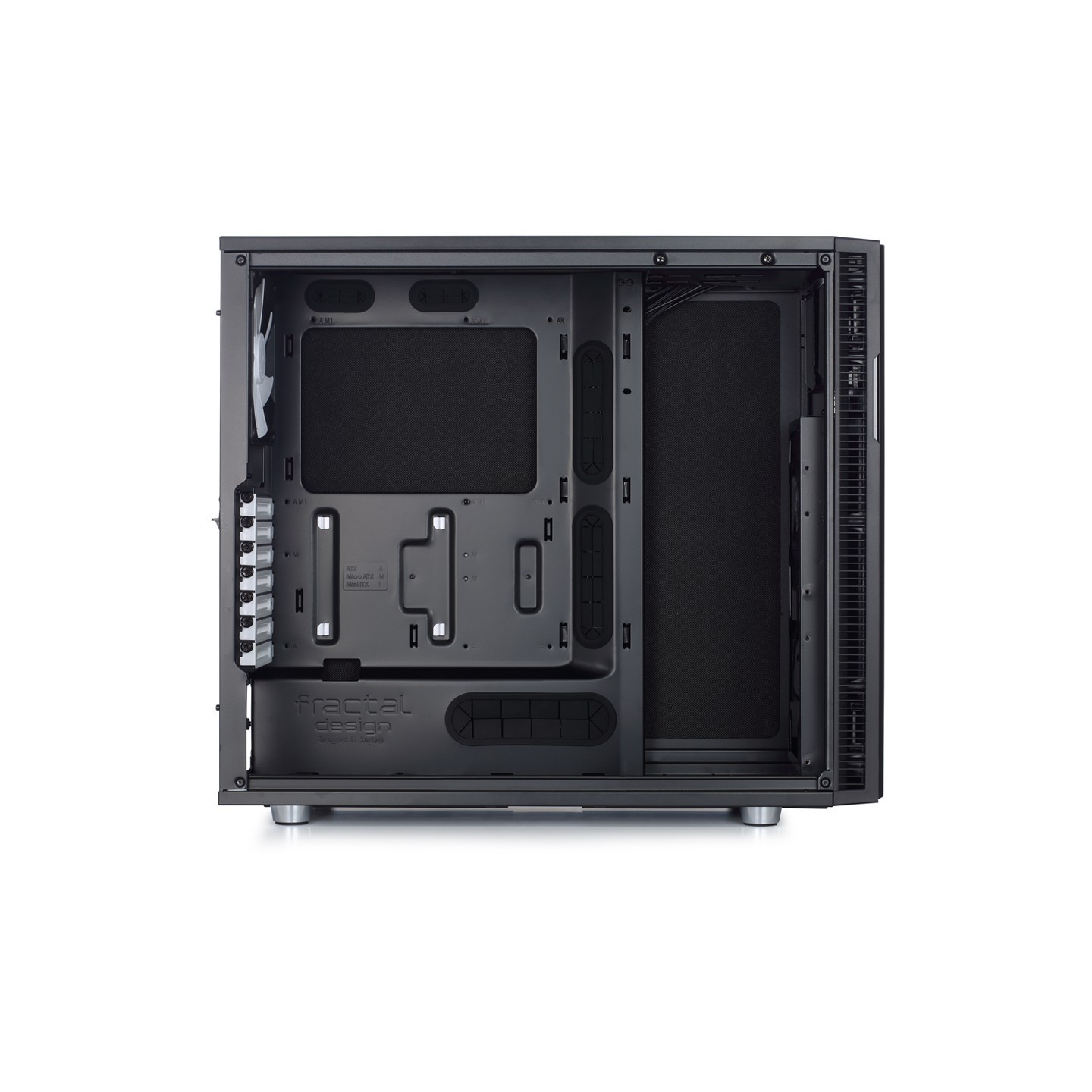

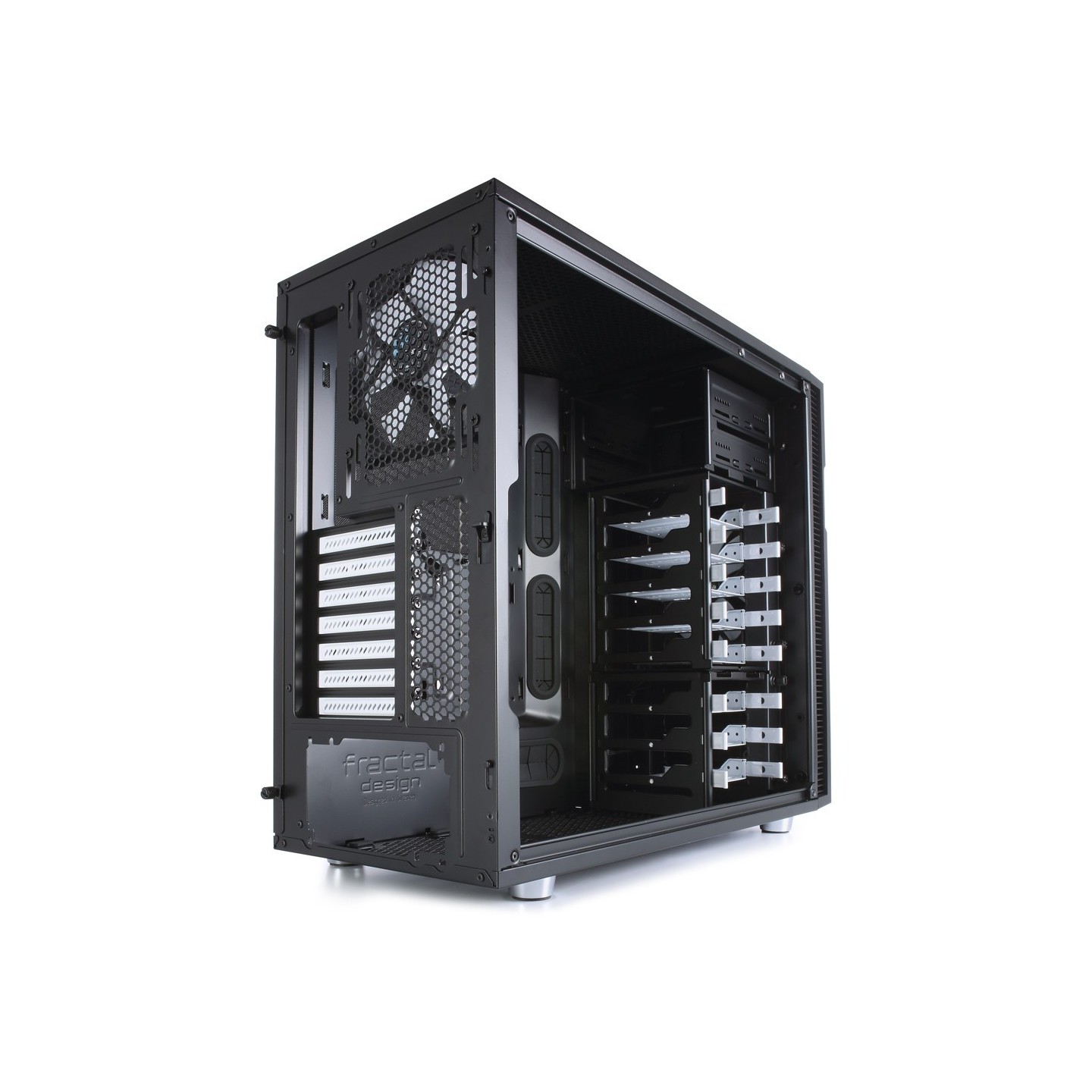

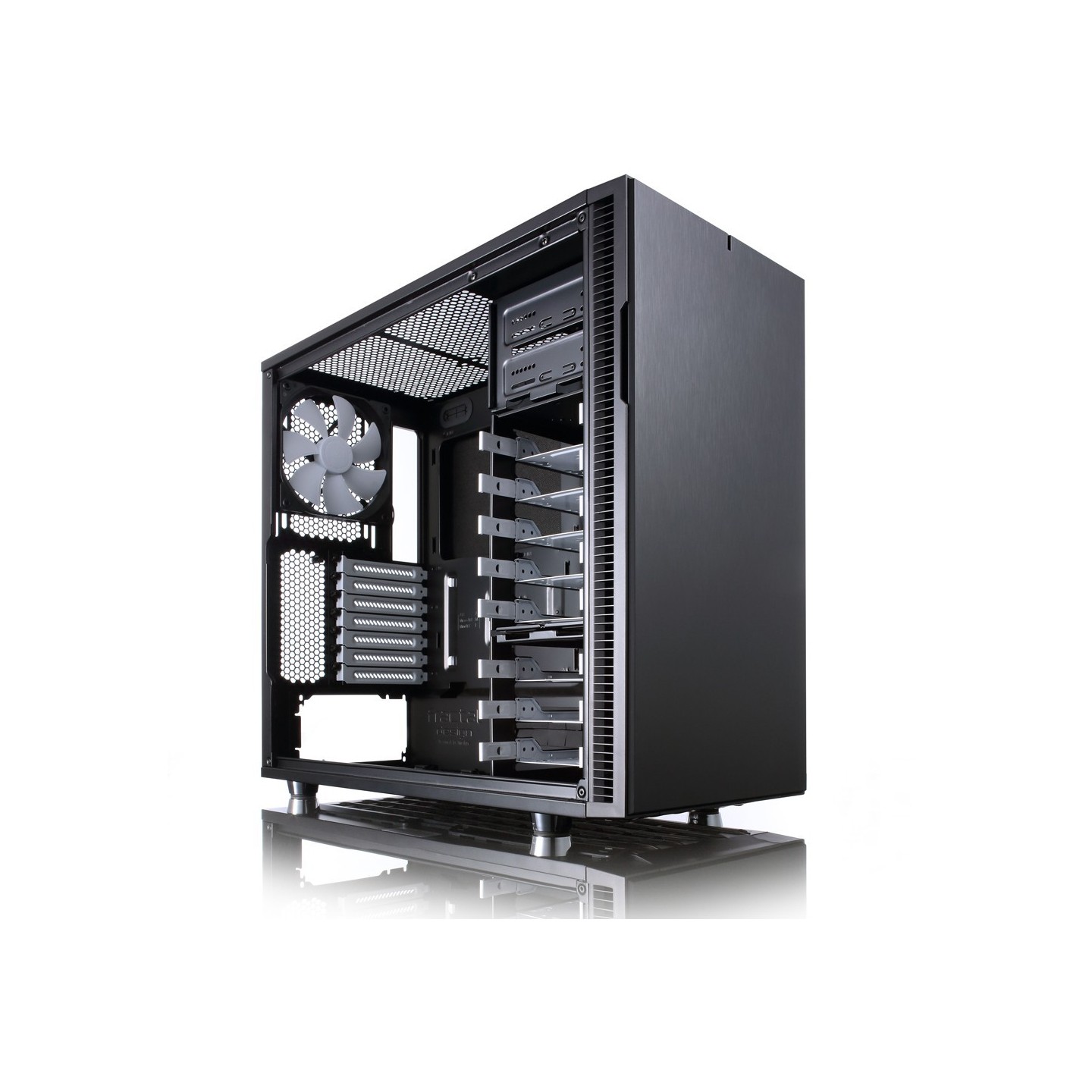

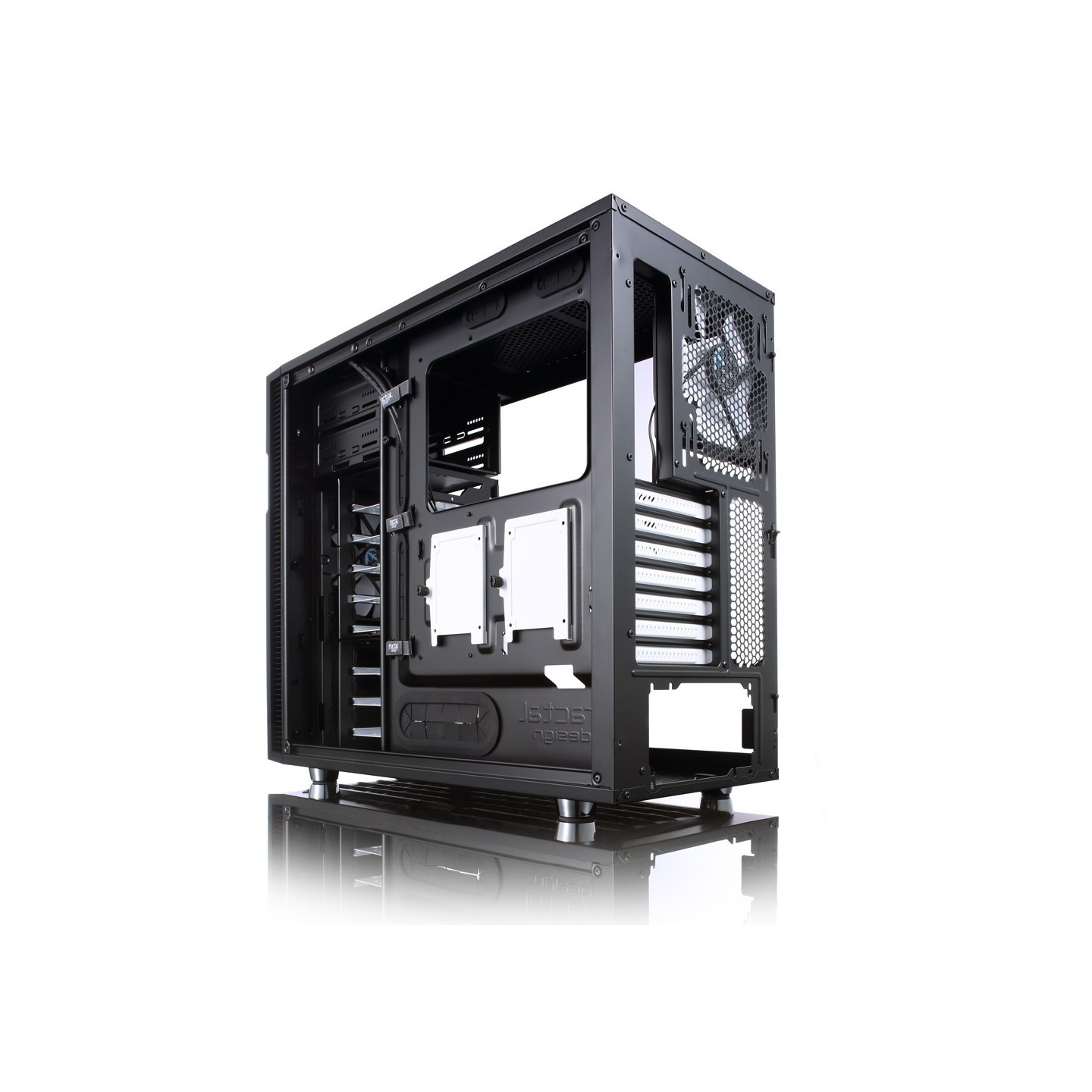

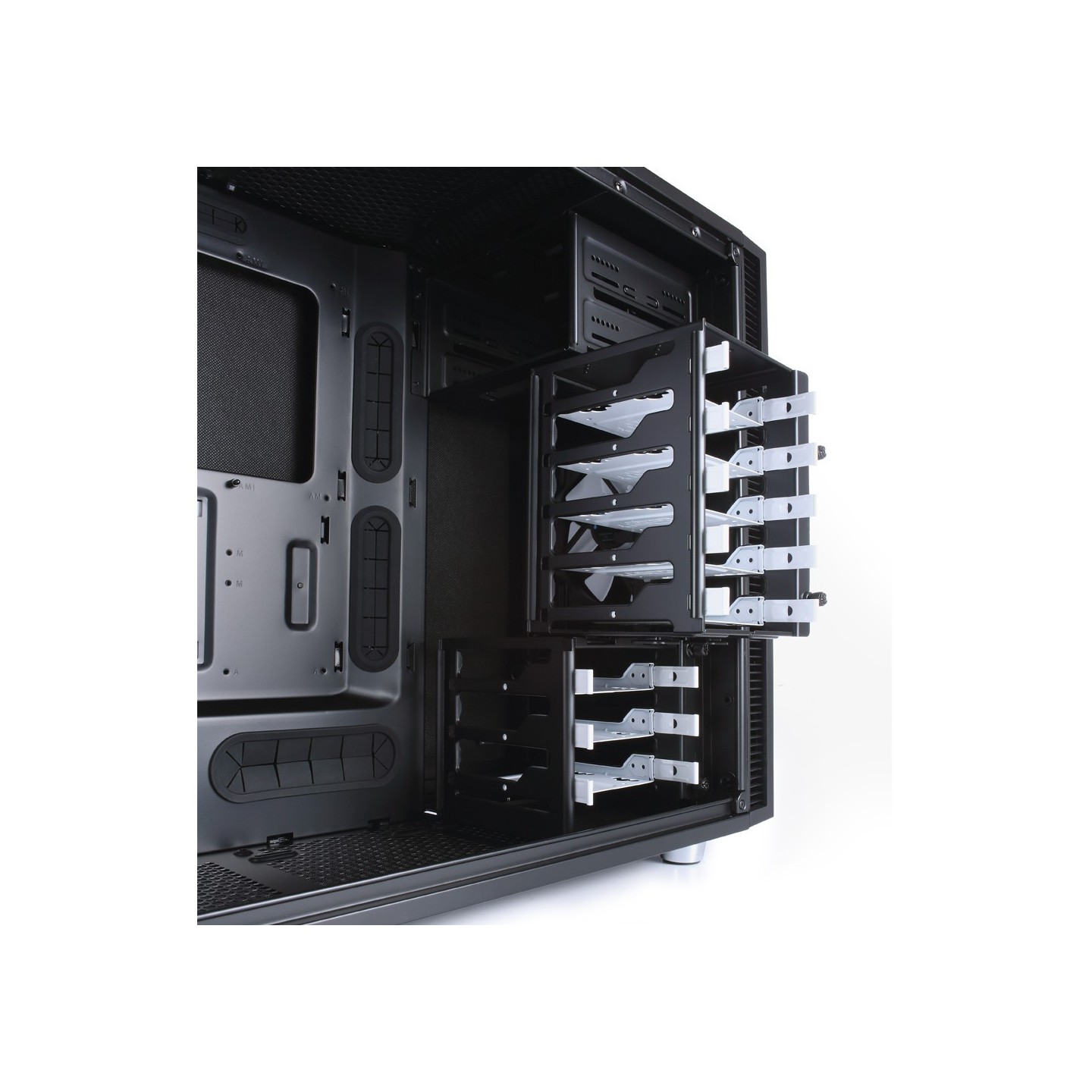

It supports ATX, microATX, and Mini-ITX motherboards, with space for graphics cards up to 440mm long and CPU coolers up to 180mm high. Storage options are extensive: 8x 3.5"/2.5" bays via modular HDD cages, 2 dedicated 2.5" SSD mounts behind the motherboard tray, and 2x 5.25" external bays. Cooling is versatile with positions for up to 9 fans (120/140mm), including ModuVent tool-less covers, and radiator support up to 420mm top, 360mm front, 140mm rear.

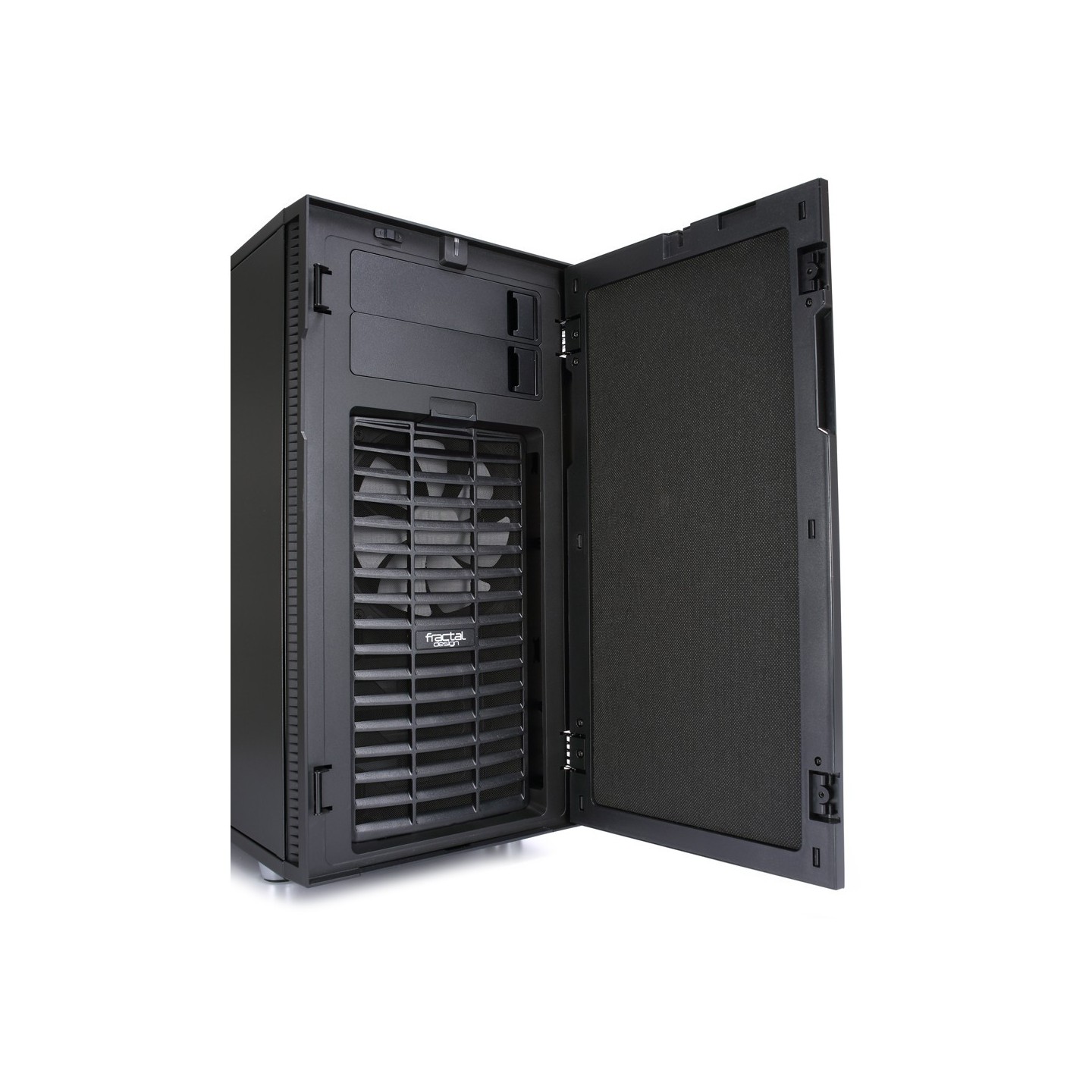

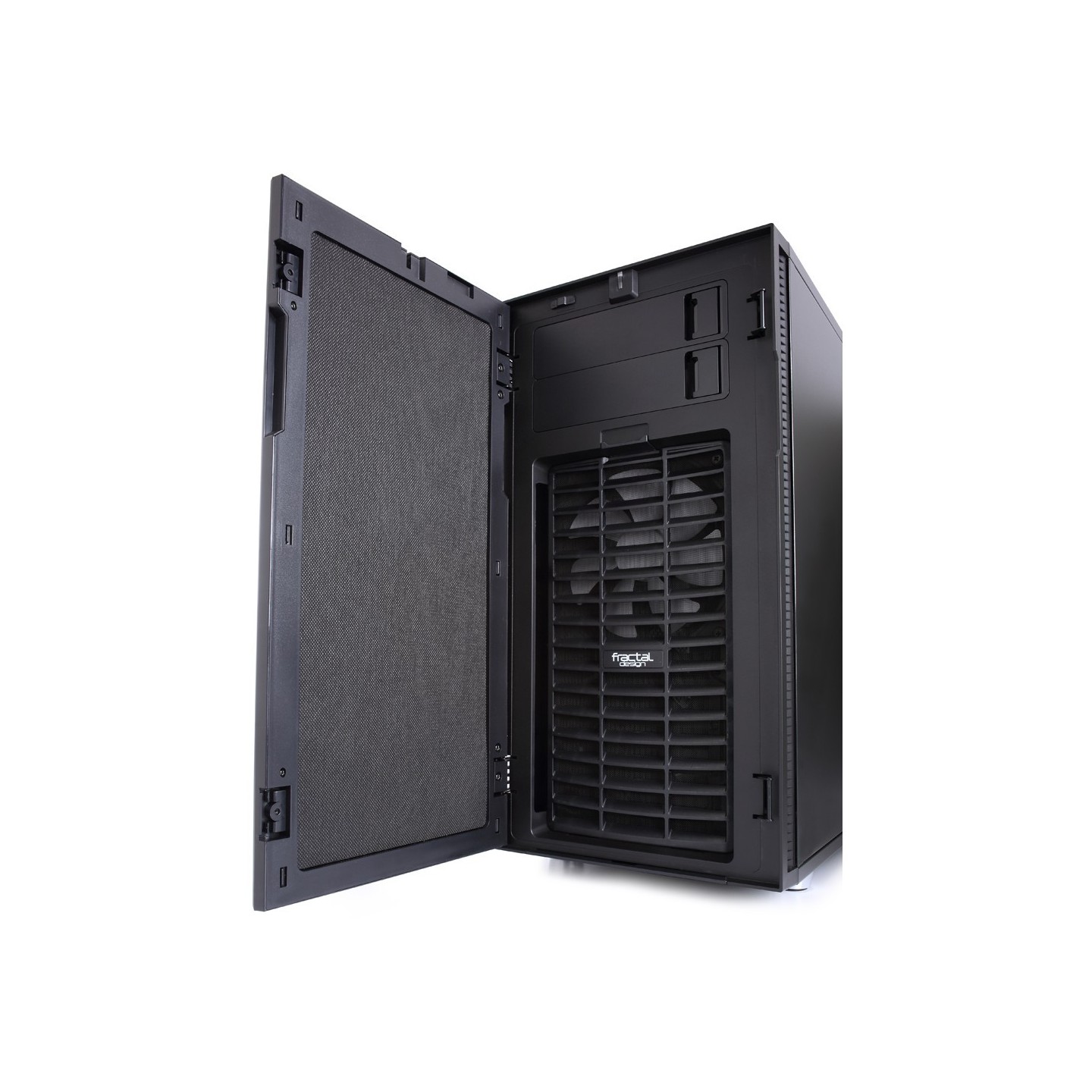

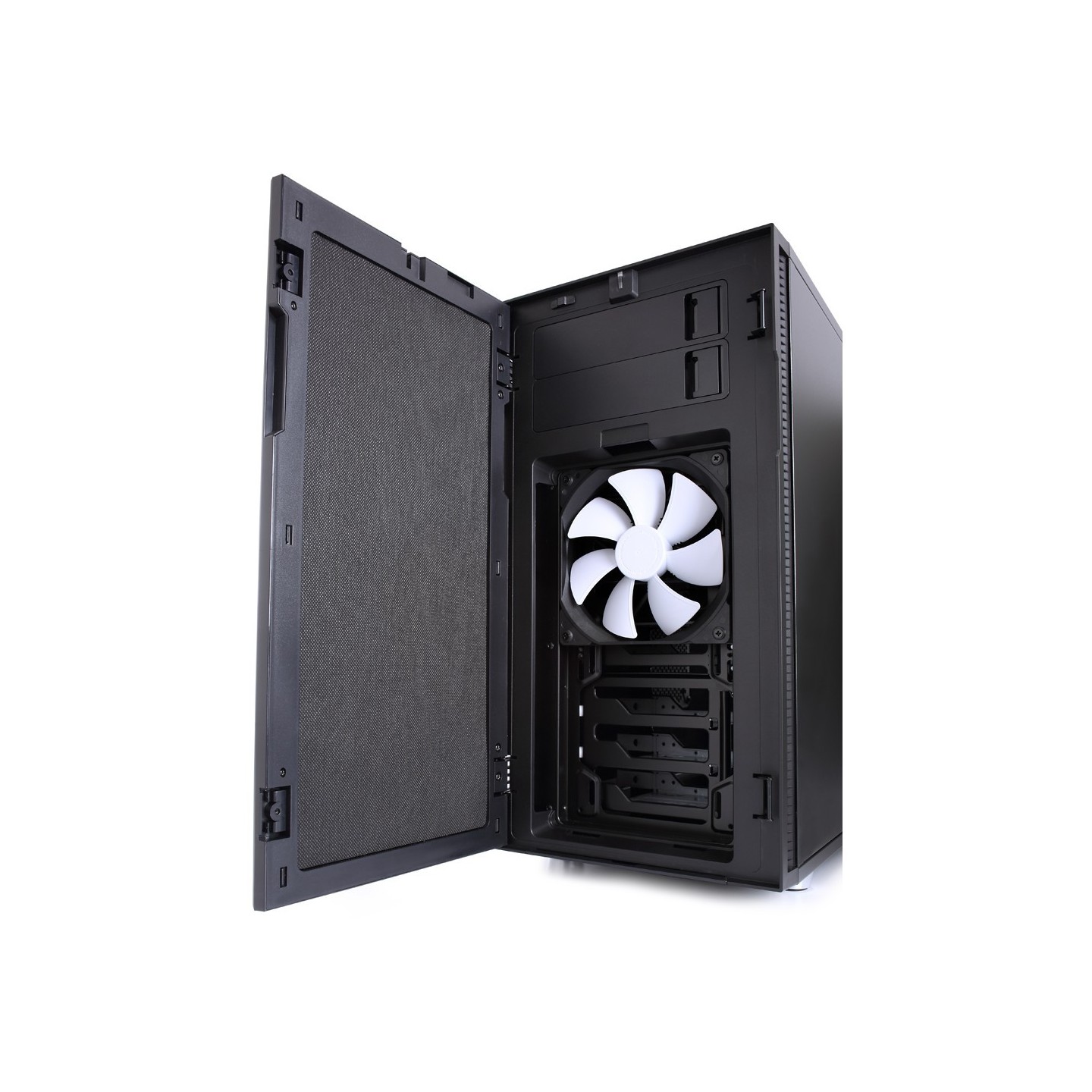

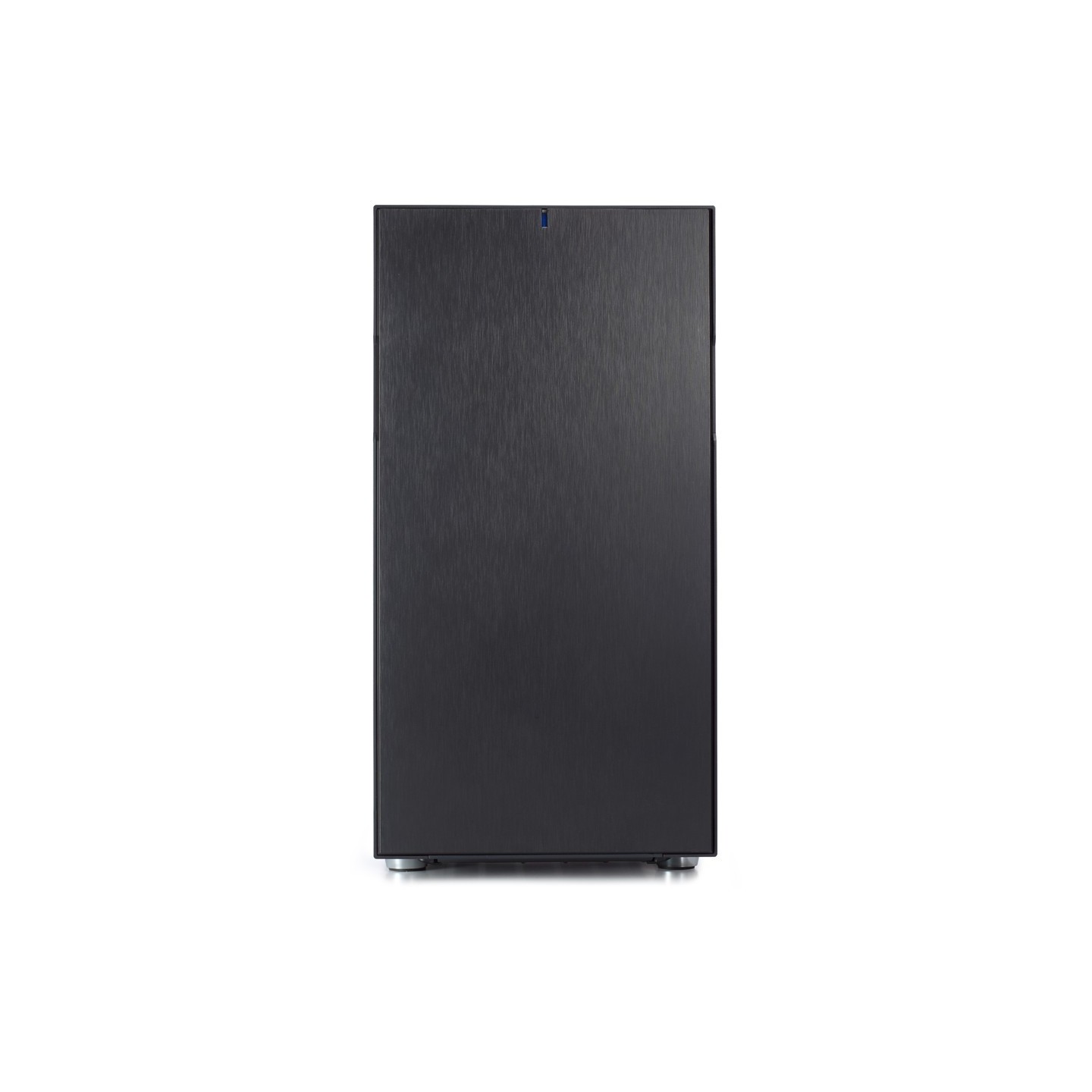

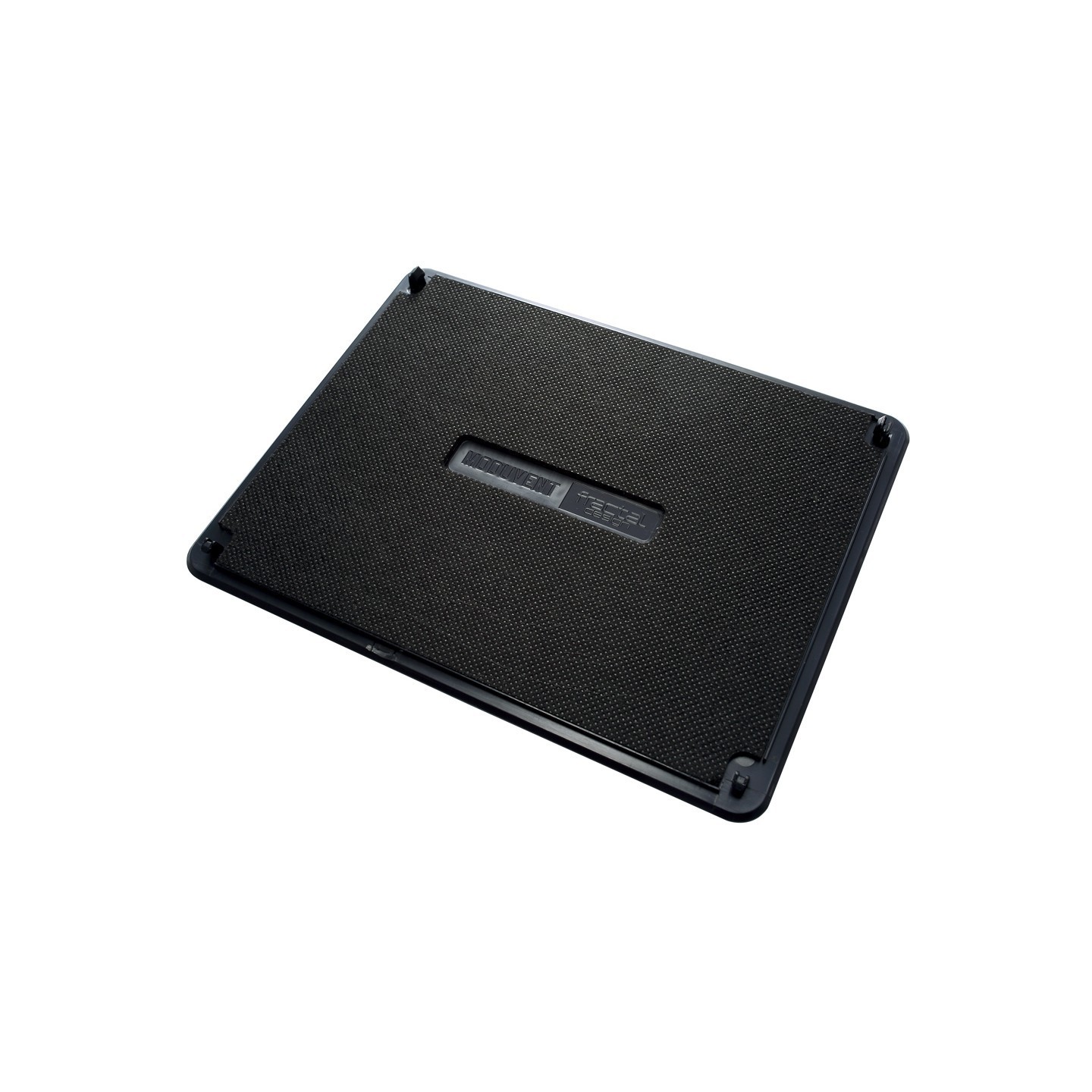

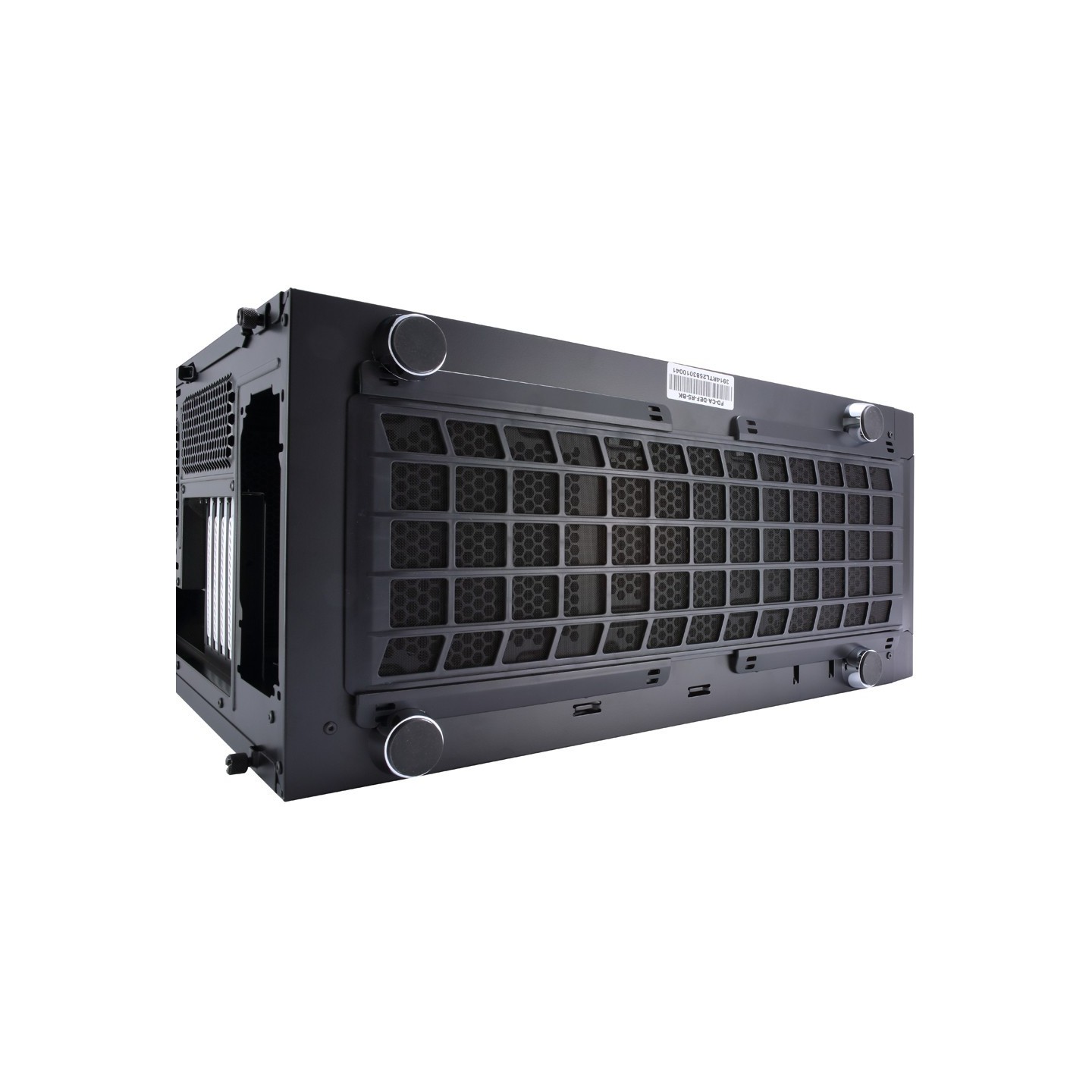

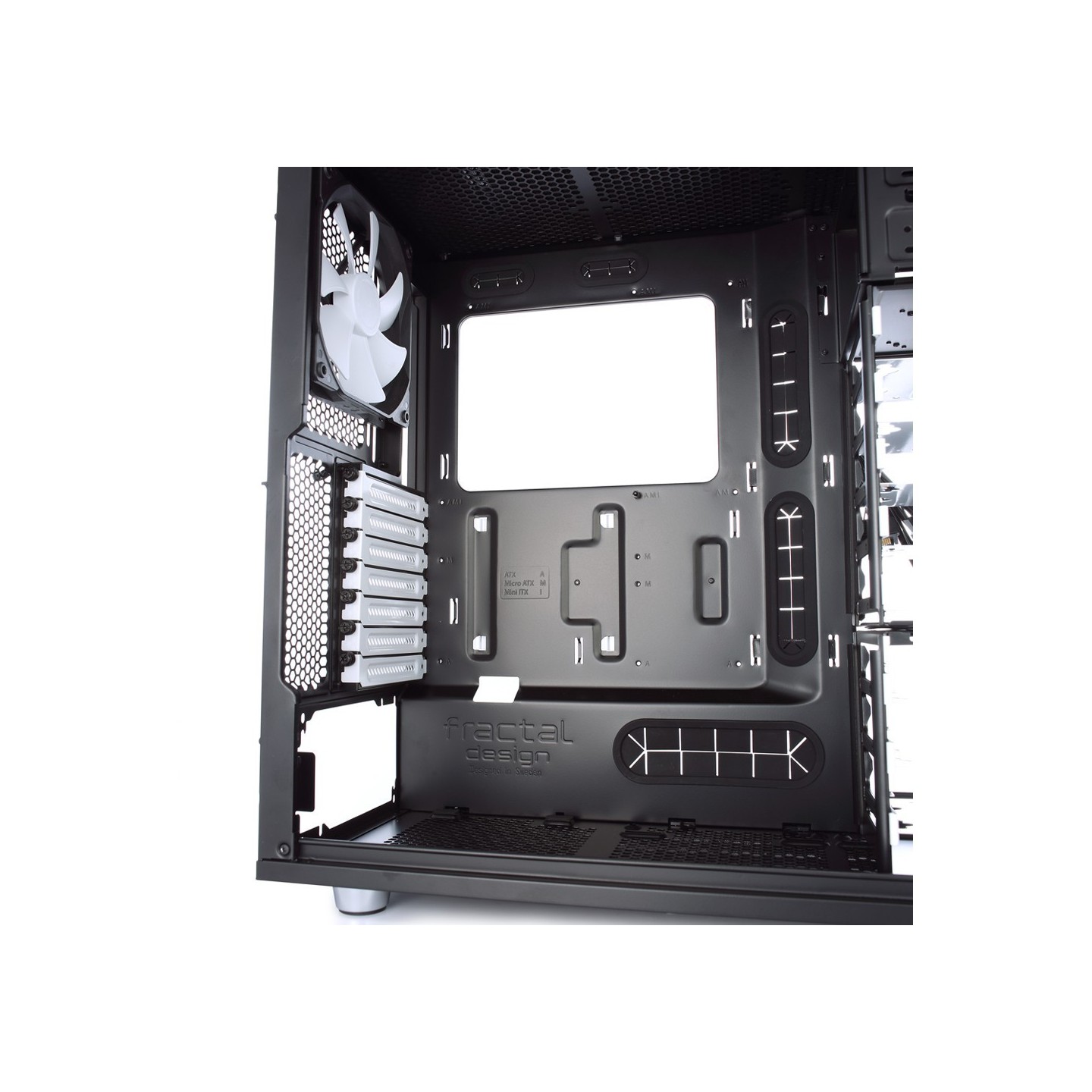

Includes 2x high-quality 140mm Dynamic GP-14 fans (front and rear) and a 3-speed fan controller. Excellent cable management, dust filters, and reversible front door enhance build experience. Dimensions: 232x462x531mm; weight 10.7kg.
- Key Features: Sound-dampened panels, ModuVent vents, fan controller, 7 expansion slots

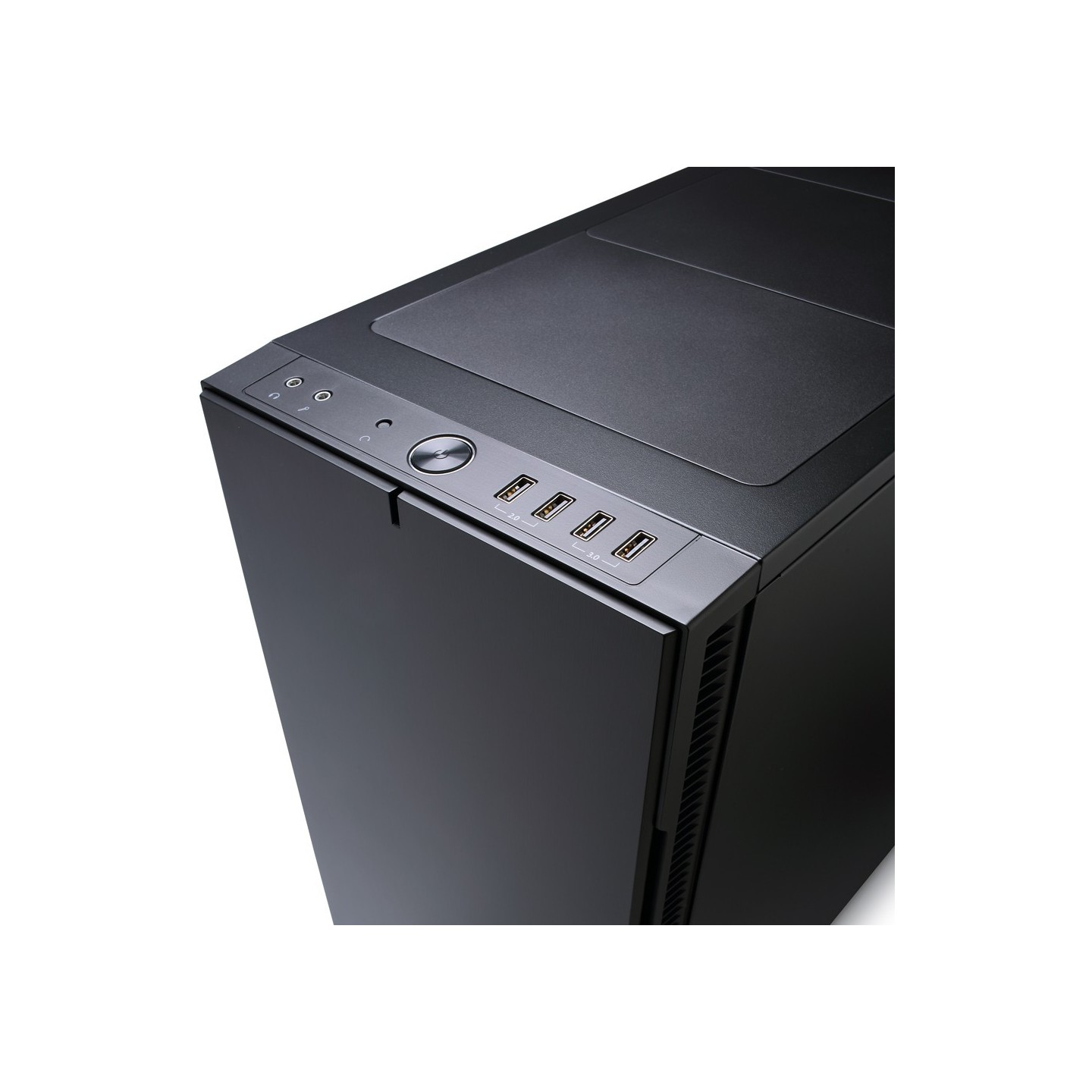

- Front I/O: 2x USB 3.0, 2x USB 2.0, audio jacks
- Cooling: 2x140mm fans included, multi-radiator support
- Storage: 8x3.5", 4x2.5", 2x5.25"
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5 | 8 |
| Number of 5.25 | 2 |
| Number of 2.5 | 4 |
| Number of internal 3.5 | 8 |
| Number of internal 5.25 | 2 |
| Number of external 5.25 | 2 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 44 cm |
| Maximum PSU length | 30 cm |
| Power supply location | Bottom |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Front fans installed | 1x 140 mm |
| Rear fans installed | 1x 140 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Supported HDD sizes | 2.5,3.5,5.25 |
| Width | 232 mm |
| Depth | 531 mm |
| Height | 462 mm |
| Weight | 10.7 kg |
| Package width | 327 mm |
| Package depth | 540 mm |
| Package height | 615 mm |
| Package weight | 12.5 kg |
| Harmonized System (HS) code | 84733080 |
| Sound dampening | Yes, high-density material |
| Fan controller | 3-speed, up to 3 fans |
| ModuVent | Yes, tool-less |
