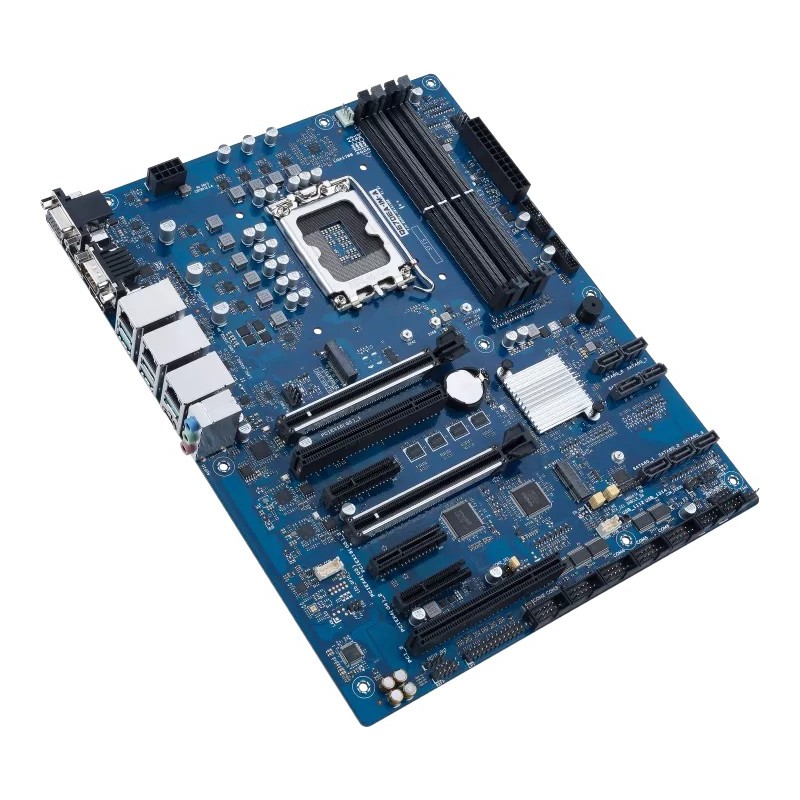

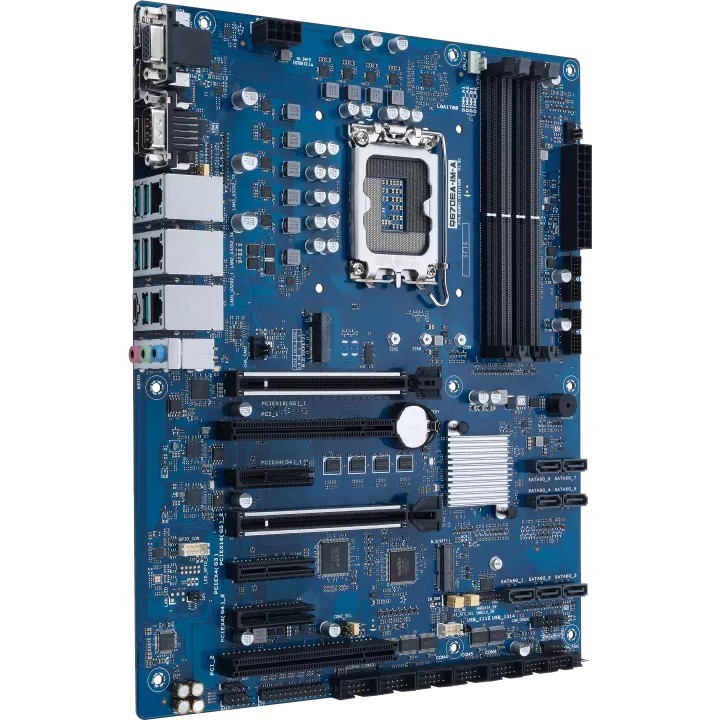

ASUS Q670EA-IM-A - ATX LGA1700 Motherboard - Intel Q670E, DDR5 up to 128GB, PCIe 5.0, DP/HDMI/VGA, vPro
ASUS Q670EA-IM-A ATX motherboard; LGA1700 (Intel Q670E), DDR5 up to 128GB (4 DIMM), PCIe 5.0 x16, 2x M.2, HDMI 2.1, DP1.4, VGA, 3x LAN, vPro support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - USB-C | Rear Type-C |
ASUS Q670EA-IM-A. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium®. Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. RAID levels: 0. 1. 5. 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet. LAN controller: Intel® I210-AT. Intel I226-LM. Intel I226-V
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 3600.4000.4400 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 7 |
| Feature | Linux operating systems supported |
| RAID levels | 0. 1. 5. 10 |
| Maximum resolution | 4096 x 2160 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 7 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Serial ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet |
| LAN controller | Intel® I210-AT. Intel I226-LM. Intel I226-V |
| Motherboard chipset | Intel Q670E |
| Audio chip | Realtek ALC897 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 IoT Enterprise. Windows 10 x64 |
| Certification | CE. FCC. BSMI. VCCI. RCMCE-LVD |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 2 |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 305 mm |
| Depth | 244 mm |
| PCI Express x4 (Gen 3.x) slots | 1 |
