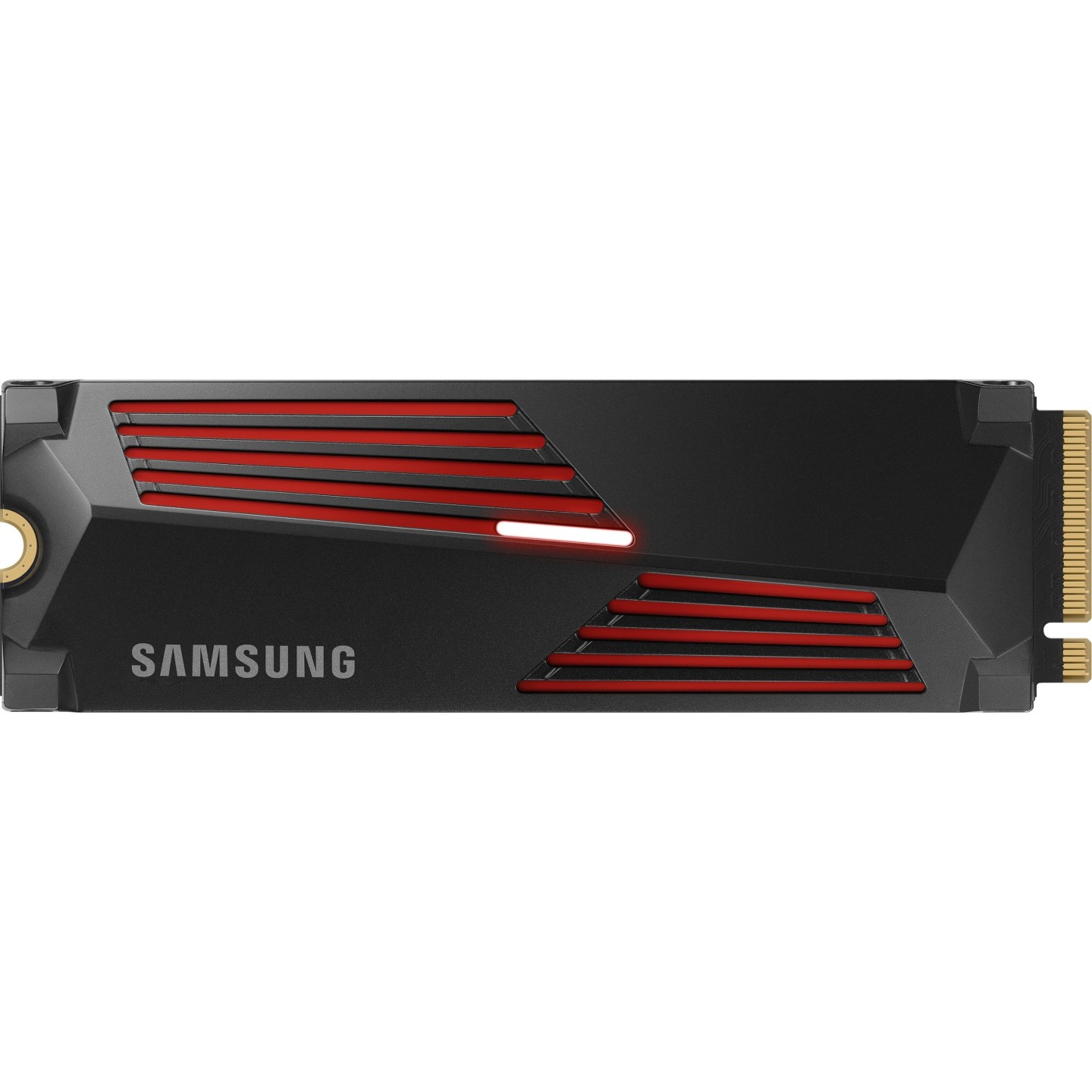

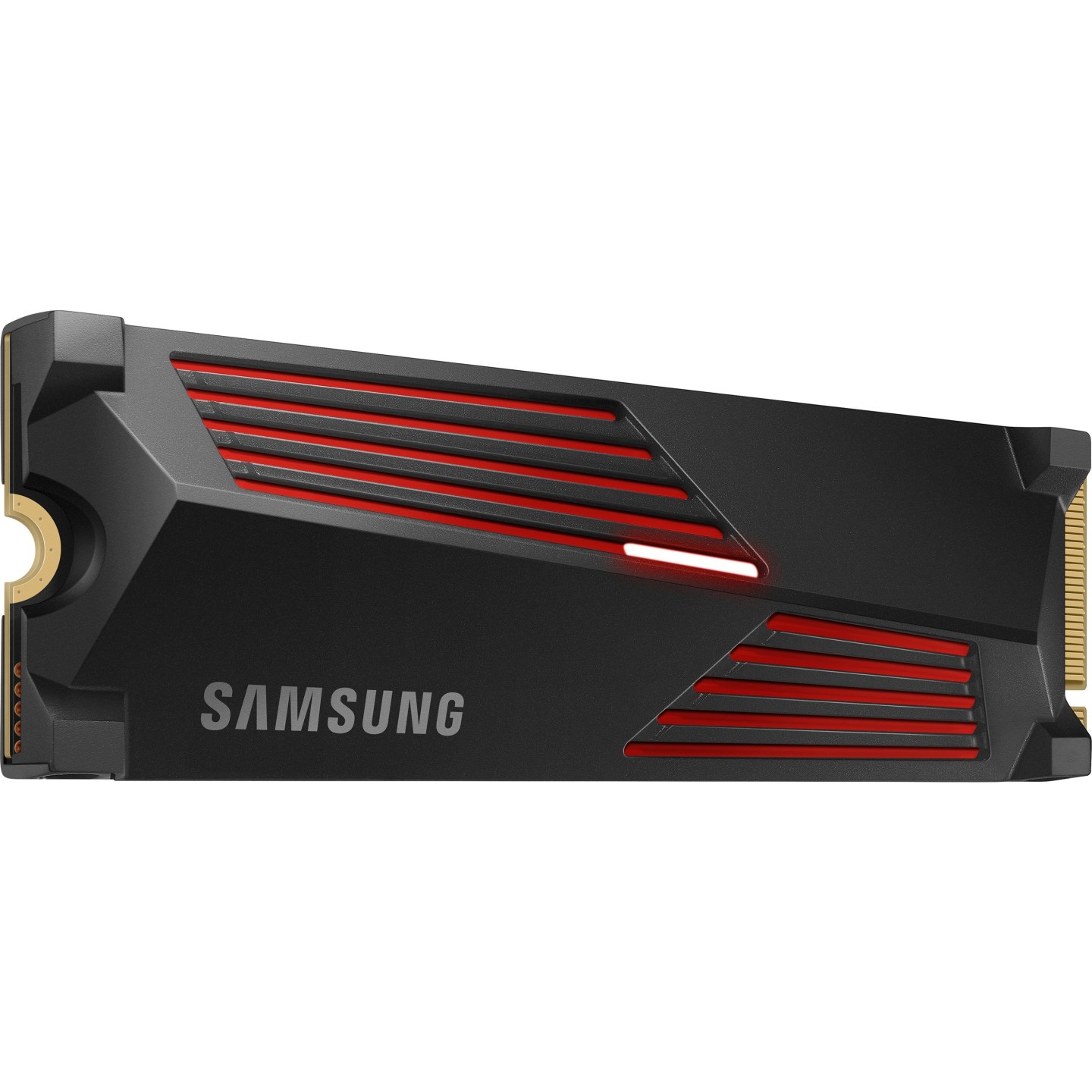

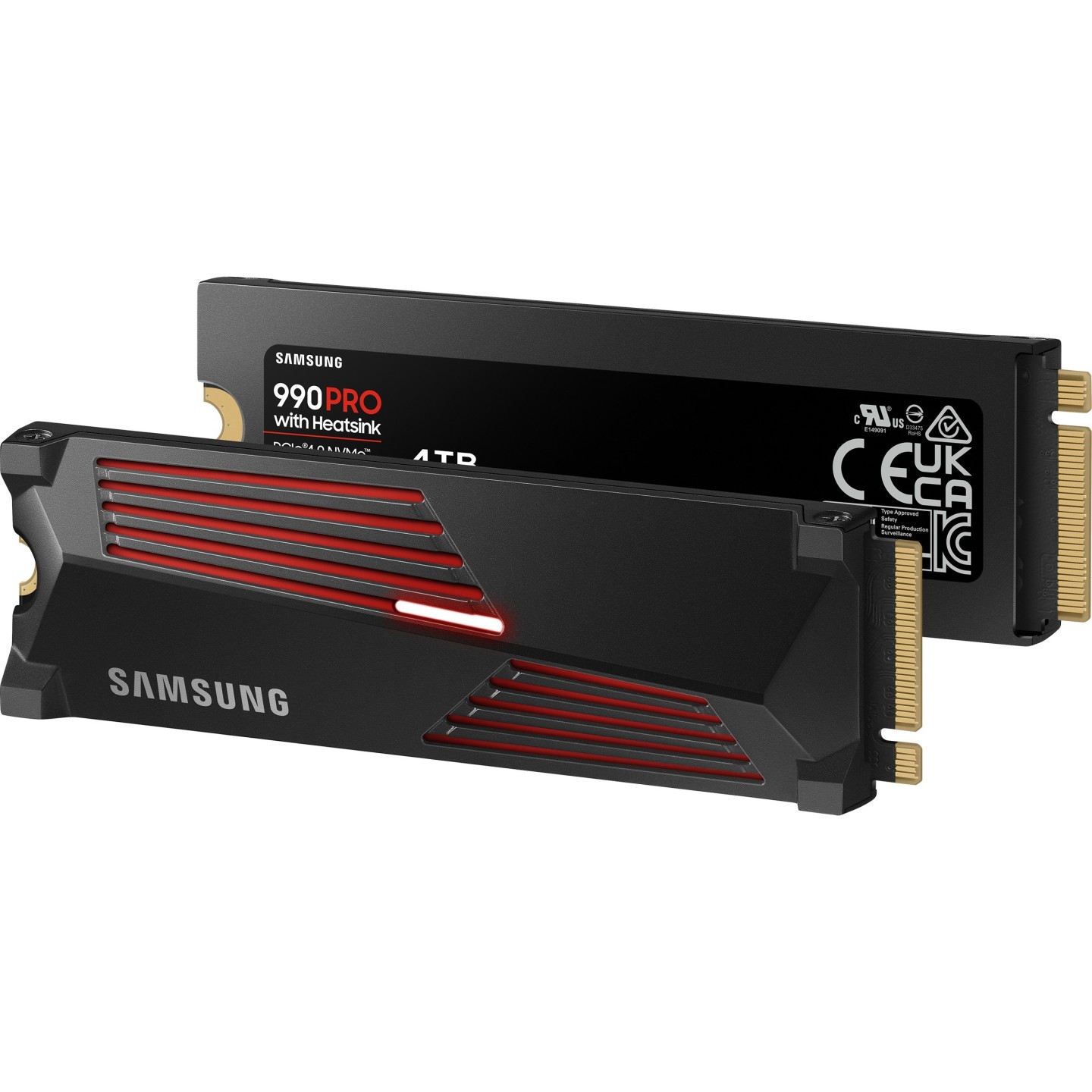

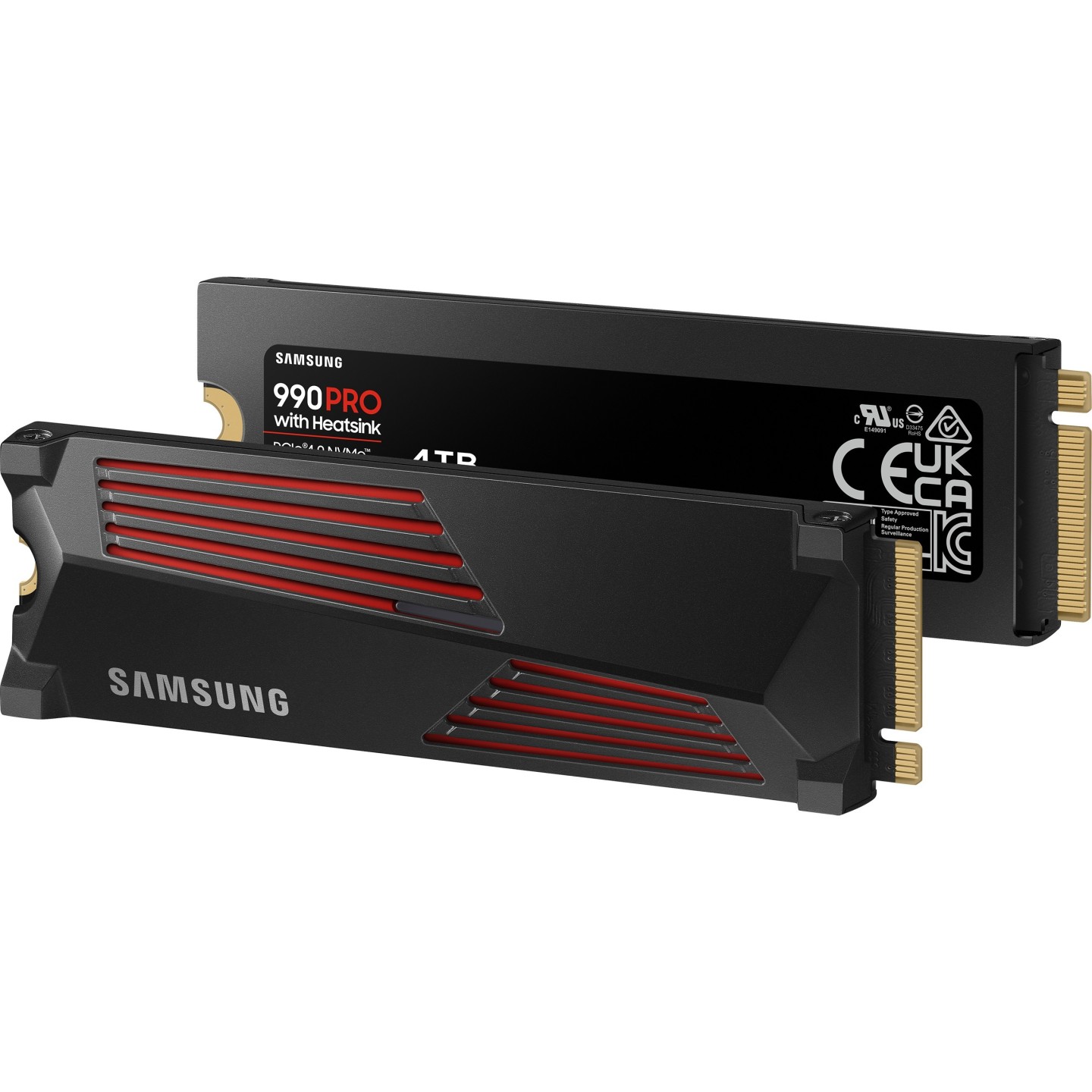

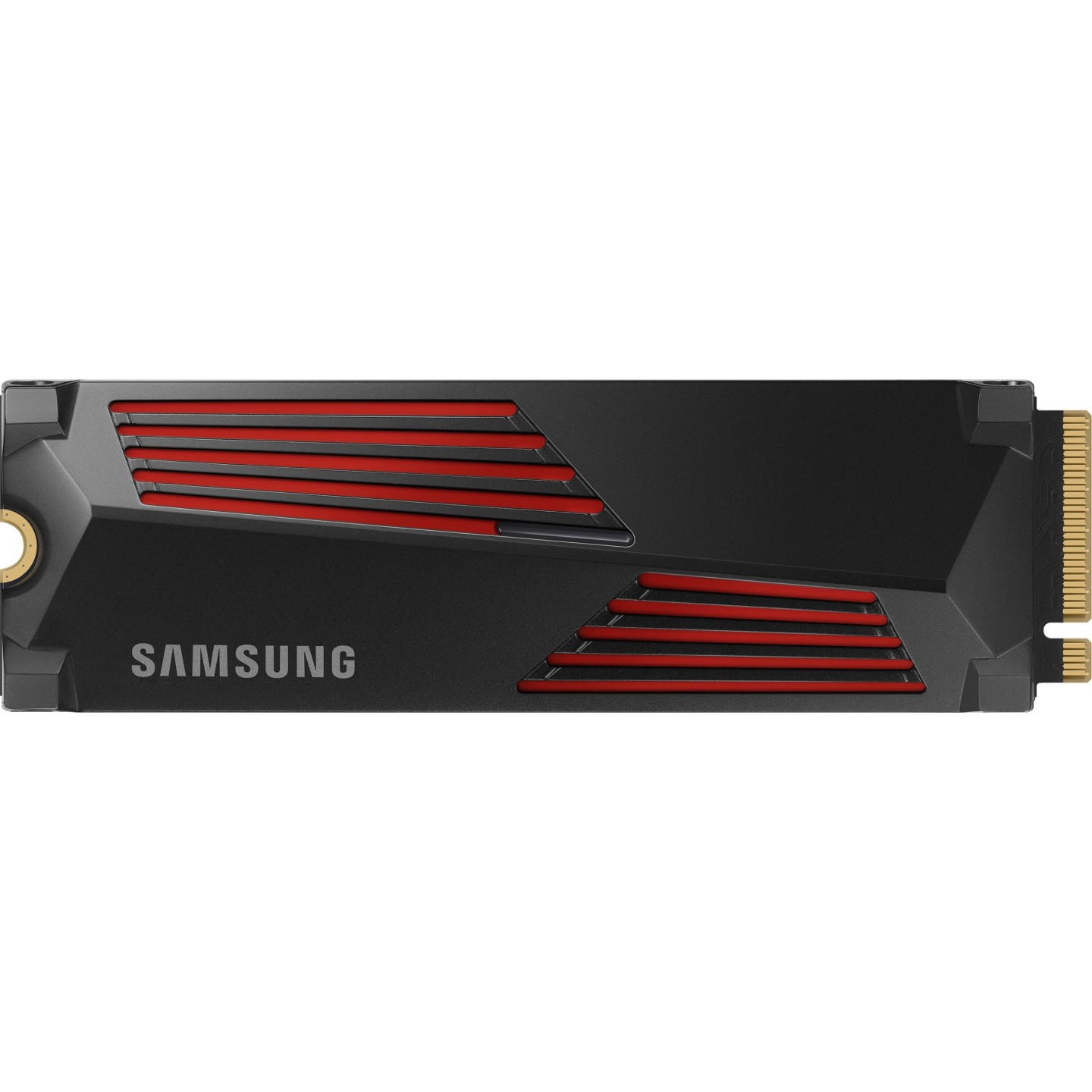

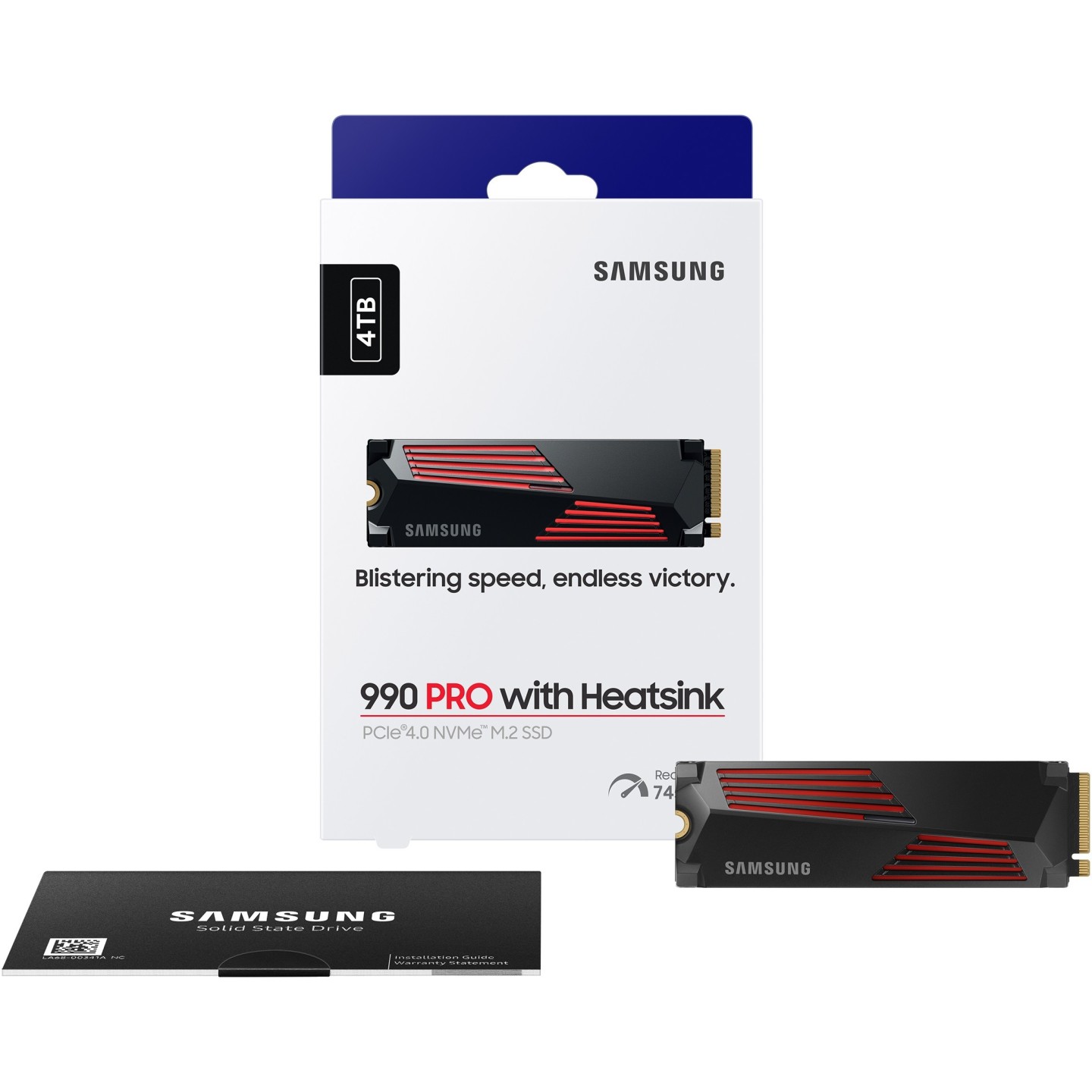

Samsung 990 PRO 4TB M.2 2280 NVMe PCIe 4.0 x4 SSD w/ Heatsink MZ-V9P4T0CW (Boxed)
Samsung 990 PRO 4TB M.2 2280 NVMe PCIe 4.0 x4 SSD with heatsink. V-NAND TLC, 7450/6900 MB/s, 1.6M/1.55M IOPS, DRAM cache, TBW 2400TB. Ideal for PC, PS5 gaming, single-sided design runs cool.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 4TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 7001 to 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 4.0 (Gen4) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |

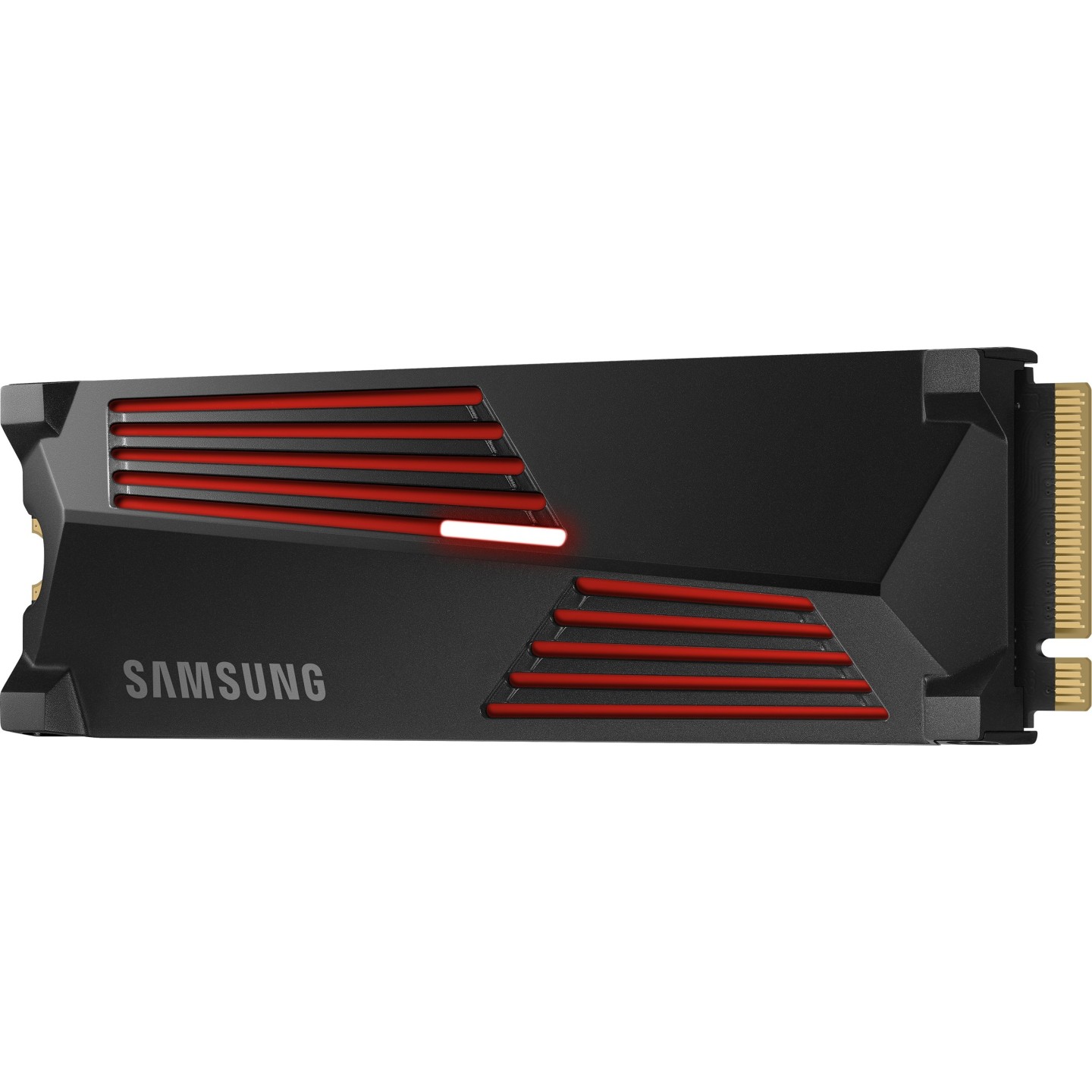

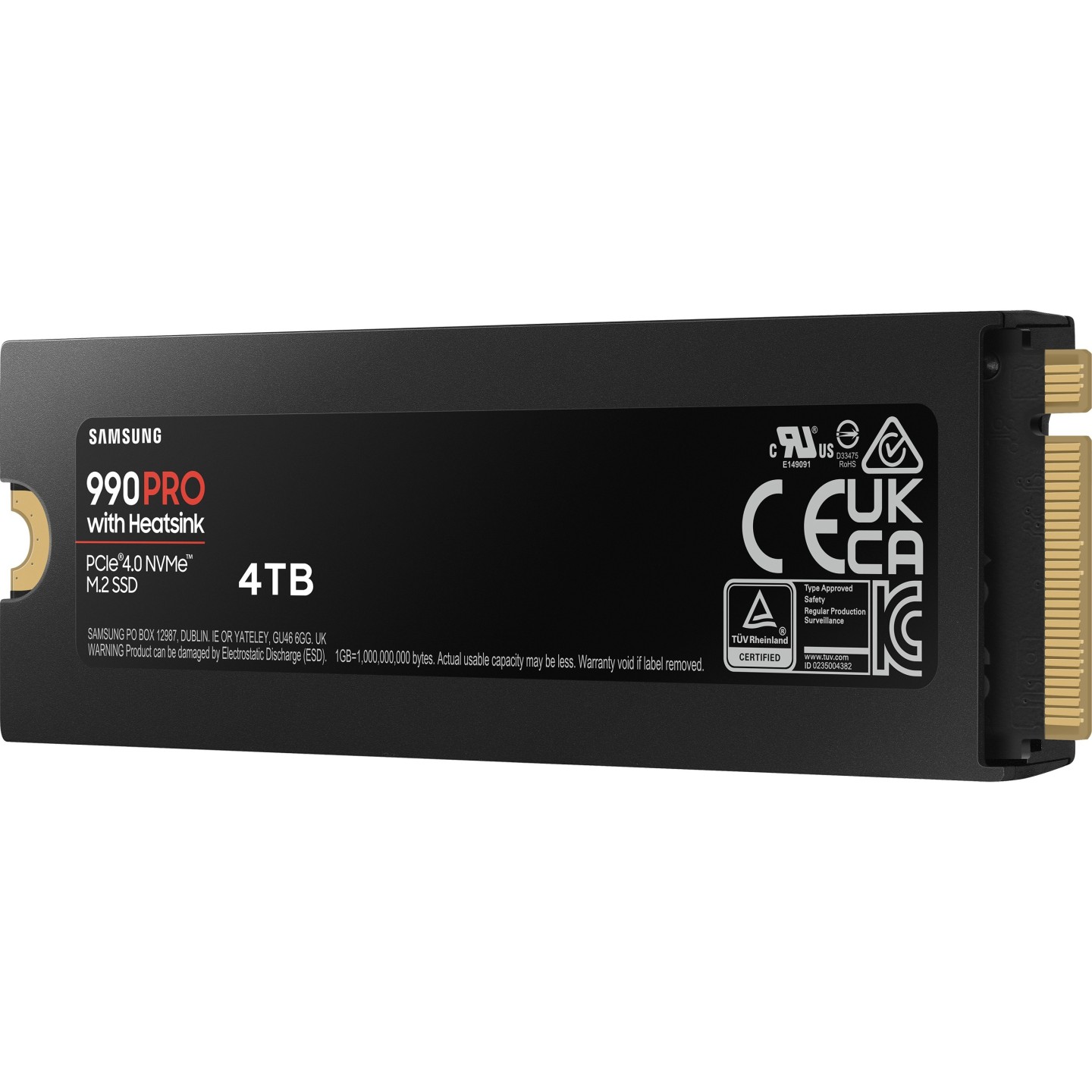

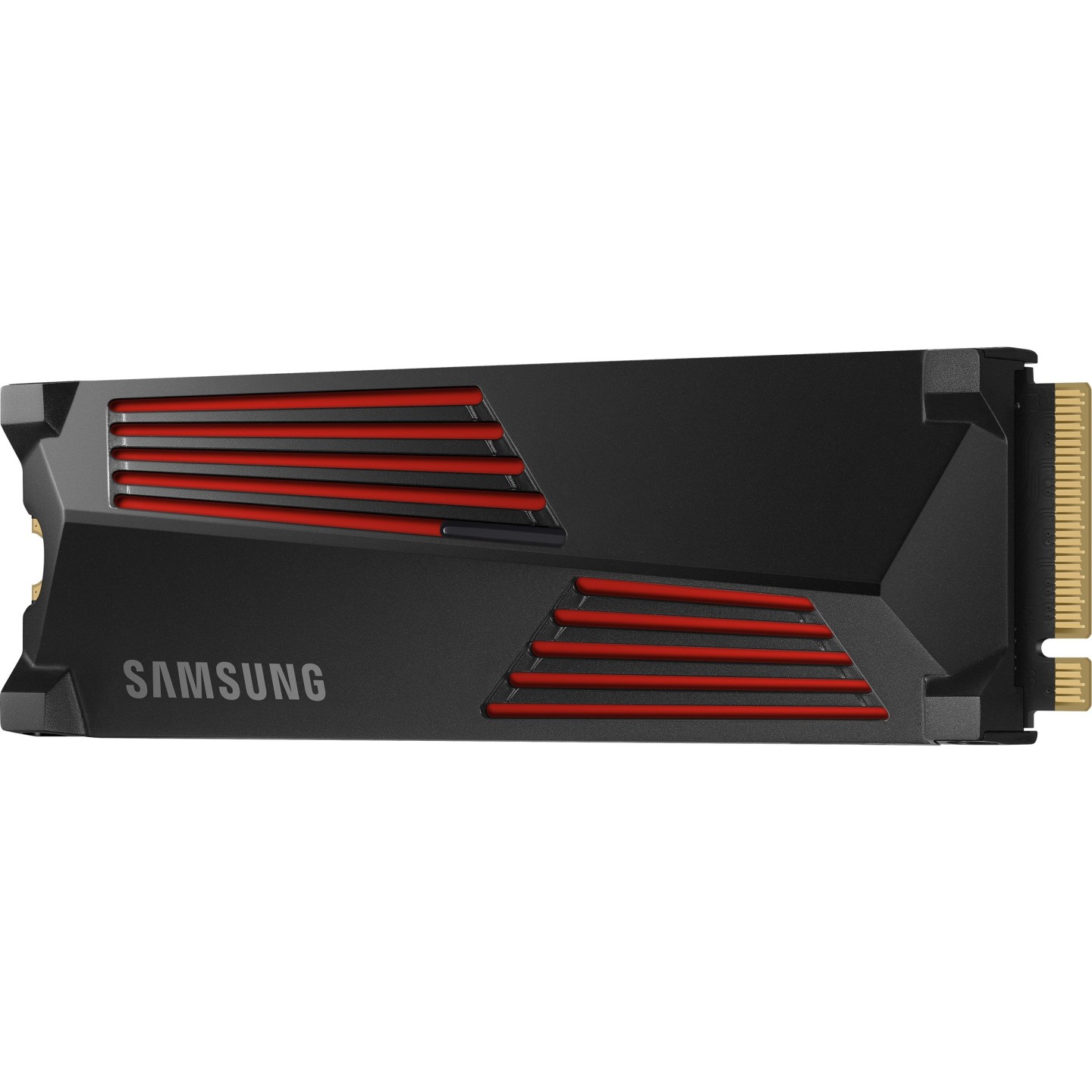

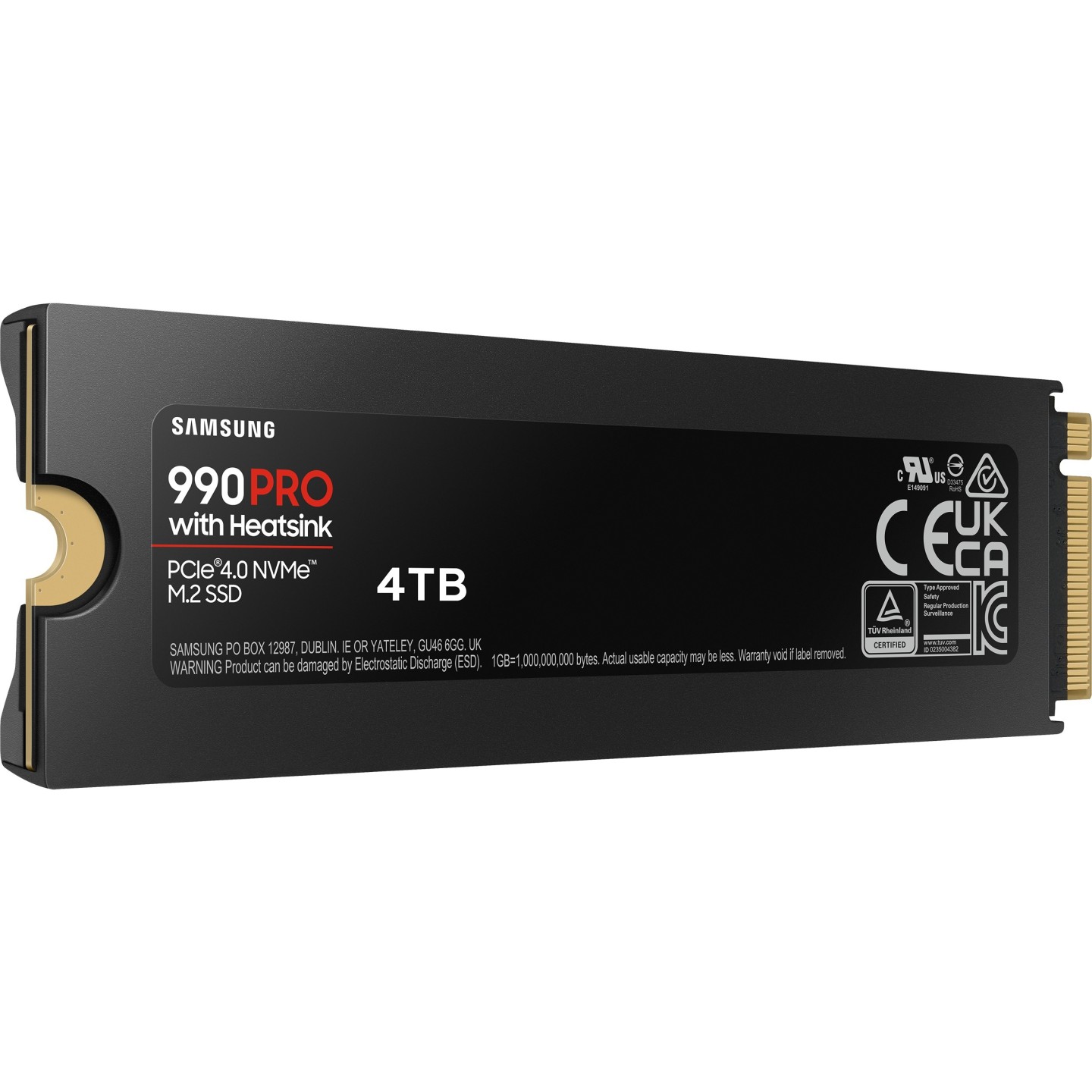

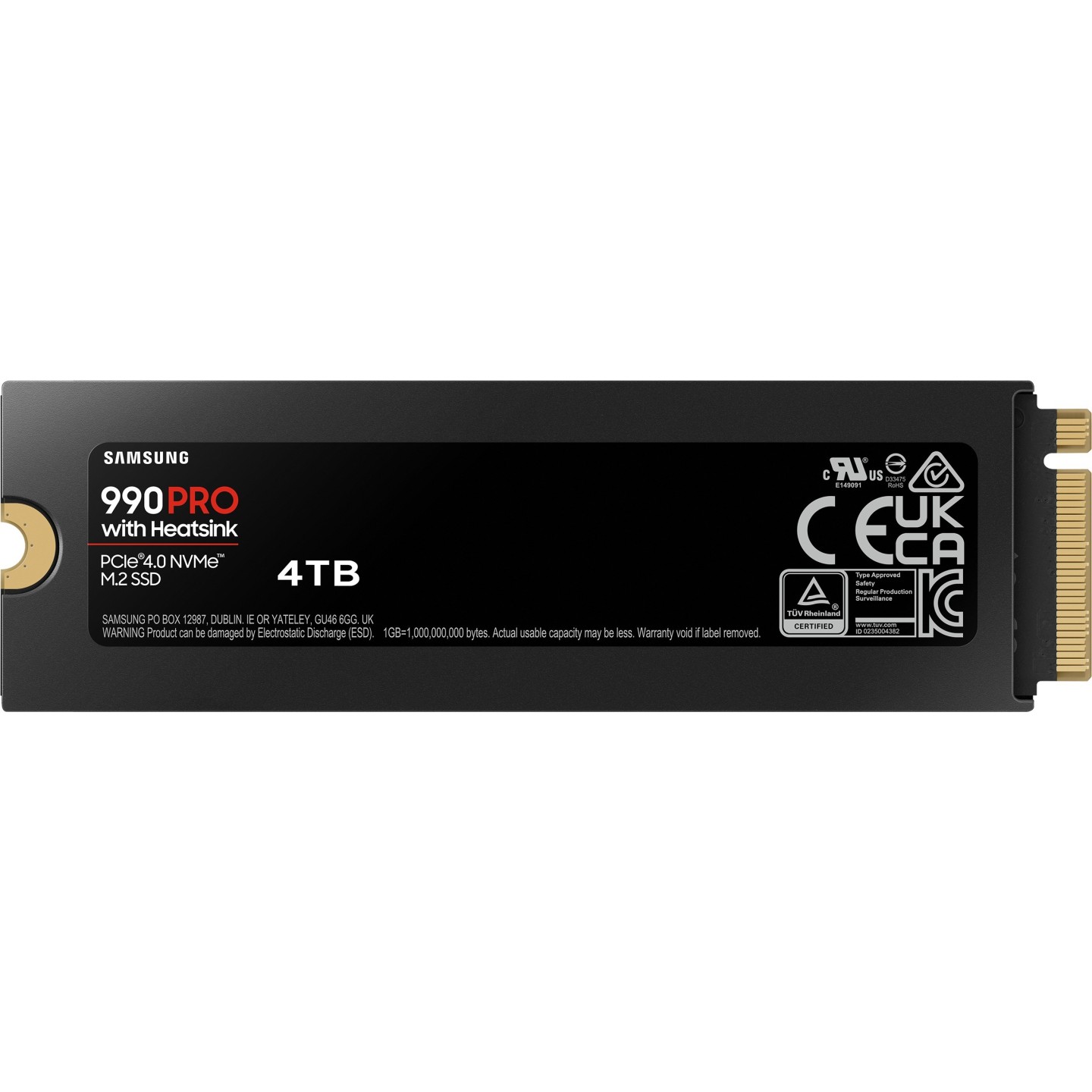

The Samsung 990 PRO 4TB is a high-performance M.2 2280 NVMe SSD with integrated heatsink, utilizing PCIe 4.0 x4 interface and Samsung's 236-layer V-NAND TLC flash. It delivers sequential read speeds up to 7450 MB/s and write speeds up to 6900 MB/s, with random IOPS reaching 1.6 million reads and 1.55 million writes. Featuring a Pascal controller and 4GB LPDDR4 DRAM cache, this single-sided drive ensures consistent performance for gaming, video editing, and heavy workloads.
Designed for desktops, laptops, and PS5, it includes advanced thermal management with Dynamic Thermal Guard to prevent throttling. Security features like 256-bit AES encryption, TCG/Opal, and IEEE1667 are supported. Samsung Magician software enables easy monitoring, firmware updates, and optimization. With 2400TBW endurance and 5-year warranty, it's built for reliability.
- ✅ PCIe 4.0 x4, NVMe 2.0, M.2 2280 form factor
- ✅ Integrated heatsink for optimal cooling
- ✅ 7450/6900 MB/s sequential speeds
- ✅ 1.6M/1.55M random IOPS
- ✅ 4GB DRAM cache, 2400 TBW
- ✅ Compatible with PC and game consoles
| NVMe version | 2.0 |
| Security algorithms | 256-bit AES, TCG/Opal 2.0, IEEE1667 |
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 x4 |
| Feature | TRIM support, S.M.A.R.T, Garbage Collection |
| Memory type | V-NAND TLC (236-layer V8) |
| Component for | PC/Game console |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7450 MB/s |
| Write speed | 6900 MB/s |
| Random read IOPS | Up to 1.6M |
| Random write IOPS | Up to 1.55M |
| DRAM Cache | 4GB LPDDR4 |
| TBW (Terabytes Written) | 2400 TB |
| Mean time between failures (MTBF) | 1500000 h |
| Operating voltage | 3.3 V |
| Power consumption (max) | 7.8 W |
| Power consumption (average) | 5.4 W |
| Width | 25 mm (SSD only) |
| Depth | 80.2 mm (SSD only) |
| Height | 8.88 mm (with heatsink) |
| Weight | 28 g (SSD only) |
| Package type | Hanging box |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Warranty period | 5 year(s) |
| Controller | Samsung Pascal |
| Design | Single-sided |
