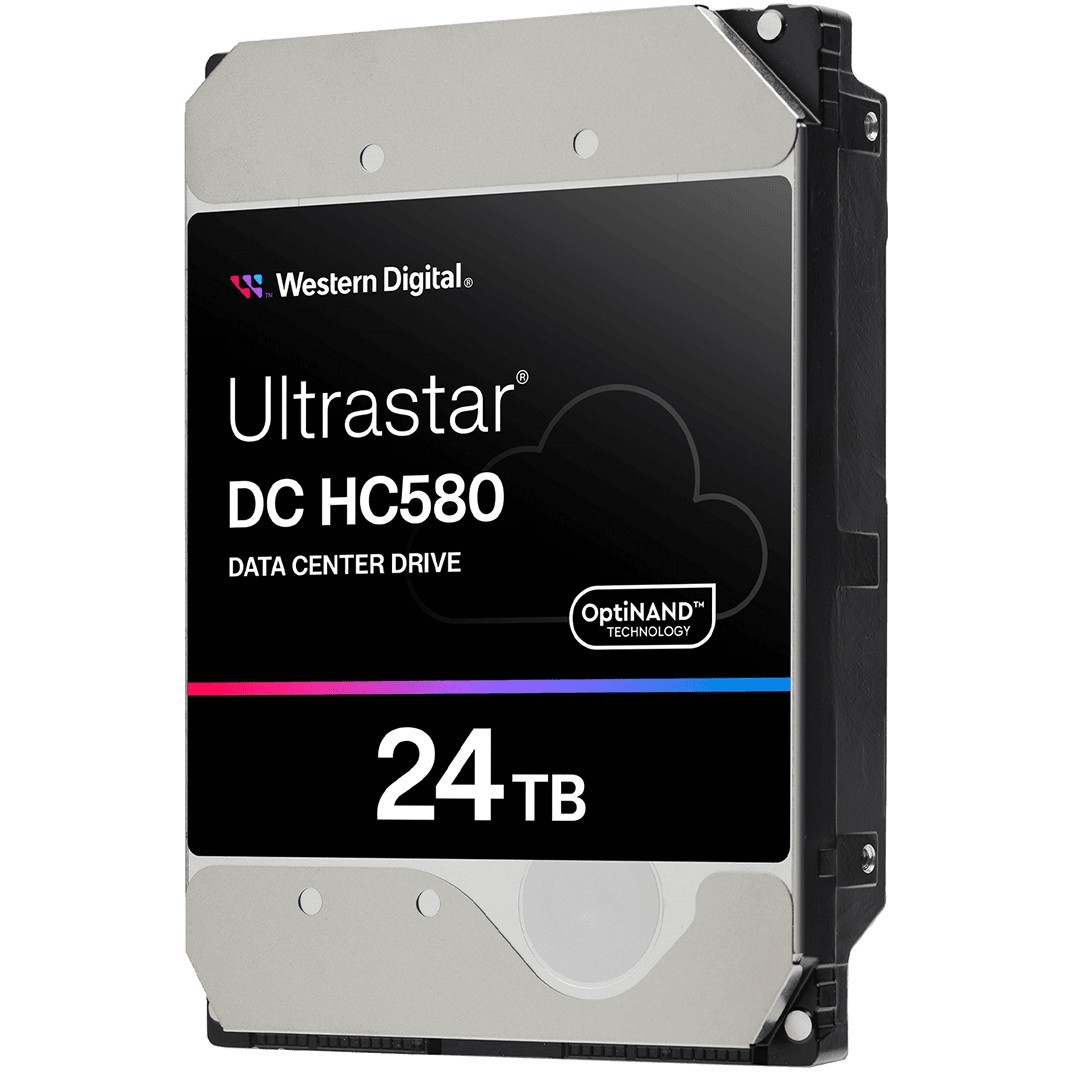

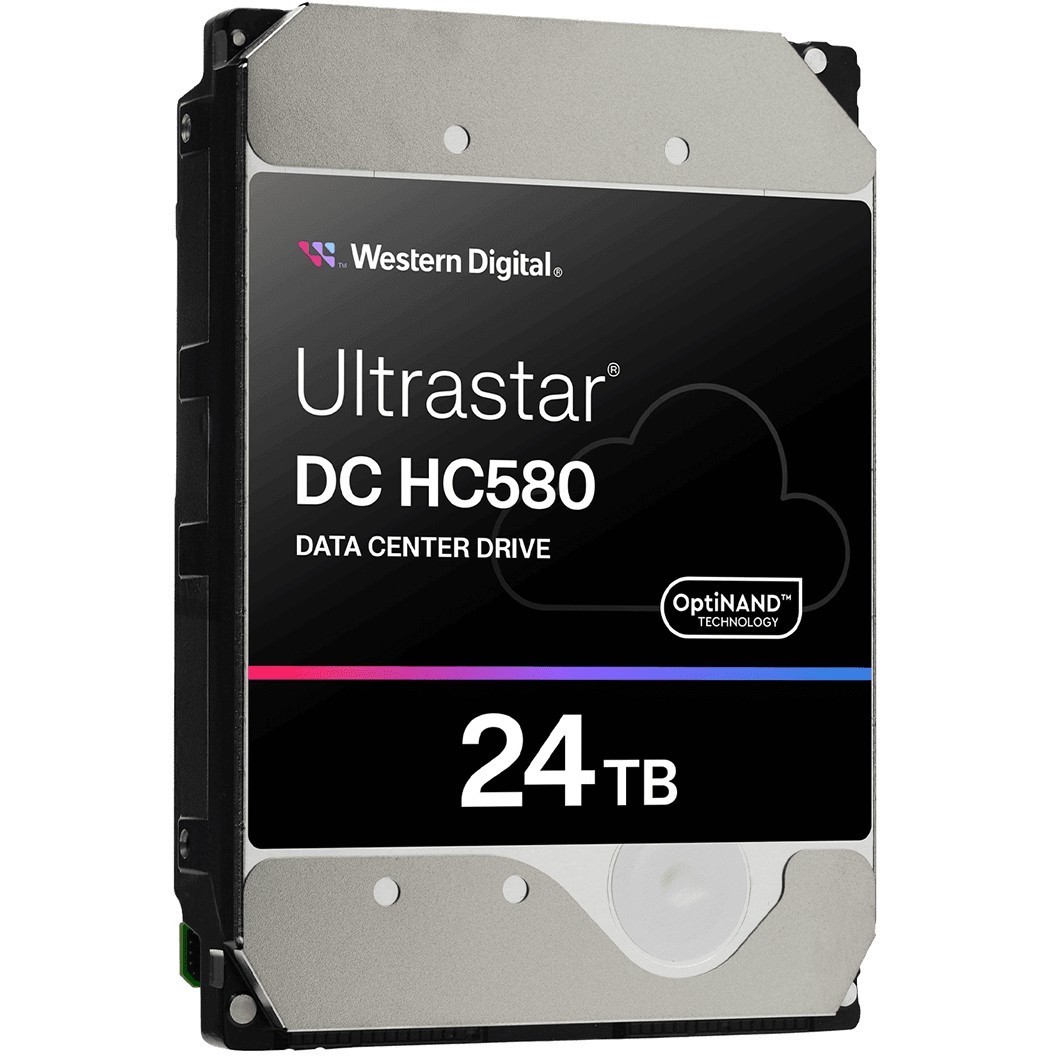

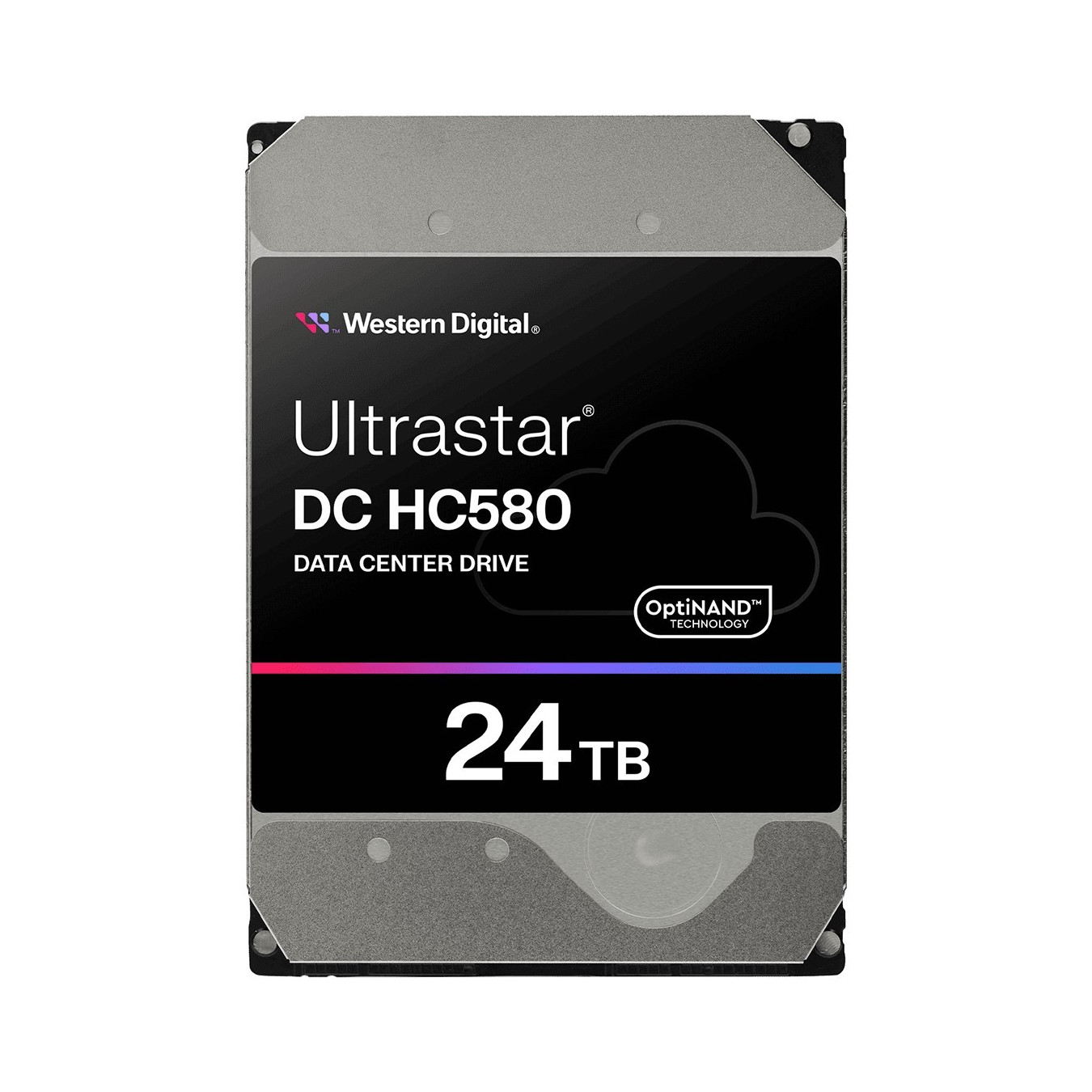

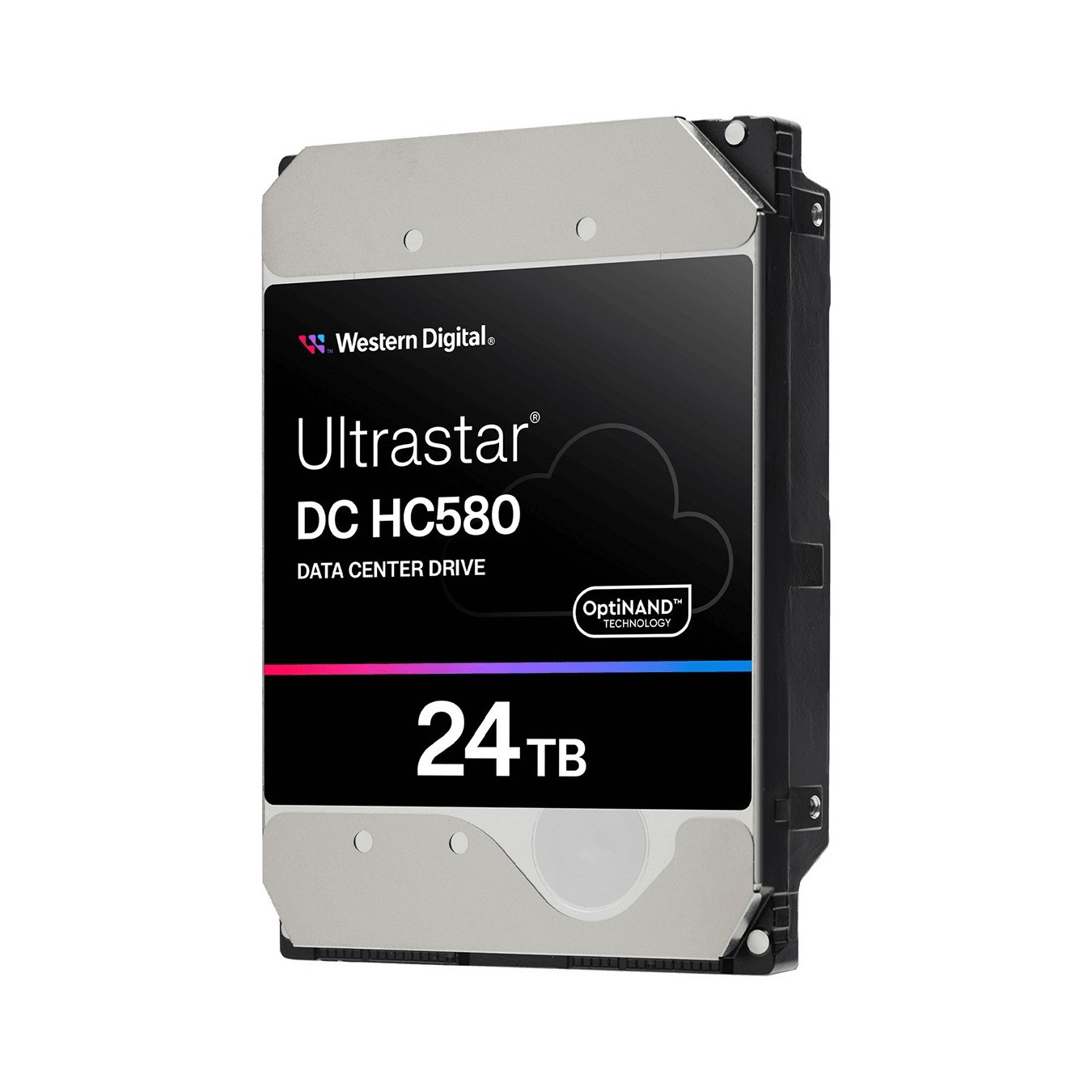

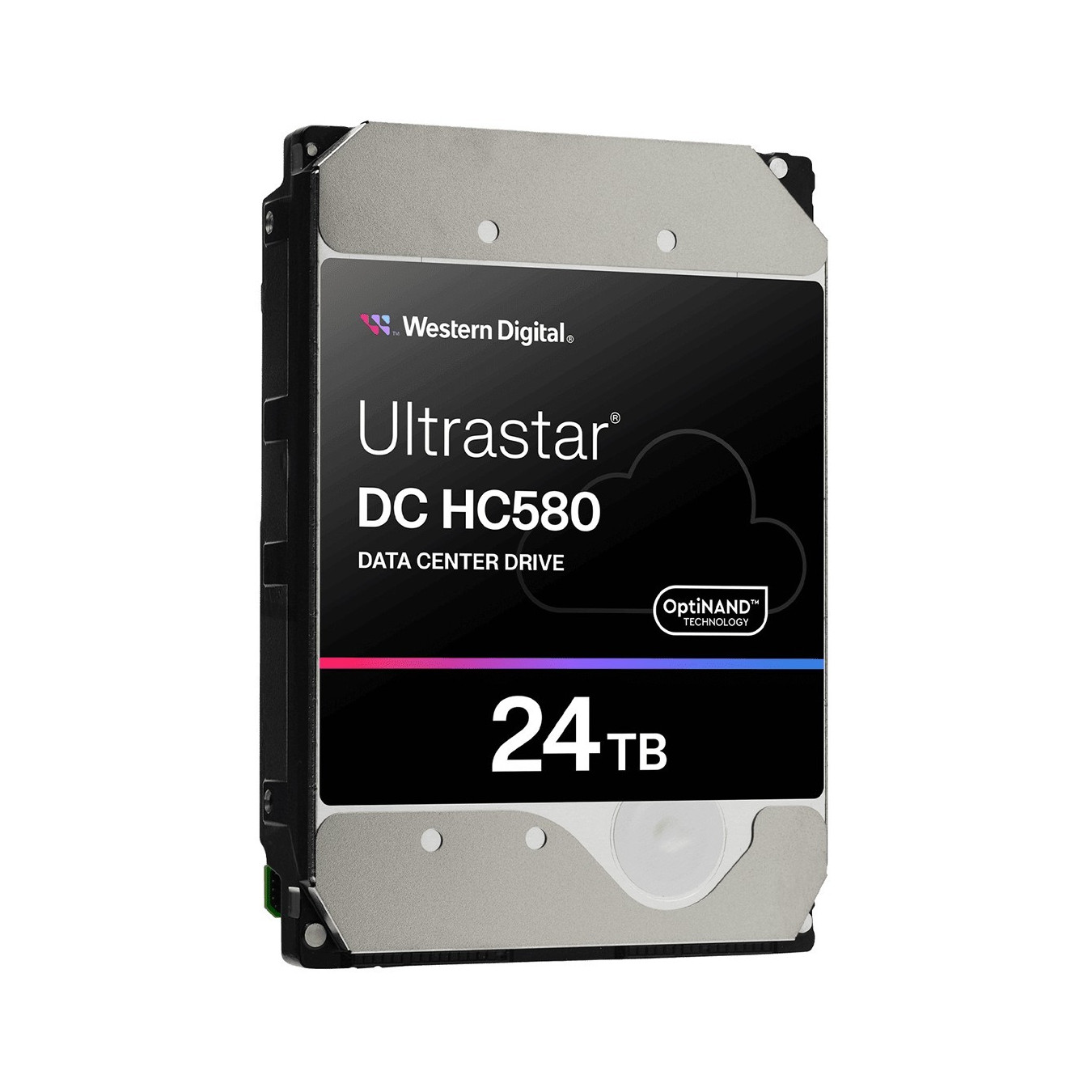

WD Ultrastar DC HC580 - 24TB 7200RPM 512MB Cache, 3.5in SAS 12Gb/s Data Center HDD
WD Ultrastar DC HC580 24TB enterprise HDD — 7200 RPM, 512MB cache, 3.5-inch SAS 12Gb/s, sustained 298 MiB/s, 550 TB/yr workload, 5-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
|---|---|
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
Western Digital Ultrastar DC HC580. HDD capacity: 24 TB. HDD speed: 7200 RPM. Storage drive buffer size: 512 MB. HDD size: 3.5". Interface: SAS
| HDD capacity | 24 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 298 MiB/s |
| Average latency | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) | 2500000 h |
| Power consumption (read) | 8.7 W |
| Power consumption (write) | 8.7 W |
| Power consumption (idle) | 5.8 W |
| Operating voltage | 5 / 12 V |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 670 g |
| Quantity per pack | 1 pc(s) |
| Warranty period | 5 year(s) |
| Feature | Linux operating systems supported |
