Chieftec Mesh CW-01B-OP Black Mid-Tower ATX/mATX/ITX Case (Boxed)
Chieftec CW-01B-OP Mesh Series black mid-tower PC case. ATX/mATX/Mini-ITX support, 3x5.25" + 7x3.5"/2.5" bays, 410mm GPU (w/ HDD cage removal), 165mm CPU cooler, bottom ATX PSU, 2x USB 3.0.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 280 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
The Chieftec CW-01B-OP from the Mesh Series is a high-performance mid-tower workstation case designed for flexibility and airflow. It combines brushed aluminum accents with mesh panels for optimal cooling and a timeless look. Supports ATX, micro-ATX, and Mini-ITX motherboards with dimensions 490 x 210 x 471 mm and 0.7mm SPCC steel construction.

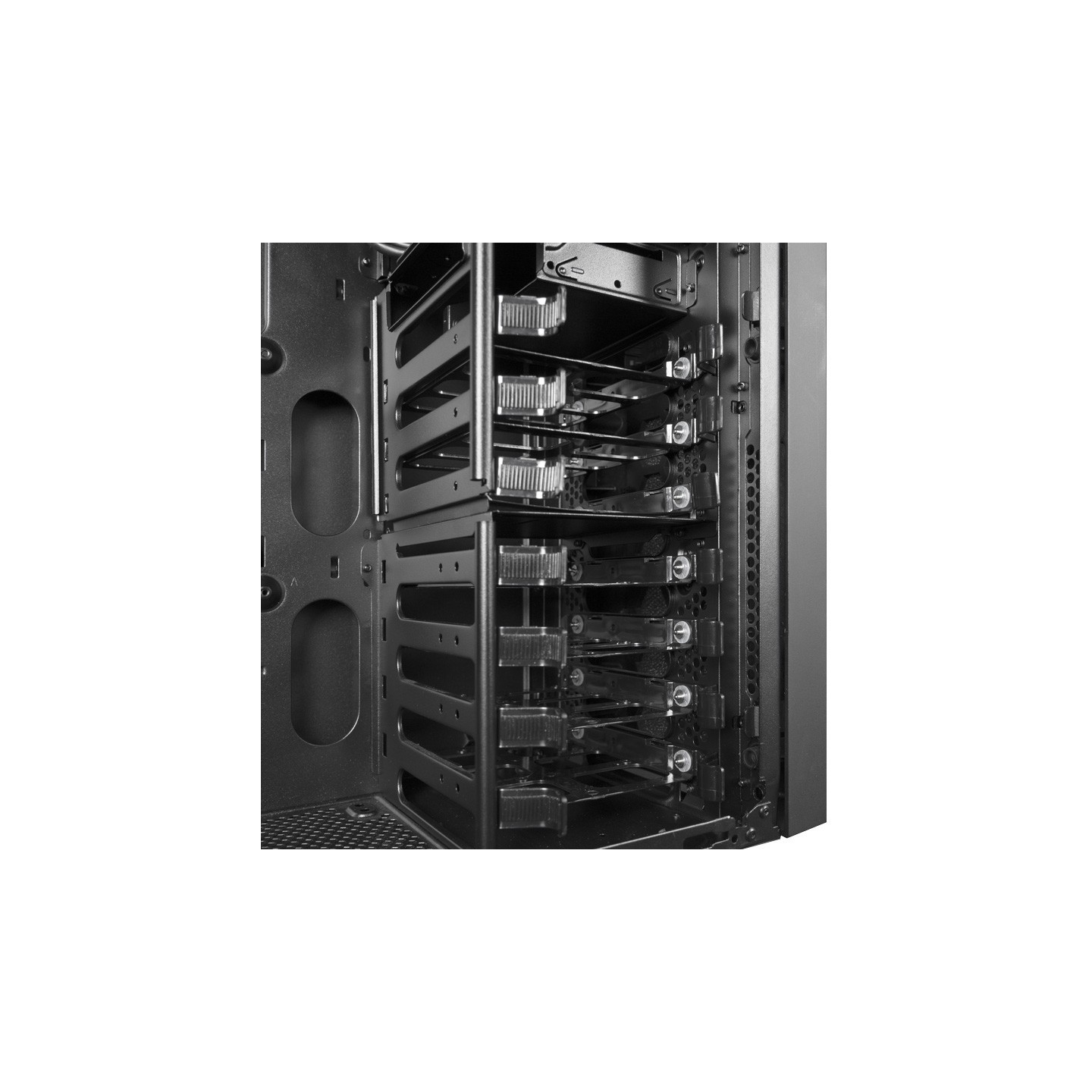

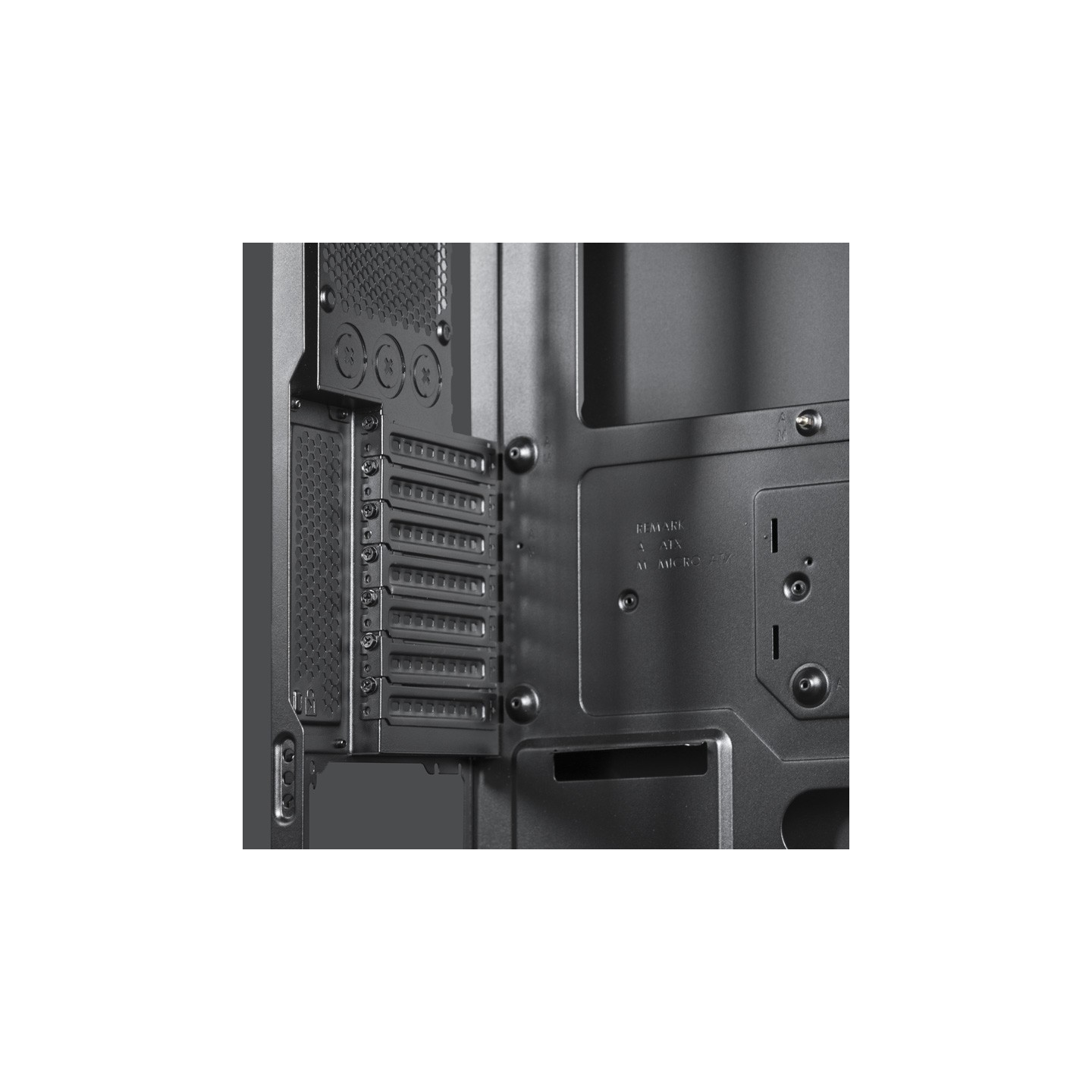

Key features include 3x external 5.25" bays, 7x internal 3.5" or 2.5" bays via tool-less HDD/SSD combo cages, and 7 expansion slots. Cooling options: front 2x120mm, top 2x120/140mm or 280mm radiator, side 1x120mm, bottom 1x120/140mm. Max CPU cooler height 165mm, GPU length 410mm (270mm standard, extends with middle HDD cage removal). Front I/O: 2x USB 3.0, audio out, mic in. Bottom ATX PSU mount.
- ✅ Tool-less drive installation

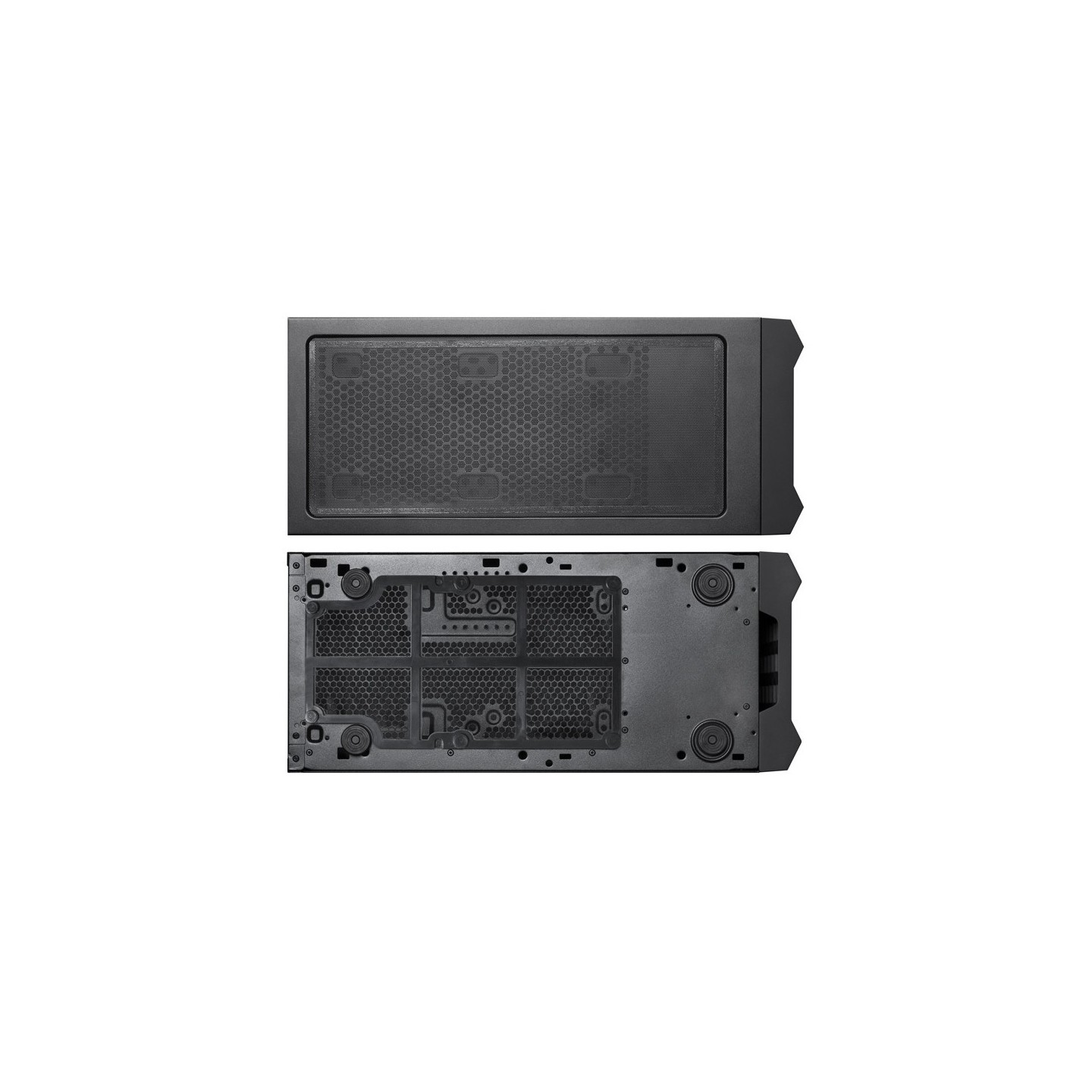

- ✅ Pre-installed dust filters (front, top, bottom magnetic)
- ✅ 24-month warranty
- ✅ No pre-installed fans (0 included)
- ✅ Weight: 6.8kg (packaged 7.8kg)
| Material | 0.7mm SPCC |
| Form factor | Mid Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5 | 7 |
| Number of 5.25 | 3 |
| Number of 2.5 | 7 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 410 mm (270 mm standard) |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Front USB 3.2 Gen 1 ports | 2 |
| Front audio | Audio-out, Mic-In |
| Width | 210 mm |
| Depth | 490 mm |
| Height | 471 mm |
| Weight | 6.8 kg |
| Package weight | 7.8 kg |
| Included fans | 0 |
| Top radiator support | 280 mm |
| Warranty | 24 Months |
