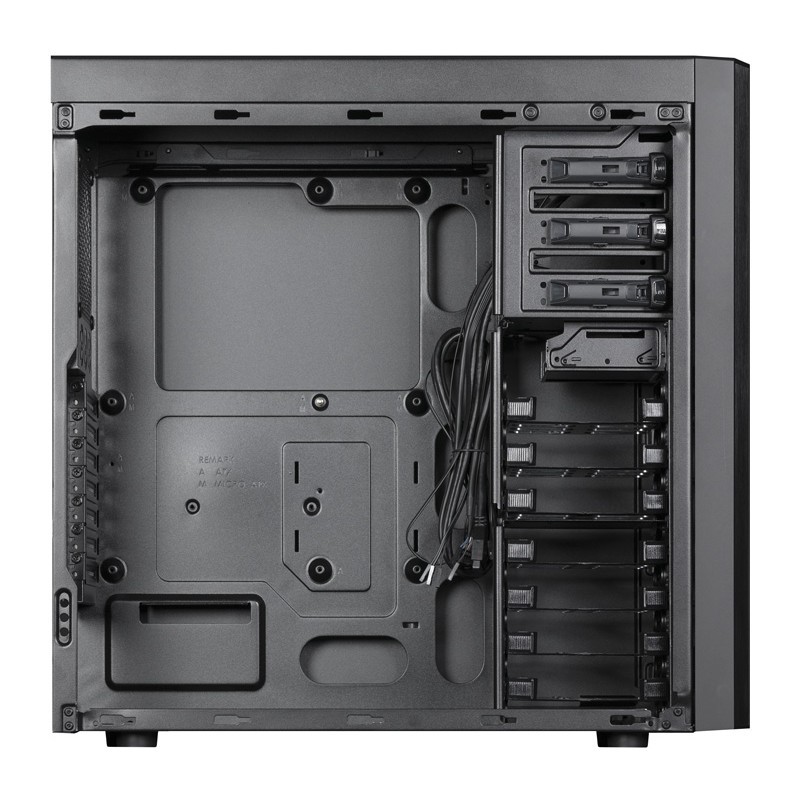

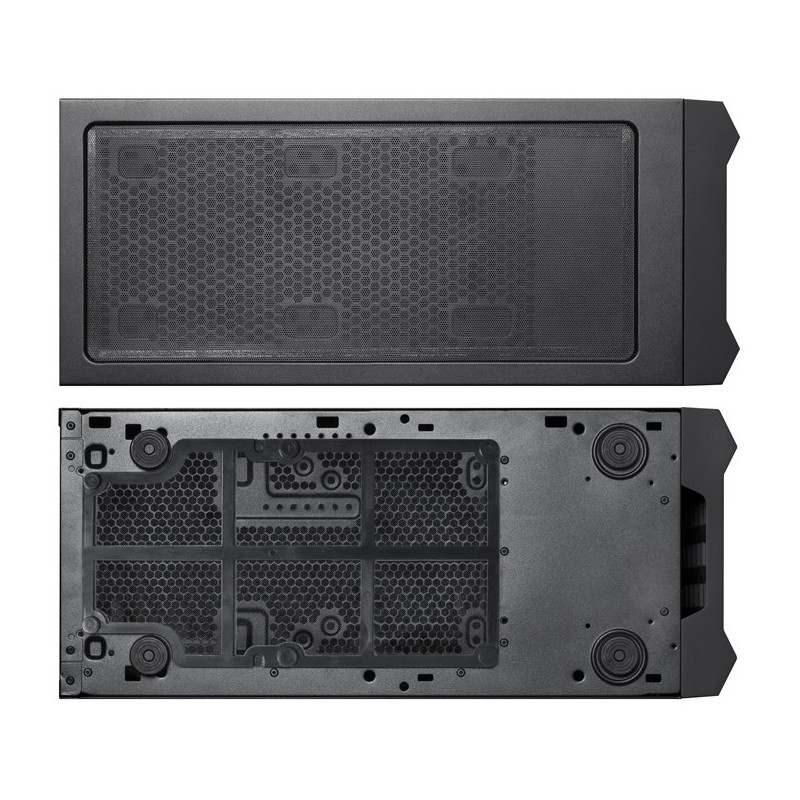

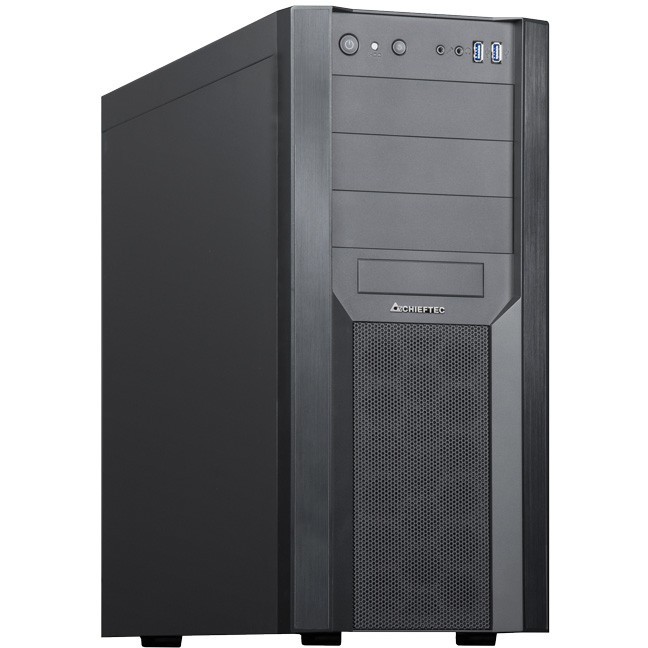

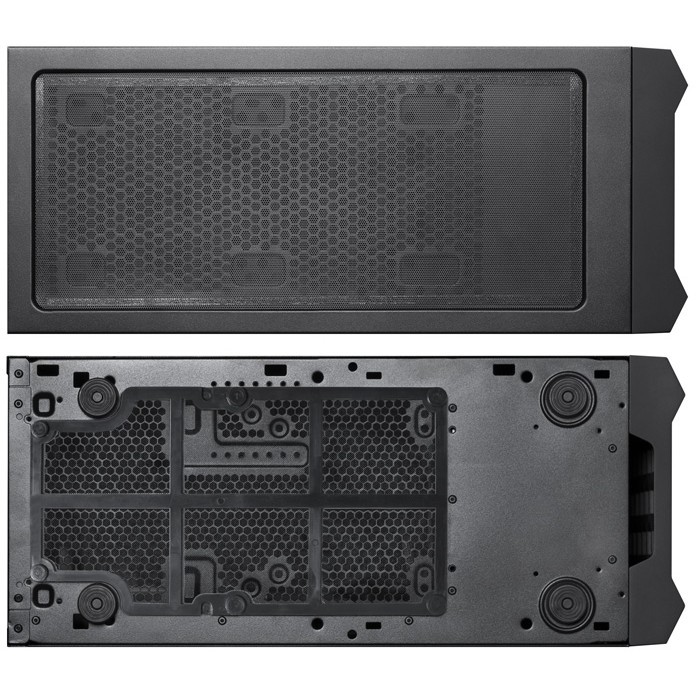

Chieftec Mesh Series - CW-01B-OP - Black Mid-Tower PC Case, ATX/mATX/Mini-ITX, 7x3.5" bays, 410mm GPU, 165mm CPU Cooler
Black Chieftec CW-01B-OP mid-tower case. Supports ATX/micro-ATX/Mini-ITX, 7x3.5" + 7x2.5" bays, 3x5.25", up to 410mm GPU, 165mm CPU cooler, 2x USB-A front.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Type | Mid Tower |
|---|---|
| PC Cases - Max GPU Length | greater than380 mm |
| PC Cases - CPU Cooler Clearance | 151-165 mm |
| PC Cases - Radiator Support (Top) | 280 mm |
| PC Cases - Front I/O | 2xUSB-A |
| PC Cases - GPU Orientation | Horizontal |
Chieftec CW-01B-OP. Form factor: Tower. Type: PC. Product colour: Black. Power supply location: Bottom. Supported power supply form factors: ATX. Front fans diameters supported: 120 mm. Side fans diameters supported: 120 mm. Top fans diameters supported: 120.140 mm. Supported HDD sizes: 2.5.3.5". Width: 210 mm. Depth: 490 mm. Height: 471 mm
| Material | SPCC |
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX. micro ATX. Mini-ITX |
| Number of 3.5" bays | 7 |
| Number of 5.25" bays | 3 |
| Number of 2.5" bays | 7 |
| Number of internal 3.5" bays | 7 |
| Number of external 5.25" bays | 3 |

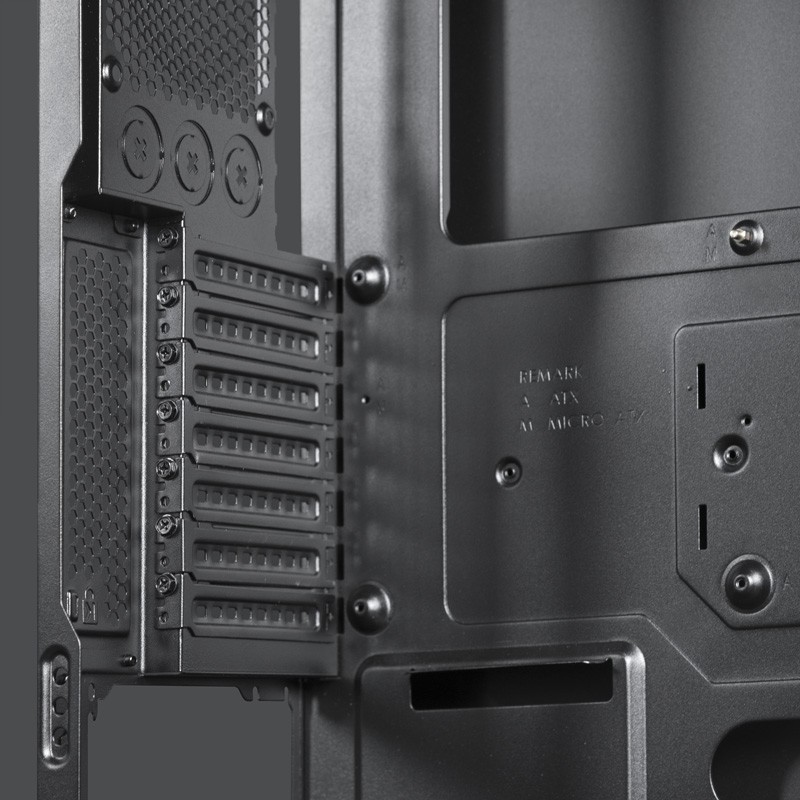

| Number of expansion slots | 7 |
| Feature | HDD/SSD combo cage |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 41 cm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120.140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120.140 mm |
| Top radiator sizes supported | 280 mm |
| Supported HDD sizes | 2.5.3.5" |
| Width | 210 mm |
| Depth | 490 mm |
| Height | 471 mm |
| Weight | 6.8 kg |
| Material thickness | 0.7 mm |
| Package weight | 7.8 kg |
| Harmonized System (HS) code | 84733080 |
