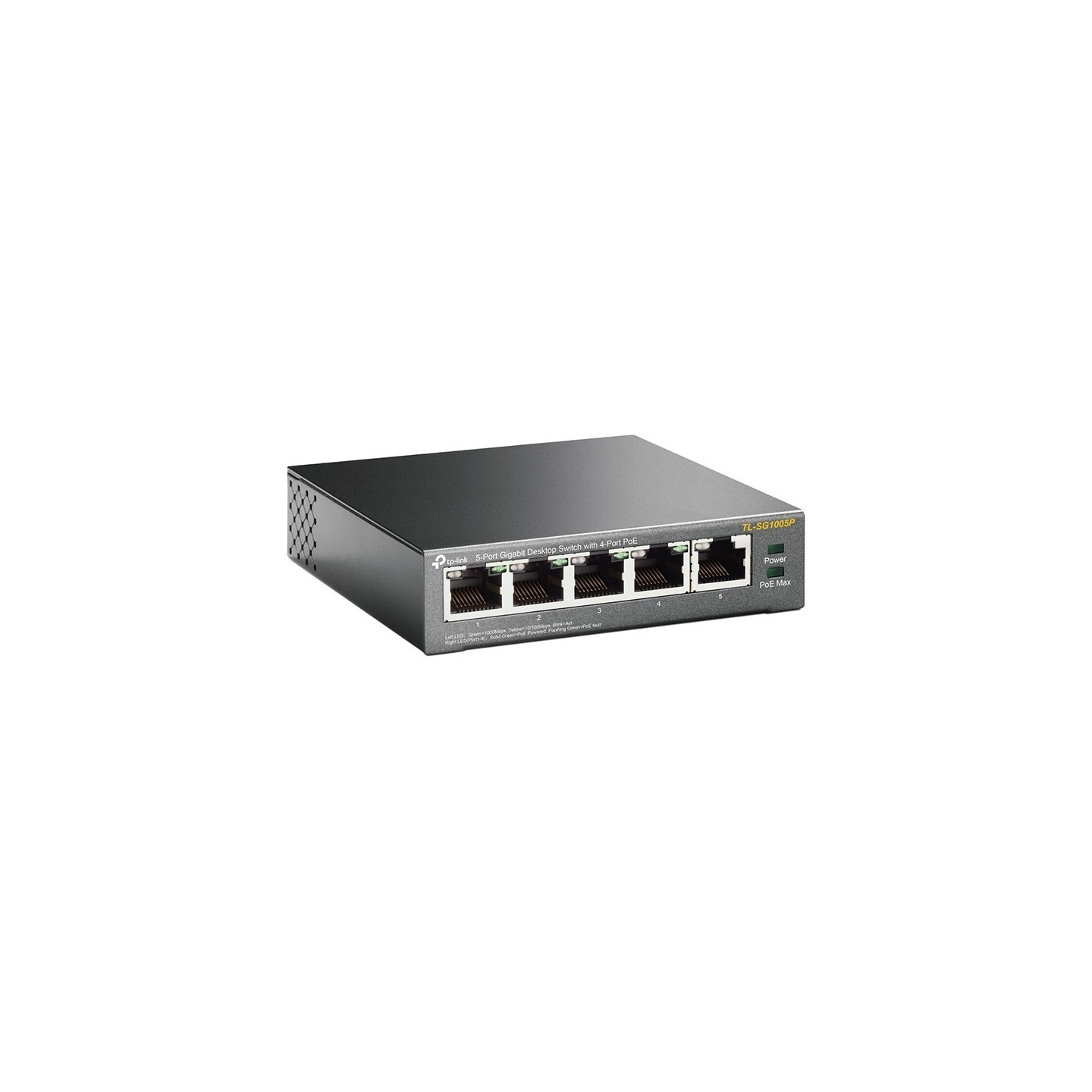

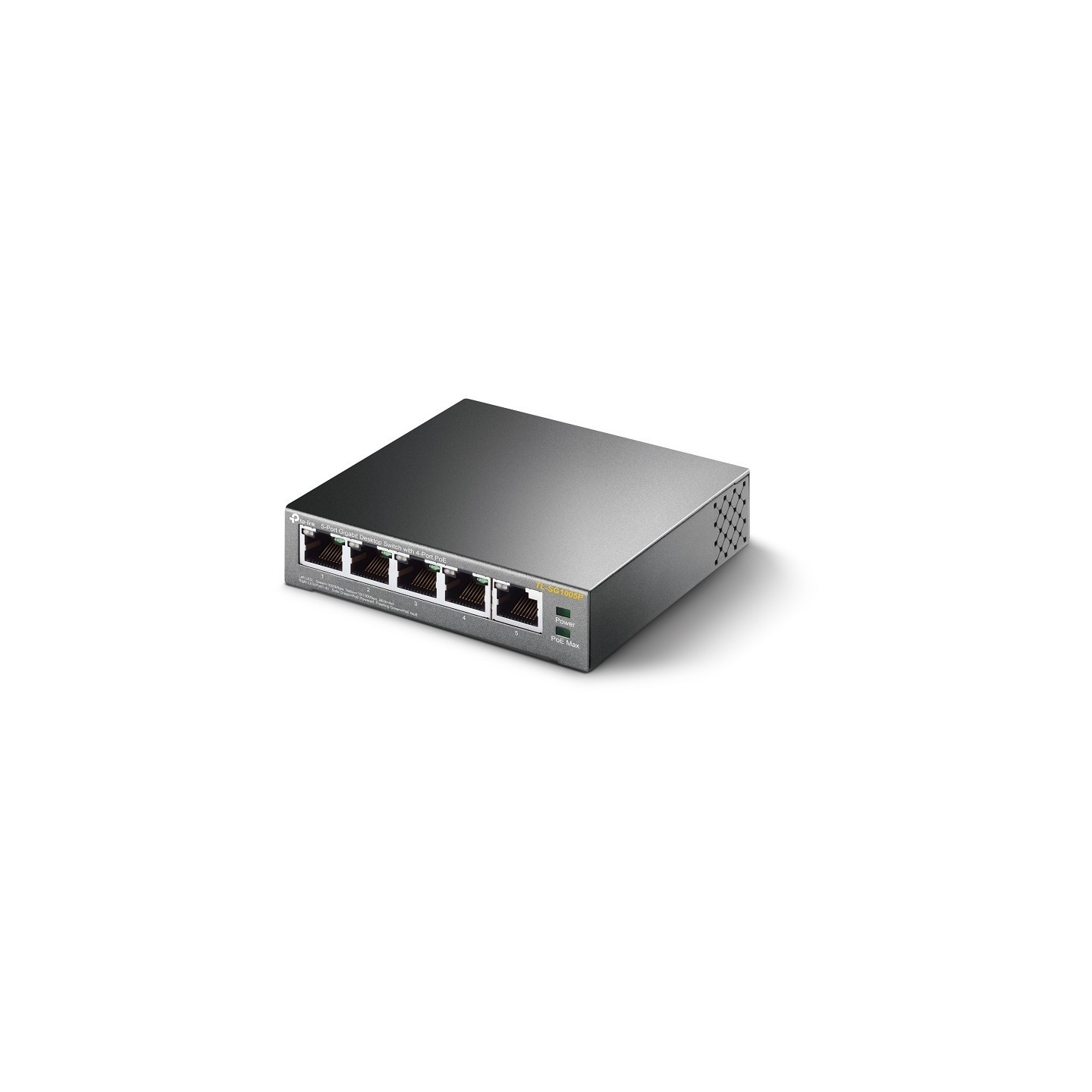

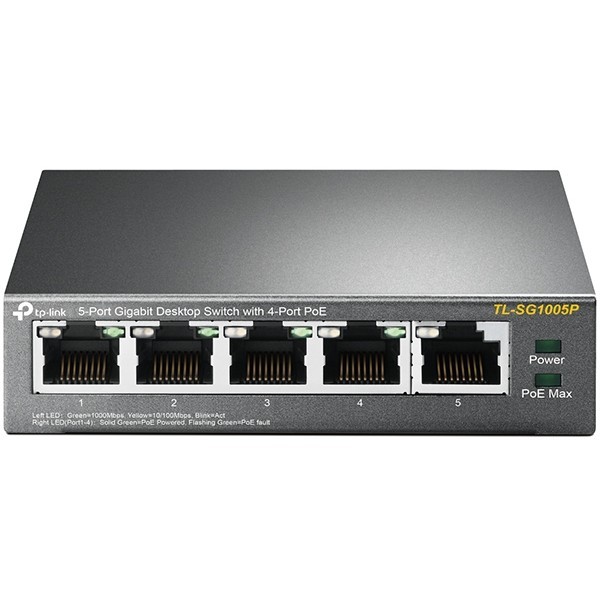

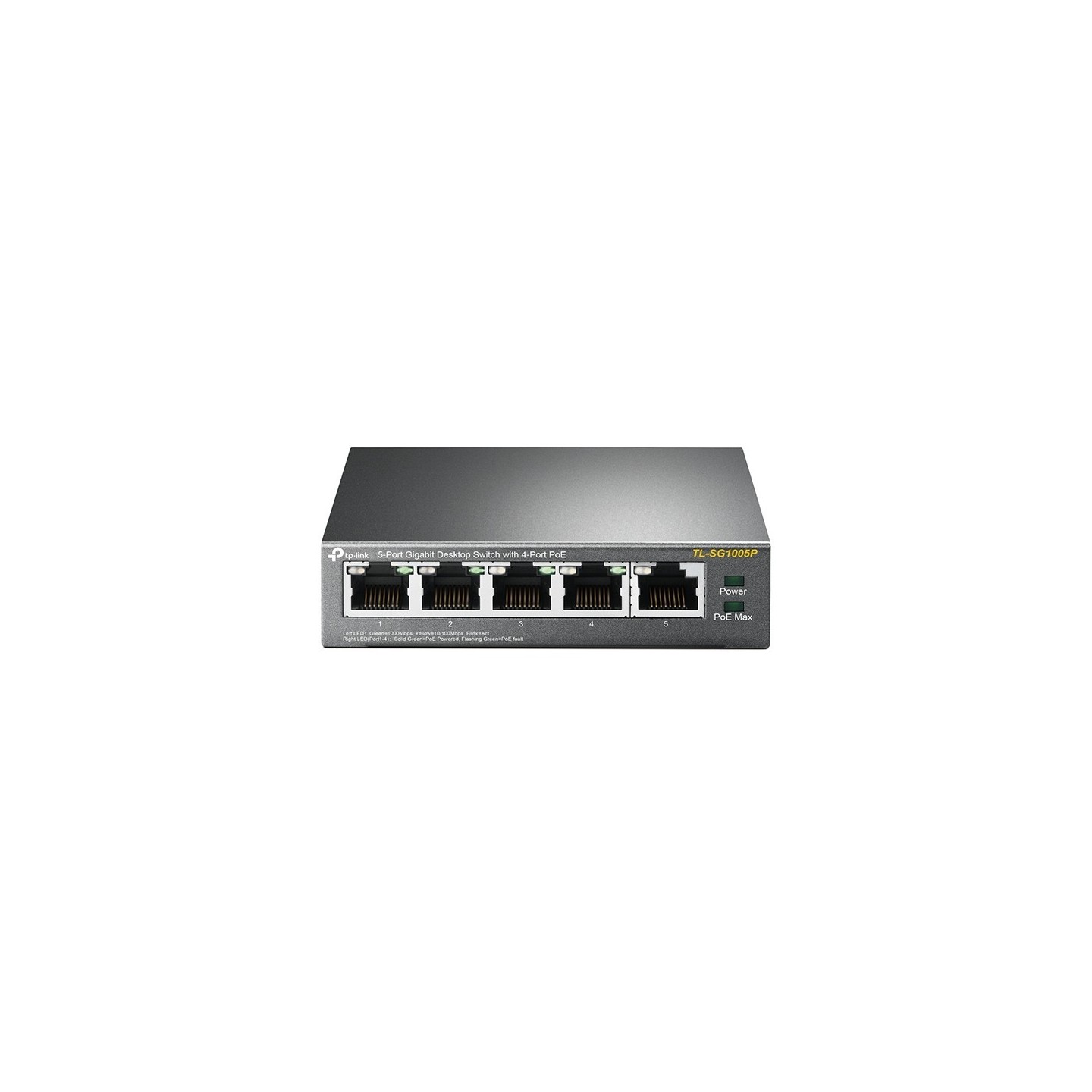

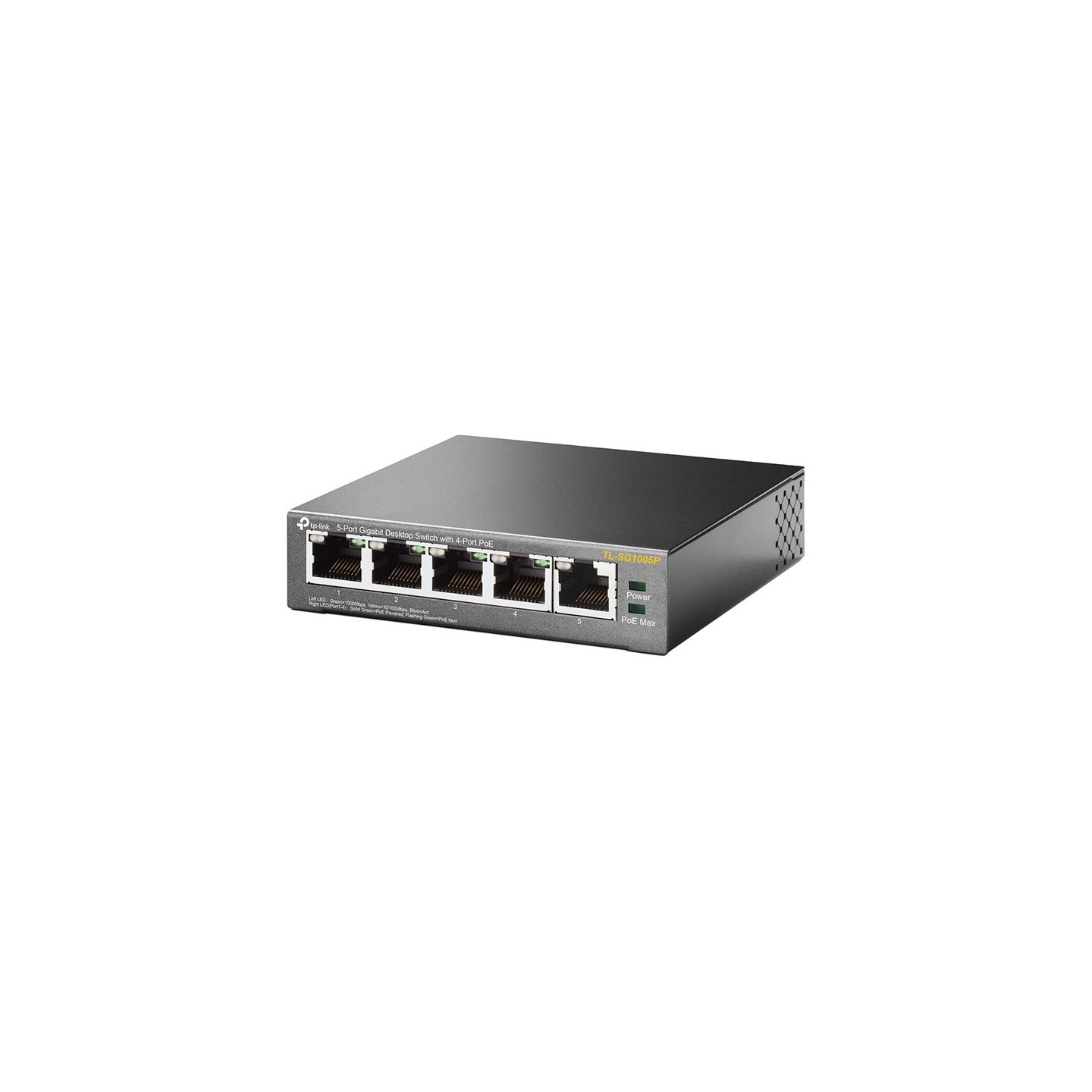

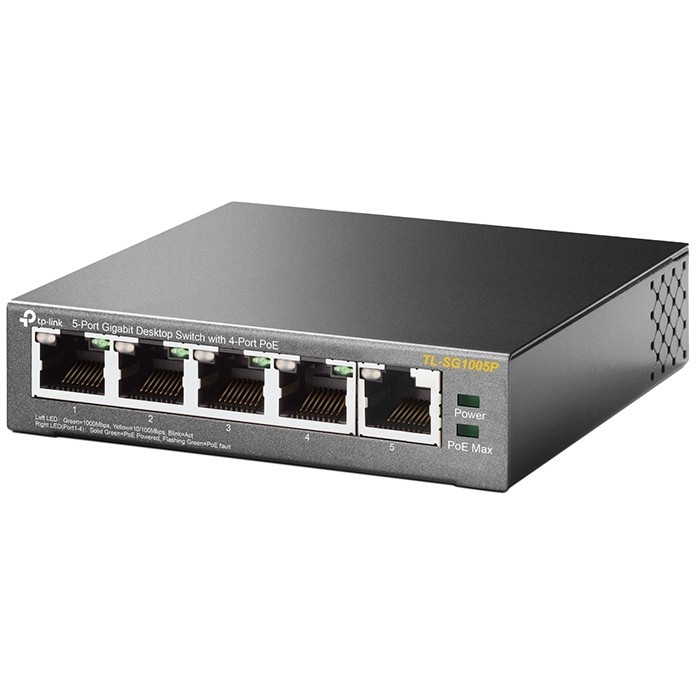

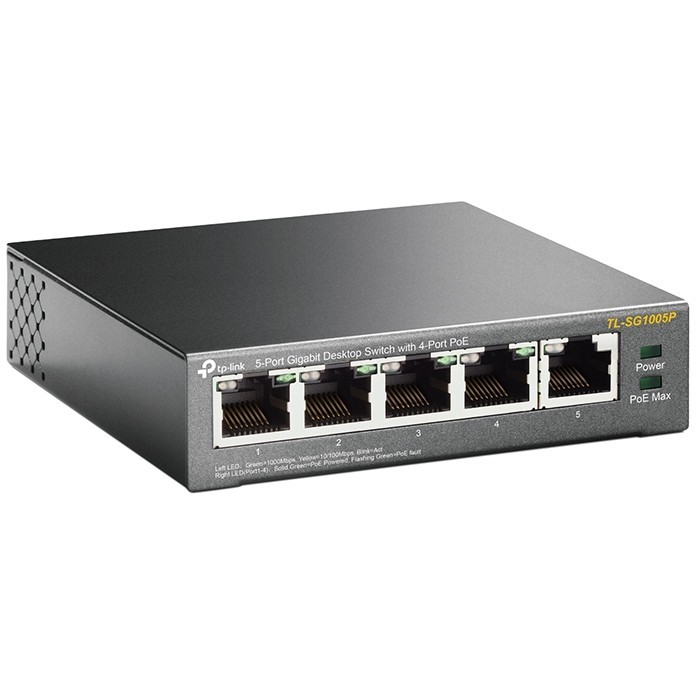

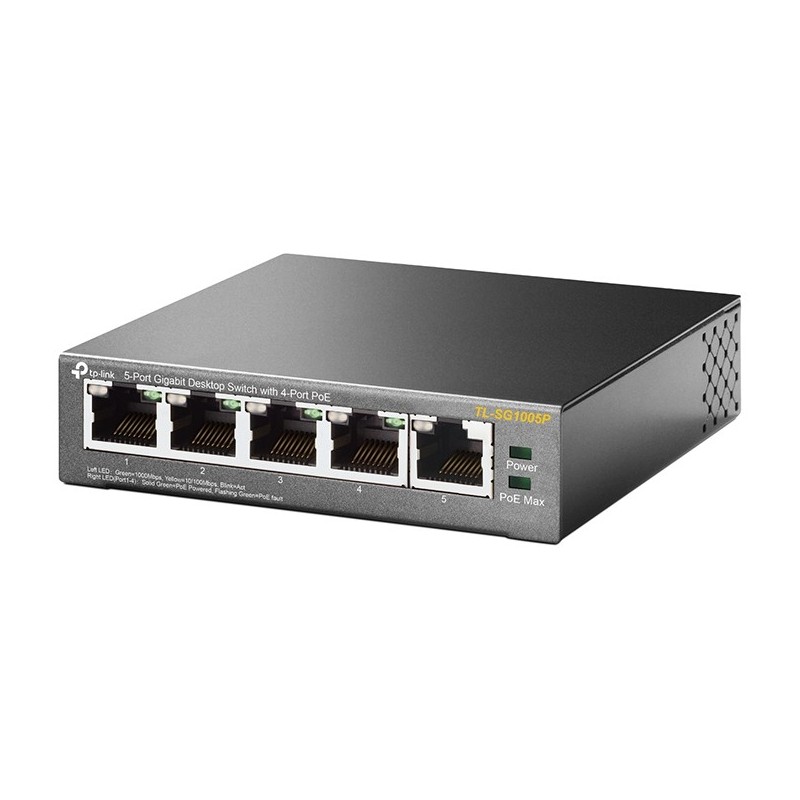

TP-Link SG1005P 5-Port Gigabit PoE Switch - SG1005P - Black, Metal enclosure, 4 PoE ports, Unmanaged
Unmanaged 5-port Gigabit PoE switch with 4 PoE ports, 56 W budget; metal desktop enclosure, compact and silent operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | less than or equal to60 W |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3af. IEEE 802.3u. IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
| Switch type | Unmanaged |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3af. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Product colour | Black |
| Maximum cable length | 100 m |
| Power source | DC/PoE |
| DC input voltage | 48 V |
| Input current | 1.25 A |
| Power consumption (max) | 64.44 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 219.87 BTU/h |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 800 g |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Harmonized System (HS) code | 85176990 |
