Ubiquiti UCG-Fiber Cloud Gateway - 4x2.5G LAN, 2x10G SFP+, 1x10G RJ45, 3GB RAM (Boxed)
Ubiquiti UniFi Cloud Gateway Fiber (UCG-Fiber) is a desktop 10G gateway with quad-core 2.2GHz ARM, 3GB RAM, 4x2.5 GbE LAN (1x PoE+), 2x10G SFP+, 1x10G RJ45. Supports 50+ devices, 5Gbps IDS/IPS, full UniFi apps, selectable NVR SSD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Firewall Intrusion Prevention Load Balancing PoE Support QoS Traffic Monitoring VLAN Support VPN Support |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wired Only |
The Ubiquiti UniFi Cloud Gateway Fiber (UCG-Fiber) delivers high-performance networking for homes and businesses. Featuring a quad-core ARM Cortex-A73 processor at 2.2 GHz and 3 GB RAM, it manages 50+ UniFi devices, 500+ users, and up to 5 4K cameras with selectable NVMe SSD storage up to 2 TB.
It includes dual 10G WAN options (SFP+ and RJ45), a 4-port 2.5 GbE switch with PoE+ (30W budget), and one 10G SFP+ LAN port. Advanced features like 5 Gbps IDS/IPS, stateful L7 firewall, DPI, zone-based filtering, content blocking, license-free SD-WAN, Multi-WAN load balancing, OSPF routing, VLANs, and VPN (IPsec, WireGuard, OpenVPN) ensure secure, efficient connectivity.

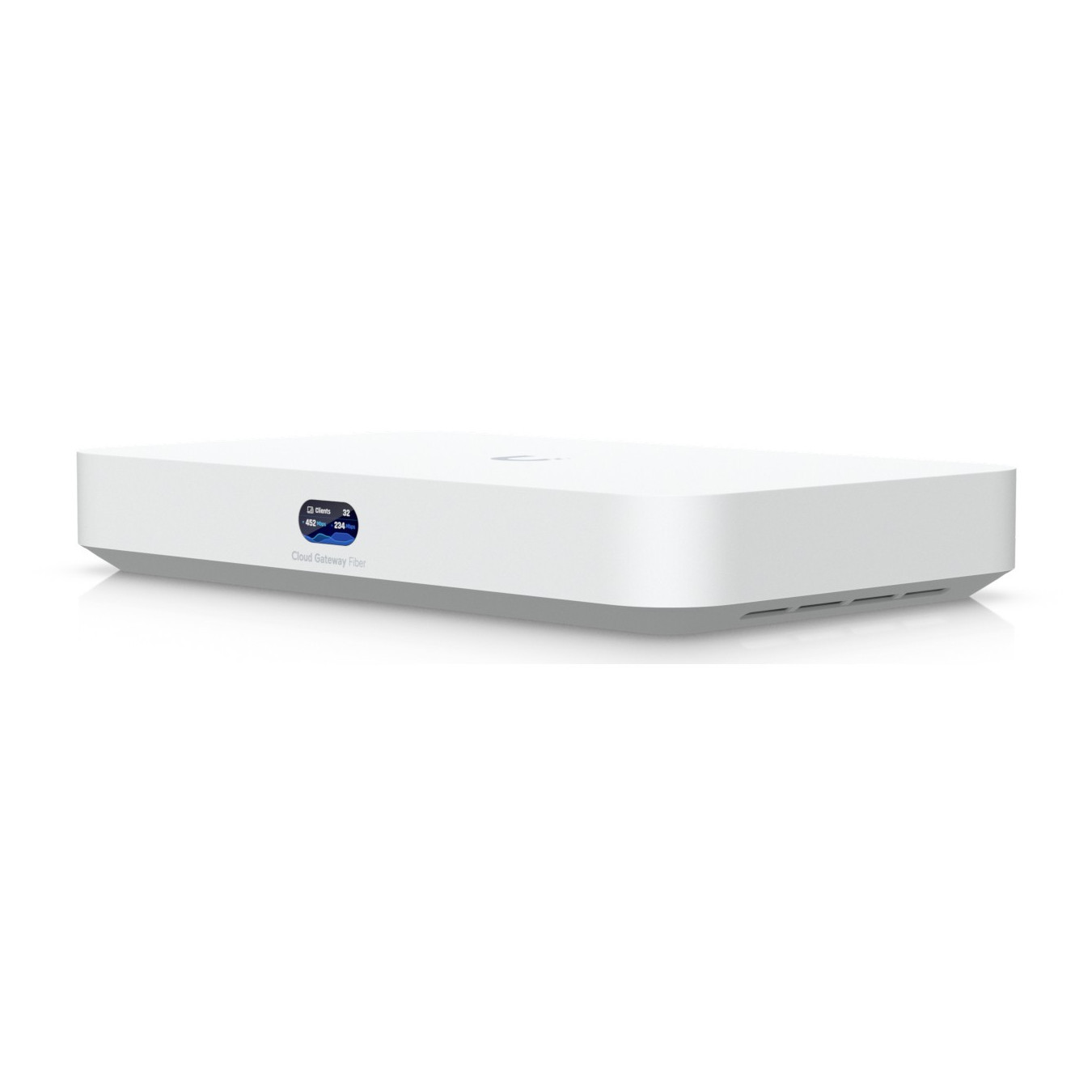

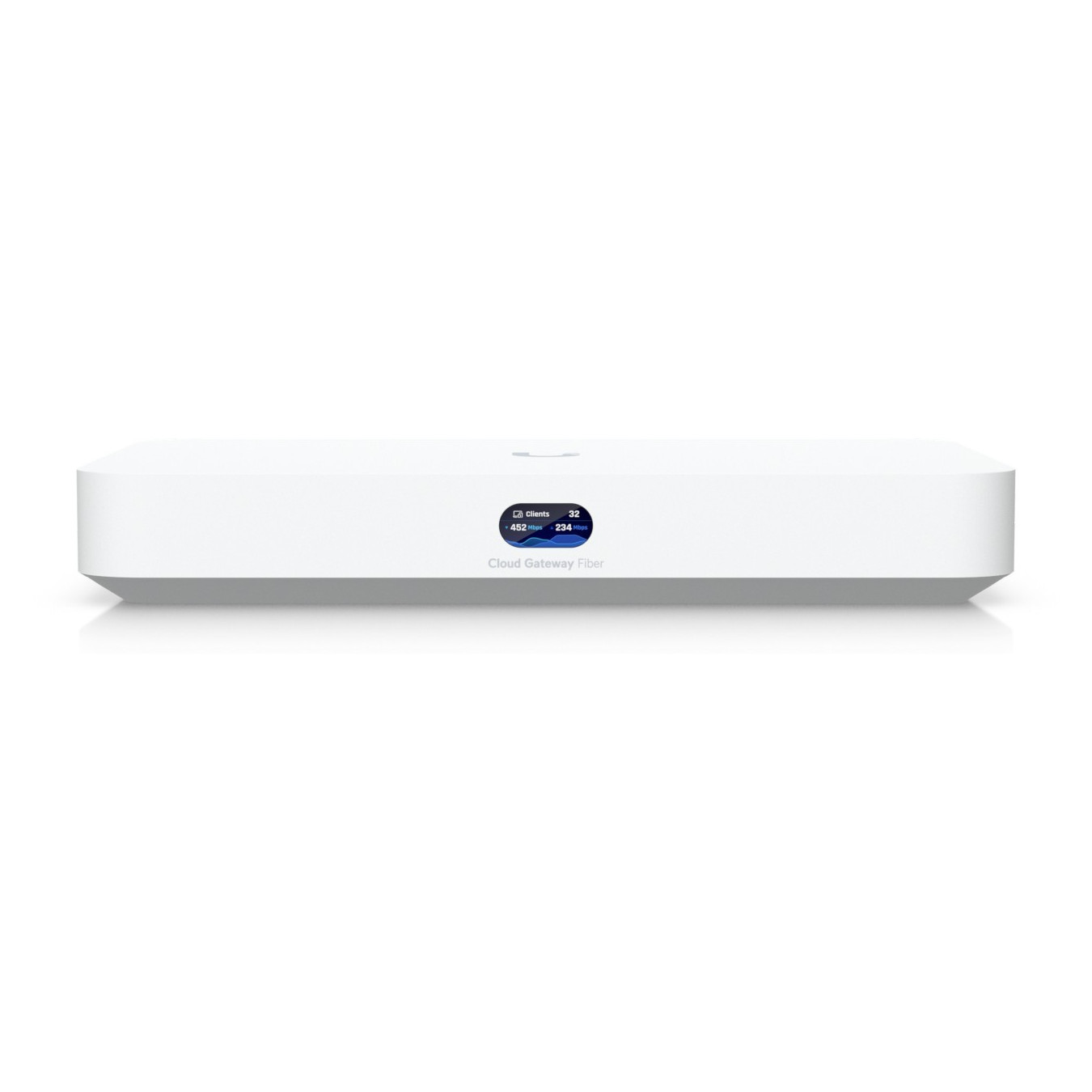

- Compact desktop form with 0.96" LCM status display and Bluetooth/Ethernet management
- Security: 55,000+ IPS signatures, RADIUS over TLS, ad blocking

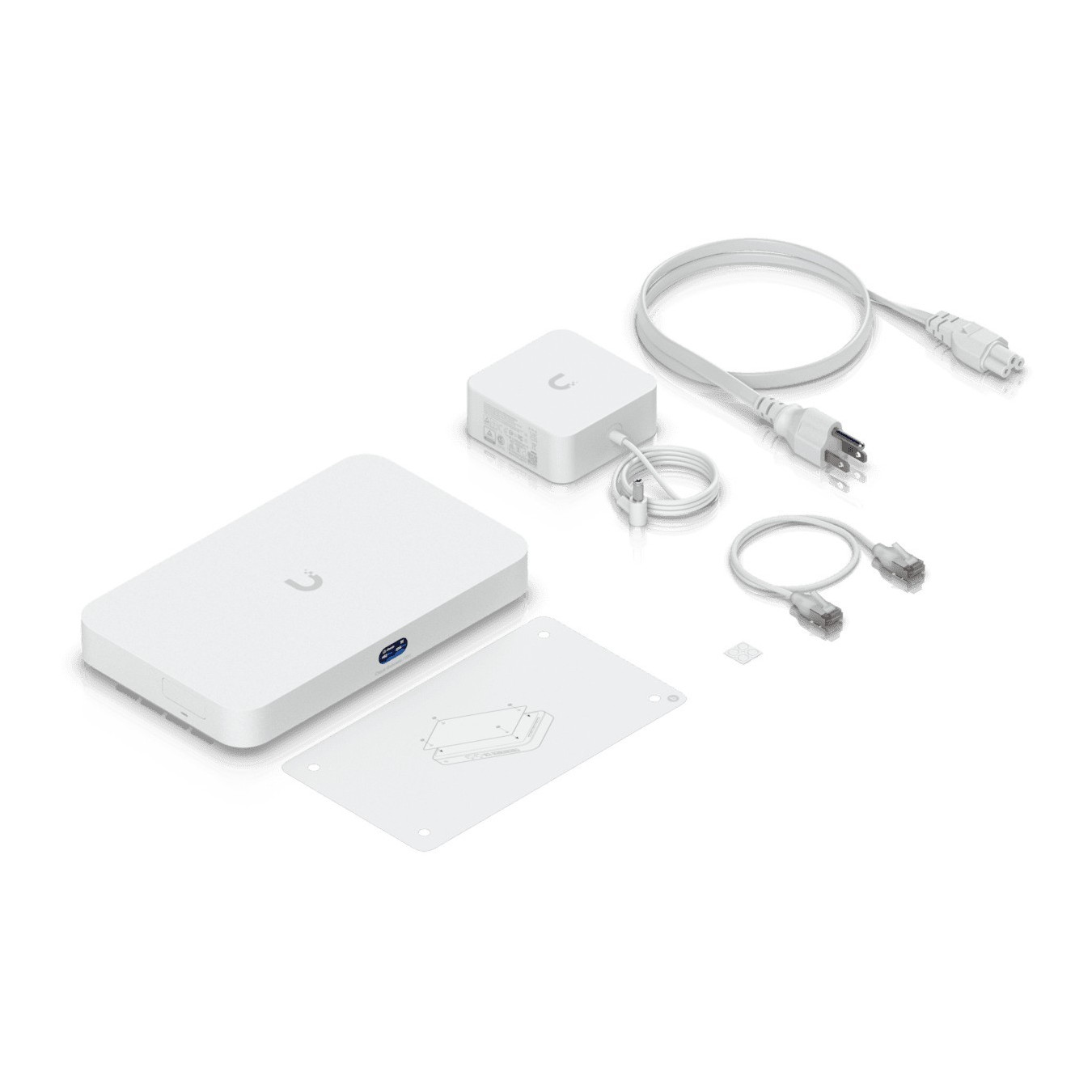

- Power: 54V DC adapter included, max 29.4W (excl. PoE), operating 0-40°C

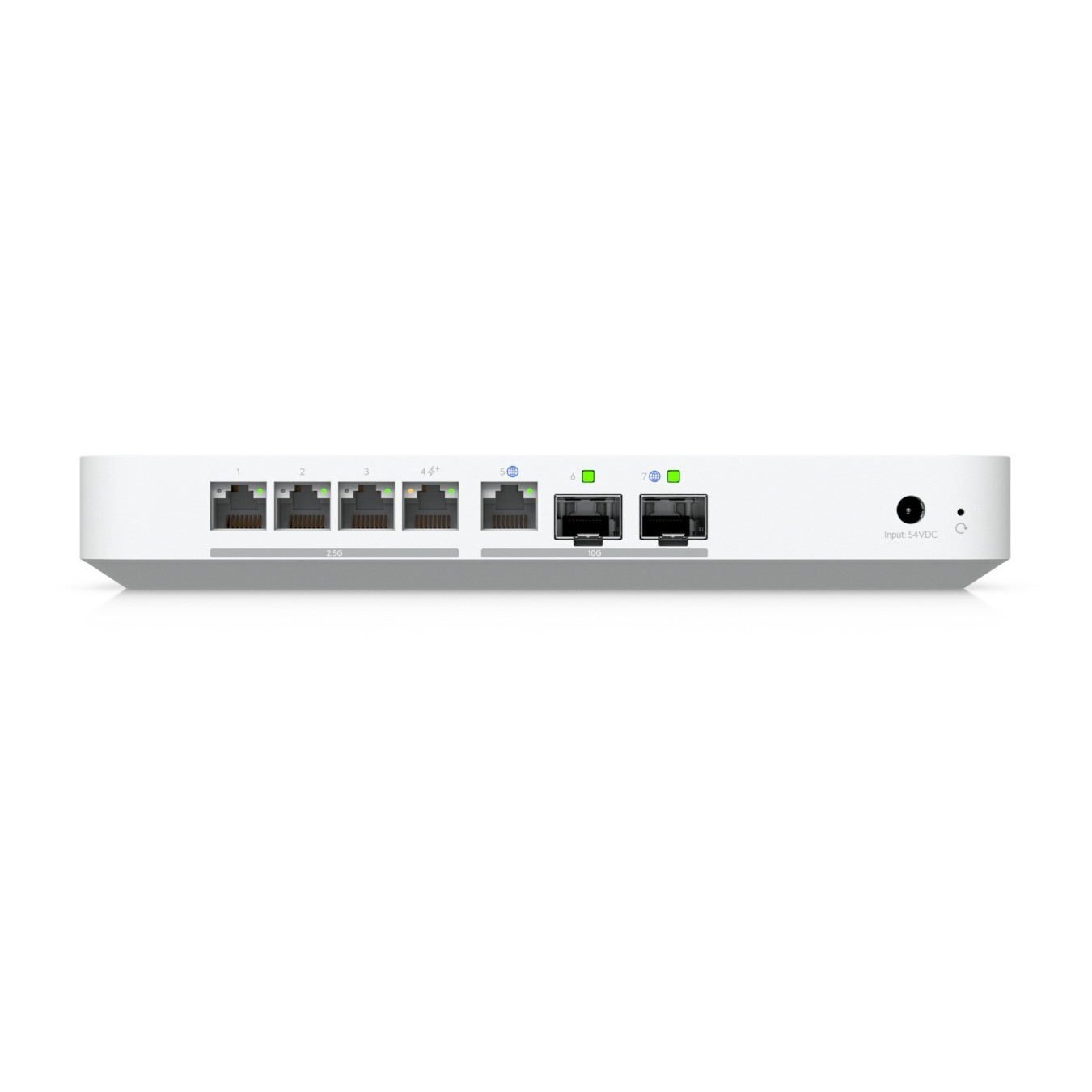

- Ports: 4x 2.5GBASE-T (PoE+ on one), 1x 10GBASE-T, 2x 10G SFP+
- Dimensions: 212.8 x 127.6 x 30 mm, weight 675 g (without SSD)
| Product colour | White |
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Status, Ethernet |
| Display type | LCM |
| Display diagonal | 2.44 cm (0.96 |
| Processor manufacturer | ARM |
| Processor family | Cortex-A73 |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
| Internal memory | 3000 MB |
| Routing protocols | OSPF |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Security algorithms | 802.1x RADIUS, IPSec, TLS |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | 1 x 10G RJ45 |
| SFP+ ports quantity | 2 |
| Power over Ethernet (PoE) | PoE+ 30W |
| Power consumption (max) | 29.4 W |
| Input voltage | 100 - 240 V |
| DC input voltage | 54 V |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Width | 212.8 mm |
| Depth | 127.6 mm |
| Height | 30 mm |
| Weight | 675 g (without SSD) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE, FCC, IC |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| IDS/IPS Throughput | 5 Gbps |
