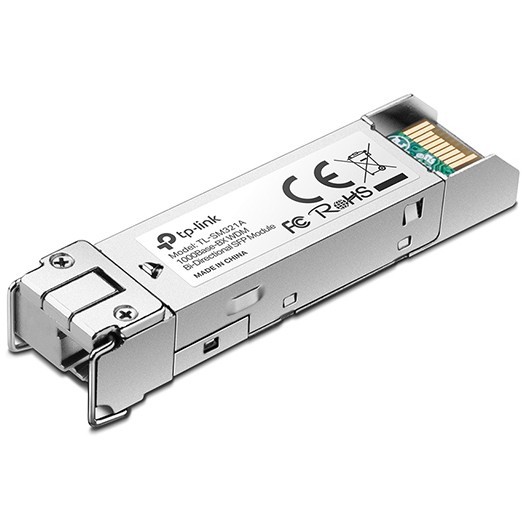

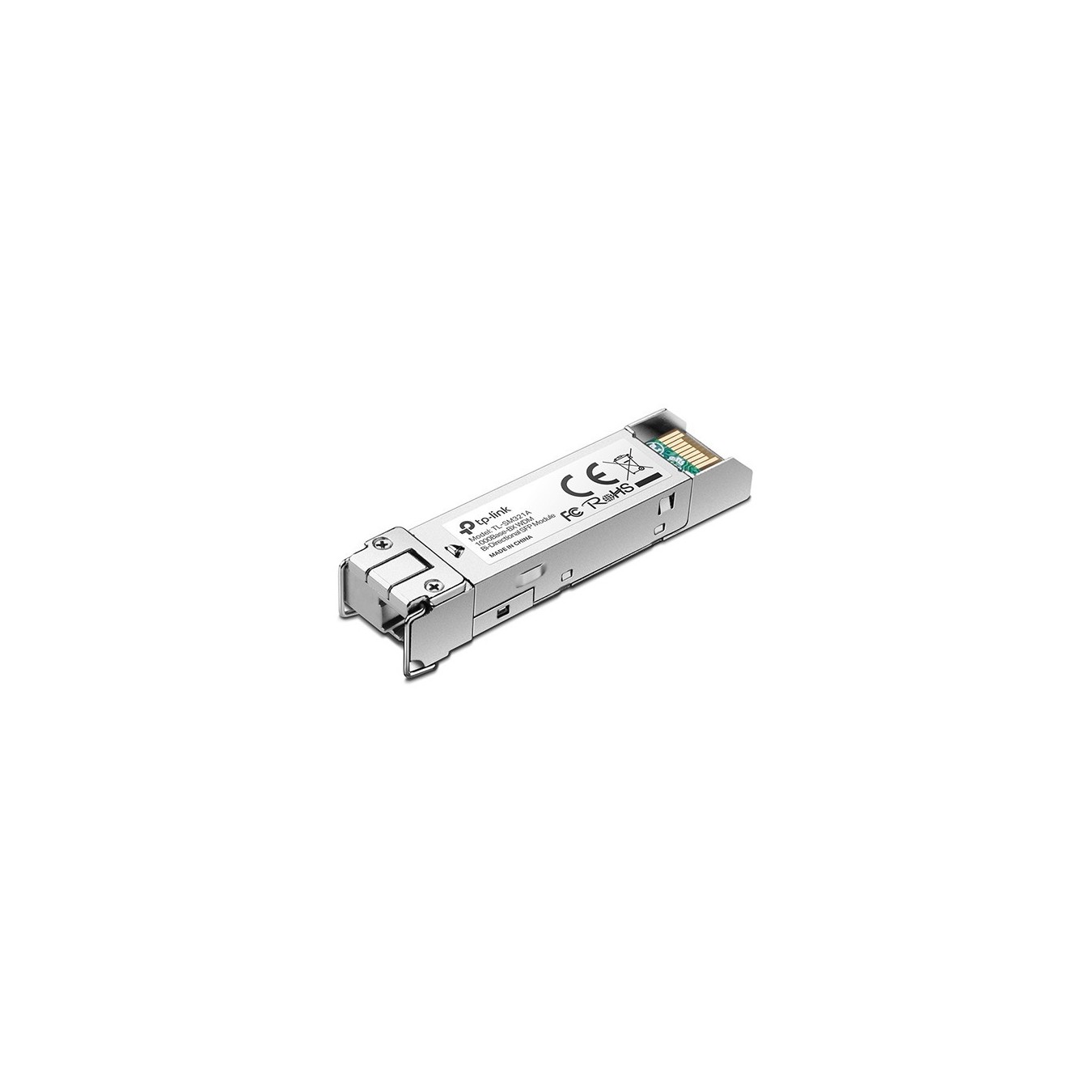

TP-Link TL-SM321A - 1000Base-BX WDM Bi-Directional SFP Single-Mode, LC (UPC), 10 km, Metallic
TP-Link TL-SM321A 1000Base-BX WDM Bi-Directional SFP transceiver; Single‑mode 9/125µm, LC (UPC), 1.25Gbps, 10 km range, 1310/1550 nm, 3.3V, metallic
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Coding/Brand | Generic |
|---|
TP-Link 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic. Maximum data transfer rate: 1250 Mbit/s. Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Certification: FCC. CE. Width: 55.4 mm. Depth: 12.9 mm. Height: 12.9 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Feature | Plug and Play |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Certification | FCC. CE |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 55.4 mm |
| Depth | 12.9 mm |
| Height | 12.9 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
