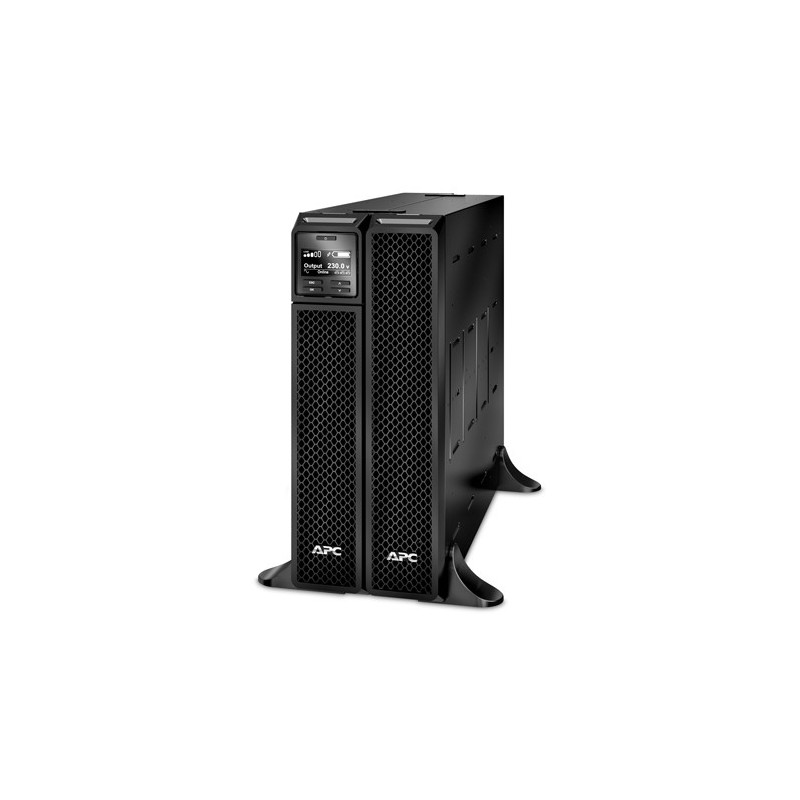

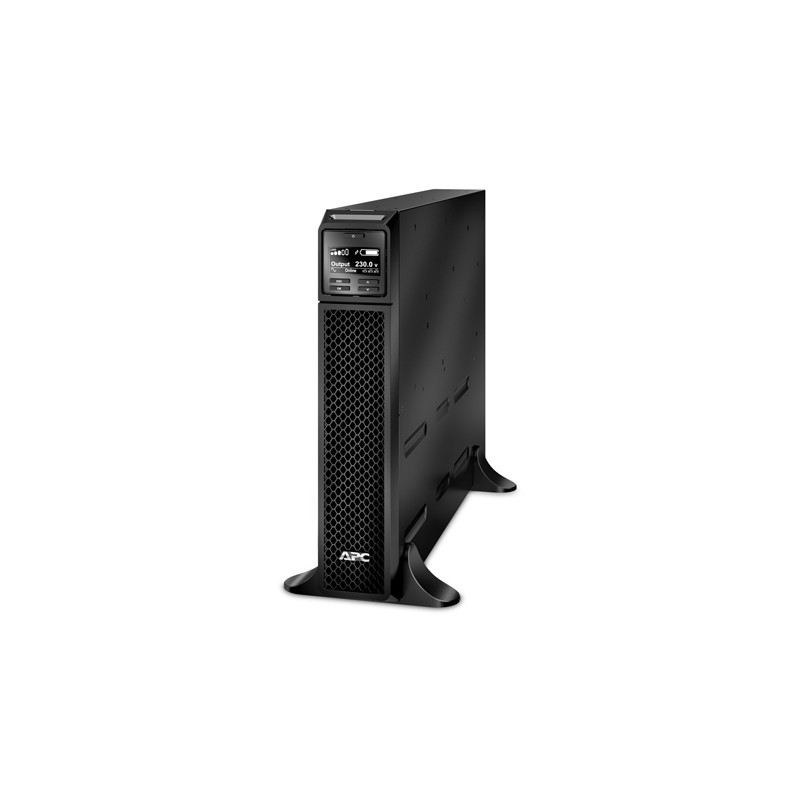

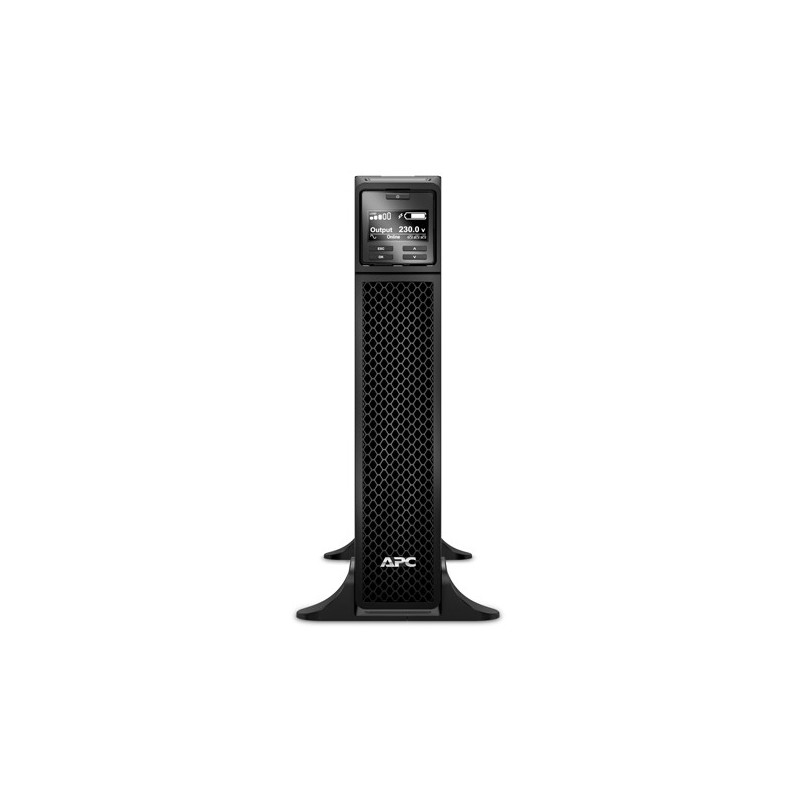

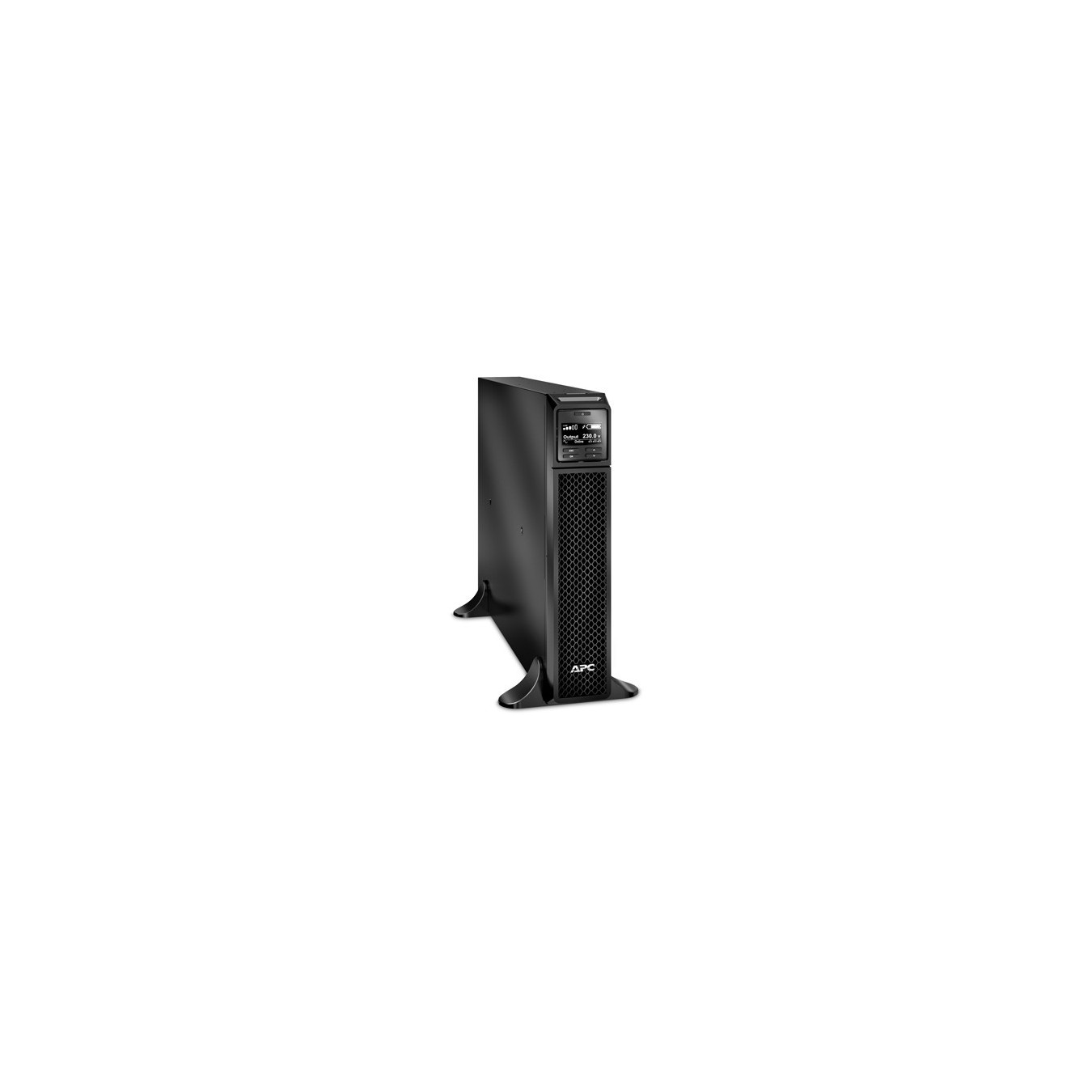

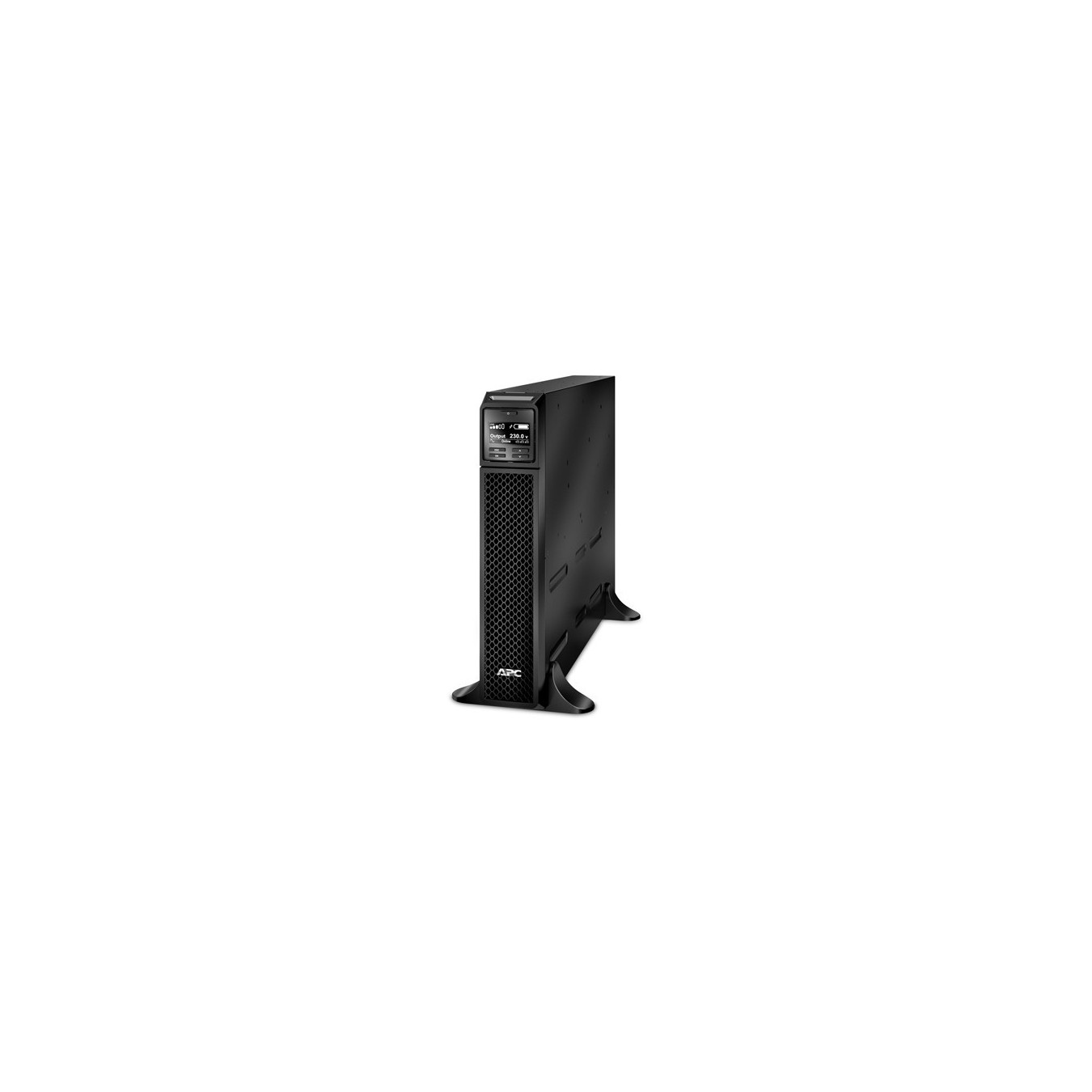

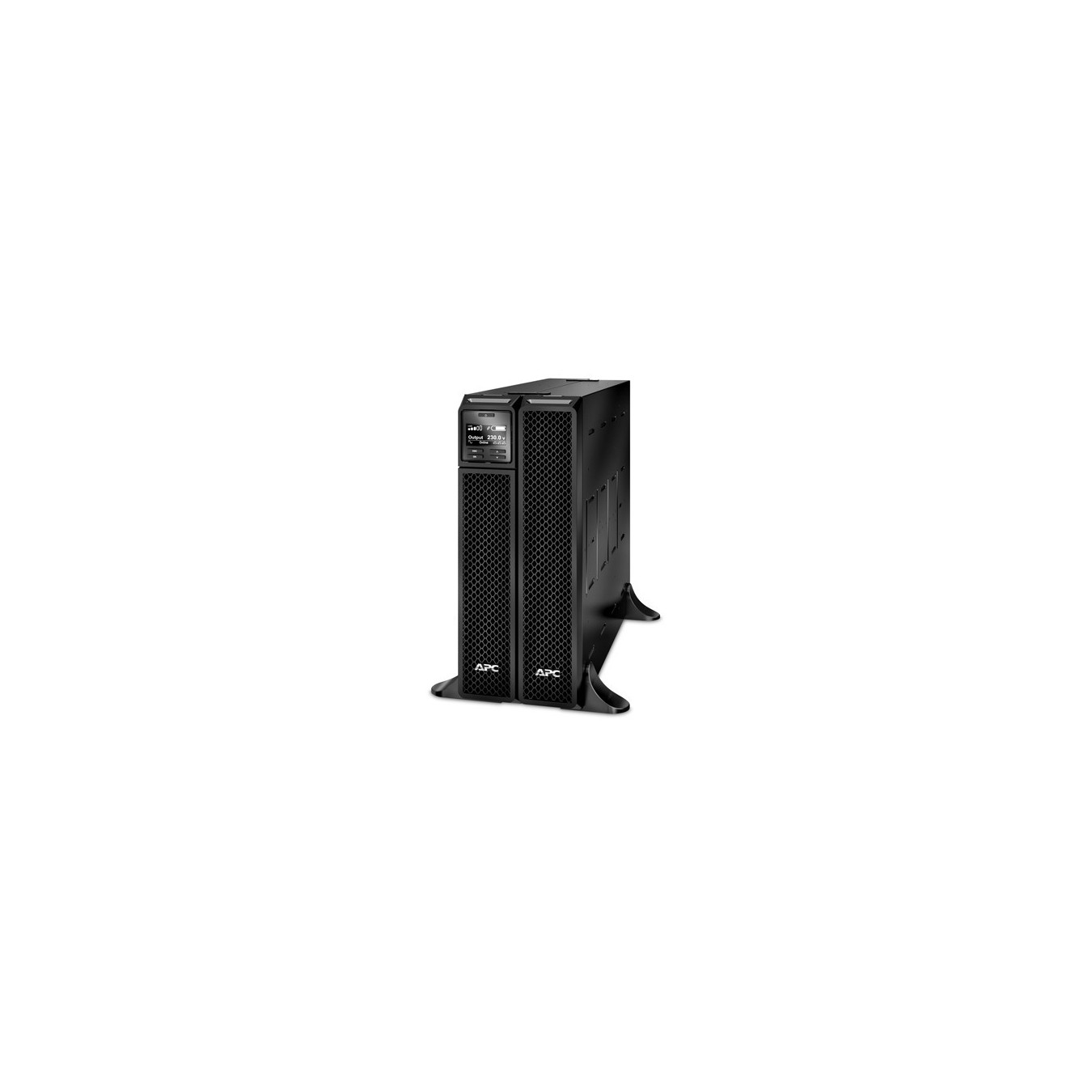

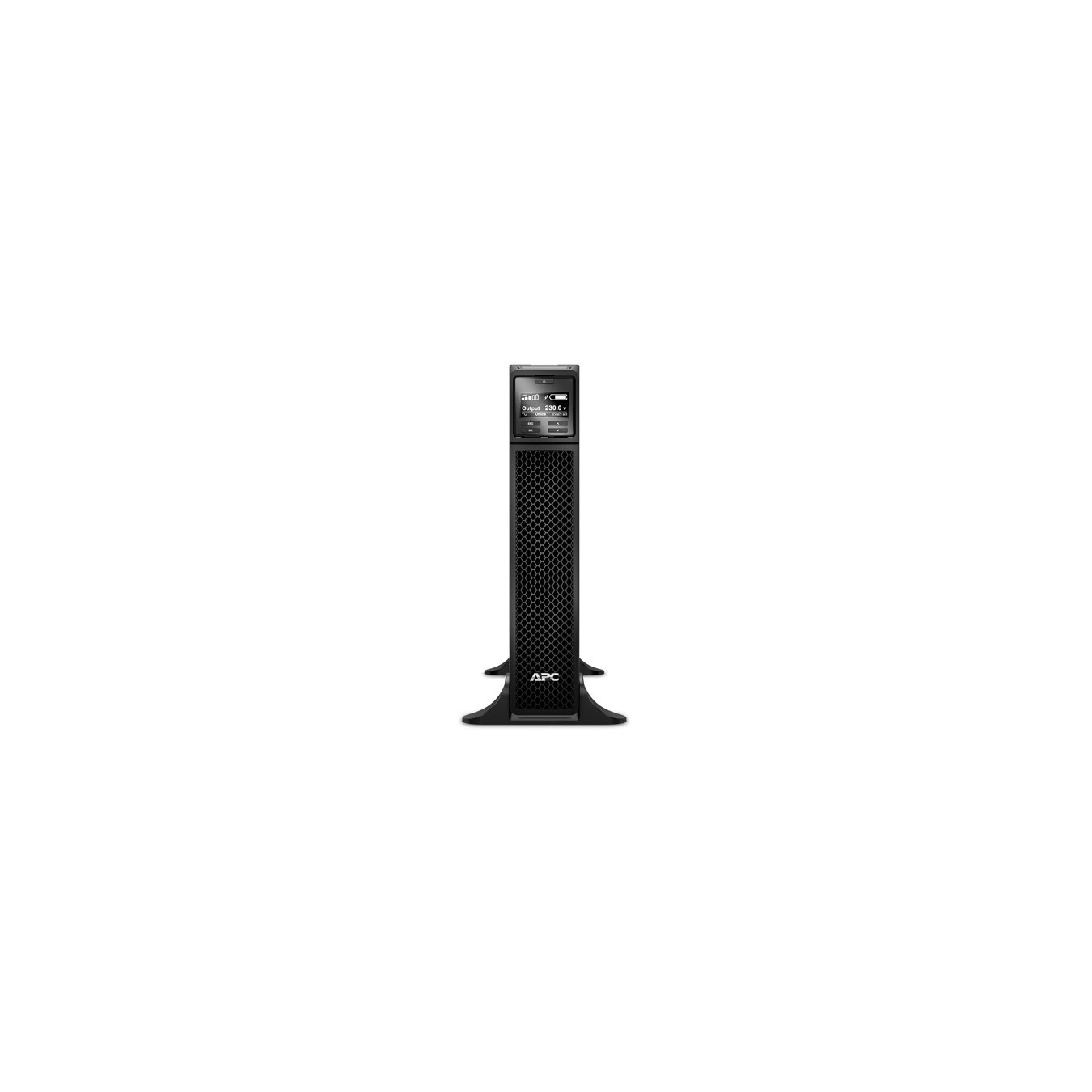

APC Smart-UPS SRT2200XLI - 2200VA/1980W Online UPS, Rack/Tower 2U, 230V, Black
Double-conversion (Online) UPS 2200VA/1980W with 10 IEC outlets (8x C13 + 2x C19), SmartSlot, LCD, extended runtime, rack/tower convertible, 230V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Input Plug | IEC C20 |
|---|---|
| UPS & Power Backup - Output Receptacles | Mixed |
| UPS & Power Backup - Outlets (Qty) | 10 |
APC Smart-UPS On-Line. 2200VA. Tower. 230V. 8x C13+2x C19 IEC outlets. SmartSlot. Extended runtime. W/O rail kit. UPS topology: Double-conversion (Online). Output power capacity: 2.2 kVA. Output power: 1980 W. AC outlet types: C13 coupler. C19 coupler. Power plug: C20 coupler. AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Battery capacity: 367 VAh. Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower. Product colour: Black. Cable length: 2.44 m. Compliance certificates: RoHS. Certification: CE. CE Mark. EAC. EN/IEC 62040-1. EN/IEC 62040-2. RCM. VDE. REACH
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Efficiency | 92.2% |
| Crest factor | 3:1 |
| Feature | Software CD |
| Noise level | 55 dB |

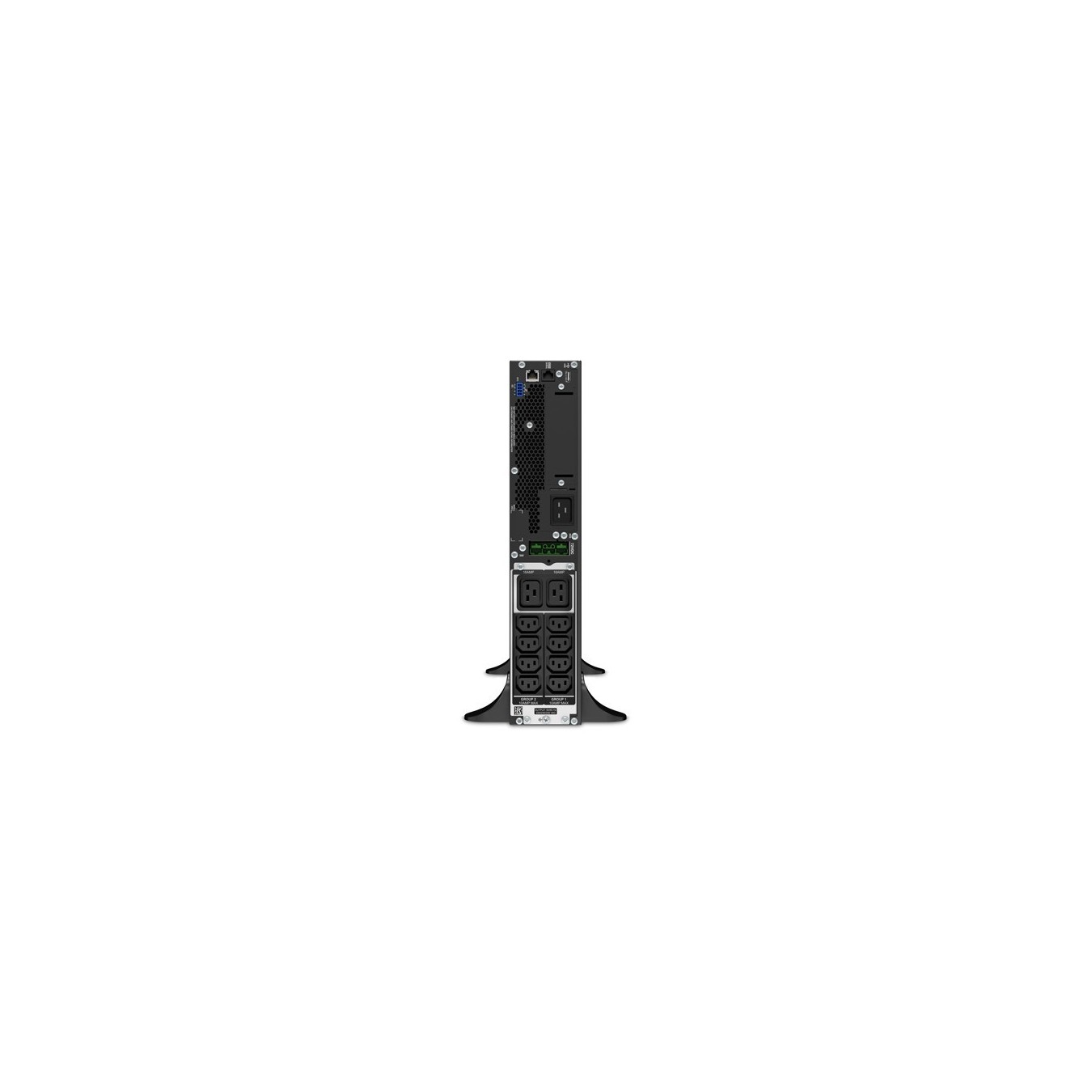

| AC outlet types | C13 coupler. C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Serial interface type | RJ-45 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 367 VAh |
| Number of batteries supported | 1 |

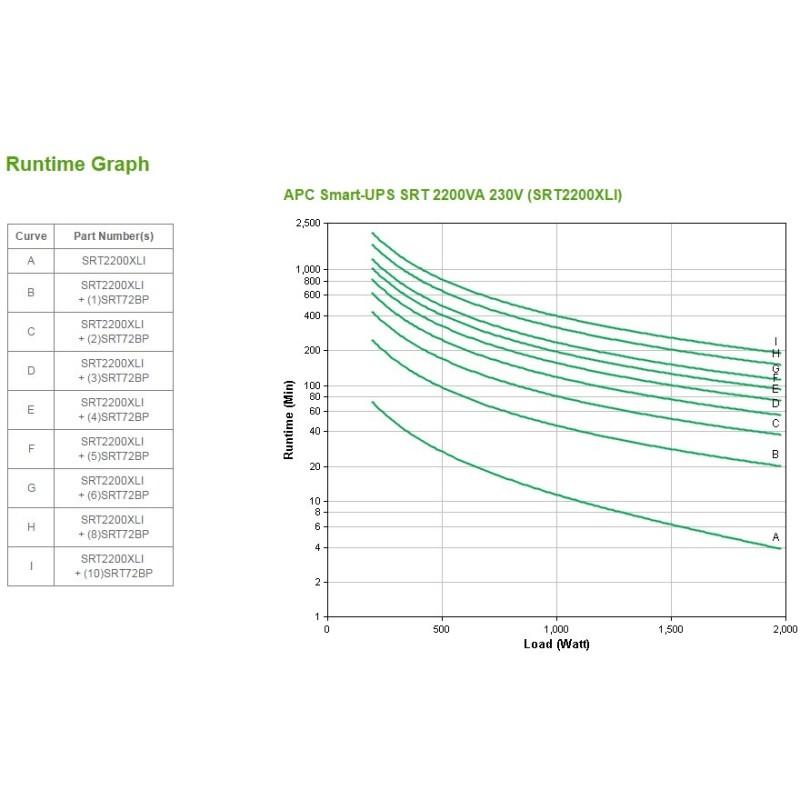

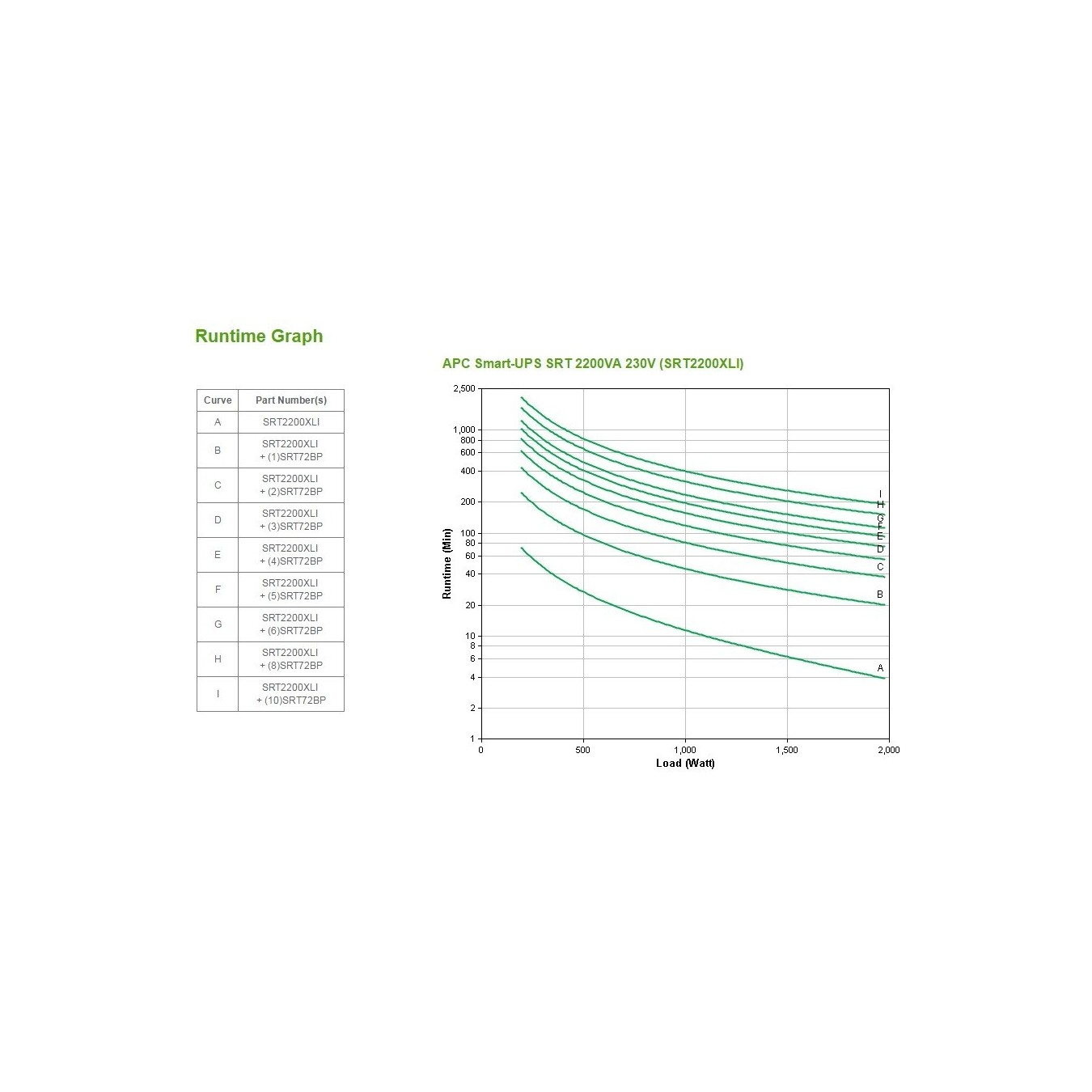

| Typical backup time at full load | 3.9 min |
| Typical backup time at half load | 11.6 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Form factor | Rackmount/Tower |
| Cable length | 2.44 m |
| Product colour | Black |

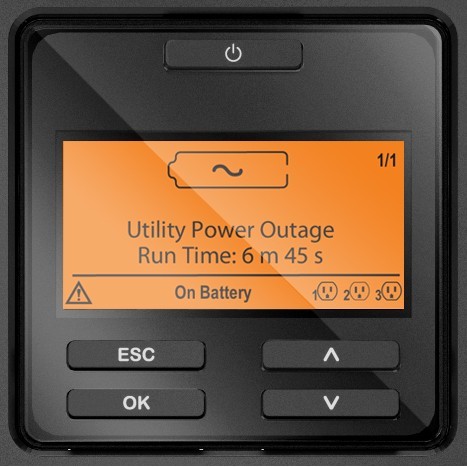

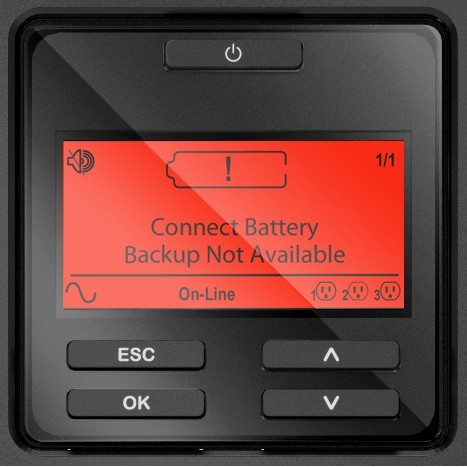

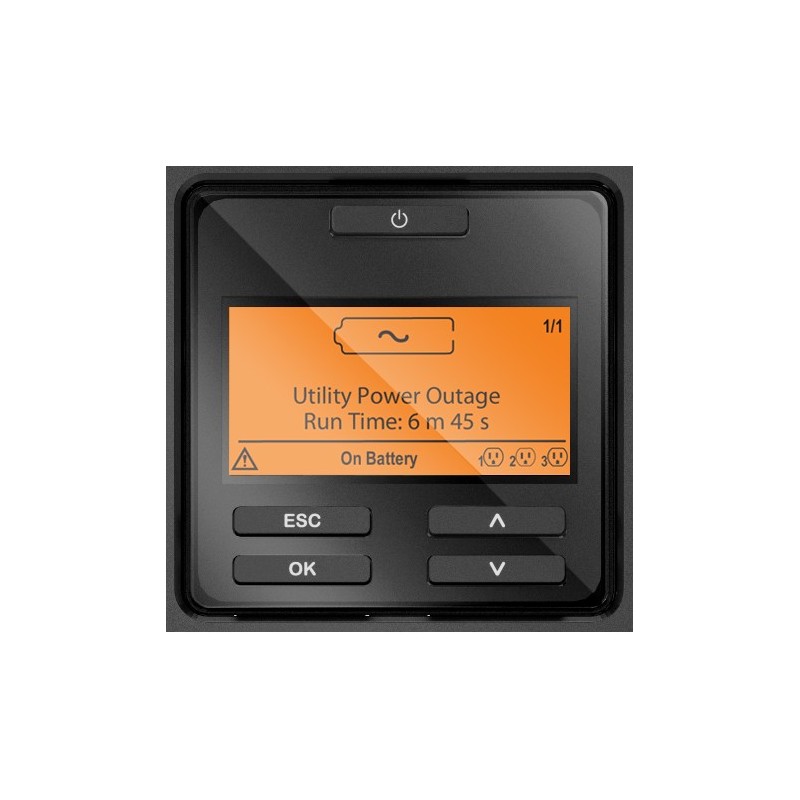

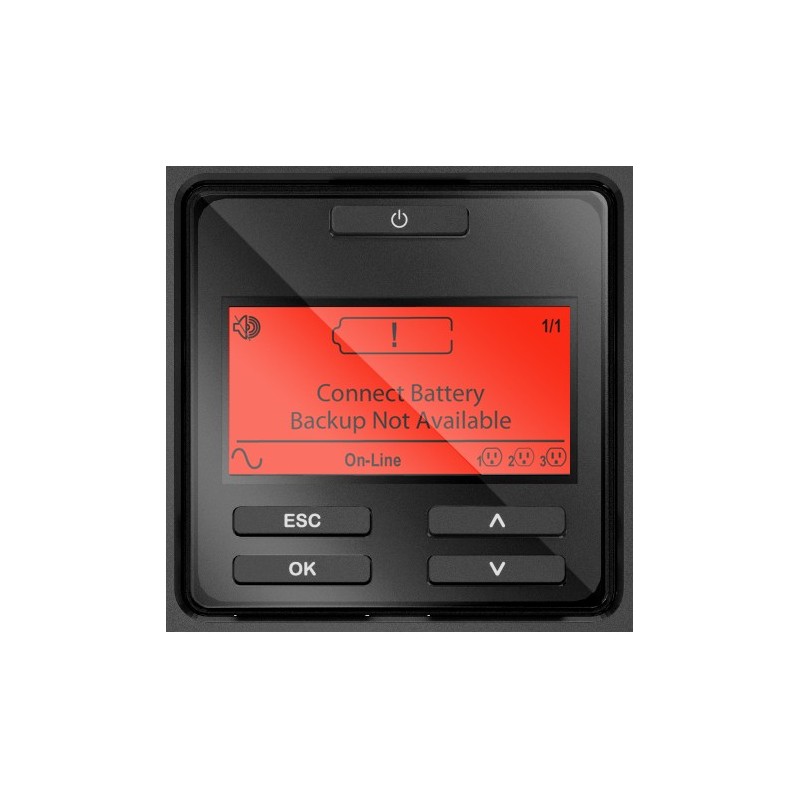

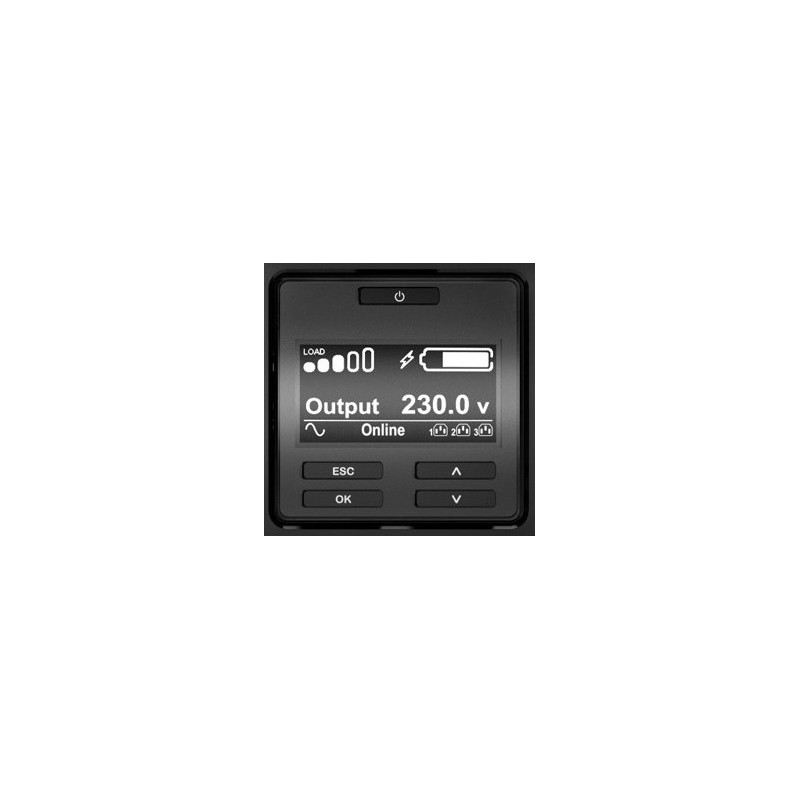

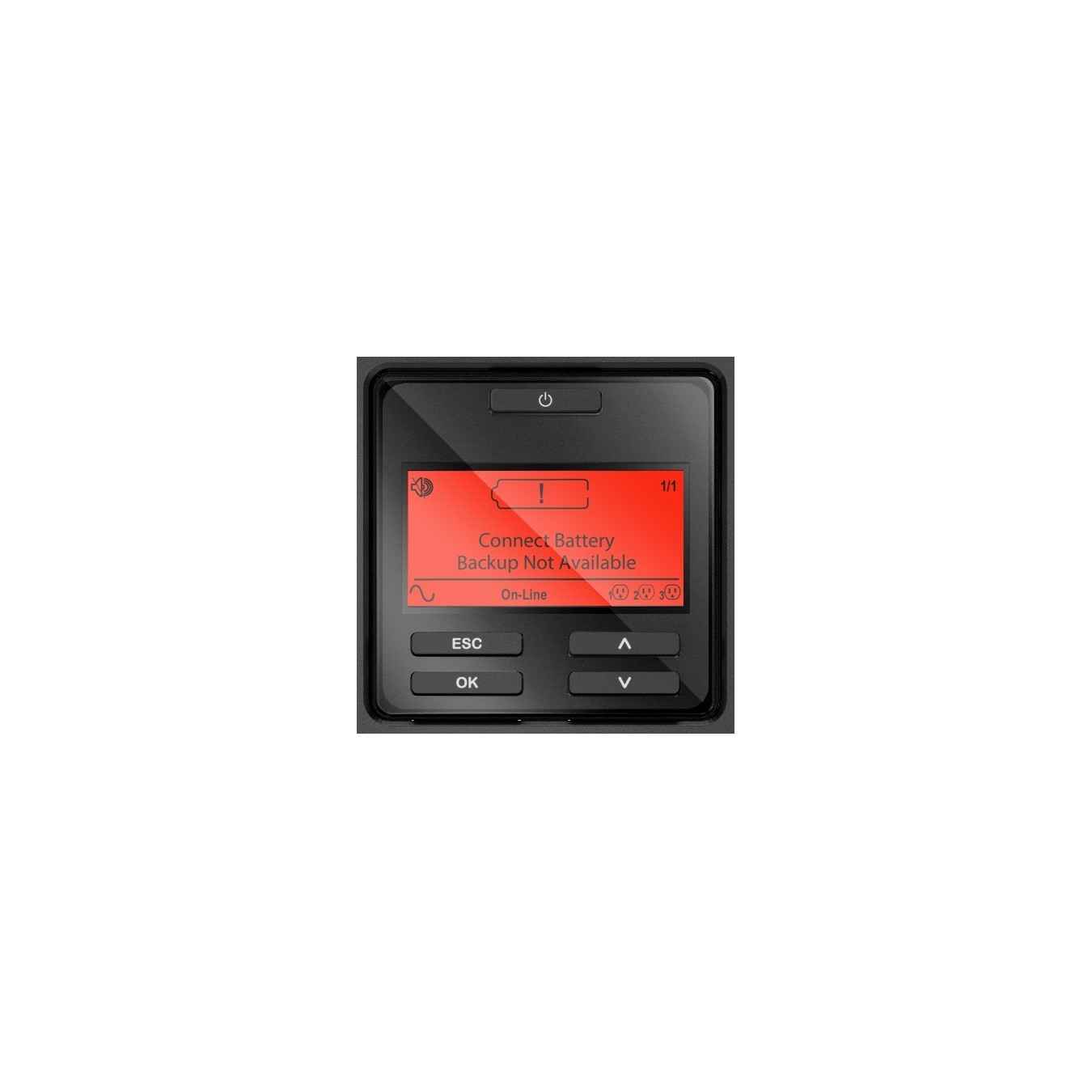

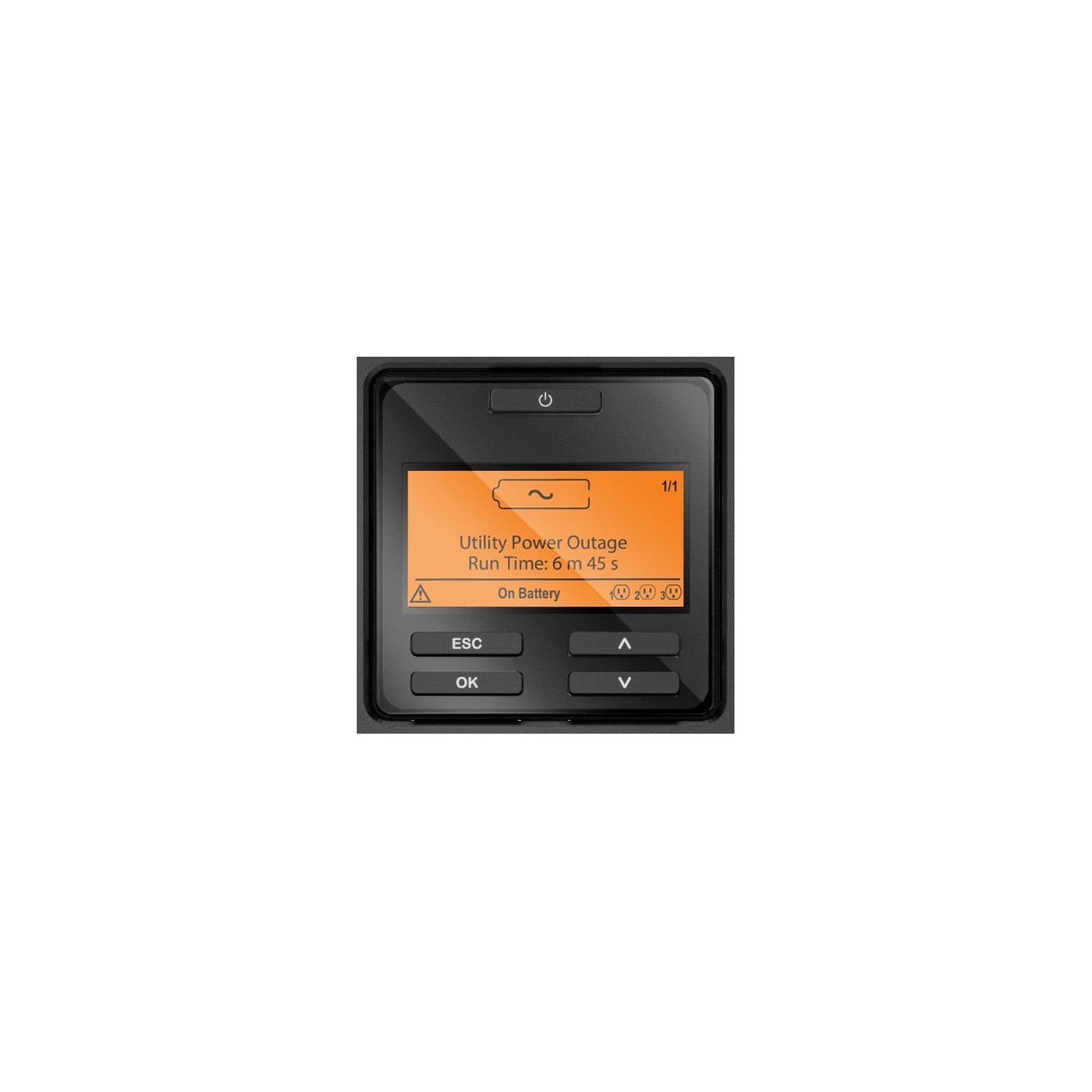

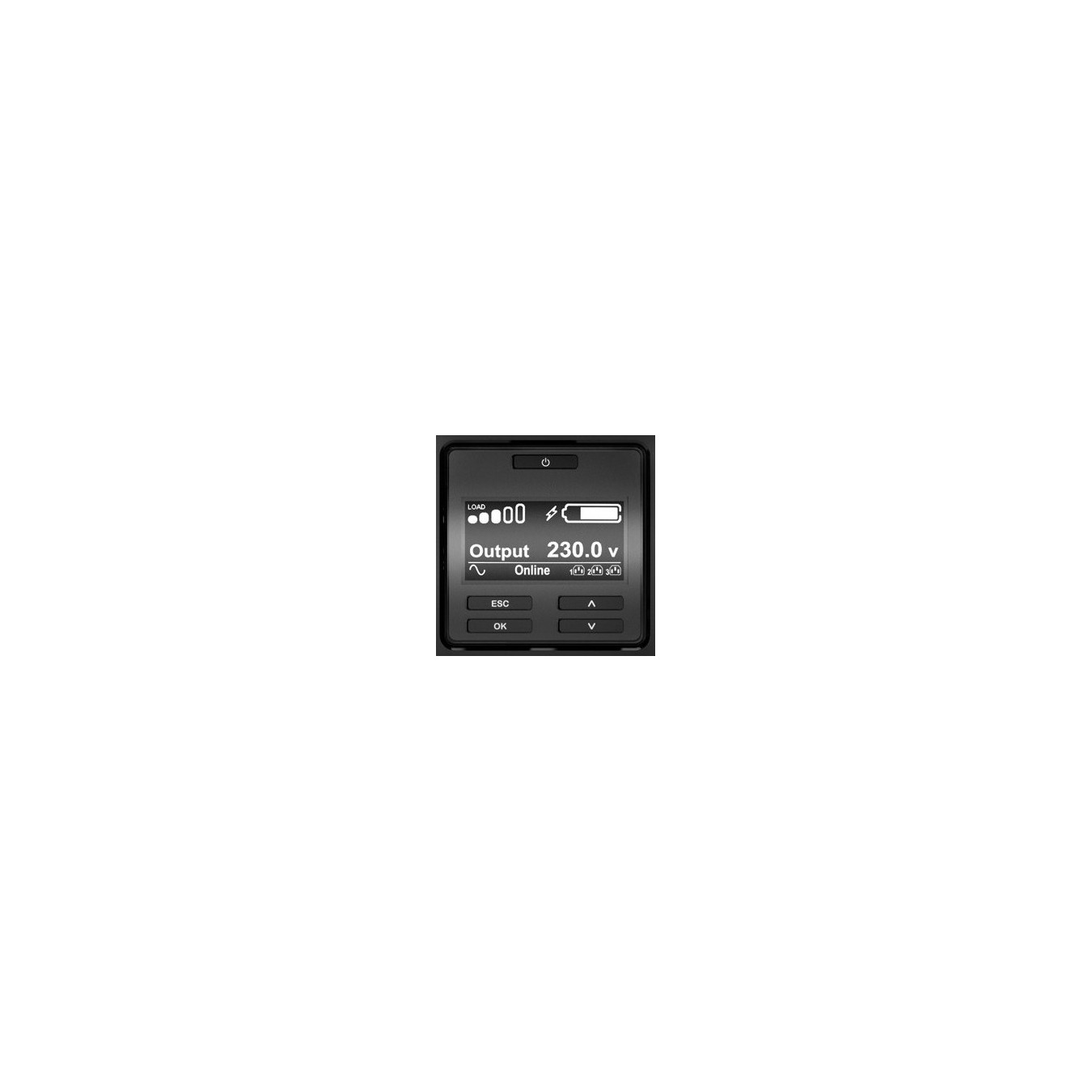

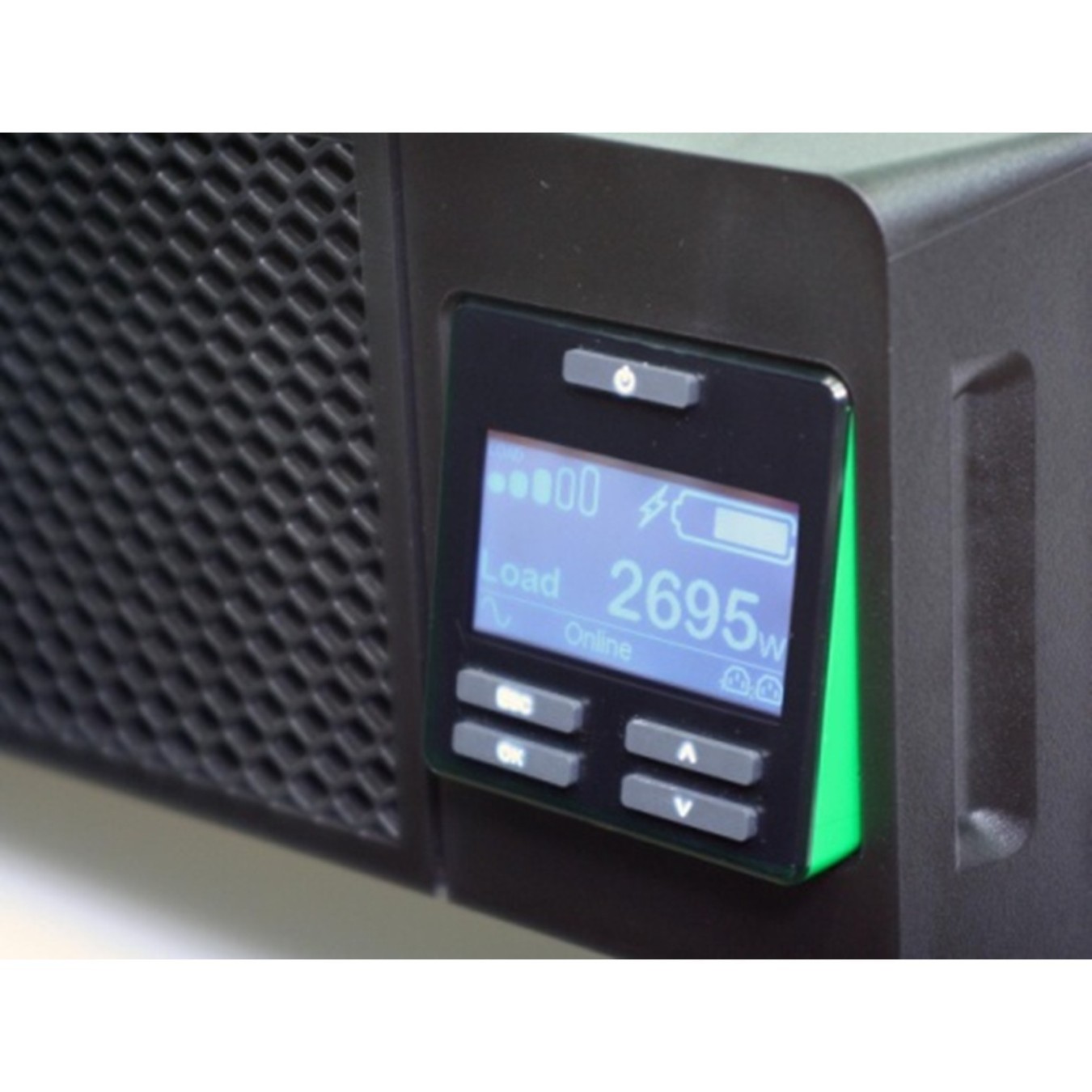

| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CE. CE Mark. EAC. EN/IEC 62040-1. EN/IEC 62040-2. RCM. VDE. REACH |
| Cables included | USB cable |
| Sustainability certificates | ENERGY STAR. Green Premium |
| Width | 85 mm |
| Depth | 584 mm |
| Height | 432 mm |
| Weight | 25 kg |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 30.8 kg |
| Products per pallet | 12 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 3634.43 |
| Interface | SmartSlot |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
