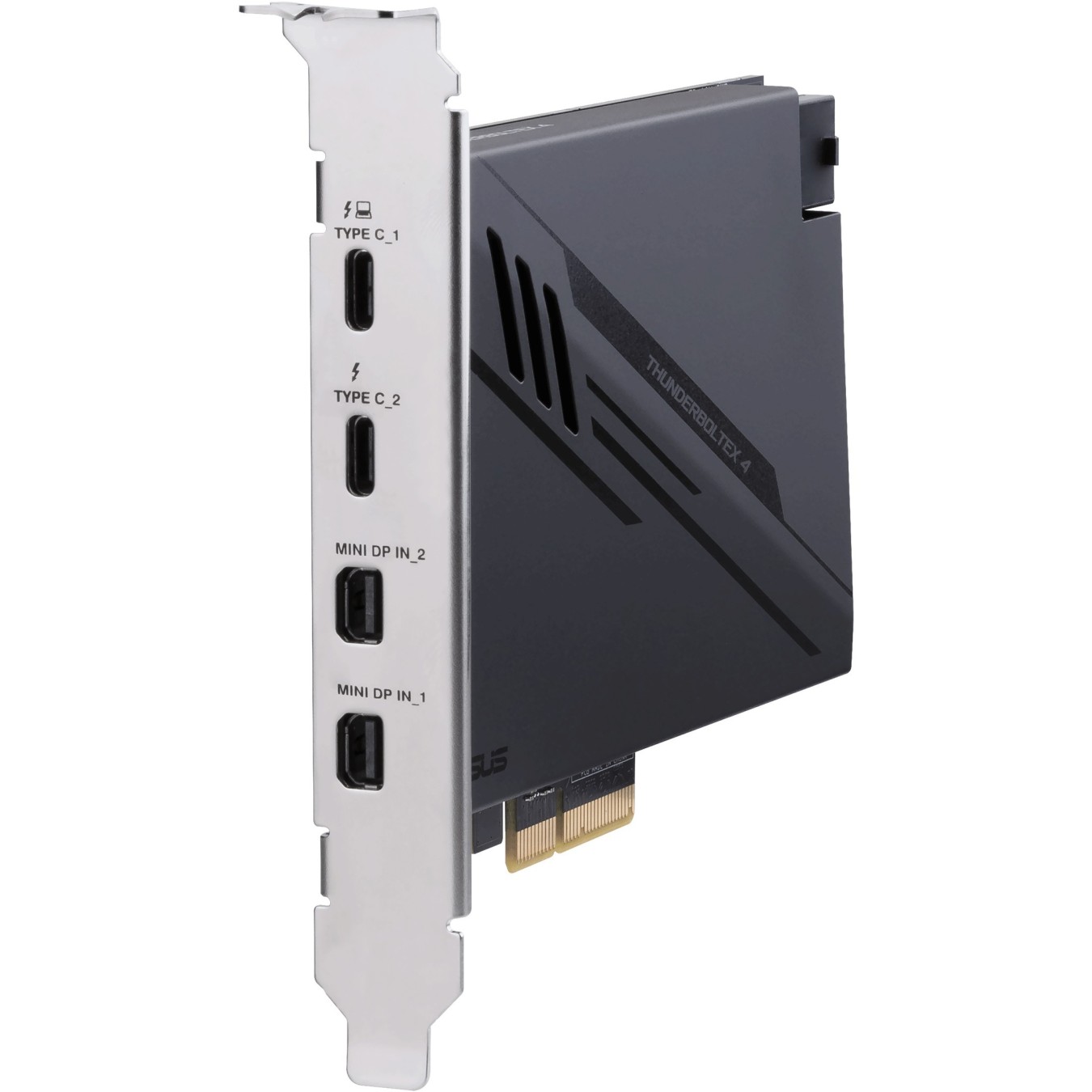

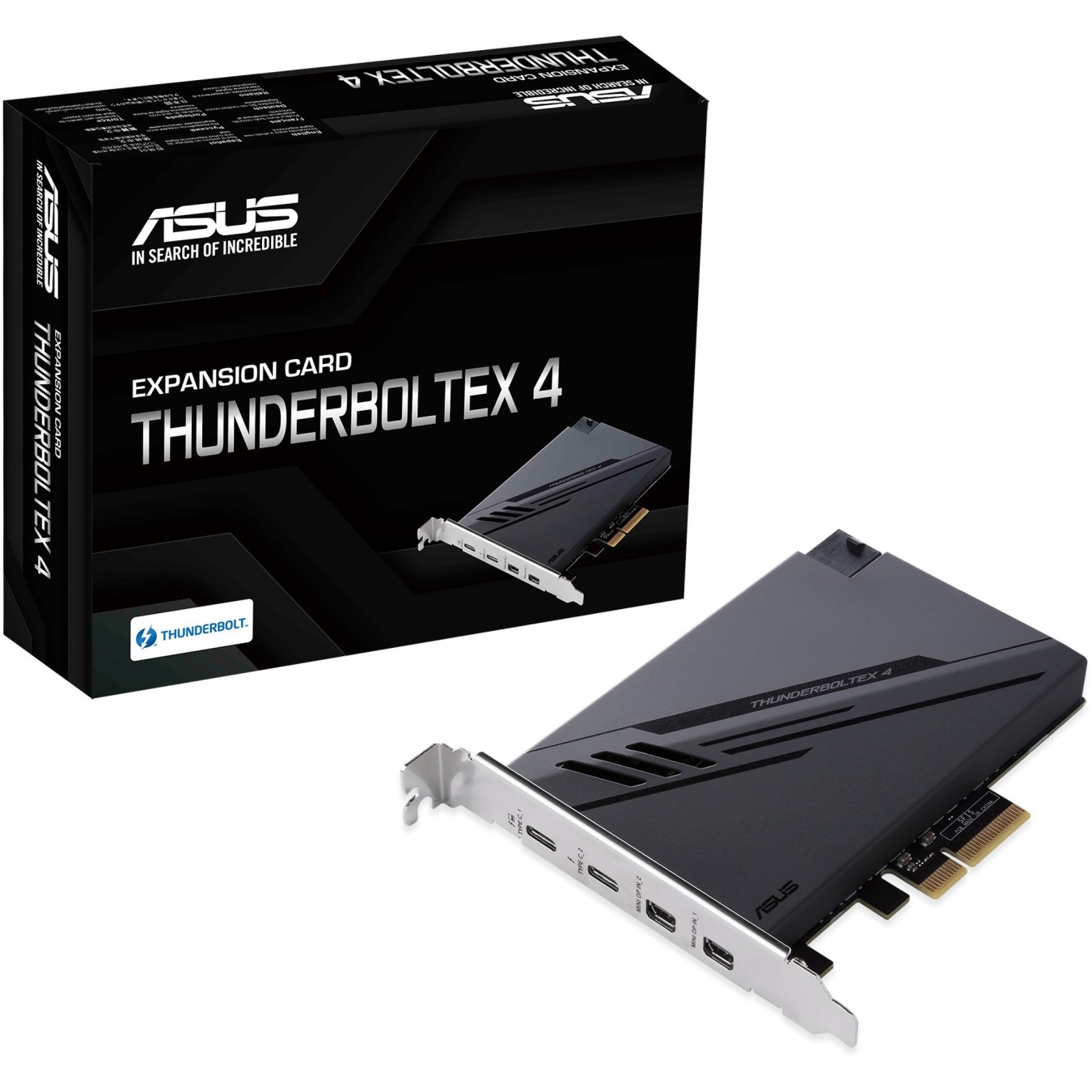

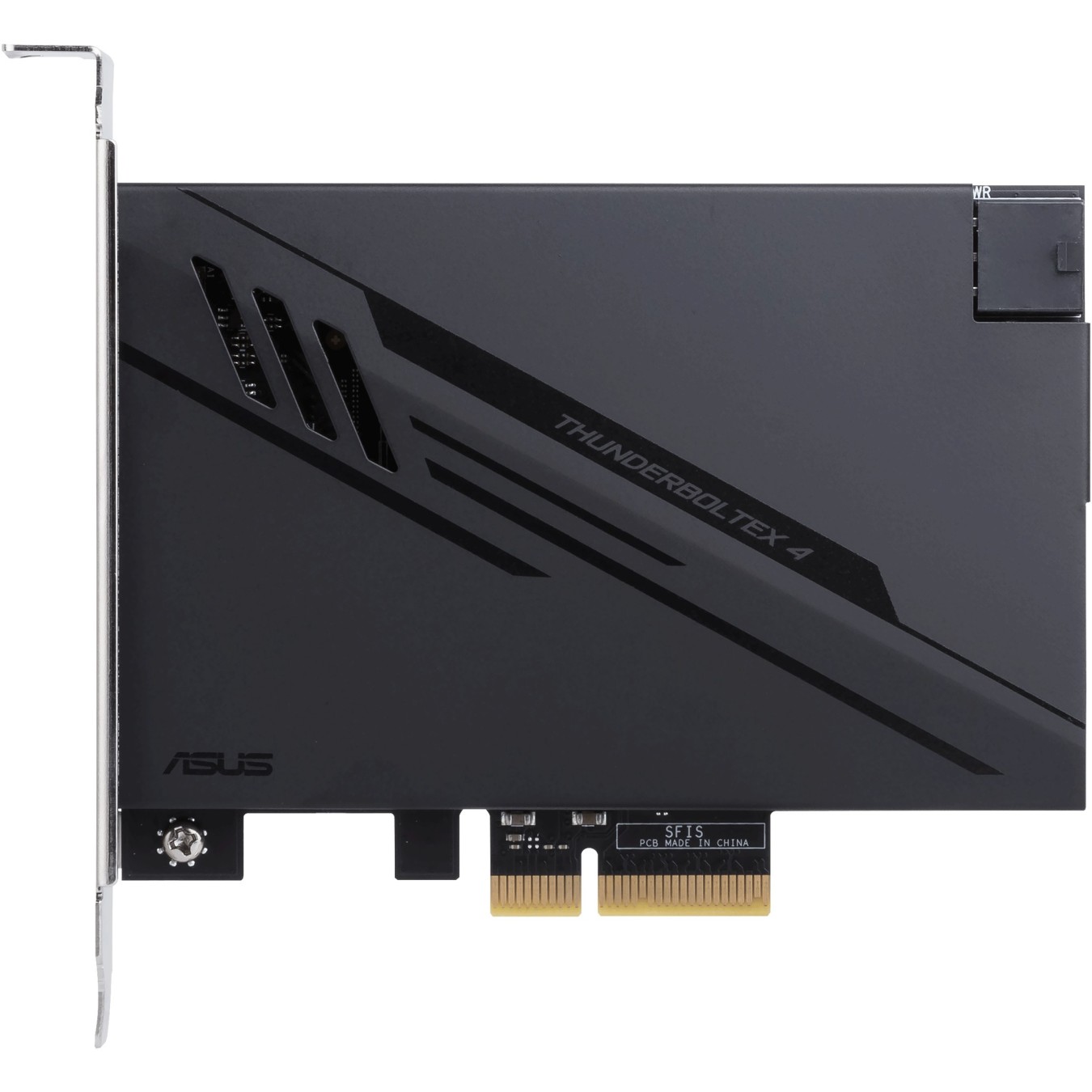

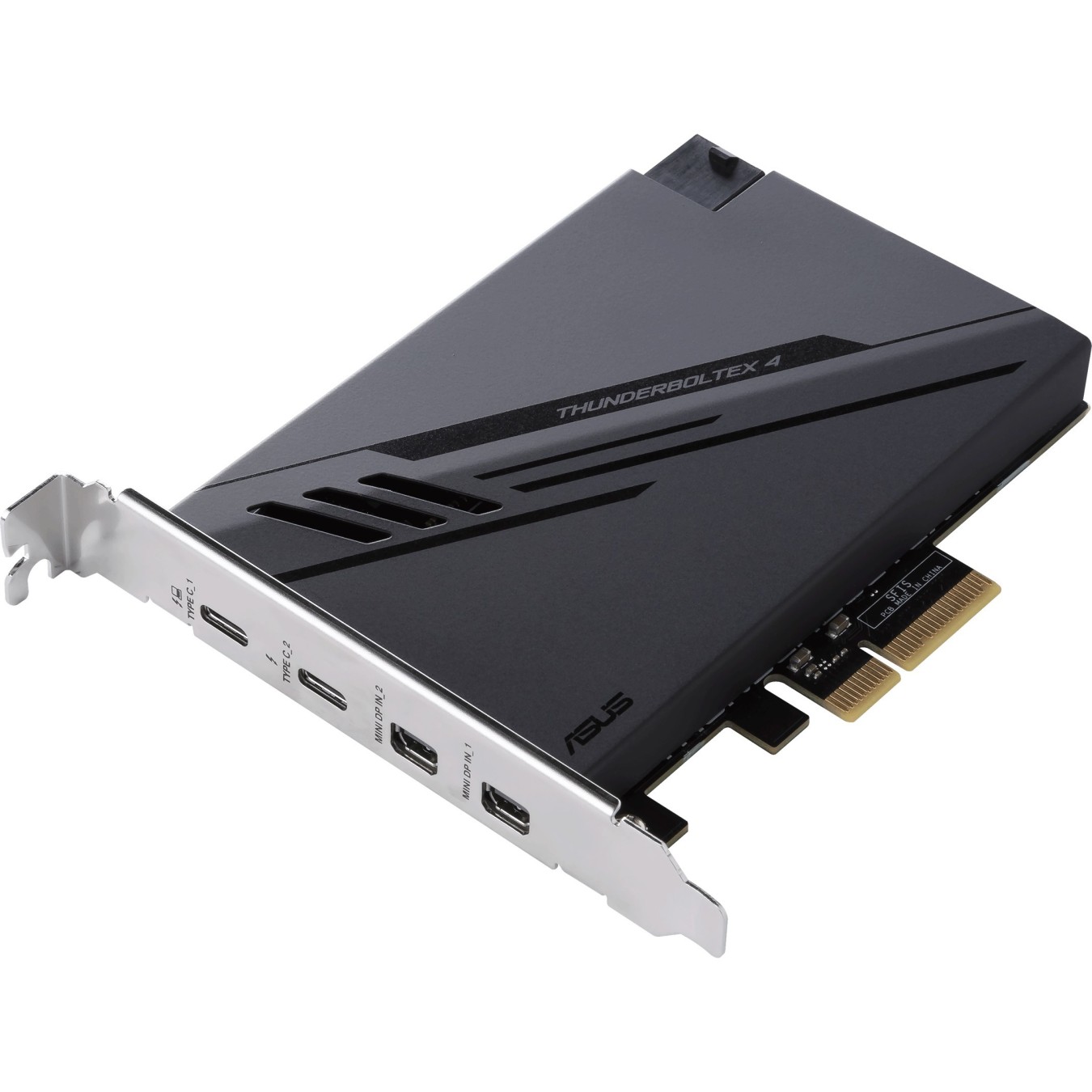

ASUS ThunderboltEX 4 - PCIe 3.0, Thunderbolt 4, Black
ASUS ThunderboltEX 4 PCIe 3.0 expansion card with Thunderbolt 4 (JHL8540); Mini DisplayPort, USB 3.2 Gen 2 Type-C, USB 2.0; Black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Expansion Cards - Type | USB Expansion Card |
|---|---|
| Expansion Cards - Interface | PCIe x4 |
ASUS ThunderboltEX 4. Host interface: PCIe. Output interface: Mini DisplayPort. PCIe. Thunderbolt. USB 2.0. USB 3.2 Gen 2 (3.1 Gen 2). Expansion card standard: PCIe 3.0. Product colour: Black. Purpose: PC. Chipset: Intel Thunderbolt 4 JHL8540. Data transfer rate (max): 40 Gbit/s. Windows operating systems supported: Windows 10 x64. Width: 117.7 mm. Depth: 180.5 mm
| Host interface | PCIe |
| Output interface | Mini DisplayPort. PCIe. Thunderbolt. USB 2.0. USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Feature | Manual |
| Product colour | Black |
| Purpose | PC |
| Chipset | Intel Thunderbolt 4 JHL8540 |
| Data transfer rate (max) | 40 Gbit/s |
| Windows operating systems supported | Windows 10 x64 |
| Width | 117.7 mm |
| Depth | 180.5 mm |
| Quantity | 1 |

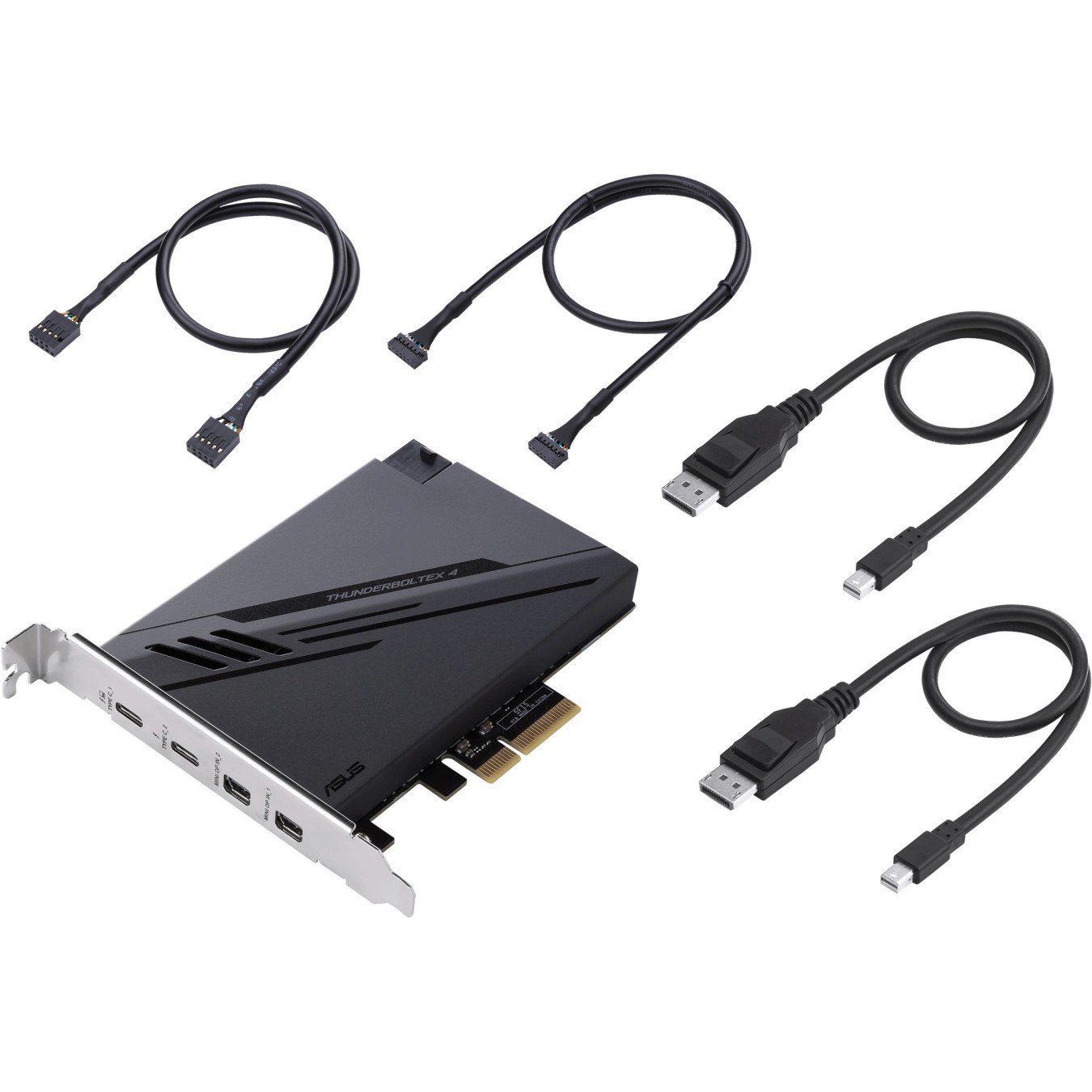

| Cables included | Mini DisplayPort. Thunderbolt. USB |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Maximum resolution | 7680 x 4320 pixels |

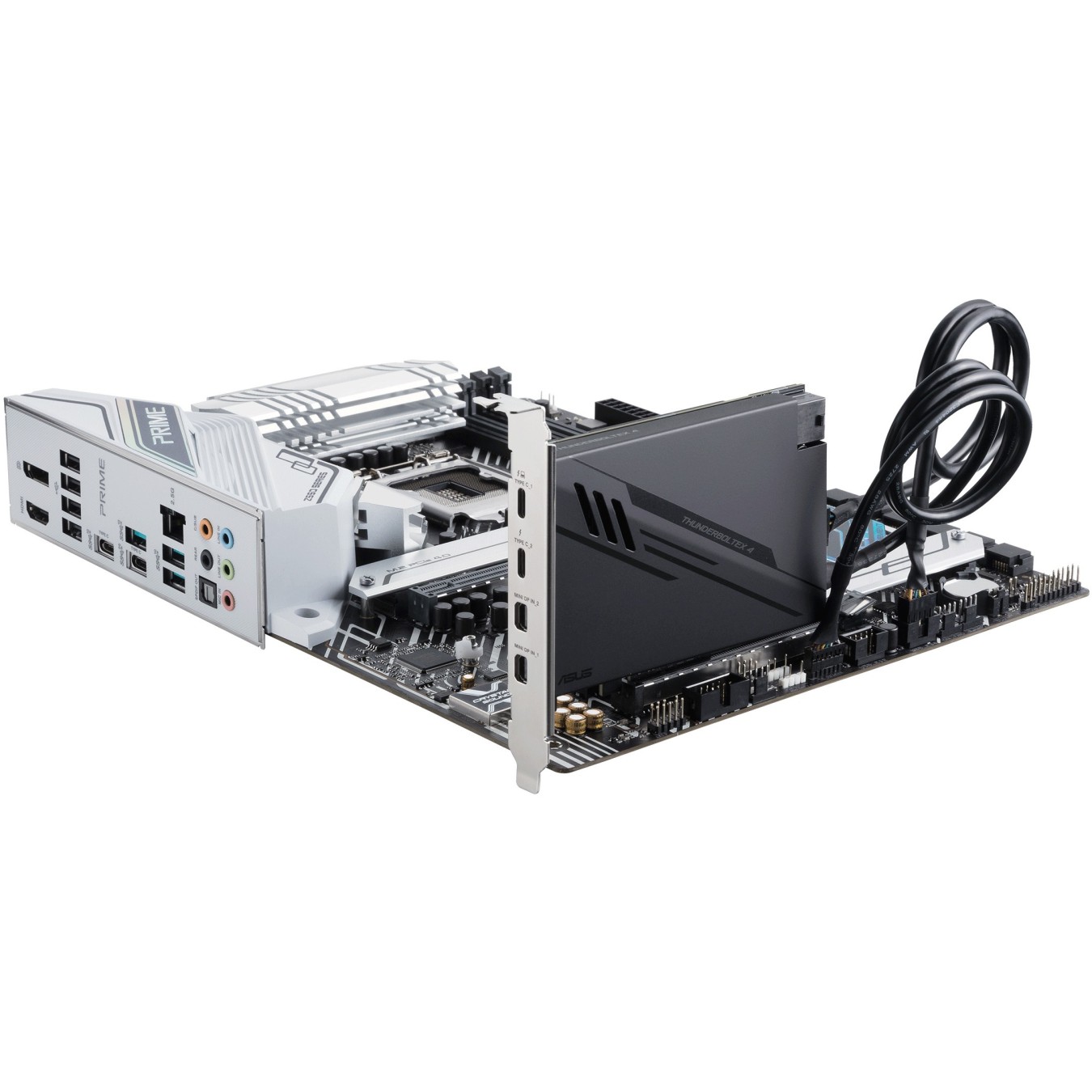

| Compatibility | ASUS Intel 500 |
